Black Box RMT048-R2 User manual

ct Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX (2269)
(outside U.S. call 724-746-5500)
www.blackbox.com • [e-mail]
Contact
Information
February 2010
MT1000A-85-R4
User Manual
Available in 3U and 6U versions.
Flushmount Wall Brackets

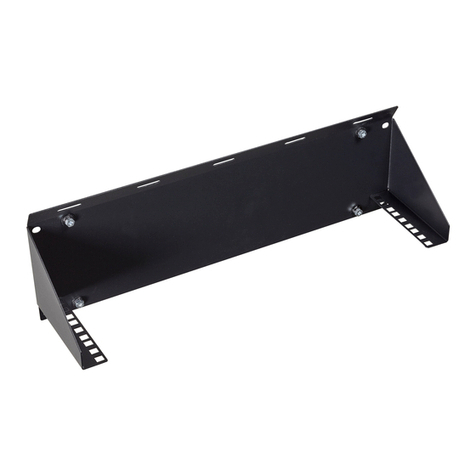

RMT048-R2
RMT052-R2
Specifications
Color — Black, semi-gloss powder-coat finish
Construction — Steel
Mounting Holes — EIA-310 standard for 19" (48.3-cm)
equipment
Dimensions — RMT048-R2: 6.4"H x 20.3"W x 5.6"(3U) D
(16.2 x 51.5 x 14.3 cm);
RMT052-R2: 6.28"H x 20.3"W x 10.9"(6U) D
(15.9 x 51.5 x 27.6 cm)
Weight Capacity — 100 lb. (45 kg)
Weight — RMT048-R2: 2.27 lb. (1 kg);
RMT052-R2: 4.7 lb. (2.1 kg)
Features
• Flushmount equipment vertically against a wall.
• Durable sturdy construction.
• Weight capacity 100 pounds total and verified.
• Square holes/M6 cage nuts accommodate 19"
equipment.
• Available in 3U and 6U versions.
• Integrated cable management tie-down.
• Mounts on 16-inch and 19.2-inch wall stud cemters.
• Durable, black, smooth, semi-gloss, powder-coat finish.
What’s Included
• Flushmount Wall Bracket
• (18) M6 cage nuts
• (18) M6 x 12-mm phillips-head mounting screws
• (4) 1/4"-10 x 2" lag screws for mounting
• (4) 1/4"-10 lockwashers
• (4) 1/4"-10 flat washers
NOTE: Bracket package does not include network switch.
RMT048-R2 RMT052-R2

FREE, live, 24/7 Tech Support is just 60 seconds away.
877-877-BBOX (2269) | BlackBox.com
Mounting Diagrams
© Copyright 2016. Black Box Corporation. All rights reserved. Black Box®and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Double Diamond™is a trademark of
BB Technologies, Inc. Any third-party trademarks appearing in this manual are acknowledged to be the property of their respective owners.
RMT048-R2_RMT052-R2, version 3
NOTE: Wall brackets can only be installed onto a continous and flat drywall
or plywood wall with all provided screws fastened into solid wood studs.
Figure 1. Cables and equipment installed
in the RMT048-R2 bracket
mounted on a wall.
Figure 2. Cables and equipment installed
in the RMT052-R2 bracket
mounted on a wall.
Figure 3. Mounting the RMT048-R2
bracket to solid wood studs. Figure 4. Mounting the RMT052-R2
bracket to solid wood studs.
