Black Stone AIRFRYER COMBO User manual

North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com
AIRFRYER
COMBO
Parts & Assembly
MODEL 
CONFORMS TO ANSI Z21.89-2017 /
CERTIFIED TO CSA 1.18-2017 OUTDOOR
COOKING GAS APPLIANCES.
5015923

Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Airfryer Combo | Parts & Assembly

1.8 1.9
1.7
PARTS & ASSEMBLY

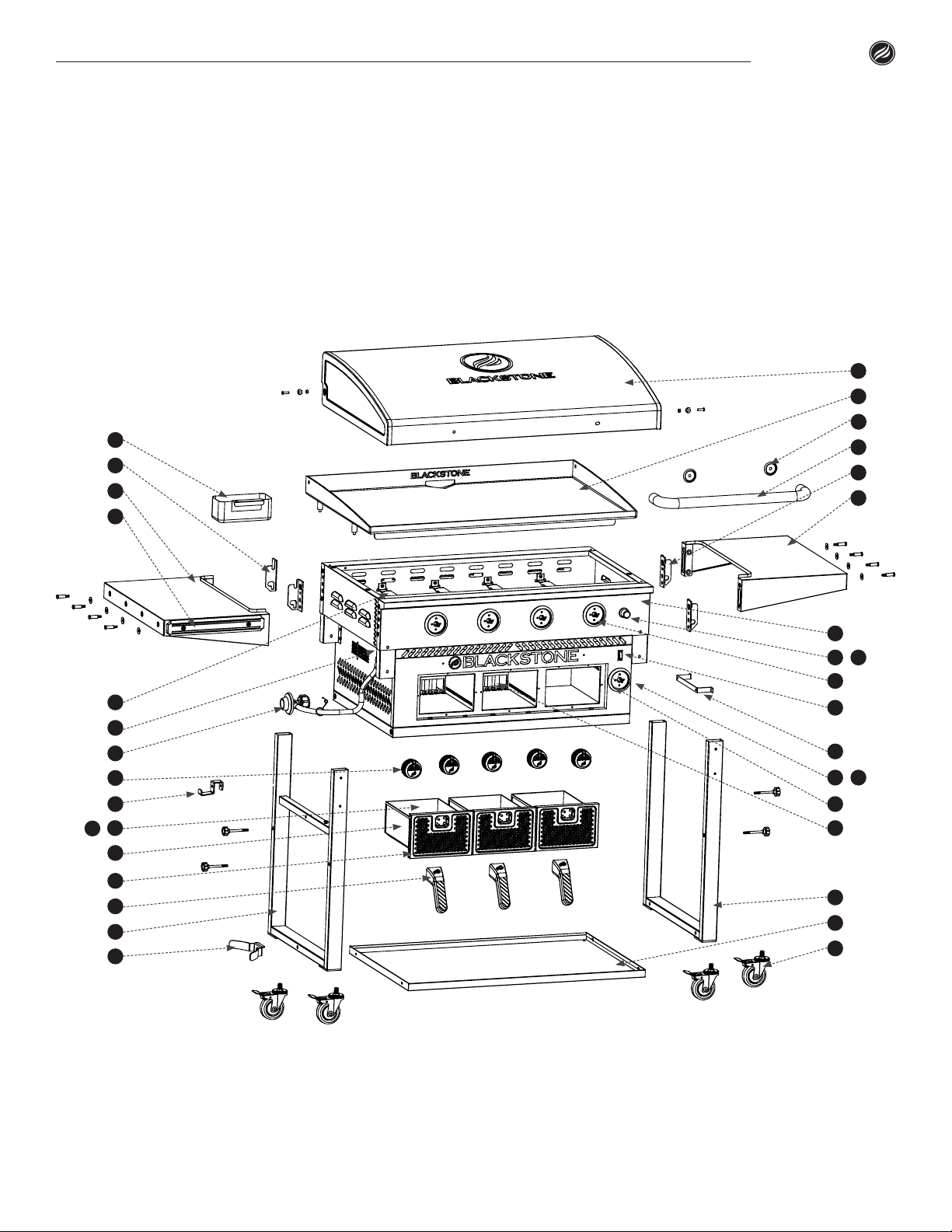

EXPLODED VIEW
4.2
11
15
1
1.1
1.2
1.3 1.4
1.5a
1.5b
1.6 1.10
2
3
4.1
4.2
5.1
5.2
6
7
8.1
8.2a 8.2b
8.3
8.4
9.1
9.2
10
11
12
13
14
15
16 17
Airfryer Combo | Parts & Assembly
01

PARTS LIST
ITEM PART DESCRIPTION PART # QTY
1Griddle Unit Body Assembly RP 91601 1
1.1 Control knob bezel RP 91024 1
1.2 Air fryer control knob bezel RP 91634 1
1.3 Electric Igniter RP 91021 1
1.4 Electric igniter wire (5pcs per 1
set) with electrode
RP 91622 1
1.5a Gas Rail & Valves RP 91612 1
1.5b Regulator Hose RP 91617 1
1.6 Tubular burner for gas griddle RP 91616 1
1.7 H-burner for Air fryer RP 91609 1
1.8 Motor assembly RP 91615 1
1.9 Power Cord RP 91650 1
1.10 Motor Switch RP 91651 1
2Griddle Top RP 91608 1
3Lid RP 91606 1
4Lid Handle (1pc) & Lid Handle
Bezel (2pcs)
RP 91636 1
4.1 Lid Handle RP 91611 1
4.2 Lid Handle Bezel RP 90931 1
5Left Side Shelf assembly RP 91603 1
5.1 Left Side Shelf RP 91639 1
5.2 Magnetic Strip RP 91042 1
6Right Side Shelf RP 91604 1
7Grease Tray RP 91640 1
8Drawer Assembly & Drawer
Handle
RP 91628 1
8.1 Drawer body RP 91629 1
8.2a Drawer Trivet RP 91630 1
8.2b Silicone Pan (4pcs per pack) RP 91652 1
8.3 Drawer Front panel RP 91631 1
8.4 Drawer Handle RP 91632 1
9.1 Left Leg Assembly RP 91605 1
9.2 Right Leg Assembly RP 91607 1
10 Lockable Caster Wheel RP 90338 1
11 Power Cord Bracket RP 91633 1
12 Bottom Tray RP 91602 1
ITEM PART DESCRIPTION PART # QTY
13 Control Knob RP 90065 1
14 Propane Tank Holder RP 91213 1
15 Propane Tank Hanger RP 91614 1
16 Left shelf brackets RP 91637 1
17 Right shelf brackets RP 91638 1
18 Hardware Pack RP 91618 1
18.1 M6X20mm Screw RP 91649 2
18.2 Washer RP 91641 8
18.3 Lid Spacers RP 91642 2
18.4 M6 Step Bolts RP 91643 8
18.5 M5X15mm Screw RP 91644 12
18.6 M6 Lock Nut RP 91645 2
18.7 M6X12mm Screw RP 90031 19
18.8 Side Shelf Peg RP 91520 8
18.9 M6X15mm Screw RP 91647 8
18.10 M6 Thumbscrew RP 91648 4
Airfryer Combo | Parts & Assembly
02

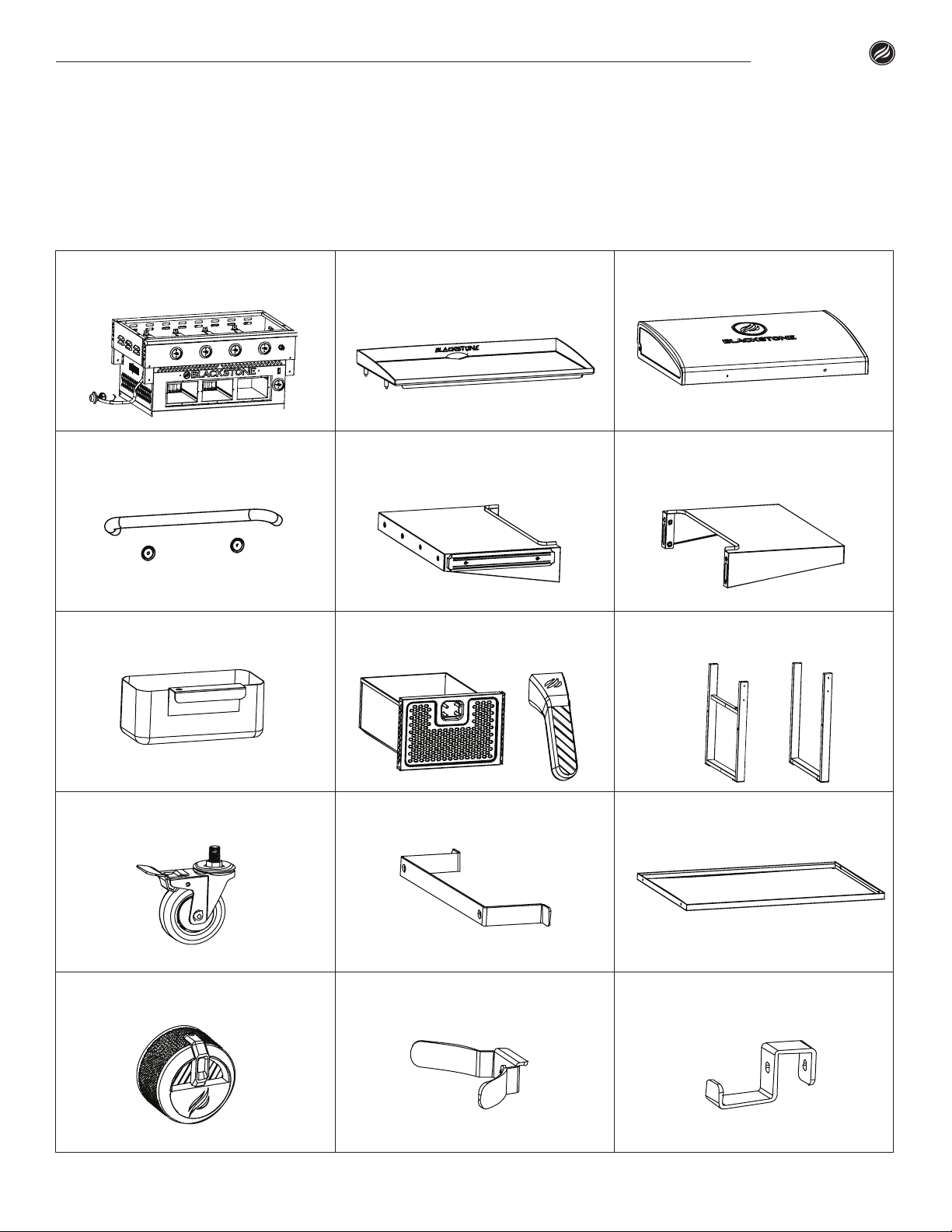

ILLUSTRATED PARTS LIST
01. Griddle unit body (1 piece) 02. Griddle top (1 piece) 03. Lid (1 piece)
04. Lid handle (1 piece) &
Lid handle bezel (2 pieces) 05. Le side shelf (1 piece) 06. Right side shelf (1 piece)
07. Grease tray (1 piece) 08. Drawer assembly (3 pieces) &
Drawer handles (3 pieces) 09. Le leg (1 piece) & Right leg (1 piece)
10. Lockable caster wheels (4 pieces) 11. Power cord bracket (1 piece) 12. Bottom Tray (1 piece)
13. Control knob (5 pieces) 14. Propane tank holder (1 piece) 15. Propane tank hanger (1 piece)
Airfryer Combo | Parts & Assembly
03

ELECTRIC REQUIREMENTS: 120V 60Hz 1.0A

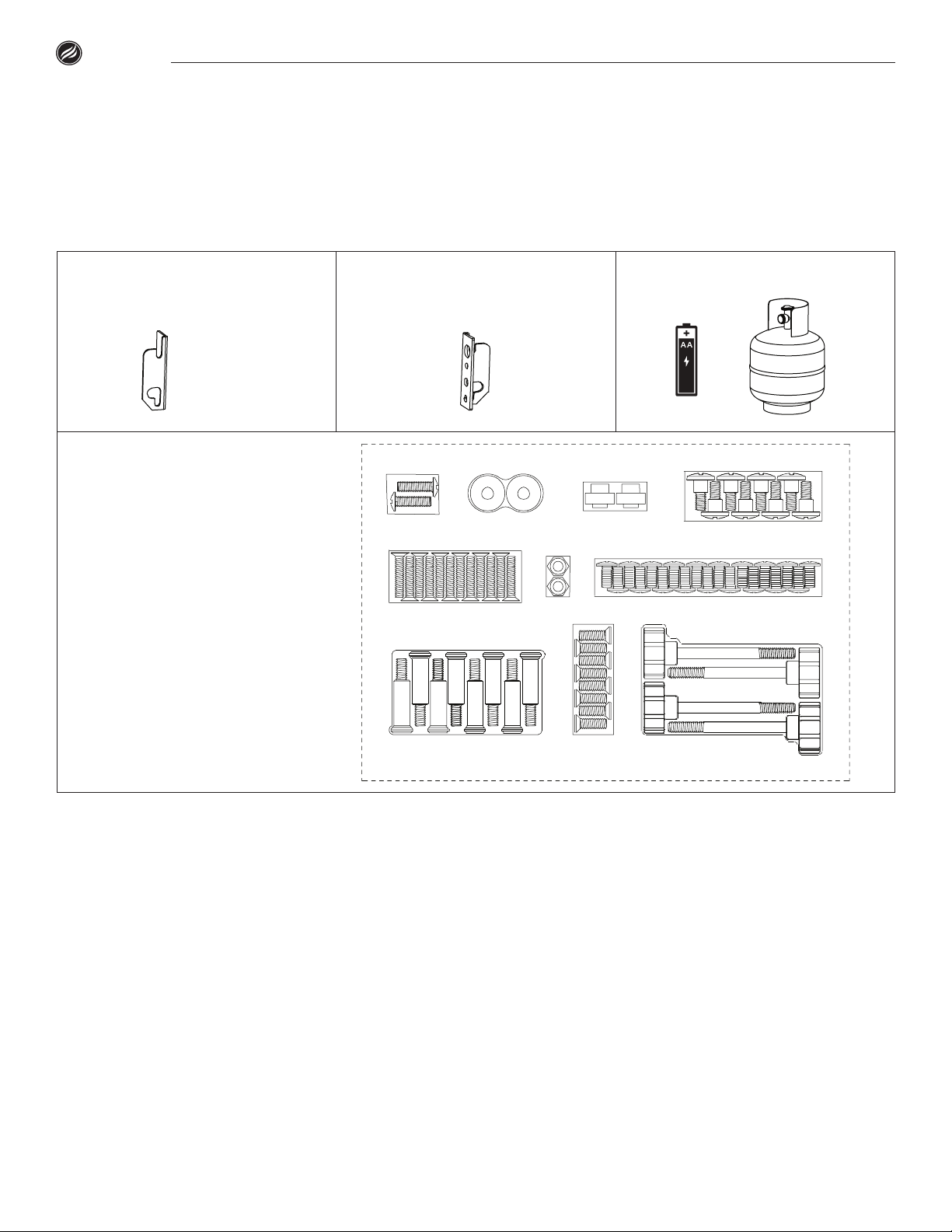

16. Le shelf brackets (a) (2 pieces) 17. Right shelf brackets (b) (2 pieces) NOT INCLUDED - 20lb LP Gas Tank
& AA Battery
18. Hardware pack (1 piece)
a. M6x20 screw (2 pieces)
b. Washer (8 pieces)
c. Lid spacers (2 pieces)
d. M6 Step bolt (8 pieces)
e. M5x15 screw (12 pieces)
f. M6 lock nut (2 pieces)
g. M6x12 screw (19 pieces)
h. Side shelf peg (8 pieces)
i. M6x15 screw (8 pieces)
j. M6 Thumbscrew (4 pieces)
a. b. c. d.
e. f. g.
h.
i.
j.
Airfryer Combo | Parts & Assembly
04

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
Attach the le and right legs to the bottom tray with four (4) M6X12 screws.
STEP 02
Turn the assembled legs and tray upside down and screw on the four (4) lock-
able caster wheels. Be sure that the wheels are locked before attaching them.
Before proceeding, loosen all eight
(8) screws on the griddle body
assembly one (1) turn.
Airfryer Combo | Parts & Assembly
05

!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.

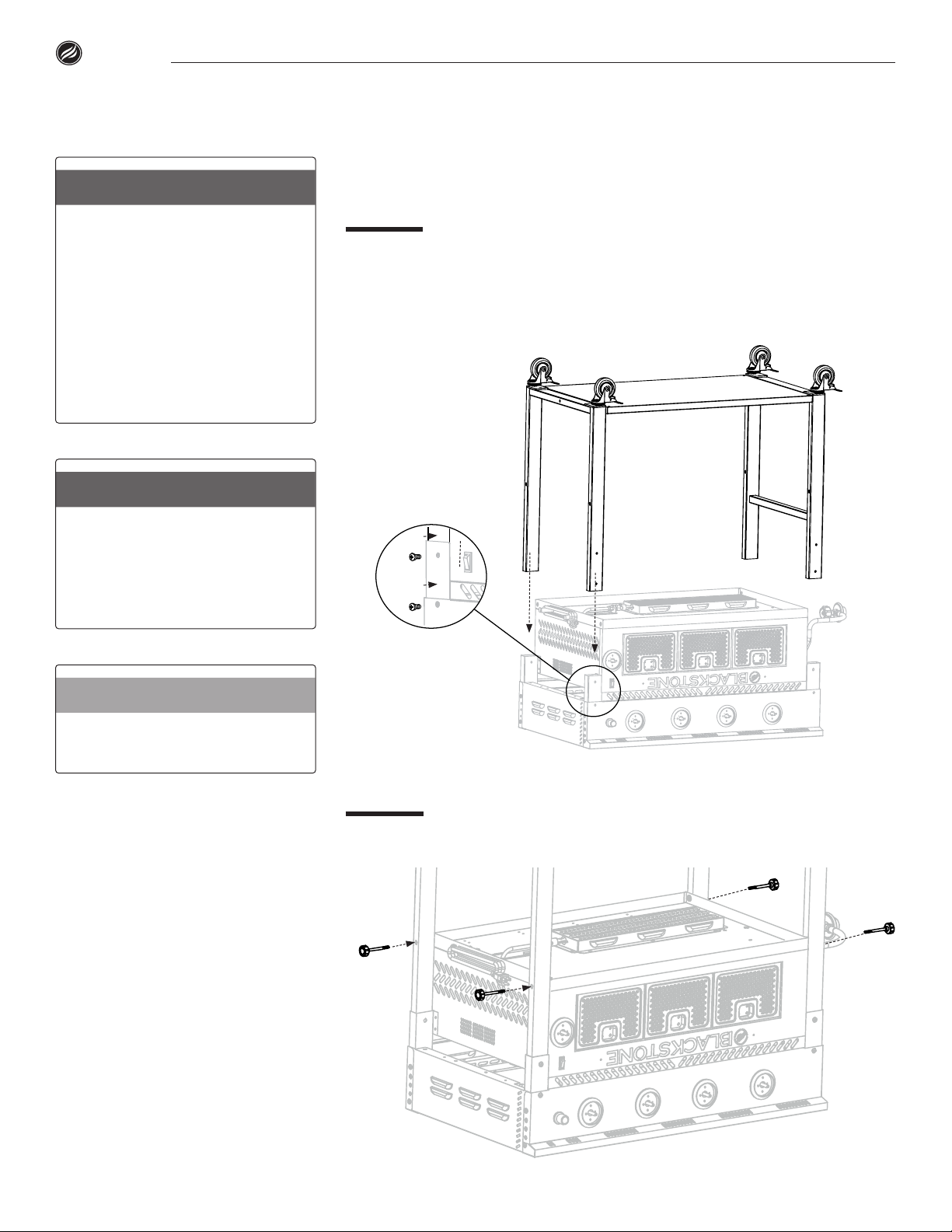

STEP 03
With the help of another person, place the griddle body upside down on a
at surface. Slide the legs into the slots on the griddle body and attach them
with two (2) M6X12 screws on each of the four corners. Tighten the eight (8)
screws on the griddle body.
STEP 04
Using four (4) thumbscrews, attach the legs to the airfryer body.
Airfryer Combo | Parts & Assembly
06

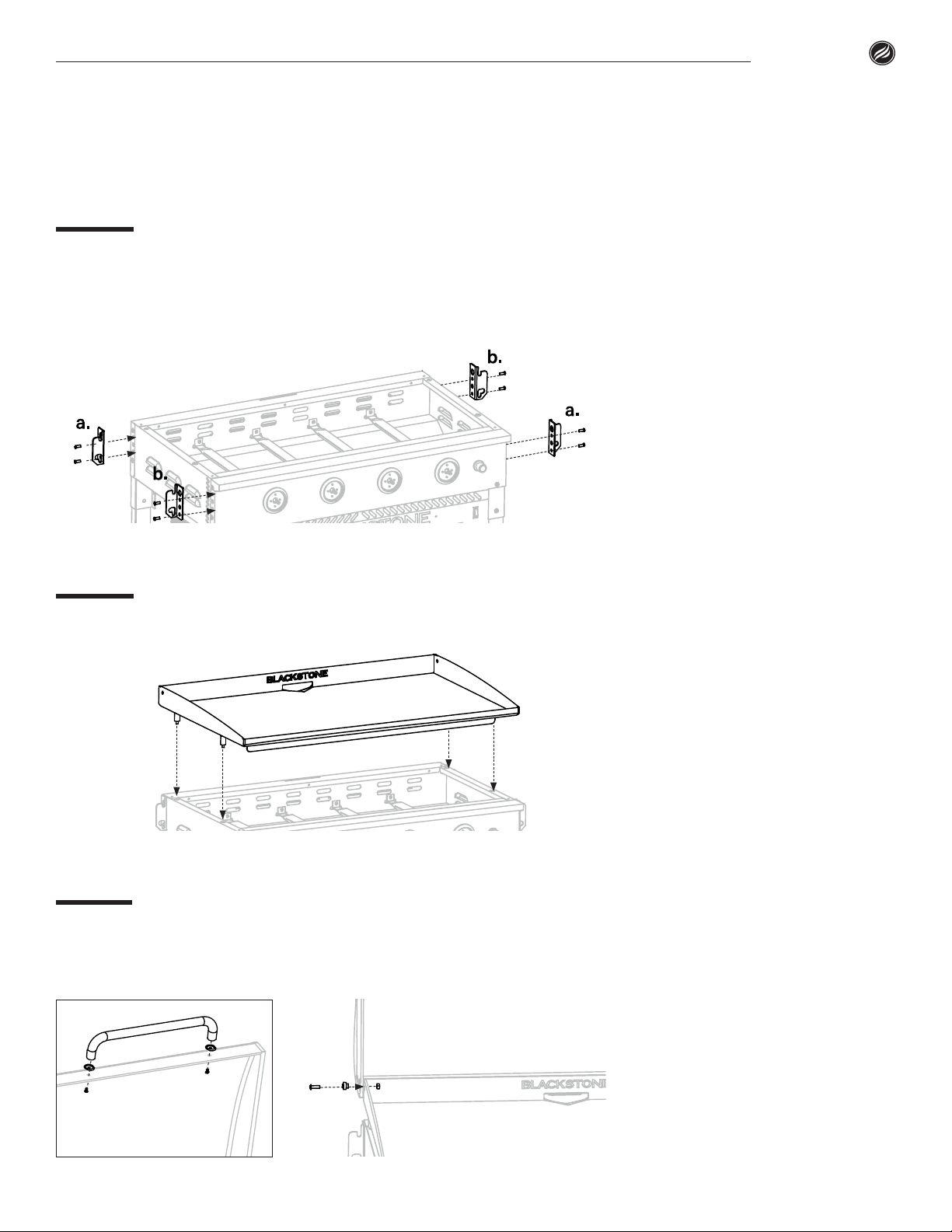

STEP 05
With the help of another person, place the griddle unit on its wheels. Attach
the four (4) side shelf brackets to the sides of the body using eight (8) M6X15
screws. Use one le shelf bracket (a.) and one right shelf bracket (b.) as shown
in illustration below.
STEP 06
Place the griddle top on to the griddle body.
STEP 07
Attach the lid handle to the griddle hood with two bezels and two (2) M6X12
screws. Then attach the hood to the griddle unit by using two (2) M6X20
screws, one (1) lid spacer, and one (1) M6 lock nut. Repeat on other side.
Airfryer Combo | Parts & Assembly
07

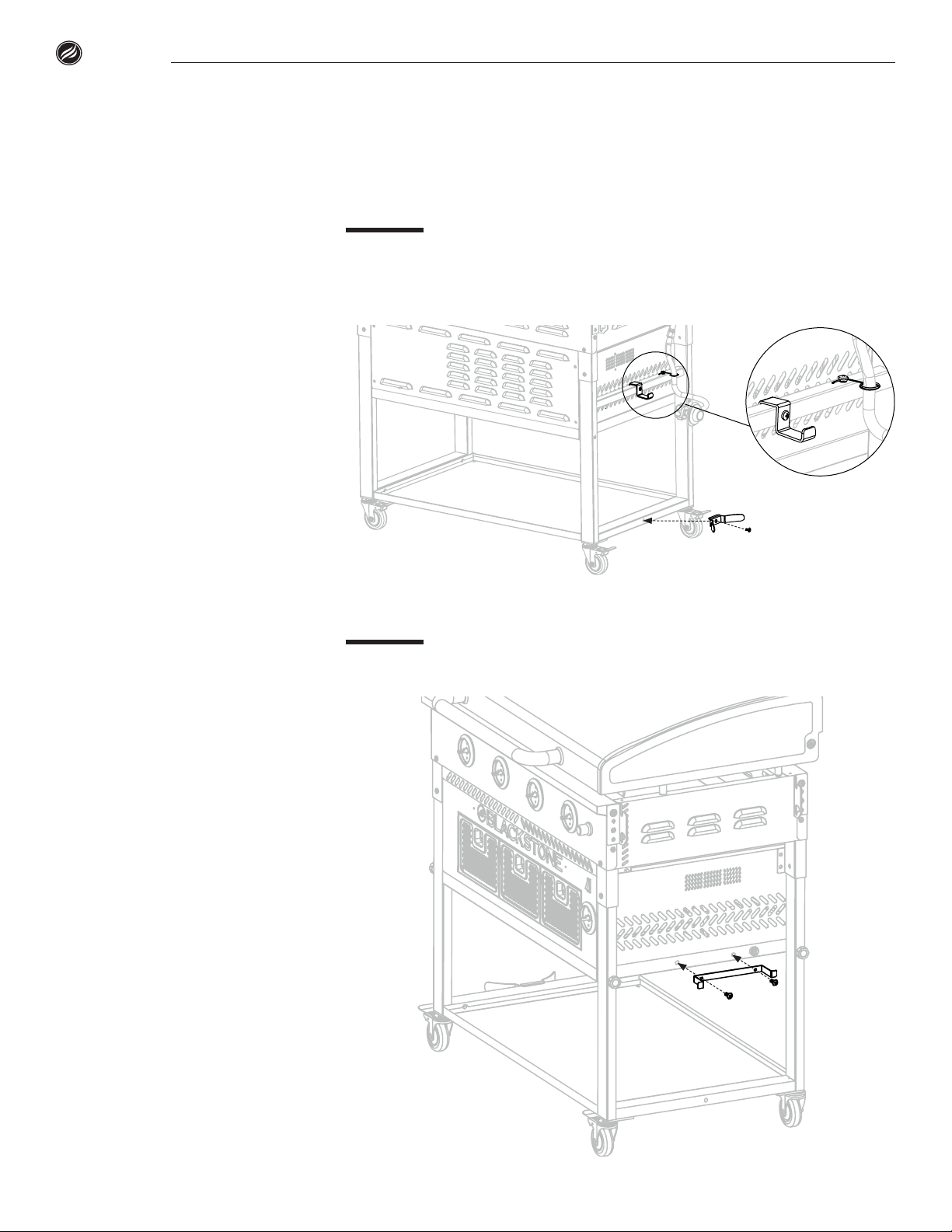

STEP 08
Attach the propane tank hanger with one (1) M6X12 screw. Then assemble
the hose retainer with one (1) M6X12 screw. Attach the propane tank holder
to the bottom of the griddle with one (1) M6X12 screw.
STEP 09
Attach the power cord bracket by using two (2) M6X12 screws.
Airfryer Combo | Parts & Assembly
