Steel Rake ATV Implement
for use with 3-Pin Attachment
Instructions for ATV-RAKE-2143
GENERAL GUIDELINES & SAFETY
• It is the user’s responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product’s owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and practice
general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
• ALWAYS read your ATV’s Owner’s Manual regarding the use of after market accessories and safe
operation of your ATV.
• ALWAYS make sure you wear safety gear while operating your ATV/UTV .
• ALWAYS read and understand the manufacturer’s WARNINGS & INSTRUCTIONS before using the
ATV/ UTV 3-Pin System.
• Maintain the WARNINGS & INSTRUCTIONS for later review as needed, for instructions on usage
to anyone borrowing or using your ATV/ UTV 3-Pin System, or to pass on when selling the unit.
• Never exceed the manufacturer’s weight rating of your ATV/UTV hitch. If you are unsure, always
refer to the ATV/UTV Owner’s Manual.
• Operating an ATV with accessories or additional implements secured to the ATV may effect the
handling of the ATV, including braking, steering, stopping and turning.
• DO NOT exceed 5 MPH when operating or traveling with implements attached to your ATV. Ex-
cessive speeds can result in loss of control and can cause serious personal injuries or death.
• Never operate your ATV/UTV on steep inclines while using the 3-Pin System, tipping or roll overs
can occur.
• Never carry passengers on your ATV unless your ATV is designed to carry more than one person.
• ALWAYS keep hands and feet away from all implements while operating the ATV.
• Never get under or between any implement while operating the ATV.
• ALWAYS maintain proper balance and weight distribution of you ATV, you may need to add
weight to the opposite end of the A TV to counter weight the load.

Page 2091231 1-888-651-3431

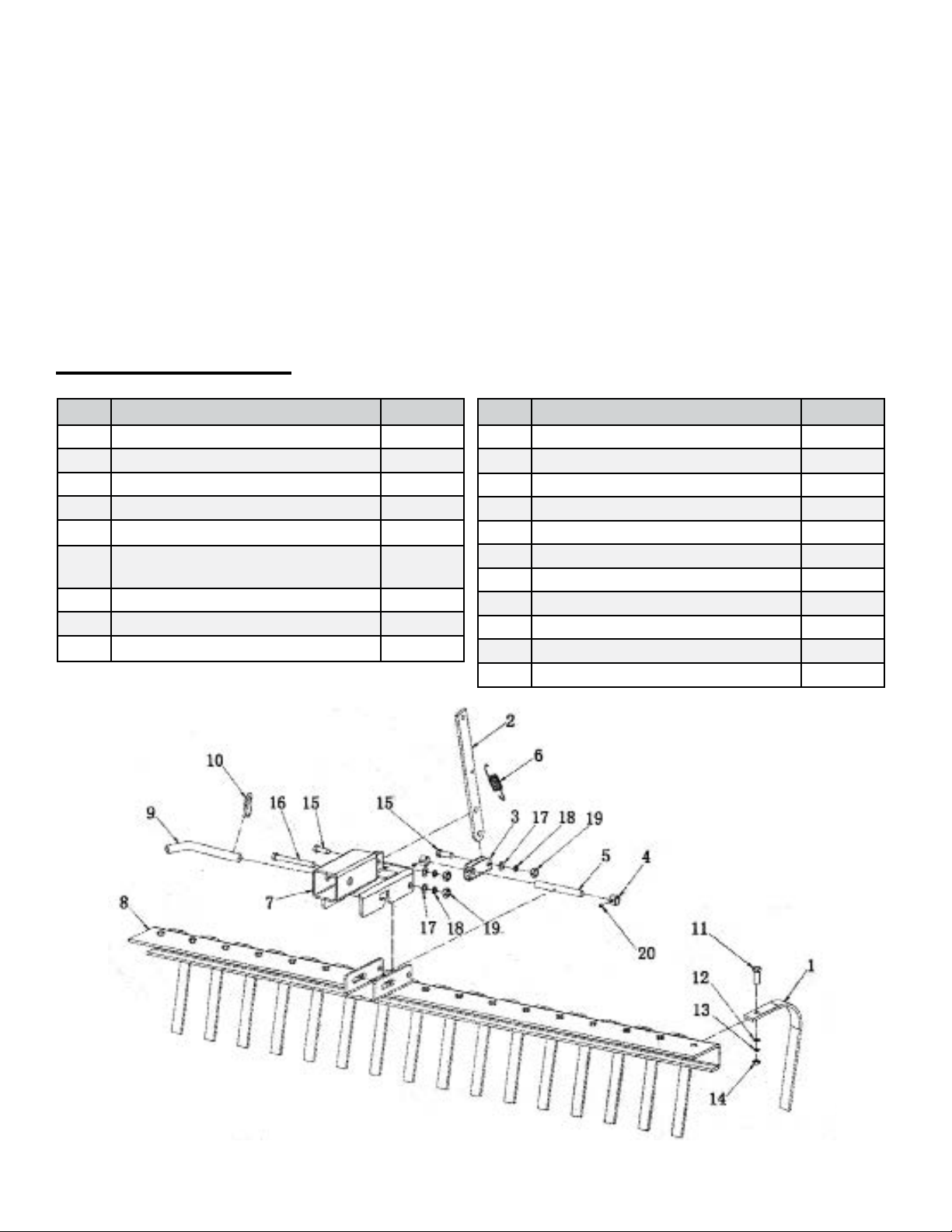

PARTS & ASSEMBLY
Part Description Quantity
1 AU003-3001 - SPRING TINE 17
2 AU003-3002 -RACK TRIP HANDLE 1
3 AU003-3003 - TRIP LINK 1
4 AU003-3004 - STOP COLLAR 2
5 AU003-3005 - LOCK 1
6 AU003-3006 - SPRING, TRIP HAN-
DLE
1
7 AU003-3100 - HITCH TUBE 1
8 AU003-3200 - RAKE MAIN BEAM 1
9 AU002-2006 - HITCH PIN 1
Part Description Quantity
10 AL-5605 - QUICK CLIP 1
11 10100305W - M10 x 30mm BOLT 17
12 30100002W - M10 FLAT WASHER 17
13 32100002W - M10 LOCK WASHER 17
14 40100002W - M10 NUT 17
15 10120305W - M12 x 30mm BOLT 2
16 10121305W - M12 x 130mm BOLT 1
17 30120002W - M12 FLAT WASHER 2
18 32120002W - M12 LOCK WASHER 3
19 40120002W - M12 NUT 3
20 21060062B - M6 SET SCREW 2
• ALWAYS be aware of pinch to prevent injury.
• ALWAYS inspect all nut and bolt assemblies, hardware, and components for damaged, missing,
or loose part. Inspect for any structural damage to product.(Return to factory for repair or discard
product if any damage is found.)
• Inspect entire product for any rust, corrosion, cracks, freezing, excessive heat or rotting damage that
may affect the safety of your product. Discard any questionable product.
• Inspect entire product for any structural damage - pay close attention to all weld locations.
(Return to factory for repair or discard product if any damage is found.
• Using correct wrenches inspect all nut & bolt assembly locations and snug up any that may be loose.
• Be careful not to crush tubing when tightening!

Page 3091231 1-888-651-3431
USE/INSTALLATION

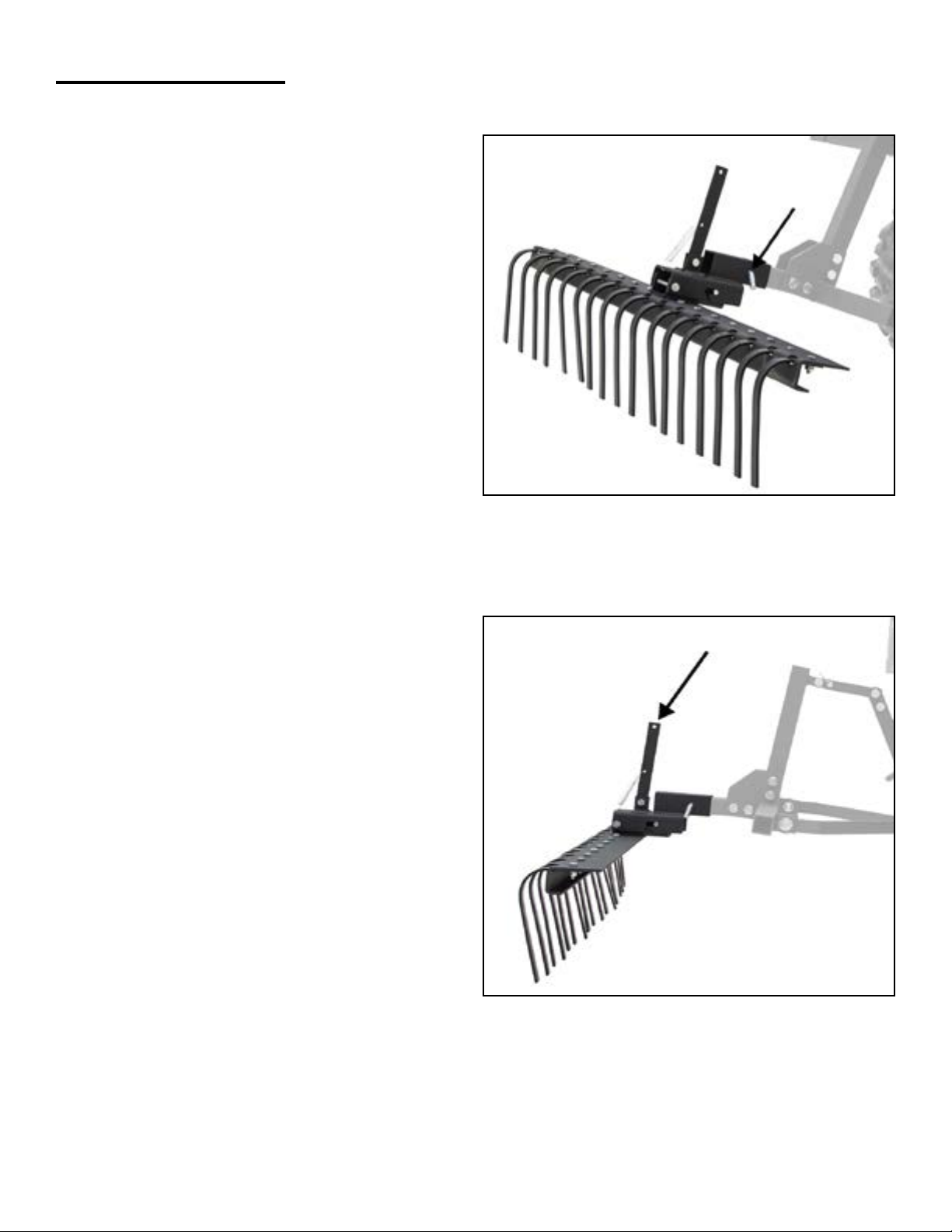

Step 1. Using the Hitch Pin #9, hook the
Landscape Rake to the 3-Pin hook up.
Step 2. Tie a rope (Not supplied) to the trip
Handle #2, this will allow you to release the
locking pin from the ATV seat to release the
debris from the rake tines.
3a.
3a.

Page 4091231 1-888-651-3431
