BLADEZ C4 User manual

Revised: 9/14/06
BLADEZ C4 UPRIGHT CYCLE
OWNER’S MANUAL
BLADEZ Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: H[email protected]

C4 UPRIGHT CYCLE
1
INTRODUCTION
Congratulations for selecting the C4 Upright Cycle as your primary source of fitness. The
Bladez C4 offers many exercise programs that benefit users of all levels and ages. The C4
is designed to make your workouts more effective and enjoyable.
Please read this manual carefully before using the C4. This will allow you to get a full
understanding of all the features the Bladez Upright Cycle provides. If you have questions
or concerns, please contact BLADEZ Corporation or any authorized BLADEZ FITNESS
distributors in your area.
BLADEZ Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: H[email protected]
BEFORE YOU BEGIN
It is very important to become familiar with the frequently used components of your C4.

C4 UPRIGHT CYCLE
2
TABLE OF CONTENTS
SECTION PAGE
1. IMPORTANT SAFETY INSTRUCTIONS........................................................3
2. ASSEMBLY INSTRUCTIONS ....................................................................... 5
3. PARTS LIST .................................................................................................18
4. EXPLODED VIEW........................................................................................20
5. COMPUTER CONSOLE ..............................................................................21
6. POWER UP..................................................................................................23
7. WORKOUT OPTIONS..................................................................................24
8. SLEEP MODE ..............................................................................................35
9. WARRANTY.................................................................................................36

C4 UPRIGHT CYCLE
3
SECTION 1
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the Upright Cycle.
Notice: Before using this or any other exercise equipment consult your family physician
or health care professional to develop a well planned exercise program to fit your health
needs. If you encounter any pain or breathing discomfort while working out, STOP!,and
consult a physician before continuing.
WARNING!
1. It is wise to always unplug this appliance from the electrical outlet immediately after use.
2. Keep children away from machine while in use.
3. Do not wear loose or dangling clothing while using the elliptical.
4. Maximum user weight of this elliptical is 275lbs.
5. Keep a minimum clearance of 18” on each side and 24” at the rear of the elliptical for
safety.
6. It is mandatory that you unplug the elliptical prior to cleaning to reduce the risk of electric
shock, serious burns, and the risk of injuries.
7. The elliptical should never be left unattended when in operation. Unplug the elliptical
from the outlet when not in use or when servicing the elliptical.
8. Close supervision is necessary when this appliance is used by or near children, invalids,
or disabled persons.
9. Use this appliance only for its intended use as described in this manual.
10.Do not use any attachment not recommended by the manufacturer.
11.Never operate this appliance if it has a damaged cord or plug, or if it is not working
properly. Call your service center for any service concerns before taking your elliptical in
for repair.
12.Keep the cord away from heated surfaces.
13.Never drop or insert any object into any opening.
14.Do not use outdoors.
15.Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
16.To disconnect, turn all controls to the off position, then remove plug from outlet.
17.This appliance is intended for household use only.
SAVE THESE INSTRUCTIONS

C4 UPRIGHT CYCLE
4
IMPORTANT SAFETY INSTRUCTIONS CONTINUED

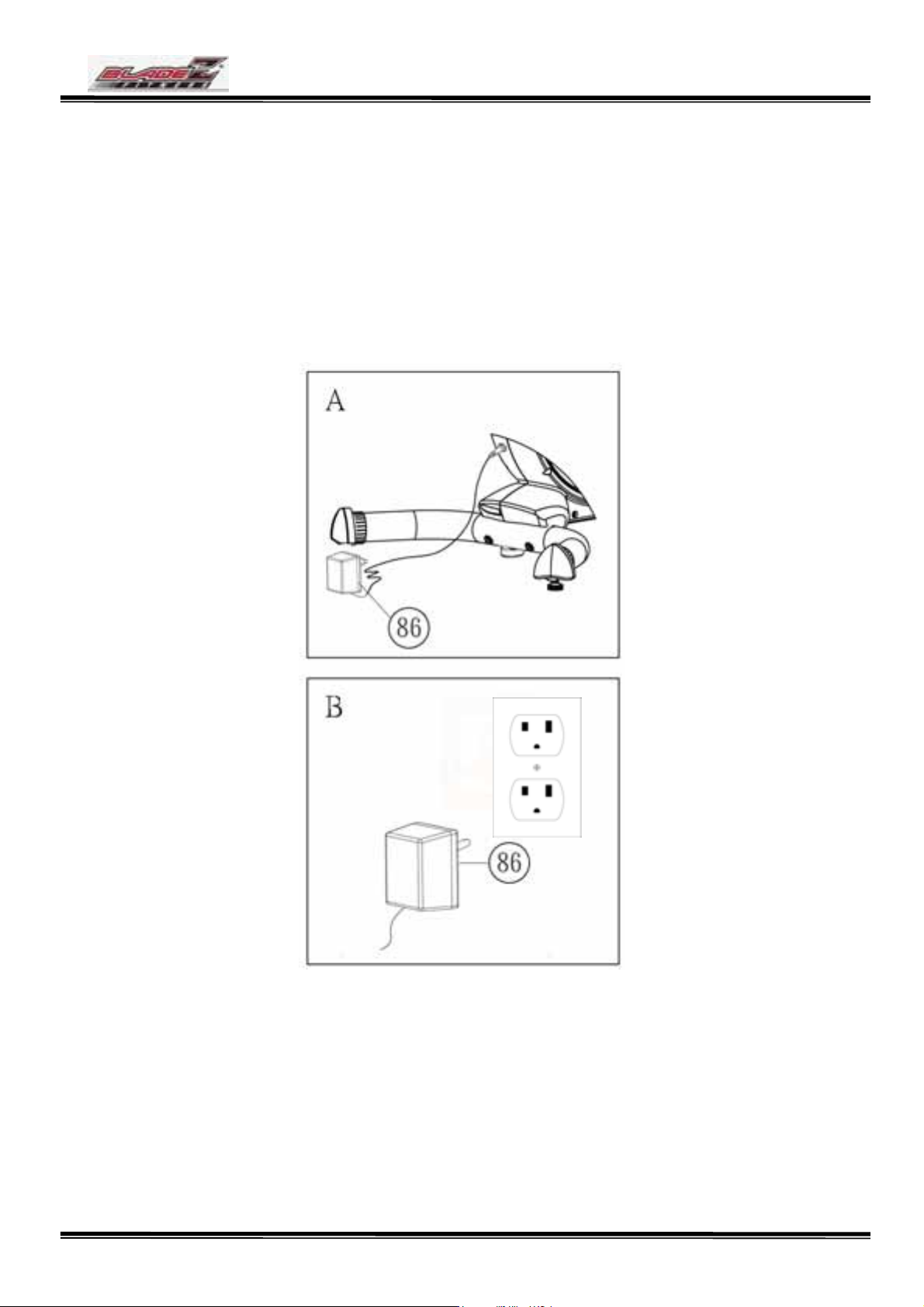

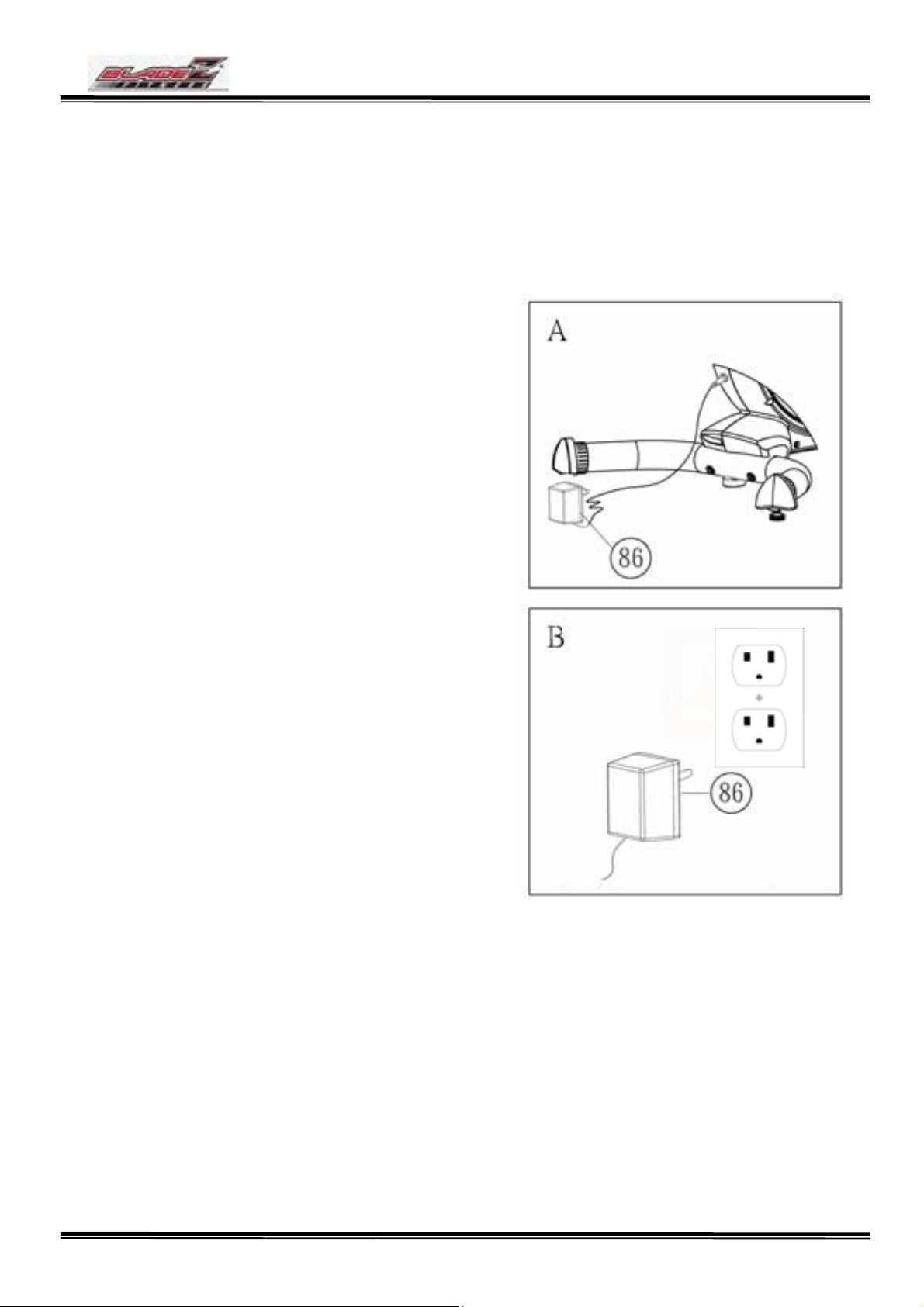

POWER SUPPLY
Your C4 Upright Cycle uses a two prong external power supply for use on a nominal
110-120-volt circuit. Use only the power supply provided with your C4 Upright Cycle. If you
misplace this power supply, please contact Bladez for an original replacement. Use of the
wrong power supply may cause damage to your C4 Upright Cycle. No adapter or extension
cord should be used with this product.
CLEANING
Clean with soap and slightly damp cloth only; never use solvents.

C4 UPRIGHT CYCLE
5
SECTION 2 - ASSEMBLY INSTRUCTIONS
SCREWS BAG
(
96
)
Screwdriver
(
Plastic handle
—
1PCS
(85) Collision Prevention TPR—1PCS
(97) Screw M6
×
20
—
1PCS
(94) Self Tapping Screw ST3.0×15—4PCS
(90)
All
e
n B
o
l
t
M
8
×
75
—
4P
CS
(91)
Spring
Washer M8
×
2.0t
—
4PCS
(92) Washer Φ18×Φ9×2.0t—4PCS
(95) Open Spanner
—
1PCS
(
93
)
Allen Wrench
—
1PCS

C4 UPRIGHT CYCLE
6

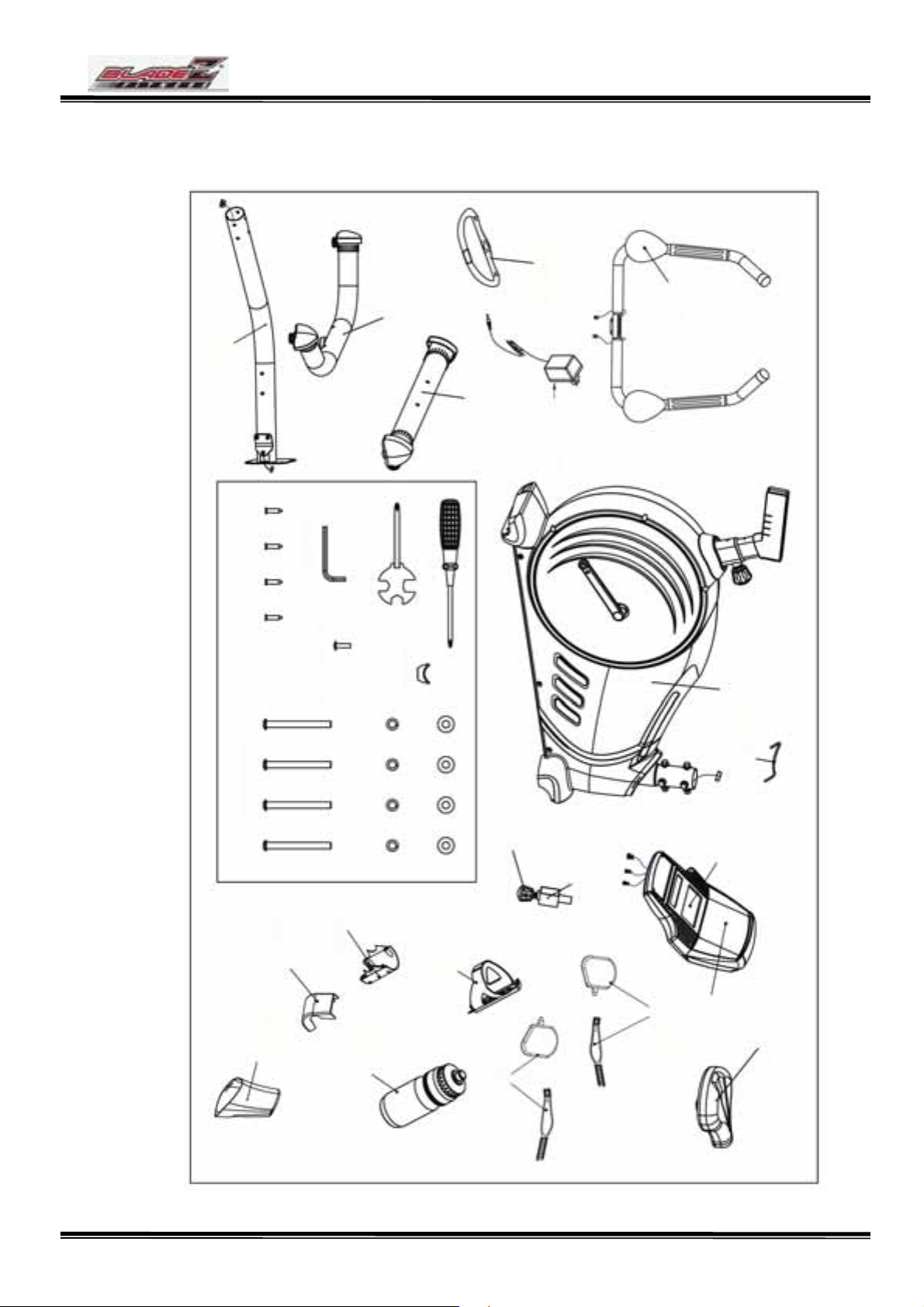

ASSEMBLY INSTRUCTIONS CONTINUED
Computer (45)
Handrail
(
52
)
Front Stabilizer
(
57
)
Rear Stabilizer
(
65
)
U
p
ri
g
ht
(
48
)
Seat
(
75
)
Com
p
uter Base
(
76
)

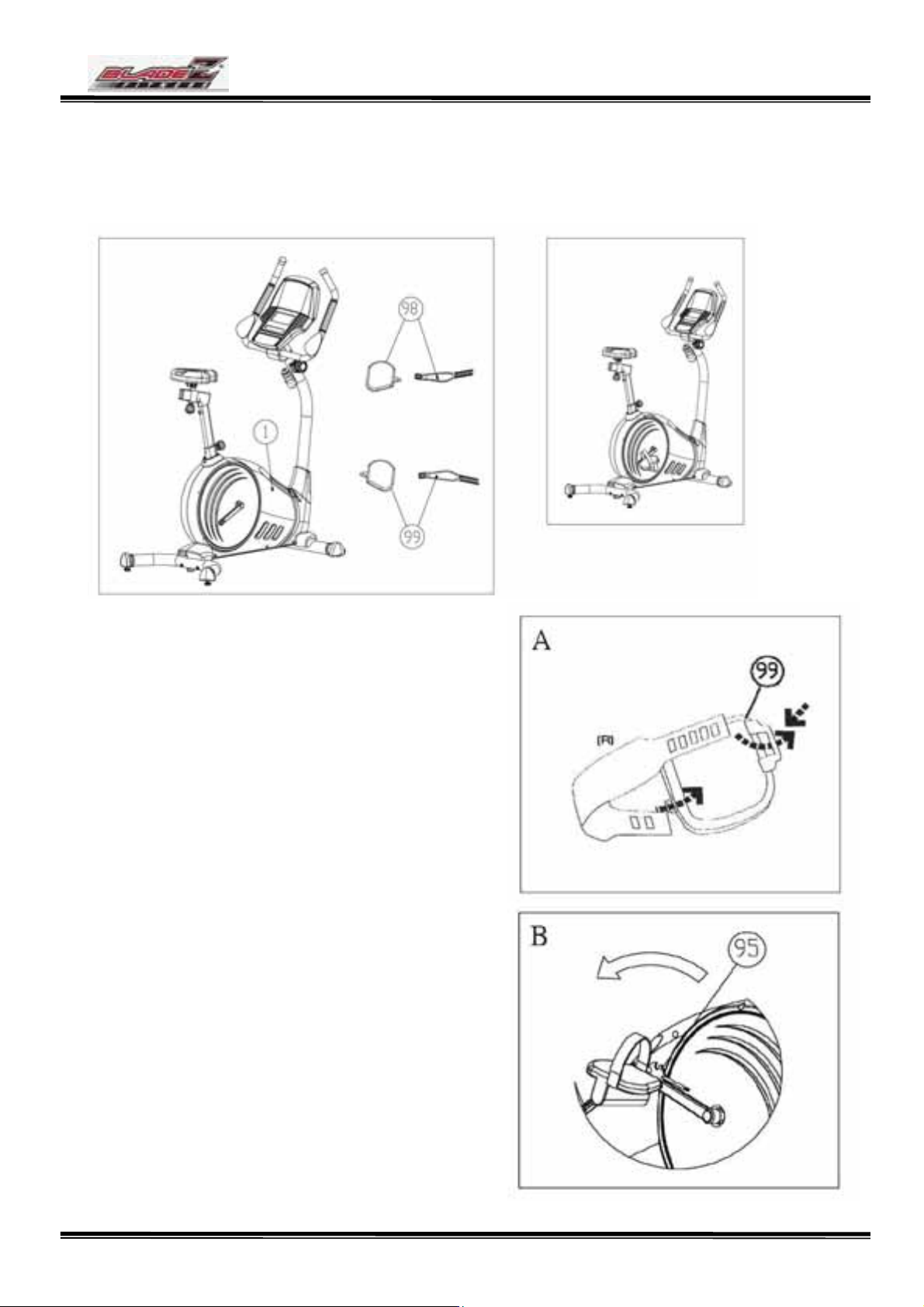

Left Pedal Assembl
y
(
98
)
Ri
g
ht Pedal Assembl
y
(
99
)

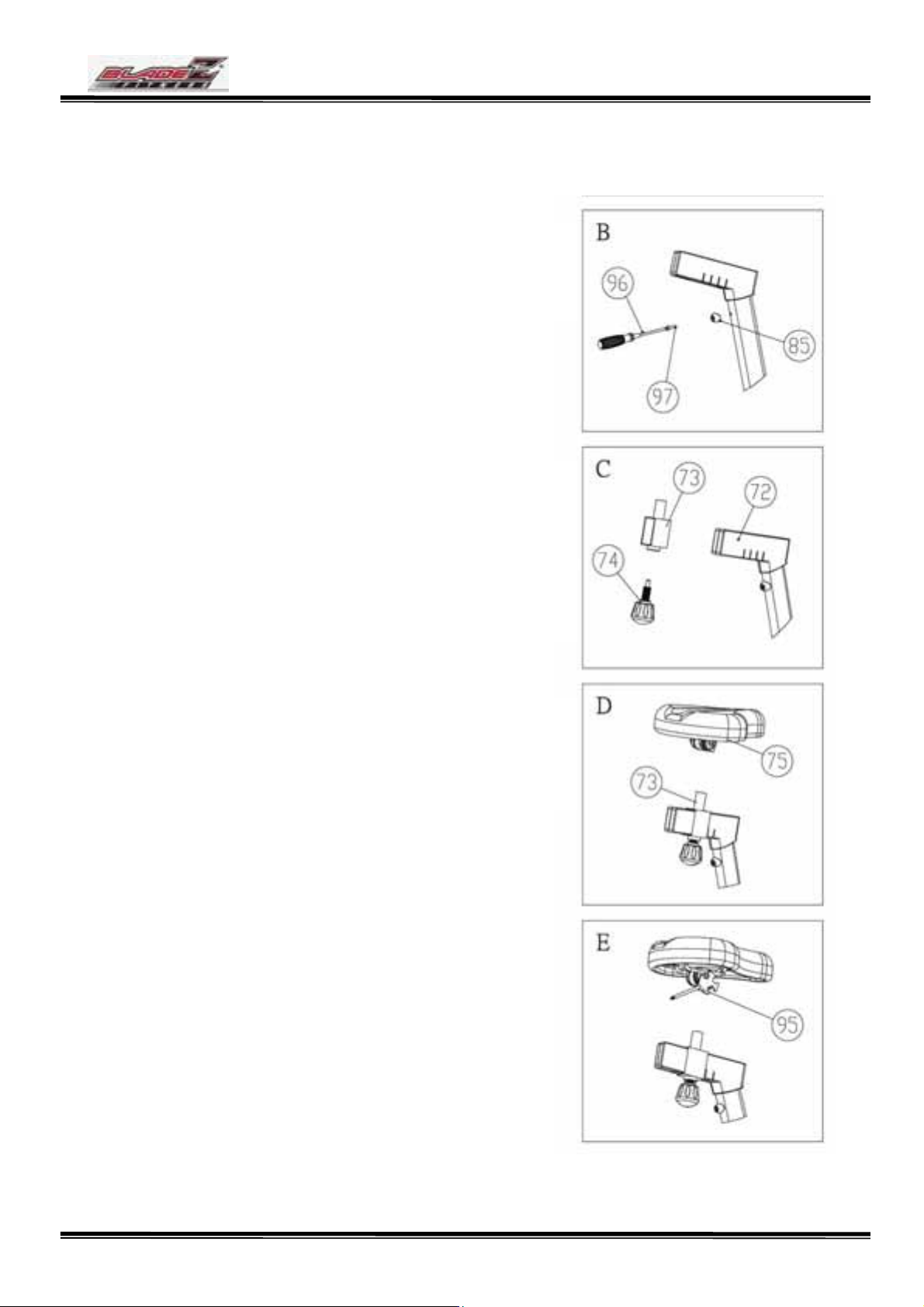

Active Seat Post
(
73
)
POP-PIN
(
74
)
Frame
(
1
)
Bottle
(
83
)
Necklace
Necklace Bracket
(
F
)(
81
)
U
pp
er Front Cover
(
40
)
(
96
)
Screwdriver
(
Plastic handle—1PCS
(95) Open Spanner—1PCS
(93) Allen Wrench—1PCS
(9
4
)
Se
lf T
app
in
g
Sc
r
ew
S
T
3.0
×1
5
—4P
CS
(85) Collision Prevention TPR—1PCS
(97) Screw M6×20—1PCS
(92) Washer Φ18×Φ9×2.0t—4PCS
(91) Spring Washer M8×2.0t—4PCS
(
90
)
Allen Bolt M8×75—4PCS

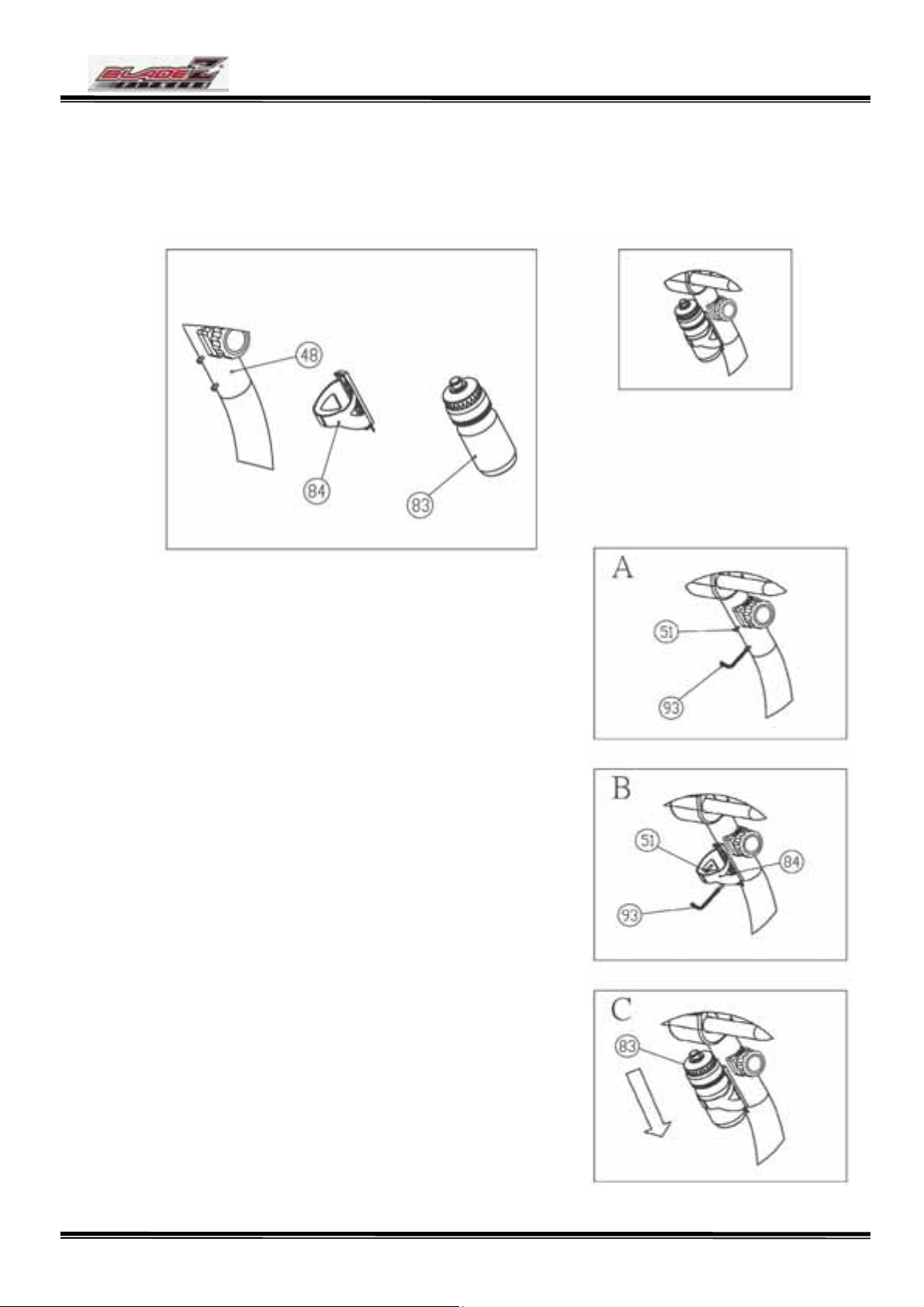

Bottle Holder
(
84
)
Book Shelf
(
87
)
Chest Band Transmitter (114) Transformer (86)
Bracket (R) (82)

C4 UPRIGHT CYCLE
7
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 1. Assembling the Stabilizers
Refer to the drawing to the right and
attach the Stabilizers (57, 65) to the
Frame with Bolts (90), Spring Washer
(91) and Washer (92). Pay attention
to the sequence of the washers and
then tighten the Bolts (90) with Allen
Wrench (93).
Washer ф18×ф9×2.0t (92)
Spring Washer M8×2.0t (91)
Allen Bolt M8×75 (90)

C4 UPRIGHT CYCLE
8
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 2. Assembling the Uprights
Step A: Unscrew the Bolt (88) and the
Arc Washer (89) from the Frame.
Step B: Slip the Upper Front Cover (40)
onto the Upright (48).
Step C: Connect the exterior Middle
Control Wire (49A) from the Lower
Upright to the exterior Lower Control
Wire (49B) from the Upper Frame.
Step D: Attach the Upright (48) to the
Frame with Screw (88) and Arc Washer
(89), and then tighten the screw with
Open Spanner (95). Adjust the Upper
Front Cover as necessary to fit onto the
Frame.

C4 UPRIGHT CYCLE
9
ASSEMBLY INSTRUCTIONS CONTINUED

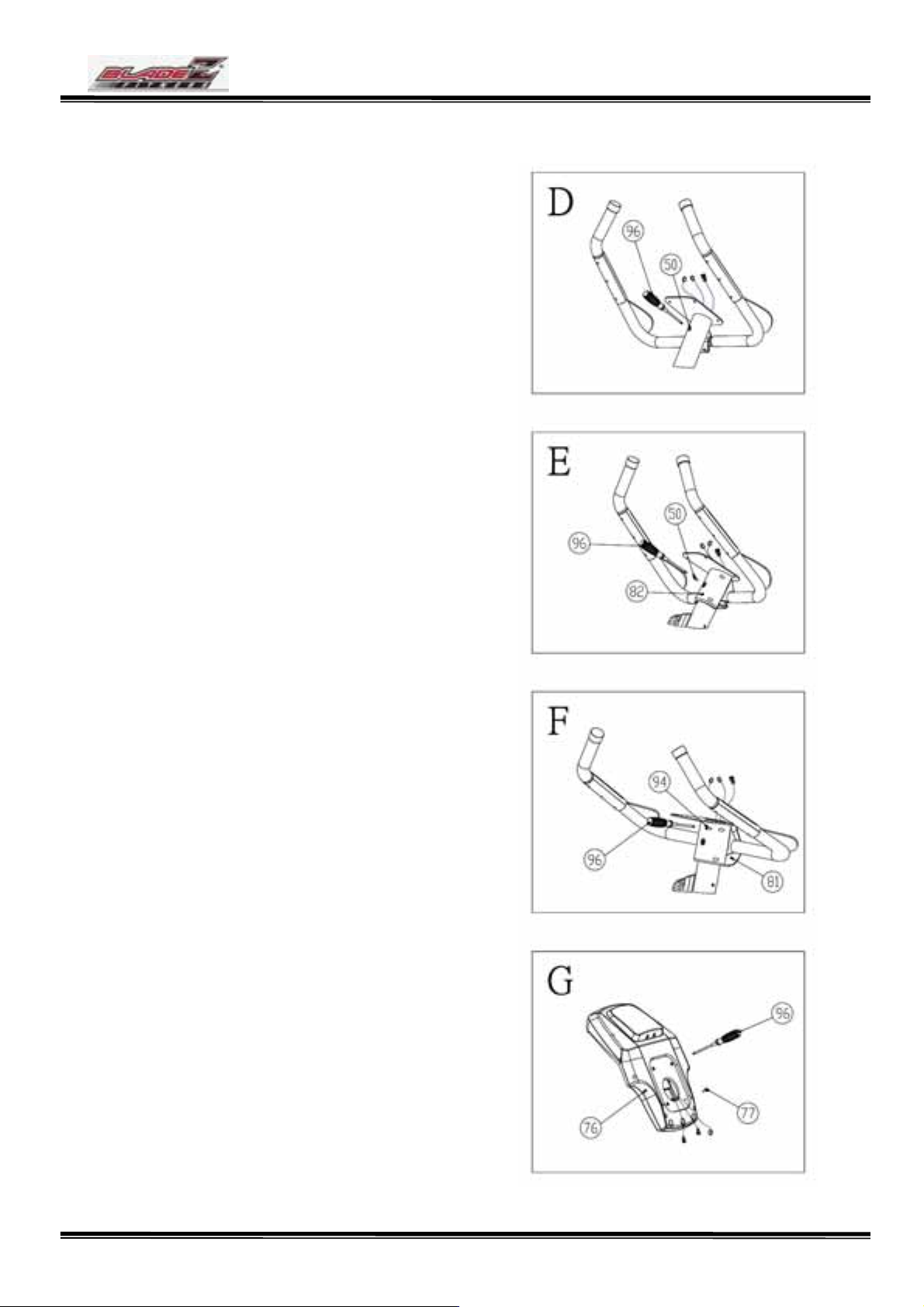

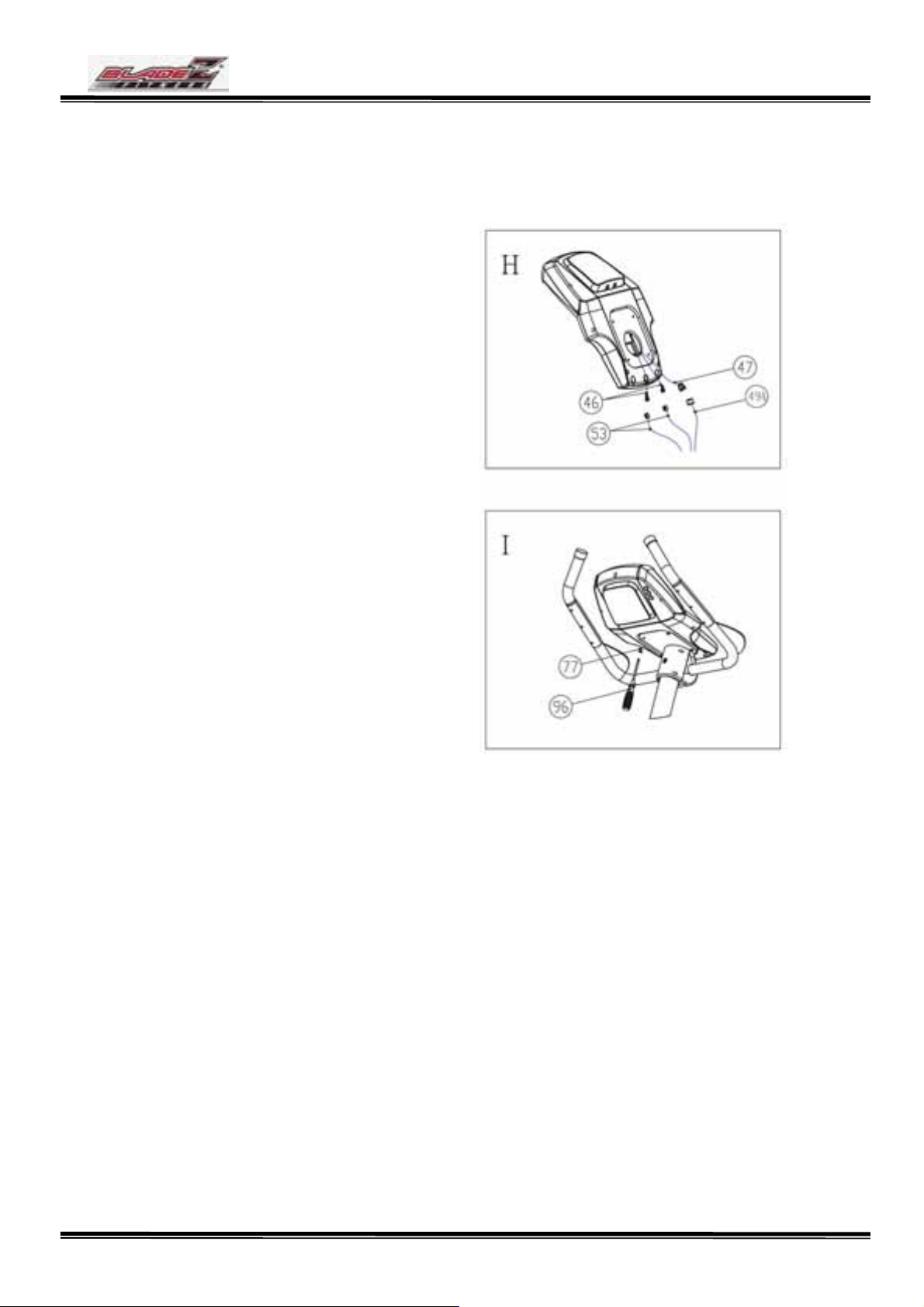

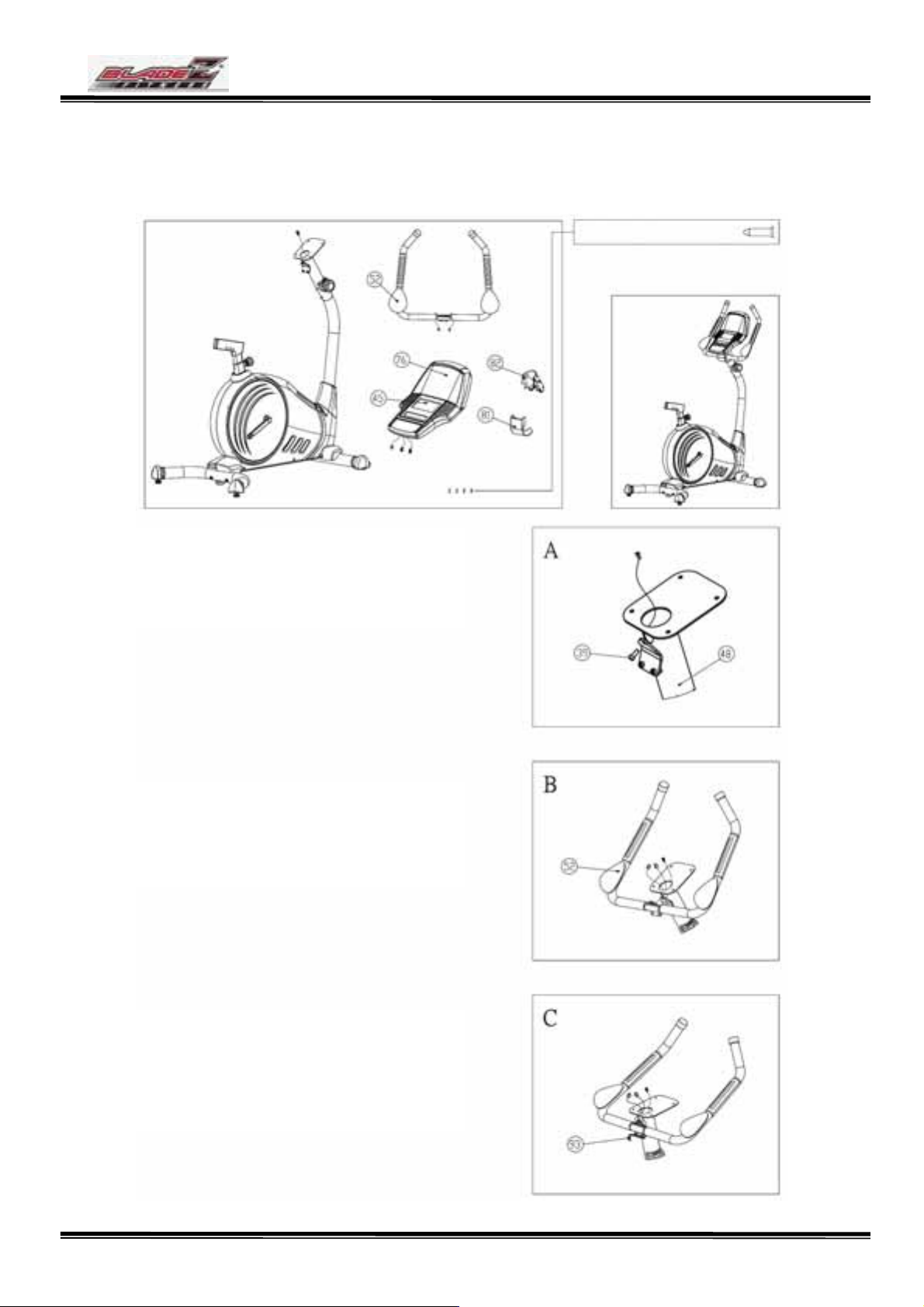

STEP 3. Assembly of Handrails, Necklace Brackets and Computer
Step A: Unscrew the Screw (39) from
the Frame (48).
Step B: Attach the Handrail (52) to the
Upright.
Step C: Assemble the Handrail to the
Upright with screw (39) and then
tighten it with Allen Wrench (93).
Self Tapping Screw ST3.0×15—4PCS (94)
