BlastKing BLADE12A User manual

blastking.com
User Manual
BLADE
BLADE12A / BLADE15A

2
All other BlastKing® products purchased in the USA are protected under the regular
manufacturer’s one year warranty. This warranty is intended to protect customers from
any and all manufacturer defects from one year of purchase. The product will be replaced
or repaired at Blastking’s discretion upon receipt of the warranted unit along with a dated
proof of purchase from an authorized dealer or distributor. This warranty becomes null and
void under situations including but not limited to misusage, normal wear and tear, shipping
damage and abuse. For international purchases, please contact your local dealer or sales
associate for further warranty information.
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For warranty please register this product online at
http://blastking.com/product-registration/
Please write the serial number for future reference
Purchased at:
Date of purchase:

3
blastking.com
IMPORTANT SAFETY PRECAUTIONS AND EXPLANATION OF SYMBOLS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE AMPLIFIER
COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not use this
apparatus near water.
6. Clean only with a dry cloth.
7. Allow a minimum of 6" (152 mm) clearance behind cabinet for convection cooling. Keep anything that might
restrict airflow from the rear of the enclosure (i.e. draperies, fabric, etc.). Do not block any ventilation opening. This
product contains an internal power amplifier that produces heat.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers) that produce heat.
9. Do not defeat the safety purpose of the grounding-type plug on the three-pronged “Edison” style power cable.The
grounding plug has two blades and a grounding prong. The third prong is provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for the replacement of the obsolete outlet. Do not cut off the grounding
plug or use an adapter that breaks the grounding circuit. This apparatus must be properly grounded for your safety.
10. Protect the power cord from being walked on or pinched, particularly plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. The appliance coupler is the AC mains disconnect and should remain readily operable after installation.
12. Use only attachments/accessories specified by Blastking, USA.
13. Use only with hardware, brackets, and components sold with the apparatus or by Blastking, USA.
14. Unplug the apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
16. Before placing, installing, rigging or suspending any loudspeaker product, inspect all hardware, suspension,
cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load
rated component could significantly reduce the strength of the installation and should be immediately corrected. Use
only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected
overloading. Never exceed the rating of the hardware or equipment.
17. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment
installation.
18. The appliance shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous” voltage within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of shock to humans.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in this manual.
WARNING!

4
Introduction
The BlastKing Blade series offers professional sound reinforcement in a compact, lightweight enclosure and comes standard
with all of the latest features and technology any live sound musician or DJ would expect. Blade comes in 12” and 15”
options, and both come equipped with 1000 watts of Class D bi-amplification resulting in crystal clear sound, even at high
volume.
The BLADE12A provides a max SPL of 136 db, while the BLADE15A has an impressive max SPL of 138 db. Both models
come with 4 modes of DSP processing, Bluetooth technology for easy pairing and True Wireless Stereo (TWS).
BLADE ... CUTTING EDGE DESIGN & TECHNOLOGY
Installation
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets,
transducers, brackets and associated equipment for damage.
Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation or
placement. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only
hardware which is rated for the loading conditions of the installation and any possible short-term,unexpected overloading.
Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer regarding physical
equipment installation. Ensure that all local, state and national regulations regarding the safety and operation of loudspeakers
and related equipment are understood and adhered to.
Maintenance
These speakers are high quality units made especially according to the products’ specification.
Overpowering the unit or overheating it because of improper system arrangement could harm the unit.
For longest possible operating life, and to avoid warranty issues, it is recommended that there is at least a few inches of
space around an active speaker.
Please avoid exposing the speaker to moisture or extreme cold conditions. Do not put the speaker anywhere near water
sources as it can damage the unit or cause a short circuit.
Blastking takes no responsibility for improper repair, replacement, or any other services conducted by unqualified technicians.

5
blastking.com
Technical Information
Model BLADE12A BLADE15A
Type:
Frequency response (-3 dB): 55Hz-20KHz 50Hz-20KHz
Frequency range (-10dB): 46Hz-20KHz 43Hz-20KHz
Maximum SPL peak: 136dB 138dB
Power handling: 1000 Watts 1000 Watts
Low frequency transducer: 12” 15”
High frequency driver: 2” 2”
Crossover frequency: 1.9KHz 1.9KHz
Power amplifier type: Class D Bi-Amp Class D Bi-Amp
Intergrated DSP processor with 4-modes
Includes top and side handles for easy transport
Can be used as a stage monitor loudspeaker
Input connectors: XLR or 1/4”Jack
Output connectors: XLR
Power consumption: 180 Watts 180 Watts
Enclosure: Plastic
Grille: Steel
Physical Specifications
Product
Height: 24”/ 610 mm 27.95”/ 710 mm
Width (front): 14.37”/ 365 mm 17.12”/ 435 mm
Width (rear): 5.27”/ 134 mm 6.29”/ 160 mm
Depth: 14.17”/ 360 mm 15.35”/ 390 mm
Weight: 47.4 Lbs / 21.5 Kg 54 Lbs / 24.5 Kg
Package
Height 27.36”/ 695 mm 31.49”/ 800 mm
Width: 16.93”/ 430 mm 18.3”/ 465 mm
Depth: 17.32”/ 440 mm 20.07”/ 510 mm
Weight: 51.8 Lbs / 23.5 Kg 58.4 Lbs / 26.5 Kg
BLADE12A / BLADE15A
Specifications

6
BLADE12A / BLADE15A 1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
1

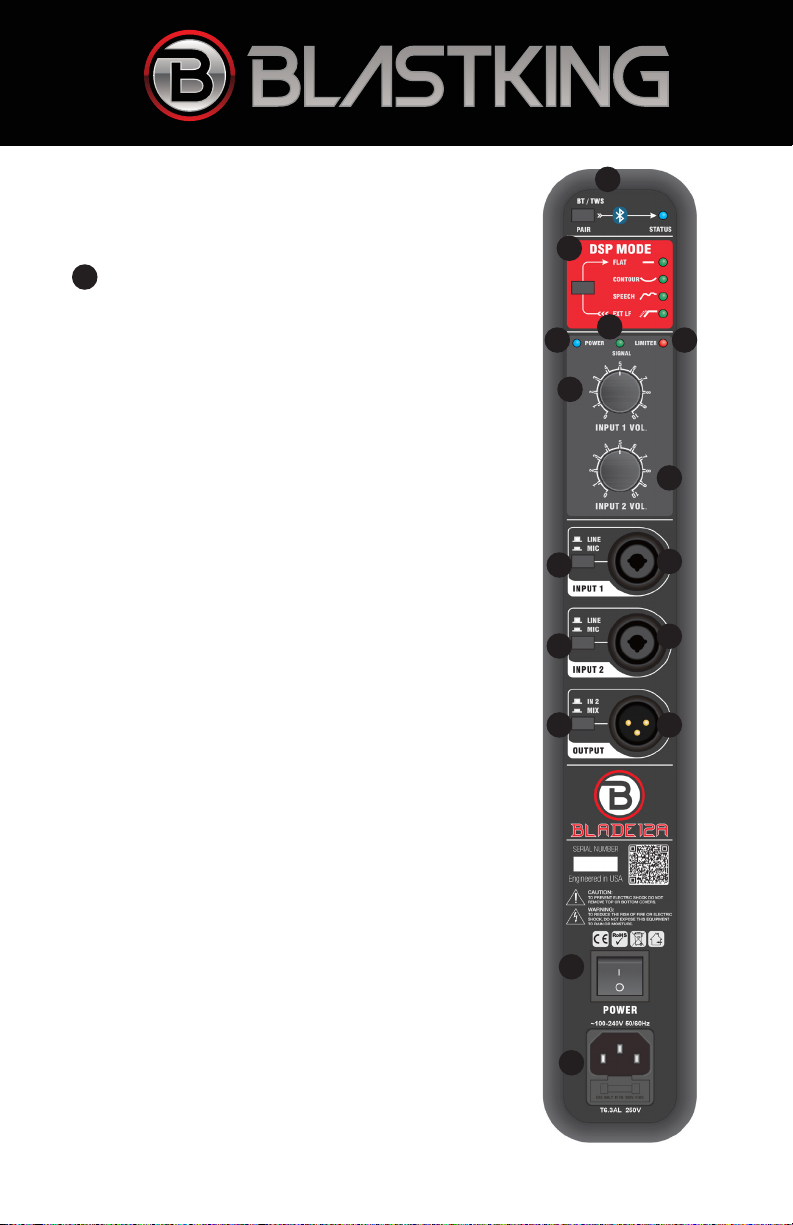

Rear panel features
Bluetooth Connection & Stereo Bluetooth Connection
Bluetooth connection:
1. Press and hold the PAIR button for 2-3 seconds to connect
to Bluetooth. The STATUS light should flash quickly.
2. Search for “Blastking” on your device and connect. After the
connection is successful, the STATUS light will remain on. The
STATUS light will flash slowly once music begins playing.
3. In the Bluetooth connection mode, press the PAIR button to
interrupt the current Bluetooth connection, in order to connect
to other Bluetooth devices.
Note: Bluetooth will automatically turn off if no device is con-
nected within 5 minutes.
Stereo Bluetooth connection:
1. Put the two speakers close together, ensure the Bluetooth of
both speakers are turned on.
2. Press the PAIR button twice on either speaker, the STATUS
light will flash slowly. After the two speakers are successfully
linked, the STATUS light will remain on.
3. Search for “Blastking” on your device and connect.
4. In the Stereo Bluetooth connection mode, press the PAIR
button to interrupt the current link.
Note: When pairing two speakers, try to place the two speakers
close together. After the pairing is successful, they can be
placed further apart. The distance should not exceed 15 feet.
Once a Bluetooth connection has been established, the speak-
ers will automatically pair next time.
You cannot start a new pairing or linking request while a device
is already connected. Please disconnect any previous pairing
before attempting a new pairing.

7
blastking.com
2DSP modes
Switch through DSP modes to modify according to your needs
3Power indicator
This will illuminate when the unit is on
4Signal indicator
This will illuminate when signal is on
5Limit indicator
This will illuminate just before clip and/or distortion
6Volume control for input 1
7Volume control for input 2
8Mic/Line switch for input 1
Press in for mic, and out for line
9Mic/Line switch for input 2
Press in for mic, and out for line
10 Mic/Line input for input 1
Use with XLR or ¼” male
11 Mic/Line input for input 2
Use with XLR or ¼” male
12 Mix/Input switch for output
Press in for input 2, and out for mixer
13 XLR connection for Ouput
Use with XLR female only
14 Power supply switch
on/off
15 Power supply input
Use with included power cord
BLADE12A / BLADE15A
Rear panel features

8
DSP Presets
FLAT: Completely neutral. The frequency curve is flat, which is suitable for most applications.
CONTOUR: Is a three-stage multi-band processor. It can dynamically adjust the level of each
frequency band in accordance with the input volume. It will automatically tune the EQ for each
frequency band so that the speaker can maximize sound pressure while remaining clear at any
volume level.
SPEECH: For crisp, clear sound. Use this setting when the BLADE is being used for speech only in
presentations or other speech applications.
EXT LF: Use this setting when the speaker is being used in conjunction with a separate subwoofer.
This preset enables a High Pass Filter (HPF) set at 100Hz.
Connections
Make sure all of your equipment is powered off and lower both volume controls before connect-
ing the speaker.
1. You can connect a mixer, microphone, or DJ controller directly into your speaker. To connect a
microphone, use the combo XLR /¼” jack connector to connect to the IN1(10) and/or IN2 (11)
input.
2. You can LINK additional speakers using the MIX/IN2(13) connection. The BLADE amplifier is
only equipped to power one unit. If you LINK to additional speakers those speakers must also be
self-powered.
3. Turn on your mixer/microphones or other signal source, then power on the BLADE, the power
indicator light (3) will be illuminated. Then you can adjust your volume controls as needed.

9
blastking.com
Room Acoustics BLADE12A BLADE15A
Horizontal coverage angle: 90° 90°
Vertical coverage angle: 75° 85°
Monitor angle: 45° 45°
Top
BLADE12A Dimensions
24”
610 mm
14.37”
365 mm
14.17”
360 mm
BLADE15A
27.95”
710 mm
17.12”
435 mm
15.35”
390 mm
Dimensions

blastking.com
2980 NW 74th Ave.
Miami, FL 33122
Phone: [phone]
