Blaupunkt FIENE User manual
Enjoy it.
User Manual | Manual de Usuario | Manual do usuário
23_06_2021 Anleitung-E-Bikes.indd 1 23.06.2021 10:11:02
We congratulate you on purchasing your new Blaupunkt folding e-bike / folding e-trike (hereinafter
also referred to as folding e-bike).
We want you to enjoy your folding e-bike for a long time, so please read this manual carefully.
If, contrary to expectations, you have problems with the folding e-bike, please check with the help of
the manual if you can solve it. Please note: This manual is not a detailed guide for service,
maintenance and repairs. Repairs shall only be carried out by a specialist/ bicycle dealer to ensure the
safety of your folding e-bike. Furthermore, some functions / options depend on the model you have
purchased and may not apply.
Your dealer and the Blaupunkt service will be happy to assist you.
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION
IN THE BOX
GETTING TO KNOW YOUR FOLDING BICYCLE
HOW TO FOLD
INTRODUCTION TO THE DRIVE SYSTEM
BATTERY (CHARGING, MAINTENANCE AND RANGE)

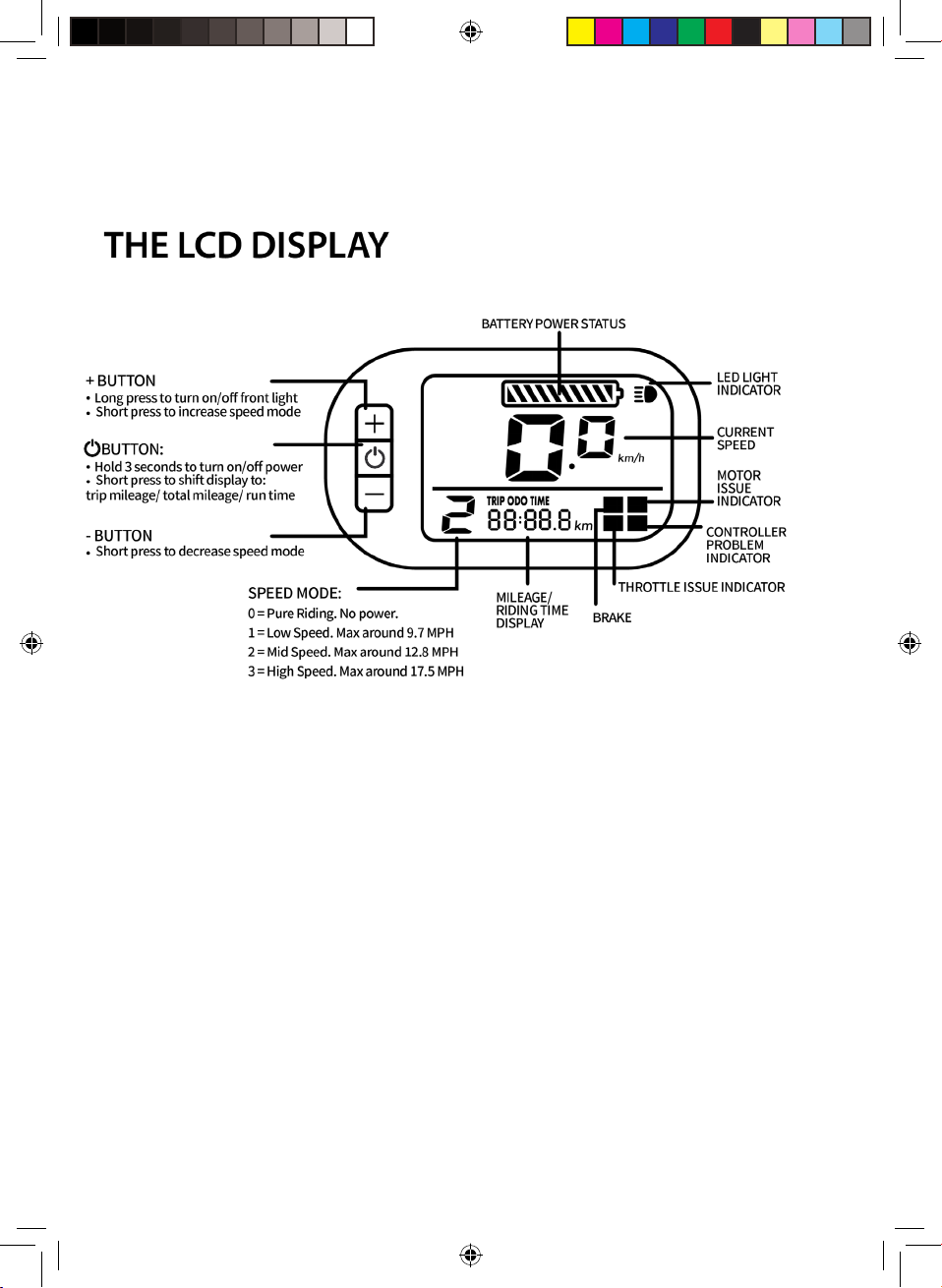

CYCLING COMPUTER OPERATIONS (MODEL
SPECIFIC)
SADDLE POSITION/ HEIGHT (MODEL SPECIFIC)
BRAKE SYSTEM (MODEL SPECIFIC)
HANDLEBAR/ AHEAD STEM (MODEL SPECIFIC)
GEAR SHIFT OPERATION (MODEL SPECIFIC)
MAINTENANCE: BEFORE THE FIRST RIDE
MAINTENANCE: BEFORE EACH RIDE
MAINTENANCE: REGULAR CLEANING
MAINTENANCE: REGULAR CHECKS
INTENDED USAGE
TECHNICAL INFORMATION
FAQ (FREQUENTLY ASKED QUESTIONS)
WARRANTY
SERVICE
DISPOSAL NOTES
23_06_2021 Anleitung-E-Bikes.indd 26 23.06.2021 10:11:07
We congratulate you on purchasing your new Blaupunkt folding e-bike / folding e-trike (hereinafter
also referred to as folding e-bike).
We want you to enjoy your folding e-bike for a long time, so please read this manual carefully.
If, contrary to expectations, you have problems with the folding e-bike, please check with the help of
the manual if you can solve it. Please note: This manual is not a detailed guide for service,
maintenance and repairs. Repairs shall only be carried out by a specialist/ bicycle dealer to ensure t
safety of your folding e-bike. Furthermore, some functions / options depend on the model you have
purchased and may not apply.
Your dealer and the Blaupunkt service will be happy to assist you.
TABLE OF CONTENTS
1. IMPORTANT SAFETY INFORMATION
2. IN THE BOX
3. GETTING TO KNOW YOUR FOLDING BICYCLE
4. HOW TO FOLD
5. INTRODUCTION TO THE DRIVE SYSTEM
6. BATTERY (CHARGING, MAINTENANCE AND RANGE)
7. CYCLING COMPUTER OPERATIONS (MODEL SPECIFIC)
8. SADDLE POSITION/ HEIGHT (MODEL SPECIFIC)
9. BRAKE SYSTEM (MODEL SPECIFIC)
10. HANDLEBAR/ AHEAD STEM (MODEL SPECIFIC)
11. GEAR SHIFT OPERATION (MODEL SPECIFIC)
12. SWIVELMECHANISM (MODEL SPECIFIC)
13. MAINTENANCE: BEFORE THE FIRST RIDE
14. MAINTENANCE: BEFORE EACH RIDE
15. MAINTENANCE: REGULAR CLEANING
16. MAINTENANCE: REGULAR CHECKS
17. INTENDED USAGE
18. TECHNICAL INFORMATION
19. FAQ (FREQUENTLY ASKED QUESTIONS)
20. WARRANTY
21. SERVICE
22. DISPOSAL NOTES
1. IMPORTANT SAFETY INFORMATION
The folding e-bike is delivered in a pre-assembled, not ready-to-drive state. Before the rst
start-up, all components and screws must be checked for tightness and tightened if
necessary. The setting and function of the gear shift, the brakes and all other mechanical
parts must be checked. We suggest to let this be carried out by a specialist/ bicycle dealer.
The folding e-bike may only be used if all quick-release mechanisms engage or are correctly
engaged.
Do not operate this bicycle without carefully reading the manual and understanding how
to operate the bicycle.
This folding e-bike is only for non-commercial use!
Wear your helmet, gloves and other protective gears before riding to protect yourself from
injury in case of an accident. We recommend wearing reective clothes when riding at
night.
Observe trac rules and regulations when using this bicycle. Passengers should not be
carried.
When riding under rainy, snowy or slippery conditions reduce your speed and increase the
distance between yourself and other vehicles.
Do not use the folding e-bike if damage is visible or if there are other doubts about it´s
proper and safe function.
Your insurance policies may not provide coverage for accidents involving the use of this
bicycle. To determine if coverage is provided you should contact your insurance agent.
The bicycle should not be left out in the rain or submerged. If water enters intothe
controller and motor wheel, it may cause short circuit and damage the electrical
components.
Do not alter any components on the bicycle. Any changes to the bicycle not approved by
Blaupunkt will nullify the warranty on the manufacturer’s side and may result into damage
or injury.
Drive always at an appropriate speed in relation to light, weather and road conditions,
trac, visibility and your driving skills.
2. IN THE BOX
Blaupunkt folding e-bike
Folding e-bike battery (with keys if removable, model specic)
Charger
Battery lights (if not preinstalled, model specic)
User Manual
Tools (model specic)
EN
1. IMPORTANT SAFETY INFORMATION
The folding e-bike is delivered in a pre-assembled, not ready-to-drive state. Before the rst
start-up, all components and screws must be checked for tightness and tightened if
necessary. The setting and function of the gear shift, the brakes and all other mechanical
parts must be checked. We suggest to let this be carried out by a specialist/ bicycle dealer.
The folding e-bike may only be used if all quick-release mechanisms engage or are correctly
engaged.
Do not operate this bicycle without carefully reading the manual and understanding how
to operate the bicycle.
This folding e-bike is only for non-commercial use!
Wear your helmet, gloves and other protective gears before riding to protect yourself from
injury in case of an accident. We recommend wearing reective clothes when riding at
night.
Observe trac rules and regulations when using this bicycle. Passengers should not be
carried.
When riding under rainy, snowy or slippery conditions reduce your speed and increase the
distance between yourself and other vehicles.
Do not use the folding e-bike if damage is visible or if there are other doubts about it´s
proper and safe function.
Your insurance policies may not provide coverage for accidents involving the use of this
bicycle. To determine if coverage is provided you should contact your insurance agent.
The bicycle should not be left out in the rain or submerged. If water enters into the
controller and motor wheel, it may cause short circuit and damage the electrical
components.
Do not alter any components on the bicycle. Any changes to the bicycle not approved by
Blaupunkt will nullify the warranty on the manufacturer’s side and may result into damage
or injury.
Drive always at an appropriate speed in relation to light, weather and road conditions,
trac, visibility and your driving skills.
2. IN THE BOX
Blaupunkt folding e-bike
Folding e-bike battery (with keys if removable, model specic)
Charger
Battery lights (if not preinstalled, model specic)
User Manual
Tools (model specic)
23_06_2021 Anleitung-E-Bikes.indd 27 23.06.2021 10:11:07
3. GETTING TO KNOW YOUR FOLDING BICYCLE
4. HOW TO FOLD
HOW TO FOLD
xOpen the quick-release clamp on the seat post (1) and push the seat all the way down.
xPush inward both pedals and fold them (2-4).
xUnlock and release the stem quick-release clamp (5) and fold the stem.
xUnlock and release the folding clamp (6), fold the bike until both wheels are parallel.
SAFETY NOTES:
Make sure all locks are properly fastened and closed before riding the folding e-bike.
Do not close the frame lever when the folding e-bike is folded, as this may damage the contacts
during transport.
Note: This is a schematic representation of a folding e-bike with various possible equipment options.
The options shown may vary.
23_06_2021 Anleitung-E-Bikes.indd 28 23.06.2021 10:11:09
/PUF5IJTJTBTDIFNBUJDSFQSFTFOUBUJPOPGBGPMEJOHFCJLFXJUIWBSJPVTQPTTJCMF
FRVJQNFOUPQUJPOT5IFPQUJPOTTIPXONBZWBSZ
3. GETTING TO KNOW YOUR FOLDING BICYCLE
Handlebar (depending on model
with quick release for height
adjustment)
Quick release / folding
handlebar
Quick release / folding joint
frame
Quick release for saddle height
folding pedals
computer
Battery (removable depending
on model, with charging socket,
switch and capacity indicator)
hub motor rear wheel or front
wheel (depending on model)
Disc brake / rim brake / coaster
brake (depending on model)
Hub or derailleur gears
(depending on model)
front light
rear light (depending on model
with integrated brake light)
Note: This is a schematic representation ofa folding e-bike with various possible equipment options.
The options shown may vary.
3. GETTING TO KNOW YOUR FOLDING BICYCLE
Handlebar (depending on model
with quick release for height
adjustment)
Quick release / folding
handlebar
Quick release / folding joint
frame
Quick release for saddle height
folding pedals
computer
Battery (removable depending
on model, with charging socket,
switch and capacity indicator)
hub motor rear wheel or front
wheel (depending on model)
Disc brake / rim brake / coaster
brake (depending on model)
Hub or derailleur gears
(depending on model)
front light
rear light (depending on model
with integrated brake light)
Note: This is a schematic representation ofa folding e-bike with various possible equipment options.
The options shown may vary.
EN
4. HOW TO FOLD
HOW TO FOLD
Open the quick-release clamp on the seat post (1) and push the seat all the way down.
Push inward both pedals and fold them (2-4).
Unlock and release the stem quick-release clamp (5) and fold the stem.
Unlock and release the folding clamp (6), fold the bike until both wheels are parallel.
SAFETY NOTES:
Make sure all locks are properly fastened and closed before riding the folding e-bike.
Do not close the frame lever when the folding e-bike is folded, as this may damage the contacts
during transport.
23_06_2021 Anleitung-E-Bikes.indd 29 23.06.2021 10:11:09
5. INTRODUCTION TO THE DRIVE SYSTEM
This system consists of the following components:
xCadence- Sensor: Sensing your pedaling rate
xSmart Controller: Real time calculating and coordinating optimized power output.
xBMS: Battery with BMS (Battery Management System), providing electric power to the
system while balancing the power consumption and protecting the battery cells.
xBrushless DC Motor: Provide the power assist.
xSmart Cycling computer: Control and display terminal.
As soon as you start pedaling, the system will sense your cadence (pedaling rate) and traveling
velocity, and real-timely coordinate the electrical motor to provide the just right power assist that
match your riding conditions, making your riding much easier and comfortable.
Note: This is a schematic representation of a folding e-bike with various possible equipment options.
The options shown may vary.
6. BATTERY (CHARGING, MAINTENANCE AND RANGE)
The battery must be charged before it is used for the first time. Please use exclusively the original
charger designated by Blaupunkt for charging; otherwise it might damage the battery, and may even
lead to fire and other hazard. Warranty expires, if a charger other than the designated is used.
xCheck carefully whether the rated input voltage of the charger is consistent with the
voltage of the power grid.
xCharge the battery in a dry place and ensure adequate ventilation. Neither the battery nor
the charger may be covered during the charging process.
xConnect first the output plug of the charger (2) with the charging jack of the battery . Then
connect the input plug (1) of the charger to the AC power supply.
xDepending on the model, you can remove the battery and charge it separately.
xFully charge of an empty battery takes 2-8 hours, depending on charging state, when the
charge indicator light on the charger turns from red to green, the battery has been fully
charged.
xAfter charging, first pull out the AC power plug (1) and then pull out the plug connected
with the battery (2).
xDo not leave the battery connected to the charger permanently and / or unattended.
xOnly charge the battery in rooms with a smoke detector installed. Charge the battery
xThe use of inverters with a modified sine wave is not recommended and can lead to
malfunctions.
MAINTENANCE
xYou can get the best performance and life out of your battery by charging it regularly
before use, even if it is not fully discharged.
xCharge the battery at room temperature.
xUse the battery in the temperature range from 0 ° - 25 ° C.
xIf you store a completely discharged battery for a long time, this leads to a permanent loss
of function. Recharge an empty battery as soon as possible.
xIf the battery is stored for a longer period of time, store the battery with approx. 50-70%
charge and check regularly for any remaining charge. A defective battery due to failure to
charge does not constitute a warranty claim.
xEvery battery with Li-Ion technology is subject to an unstoppable chemical aging process,
this process also takes place without using or charging the battery. The capacity of the
battery decreases with age. Decreasing capacity is not a defect or reason for complaint.
xTo avoid pollution, follow the local regulations for the proper disposal of the battery.
23_06_2021 Anleitung-E-Bikes.indd 30 23.06.2021 10:11:09
5. INTRODUCTION TO THE DRIVE SYSTEM
This system consists of the following components:
Cadence- Sensor: Sensing your pedaling rate
Smart Controller: Real time calculating and coordinating optimized power output.
BMS: Battery with BMS (Battery Management System), providing electric power tothe
system while balancing the power consumption and protecting the battery cells.
Brushless DC Motor: Provide the power assist.
Smart Cycling computer: Control and display terminal.
As soon as you start pedaling, the system will sense your cadence (pedaling rate) and traveling
velocity, and real-timely coordinate the electrical motor to provide the just right power assist that
match your riding conditions, making your riding much easier and comfortable.
Note: This is a schematic representation ofa folding e-bike with various possible equipment options.
The options shown may vary.
5. INTRODUCTION TO THE DRIVE SYSTEM
This system consists of the following components:
Cadence- Sensor: Sensing your pedaling rate
Smart Controller: Real time calculating and coordinating optimized power output.
BMS: Battery with BMS (Battery Management System), providing electric power tothe
system while balancing the power consumption and protecting the battery cells.
Brushless DC Motor: Provide the power assist.
Smart Cycling computer: Control and display terminal.
As soon as you start pedaling, the system will sense your cadence (pedaling rate) and traveling
velocity, and real-timely coordinate the electrical motor to provide the just right power assist that
match your riding conditions, making your riding much easier and comfortable.
Note: This is a schematic representation ofa folding e-bike with various possible equipment options.
The options shown may vary.
EN
6. BATTERY (CHARGING, MAINTENANCE AND RANGE)
The battery must be charged before it is used for the rst time. Please use exclusively the original
charger designated by Blaupunkt for charging; otherwise it might damage the battery, and may even
lead to re and other hazard. Warranty expires, if a charger other than the designated is used.
Check carefully whether the rated input voltage of the charger is consistent with the
voltage of the power grid.
Charge the battery in a dry place and ensure adequate ventilation. Neither the battery nor
the charger may be covered during the charging process.
Connect rst the output plug of the charger (2) with the charging jack of the battery . Then
connect the input plug (1) of the charger to the AC power supply.
Depending on the model, you can remove the battery and charge it separately.
Fully charge of an empty battery takes 2-8 hours, depending on charging state, when the
charge indicator light on the charger turns from red to green, the battery has been fully
charged.
After charging, first pull out the AC power plug (1) and then pull out the plug connected
with the battery (2).
Do not leave the battery connected to the charger permanently and / or unattended.
Only charge the battery in rooms with a smoke detector installed.
The use of inverters with a modied sine wave is not recommended and can lead to
malfunctions.
MAINTENANCE
You can get the best performance and life out of your battery by charging it regularly
before use, even if it is not fully discharged.
Charge the battery at room temperature.
Use the battery in the temperature range from
If you store a completely discharged battery for a long time, this leads to a permanent loss
of function. Recharge an empty battery as soon as possible.
If the battery is stored for a longer period of time, store the battery with approx. 50-70%
charge and check regularly for any remaining charge. A defective battery due to failure to
charge does not constitute a warranty claim.
Every battery with Li-Ion technology is subject to an unstoppable chemical aging process,
this process also takes place without using or chargingthe battery. The capacity of the
battery decreases with age. Decreasing capacity is not a defect or reason for complaint.
To avoid pollution, follow the local regulations for the proper disposal of the battery.
23_06_2021 Anleitung-E-Bikes.indd 31 23.06.2021 10:11:09
BATTERY RANGE
The specied, model-dependent range is a maximum. In our in-house driving tests, these ranges could be
easily achieved or even exceeded. However, far shorter ranges of less than are also possible.
The range with one battery charge depends on many factors, such as:
Assistance level / driver's own contribution - use smaller assistance levels and increase your
own contribution to maximize the range.
Driving speed - higher speeds, especially with higher support levels, cost more battery
power.
Cadence - higher cadence (faster pedaling) optimize eciency, slow pedaling costs more
energy.
Starting and braking - Frequent braking and the associated starting drains the battery
faster than long distances at a constant speed.
Rider's physical tness - the more and more often you ride a bike, the more you increase
your physical tness and will achieve greater ranges
Shift behavior of the driver (if there is a shift) - correct shifting optimizes eciency, starting
and climbing is best done in a small, light gear.
Road conditions - at road surfaces reduce rolling resistance and increase range.
Wind conditions / driver's posture - upright sitting positions increase wind resistance, and
driving in headwind requires more energy.
Weight - The total weight of the bike, luggage and rider should be kept as low as possible.
Tire pressure - minimize the rolling resistance by tting the tire pressure, a higher tire
pressure ensures a lower rolling resistance.
Temperature - With lower temperatures, the performance of the battery decreases. In
winter, the ranges decrease with one battery charge. Store the battery at room
temperature in winter and only insert it into the bike when you start your journey.
Computer Performance Indicator - Some computer models show engine power, an average
lower power rating means a longer range.
23_06_2021 Anleitung-E-Bikes.indd 32 23.06.2021 10:11:09
7. CYCLING COMPUTER OPERATIONS (MODEL-SPECIFIC)
LC- CONTROL DISPLAY (Computer model no. 1)
The control unit is integrated with the LC-
Display and operates the drive system. It is
located on the handlebar.
Control Unit Function Overview
1.1 Power Button ON/ OFF
Hold button for 2 seconds to switch
on/o the LED control unit and electric drive
system.
The system will automatically turn o if left
idling for more than 10 minutes.
1.2 Assist mode
Hold or buttons to select the
desired assist level for electric system. The
lowest is Level 1 and the highest is Level 5.
When powered on, the default is Level 1.
When there is no numeric power level
displayed it means the folding e-bike is in
park or it functions as a standard bike with
no assist from the motor. You will feel the
electric assistance kicking in once selecting
again between Levels 1 up to 5.
SAFETY NOTE: When you move the pedals, the
engine can start if you are not yet safely on the
bike. Do not switch on the computer until you
have taken a seat on the folding e-bike or set
the support level to 0. Set the support to 0
before getting o the bike.
1.3 Lights/ Backlit Button ON/ OFF
With the display switched on, hold the
button for 2 seconds to turn on/ o the
headlight,taillight (model specic) and the
display backlight. There are ve levels of
backlight brightness that can be selected by
user.
1.4 Walk Assist
The folding e-bike comes equipped with
walk assist function. This feature propels
forward your folding e-bike with a constant
speed of 6km/h without pedaling and
requires nothing but to hold it balanced
when walking along side it. It comes very
handy when needing to push it up a steep
incline.
Hold the button to activate the walk
assist. This function remains activated as
long as you hold the button and
deactivates the moment you stop holding it.
SAFETY NOTE: Push Assist function should only
be used when the wheels are in contact with
the ground. Danger onjury may occur if push
assist function is activated since the wheel will
start spinning.
SAFETY NOTE: When you move the pedals, the
engine can start if you are not yet safely on
the bike. Do not switch on the computer until
you have taken a seat on the folding e-bike or
set the support level to 0. Set the support to 0
before getting o the bike.
SAFETY NOTE:
Only operate settings in case of parking the
folding e-bike.
23_06_2021 Anleitung-E-Bikes.indd 36 23.06.2021 10:11:10
LC- CONTROL DISPLAY (Computer model no. 2)
Control Unit Function Overview
1.1 Power Button ON/ OFF
Hold button for 2 seconds to switch
on/o the LED control unit and electric drive
system.
The system will automatically turn o if left
idling for more than 10 minutes.
1.2 Assist mode
Hold or buttons to select the
desired assist level for electric system. The
lowest is Level 1 and the highest is Level 3.
When powered on, the default is Level 1.
When there is no numeric power level
displayed it means the folding e-bike is in
park or it functions as a standard bike with
no assist from the motor. You will feel the
electric assistance kicking in once selecting
again between Levels 1 up to 3.
SAFETY NOTE: When you move the pedals, the
engine can start if you are not yet safely on the
bike. Do not switch on the computer until you
have taken a seat on the folding e-bike or set
the support level to 0. Set the support to 0
before getting o the bike.
1.3 Lights/ Backlit Button ON/ OFF
With the display switched on, hold the
button for 2 seconds toturn on/ o the
headlight, taillight and the display backlight.
There are ve levels of backlight brightness
that can be selected by user.
1.4 Information display
You can toggle between various
information, press button to view: Trip
distance -> Total distance -> Trip duration
(hours)
SAFETY NOTE:
Only operate settings in case of parking the
folding e-bike.
LC- Control Display Information
Battery percentage/ battery level:
If battery is fully charged, all segments are
shown and display shows 100%.
Segments gradually going o as the battery
depletes during use.
If all segments are gone, battery needs to be
chanrged immediately.
Speed
Shows current traveling speed
Speed mode (PAS):
Shows selected level of power assist from 0
(o) to 3 (highest assist level) .
Shows additional trip informmation: Trip
distance (TRIP), total distance (ODO), trip
time (TIME).
Indicates that front
light is on. Please also
check lamp for
additional switch (model specic)
SAFETY NOTE: Don’t use your folding e-bike if
an error is shown, contact your dealer
immediately!
EN
LC- Control Display Information
Battery percentage/ battery level:
If battery is fully charged, all segments are
shown and display shows 100%.
Segments gradually going o as the battery
depletes during use.
If all segments are gone, battery needs to be
chanrged immediately.
Speed
Shows current traveling speed
Speed mode (PAS):
Shows selected level of power assist from 0
(o) to 3 (highest assist level) .
Shows additional trip informmation: Trip
distance (TRIP), total distance (ODO), trip
time (TIME).
Indicates that front
light is on. Please also
check lamp for
additional switch (model specic)
SAFETY NOTE: Don’t use your folding e-bike if
an error is shown, contact your dealer
immediately!
23_06_2021 Anleitung-E-Bikes.indd 37 23.06.2021 10:11:10
8. SADDLE POSITION/ SADDLE HEIGHT (MODEL-SPECIFIC)
A properly adjusted saddle can minimize discomfort on the folding e-bike and make your pedaling
more ecient. Take some time to get the correct saddle position as it will improve your overall
riding experience. Saddles can be adjusted in three ways: saddle height, forward/ backward position
and tilt.
Open the quick-release clamp on the seat post. If the saddle can be rotated / adjusted with the
quick release closed, readjust the quick release with the thumbscrew on the quick release. To do
this, the quick release must be open. If it is too dicult to close the quick release, loosen the
thumbscrew slightly.
Note: Some models use no quick-release clamp, in this case use the designated tool to release/
fasten the screw which xes the saddle.
The saddle height controls the leverage for your pedaling. Too low and it puts stress on your knees,
too high and you may rub the saddle excessively. There are a number of ways to get the right saddle
height. A good way of doing it is to sit on the folding e-bike with both feet on the pedals – get help
from second person not to fall. Place your pedals in the 6 o’clock and 12 o’clock position. Your
bottom leg should be fully extended when the heel is placed on the lower pedal. If it’s angled you
need to raise the saddle. If you can’t reach the pedal with heel, then lower the saddle.
You can change the saddle angle and the front/ rear position by loosening the Allen screw (1) and
adjusting the saddle to your convenience. Tighten the Allen screw again when you have adjusted
the correct position.
SAFETY NOTE: The seat post has a MAX marked line (that is the safety line), this is the MAX height that you
can raise the saddle. In any cases of adjustment, the MAX marked line should always below the seat post
clamp. Serious injury may be caused to the rider if the saddle height is raised beyond the MAX line.
23_06_2021 Anleitung-E-Bikes.indd 38 23.06.2021 10:11:10
8. SADDLE POSITION/ SADDLE HEIGHT (MODEL-SPECIFIC)
A properly adjusted saddle can minimize discomfort on the folding e-bike and make your pedaling
more ecient. Take some time to get the correct saddle position as it will improve your overall
riding experience. Saddles can be adjusted in three ways: saddle height, forward/ backward position
and tilt.
Open the quick-release clamp on the seat post. If the saddle can be rotated / adjusted with the
quick release closed, readjust the quick release with the thumbscrew on the quick release. To do
this, the quick release must be open. If it is too dicult to close the quick release, loosen the
thumbscrew slightly.
Note: Some models use no quick-release clamp, in this case use the designated tool to release/
fasten the screw which xes the saddle.
The saddle height controls the leverage for your pedaling. Too low and it puts stress on your knees,
too high and you may rub the saddle excessively. There are a number of ways to get the right saddle
height. A good way of doing it is to sit on the folding e-bike with both feet on the pedals – get help
from second person not to fall. Place your pedals in the 6 o’clock and 12 o’clock position. Your
bottom leg should be fully extended when the heel is placed on the lower pedal. If it’s angled you
need to raise the saddle. If you can’t reach the pedal with heel, then lower the saddle.
You can change the saddle angle and the front/ rear position by loosening the Allen screw (1) and
adjusting the saddle to your convenience. Tighten the Allen screw again when you have adjusted
the correct position.
SAFETY NOTE: The seat post has a MAX marked line (that is the safety line), this is the MAX height that you
can raise the saddle. In any cases of adjustment, the MAX marked line should always below the seat post
clamp. Serious injury may be caused to the rider if the saddle height is raised beyond the MAX line.
9. BRAKE SYSTEM (MODEL-SPECIFIC)
Make sure how your brakes are working before you start driving.
Left Brake Lever: Front Brake
Right Brake Lever: Rear Brake
An additional coaster brake is available for models with hub gear. You apply this brake by pressing
the pedals against the normal pedaling movement.
On some models (e.g. the Foldable-E-Trike) the brakes can be locked to prevent it from rolling away.
To do this, apply the brake, press the button on the brake and while the button is still being pressed,
release the brake lever. The brake must be applied once before the journey,the button is now
released and the brake is released.
SAFETY NOTE:
Please note that the eectiveness of the brakes can vary in wet conditions or on slippery surfaces. Please
take into account the possibility oonger braking distances and slippery surfaces when driving and
adapt your driving style accordingly (e.g.reduce speed, increase safety distances)!
Get new brake pads ready for ride:
Accelerate the bike to 25 km / h.
Brake in a controlled but powerful way to a standstill.
Repeat this about 10-20 times.
SAFETY NOTICE: Please note that the brakes get hot if they are used frequently, touching them can cause
injury!

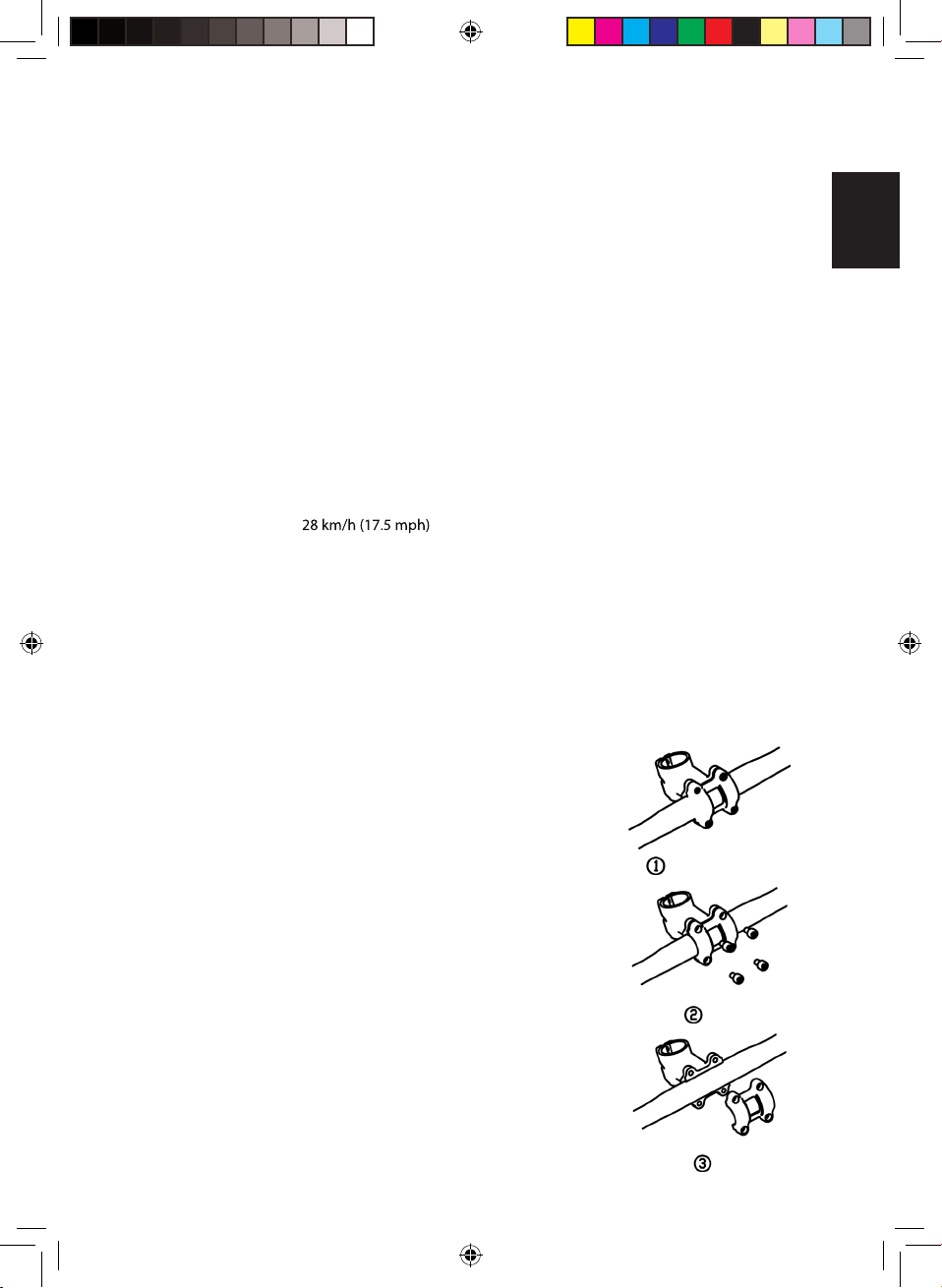

10. HANDLE BAR/ AHEAD STEM (MODEL-SPECIFIC)
Depending on the model, the handlebar still
must be mounted on the bike:
To do this, remove the cover screwed onto the
handlebar and put the handlebar on. The inner
stem must not protrude, leave approx. 2 mm
space here, otherwise the lid will no longer close
ush. Then tighten thetwo screws. Finally,
replace the cover.
For models with quick release(s) on the
handlebar, make sure that the quick release(s)
are securely closed to avoid twisting the
handlebar.
riding experience. Saddles can be adjusted in three ways: saddle height, forward/ backward position
EN
9. BRAKE SYSTEM (MODEL-SPECIFIC)
Make sure how your brakes are working before you start driving.
Left Brake Lever: Front Brake
Right Brake Lever: Rear Brake
An additional coaster brake is available for models with hub gear. You apply this brake by pressing
the pedals against the normal pedaling movement.
On some models (e.g. the Foldable-E-Trike) the brakes can be locked to prevent it from rolling away.
To do this, apply the brake, press the button on the brake and while the button is still being pressed,
release the brake lever. The brake must be applied once before the journey, the button is now
released and the brake is released.
SAFETY NOTE:
Please note that the eectiveness of the brakes can vary in wet conditions or on slippery surfaces. Please
take into account the possibility of longer braking distances and slippery surfaces when driving and
adapt your driving style accordingly (e.g. reduce speed, increase safety distances)!
Get new brake pads ready for ride:
Accelerate the bike to .
Brake in a controlled but powerful way to a standstill.
Repeat this about 10-20 times.
SAFETY NOTICE: Please note that the brakes get hot if they are used frequently, touching them can cause
injury!
10. HANDLE BAR/ AHEAD STEM (MODEL-SPECIFIC)
Depending on the model, the handlebar still
must be mounted on the bike:
To do this, remove the cover screwed onto the
handlebar and put the handlebar on. The inner
stem must not protrude, leave approx. 2 mm
space here, otherwise the lid will no longer close
ush. Then tighten the two screws. Finally,
replace the cover.
For models with quick release(s) on the
handlebar, make surethat the quick release(s)
are securely closed to avoid twisting the
handlebar.
23_06_2021 Anleitung-E-Bikes.indd 39 23.06.2021 10:11:10
11. GEAR SHIFT (MODEL)
GEAR SHIFTING OPERATION
Be sure to operate the gear shift only while pedaling slightly. Change gear for gear, do not apply any
force during changing gears.
Derailleur
If you want to shift in a lighter gear, push the lever (A) forward step by step for each of
the gears. If you move the lever further forward, you can also skip a gear.
If you want to choose a heavier gear, push the button (B) to shift to each of the gears.
(A) Lever / gear down
(B) Button / gear up
23_06_2021 Anleitung-E-Bikes.indd 40 23.06.2021 10:11:10
12. SWIVELMECHANISM (MODEL-SPECIFIC)
OPERATION OF THE SWIVELMECHANISM
Due to the system, a trike cannot take a turn like a normal bicycle - the swivel
mechanism allows more comfortable driving – more narrow turns / smaller turn
radius and a more natural driving experience are possible with active swiveling.
When getting on the bike, the swivel mechanism must be blocked, the lever must
be on LOCK as shown in the illustration.
If the swivel mechanism is not locked, move the lever to the LOCK position, move
the front part of the TRIKE into a vertical position until the mechanism engages and
the front part of the TRIKE is vertically blocked.
After sitting up or starting o, you can move the lever counter- clockwise to the
SWING position, until the lever is parallel to the handlebar. This activates the
panning. Alternatively, the mechanism can also remain permanently blocked while
driving.
SAFETY NOTES:
If you unlock the mechanism, the trike may unexpectedly tip sideways. Please
familiarize yourself carefully with the swivel mechanism and, if necessary, have
someone help you until you feel safe.
If you move the mechanism to the LOCK position while driving, the driving behavior
may change unexpectedly, as the mechanism engages and blocks when it reaches a
vertical position.
In sharp turns, the maximum speed of 13 km/ h must not be exceeded in order to ensure
driving safety.
The swivel mechanism must be set to the LOCK position and locked in place when the
folding e-trike is parked.
1 . MAINTENANCE: BEFORE THE FIRST RIDE
Fully charge the battery before the rst use.
Ensure that your bicycle is ready for use and is adjusted to t your body,
including setting position and xture of the saddle and handlebar.
Check the locking / screwing of the wheels, handlebars, saddle, brakes as well as
all important screws and quick releases.
Check the tire pressure (you will nd information on the minimum / maximum
pressure on the tires). As a rule of thumb as follows: If you press your thumb on
the inated tire, you should not be able to change its shape signicantly by
pressure.
Operate and ride your bicycle rst in a quiet and safe place.
Make sure you know which lever operates which brake. Check the assembly and
adjustment of the brakes. Push the bike forward with the brakes applied. The
rear brake should completely prevent the rear wheel from moving, while the
front brake should lift the rear wheel with its braking action o the ground. The
steering of the folding e-bike should not rattle or have play (to the right / left)
when braking.
Make sure that the computer does not show any error message
1.MAINTENANCE: BEFORE EACH RIDE
Check the tires and rims. Look for damage, cracks, deformation or wear and any
foreign objects such as broken glass or sharp stones. If you nd incisions, cracks
or holes in the tires, please have your folding e-bike checked by qualied bicycle
mechanics.
Check the frame, fork and assembled components for damage and loose parts.
Check the functionality of the brakes. Push the folding e-bike forward with the
brakes applied. The rear brake should completely prevent the rear wheel from
moving, while the front brake should lift the rear wheel with its braking action
o the ground. The steering of the folding e-bike should not rattle or have play
(to the right / left) when braking.
Do not use the folding e-bike if the computer displays an error message
1. MAINTENANCE: REGULAR CLEANING
Avoid to use water to clean the folding e-bike, as the electrical and electronic
systems may get wet, resulting in malfunction of thebicycle or personal injury.
Delicately wipe any dirty painted or plastic parts with a soft, damp cloth and a
neutral cleaning solution. Carefully dry the parts with a soft, dry cloth.
DO NOT grease or use a greasy cloth to wipe down the electrical connectors,
brake pads, wheels, tires or plastic parts.
23_06_2021 Anleitung-E-Bikes.indd 42 23.06.2021 10:11:10
13. MAINTENANCE: BEFORE THE FIRST RIDE
Fully charge the battery before the rst use.
Ensure that your bicycle is ready for use and is adjusted to t your body,
including setting position and xture of the saddle and handlebar.
Check thelocking / screwing of the wheels, handlebars, saddle, brakes as well as
all important screws and quick releases.
Check the tire pressure (you will nd information on the minimum / maximum
pressure on the tires). As a rule of thumb as follows: If you press your thumb on
the inated tire, you should not be able to change its shape signicantly by
pressure.
Operate and ride your bicycle rst in a quiet and safe place.
Make sure you know which lever operates which brake. Check the assembly and
adjustment of the brakes. Push the bike forward with the brakes applied. The
rear brake should completely prevent the rear wheel from moving, while the
front brake should lift the rear wheel with its braking action o the ground. The
steering of the folding e-bike should not rattle or have play (to the right / left)
when braking.
Make sure that the computer does not show any error message
14.MAINTENANCE: BEFORE EACH RIDE
Check the tires and rims. Look for damage, cracks, deformation or wear and any
foreign objects such as broken glass or sharp stones. If you nd incisions, cracks
or holes in the tires, please have your folding e-bike checked by qualied bicycle
mechanics.
Check the frame, fork and assembled components for damage and loose parts.
Check the functionality of the brakes. Push the folding e-bike forward with the
brakes applied. The rear brake should completely prevent the rear wheel from
moving, while the front brake should lift the rear wheel with its braking action
o the ground. The steering of the folding e-bike should not rattle or have play
(to the right / left) when braking.
Do not use the folding e-bike if the computer displays an error message
15. MAINTENANCE: REGULAR CLEANING
Avoid to use water to clean the folding e-bike, as the electrical and electronic
systems may get wet, resulting in malfunction of the bicycle or personal injury.
Delicately wipe any dirty painted or plastic parts with a soft, damp cloth and a
neutral cleaning solution. Carefully dry the parts with a soft, dry cloth.
DO NOT grease or use a greasy cloth to wipe down the electrical connectors,
brake pads, wheels, tires or plastic parts.
16. MAINTENANCE: REGULAR CHECKS
The following points must be checked after no more than 500 km of driving or no later than every
six months. We suggest to have this work carried out by a specialist/ bicycle dealer. You will also nd
a service certicate for this at the end of this instruction booklet, which your dealer can stamp.
Please note that the maintenance intervals can vary depending on the area of application - e.g. very
dusty operating environments may make smaller intervals necessary.
Check the securing/ screwing of the wheels, handlebars, saddle and all
important screws and quick releases.
Check whether the battery is suciently charged.
Check that the brake and shifter cables are adequately lubricated and that the
brake pads are in good condition.
Check whether the bicycle chain is adequately lubricated.
Check gear shifter adjustment if gears shift not properly or chain rassles.
Check whether the welds on the frame, spokes / rims are in good condition and
free from damage, breakage, corrosion or oxidation.
17. INTENDED USAGE
This folding e-bike is intended for transporting one person at a time. Fit your bicycle with suitable
equipment if you would like to transport luggage. Ensure that you do not exceed the maximum
permissible load (rider + luggage).
The manufacturer and dealer do not assume any liability for activities above and beyond the
intended use. This particularly applies for not adhering to safety advice and damage resulting from
this, for instance: o-road use, carrying excess weight or making improper repairs to defects.
The folding e-bike is not generally designed to withstand extreme stress, such as riding down steps
or over jumps.
18. TECHNICAL INFORMATION
Error codes computer model 1
ERROR CODE
DEFINITION
Err21
Current abnormality
Err22
Throttle abnormality
Err23
Motor abnormality
Err24
Motor hall signal abnormality
Err25
Brake abnormality
Err30
Communication abnormality
EN
1 . MAINTENANCE: REGULAR CHECKS
The following points must be checked after no more than 500 km of driving or no later than every
six months. We suggest to have this work carried out by a specialist/ bicycle dealer. You will also nd
a service certicate for this at the end of this instruction booklet, which your dealer can stamp.
Please note that the maintenance intervals can vary depending on the area of application - e.g. very
dusty operating environments may make smaller intervals necessary.
Check the securing/ screwing of the wheels, handlebars, saddle and all
important screws and quick releases.
Check whether the battery is suciently charged.
Check that the brake and shifter cables are adequately lubricated and that the
brake pads are in good condition.
Check whether the bicycle chain is adequately lubricated.
Check gear shifter adjustment if gears shift not properly or chain rassles.
Check whether the welds on the frame, spokes / rims are in good condition and
free from damage, breakage, corrosion or oxidation.
1. INTENDED USAGE
This folding e-bike is intended for transporting one person at a time. Fit your bicycle with suitable
equipment if you would like to transport luggage. Ensure that you do not exceed the maximum
permissible load (rider + luggage).
The manufacturer and dealer do not assume any liability for activities above and beyond the
intended use. This particularly applies for not adhering to safety advice and damage resulting from
this, for instance: o-road use, carrying excess weight or making improper repairs to defects.
The folding e-bike is not generally designed to withstand extreme stress, such as riding down steps
or over jumps.
23_06_2021 Anleitung-E-Bikes.indd 43 23.06.2021 10:11:10
Error codes computer
Brake error, please check brakes/ brake wiring. Remove battery for 10 minutes
and try again. If no success, call service.
Motor error, please remove battery for 10 minutes and try again. If no success,
call service.
Controller error, please remove battery for 10 minutes and try again. If no
success, call service.
Indicates that throttle mode is not working or is disabled.
Note: Throttlemode is not permitted in Germany and other European
countries, it is therefore deactivated. Activation is not possible with this model
(depending on the version, the symbol is permanently on or o, both states
DO NOT indicate an error)
TORQUE
Please note the information on the bike components themselves, some parts have the
max. permissible Torques printed on.
Please always tighten the screws with the necessary feeling, if you are not sure, have the
screws checked by a specialist/ bicycle dealer. The smaller a screw is, the more likely it is
to be damaged by excessive forces.
23_06_2021 Anleitung-E-Bikes.indd 44 23.06.2021 10:11:10
Error codes computer model 2
Brake error, please check brakes/ brake wiring. Remove battery for 10 minutes
and try again. If no success, call service.
Motor error, please remove battery for 10 minutes and try again. If no success,
call service.
Controller error, please remove battery for 10 minutes and try again. If no
success, call service.
Indicates that throttle mode is not working or is disabled.
Note: Throttlemode is not permitted in Germany and other European
countries, it is therefore deactivated. Activation is not possible with this model
(depending on the version, the symbol is permanently on or o, both states
DO NOT indicate an error)
TORQUE
Please note the information on the bike components themselves, some parts have the
max. permissible Torques printed on.
Please always tighten the screws with the necessary feeling, if you are not sure, have the
screws checked by a specialist/ bicycle dealer. The smaller a screw is, the more likely it is
to be damaged by excessive forces.
19. FAQ (FREQUENTLY ASKED QUESTIONS)
Not possible to turn on:
Battery is fully charged and inserted properly?
Please remove battery for about 10 minutes and try again?
Not possible to charge battery:
(Battery) Temperature too low/ too high?
Connector/ Charger damaged?
Charger connected properly?
Battery already charged?
Computer shows an error:
Please remove battery for about 10 minutes and try again?
Please check all visible connectors for correct installation?
Please check all visible cables for damage?
Please check brakes for damage/ malfunction?
Not possible to lock folding mechanism:
Mechanism locked? Please release small lock lever on the lever itself?
Please check adjustment of mechanism?
Clean mechanism and add some grease
Saddle, handle bar and other parts move:
Please check screws?
Please check quick clamp? Readjust quick release with the thumbscrew on the quick
release. To do this, the quick release must be open. It is too dicult to close the quick
release, loosen the thumbscrew slightly.
Low range with one battery charge:
Battery fully charged?
Proper pressure on tyres?
Do you start and stop many times during your trip?
Aging of battery?
Low outside temperature?
EN
1 . FAQ (FREQUENTLY ASKED QUESTIONS)
Not possible to turn on:
Battery is fully charged and inserted properly?
Please remove battery for about 10 minutes and try again?
Not possible to charge battery:
(Battery) Temperature too low/ too high?
Connector/ Charger damaged?
Charger connected properly?
Battery already charged?
Computer shows an error:
Please remove battery for about 10 minutes and try again?
Please check all visible connectors for correct installation?
Please check all visible cables for damage?
Please check brakes for damage/ malfunction?
Not possible to lock folding mechanism:
Mechanism locked? Please release small lock lever on the lever itself?
Please check adjustment of mechanism?
Clean mechanism and add some grease
Saddle, handle bar and other parts move:
Please check screws?
Please check quick clamp? Readjust quick release with the thumbscrew on the quick
release. To do this, the quick release must be open. If it is too dicult to close the quick
release, loosen the thumbscrew slightly.
Low range with one battery charge:
Battery fully charged?
Proper pressure on tyres?
Do you start and stop many times during your trip?
Aging of battery?
Low outside temperature?
23_06_2021 Anleitung-E-Bikes.indd 45 23.06.2021 10:11:10
Driving noises have changed or something rattles / grinds etc .:
Please check the e-folding bike using the items listed under MAINTENANCE
Lights do not work:
Is computer switched on and lights are activated?
Cable damaged because of transport or similar?
Depending on bike model the front light oers an additional switch direclty at
the front light
Some bike models use battery lights, these must be switched on seperately.
Please check state of batteries.
Brake light does not work:
Is system switched on?
Does motor stop during useing the brake? If not- please check cables at brake
levers?
Brake light will only work with the brake levers, since only these have
integrated switches. The coaster brake has no electrical connection to the
system and brake light will not work with it.
Brakes make noise:
Have you prepared brakes properly before rst use?
Adjustment of brakes (incl. Brake shoes) okay?
Do the brake discs show discoloration because they have become too hot?
Depending on weather conditions and temperature (e.g. cold & humid), this
can be a normal phenomenon.
Discomfort / pain while driving:
saddle and handlebar are adjusted properly?
Due to the fact that this is a folding bike with relatively small wheels, the
possible seating position may not be suitable for longer bike tours depending
on the rider.
23_06_2021 Anleitung-E-Bikes.indd 46 23.06.2021 10:11:10
Driving noises have changed or something rattles / grinds etc .:
Please check the e-folding bike using the items listed under MAINTENANCE
Lights do not work:
Is computer switched on and lights are activated?
Cable damaged because of transport or similar?
Depending on bike model the front light oers an additional switch direclty at
the front light
Some bike models use battery lights, these must be switched on seperately.
Please check state of batteries.
Brake light does not work:
Is system switched on?
Does motor stop during useing the brake? If not- please check cables at brake
levers?
Brake light will only work with the brake levers, since only these have
integrated switches. The coaster brake has no electrical connection to the
system and brake light will not work with it.
Brakes make noise:
Have you prepared brakes properly before rst use?
Adjustment of brakes (incl. Brake shoes) okay?
Do the brake discs show discoloration because they have become too hot?
Depending on weather conditions and temperature (e.g. cold & humid), this
can be a normal phenomenon.
Discomfort / pain while driving:
saddle and handlebar are adjusted properly?
Due to the fact that this is a folding bike with relatively small wheels, the
possible seating position may not be suitable for longer bike tours depending
on the rider.
. WARRANTY
Warranty will be valid only for products used in normal usage and conditions. The warranty terms
can be called up from www.blaupunkt.com .
The guarantee does not apply to wearing parts or to parts that are worn out prematurely or fail due
to lack of care, e.g .: Broken cables, rusted and / or broken chains, worn pinions, worn brakes, rusted
attachments, parts damaged by a fall / accident, etc.
2. SERVICE
If you ever need to use a repair service, please contact your Blaupunkt dealer.
You will nd information about
2 . DISPOSAL NOTES
Do not dispose the folding e-bike in household trash!
Use return and collecting systems available to dispose of the old folding e-bike and battery.
Subject to technical changes!
All images are symbolic / example images, the conguration of the folding e-bike may dier.
EN
23_06_2021 Anleitung-E-Bikes.indd 47 23.06.2021 10:11:10
Gratulujeme k zakoupení Vašeho nového skládacího elektrokola Blaupunkt.
Chtěli bychom abyste si užívali elektrokolo po dlouhou dobu, přečtěte si proto prosím pečlivě tuto
příručku.
Pokud přece jen na rozdíl od očekávání máte s elektrokolem problém, zkontrolujte v příručce, zda
budete schopni problém vyřešit. Upozornění: Tato příručka není detailním návodem k obsluze,
údržbě a opravě. Pro zajištění bezpečnosti Vašeho elektrokola by opravy měly být prováděny
pouze specialistou. Váš prodejce a Blaupunkt servis Vám rádi pomohou.
OBSAH
1. DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY
2. OBSAH BALENÍ
3. SEZNAMTE SE SE SVÝM SKLÁDACÍM ELEKTROKOLEM
4. JAK KOLO SKLÁDAT
5. PŘEDSTAVENÍ HYBRIDNÍHO POHONNÉHO SYSTÉMU
6. BATERIE A NABÍJENÍ
7. ÚDRŽBA BATERIE
8. FUNKCE CYKLOPOČÍTAČE
9. POZICE SEDLA/VÝŠKA
10. BRZDNÝ SYSTÉM
11. POSTUP PŘI ŘAZENÍ
12. URČENÉ POUŽITÍ
13. PŘED PRVNÍ JÍZDOU
14. PŘED KAŽDOU JÍZDOU
15. PRAVIDELNÉ ČIŠTĚNÍ
16. PRAVIDELNÉ KONTROLY (INTERVAL 1 AŽ 2 MĚSICE)
17. TECHNICKÉ INFORMACE
18. ZÁRUKA
19. SERVIS
20. POKYNY PRO LIKVIDACI
23_06_2021 Anleitung-E-Bikes.indd 23.06.2021 10:11:
&RPSHWHQFH&HQWHU&DU0XOWLPHGLD)ROGDEOH(%LNHV
%ODXSXQNW86$
-61+ROGLQJV//&
0RUQLQJVLGH'U6XLWH*
&KDUORWWH1&86$
3KRQH
%ODXSXQNW6RXWK$PHULFD
%3$PHULFDV3DUDJXD\6$
$YGD5LWD(WHOYLQD*RPH]GH$YHLUR
/LPSLR'HSW&HQWUDO3DUDJXD\
3KRQH
ZZZEODXSXQNWFRP
This manual suits for next models
2
Table of contents
Other Blaupunkt Bicycle manuals
