Ratikon SPTtot007 User manual

1
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch
SPTtot007, SPTtot008, SPTtot009, SPTtot010, SPTtot011, SPTtot012

2
1Introduction
Thank you for choosing Ratikon electric bicycle.
Before you use your Ratikon electric bike it is important that you read this manual carefully. If there
is anything you do not understand completely, please contact us.
Please observe traffic regulations, and do not lend your bicycle to anyone who is unfamiliar with it.
We strongly advise you to always wear an approved cycling helmet when riding your bicycle. If you
are unfamiliar with cycling we advise attending a cycle proficiency course prior to using your new
bicycle on the public highway.
When using any bicycle, it is important that you stay within safe limits; if you feel as if you are
travelling too quickly, you probably are.
Always test your brakes prior to using the bike and remember the bike will not stop as quickly in the
wet as it would in the dry!
Before you use the bike for the first time, please make absolutely certain that it has been correctly
assembled. You can do this by either taking it to your nearest cycle engineer or if you are proficient
in cycle mechanics, inspecting it yourself. In particular you must make sure that the pedals, saddle,
handlebars and any self assembled items have been fitted correctly.
Avoid consuming alcohol before you ride your electric bike. The use of alcohol greatly reduces
reflexes and limits your ability to ride safely.
If you need to replace your battery, please either dispose of it properly or preferably send it back to
us or one of our distributors and we will make sure it is properly recycled.
Above all, enjoy your Ratikon bike, happy cycling!

3
2Caring for your Ratikon bike and pre-use checks
Your Ratikon bike has been thoroughly tested at the factory prior to delivery and undergone a pre-
delivery inspection by your Ratikon Stockist.
It is very important that you check the bike thoroughly before its first use. Equally important are
frequent and regular spot-checks, as they will protect you and your Ratikon bike.
Please read this manual carefully. Only on full understanding all of the functions of this electric
bicycle should you attempt to use it.
Folding bike, city bike and trekking bike are recommended for roads such as roads and highways;
trekking bikes are suitable for long-distance riding, have poor climbing and downhill performance,
and lack sportiness; mountain bikes can be used for riding on the above roads, more It is suitable for
riding on compound road conditions such as mountain, forest road and gravel. All the above models
shall not be used for off-road, sports and performance. If consumers violate the regulations for off-
road, sports and performance and cause accidental injury, they shall bear their own responsibility.
Before you set off for the first ride: suggested information to measure and adjust saddle height to
suit rider height:
Frame Size
Suggested Rider Height
27.5*15”
150CM-165CM
27.5*17”
165CM-175CM
27.5*19”
175CM-190
29*17”
165CM-180CM
29*19”
180CM-195CM
29*21”
195CM-215CM
Pls try to confirm whether the pedals are locked before riding. If they are loose or damaged, they
need to be adjusted before use.

4
Before you set off for the first time
2.1.1 Check the handlebars and handlebar stem are properly tightened.
2.1.2 Check all other nuts, bolts and fixings are properly tightened.
Check all folding mechanism clamps are closed tight and locked.
2.1.3 Check brakes are functioning properly.
2.1.4 Check tyre pressure are correct and tyres are not damaged.
2.1.5 Check reflectors and lights function if fitted.
2.1.6 Make sure the battery is fully charged.

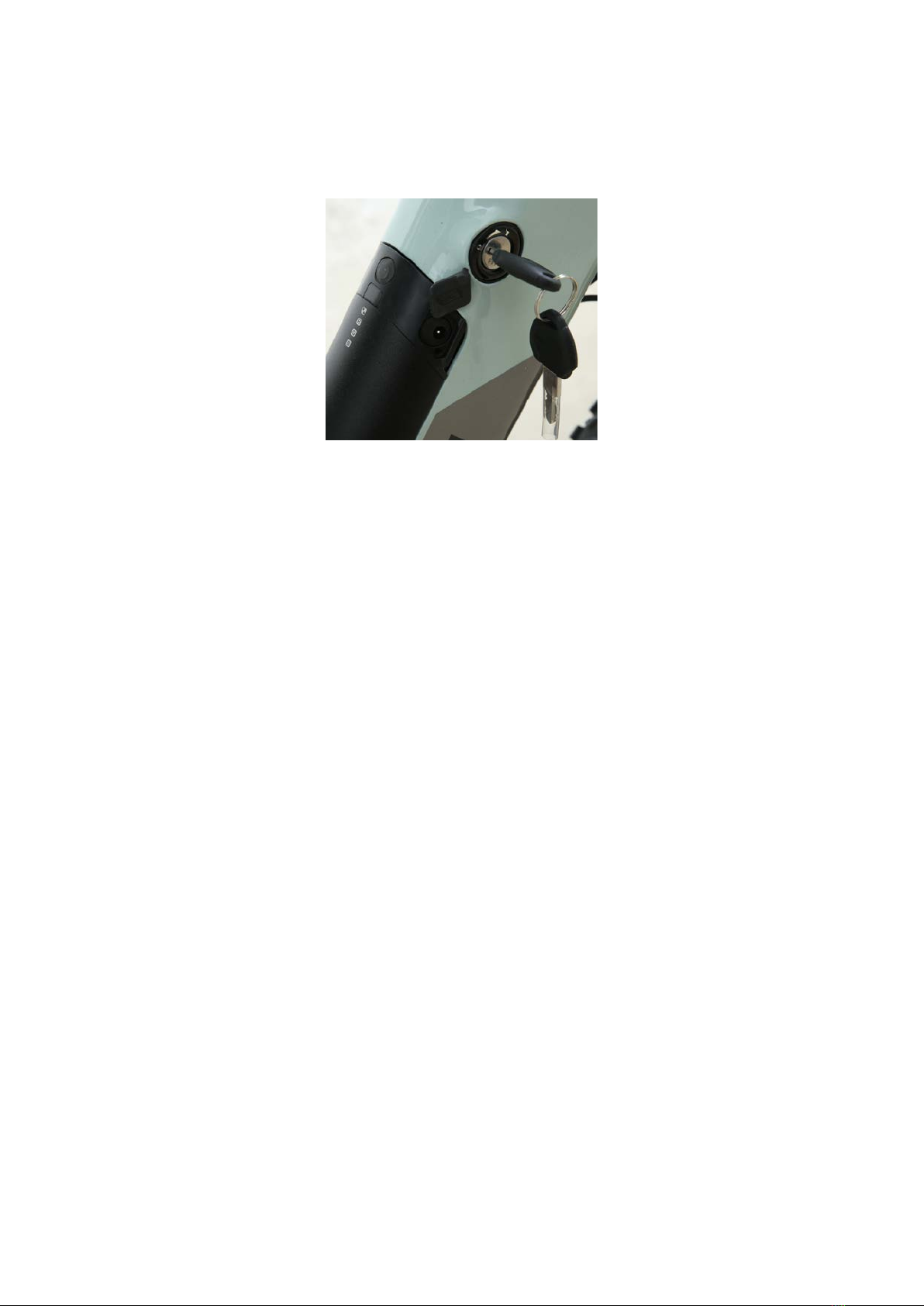

2.1.7 Load the battery into bicycle and turn on with the switch located directly above the battery.
To remove the battery, turn the battery key hold in unlocked position and slide the battery
out. Remove key from battery and keep save during operation of the bike.
2.1.8 Turn on the bike by pressing the on/off switch adjacent to the left hand grip for one second.
(Turn off the bike by repeating the same process). Read carefully the attached Display
operation manual for more details.
DS23
Size
81mm × 48mm
Rated Voltage
36V
Screen Size
Installation Size
φ 22.2
Display Type
LCD Side-Type
Display Attribution
Colorful display
Support Modes
0/1 - 5/7/9
Com. Protocol
Uart/CAN
USB charing USB
Operating temperature
-20 ~ 60 ℃
IP Level
IP65

5
The bike will be ready to ride and the LCD will activate showing Current speed, trip distance,
ODO, power and battery SOC. Turning the pedals for more than ¼ of a revolution will now
activate the motor.
2.1.9 To avoid unplanned acceleration, always make sure that the LCD assist level is set to 0 when
mounting, dismounting and turn the bike off when leaving it unattended.
To set the assist levels, toggle with the + and – buttons
2.1.10 To avoid the use of a bicycle trailer or outboard bicycle.
2.1 Before each use
It is important you check your bike prior to each time you use it. Checks should include the following:
(If you do find any damage or problems, do not use the bike until the problem has been solved or
you have had the faulty item checked by an electric bike mechanic or your retailer).
2.2.1 Check the tyres for any visible damage.
2.2.2 Check the tyre pressure.
2.2.3 Check for any loose nuts, bolts or fixings. Check all folding mechanism clamps are
closed tight and locked.
2.2.4 Check the brake functions.
2.2.5 Check the electronic functions.
2.2.6 Check the reflectors are in place and the lights are working.
2.2.7 Check the battery for any visible signs of damage.
2.2 Battery care
2.3.1 Your Ratikon bike comes with a high quality lithium ion battery. All lithium batteries need to
be looked after to ensure years of full use. Following these easy steps will ensure the long
life of your battery.
2.3.2 Recharge your battery after every use if possible. Keeping your battery charged extends its
life and your bike is always ready to go.
2.3.3 You do not have to “condition” your battery by charging and discharging before it’s first use.
This was the case with old lithium ion technology but is not necessary on modern batteries
2.3.4 Never leave your battery completely discharged for more than 24 hours. Voltage dropping
below minimum for any length of time will cause serious damage to your battery cells. *

6
2.3.5 Recharge your battery every month even if you are not using the bike. Most lithium ion
batteries will continue to discharge even when the bike and battery are turned off. If your
battery falls below minimum Voltage, it may not be recoverable. *
2.3.6 Do not expose the bicycle or battery pack to fire, heat sources, acid or alkaline substances.
2.3.7 When leaving your bicycle during hot weather, always leave in a shaded well ventilated area.
2.3.8 For best results, always recharge and store the battery at room temperature.
2.3.9 Before unloading the battery, make sure it is turned off and unload the battery using its
handle.
2.3.10 Further information on user responsibilities and battery maintenance are included in the
warranty section of this manual.
* The most common cause of battery failure the owner not keeping to points 4 and 5 above.
This is the most common reason for customers to need to replace batteries. This is
particularly noticeable in the spring when customers are using their bike for the first time in
the new year. We get most calls regarding failing batteries during this period.
IMPORTANT
If your battery is damaged due to your leaving it discharged, or not recharging when
advised as per this manual your battery is not covered by our warranty.
Battery safety
2.3.11 i. Never leave a battery connected to the charger or mains power over-night.
ii. Never recharge a battery outside, in damp conditions or in temperatures less then 0
degrees centigrade.
iii. Never open a battery case, try and fix the battery or give it to anyone other
than a registered Ratikon Stockist for maintenance. (Failure to comply will void the
warranty)
iv. If a battery is or appears to be damaged or overheating for any reason, do not use the
bike and immediately return the battery to your retailer for advice and a safety check.
IMPORTANT
Ignoring any of the safety rules above could cause serious injury or fire.
2.3.12 Recharging your battery
2.4.1 Before charging, make sure the charger is turned off and connect your battery to the charger
at the charging socket. Plug the charger into a mains socket and turn on the mains socket.
A red lamp will light up on the charger indicate the battery is charging. When the red light
turns green, the battery is fully charged. To optimize battery life, leave the charger
connected for a further hour and then turn off the charger and disconnect it from the
mains after charging. Always disconnect the charger from the mains before disconnecting

7
the charger from the battery. It is possible that the battery will take up to twelve hours to
charge on the first three charges.
2.4.2 When charging the battery, always do so in a well ventilated area.
2.4.3 Do not leave the charger connected to the mains when not in use.
Battery indicator – the default voltage of display battery is 36V. The segmented voltage values are
31.5V-32.5V-34.35V-36.03V-37.48V-39.46V
2.3 Water
2.5.1 Your electric bicycle is rain and splash proof and can be used in all weathers.
2.5.2 The electrical components of the bicycle, such as motor, battery, and controller, must not be
submerged in water.
2.5.3 Do not directly flush the bike with water to avoid direct contact with the brake levers,
handlebars, electronic equipment, etc., causing hidden dangers of the accident.
2.5.4 Please use neutral detergent, wipe the headlight lampshade, instrument case and other
plastic parts with a soft clean cloth or sponge dipped in water, and then wipe with a dry cloth
to avoid scratches;
2.5.5 It is strictly forbidden to refuel the front and rear brakes and tires;
2.5.6 Please avoid frequent bike washing, the best bike washing cycle is 10-20 days, too frequent
will accelerate the aging of bike paint;
2.5.7 To protect the environment, please try to wash the bike in the place where the sewer pipe is
laid to prevent the road area water from affecting the traffic safety.

8
2.4 Maintenance and adjustments
2.6.1 IMPORTANT! Do not attempt to open the casings of the battery, motor or controller. It
could be dangerous and all warranties will become void. If you experience a problem,
contact our service department or the retailer.
2.6.2 Wheel spokes should be checked after 300 miles of riding. Handlebar and saddle tubes
should never be raised beyond the maximum permissible, indicated by a safety line around
the tubes. The recommended torque (tightness) of crucial fixings is as follows:
Front axle nuts. 46N.m
Back axle nuts. 70N.m
Handlebar and stem clamp bolts. 12N.m
Handlebar stem expander bolt. 10N.m
Seat pillar clamp nut/bolt. 5-8N.m
Seat clamp nuts. 24N.m
Crank axle Allen bolts. 40N.m
Gear shifter nuts. 4N.m
Rear carrier nuts. 8N.m
Mudguard bracket nuts. 8N.m
Other general torque settings depend on the thread size. M4: 2.5-4.0N.m, M5: 4.0-6.0N.m,
M6: 6.0-7.5N.m.
2.6.3 Your bike has a rear derailleur that will automatically tension your chain. However, if the
chain becomes loose or frequently comes off the front chain-wheel, please seek advice from
the dealer.
2.6.4 Brake levers should lock the wheels when compressed half way between their open position
and touching the handle bars.
2.6.5 Warning: Handlebar hand grips or tube end plugs should be replaced if damaged, as bare
tube ends can cause injury.
2.6.6 Brake pads must be replaced if the pad material wears to less than 1mm.
IMPORTANT! braking distances increase on wet or icy roads.
2.6.7 Lubrication:
6.7.1. Lubricate all pivot points on the derailleur and chain with light oil or chain lube on a
regular basis.
6.7.2 Once a year, have the dealer re-grease the headset bearings, front wheel bearings
and pedal bearings.
2.6.8Recommended tools for proper maintenance:
Torque wrench with lb/in or N/m gradations

9
2, 4, 5, 6, 8mm Allen wrenches
9, 10, 15 mm open-end spanners and 15mm box end spanner
14, 15, and 19mm socket
T25 Torque wrench
No. 1 Phillips head screwdriver, bicycle tube patch kit and tyre pump
2.5 Technical specifications & performance
City/Trekking/Mountain
36V
250W
Cadence and Torque Integrated
60N.m
110
25km/h
Optional
≥ 80
JIS
6V
44,7
-20 ~ 45
℃
IP 65
Shaft Standard
Light Drive Capacity(DCV)
Gear Ratio
Operating Temperature
IP Level
E40
Hall Sensor/ Encoder
Voltage
Rated Power
Pedal Sensor
Max torque
Maximum support Cadence(Rpm)
Max support up to
Decoupling Mechnical Resistance
Coaster Brake
Size
Weight approx.
Efficienct (%)
Usage Recommendation

10
Simple Trouble shooting
Problem Possible reason Solution
Top speed too slow 1. Low battery voltage
2. Handlebar control problem
3. Damage to motor driveline
1. Recharge battery fully
2. Call service
3. Call service
Power on, but motor
not working
1. Battery not connected
2. Motor connection damaged
3.Handlebar control problem
1. Re install battery
2. Call service
3. Call service
Low range after
recharging the battery
1. Tyre pressures too low
2. Undercharge or charger fault
3. Battery capacity loss or
damage
4. Hill climbing, frequent stops, strong
headwinds, overloading.
1. Check pressures
2. Recharge completely or have
charger inspected
3. Replace battery
3Controls and equipment
In this section, the functions and any specific maintenance needed on all the main controls and
ancillary equipment are described.
3.1 Battery on/off switch and lock
3.1.1 Your Ratikon bike is supplied with two identical keys. The keylocks the battery to the bike.

11
3.1.2 The battery is connected to the electrical system of the bike automatically when you slide
the battery into the frame. To turn on the bike’s electrical system, Press down the button
directly above the frame to turn on the power, press the button again to turn off the power
Fig 2
3.1.3 When the battery has been turned on, the bike is now ready for use. The on/off button on
isolates the power from the bike.
When the on/off button is pressed for 1 second the LCD symbols will become visible. When
the on/off button is pushed again for 1 second, the LCD symbols will disappear - you have
turned the bike “off”. When the bike is “off” you will not get any assistance from the battery
and motor and the bike is effectively an unpowered pushbike.
3.1.4 To lock the battery into the bike frame, slide the battery into the battery holder in the rack
until you hear a click. To unlock the battery, turn the key fully anticlockwise and hold in this
position whilst siding the battery out.
3.1.5 The battery can be charged either on or off the bike.
3.2 The ON/OFF button and Light button
3.2.1 To turn the power on so the pedelec system is operational, simply press the ON/OFF button
on the handle bar control for 1 second - the LCD symbols will become visible showing the power is
on. When the on/off button is pushed again for 1 second and the LCD symbols become invisible you
have turned the bike “OFF”. When the bike is “OFF” you will not get any assistance from the battery
and motor and the bike is effectively an unpowered pushbike. If the bike is left for ten minutes
without being ridden, the bike will automatically turn off. The battery capacity indicator lights
provide an indication of the battery capacity remaining with four bars indicating the battery is at full
capacity. The display also incorporates a diagnostic function.
3.2.2 To switch on bike light, hold the UP button for 1s. The lighting icon comes out and display
backlight brightness is automatically reduced.

12
Likewise, hold the UP button for 1s again, the bike light switches off. The lighting icon is gone and
display resumes backlight brightness.
The power for the lights comes from the bike battery, but due to the low power consumption of the
LED lights, you will not noticeably reduce your range.
3.3 Pedal assist power
3.3.1 When you first ride your Ratikon bike, you will notice that the motor will start working when
you have turned the pedals through between 90 and 180 degrees.
3.3.2 You will find the assist buttons (marked with + and -) on the handlebar control. Each time the
UP button is pressed, the LCD will move between 1 and 5levels and the corresponding power
level increases in increments of 25%. Setting 5provides 100% power. The default level is set to
1 when the bike is first turned on. We recommend that you only turn on the bike after you
have mounted the bike so the motor is deactivated. Once on the bike, press the on button for
one second and the assistance will be turned on. You can start off in any level, if you are on a
hill for instance you may want to start in level 2,3,4 or even 5.
3.3.3 Setting 5 is generally used when you need the maximum amount of assistance from the
motor, but this will drain the battery the fastest. Lower settings are used when you do not
need the assistance at 100% power. In high traffic situations or poor conditions such as ice
and snow, instant full power could be dangerous. Power settings can be changed when the
bike is stationary or when on the move.
IMPORTANT! Make sure your handlebar grips are always intact and in good condition. Uncovered
handlebar tubes can be very dangerous.
3.4 Battery capacity meter, riding style and affect on range
3.4.1 The range of the bike (distance covered between recharging of the battery) is greatly
influenced by the level of assist selected, the amount of pedal assistance provided by the
rider and the use of the throttle.
3.4.2 If a high level of assist is selected, then the range of the bike will be reduced compared to
using a lower level of assist.
3.4.3 The cadence sensor system detects the speed the pedal cranks are turning and the This
information is fed into an on board computer (controller) to give the rider the most natural
riding experience possible.
3.4.4 The optimum range is achieved when the rider pedal effort is maximized and an ideal
situation is for the rider to aim to match the power being provided by the bike on an equal
basis.

13
3.4.5 The battery capacity indicator is provided to give an approximation of battery capacity
remaining. However, this indicator relies on sensing battery voltage that will rise and fall
depending on the amount of power being demanded at any given time, ambient
temperatures etc., hence the meter should only be used for indication purposes..
3.4.6 The battery capacity indicator, built into the top of the battery provides a similar
indication and operates on the same principle.
3.4.7 Under heavy power situations (full throttle or high levels of assist) the battery voltage will
temporarily dip resulting in the capacity meter showing a lower level of charge. When the
heavy power usage is reduced, the capacity meter will rise again as the battery naturally
recovers its voltage.
3.4.8 During the discharge period of the battery, the voltage will drop from an initial voltage of
nearly 42 Volts to a minimum of 31.5 Volts. The bulk of the discharge period will be in the
range of 38 to 36 Volts which provides the optimum performance for the bicycle. Hence due
to this wide range in voltage, the performance of the bike will vary depending on the state of
charge of the battery. To achieve the best possible performance, it is better to start a
journey with a fully charged battery and to recharge it at the end of each journey.
3.4.9 Be aware that recommended temperature range of use of the bike with battery is -10 ~ 40
°C.
3.5 Brakes
3.5.1 Disc brakes are fitted to the front and rear wheels of the bicycle. The braking direction is left
for front and right for rear. Disc brakes offer several advantages over traditional rim brakes,
including better braking in wet, muddy or other adverse conditions and less braking power
fade over extended downhill braking.
3.5.2 Details of how to adjust and maintain your brakes are as follows:
3.5.3 Regularly inspect the brake pads for wear. If the front brake pads have reached the wear
limit of 1mm, replace them immediately. The rear brake blocks should be checked by a
bicycle mechanic and replaced when necessary.
3.5.4 Front brake, remove the caliper from the fork leg, complete with the mount adapter by
removing the two 6mm Allen caliper fixing screws. The pads can then be removed by
unscrewing and removing the pad retaining screw (which passes through the tabs of the
brake pads) using a 3mm Allen wrench. Then lift the pads complete with the spring out of
the rotor slot in the caliper body.
3.5.5 After braking during riding, do not touch the disc brake disc with your hands immediately to
avoid burns.
Warning! Do not loosen any other screws on the caliper.

14
3.5.6 To refit the pads, hold the pads complete with spring as an assembly and insert into the
caliper slot with the metal backing towards the pistons. Refit the pad retaining screw
ensuring it passes through the holes in the pad tabs and through the hole in the spring and
tighten to 3– 5 N.m. Refit the caliper loosely using the two Allen screws, apply the brake
lever and tighten securely to 6 to 8N.m whilst continuing to apply the brake lever. (N.B. use
of a thread locking compound is recommended on the caliper fixing screws).
Warning: If you are unsure about any part of the brake installation process you should seek
advice from a Ratikon service center or qualified mechanic.
Caution: The pads and rotor must be kept clean and free from oil or grease based
contamination. If the pads become contaminated, you must discard them and replace them
with a new set. A contaminated disc should be cleaned with a proprietary brake cleaning
solution.
3.6 The connectors
3.8.1 All electronic components have individual connectors, this allows for the easy removal for
diagnosis, repair or replacement of any of the electronic parts. The connectors, being a push
fit are simple to disconnect or reconnect and click into position when fully engaged. Each
connector has a different number of pins and an alignment arrow, so it is important to
ensure the connectors are only mated in their original positions, damage may occur to the
pins if this procedure is not followed.
3.7 Quick release saddle height adjustment
3.9.1 Your Ratikon bike has been fitted with a quick release saddle post fitting to facilitate the
movement of the saddle height.
3.9.2 It is important that the knurled nut on the fitting is tightened so the post will not move in
the bike tube. Make this adjustment with the quick release lever in the open position.
3.89.3 Adjust the seat to the correct height and close the lever firmly. When you sit on the saddle
there should be no vertical movement at all in the saddle post beyond the seat post
suspension movement. Never apply grease to the saddle post. Always check the minimum
insert mark on the seat tube to avoid injuries and frame damage.

15
3.8 Rims and spokes
3.10.1 It is essential to have your spokes checked and tightened after 400km. If this service has not
been undertaken at the correct time, this may cause damage to the wheels and spokes that
will not be covered under our Warranty.
3.10.2 Check the rims before riding. You need to confirm whether the rim or steel wire is damaged
and whether the hub rotates smoothly. Once you find damage or poor rotation, you need to
find the cause in time and use it after maintenance.
3.10.3 Rim Care and Rim danger: It is strictly forbidden to lubricate the front and rear brakes and
the tires during maintenance of the rim; regularly check the tire wear and tear, and if it is
found that the tread wear is serious, the tire needs to be replaced in time.
3.9 Derailleur and gear change
3.12.1 Full details on how to adjust and maintain your derailleur can be found in the Shimano
manual.
If difficulty is experienced with changing gear after initial operation of the bicycle, it is likely
that some cable stretch will have occurred in the gear change cable. To compensate for this
turn the knurled adjuster shown in the centre left hand side of the image below by pulling it
away from the outer cable stop in the direction of the cable towards the rear of the
bicycle and turning it ½ turn anticlockwise when viewed from the rear. This will compensate
for the cable stretch. If necessary, repeat the operation again until smooth gear selection is
obtained or return your bicycle to your Ratikon dealer for further adjustment.
3.12.2 To change gear, use the 8 speed gear shifter located on the right side of the handlebar.
4Warranty, battery maintenance and user responsibilities
Repair or replacement of components
Only use this product in accordance with this user manual. Ratikon offer a limited warranty on the
bicycle.
Exceptions to Limited Warranties
Your Ratikon bike may not be covered by our warranty for any of the following reasons:

16
1.
Damage resulting from misuse, not maintaining the bicycle or not following the guidelines
within our user guide or using the bicycle for any kind of competitive sport.
2.
Accidental or deliberate damage.
3.
Damage due to private repair or alteration by user or unauthorised service centre.
4.
Failure to produce invoice or proof of purchase.
5.
Spare parts and components worn in normal use.
6.
Failure to have your bike safety checked and the spokes tightened within 400km or three
months of purchase.
4.1 Battery maintenance and user responsibilities
4.1.1 Your Ratikon bike is equipped with a powerful, high quality lithium ion battery. Lithium ion is
recognized as being the very best type of battery for electric bicycle use.
4.1.2 All lithium ion batteries must be well cared for to optimize useful life and range. It is the
responsibility of the bike owner/operator to ensure the battery is looked after properly.
Incorrect use or storage of your battery may cause damage and void your warranty.
4.1.3 It is not unusual for a well-maintained battery to last for several years. Though your bike will
feel less powerful as the battery gets older, and the range will diminish, you can continue
using the battery for many years to come.
A key point to remember when choosing a battery is to check the battery capacity (V x Ah =
Wh the battery’s capacity) i.e.16Ah x 36V = 576Wh. When such a battery loses 30% of its
capacity, it will still have nearly 400Wh left, still more than a new 36V 10Ah (378Wh)
battery. Choosing a larger battery not only gives you more power and range but is often
more economical in the long term.
4.1.4 The key to having a long lasting battery is to look after it. This means never leaving your
battery fully discharged and always conditioning the battery when not in use i.e. in the
winter.
4.1.5 If a battery is not cared for as per our instructions, it will not reach its optimum performance
and may not be covered by our warranty.

17
We reserve the right to check batteries claimed under warranty to ensure they have been
maintained as per our instructions.
5Extra recommendations and warnings
The importance of use of the original spare parts for parts with critical influence on safety. Battery,
charger, controller, display, motor, front fork, handlebar, stem, seat post, brake system must use the
original parts, not recommended to change by yourself.
5.1.1 It is not recommended to install transportation equipment and child seats.
5.1.2 Recommendation and user responsibility in case of unauthorized manipulation.
Cycling: 1. Always wear a safety helmet when riding a bike. 2. Please follow the traffic rules
for cycling. 3. Please check whether the bicycle is in normal condition before riding. 4. The
tire pressure during inflation must not exceed the rated tyre pressure of the tyre. 5. Downhill
and non-paved roads must not exceed 15KM / H, and do not use the enhanced mode.
Bike storage and maintenance: 1. After the ride, please place the bike in a place free of
sunlight and rain. 2. Always check the chain lubrication, if the chain is free of oil, please add
chain lubricant. 3. Regularly check the various screws of the car and the places that need to
be tightened, and tighten regularly. 4. Clean the bike regularly to ensure the best
performance of the bike.
Charging: 1. Must follow the instructions. 2. Must use original charger. 3. Do not disassemble
or replace the equipment in the charger by yourself.
5.1.3 Emission level of sound pressure on rider ears is lower than 70 DB (A)
5.1.4 Extra warnings: Like all mechanical components, Epac bicycles are subject to wear and
high stress. Different materials and components can respond to wear or fatigue in
different ways. If the design life has been exceeded, it can suddenly fail and cause
injury to the rider. Any form of cracks, scratches or discoloration in the stressed area
indicates that the service life of the component has been reached and the
component has to be replaced.
1. If there is bifurcation, breakage or rusting on the brake line or shift line, it must be
replaced;
2. When the thickness of the brake pads is less than 0.8-1mm, the film needs to be
replaced;
3. When the tread marks of the outer tire are worn to smooth or cracked or damaged,
they must be replaced. When the inner tire is damaged and cannot be inflated, the
tire must be replaced or replaced;

18
4. Inner tyre must be replaced when air leakage occurs; the rim is deformed and needs
to be replaced in time;
5. When the tire spoke is damaged or rusted, it must be replaced
6. It can be replaced when the chain is deformed and the length is extended by 1%,
and can be measured with a tool. It should also be replaced when severely rusted.
7. The tip of the freewheel wheel or the tooth disc becomes sharp due to wear, and it
must be replaced when it makes a strange noise and is not well bitten.
Please read the above suggestions and precautions carefully and use them strictly in
accordance with this standard during the bike using.
6Service
After sales service is available through your retailer.
7 Pre Delivery Inspection check list
The PDI is a critical part of the overall Quality Assurance process and must be completed by the
supplying dealer followed by a test ride and sign off before passing the bike to the customer.
The following items below are a generic list for all current Ratikon models and must be covered
during the PDI.
Item
Check off
by No.
Activity
Mechanical Parts
Notes
1
Check front and rear wheel for alignment and run out
Tighten spokes if necessary
2
Check tightness of rear axle nuts and front quick
release
Tighten to torque setting in
user manual
4
Check tyre pressure front and rear
Inflate to correct pressure
5
Check and adjust action of front and rear brakes
Ensure there is no noise or
squeal
6
Check smooth action and adjustment of front
suspension forks
7
Check adjustment of bearings in headstock
Adjust if necessary

19
8
Check security of all handlebar stem fixings and
clamps
Adjust to suit customer
preferences
9
Check front and rear mudguards for security and
clearance from tyres
10
Check all cables are clipped securely and safely
Check motor cable cannot rub
against the tyre
12
Check pedals have been fitted correctly and tightened
fully
Note left and right hand
threads
13
Check pedal cranks have been tightened fully on
bottom bracket axle.
Tighten to torque setting in
user and service manual
14
Check smoothness and running clearance of bottom
bracket
15
Check seat post quick release clamp is properly in
place and secure and saddle is correctly fitted.
Adjust as necessary
16
Check smooth operation of gear change on either
derailleur or hub gear and ensure all gears can be
selected
Adjust as necessary
17
Ensure side stand supports bike correctly and does
not interfere with other moving cycle parts
18
Ensure motor wheel turns smoothly and quietly when
rotated by hand in forward and reverse direction
Some additional resistance will
be felt when rotated in reverse
19
Ensure correct chain tension
20
Ensure chain guard is not rubbing on models
equipped with guard
21
Ensure all reflectors are in place on pedals, wheels
etc.
Electrical Parts
1
Fit and check correct operation of front and rear
lights
2
Check connections for installed components
3
Check throttle returns smoothly to closed position
Adjust if necessary

20
5
Check functionality of LCD display
Includes selection of five power
assist levels, speed readout,
and all functions are correct as
described in the user manual
7
Check battery locates properly and locks in place
securely
Ensure keys are present
10
Charge battery off the bike and check charger and
battery functions correctly
Check status lights on battery
Road Test
1
Road test the bike in a safe environment to test
functionality of both electrical and cycle systems as
described in the user manual - check noise and
performance levels
Adjust / correct after test ride.
2
Notify our support if any manufacturing faults are
identified, providing photographs if possible of any
faulty components.
3
Run through the bike operation, battery charging and
storage instructions and offer safety advice to the
customer
Copyright 2021 Alza.cz
