Blaupunkt Hamburg MP68 User manual

FCC Information
FCC Information
This device complies with Part 15 of the
FCC Results. Operation is subject to the fol-
lowing two conditions:
1. This Device may not cause harmful inter-
face, and
2. Th is device must accept any interference
received, including interference that may
cause undesired operation.
Note: This equipment has been tested and
found to comply with the limits for CLASS
B digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide
reasonable protection against harmful in-
terference when the equipment is oper-
ated in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not oc-
cur in a particular installation. If this equip-
ment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try cor-
rect the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the
equipment and receiver.
3. Connect the equipment into an outlet
on acircuit different from that to which
receiver is connected.
4. Consult the dealer or experienced ra-
dio/TV technician for help.
2
WARNING
Changes or modifications not expressly ap-
proved by the manufacturer could void the
user's authority to operate the equipment.
CAUTION
Exposure to Radio Freqency Radiation.
Antenna schall be mounted in such a man-
ner to minimize the potential for human con-
tact during normal operation. The antenna
should not be contacted during operation to
avoid the possibility of exceeding the FCC
radio frequency exposure limit. The mini-
mum separation distance of 20 cm from the
antenna to the body of user required.

Contents
About these instructions 6
Sclfety Notes 7
Sc:ope of delivery 8
Optional equipment 8
Command and Control (C'n'C) 8
Steering wheel remote control. 8
Bluetooth/USB interface 8
iPod®/USB interface 9
Amplifier 9
CD changers 9
Dievice description 10
What can the device do? 10
Controls 10
Theft protection 12
Device card 12
Detaching/attaching the control panel .. 12

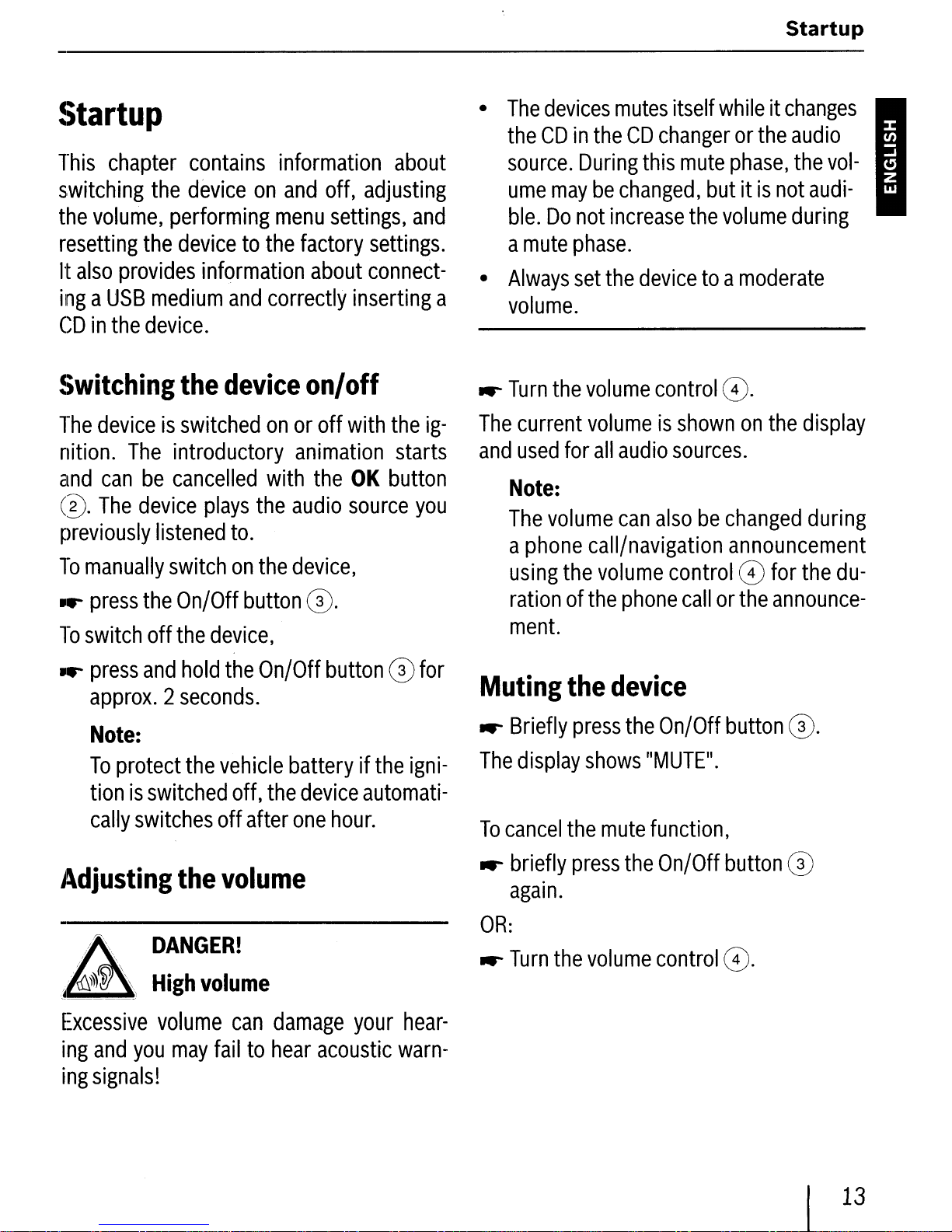

S1tartup 13
Switching the device on/off 13
Adjusting the volume 13
Muting the device 13
Overview of the menu operation 14
Changing the switch-off time
(OFFTIMER) 15
Riesetting
the device (NORMSET) 15
USB port 16
Connecting the USB cable 16
Connecting the USB medium 16
What characteristics do USB
media have to have? 16
Selecting the
USB as audio source 17
Contents
Handling CDs 17
What features do MP3 or WMA
CDs have
to have? 17
Inserting and removing aCD 18
Selecting
the CD as audio source .. 18
Tuner mode 19
Set the device to the region Europe,
USA
or Thailand 19
Starting tuner mode 19
The tuner display 19
Setting the waveband/memory
bank 20
Tuning into a station 20
Station seek tuning 20
Tuning into stations manually 20
Selecting stored stations 21
Storing stations 21
Storing stations manually 21
Searching and storing stations
automatically (TRAVELSTORE) ..... 21
Changing the seek tuning
sensitivity (SENS) 22
Scanning all receivable stations
(BANDSCAN) 22
CD mode (audio) ••••••••••••••••••••••••••••• 23
Starting the audio CD mode 23
The audio CD display ..•...................•...••...•• 23
The CD menu 23
Functions in the CD mode (audio) .. 24
3

Contents
CD/USB mode (MP3/WMA) 25
Starting the CD/USB mode 25
The MP3 display 25
Functions in the CD/USB mode
(MP3/WMA) 26
The MP3 menu
27
The Browse mode 27
The browse display 27
Selecting tracks in Browse mode .. 27
The Playlist mode 28
The Playlist display 28
Selecting tracks in Playlist mode .. 28
C'n'C mode 29
Starting COn"C mode 29
The C'n'C display 29
Functions in C"n"C mode 30
The COn"C menu 31
CD-changer mode 32
Switching to CD changer mode 32
Selecting a
CD 32
The CD changer display 32
Functions in the CD changer mode 33
The
CD changer menu 33
Bluetooth streaming mode 34
Registering Bluetooth players 34
Starting the Bluetooth
streaming mode 35
The Bluetooth streaming display 35
Functions in the Bluetooth
streaming mode 35
AUX mode 36
Adjusting the rear AUX input mode .. 36
Connecting other external audio
sources 37
4
Switching the external audio
source
on/off and selecting it ...... 37
Naming external audio sources
(AU XEDIT) 37
Mixing
an external audio source
with another audio source
(MIX
AUX) 38
Managing several COn"C devices 39
Bluetooth phone call.. 40
Bluetooth preparation 40
How is aBluetooth connection
established? 40
Opening the Bluetooth menu 40
Registering the cell phone 41
Determining the master telephone .. 41
Managing registered Bluetooth
devices 42
Unregister all registered
Bluetooth devices
42
Managing registered Bluetooth
devices in
the device list 42
Answering/rejecting aphone call 43
Making aphone call (DIAL NEW) 43
Ending acall 44
Redirecting an ongoing phone
call
to the cell phone 44
Storing and calling aphone number
in the phone book of the device 44
Storing phone numbers 44
Calling aphone number 45
Editing an entry 45
Deleting entries 46
The phone book of the cell phone 46
Downloading a phone book 46
Calling an entry in the phone book 47

Calling a phone number from the
history 47
Speed dial. 48
Changing the PIN (PIN NUM) 48
Changing the Bluetooth name
of the device (RAD NAME) 49
Sound settings 50
Opening the Audio menu 50
Adjusting bass, treble and volume
distribution 50
Selecting a sound presetting
(PRESETS) 50
Equalizer settings 51
Which equalizer setting is the
correct one? 51
Changing equalizer settings
(EBASS, ETREBlE, EMIDDlE,
EXBASS) 52
User setti ngs 53
Opening the System menu 53
Changing the welcome text
(ON MSG) 53
Changing time settings 53
Switching time display on/off
(OFF ClK) 53
Selecting 12h/24h time display
(ClK MODE) 54
Setting the time (ClK SET) 54
Changing volume presettings 54
Adjusting power-on volume
(ON VOL/lAST VOL) 54
Changing volume presettings
for TEL and MUTE 55
Activating/deactivating the
signal tone (BEEP ON) 55
Setting the speed-dependent
volume increase (AUTO SND) 56
Contents
Changing display settings 56
Adjusting the display viewing
angle (ANGLE) 56
Changing the day/night
brightness (D-DAy/D-NIGHT)........ 57
Mixing the color for the display
illumination (DISP COL) 57
Selecting the colour of the
display illumination from the
colour scan (COL SCAN) 57
Switching the continuous
colour change for the display
illumination on/off (CON SCAN) .. 58
Changing the scan time
(SCANTIME) 58
Additional settings 59
Configuring the preamplifier output
for the subwoofer (SUBOUT) 59
Activating/deactivating demo
mode 59
Displaying version numbers 59
Updating the device software 60
Technical data 61
Service
62
Warranty 62
Glossary 63
Index 64
Factory setti ngs 67
Installation instructions 412
5

CE
About these instructions
About these instructions
These instructions contain important infor-
mation to easily and safely install and oper-
ate the device.
• Read these instructions carefully and
completely before using the device.
• Keep the instructions at a location so that
they are always accessible to all users.
• Always pass on the device to third par-
ties together with these instructions.
In addition, observe the instructions of the
devices used in conjunction with this de-
vice.
Symbols used
These instructions employ the following
symbols:
The CE mark confirms the compli-
ance with EU directives.
.... Identifies a sequencing step
• Identifies a listing
Use as directed
This device is intended for installation and
operation in a vehicle with 12 V vehicle sys-
tem voltage and must be installed in a DIN
slot. Observe the 'performance limits in the
technical data. Repairs and installation, if
necessary, should be performed by a spe-
cialist.
Declaration of conformity
The Blaupunkt GmbH declares that the
Hamburg MP68 device complies with the
basic requirements and the other relevant
regulations of the directive 1999/5/EG.
DANGER!
Warns about injuries
DANGER!
Warns about accidents
~ DANGER!
I;j, ~~ Warns about heari ng loss
£ CAUTION!
~ __ ~~ Warns about laser beam
CAUTION!
Warns about damaging the CD
drive
6

Safety Notes
The device was manufactured according to
the state of the art and established safety
guidelines. Even so, dangers may occur if
you do not observe the safety notes in these
instructions.
If you are installing device
ylDurself
You may only install the device yourself if
you are experienced in installing car sound
systems and are very familiar with the elec-
trical system of the vehicle. For this pur-
pose, observe the installation instructions
at the end of these instructions.
Observe the following!
£ CAUTION!
~ '~ The device contains a Class 1
laser that can cause injuries to
your eyes.
• Do not open the device and do not per-
form any modifications.
In operation
• Operate the device only iftraffic situa-
tion permits it! Stop at a suitable loca-
tion to perform extensive settings.
• Remove or attach the control panel only
while the vehicle is standing an.
• To protect your hearing, always listen at
a moderate volume.
Safety Notes
During mute phases (e.g. when chang-
ing Travelstore, CD changer), changing
the volume is not audible until after the
mute phase. Do not increase the volume
during this mute phase.
• Always listen at a moderate volume so
that you can always hear acoustic warn-
ing signals (e.g. police).
Cleaning notes
Solvents, cleaning and scouring agents as
well as dashboard spray and plastics care
product may contain ingredients that will
damage the surface of the device.
• Use only a dry or slightly moistened
cloth for cleaning the device.
• If necessary, clean the contacts of the
control panel regularly using a soft cloth
moistened with cleaning alcohol.
Disposal note
~ Do not dispose of your old unit in
A the household trash!
- Use the return and collection sys-
tems available to dispose of the old
device.
~ Do not discard the depleted battery
A of the remote control in the house-
_ hold trash, but return it to the cor-
responding collection centres.
7

Scope of delivery
Scope of delivery
The scope of delivery includes:
1 Hamburg MP68
1 Operating/installation instructions
1 Cloth case for the control panel
1 Support frame
2 Disassembly tools
1 USB connecting cable
1 Microphone for Bluetooth phone calls
1 Microphone connecting cable (for plug
housing chamber D)
1 Plug housing chamber 0
1
Connecting cable chamber A (power
supply and more)
1 Connecting cable chamber B (loud-
speaker)
1 Connecting cable chamber Cl (Line-
Out)
1 Set of small parts
1 Handheld remote control
2 Batteries (type AAA)
Optional equipment
(not part of the scope of delivery)
Use only accessories approved by Blau-
punkt.
Command and Control (C'n'C)
This device supports the command-and-
control interface (C'n'C) of Blaupunkt. The
C'n'C interface allows an even more conven-
ient control of devices and data carriers that
8
are connected via a C'n'C-capable interface
with the car sound system (see also Blue-
tooth/USB interface and iPod®/USB inter-
face).
Note
Please note that the current software of
this device may not yet offer any C'n'C
support. In this case, the menu items
"CDC ON" and "C'N'C EDIT" are not avail-
able in the "S ys f' system menu.
Your device can be rendered C'n'C-capa-
ble by means of a software update.lnfor-
mation about the availability of this soft-
ware and the download can be found
under www.blaupunkt.com.Toinstall
new software, please read the section
"Updating the device software" in the
chapter "Additional settings".
Steering wheel remote control
A steering wheel remote control allows for
safely and conveniently operating the basic
functions of your car sound system from the
steering wheel.
You cannot switch the device on/off using
the remote control!
You can find out from your Blaupunkt deal-
er or on the Internet at www.blaupunkt.com
which remote controls can be used with
your car sound system.
Bluetooth/USB interface
For Bluetooth applications, such as wireless
hands-free calling and Bluetooth streaming,
you can connect a Bluetooth interface. The
Bluetooth/USB interface provides an addi-
tional USB connection.

The BluetoothjUSB interface is also availa-
ble in a C'n'C-capable version or can be ren-
dered C'n'C-capable with a software up-
date.
Information about the BluetoothjUSB in-
terface is available at your Blaupunkt spe-
cialised dealer or on the Internet under
www.blaupunkt.com.
iPod®/USB interface
VVith the iPod® interface or the iPod®jUSB
interface, you can connect an iPod® to the
radio device and conveniently control the
playback via the radio device. The iPod®j
USB interface provides an additional USB
connection.
The iPod®jUSB interface is also available in
a C'n'C-capable version or can be rendered
C'n'C-capable with a software update.
Information about the iPod®jUSB inter-
face is available at your Blaupunkt spe-
cialised dealer or on the Internet under
www.blaupunkt.com .
J~mplifier
You can use all Blaupunkt and Velocity am-
plifiers.
CD changers
You can connect the following Blaupunkt CD
changers:
CDC A 03, CDC A 08 and IDC A 09.
Scope of delivery
9

Device description
Device description
What can the device do?
In addition to the tuner. the device features
an integrated CD player for playing audio
CDs and MP3/WMA CDs. The built-in Blue-
tooth module and the microphone con-
nector allow the hands-free use of a phone
via the car sound system. In addition. the
following external audio sources can be
connected and used:
Controls
• Blaupunkt interfaces
• Either a CD changer or an external
audio source. e.g. MiniDisc or MP3
player. via the rear AUX socket (REAR-
AUX-IN socket)
• USB medium (player. stick or disk) with
MP3 or WMA files
• Navigation device or telephone
(Tel/Navi Line-In)
For further details. please read the installa-
tion instructions.
I
,.tJu,l ..
-
10

(D Llbutton
for folding out the control panel
CD OK button
In menus: Calling up menu items and
confirming settings (press short)
Scanning tracks/radio stations
(SCAN function; press for longer than
2 seconds)
(~ On/Off button
Switch-on, muting sound (press short)
Switch-off (press for longer than
2 seconds)
(D Volume control
(~ Display
(~ MENU button
Calling up a menu
(7) AUDIO button
Calling up the audio menu for sound
settings
(~ SRC button
Selecting an audio source
(~ Alphanumeric keys
Radio mode (O -9): Selecting stored
stations (press short), storing stations
(press for longer than 2 seconds)
In menus: Entering, for example, PIN
codes, phone numbers and names
Device description
@ Rocker switch <and> as well as A
andY
In menus and in radio mode: Selecting
submenus and menu items/functions
In other operating modes (e.g. CD or
MP3 mode): Selecting track, CO and
directory
@ DIS/ESC button
Exiting the menu and changing to the
display of the audio source, selecting
the display mode (e.g. MP3 browse
mode in MP3 display)
@...... button (Reject button)
Rejecting/ending an incoming call
@ ~ button (Answer button)
Making/answering a call
@ !button
Ejecting CO from CD drive
® COdrive
11

Theft protection
Theft protection
Device card
In case of a theft, the device card on the
back of these instructions together with the
purchase receipt is your proof of ownership.
Please enter the serial number of the device
on the card. The serial number is located on
the side of the device and pass. also on the
original box.
12
Detaching/attaching the control
panel
You can detach the control panel to protect
against theft.
CAUTION!
Damage to the control panel
Impacts and dirt can damage the control
panel.
• Transport the control panel only in its
case so that it is protected against im-
pacts and the contacts are protected
against dirt.
•
Do not touch the contacts on the rear
side with your fingers.
To detach the control panel,
.... press the !l button (D.
The control panel opens to the front.
.... Remove the control panel from the
brackets by carefully pulling it out.
To re-attach the control panel,
.... carefully push the control panel into the
brackets until it engages and fold it back
into the slot.
Note:
The device is worthless to athief with-
out the control panel. Always take the
control panel with you when leaving the
vehicle. Do not keep the control panel
inside the vehicle - not even in a hiding
place.

Startup
This chapter contains information about
switching the device on and off, adjusting
the volume, performing menu settings, and
resetting the device to the factory settings.
It also provides information about connect-
ing a USB medium and correctly inserting a
CD in the device.
Switching the device on/off
The device is switched on or off with the ig-
nition. The introductory animation starts
and can be cancelled with the OK button
(:D. The device plays the audio source you
previously listened to.
To manually switch on the device,
.... press the On/Off button 0.
To switch off the device,
.... press and hold the On/Off button 0 for
approx. 2 seconds.
Note:
To protect the vehicle battery if the igni-
tion is switched off, the device automati-
cally switches off after one hour.
Adjusting the volume
/h. DANGER!
~, High volume
Excessive volume can damage your hear-
ing and you may fail to hear acoustic warn-
ing signals!
Startup
• The devices mutes itself while it changes
the CD in the CD changer or the audio
source. During this mute phase, the vol-
ume may be changed, but it is not audi-
ble. Do not increase the volume during
a mute phase.
• Always set the device to a moderate
volume.
.... Turn the volume control (D.
The current volume is shown on the display
and used for all audio sources.
Note:
The volume can also be changed during
a phone call/navigation announcement
using the volume control(D for the du-
ration of the phone call or the announce-
ment.
Muting the device
.... Briefly press the On/Off button 0.
The display shows "MUTE".
To cancel the mute function,
.... briefly press the On/Off button 0
agam.
OR:
.... Turn the volume control (D.
13

Startup
Overview of the menu operation
The different basic settings of the device
and many functions of the different operat-
ing modes are available via menus:
• In the System menu, you perform the
basic settings for the device (e.g. dis-
play brightness and colour, power-on
volume and volume for traffic announce-
ments, telephone calls and more, time,
scan time and settings for C'n'C and
AUX mode).
• In the Audio menu, you perform sound
settings (e.g. bass, treble, volume dis-
tribution, equalizer).
• In the menu of the respective operating
mode (e.g. tuner or CD mode), you can
perform settings for the current operat-
ing mode and select functions.
To open a menu,
.... press the MENU button 0.
By default, the menu of the current operat-
ing mode is opened, e.g. the tuner menu, if
the device is in tuner mode when you press
the MENU button 0.
Note:
You cannot call up the menu if the device
is muted (IIMUTEII).
14
® Option of the selected menu item
® Selected menu item
© Menu items of the selected menu
@ Arrows indicate in which direction you
can scroll in the menu
® Menu selection
To select a different menu,
.... press the rocker switch < or >@.
It switches from the menu of the current op-
erating mode to the System or Audio menu.
The Tuner menu is also available in all the
other operating modes.
To select and call up a menu item in the cur-
rent menu,
.... press the rocker switch 7\ or ~ @.
.... Press the OK button 0.

You can exit a menu as follows:
• You confirm a setting with the OK but-
ton 0 and go back one higher menu
level.
Text input (e.g. your personal wel-
come text) should always be confirmed
with the OK button 0 to save the text
change.
• The DIS-ESC button @ returns you di-
rectly to the display of the active audio
source.
Text inputs are not automatically saved.
Pressing the DIS-ESC button @ cancels
the text input without saving it. All other
settings are saved.
• Every menu features the menu item
"EXIT". If you select "EXIT" and press the
OK button 0, you return to the higher-
level menu.
If no selection or setting is performed in a
menu for approx. 8 seconds, the display au-
tomatically returns to the display of the au-
dio source (in the Bluetooth menu, this time
is approx. 30 seconds). Your settings - with
the exception of text inputs - are saved.
Changing the switch-off time
(OFFTIMER)
If you remove the control panel, the device
automatically switches off after 15 sec-
onds. This switch-off time can be changed:
.... Press the MENU button 0.
.... Press the < rocker switch ® to open
the "Syst" system menu.
Startup
.... Press the rocker switch 1\ or v® to
select the "0FFTIMER" function.
.... Press the OK button 0.
.... Press the rocker switch < or >® to
adjust the switch-off time between
15 and 30 seconds.
.... Press the OK button CD to select a dif-
ferent function, or press the DIS-ESC
button @to exit the menu.
Resetting the device (NORMSET)
You can reset the device to the factory
settings (see appendix Ai). Your person-
al settings. e.g. your welcome text, will be
deleted in the process.
.... Press the MENU button 0.
.... Press the < rocker switch ® to open
the "Syst" system menu.
.... Press the rocker switch 1\ or ~ ® to
select the "NORMSET" function.
.... Press and hold down the OK button 0
for longer than 4 seconds.
"NORM ON" briefly appears on the display.
The factory settings are restored. The ra-
dio briefly switches off and automatically on
again during the process.
Note:
If you press and hold down the OK but-
ton CD for less than 4 seconds, "NORM
OFF' is displayed. Your personal settings
are retained. Press the OK button CD to
select adifferent function, or press the
DIS-ESC button @ to exit the menu.
15

Startup
File extension II. wma
ll
/
".
mp
3
11
Max. 24 characters (more
characters are possible,
but they reduce the max.
number of files)
,_>_ ..•• ~<,~"' ...... _" ... ,,~ .• _ ..... "_ ... , .. , ... _ ... , ... ,.,."',.w-~_w'''''~''···.w.~.''·k·"",·'·M~.~", .. _·.-·",·.~~·_=,~_·.,···.w.~ ." .. ,,~,~
No special characters or
umlauts
Naming of
files
File system FAT16 or FAT32 ,
no NTFS!
ID3 tags Version 1 or 2
, '~'_-'''''''","" ....... , ............. _.y",,,,", .. -.. -_-.<.-...._. ·."' .... ~_'>. __ A_-_.- . .....,.~, ... ·,_ ... · ... ..........-.-_~·~_···., ··_." .. ~ __
Format Only MP3 or WMA files.
folders. playlists
",,,,-,,,,~,,,,,,,«,,",~,,,,,,,,,,,,,,,,,,,,,~,,-=,,,,-,,,,,,,,-,,,,,,,,,,,,,,,,,,.,,,,~ ~,, .. ,, • .....,.,-," .• ,."~- .. ",."-" .,.",",.". .. "" ,~.~.,,.,,, """~-~'-~'.'-' .. '-. " -~" ~ .. <".~.,,' .• ,"
Number Max. 1.500 files (folders
and tracks) per folder
Bit rate MP3: 32 to 320 kbps
WMA: 32 to 192 kbps
Under Windows 2000/XP. the FAT32 for-
matting creates a maximum partition size of
32 GB. If you are using a USB medium with
more than 32 GB, it may result in read errors
for additional partitions .
If a large number of files is stored on your
USB medium. the speed of the file search
may be reduced.
.... Connect the USB medium with the USB
cable.
What characteristics do USB media have
to have?
The device recognises the USB medium
only if it is a mass storage with the follow-
ing features:
USB port
You can connect the following USB media
to the device and use them as audio source:
• USB stick
• USB hard disk (max. 800 mA)
• MP3 player with USB port
The device can play MP3 or WMA formats
(WMA version 9. without DRM copy protec-
tion only).
Note:
Blaupunkt cannot guarantee the proper
functioning of all USB media available on
the market!
Connecting the USB cable
To connect a USB medium. the supplied
USB cable must be connected to the rear of
the device before installing the car sound
system. For further details. please read the
installation instructions.
The USB cable can then be routed, for exam-
ple, to the glove compartment or a suitable
place of the center console.
Connecting the USB medium
Note:
Always switch off the device before con-
necting or disconnecting your USB me-
dium! The USB medium is correctly reg-
istered/unregistered only with switching
on/off.
.... Switch of the car sound system by hold-
ing the On/Off button ® pressed for
longer than 2 seconds.
16

Startup
What features do MP3 or WMA CDs have
to have?
The device can only play and display MP3 or
WMA CDs with the following features:
MP3: 32 to 320 kbps
WMA: 32 to 192 kbps
File extension". wma"/
".mp3
11
Max. 16 characters (more
characters are possible,
but they reduce the max.
number of files)
_.~~~ ••••• ,''., __ .'. __ •••••• '¥""" ••.•. ,- •• ,••• ,'.".,.,.,. ',"" ·.y·.w .... , ...... ···_· __ ·,·_· __ ~,..~ ~ .. ~., .• ~_. ..- v<. __ .~ __ ~
No special characters or
umlauts
Bit rate
Naming of
files
CD format
ISO 9660 (Levell or 2)
or Joliet
""'''''''''''''."'',<,'''<''''''''<''<'''".w, .. ,'"",_""""",,.
ID3tags Version 1 or 2
c""" .~ .... ."..,..~_..".,._~"""":" ,=-=._-""'_" ....... _. ~_ ..... _~_¥~_~~.~ ........... ~~ .. , ~.~' .. V¥ •• N .~"v ,.., __ ,._c~· __ ,·_ ..... ·, ... _ ...... ·.,·_,_·~_·,_~_.-,.""" .... u_.,·_·, __ Cy ...... ·
Format Only MP3 or WMA files,
folders, playlists
""~' ..•, ... < "."".",,,,,,.,,.,,,,, <".,<,,,,,.,,,,.,,,,,,,, «'<m"""" ,.",., , ._,.,<""""",.,."" .• """ .... , ,." .
Number Max. 999 tracks
in 99 folders
• CD-R or CD-RW with MP3 or WMA files
(WMA version 9, without DRM copy pro-
tection only)
Note:
The quality of self-burnt CDs fluctuates
due to different CD blanks, burner soft-
ware, and burn speeds. For this reason,
it is possible that the device cannot play
some self-burnt CDs.
Handling CDs
The device can play the following CD for-
mats:
• Audio CD with the CompactDisc logo
(some CDs with copy protection cannot
be played)
Note
Blaupunkt cannot guarantee the proper
functioning of copy-protected CDs!
Selecting the USB as audio source
.... Press the SRC button CD repeatedly un-
til "USB" appears on the display.
The display briefly shows "READING". The
playback starts.
If USB is selected as audio source, the MP3
display is shown. For further details, please
read the chapter "CD/USB mode (MP3/
WMA)".
If you cannot playa CD-R/CD-RW:
• Use blanks from adifferent manufactur-
er or adifferent colour.
• Reduce the burn speed.
17

Startup
Inserting and removing a CD
A CAUTION!
l_.. _~ Damaging the CD drive
Labelled or shaped CDs can damage the CD
drive.
• Do not insert any mini CDs (8 cm diame-
ter) or shape CDs damage.
• Insert only circular CDs with a 12-cm
diameter.
• Do not attach labels to CDs since the
label may detach during operation.
Note:
Label CDs only by using a marker since
it does not contain any caustic materials.
Permanent markers can damage CDs.
~ Press the!] button CD.
The control panel opens.
~ If a CD is in the drive, press the'
button@.
The CD is ejected.
~ Remove the CD.
If you do not remove the CD, it is automati-
cally pulled in again after a few seconds.
~ Insert the CD with its printed side up-
permost into the CD drive@ until you
feel some resistance.
The CD is automatically drawn in.
~ Close the control panel.
The display briefly shows "READING". Next,
the following appears:
18
• The audio CD display if an audio CD is
inserted.
• The MP3 display if an MP3 or WMA CD
is inserted.
The CD starts playing.
Selecting the CD as audio source
You can select an inserted CD as audio
source:
~ Press the SRC button ® repeatedly
until "CD" (for audio CD) or "MP3" {for
MP3 CD} appears on the display.
Note:
The CD mode can be selected only if a
readable CD is inserted.
To operate the audio CD disptay, please read
the chapter "CD mode (audio}".
To operate the MP3 display, please read the
chapter "CD/USB mode (MP3/WMA}".

Tuner mode
This device can receive radio stations in the
FM and AM frequency ranges.
Set the device to the region
Europe, USA or Thailand
The device is set to the frequency rang-
es and station technologies of the region
in which it was purchased. You can adjust
this setting to the different frequency rang-
es and station technologies of Europe, the
United States or Thailand. To do so, the de-
vice must be switched off:
... Simultaneously press the AUDIO button
o and the * button ® while switching
on the device.
The display shows 'TUNER AREA
II
and the
current setting as well as alist of available
options.
... Press the rocker switch A or v@ to
switch between the regions EUROPE,
USA and THAILAND.
~ Confi rm the setti ng with the OK
button 0.
Note:
The tuner functions described in these
operating instructions refer to the region
America (tuner setting IIUSA
II
).
Tuner mode
Starting tuner mode
... Press the SRC button ® repeatedly
untilllTUNER
II
appears on the display.
The playback starts immediately with the
previously played station if the vehicle is
with in the reception area of th is station.
The tuner display
~ ~
® Waveband/memory bank
® Bluetooth status
© Display area for frequency and time
@ Menu selection
® Options of the current menu
In the tuner display, 3 menus are available in
the menu selection:
• List: This menu is displayed by default in
Tuner mode. The List menu displays the
adjusted frequency and time. In addi-
tion, the frequencies stored the station
buttons are displayed in a list.
• Tune: The Tune menu provides functions
for adjusting stations, scanning stations
and automatic station storage.
19

Tuner mode
• Band: The Band menu allows selecting
the waveband or the memory bank.
You can switch between the menus with
the rocker switch < or > @.
Setting the waveband/memory
bank
You can adjust and set radio stations of the
FM and AM wavebands.
The FM and AM wavebands each feature 2
memory banks: FM and FMT as well as AM
and AMT. Each of the 4 memory banks fea-
tures 10 memory locations.
.... Press the> rocker switch @ twice to
open the "Band" menu.
.... Press the rocker switch /\ or v @ to
select the desired waveband or memo-
ry bank.
.... Press the OK button 0.
The desired waveband or memory bank is
adjusted. After a short period of time. the
display automatically returns to the "List"
menu.
You can now perform the following actions
in this waveband/memory bank:
• Tuning into a station
• Storing stations
20
Tuning into a station
There are 3 ways of tuning into a station:
• Tuning into stations automatically
(station seek tuning)
• Tuning into stations manually
• Selecting stored stations
Station seek tuning
.... Press the # button of the alphanumer-
ic keys@.
"SEEK" and the current frequency appear
on the display.
.... Press the rocker switch /\ or v@.
If you press and hold the rocker switch /\
or v @, automatic seek tuning skips the
stations found until you release the rocker
switch again.
Note:
You can also activate the "SEEK" func-
tion by using the> rocker switch @ to
open the "Tune" menu and pressing the
OK button 0.
The tuner searches for the next receivable
station in the current waveband. The ad-
justed sensitivity of the station seek tuning
(section "Changing the seek tuning sensitiv-
itt) is taken into consideration.
Tuning into stations manually
.... Press the # button of the alphanumer-
ickeys@.
"SEEK" and the current frequency appear
on the display.
