Operating instructions
Montreux RCR 44

3
Montreux RCR 44 - 010 (Code deaktiviert)
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
14
9
263
1415 71213 10 81116
5

15
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Contents
Short description ......................... 16
Important information.................. 18
What you need to know! ....................... 18
Traffic safety ......................................... 18
Installation/connection .......................... 18
Anti-theft coding .......................... 18
Wrong code number entered ................ 18
Switching the code system on .............. 19
Restart following interruption of power
supply.................................................... 19
Switching the code system off .............. 19
Optical indication of theft protection ...... 19
Radio operation with RDS ........... 20
AF - Alternative Frequency ................... 20
REG - Regional ..................................... 20
Selecting a station................................. 20
Automatic seek tuning........................... 20
Manual seek tuning............................... 20
Adjusting the seek tuning sensitivity ..... 21
Stereo - mono switch (FM).................... 21
Changing the memory bank (FM) ......... 21
Storing stations ..................................... 21
Storing the strongest stations auto-
matically with Travelstore...................... 21
Recalling stored stations ....................... 22
Sampling stored stations briefly
with Preset Scan ................................... 22
Sampling stations briefly
with Radio Scan .................................... 22
Reception of traffic announce-
ments with RDS-EON................... 23
Priority of traffic announcements
ON/OFF ................................................ 23
Warning beep........................................ 23
Switching the warning beep off ............. 23
Automatic seek tuning start................... 23
Adjusting the volume for traffic messages
and warning beep ................................. 23
Tape operation ............................. 24
Inserting a tape ..................................... 24
Ejecting a tape ...................................... 24
Fast winding .......................................... 24
Fast forward .......................................... 24
Fast rewind ........................................... 24
Autoreverse........................................... 24
Care of your audio equipment............... 25
DSC programming ....................... 25
Survey of DSC default settings ............. 26
Appendix....................................... 26
Technical data....................................... 26

Montreux RCR 44 - 010
16

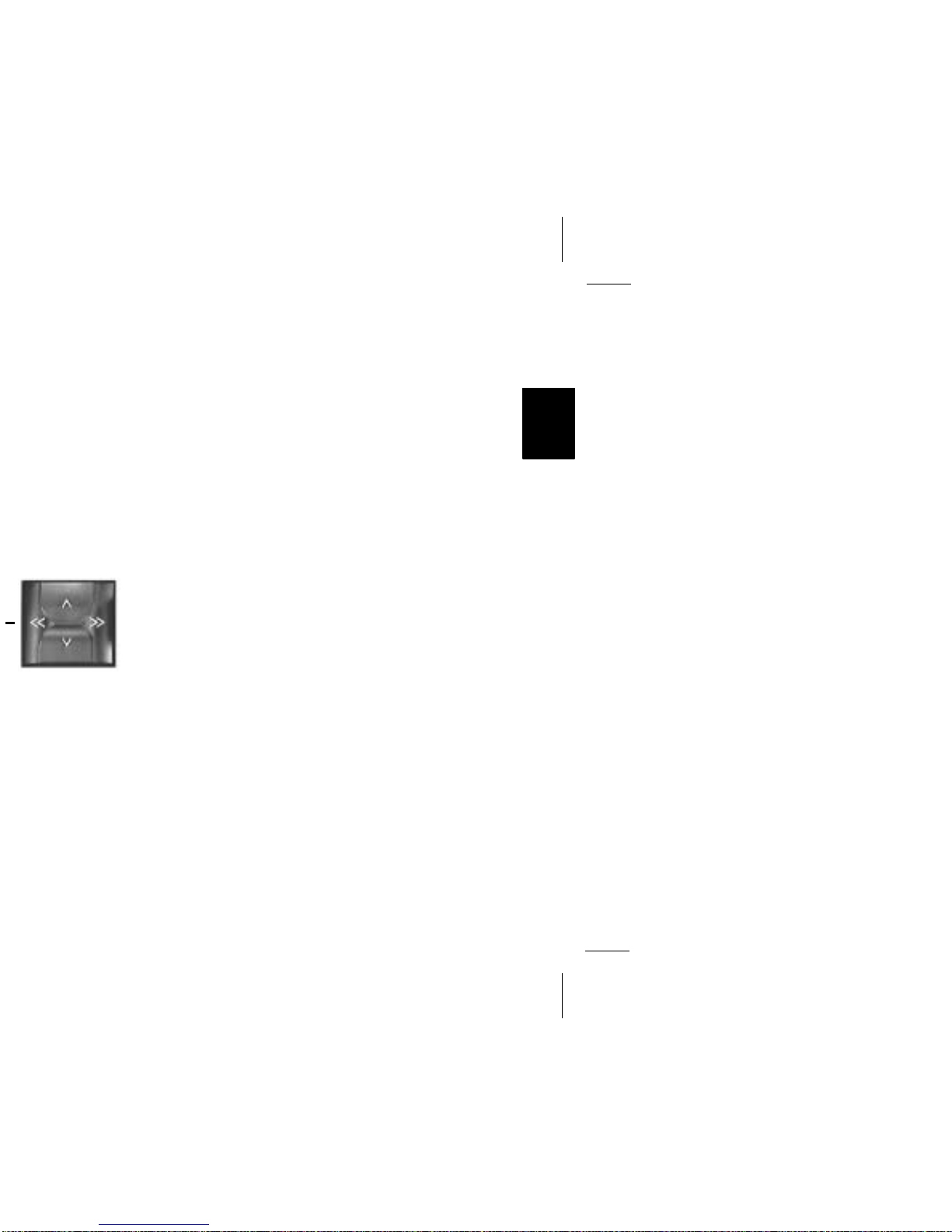

2Rocker switch
Seek tuning
up
down in
short steps
down
up in
short steps
Extra functions:
Coding: Enter code and confirm
with .
DSC mode: Select and program DSC
settings.
3Eject tape
Press .
4Cassette slot
Insert tape (side A or 1 facing up, the
open side facing to the right).
Short description
1Amplifier
On Off
Volume
Scan: Press for 1 second
When “CODE” lights up in the display,
read chapter “Anti-theft coding” first.
SCAN
Hold down for approximately 1 second
to sample all stations to be received.

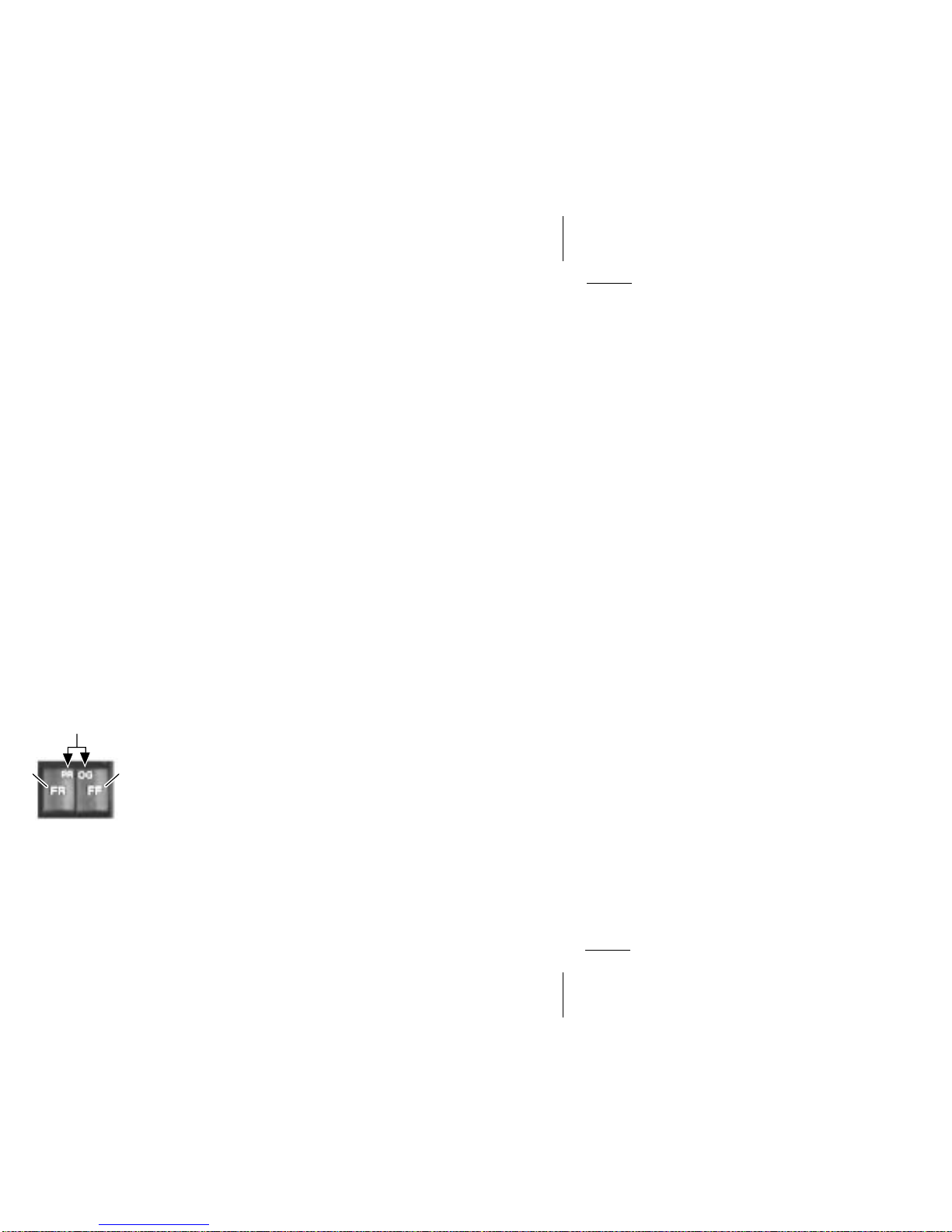

5Fast winding of the tape/
autoreverse
Changing the track
Press simultaneously
TR1-PLAY or TR2-PLAY in the display
Fast forward
To stop:
press FR
Fast rewind
To stop:
press FF
6Display
Waveband
Station name/
frequency
Memory bank
Preset button
Tuning sensitivity
Alternative frequency
Priority of traffic
announcements
Traffic program
identifier
Stereo symbol

17
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
71, 2, 3, 4, 5, 6 - preset buttons
You can store 6 stations on each FM
memory bank (I, II, III and T).
To store a station: Press button during
radio operation and hold it down until
the radio resumes play.
To recall a station: Select a memory
bank (press repeatedly if necessary
and then press the required preset but-
ton.
Extra function:
Coding - Read chapter “Anti-theft cod-
ing” first.
Buttons 1, 2, 3, 4 - To enter the four-
digit code.
Press each button repeatedly until the
four-digit code given in the car radio
passport is displayed.
8PS (Preset Scan)
To briefly sample all stored stations of
the selected memory bank (FM I-III or
T).
9lo; dx
Seek tuning sensitivity
lo lit up in the display indicates normal
seek tuning sensitivity (the system will
pick up strong stations only).
dx lit up in the display indicates high
seek tuning sensitivity (the system will
also pick up weaker stations).
To change the seek tuning sensitivi-
ty: press lo or dx.
:DSC (Direct Software Control)
Use the DSC function to change a
number of basic settings. See “DSC
programming” for more details.
;AF - Alternative Frequency in RDS
mode
If “AF” is on, the radio will automatically
switch to the strongest frequency of the
same program.
AF on/off: press AF briefly.
<TA (Traffic Announcement)
If “TA” is on, only traffic announce-
ments will be received.
TA on/off: press TA.
=TS (Travelstore)
To store the six most powerful nearby
stations automatically with Travelstore.
Store: Press TS until seek tuning starts
(see display).
Recall: Press TS until “T” appears in
the display. Then briefly press one of
the presets 1, 2, 3, 4, 5, 6.
>FM - FM
To select one of the FM memory banks
I, II or III.
To change the memory bank:
Press button until the desired memory
bank is indicated in the display.
?TRE - Treble
BAS - Bass
BAL - Balance (left/right)
FAD - Fader (front/rear)
To select, press TRE, BAS, BAL or
FAD.
The set value is shown in the display
(e.g. TRE +5).
Then use the rocker switch 2to chan-
ge the value. Press any other button to
store the new value.
If the value is not changed within 8 se-
conds, the display will show the pre-
vious setting again.

Montreux RCR 44 - 010
18
Important information
What you need to know!
Beforestarting to use your new car radio you
shouldcarefullyreadthroughtheinformation
on “Traffic safety” and “Anti-theft coding”.
Traffic safety
Traffic safety has always priority. Use your
car radio in such a manner that you are
always able to cope with and react to the
prevailing traffic situation at any given time.
Remember, even at 50 km/h you are still
moving at a speed of 14 m per seconds.
It is also very important that you are able to
hear, and react to, acoustic warning signals
around you, for example from the police or
the firebrigade.
Therefore, adjust the volume reasonably.
Installation/connection
The code system can only be switched on
and off, if the radio is connected to perma-
nent power.
If you like to install your new car radio by
yourself or add other audio components to
the existing ones, then please read carefully
the enclosed instructions on installation and
connection.
Do not connect the loudspeaker outputs to
ground!
Only use the accessory and replacement
parts approved by Blaupunkt.
Anti-theft coding
The car radio comes standard with the code
system deactivated.
If the anti-theft coding system is on while the
power supply to the unit is interrupted (e.g.
theft,disconnectingthecarbattery),thesetis
electronically blocked. Then it may only be
used again after the appropriate code num-
ber has been entered (see car radio pass-
port).
Wrong code number entered
Itshouldnotbe possible forthievestoascer-
tain the code number by trial-and-error. This
is why the set will be blocked for a certain
period of time, if an incorrect code number is
entered.Inthiscase,“----”willappearinthe
display.
This waiting time is 10 seconds after the first
three attempts, and 1 hour following subse-
quent attempts.
After 19 unsuccessful attempts, “OFF” will
appear in the display and the set can no
longer be restarted.
Note:
Keep you car radio passport with the code
number in a safe place in order to avoid
“unauthorized access” to your car radio.
Ifthe power supply to the radio is interrupted
while the code system is switched on, you
need to know the right code number.

19
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
If the radio is turned off before the waiting
period has elapsed, then the waiting period
restarts as soon as the radio is turned on
again.
Switching the code system off
•Turn off the radio.
•Simultaneously press preset buttons 1
and 4and hold them down.
•Turn the set on.
“CODE” will appear in the display.
•Enter the code number given in the
Blaupunkt car radio passport and con-
firm: See example “Restart following
interruption …”.
The code system is now deactivated.
Optical indication of theft protec-
tion
Whenthecarisstationary,anopticalsecurity
system in the form of a flashing LED can be
activatedto visualize that your radio is code-
protected.
Dependingonhowyouhavehookedupyour
radio, three different LED modes are
available,whichcanbeprogrammedwiththe
DSC function.
See “DSC programming” for more details.
Restart following interruption of
power supply
(Code system switched on)
•Switch on the set.
“CODE” will appear in the display.
•Briefly press preset button 1, “0000” will
appear in the display.
•Enter the code number given in the
Blaupunkt car radio passport:
Example: the code number is 2521.
-Press preset button 1twice, “2000”
appears in the display.
-Press preset button 2five times,
“2500” appears in the display.
-Press preset button 3twice, “2520”
appears in the display.
-Press preset button 4once, “2521”
appears in the display.
•To confirm the code number:
Press the upper part of the rocker
switch .
Your car radio is now ready for operation.
If four dashes appear again in the display,
you have entered a wrong code number.
Now it is essential to enter the correct code
after the waiting period has elapsed (CODE
in the display).
The radio will operate again as soon as you
have entered the right code number.
If you lose your radio passport and have
forgotten your code number, you will not be
able to restart the set after the power supply
hasbeeninterrupted.Inthiscase, your radio
can only be reset in our central customer
service workshop or in one of our service
agencies abroad.
Switching the code system on
Precondition:
The radio must be connected to permanent
power.
In order to switch the code system on:
•Turn the radio off.
• Hold down the preset buttons 1and 4
simultaneously.
•Turn the radio on.
“CODE” briefly appears before the ra-
dio begins to operate.
•Release preset buttons 1and 4.
The code system is on.
“CODE” will be briefly displayed each time
the radio is turned on.

Montreux RCR 44 - 010
20
“SEARCH” goes out as soon as the system
has found an alternative frequency or after
the frequency band has been scanned com-
pletely.
Should the reception quality of the selected
program become too bad,
•tune into another program.
REG - Regional
TheAF function can also be used to activate
anddeactivatetheregionalfunction.Atsome
time of the day, larger radio stations split up
their main program into regional program
versions offering local information.
If you want the radio to lock onto a regional
program,
• hold down the AF button for about 2
seconds.
The display will show “REG ON”.
If you leave the service area of the regional
program or if you wish to use the entire RDS
service, switch to “REG OFF”.
•Hold down the AF button for about 2
seconds until “REG OFF” is displayed.
If “REG ON” is activated, the display will
show “REG ON” each time the radio is
switched on.
Selecting a station
FM radio stations in the range between
87.5 and 108 MHz can be received.
Automatic seek tuning /
• Press / . The radio will automatically
tune to the following station.
If you press the upper or lower part of the
rocker switch ( /), seek tuning speeds up
in forward and backward direction.
Seek tuning
up
down in
short steps
down
up in
short steps
Manual seek tuning << >>
•Press << or >> to change the frequency
in small steps in either direction.
Hold down the right or left part of the rocker
switch to speed up this process.
Radio operation with RDS
An ever increasing number of FM radio sta-
tionsbroadcastadditioninformationinparal-
leltotheirnormalprogramviatheRadioData
System to make reception even more con-
venient.
Assoonasradioprogramscanbe identified,
the station name and possibly the regional
identifierareinthedisplay,e.g.“NDR1NDS”
(local radio program in Lower Saxony, Ger-
many).
With RDS, the preset buttons turn into pro-
grambuttons.Nowyouknowexactlytowhich
programyoursetistunedinandthusyoucan
choose precisely the desired program.
RDS offers further advantages:
AF - Alternative Frequency
The AF function assures that the strongest
frequencyoftheselectedprogramistunedin
automatically.
Thisfunction ison, ifthe displayshows “AF”.
To switch AF on/off,
• press AF briefly.
During seek tuning to the strongest frequen-
cy, the radio operation is muted for a mo-
ment.
If “SEARCH” appears in the display when
turningthesetonorwhen calling up astored
frequency,thesetisautomaticallysearching
for an alternative frequency.

21
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Note:
If you tune into a station which has already
been stored on another memory bank, the
corresponding preset button and the memo-
ry bank will start flashing on the display for a
short while.
Storing the strongest stations
automatically with Travelstore
YoucanusetheTravelstorememorybankto
automatically store the six strongest FM sta-
tions sorted on the preset buttons according
to their signal strength. This feature is
especially useful when travelling, because it
will always give you the most powerful stati-
ons at a fingertip as you pass through the
various reception areas.
• Press TS for at least 2 seconds.
The radio will seek for the most powerful
nearby FM stations and store them on the
memory bank “T” (Travelstore). Once the
processiscompleted,thestationallocatedto
preset button 1 will be played.
FM stations can also be stored manually on
theTravelstorebank(see“Storingstations”).
Adjusting the seek tuning sensi-
tivity
Twobasiclevelscanbeselectedfortheseek
tuning sensitivity.
If “lo” is displayed, the radio will only tune to
strong stations (low sensitivity).
If “dx” is displayed, you will also receive less
powerful stations (higher sensitivity).
To change the seek tuning sensitivity,
• press lo or dx.
Thetwobasicsensitivitylevelscanbefurther
varied (see “DSC programming”).
Stereo - mono switch (FM)
You can switch to mono when the reception
quality becomes poor:
• Press lo for approximately 2 seconds.
During mono reception the stereo sym-
bol will go out in the display.
Each time the car radio is switched on, the
radiowillautomaticallybesettostereorecep-
tion.
It will automatically shift to mono when the
reception quality becomes poor.
Changing the memory bank (FM)
YoucanshiftbetweenthememorybanksI,II
and III to store and recall preset stations.
Theselectedmemorybankisindicatedinthe
display.
• Press FM until the desired memory
bank lights up in the display (press re-
peatedly if necessary).
Storing stations
OneachFMmemorybank(I,II,IIIandT)you
canstoresixstationsonthepresetbuttons1,
2, 3, 4, 5, 6.
•Select the memory bank by pressing
FM or TS to adjust the waveband.
Press the FM button to select one of
the FM memory banks.
•Use the rocker switch to tune to a sta-
tion (either automatically or manually).
•Press the desired preset button and
hold it down. The radio will be muted
and resumes play after about 2 se-
conds.
Now the station is stored.
Theactivatedpresetbuttonisindicatedinthe
display.

Montreux RCR 44 - 010
22
Recalling stored stations
You can recall any stored station by pressing
the corresponding preset button.
•Use the FM or TS button to select the
desired memory bank.
For this purpose, press FM until the
desired memory bank is indicated in the
display.
•Briefly press the desired preset button.
Sampling stored stations briefly
with Preset Scan
You can briefly sample all preset stations of
the FM or TS memory bank using the Preset
Scan function.
• Press FM or TS.
•Press PS.
The set will sample all stations of the
selected memory bank.
Free preset buttons will be skipped.
To stop this function:
•Press PS once again.
The radio will continue to play the cur-
rently sampled station.
Sampling stations briefly
with Radio Scan
Thisfunctionallowyoutosamplethesubse-
quentstationsbrieflyforapproximately8 se-
conds each.
To active Scan:
•press button 1for approximately
1second.
Then sampled frequency or the station
logo starts flashing in the display. Du-
ring the actual searching process,
“SCAN” is flashing.
To select a sampled station/switch Scan
off:
•press button 1briefly.
If no station is selected during the scan
operation, the radio returns to the station
where Scan has been started before.

23
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Priority of traffic announcements
ON/OFF
“TA” lights up in the display, if the priority of
traffic announcements is on. To switch the
function on and off,
•press the TA button.
Warning beep
Whenever you leave the reception area of
the traffic program station you are tuned to,
you will hear a warning beep after approxi-
mately 30 seconds.
This warning beep will also be released, if
you press a preset button to recall a preset
station without traffic program.
Switching the warning beep off
a) Tune to another traffic program station:
•Press the rocker switch 2or
•press a preset button to recall a
traffic program station.
or
b) Switch the traffic message priority off:
• Press TA.
“TA” goes out in the display.
Automatic seek tuning start
(During cassette operation)
If you leave the reception area of your traffic
program station while you are playing a cas-
sette,thecarradiowillautomaticallytuneinto
another traffic program station.
If no traffic program station is found within
approximately 30 seconds, the tape will be
stopped and you will hear a warning beep.
To switch the warning beep off, proceed as
detailed above.
Adjusting the volume for traffic
messages and warning beep
A default value is set ex factory for the volu-
meoftrafficannouncementsandthewarning
beep. You can change this default setting
withthe DSC function (see “DSC programm-
ing, ARI, TA”).
Reception of traffic announcements with RDS-EON
Many FM broadcasters provide their service
area with traffic messages at regular inter-
vals.
Alltraffic program stations transmit aspecial
signalparallel to theradio program.Your car
radio is able to identify such traffic program
station by this TP signal. The display will
indicate“TP”toconfirmthatatrafficprogram
station is tuned in.
Otherradiostationsdonotairtrafficannoun-
cements by themselves, but offer the possi-
bility to receive the traffic announcements of
another radio station within the same radio
network. During reception of such a station
(e.g. NDR3) “TP” lights on the display as
soonasthe priority oftrafficannouncements
is activated. Then the display has to light
“TA”.
If a traffic announcement is aired, your radio
willswitchtothetrafficprogramstationforthe
durationofthemessageandwillswitch back
to the previous station after the end of the
message.

Montreux RCR 44 - 010
24
Tape operation
Inserting a tape
•Turn the set on.
•Insert a tape.
Insert tape with side A or 1
facing up, the open side facing
to the right
Eject tape
The tape will be played in the direction used
last.
If “TR1-PLAY” is displayed, this means that
track 1 or A of the tape is played.
Ejecting a tape
•Press .
The tape will be ejected.
Fast winding
Fast forward
•Press FF (fast forward).
At the end of the tape, the set will
switch to the other track and start play-
ing it.
Stop fast forward
•Press FR.
Fast rewind
•Press FR (fast rewind).
When the tape has rewound to the be-
ginning, the set will play the same track
again.
Stop fast rewind
•Press FF.
Changing the track
Press simultaneously
TR1-PLAY or TR2-PLAY in the display
Fast forward
To stop:
press FR
Fast rewind
To stop:
press FF
Autoreverse
•Press FR and FF at the same time.
At the end of the tape, the unit will automati-
callyswitchtotheothertrack.Thedisplaywill
show “TR1-PLAY” for track 1 or A and “TR2-
PLAY” for track 2 or B.
Note:
Ifthereistoomuchtensiononthetapeduring
playback, the set may switch to the other
track by itself. In this case you should check
thetape.Sometimesitishelpfultorewindthe
tape completely.

25
Montreux RCR 44 - 010
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Care of your audio equipment
Itisadvisableto only useC-60/C-90tapes in
yourcarstereo.Protectyourtapesbystoring
them away from dirt and dust and do not
exposethemtoexcessivetemperatures(abo-
ve 50°C). In order to ensure smooth tape
operation, cold tapes should be warmed up
beforethey are played. If dust collects on the
rubber roller or on the audio head, problems
may arise which affect tape operation or
sound quality after approximately 100 hours
of operation.
Normallyitissufficienttouseaheadcleaning
cassette to clean your tape player; for
tougher cases use a cotton swab (Q-tip)
soaked with alcohol. Never use rigid tools to
clean your unit!
DSC programming
This car radio offers direct software control
(DSC) to adjust a number of default settings
to your personal needs and store them.
The following step describes all the default
settings which can be changed.
To activate the DSC mode,
•press DSC.
Use the rocker switch to select and change
the following adjustments. The default value
is shown in the display.
Select function
Change
setting
Select function
Change
setting
+
LOCAL To adjust the tuning sensitivity
for local reception
LOCAL 1 - high sensitivity
LOCAL 3 - low sensitivity
DIS To adjust the tuning sensitivity
for distant reception
DIS. 1 - high sensitivity
DIS. 3 - low sensitivity
COLOUR To match the display colour to
the dashboard illumination.
Select orange or green.
LOUD Loudness - To boost low
bass frequencies.
LOUD 0 - no boost
LOUD 6 - strong boost
BEEP Acknowledgement tone for
function keys to be hold down
for more than 2 seconds. Ad-
just volume between 0 and 9
(0 = OFF).

Montreux RCR 44 - 010
26
ARI (TA) To adjust the volume of traffic
announcements between 1
and 9.
CODE-LED To select the LED mode for
optical theft protection.
LED 1 - LED only flashes, if
the car is switched off
via the ignition key.
LED 2 - LED always flashes, if
the car radio is swit-
ched off.
LED 0 - No flashing.
To quit DSC programming and to store the
setting,
•press DSC.
Survey of DSC default settings
LOCAL : 1
DIS : 1
COLOUR : orange
LOUD : 5
BEEP : 5
ARI : 5
CODE-LED : 2
Appendix
Technical data
Amplifier
Output power: 4 x 6 W RMS power ac-
cording to DIN 45324/3.1
into 4 Ω
FM
Sensitivity: 1.0 µV at 26 dB
signal-to-noise ratio
Frequency
response: 35 - 15 000 Hz (-3 dB)
Cassette
Frequency
response: 35 - 16 000 Hz (-3 dB)
Subject to modifications!

21
Montreux RCR 44 - 013 (Code deaktiviert) griechisch
DEUTSCH
ENGLISH
ITALIANO
PORTUGUES NEDERLAND
ESPAGÑOL SVENSKA FRANÇAIS
Blaupunkt-Werke GmbH
Bosch Gruppe
1/95 K7/VKD 3 D93 183 024 (GR) PM
