Blaupunkt San Diego DJ I User manual

San Diego DJ I
Windsor RCM 127
Radio / Cassette
Operating instructions
S. Diego DJ-I/Winds d 25.02.2000, 16:27 Uhr1

2
2
13
1
11
345 6
12 9
10 78
S. Diego DJ-I/Winds d 25.02.2000, 16:27 Uhr2

21
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Contents
Quick reference ............................ 22
Important notes ............................ 26
Precautions........................................... 26
Traffic safety ......................................... 26
Installation............................................. 26
Accessories .......................................... 26
Second KeyCard................................... 26
KeyCard theft protection system 27
Putting the unit into operation .............. 27
Removing the KeyCard ........................ 27
“Training” a second KeyCard/
Replacing a KeyCard............................ 27
Displaying the radio pass data ............. 27
Short Additional Memory (S.A.M.)........ 28
Turn On Message (T.O.M.) .................. 28
Optical indication of anti-theft
protection .............................................. 28
Care of your KeyCard........................... 28
Selecting the audio source ......... 28
Radio operation with RDS ........... 29
AF - Alternative frequency.................... 29
REG - regional programme .................. 29
Station tuning........................................ 29
Automatic tuning / ....................... 29
Manual tuning with << >>.................. 29
Scrolling through the broadcasting
networks................................................ 30
Changing the memory bank ................. 30
Storing stations..................................... 30
Automatically storing the strongest
stations with Travelstore....................... 30
Recalling stored stations ...................... 30
Scanning stored stations with
Preset Scan .......................................... 31
Selecting the seek tuning sensitivity .... 31
Stereo - mono switching....................... 31
Loudness .............................................. 31
Receiving traffic programme
stations with RDS-EON................ 32
Traffic announcement priority on/off .... 32
Beep tone ............................................. 32
Switching off the beep tone .................. 32
Automatic seek tuning start
(tape and CD changer operation)......... 32
Adjusting the volume for traffic
announcements and the beep tone...... 33
Cassette operation....................... 33
Inserting a tape..................................... 33
Ejecting a tape...................................... 33
Fast winding.......................................... 33
Reversing the tape ............................... 33
Listening to the radio during fast tape
winding with RM (Radio Monitor) ......... 34
Care notes ............................................ 34
CD changer operation.................. 35
Switching to the CD changer mode...... 35
Selecting CDs and titles ....................... 35
MIX playback ........................................ 35
Selecting the display mode .................. 36
SCAN .................................................... 36
DSC programming ....................... 37
Overview of DSC factory settings ........ 38
Specifications............................... 39
Blaupunkt telephone hotline ................. 39
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr21

22
Changer operation
SCA (Source)
Press SCA/SRC briefly –
You can switch between the radio,
cassette and CD changer mode, if a
cassette/CD is inserted.
CD-Scan
Press SCA/SRC for approximately
1second –
“CDC-SCAN” will appear in the dis-
play.
The CD titles are scanned briefly.
To stop CD-Scan:
Press SCA/SRC once again for ap-
proximately 1 second.
3TS / FM
Selector key to access the FM memory
banks I, II and T.
To switch over:
Press TS / FM as many times as re-
quired.
Travelstore
To store and recall the five most pow-
erful stations with Travelstore.
Switching on with the ignition being
switched off:
To keep on operating the set when the
ignition is switched off (KeyCard is in-
serted), proceed as follows:
Turn the knob to switch the unit off,
wait for about 2 seconds and turn it on
again.
To avoid that the battery goes flat, the
system will be turned off automatically
after one hour of playback.
2SCA / SRC
Radio operation
SCA – Preset Scan
Press SCA/SRC for about 1 second -
The stations stored on the preset but-
tons will be scanned.
The indicators for the waveband, mem-
ory bank and preset button will flash in
the display.
To stop Preset Scan:
Press SCA/SRC again for about 1 sec-
ond.

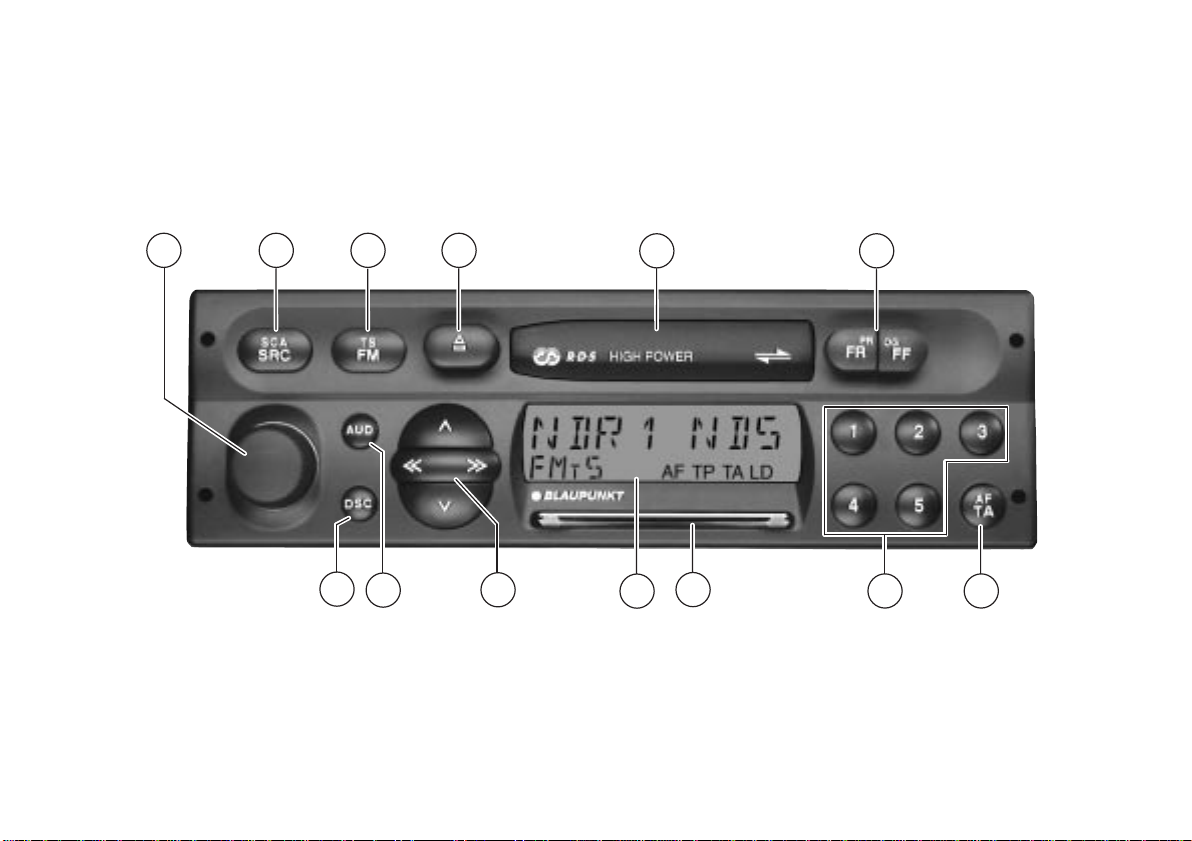

Quick reference
1On Off
Volume
When switching the set on with the
knob, the KeyCard has to be inserted.
The unit will play with the pre-
adjusted volume.
Switching on/off with the KeyCard:
The set has to be turned on with the
knob.
Notice:
Read the information in chapter “Key-
Card theft protection system”.
Switching on/off via the ignition:
When connected correspondingly, the
set can also be turned on and off with
the vehicle ignition.
After the ignition has been switched
off, a double beep tone will remind you
that you should remove the KeyCard
before leaving your vehicle.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr22

23
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
To store: Press button for approxi-
mately 1 sec. until you hear a beep
and “T-STORE” appears in the display.
To recall: Select the memory bank “T”
and press the corresponding preset
button (1-5) briefly.
4Cassette ejection
Press .
5Cassette loading slot
Insert the tape with side A or 1 facing
up, the open side showing to the right.
6Reversing the tape /
Fast winding
Reversing the tape
Press both buttons at a time.
TR1 or TR2 will be displayed.
Fast winding
FR : fast rewind, press FF to stop
FF : fast forward, press FR to stop
7AF / TA
AF – Alternative frequency in RDS
mode:
When “AF” is displayed, the radio’s
RDS module is searching for a fre-
quency offering the same programme
in a better quality.
AF on/off: press button for about
1second.
TA (Traffic Announcement = priority
for traffic stations)
If “TA” is displayed, the radio will play
traffic stations only.
Priority on/off: press button briefly.
81, 2, 3, 4, 5 - preset buttons
You can store five stations for each of
the memory banks I, II and T.
To store a station: Press a preset
button during radio operation and hold
down until the set resumes play
(beep).
To recall a station: Select the desired
memory bank and press the relevant
preset button briefly.
9KeyCard theft protection system
To operate the set it is necessary that
the KeyCard is inserted.
KeyCard
Inserting the KeyCard
With the KeyCard tongue sticking out
of the unit, introduce the KeyCard into
the slot with the contact area show-
ing up.
To remove the card, press first to un-
lock.
Read also the information in chapter
“KeyCard theft protection system”.
Flashing KeyCard tongue
When the radio is turned off and the
KeyCard removed, the KeyCard
tongue can be programmed to flash for
optical theft protection.
For more information see chapter
“DSC programming”.
This flashlight can be switched off by
pushing in the tongue and lock.
“WRONG KC” will briefly appear on
the display and the set will switch off
automatically.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr23

24
:Display
e fgi
h
a
dj
b
c
a) NDR1 NDS - Station name
b) TR 1 - Track (side) 1 of the cas-
sette
c) 1 : 52 - Playback time and
number (CD number and
track) during changer op-
eration
d) FM - Waveband
e) I, II, T - Memory bank I, II or
Travelstore
f) 5 - Preset button (1-5)
g) AF - Alternative frequency for
RDS operation
h) TP - A traffic station is being
received
i) TA - Priority for traffic stations
j) LD - Loudness on

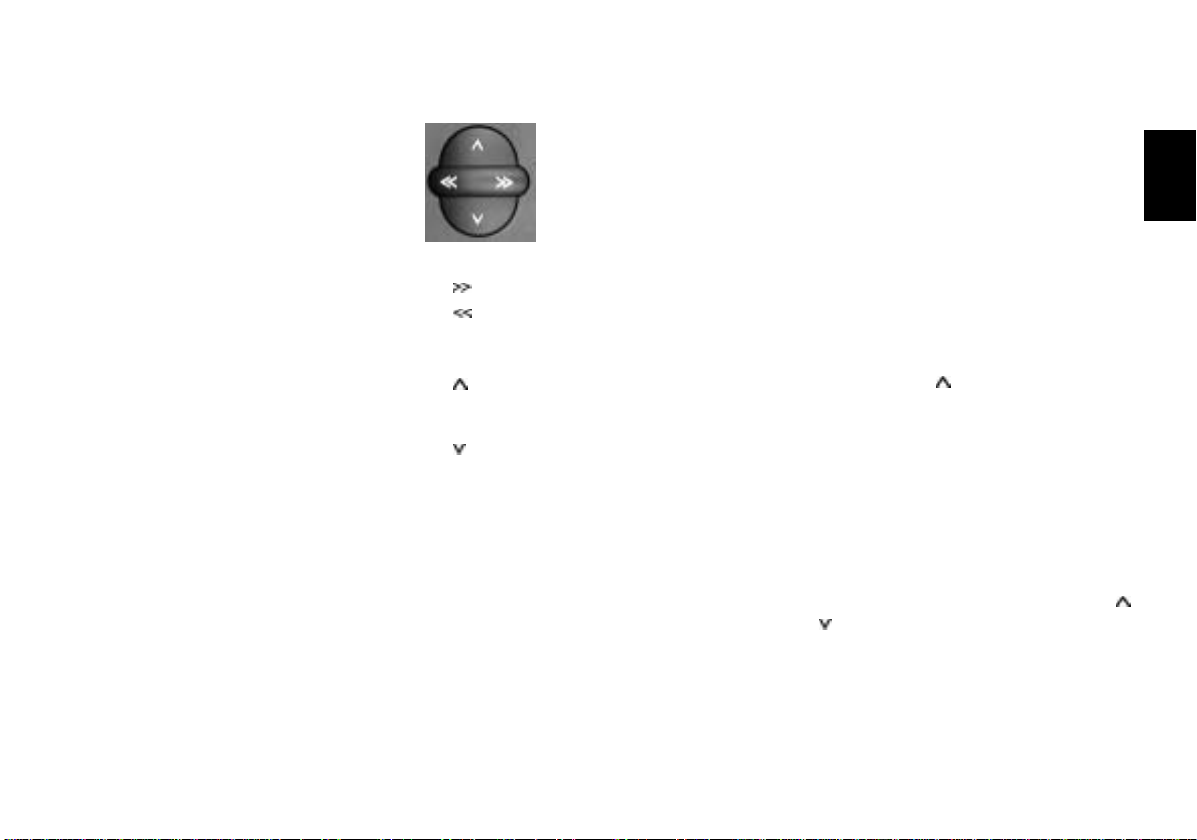

;Rocker switch
Radio operation
/ Station search
Up
Down
<</>> Up/Down in short intervals
(on FM only if AF is off)
On FM only:
<</>> To scroll through the station net-
works when AF is on, e.g.NDR 1, 2,
3, 4, N-JOY, FFN, ANTENNE ... .
Changer operation
CD selection
Up
Down
Title selection
Upwards: Press briefly.
CUE - fast advance (audible):
Keep depressed.
Downwards: Press as many times
as required.
To re-start a title: Press briefly.
REVIEW - fast reverse (audible):
Keep depressed.
Extra rocker switch functions:
Further setting functions with
AUD <
DSC Mode <
Condition: The corresponding function
is activated.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr24

25
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Extra function AUD
Loudness - When listening at a low
level, the Loudness function creates a
more natural sound by boosting
the low frequency range.
Loudness on/off: Press AUD for ap-
proximately 1 sec.
“LD” lights up in the display if the
Loudness function is switched on.
Please refer to chapter “DSC program-
ming” for more information on how to
program the Loudness boost.
=DSC (Direct Software Control)
Use the DSC function to customise
certain programmable, basic settings
to suit your personal needs and prefer-
ences. See chapter “DSC program-
ming” for more information.
<AUD
To adjust the treble, bass, balance and
fader.
If the display shows “TRE” or “BAS”,
you can adjust the reproduction of the
treble and bass frequencies with the
rocker switch. If “BAL” or “FAD” is dis-
played, you can set the balance (left/
right) and fader (front/rear).
Briefly press AUD as many times as
required and make the setting using
the rocker switch.
Treble + / Fader front
Treble – / Fader rear
Bass – / Balance left
Bass + / Balance right
The last setting will be stored automat-
ically.
To switch off AUD: Press button briefly
again.
If the setting remains unchanged within
8 seconds, the display will switch back
to the previous condition.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr25

26
Installation
If you would like to install your new car ster-
eo yourself or add other audio components
to existing ones, then please read carefully
the enclosed instructions on installation and
connection.
Inorder toensure that the set operates prop-
erly it is necessary that the positive power
supply line is connected to the ignition and
the permanent +12 V lead.
Do not ground the loudspeaker outputs!
Accessories
Use only the accessories and spare parts
approved by Blaupunkt.
Changer
San Diego DJ I:
The changer is included in the scope of de-
livery.
Windsor RCM 127:
CDC A 06 or A 072 (directly)
CDC A 05, CDC F 05 or A 071 (adapter ca-
ble 7 607 889 093 is required)
Important notes
Precautions
Before starting to use your new car radio,
please read the following information care-
fully.
Traffic safety
Traffic safety always has the highest priori-
ty.
As the driver of a motor vehicle, it is your
responsibility to pay attention to the traffic
situation at all times. Never use your car
radio in a way that could distract you.
Please keep in mind that you travel a dis-
tance of 14 m per second at a speed of only
50 km/h.
Should the traffic situation become particu-
larly demanding, we advise you not to use
the radio.
Always make sure that you are still able to
hear any warning signals coming from out-
side of the vehicle, such as police or fire
engine sirens, so that you can react accord-
ingly.
Therefore, you should always select a mod-
eratevolume for playing your car radio while
you are driving.
Second KeyCard
You can also operate your car radio with a
second KeyCard.
Refer to chapter “KeyCard theft protection
system” for more information.
You can purchase a second KeyCard at any
specialised dealership.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr26

27
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
KeyCard theft protection system
Thesystem will switch off afterapproximate-
ly 10 seconds.
When inserting another card type (e.g.
phone or credit card), the display will show
“WRONG KC” for approximately 2 seconds.
The set will switch off automatically.
Remove the wrong card and introduce the
correct KeyCard.
•Turn the knob to switch on the set.
Removing the KeyCard
Never pull out the KeyCard directly!
•First, slightly push in the KeyCard.
Thisreleases thecard and puts it in the prop-
er position for being removed.
•Now you can pull it out.
“Training” a second KeyCard/
Replacing a KeyCard
While operating the unit with the first Key-
Card, you can “train” a second one to be
also used with the set:
•Insert the first KeyCard and turn on the
set.
•Press the DSC button and select
“LEARN KC” with / .
•Press << or >>.
The display will switch to “CHANGE”.
•Push in the KeyCard. The card is re-
leased and put in the proper position
for being removed.
•Remove the first KeyCard and insert
the new one.
After the display indication “READY” or
“LEARN KC”,
•press DSC.
Now you can also use the new KeyCard for
operating your unit.
A maximum of two cards can be used for
the set.
When trying to “train” a third one, the ac-
cess authorisation for the KeyCard not used
for the “training” process will be deleted au-
tomatically.
Displaying the radio pass data
Using the KeyCard supplied with your set
you can have the radio pass data such as
the model name, product number (7 6..) and
serial number indicated on the display pan-
el.
Please refer to chapter “DSC programming
- READ KC”.
Thispiece of equipment is supplied with one
KeyCard, though you can also operate the
set with a second KeyCard.
If you have lost your KeyCard or if it was
damaged,you can buy a second / extra card
from your specialised dealer.
When using a second KeyCard, the settings
storedon the first card will be adopted. How-
ever, you can individually store the follow-
ing functions:
Bass, treble, balance and fader settings,
Loudness, TA (traffic announcement vol-
ume), beep volume, lo or dx.
In addition, the settings activated before
switching the radio off, such as the station
tuned in, TA priority, AF, AM ON/OFF and
RM ON/OFF will also remain stored.
This ensures that you will find your basic
settings re-adjusted automatically as soon
as you have inserted your KeyCard.
Putting the unit into operation
•Turn on the set.
With the KeyCard tongue sticking out,
introduce the KeyCard into the slot
with the contact area showing up.
The car radio is now ready for operation.
If a wrong KeyCard is inserted, then “CARD
ERR” followed by “WAIT” will appear in the
display. In this case please do not make any
further adjustments.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr27

28
Optical indication of anti-theft
protection
Flashing KeyCard tongue
When the vehicle is stationary and the Key-
Card removed, the KeyCard tongue can be
switched to flash for extra anti-theft securi-
ty.
Forthis it is necessary that the positive pow-
ersupply line and the permanent +12 V lead
are connected such as described in the in-
stallation instructions.
Be sure that “LED ON” is adjusted in the
DSC mode.
If required, please refer to chapter “DSC
programming - LED”.
Switching off the flashlight
The flashlight can be switched off by push-
ing in the KeyCard and lock.
If you would like to deactivate the flashing
tongue with general effect, adjust the rele-
vant item in the DSC menu to “LED OFF”.
Care of your KeyCard
In order to ensure that the KeyCard always
functions correctly, it is important for the
contacts to be free from any foreign parti-
cles. Avoid direct skin contact.
If necessary, clean the KeyCard contacts
using a cotton swab dipped in alcohol.
Selecting the audio source
Using the SRC button you can switch be-
tween radio, tape and CD changer opera-
tion.
Tape/CD changer operation is only availa-
ble if a cassette/CD is inserted.
To switch to another source,
•press SCA/SRC briefly.
Short Additional Memory
(S.A.M.)
Using the second KeyCard to be purchased
at any specialised dealership, you can pro-
grama shorttext by selecting the DSC menu
item READ KC. This text will be moved
through the display and might be the tele-
phone number of a car repair service or the
emergency call number of your auto club.
Any specialised dealer with the proper
equipmentcan programthe desired text with
up to a maximum of 162 characters onto the
KeyCard.
Turn On Message (T.O.M.)
Using the second KeyCard to be purchased
at any specialised dealership, you can pro-
gram the unit to display a selected “Turn On
Message” after the set is switched on.
Any specialised dealer with the proper
equipmentcan programthe desired text with
up to a maximum of 48 characters onto the
KeyCard.
Each time you switch on your car radio us-
ing the second KeyCard, this text will ap-
pear in the display.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr28

29
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Station tuning
Automatic tuning /
•Press /; the car radio will automati-
cally search for the next station.
When keeping the upper or lower part /
of the rocker switch depressed, seek tuning
will speed up in upwards or downwards di-
rection.
Seek tuning
Up
Down
<< />> Up/Down in short intervals
(FM only, “AF” must be switched off)
Manual tuning with << >>
You can also tune in a station manually.
Condition:
AF must be switched off (i.e. the symbol
does not light up in the display).
If necessary, deactivate AF:
•Press AF/TA for about 1 second.
Radio operation with RDS (Radio Data System)
If “SEARCH” appears in the display when
switching on the radio or recalling one of the
stored frequencies, the unit is automatically
searching for an alternative frequency.
“SEARCH” will disappear from the display
when the alternative frequency has been
found or after the frequency band has been
run through completely.
If the reception quality of the selected pro-
gramme becomes too bad:
•Tune into another station.
REG - regional programme
Certain radio programmes are split up at
times into regional programmes offering lo-
cal information. The 1st programme broad-
cast by NDR, for example, offers pro-
grammeswith differentcontents inthe north-
ern states of Germany Schleswig-Holstein,
Hamburgand LowerSaxony at certain times
of the day.
If you have tuned to a regional programme,
you can select between REG ON and REG
OFF:
REG ON – the radio keeps tuned to the cur-
rent regional programme, even if the recep-
tion quality is getting poorer.
REG OFF – the radio automatically tunes
to the regional programme offering the best
reception quality (but maybe with local in-
formation for another service area).
The Radio Data System offers you more
conveniencewhen listening to FM radio sta-
tions.
More and more radio stations have begun
to broadcast RDS information alongside
their programmes.
As soon as programmes have been identi-
fied, the station name including a regional
identifier,if applicable, will appear in the dis-
play,for example, NDR1 NDS (regional pro-
gramme in Lower Saxony, Germany).
When RDS is activated, the preset buttons
becomeprogramme buttons. Younow know
exactly which programme you have tuned
into, making it easy to find the desired sta-
tion quickly.
But RDS offers you further advantages:
AF - Alternative frequency
The AF (Alternative Frequency) function
makes sure that the strongest frequency of
the currently selected programme is always
tuned in automatically.
Thisfunction isactivated when “AF” appears
in the display.
In order to switch this function on or off,
•press AF/TA for about 1 second.
While searching for the strongest reception
signal, the radio may switch to mute briefly.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr29

30
Changing the memory bank
You can shift between the memory banks I,
II and T in order to store stations and recall
them later.
The currently selected memory bank is in-
dicated in the display.
•Press the TS/FM button as many times
until the desired memory bank lights
up in the display.
Storing stations
On FM, you can store five stations on the
preset buttons 1, 2, 3, 4, 5 for each of the
memory banks I, II and T.
•Select the desired memory bank.
•Tune in a station with the rocker switch
(either automatically or manually).
•Press and hold down the desired pre-
set button until the radio resumes play
after the muting (takes approximately 1
sec., confirmed by beep).
Now the station has been stored.
The activated preset button is indicated in
the display.
Notice:
Should you tune in a station which has al-
ready been stored before, then the corre-
sponding preset position will briefly flash in
the display.
Automatically storing the
strongest stations with Travel-
store
You can automatically store the five most
powerful FM stations of your current recep-
tion area sorted according to their signal
strength.This functionis particularly conven-
ient on longer trips.
•Press the TS/FM button for 1 sec.
“T-STORE” will appear in the display.
The five strongest FM stations will be auto-
matically stored on the memory bank “T”
(Travelstore). When this process has been
completed, the radio will play the first sta-
tion stored on preset 1.
If desired, stations can also be stored man-
ually on the Travelstore bank (see “Storing
stations”).
Recalling stored stations
Youcan recall any stored station at the touch
of a button.
•Select the memory bank with TS/FM.
•Press the corresponding preset button
briefly to recall the station.
Manual tuning:
•Press << >>. The frequency will
change in short intervals in downwards
or upwards direction.
Whenholding theright or left part of the rock-
er switch depressed, the frequency scan is
speeded up.
Scrolling through the broadcast-
ing networks
You can use the << >> buttons to tune in
stations of your reception area.
If several programmes of the broadcasting
networks can be received, you can scroll
through them in forwards direction pressing
>>, or backwards using the << button, e.g.
NDR 1, 2, 3, 4, N-JOY, FFN, ANTENNE ...
Forthis it isnecessary that the stations have
been tuned in at least once and that “AF” is
active (lights up in the display).
Forthis purpose, start automatic tuning, e.g.
using Travelstore:
•Press TS/FM for 1 sec.; the system
starts to run through the frequency
band. The display shows “T-STORE”.
If “AF” does not light up,
•press AF/TA for approximately 1 sec.
This fulfils the requirements for selecting
stations with << >>.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr30

31
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Scanning stored stations with
Preset Scan
Youcan haveall of the stored stationsbriefly
scanned.
To start Preset Scan:
•Press SCA/SRC for approximately
1sec. until “SCAN” appears in the dis-
play.
All of the stored stations to be received in
the selected waveband will be scanned one
after the other. On FM, the radio will either
scan the stations stored on memory bank I
and II or T.
To select a scanned station and switch
off Preset Scan:
•Press SCA/SRC for about 1 second.
Note:
If “TA” shows on the display panel, the sys-
tem will scan the stored traffic stations only.
Loudness
Adjusts the low bass frequencies for a more
natural sound.
Switching Loudness on/off:
•Press the AUD button for approximate-
ly 1 sec.
When the Loudness function is active, “LD”
will light up in the display.
See chapter “DSC programming” for more
information.
Selecting the seek tuning sensi-
tivity
You can alter the automatic seek tuning
sensitivity.
If “lo” is displayed, the radio will only pick up
strong, local stations.
If “lo” does not light up, the radio will also
pick up weaker, distant stations.
Should you wish to alter the seek tuning
sensitivity, refer to chapter “DSC program-
ming – LO/DX”.
Stereo - mono switching
The radio will only play in stereo if the ster-
eo quality of the received station signal is
sufficient.
When the signal strength gets poor, the ra-
dio will gradually switch to mono.
You can select between stereo or mono
sound in the DSC menu.
For more information, refer to chapter “DSC
programming – STEREO/MONO”.
Each time the radio is switched on, stereo
sound is activated automatically.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr31

32
Traffic announcement priority
on/off
If the priority for traffic announcement pro-
grammes is activated, “TA” will light up in
the display.
To switch the priority on or off:
•Press the AF/TA button.
When pressing AF/TA while a message is
being broadcast, this message will be inter-
rupted. The unit will then switch back to the
previous condition. The priority for all other
traffic messages remains active.
Please note that several buttons have no
function while a traffic announcement is
broadcast.
Beep tone
If you leave the reception area of the traffic
programme station currently tuned into, you
will hear a beep tone approximately every
30 seconds.
This tone will also be released when press-
ing a preset button which has no traffic pro-
gramme allocated to it.
Receiving traffic programme stations with RDS-EON
EON stands for Enhanced Other Networks,
meaning the exchange of information with-
in a radio network.
Many FM broadcasters offer traffic messag-
es for their service area at regular intervals.
All traffic programme stations transmit a
special carrier signal alongside their pro-
grammes, which is decoded by your car ra-
dio. If this signal is identified, “TP” will ap-
pear in the display (Traffic Programme).
In addition to these, there are also stations
which do not actually transmit traffic pro-
grammes themselves, but by using RDS-
EON they offer the possibility to receive the
traffic messages broadcast by another traf-
fic programme station in the same radio
network.
If you wish to have the priority for traffic an-
nouncements activated while listening to
oneof thesestations (e.g. NDR3), “TA” must
appear on the display panel.
If a traffic announcement is broadcast, the
radio will automatically switch to the linked
traffic programme station (in this case,
NDR2) for the duration of the message and
return to the original programme (NDR3)
afterwards.
Switching off the beep tone
a) Tune into another station offering traf-
fic information:
•Press the rocker switch or
•press a preset button which has a
traffic programme station allocated
to it.
Alternatively:
b) Switch off the priority for traffic an-
nouncements:
•Press AF/TA.
“TA” will disappear from the dis-
play.
Automatic seek tuning start
(tape and CD changer operation)
Whenleaving the reception area ofthe tuned
in traffic programme station while listening
to a tape or CD, the system will automati-
cally start searching for a new TA pro-
gramme.
If no such station is found within approxi-
mately 30 seconds, a beep tone will sound
every 30 seconds. To switch off the beep
tone proceed as described above.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr32

33
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Adjusting the volume for traffic
announcements and the beep
tone
This volume was preset at the factory,
though you can alter the value using the
DSC function (see “DSC programming – TA
VOL”).
Youcan also change the announcementand
beep volume for the current message only.
Decreasing the volume:
•Press AF/TA briefly.
Theusual volume boostis now disabledand
you can alter the volume as desired. The
priority is deactivated for the current mes-
sage only.
Increasing the volume:
•Turn the knob 1.
Cassette operation
The car stereo has to be switched on.
The unit will automatically switch to tape
operation when inserting a cassette.
Inserting a tape
•Turn on the set.
•Insert a tape.
Track A or 1 will be played.
During cassette operation, “TR 1” or “TR 2”
(track) will appear in the display.
Insert the tape with side A or 1 facing up, the
open side showing to the right.
Ejecting a tape
•Press .
The cassette will eject.
Fast winding
Fast forward
•Press FF (fast forward).
At the end of the tape the unit will au-
tomatically reverse the direction and
start playing the other side.
To stop fast forward
•press FR.
Fast rewind
•Press FR (fast rewind).
At the beginning of the tape the unit
will start playback automatically.
To stop fast rewind
•press FF.
Fast winding
FR : fast rewind - press FF to stop.
FF : fast forward - press FR to stop.
Reversing the tape
Press both buttons at a time.
TR1 or TR2 will appear in the display.
Reversing the tape
To switch to the other side of the tape dur-
ing playback,
•press FR and FF simultaneously.
At the end of the tape the unit will automat-
icallyreverse tothe otherside (autoreverse).
The display shows “TR 1” for track (side) 1
or “TR 2” for track 2.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr33

34
Notice:
If there is too much tension on the tape dur-
ing playback, the set may reverse the direc-
tion by itself before having reached the end
of the tape side. In this case check the con-
dition of the cassette tape. Sometimes it
helps to rewind it completely.
Listening to the radio during fast
tape winding with RM (Radio
Monitor)
During fast winding of the tape, i.e. when
the radio is normally muted, you can use
the RM function to listen to the radio.
For more information please refer to chap-
ter “DSC programming – RM ON/OFF”.
Care notes
Toavoid possible problems,we recommend
you to use C-60/C-90 type cassette tapes
only. Store your tapes in a cool place away
from dirt, dust and temperatures exceeding
50 °Celsius. Allow very cold tapes to warm
up before playing them in order to avoid
uneven tape transport. After approximately
100 hours of use, dust particles collected
on the playback head or roller may lead to
tape run problems and sound distortions.
Use a head cleaning tape to remove nor-
mal dirt build-up. For tougher cases, use a
cotton swab (Q-Tip) dipped in alcohol. Do
not attempt to clean by inserting a hard ob-
ject into the player!
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr34

35
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
MIX playback
You can have the CD tracks played in ran-
dom order.
Select the desired MIX mode in the DSC
menu.
MIX CDC –The MIX mode is active:
The individual discs and the
titles of the selected CD are
chosen randomly. After all
titles have been played, the
next CD will be selected at
random again.
Use to select a CD title in
random order.
MIX OFF –The Mix function is deactivat-
ed.
Discs and titles will be se-
lected in numeric order.
To change the MIX mode:
•Press DSC.
Select “MIX” using the rocker switch /
and adjust with << >>.
If the function is active, “CDC MIX” will be
briefly displayed every time CD changer
operation is activated.
Selecting CDs and titles
CD selection
Up
Down
Title selection
Upwards: Press briefly.
CUE - fast advance (audible): Keep
depressed.
Downwards: Press as many times as
required.
To re-start a title: Press briefly.
REVIEW - fast reverse (audible):
Keep depressed.
CD changer operation
San Diego DJ I:
The changer is included in the scope of de-
livery.
Windsor RCM 127:
CDC A 06 or A 072 (directly)
CDC A 05, CDC F 05 or A 071 (adapter ca-
ble 7 607 889 093 is required).
The changer is not included with this equip-
ment and can be purchased separately at a
retail outlet.
Note:
Use only perfectly circular CDs.
CDs manufactured in the shape of a butter-
fly or a beer mug, for example, are not suit-
able for use with this equipment.
Using such CDs can very likely result in the
destruction of the CD and the CD drive.
We assume no responsibility for damages
caused by using unsuitable CDs.
Switching to the CD changer
mode
Make sure that at least one CD has been
inserted into the magazine.
Use SRC/SCA to toggle the audio source:
•Press SRC/SCA repeatedly until the
CD functions appear in the display.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr35

36
Selecting the display mode
You can select the desired display mode for
CD playback:
“CDC NUMBER” – The CD number, such
as “CD 8 T2” is dis-
played.
“TIME” – The elapsed playback
time of the current title
is displayed, for ex-
ample “2 : 32”.
To switch the display mode:
•Press DSC.
Use the rocker switch /to select
“CDC DISP”.
•Use << >> to adjust to “NUMBER” or
“TIME”.
SCAN
Usethis function to scan allof the CD tracks.
To start the Scan function:
•Press SCA/SRC for approximately
1second.
The titles will be scanned one after the oth-
er in ascending order.
To stop the Scan function:
•Press SCA/SRC for approximately
1second.
The track currently scanned is continued to
be played.
SCAN will also be terminated by
•pressing one of the buttons AUD,
GEO, DSC, SCA/SRC, << >> or /.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr36

37
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DSC programming
DSC (Direct Software Control) allows you
to customise certain programmable, basic
settings to suit your personal needs and
preferences and then store them.
The basic settings for this audio equipment
were made at the factory.
In the following you can find an overview of
these settings, so that you can always reset
to these if desired.
If you wish to alter any of the programming,
•press SCA/SRC to select one of the
operating modes radio, cassette or CD
changer (cassette/CD must be insert-
ed).
•press DSC.
Use the rocker switch to select and adjust
the functions described in the following. The
displaywill show you the adjusted condition.
/Select function
<< >> Adjust/recall value
MIX For changer operation only.
MIX CDC -
CD selection at random.
All titles of this disc will be
chosen in random order as
well.
The next disc is again se-
lected at random.
MIX OFF -
The MIX function is
switched off.
REG ON/OFF REG ON – regional function
is switched on.
REG OFF – regional func-
tion is switched off.
Refer to “Radio operation
with RDS / REG - regional
programme”.
RM ON/OFF (Radio Monitor)
Allows you to listen to the
radio during fast winding of
the tape.
RM ON – Radio playback
activated.
RM OFF – Function deacti-
vated.
READ KC To read out the KeyCard
data.
The KeyCard supplied with
the radio is used to display
the model name, type
number (7 6..) and the serial
number.
Using the second KeyCard
to be purchased at any spe-
cialised dealership it is pos-
sible to display the Short
Additional Memory (S.A.M.)
data entered by the dealer.
See chapter “Short Addition-
al Memory S.A.M.”.
LEARN KC To “train” a second Key-
Card.
Please read the information
in chapter “KeyCard theft
protection system - Training
a second KeyCard”.
LED ON/OFF You can choose between
LED ON or LED OFF. With
LED ON, the KeyCard
tongue will flash for extra
anti-theft protection when
the unit has been switched
off and the KeyCard re-
moved.
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr37

38
BEEP Acknowledgement tone for
all functions which require a
button to be pressed for
more than 1 second.
The volume can be adjusted
from between 0 to 9.
(0 = off)
TA VOL To adjust the traffic an-
nouncement and beep tone
volume from between 0 to
63.
The message will then come
through at this volume, if the
volume adjusted for the pro-
gram is lower.
If the program volume is
higher than the TA VOL lev-
el, the traffic report will be
played slightly louder.
LOUDNESS When listening at a low lev-
el, the Loudness function
creates a more natural
sound by boosting the low
frequency range.
LOUD 1 - Low boost
LOUD 6 - Max. boost
STEREO/MONO
You can select between
stereo or mono sound.
LO/DX To adjust the seek tuning
sensitivity for local or distant
stations.
LO - local stations
LO 1 - high sensitivity
LO 3 - normal sensitivity
DX - distant stations
DX 1 - high sensitivity
DX 3 - normal sensitivity
AUX ON/OFF Please note that this item
will not appear if you have
connected a CD changer.
Default setting: AUX OFF.
Adjust to AUX ON if you
have connected an external
piece of equipment to the
AUX socket.
To quit the DSC programming mode
and store the adjustment:
•Press DSC.
The DSC programming mode will be auto-
matically quit 8 seconds after having made
the last adjustment.
Overview of DSC factory set-
tings
MIX OFF
REG OFF
RM OFF
READ KC -
LEARN KC -
LED ON
BEEP 4
TA VOL 35
LOUDNESS 3
STEREO/MONO STEREO
DX 1
S. Diego DJ-I/Winds gb® 03.06.2002, 10:55 Uhr38
