Blaupunkt 215G-GB-1B-FTCDU-UK User manual

215/155G-GB-1B-FTCDU-UK
Full HD LED TV with Freeview & DVD Player
Model No
User Guide

4
Important safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Please, read these safety instructions and
respect the following warnings before the
ap-pliance is operated:
This TV with the weight of more than 20 kg must be lifted
and carried by at least two people.
Be careful! This TV does not contain any parts which could
be repaired by the user. In case of a fault, contact the produ-
cer or the authorized service. The contact with certain parts
inside the appliance might endanger your life. The guaran-
tee is not provided for the faults caused by non-professional
interactions!
Do not remove the rear part of the appliance.
In order to prevent re
spread, always keep candles
and other open ames away
from this product.
This appliance is designed for receiving and reproduction of
video and sound signals. Any other use is strictly forbidden.
The ideal distance to watch TV is approximately ve times
the diagonal of the screen. The light striking upon the
screen from other light sources can cause reections and
make the quality of the picture worse.
Please, ensure the sucient ventilation and appropriate
distance of the appliance from other pieces of furniture.
The TV set is designed exclusively for the operation in a
dry place. When using the appliance outside, please, make
sure it is protected against moisture (rain, splashing water).
Never expose the appliance to moisture.
Do not place any containers with water on the appliance,
such as vases, etc. These containers might get pushed over,
which would endanger electric safety. Place the appliance
exclusively on at and stable surfaces. Do not place any
objects such as newspaper or blankets, etc. on or under the
appliance.
Make sure the appliance does not stand on any power
cables as they might get damaget. Mobile phones and other
devices such as WLAN adapters, monitoring cameras with
wireless signal transmission, etc. might cause electromag-
netic interference and they should not be placed near the
appliance.
Do not place the appliance near heating elements or in
a place with direct sunshine as it has a negative eect on
cooling of the appliance. Heat storage is dangerous and it
can seriously reduce the lifetime of the appliance. In order
to ensure the safety, ask the qualied person to remove the
dirt from the appliance.
Try to prevent the mains cable or (if it is part of delivery)
mains adapter damage. The appliance can only be connec-
ted with a supplied mains cable/adapter.
Storms are dangerous for all electric appliances. If the mains
or aerial wiring is struck by the lightening, the appliance
might get damaged, even if it is turned o. Thus you should
disconnect all the cables and connectors of the appliance
before the storm.
To clean the screen of the appliance use only a damp
and soft cloth. Use only clean water, never detergents or
solvents.
Warning:
Never connect any external devices to a live appliance.
Switch o not only the TV but also the devices which are
being connected! Plug the appliance plug into the wall
outlet after connecting the external devices and the aerial!
The product construction responds the protection class 1.
Only a properly installed wall outlet with a guard wire (230
V~/50 Hz)of public mains can be used as power source.
Always make sure there is free access to the appliance main
switch and to its mains plug.
The appliance is not designed for a use in a workplace tted
with monitors.
The systematic use of headphones at high volume might
lead to irreversible hearing damage.
Ensure environmental disposal of this appliance and any
components including batteries. When in doubt, please,
contact your local authority for details of recycling.
While installing the appliance, do not forget that furniture
surfaces are treated with various varnishes, plastics, etc. or
they might be polished. The additions contained in these
products might cause destruction of base material of appli-
ance stand. This will result in the holdovers of this material
stuck to the furniture surface, which are dicult to remove,
if not even impossible.
The screen of your TV responds to the top quality require-
ments and it was checked in details for accidental faulty
pixels several times. Due to the technological properties of
the manufacturing process, it is not possible to eliminate the
existence of a small number of faulty points on the screen
for 100% (even with maximum care while production provi-
ded). These faulty pixels are not considered faults in terms of
guarantee conditions, if their extent is not greater than the
boundaries dened by DIN norm.

English
5
Important safety instructions
Important information regarding use of
video games, computers, captions and
other xed image displays.
The extended use of xed image program material can
cause a permanent “shadow image “ on LCD screen (this
is sometimes incorrectly referred to as “burnout to the
screen“). This shadow image is then permanently visible
on the screen in the backro-und. It is a partly irreversible
damage. You can avoid such a damage by respecting the
following instructions:
Reduce the brightness/contrast setting to a minimum
viewing level.
Do not display the xed image for a long period of time.
Avoid displaying of:
»Teletext time and charts,
»TV/DVD menu, e.g. DVD contents,
»In the„Pause“ mode (hold): Do not use this mode for a
long time, e.g. while watching a DVD or a video.
»Turn o the appliance if you are not using it.
Batteries
Observe the correct polarity when inser-
ting the batteries.
Do not expose batteries to high tempera-
tures and do not place them on locations
where the temperature might increase
quickly, e.g. near the re or on the direct
sunshine.
Do not expose batteries to excessive
radiant heat, do not throw them into the
re, do not disassemble them and do not try ato recharge
unrechargeable batteries. They could leak out or explode.
»Never use dierent batteries together or mix new and
old ones.
»Dispose of batteries in an environmentally friendly way.
»Most of the EU countries regulate the disposal of batte-
ries by law.
Product disposal
Waste electrical products should not
be disposed of with household waste.
Separate disposal facilities exist. Check
with your Local Authority or retailer for
recycling advice.
Cd

6
Contents
Important safety instructions ....................................... 4
What is included in the box......................................... 7
Attaching the Stand................................................ 8
Detaching the Stand ............................................... 8
Wall mounting the TV .............................................. 8
Getting started - initial set up ....................................... 9
TV buttons & Source menu ........................................ 10
Remote control .................................................. 12
Connections ................................................. 13-14
TV Menu Operation ........................................... 15-20
Channel menu.................................................... 15
Picture menu ..................................................... 15
Sound menu ..................................................... 16
Time menu....................................................... 16
Feature menu .................................................... 16
Setup menu ...................................................... 17

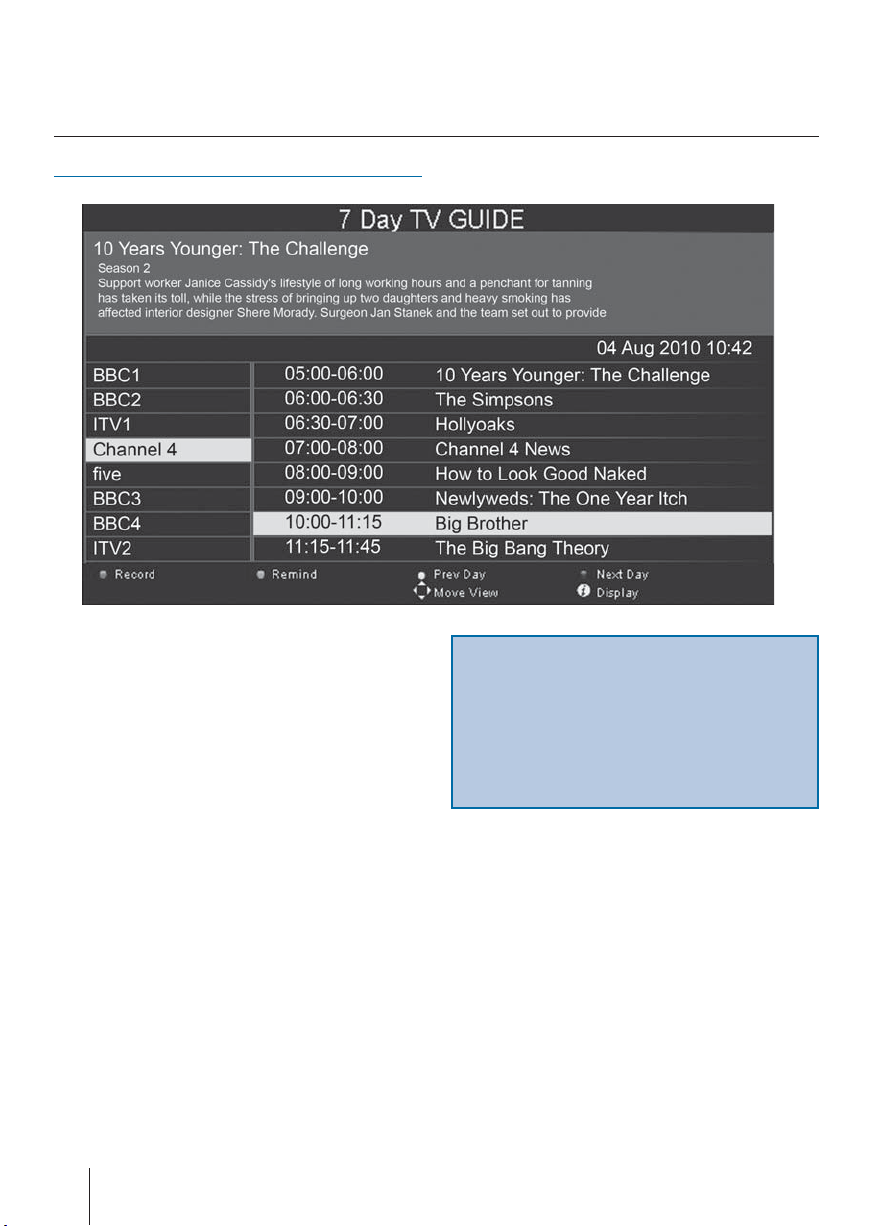

7 Day TV Guide ................................................... 18
USB mode / Media player.......................................... 20
DVD Menu ....................................................... 21
Using your TV with your Sky set top box ...................................22
Frequently asked questions........................................ 23
Technical specication ............................................ 24
Index ............................................................ 25

English
7
Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service
repair is in it’s original box/packaging.

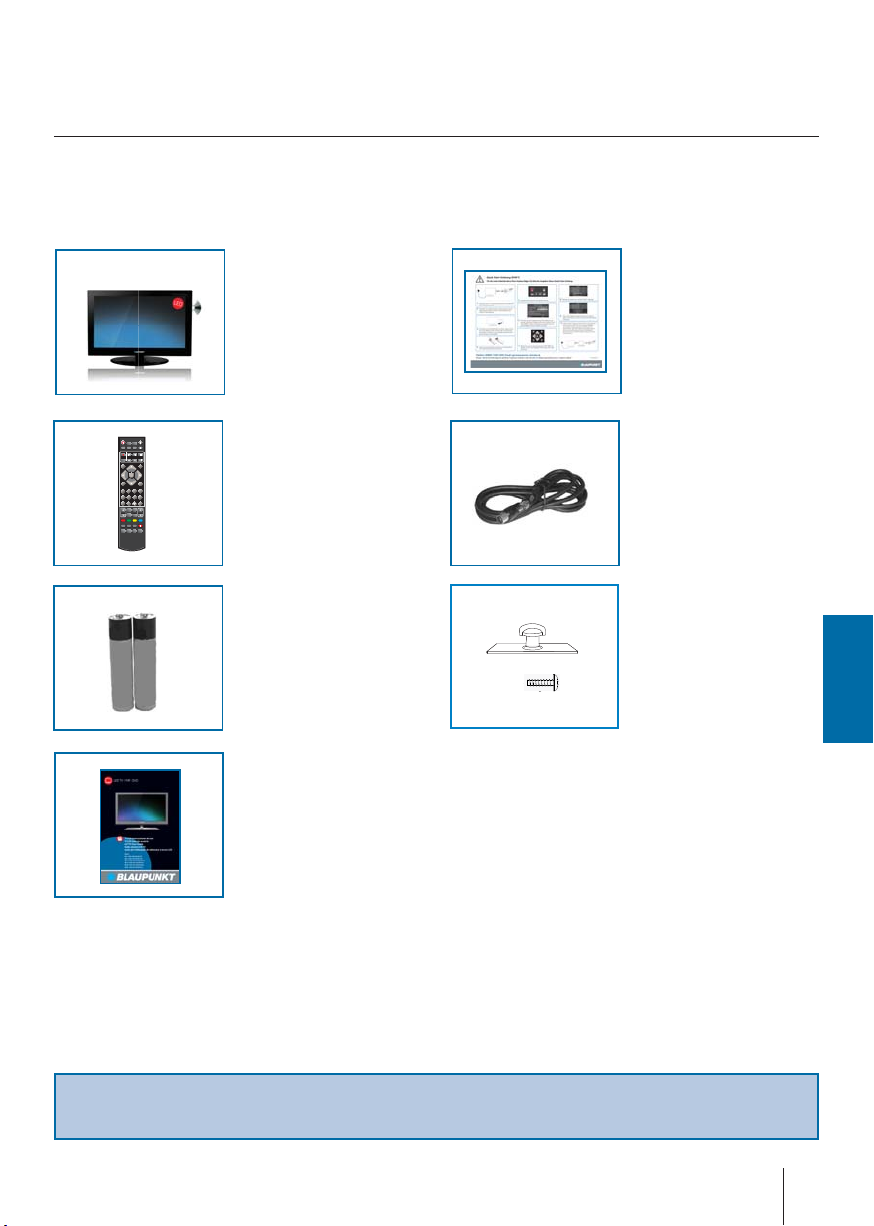

What is included in the box
Accessories
Supply of this TV includes following parts:
1x TV
1x Remote control 1x RF cable
1x Quick Start Guide
1x User guide
2x AAA bateries 1x TV stand installation pack
VOL CH
REPEAT
1 2 34
56 7 8
09
OK
STANDBY MUTE
ASPECT
MENU EXIT
ANGLEA-B
SOURCE
SUBTITLE
D.MENU TITLED.SETUP
GOTO
FAV
AUDIO SLEEP
TV/RADIO TVGUIDE
ATV
USB
DVD
EJECT
ZOOM
D.DIS SIZE
REC PVR/DVD
RECLIST
HOLD
DISPLAY
TEXT INDEX
INFO
R . VEAL
i
AV
4x

8
Attaching / Detaching the Stand
Important - If you mount this television on the wall, use only the screws holes for wall mounting. Using other screws can cause
irreparable damage to internal components.
g 1
g 2
TV
TV
Viewing angle
Viewing angle
INCORRECT
CORRECT
Viewing angle
Viewing angle
a
bc, 4 x M4x10 (M4x8)
45°
45°
90°
PUSH
O
p
e
n
C
l
o
s
e
de
Detaching the Stand
1. Remove the screws highlighted
Wall mounting the TV
This television requires a VESA 100 wall mount,
or equivalent.
1. Remove the four screws highlighted below.
2. The wall mount can now be easily attached to the mounting
holes on the rear of the TV. These holes are indicated in the
picture below.
For optimum viewing, if wall mounting the TV higher than eye
level, the TV should be tilted downwards so that the TV’s screen
is ‘face on’. See g 1 and 2
Attaching the Stand
1. Attach the stand neck (b) to the body of TV unit (a)
2. with 4 screws(c) Insert the TV into the stand at 45
degrees (d)
3. Twist the TV into the CLOSE position until it clicks
into place (e)
c, 4 x M4x10 (M4x8)
b
6 ST(4 16)

English
9

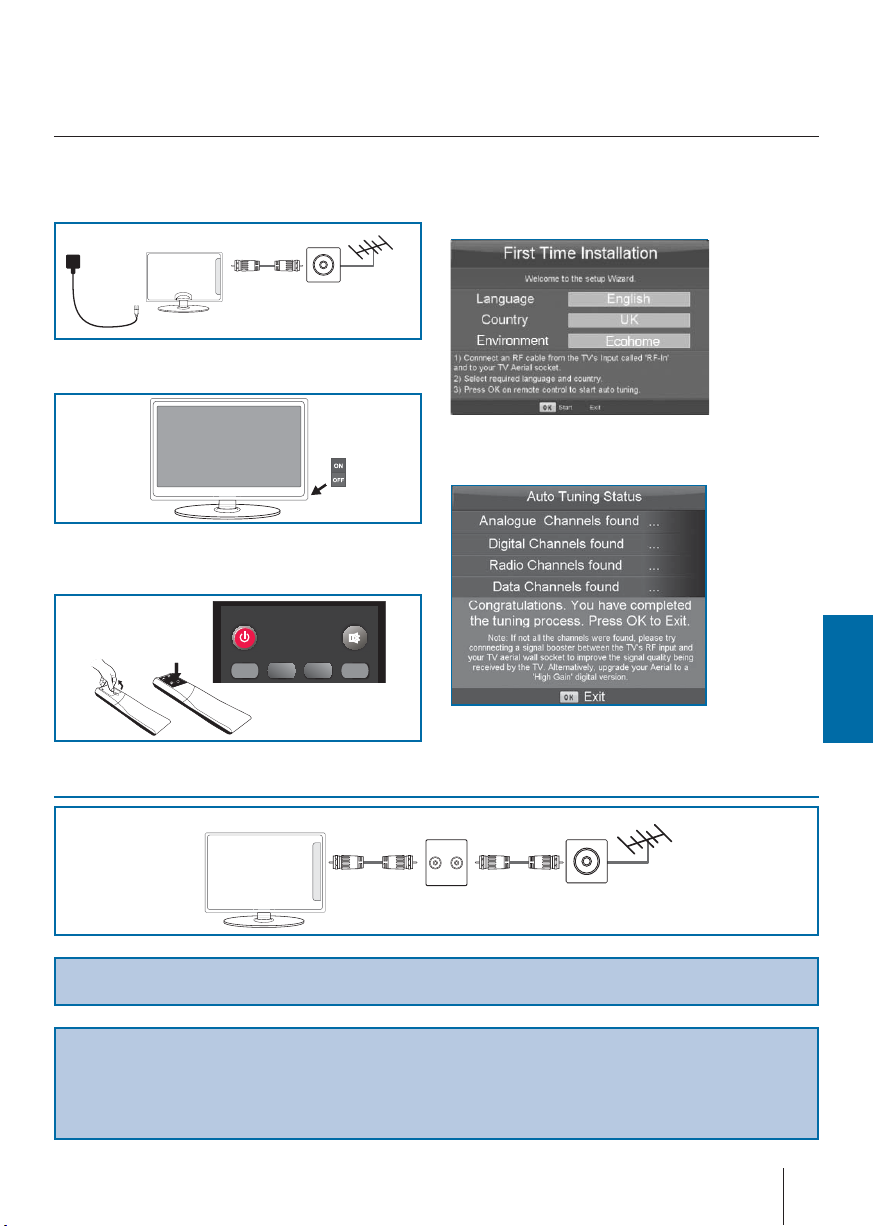

1. Using the RF cable supplied, connect the TV to the TV Aerial
wall socket (Fig A).
2. Connect the power cable to the Electrical outlet (Fig B).
3. Turn on the device with marked ON/OFF switch
4. Insert the batteries supplied into the Remote control and
press the Standby button to power on the TV.
STANDBY MUTE
TV/RADIO TV GUIDE
ATV
USB
5. You will now be welcomed with the initial set-up screen.
If it does not appear, on the remote control, please press
[MENU] then 8-8-8-8 and the menu will appear. Press OK on
the remote control and tuning will start.
6. After tuning the following screen will appear.
If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and
re-tuning the TV.
g. Ag. B
Getting started - initial set up
As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called
‘Ecohome’ (you will see this during the first time installation set up). Power consumption using the Ecohome function is
approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is
not suitable for your viewing environment, you can select other modes as necessary. (Please note, ‘Professional’ mode is for optimum
default picture settings, however, power consumption is approximately 15% higher than ‘Ecohome’ mode)
Please refer to the user guide section ‘Picture settings’ in order to change the mode to one that maybe more suitable for your
environment. There is also a shortcut button on the remote control called ‘P-Mode’ should you wish to change to another mode.
How to connect a signal booster

10
Choosing Mode Input/Source
To switch between the dierent input/connections.
a) Using the buttons on the remote control:
1. Press [SOURCE/ AV] - The source menu will appear.
2. Press [▼] or [▲] to select the input you require.
3. Press [OK].
b) Using the buttons on the Television:
1. Press [SOURCE].
2. Scroll up / down using CH+/ CH- buttons to the input/
source you require.
3. Press Vol+ to change input/source to the one selected.
DVD
HDMI 1
HDMI 1
HDMI 2
HDMI 3
TV buttons & Source menu
1
2
3
4
5
6
7
8
9
1Eject
2Play / Pause
3Volume up and menu right
4Volume down and menu left
5Programme/Channel up and menu up
6Programme/Channel down and menu down
7Displays Menu/OSD
8Displays the input source menu
9Standby Power On/O
TV with DVD
STANDBY

English
11

12
Remote control
TV with DVD
STANDBY - Switch on TV when in standby or vice versa
MUTE - Mute the sound or vice versa
TV/RADIO - Switch to Freeview and switch between TV and radio in
Freeview mode
TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)
ATV - Switch to analogue TV source
USB - Switch to USB Source
DVD - Switch to DVD source
EJECT - Eject disc in DVD mode
S.MODE - Scrolls through sound mode options
P.MODE - Scrolls through picture mode options
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
SOURCE/AV - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
- Allows you to navigate the on-screen menus and
adjust the system settings to your preference
MENU - To display OSD menu
EXIT - To exit all menus
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
- To return to the previous channel viewed
FAV - To display favourites menu
VOL - To increase / decrease the sound level
SUBTITLE - To switch the dialogue at the bottom of the screen (on/o )
ASPECT - To switch the screen between the dierent picture formats
AUDIO - To change the audio language (if available)
SLEEP - Press repeatedly to cycle through the sleep options
CH To increase or decrease the channel being watched
GOTO - DVD mode - To go to a specic chapter
A-B Repeat - DVD mode - Press once to set point, press a second time to
return to point
ANGLE - DVD mode - Select dierent angle of DVD (if available)
REPEAT - DVD mode - To repeat playback
D.DIS - DVD mode - To display the current disc information
ZOOM - DVD mode - To zoom in
**SIZE - Teletext mode - To change the display size in Teletext mode
DISPLAY - To switch o the screen when listening to radio
DVD SETUP/TEXT - DVD mode - To display the DVD setup menu
**Teletext mode - To enter Teletext
D.MENU/INDEX - DVD mode - To display the DVD disc menu
**Teletext mode - To display the index page
TITLE/REVEAL - DVD mode - To display the DVD title menu
**Teletext mode - To reveal or hide the hidden words.
HOLD - Teletext mode - Hold current page which is displayed
** Teletext function is only available in analogue
1
1
4
4
5
5
2
2
3
3

English
13
Connections
R
GB
SCART
CI CARD IN
HDMI
USB RF IN
VIDEO R L YPRPB
WR
VIDEO
Audio In
Y
HDMI
HEADPHONES
Connections
21
3
4
5
7 986
1 USB Port USB 6 HDMI 1 in HDMI input
2 HDMI 2 in HDMI input 7 AV in (Video-CVBS) Video Input & Audio input (L/R)
3 CI Card IN Common Interface Module Input 8 YPbPr Component HD Input
4 HEADPHONES 3.5mm Headphone output 9 RF in RF / TV Aerial Input
5 SCART SCART input

14
Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box
TVs Input/Source should be set to SCART.
SCART
OUT
SCART
IN
RF IN
RF OUT RF IN
Connecting a Camcorder, Camera or Games Console
TVs Input / Source should be set to Video.
Audio
R / L
Video
Connecting a High Denition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of
quality.
TVs Input/Source should be set to HDMI.
Option 2 - via Component cable.
TVs Input / Source should be set to Component.
Y
PB
PR
L
R
Y
PB
PR
L
R
Connections

English
15
Tip: If you do not press any buttons for 10 seconds, the menu
will automatically exit. You can change the length of time
before the menu exits automatically - see‘Menu Duration’
section.
TV Menu Operation
AV
To access this menu, press [MENU] button on the remote
control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use
the scroll (▲/▼/◄/►) buttons. To conrm any settings press
[OK] button.
To exit this menu at anytime, press [EXIT] button.
Channel menu
Auto Tuning - Allows you to retune the television for all digital
channels, digital radio stations and analogue channels.
Digital Manual Tuning- Allows you to manually tune your
digital signal.
Analogue Manual Tuning - Allows you to manually tune your
analogue signal.
Programme Edit - Allows you to delete, skip and add favourite
channels.
Picture menu
Picture Mode - Choose from the following presets.
Standard Default settings
Dynamic Recommended settings for fast moving
pictures
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Ecohome Power saving mode
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Colour - Increases the colour from black and white.
Tint - Lets you increase or decrease the level of tint within the
picture.
Sharpness - Increase or decrease the sharpness of the picture.
Colour Temperature - Choose from the following presets.
Normal Default settings
Warm Increases red within the picture
Cool Increases blue within the picturew
Noise Reduction - Choose from the following presets.
O Turns noise reduction o
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default Default settings
TV Menu operation
TV Menu Operation | Channel menu | Picture menu

16
Sound menu
Sound Mode - Choose from the following presets:
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Personal Selects your personal sound settings
Sports Emphasises sound for sports
Tip: Treble and bass levels can only be adjusted when the
sound mode ‘Personal’is selected.
Treble - To adjust the amount of high frequency within the
sound.
Bass - To adjust the amount of low frequency within the sound.
Balance - To switch the sound between the left and right
speakers.
Auto Volume Level (AVL) - When ‘on’ is selected, the volume
will stay at a constant level regardless of input/source.
Digital Output - This is the digital COAX Audio output. Choose
from the following options:
O O
Auto Selects the best settings automatically
PCM Select this option if you are connecting to
a Stereo Hi- via coax cable (Pulse-code
modulation (PCM) is a digital representation of
an analogue signal)
AD Volume - Increase or decrease the overall volume.
Time menu
Clock - Set the date and time.
O Time - Allows you to set a specic time for your TV to turn
o.
On Time - Allows you to set a specic time for your TV to turn
on, the channel it will then display, the source it will be on and
also the volume. This function can then be toggled to repeat
every day or a certain day.
Time Zone - Change your current time zone.
Sleep Timer - Lets you set the sleep timer so the television
automatically switches o after a set amount of time. O ->
10min -> 20min -> 30min -> 60min -> 90min -> 120min ->
180min -> 240min.
Auto standby - Toggle the Function on and o.
Feature menu
Schedule List - Lists your programme reminders.
PVR File System - Checks the le system of the connected USB
device and displays the information about the check results.
CI Information - Pay per view services require a “smartcard”
to be inserted into the TV. If you subscribe to a pay per
view service the provider will issue you with a ‘CAM’and a
“smartcard”. The CAM can then be inserted into the COMMON
INTERFACE PORT (CI Card In).
TV Menu operation
Sound menu | Time menu | Feature menu

English
17
System Lock - Allows you to lock or unlock the menu. You
will be asked to enter a 4 digit password use the ◄button
to quit the password input. Use the ►button to clear.
Default password is 0000.
Hearing Impaired - If signal provides support for the
hearing impaired, the subtitles can be displayed by pressing
the “Subtitle”. If you set a Hearing Impaired on and switch to
a channel with support for hearing impaired subtitles will
be activated automatically.
TT Language - Encoding settings for the proper display of
teletext characters.
Setup menu
Menu language - Allows you to change the language of
the menu.
Aspect Ratio - Within the EU the picture format varies
depending on the channel/broadcast. There are a number
of dierent options to best meet your needs.
Auto - Automatically displays the best picture format. So
the picture is in the correct position. May have black lines at
the top/bottom and/or sides.
Original - Will display the picture from the broadcaster
without any change.
Zoom - The picture is the correct proportion but zoomed in
to ll the screen.
4:3 - Displays the 4:3 picture in its original size. Side bars are
shown to ll the 16:9 screen.
16:9 - Fills the screen with a regular 16:9 signal.
14:9 - Displays the 14:9 picture in the correct proportion. As
a result side bars are shown on the screen.
Blue Screen - Changes the background when there is no
input between clear and a blue background (Only available
on some sources).
Menu Duration - Lets you adjust the amount of time the
On Screen Menu stays on the screen before disappearing.
Reset to default
Reset Menu System - This resets the menus to factory
settings.
Reset TV Channels - This clears all the TV channels from the
television.
Software Update (USB) - From time to time we may
release new rmware to improve the operation of the
television (available to download). This menu lets you install
the new software/rmware onto the television. Further
details of how to do this will be issued with the rmware.
Contact the helpline or refer to the‘product support’
section of the website.
TV Menu operation
Setup menu

18
7 Day TV Guide
TV Guide is available in Digital TV mode. It provides
information about forthcoming programmes (where supported
by the Digital channel). You can view the start and end time of
all programmes and on all channels for the next 7 days and set
reminders.
1. Press [TV GUIDE]. The following 7 Day TV Guide will appear.
2. Navigate through the menu using ▲/▼/◄/►
You can now:
Record a Programme by pressing RED.
Set a reminder by pressing GREEN.
View a previous day by pressing YELLOW.
View the next day by pressing BLUE.
3. Press [EXIT] to exit the 7 day TV Guide.
Note: This TV is designed to operate with USB memory sticks
up to 32GB. It is possible to use either a USB memory stick
or a USB portable Hard Drive of a larger capacity, however,
it must be formatted to the FAT32 le system in order to
operate correctly. At the time of printing this user guide,
Windows XP/Vista computers are only capable of formatting
up to 32GB, therefore, you will need a software programme/
utility to format larger USB drives/hard drives to FAT32.
Additional help and support is available from the web site.
TV Menu operation
7 Day TV Guide

English
19

20
TV Menu operation
USB mode / Media player
Select the drive you require. (If your drive only has 1 partition
you will only see 1 item).
You can navigate through the menus using the scroll
▲/▼/◄/►buttons To conrm the item you wish to play⁄view
press [OK] button
You can now access the item. Press OK to view. While viewing you control the item using or by pressing ( i )
and using ▲/▼/◄/►and (OK) shown in g(1) below
USB mode oers playback of various dierent types of content that you have saved on your USB Memory Stick.
Please refer to technical specication page for compatible le types
On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based
on le type.
g(1)

English
21
To access this menu, press [MENU] button on the remote
control. If you wish to make changes to any of the default
settings, use the scroll ▲/▼/◄/►buttons. To conrm any
settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
TV Display - Choose from the following options
16:9 Full screen picture format
4:3
Pan scan
PS Traditional picture format, often used on
old lm
4:3
Letter box
LB Traditional picture which has been
adapted for widescreen
Wide Widescreen picture format
TV Type - Choose from the following options
PAL Normally used for discs from North America,
Japan etc
Multi The standard for discs from UK/Europe, most
of Asia, Australia etc
NTSC For both NTSC and PAL
Default - This option allows you reset all DVD settings to
factory settings.
Downmix - Choose from the following options
LT/RT
Stereo
Dynamic- This is the dierence between the quietest and
loudest sounds. This setting works only with DVD discs
recorded in Dolby digital.
Full Set this to listen with the range recorded on
the disc
3/4 Set this to listen with a range equivalent to a
normal television
1/2 Set this to listen with a smaller dierence
between the maximum and minimum
volume
1/4 Set this to listen with a smaller dierence
between the maximum and minimum
volume
O
Dual Mono
Stereo Outputs 2 channels of sound both left and
right
Mono L Outputs left side sound
Mono R Outputs right side sound
Mix Mono Outputs a single channel of sound but mix
between right and left
DVD Menu

22
Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located
in the same room)
Depending on your Sky Box and TV model, connect either by SCART (or if no SCART connector is included with
your TV, connect via a SCART to AV cable) or via an HDMI cable (SCART to AV and HDMI cables are available
separately)
If connecting by SCART cable to both the Sky Box and TV, select the ‘input source’ as SCART.
If connecting by SCART to AV cable (SCART on one end connected to your Sky box and a Red/White and Yellow
connector on the other end that connects to the TV) select the ‘input source’ as AV.
If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has more than 1 HDMI port, ensure
you select the input source to match the HDMI numbered port on the rear of the TV)
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See bottom of this page.
Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different
room to the TV)
Please note, if you are adding a ‘Magic
Eye/TV Link’ to your system so that
you can use your Sky remote control
to change the Sky channel in the room
where the 2nd TV is located, please
refer to the instructions included
with the TV link/magic eye in order to
ensure the RF or RF2 output on your
Sky box is powered on. (The red LED
light on the TV link/magic eye will light
up if the RF / RF2 output is correctly set
up) If you do not have the instructions
that came with the TV link/magic eye,
instructions on how to do it can be
found on our web site.
1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you
no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store
the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is
the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per
point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue
Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the
Sky box/channel is found, press ‘OK’ to store it.
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See below.
RF/COAX cable from
Sky Box to 2nd TV
Connect to RF
or RF2 output
on the Sky box
Connect to the
Aerial/RF input
on the 2nd TV
TV Link/Magic Eye
(optional)
2nd TV in
another room
Sky Box
SCART
or HDMI
cable
Using a Sky Remote or a Universal Remote to operate your TV
Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to
programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is
the only version that includes the latest software/firmware necessary to operate this model of TV. All codes can
be found on our website. If you wish to upgrade/replace your existing Sky remote control to the latest version,
you can do so on our web site.
Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the
web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you
have an alternative brand of Universal remote, please refer to the manufacturer for the code.)
Using your tv with a sky digital set top box
