Blaze King 6003T User manual

OM-6003T
DATE PRINTED: 4/7/11
Version 1.08 SIT
Page 1
CERTIFIED FOR CANADA AND USA
MANUFACTURED IN USA BY:
Blaze King Industries
146 A Street
Walla Walla, WA. 99362
Ph# 1-509-522-2730
Email [e-mail]
MANUFACTURED IN CANADA BY:
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC V2A 3H5
Ph# 1-250-493-7444
Email [e-mail]
Blaze King
QUALITY HEARTH PRODUCTS
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER
CUSTOMER: PLEASE KEEP MANUAL FOR FUTURE REFERENCE
TUSCANY FREESTANDING DIRECT VENT HEATER
MODEL 6003T
INSTALLATION AND OPERATING INSTRUCTIONS
Dealer:
Installer:
Phone:
Installation Date:
Serial Number:
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
 If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
WARNING: If the information in these instructions are not followed exactly, a fire or explosion
may result casing property damage, personal injury may result.
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 2
DATE PRINTED: 4/7/11
Version 1.08 SIT
Table Of Contents
Mail your warranty card TODAY, and SAVE your
RECEIPT. This card is included with the accessory
package inside each firebox.
In order to receive full warranty coverage and to
expedite service, Blaze King recommends that you
save your receipt and attach it to this page.
By doing this you will have all the necessary
information in the event that your stove may need
warranty service.
Your Blaze King Stove has its own personal serial number. No two stoves are alike. The serial number is
located on the stove label inside the door on the left hand side of the stove.
Dealer
Installer
Phone
Installation Date
Serial Number
Description...................................................................................................... Page #
Listing and Codes................................................................................................................................................... 3
Copy of certification label ....................................................................................................................................... 4
Lighting Instructions................................................................................................................................................ 5
Specifications ......................................................................................................................................................... 6
High Altitude ........................................................................................................................................................... 6
Warnings, Caution and Safety Notices ................................................................................................................... 7
Installation Instructions Safety................................................................................................................................ 8
Planning Your Installation......................................................................................................................... 8
Clearances To Combustibles ................................................................................................................... 9
Rear Vent—Snorkel Installation ............................................................................................................... 9
Simpson Duravent Parts List.................................................................................................................. 10
American Metal & Security Parts List ..................................................................................................... 11
Selkirk Direct-Temp™Instructions......................................................................................................... 12
Top Vent - Venting Diagrams ................................................................................................................ 13
Horizontal Termination Installation ......................................................................................................... 15
Vent Restrictor Use And Installation....................................................................................................... 16
Vertical Termination Installation ............................................................................................................. 16
Basements Installations ......................................................................................................................... 16
Through Roof Termination ..................................................................................................................... 17
45° Elbow Offset Information.................................................................................................................. 18
Termination Location.............................................................................................................................. 19
Gas Supply............................................................................................................................................. 20
Aeration Adjustment............................................................................................................................... 21
Thermostat ............................................................................................................................................. 22
Log set Installation ................................................................................................................................. 22
Wiring Diagrams ................................................................................................................................................... 23
Operating Instructions Pre Check......................................................................................................................... 24
Final Check ............................................................................................................................................ 25
Shut Down.............................................................................................................................................. 25
Fan......................................................................................................................................................... 26
Cold Weather Operation....................................................................................................................................... 26
Glass Cleaning—White Mineral Deposits............................................................................................................. 26
Maintenance Gas Valve Replacement ................................................................................................................. 27
Viewing Glass Replacement .................................................................................................................. 28
Door ....................................................................................................................................................... 28
High Altitude Chart ............................................................................................................................................... 29
Optional Conversion Kits ...................................................................................................................................... 30
Warranty............................................................................................................................................................... 31
Troubleshooting............................................................................................................................................... 32-33
Replacement Parts List ........................................................................................................................................ 33
Pilot Conversion……………………………………………………………………………………………………………..34
Notes / Service History ......................................................................................................................................... 35

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 3 DATE PRINTED: 4/7/11
Version 1.08 SIT
The Blaze King Tuscany is listed and certified for installation in the U.S.A. and Canada under the following
standards:
- ANSI Z21.88b-2007/CSA 2.33b-2007, Vented Gas Fireplace Heater.
- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes
Please contact Blaze King if you have any questions regarding the certification of this appliance.
This appliance, when installed must be electrically grounded in accordance with local codes or, in the
absence of local codes the National Electrical code ANSI/NFPA 70 or the Canadian Electrical Code, CSA
C22.1.
Thank you for purchasing a Blaze King stove and welcome to the Blaze King family. Your new Blaze King will
give you many hours of warmth and comfort. Please make sure you take a few minutes to read this owner’s
manual. It explains the steps required to safely assemble, install, operate, and maintain your new appliance.
Proper installation, operation and maintenance will keep your Blaze King burning for years to come.
The Tuscany is one of the most advanced free standing gas stoves on the market. It is designed using the
latest technology and manufactured to our highest quality standards.
Some of the many features are:
 Compact and easy to install.
 Adjustable flame control for varying flame aesthetics and heat output.
 Gas valve with remote capability, i.e. Standard wall mounted room thermostat or optional hand held remote control (check with
your local dealer for availability).
 Heat activated convection fan with variable speed controller.
 Standard simulated brick firebox lining.
 Certified as a heating appliance. Therefore, the Tuscany is suitable for continuous operation for zone heating.
 Realistic three dimensional glowing flames with glowing two piece log set viewed through high temperature ceramic glass.
 Heavy-duty construction for long life and durability.
 Comprehensive warranty policy.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified
kit is used.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.
Introduction
Listing & Codes

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 4
DATE PRINTED: 4/7/11
Version 1.08 SIT

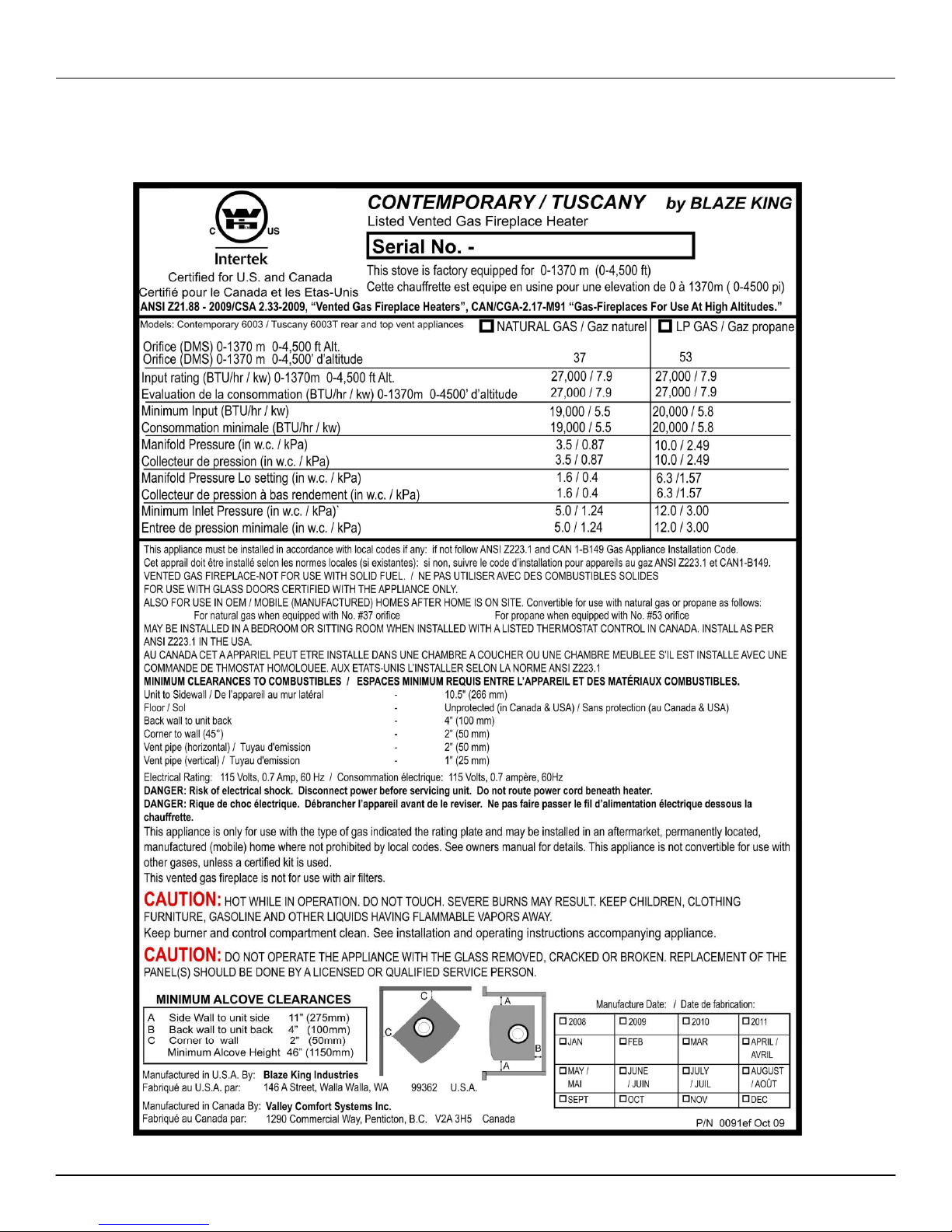

Note: A copy of the certification label is provided here for your review. Due to constant up-grades it is possible that the
information shown here may not coincide with the label as attached to the unit. In the event of a discrepancy be-
tween the labels, the label on the unit is considered as the correct one.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 5 DATE PRINTED: 4/7/11
Version 1.08 SIT
LIGHTING INSTRUCTIONS
Lighting Instructions
SIT

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 6
DATE PRINTED: 4/7/11
Version 1.08 SIT
HIGH ALTITUDE INSTALLATION
When installing this appliance over 4500 ft (1372 m) above sea level in Canada, the appliance must
be properly de-rated and installed according to local codes. In the absence of local codes, install in
accordance with CSA B149.1, in Canada. In the US for installations above 2000ft the appliance
must be installed in accordance with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54
(see page 26).
WIDTH 29” / 737mm
HEIGHT 29” / 737mm
DEPTH 24” / 610mm
Contemporary - Stove Dimensions
MODEL Tuscany Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. w.c. (0.4 - 0.87kPa) 6.3 - 10.0 in. w.c. (0.87 - 2.74kPa)
Min. Supply Pressure for
Purpose of Input Adjustment
5 in. w.c. (1.24 kPa) 12.0 in. w.c. (3.0 kPa)
Max. Supply Pressure for
Purpose of Input Adjustment
7.0 in. w.c. (1.8 kPa) 14.0 in. w.c. (3.5 kPa)
Orifice Size 37# DMS 53# DMS
Nominal Input Rating 27,000 BTU/hr 27,000 BTU/hr
Minimum Input Rating 19,000 BTU/hr 20,000 BTU/hr
Operating Efficiency (fans off*) 82% 82%
Altitude 0 - 4,500 ft. (0 - 1372 m) 0 - 4,500 ft. (0 - 1372 m)
Primary Air Opening 1/8 in (Minimum). 1/8 in (Minimum).
Electrical Rating 120 V.A.C. System 120 V.A.C. System
Circulating fan Variable Speed Variable Speed
Vent System 4” x 6-5/8” 4” x 6-5/8”
Log Set Ceramic Fiber (2 Piece) Ceramic Fiber (2 Piece)
Specifications
* Slightly Higher Efficiency may be obtained with fans on.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 7 DATE PRINTED: 4/7/11
Version 1.08 SIT
Safe installation and operation always require common sense. We are also required by Canadian and
ANSI safety standards to point out the following:
INSTALLATION AND REPAIR SHOULD BE
DONE BY A QUALIFIED SERVICE PERSON.
THE APPLIANCE SHOULD BE INSPECTED
BEFORE USE AND AT LEAST ANNUALLY BY
A PROFESSIONAL SERVICE PERSON. MORE
FREQUENT CLEANING MAY BE REQUIRED
DUE TO EXCESSIVE LINT FROM CARPETING,
BEDDING MATERIAL, ETC...
IT IS IMPERATIVE THAT CONTROL
COMPARTMENTS, BURNERS AND
CIRCULATING AIR PASSAGEWAYS OF
THE APPLIANCE ARE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OF TRAFFIC AREAS AND AWAY FROM
FURNITURE AND DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES AND SHOULD
STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIALS SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
THE FLEXIBLE CORD PROVIDED MUST
BE CONNECTED TO A LINE VOLTAGE
ELECTRICAL SUPPLY.
ANY SAFETY SCREEN OR GUARD REMOVED
FOR SERVICING A ROOM HEATER MUST BE
REPLACED PRIOR TO OPERATING THE
APPLIANCE.
NEVER VENT THE APPLIANCE INTO OTHER
ROOMS OR BUILDINGS. THE APPLIANCE
MUST BE VENTED TO THE OUTSIDE ONLY.
THIS APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID-FUEL BURNING APPLIANCE.
DO NOT USE THIS HEATER IF ANY PART
HAS BEEN UNDER WATER. IMMEDIATELY
CALL A QUALIFIED SERVICE TECHNICIAN
TO INSPECT THE HEATER AND TO
REPLACE ANY PART OF THE CONTROL
SYSTEM AND ANY GAS CONTROL WHICH
HAS BEEN UNDER WATER.
Warnings — Caution
IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE OR EXPLOSION MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR
FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION REQUIREMENTS IN YOUR AREA.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW APPLIANCE.
FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR
DEATH.
“WARNING” Do not operate appliance
with the glass front removed, cracked or
broken. Replacement of the glass should
be done by a licensed or qualified service
person.
Natural gas & propane gas have odor additives for
the purpose of leak detection through smell. This
odor can fade with time. If the odor is reduced, it is
possible to have a dangerous buildup of gas with-
out your being able to smell it. If you are using any
gas appliances in your home BKI recommends that
you have one or more UL approved gas detectors
installed in your home. They should be installed by
a qualified gas installer for safety purposes.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 8
DATE PRINTED: 4/7/11
Version 1.08 SIT
IMPORTANT: All clearances listed are the
MINIMUM required and must be strictly
followed.
This appliance is certified for installation on a solid
combustible surface, such as a wood floor, vinyl or
carpeting.
The following pages provide diagrams for safe
clearances to combustibles.
 To clean the stove, make sure the appliance is
off and cold. Remove the logs and embers.
The logs must be handled with extreme
care, they are fragile. Use a vacuum to clean
burner and air openings in the bottom and
back of the appliance. Carefully replace the
logs and embers.
 Fire Extinguisher: Every home should have at
least one fire extinguisher. An approved Class
A-B-C extinguisher should be mounted on the
wall near an exit and close to the appliance,
but not so close that accessibility to the
extinguisher could be blocked by a fire. Your
local Fire Department can advise you
concerning the most appropriate location.
 Smoke Detectors & Carbon Monoxide
Detectors: Install at least one smoke detector
on each floor of your home to ensure your
safety. It should be located away from the gas
appliance and close to the sleeping areas.
Follow the smoke detector manufacturers
placement installation and maintenance
instructions. Your local Fire Department may
provide assistance in selecting smoke
detectors and CO-detectors. It is strongly
recommended, for your family’s protection, that
a CO-detector be placed in all homes that
utilize gas in any form.
 The appliance vent should be enclosed when
installed in or passing through a living area,
where children may come in contact with it.
 Only vent terminations specified may be used
with this stove.
 Venting terminals shall not be recessed into a
wall or siding.
 Ensure that the combustion air will be in the
same pressure zone as the vent outlet.
1) Wear gloves and safety glasses for protection.
2) Exercise extreme caution when using ladders
or when on roof tops.
3) Be aware of electric wiring locations in walls
and ceilings.
4) Use a back support when doing any
heavy lifting.
GENERAL SAFETY (HOMEOWNER) VENTING SAFETY
Please note the following key points regarding
the location of your appliance:
 A sufficient gas pressure is required to supply
the unit with a minimum inlet pressure
 Allow adequate accessibility clearances for
servicing and proper operation.
 Allow adequate clearance to combustibles.
 Consider the termination location.
 A suitable power outlet is required to provide
power to the fan.
 Ensure appliance has adequate combustion
and ventilation air.
PLANNING YOUR INSTALLATION
CLEARANCES TO COMBUSTIBLES
Installation Instructions - Safety
FOR THE INSTALLER
Ensure, as in any installation, that structural
members are not cut or weakened during
installation .
When installing the appliance in a mobile or
manufactured home, it must be securely
anchored to the floor.
(Use kit # ZR8039)
We recommend that our gas
hearth products be installed
and serviced by professionals
who are certified in the U.S.
by the National Fireplace
Institute®(NFI) as NFI Gas
Specialists.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 9 DATE PRINTED: 4/7/11
Version 1.08 SIT
CLEARANCES TO COMBUSTIBLES
Minimum clearances listed above must be
maintained. Also ensure that you have left
clearance for servicing and that that the proposed
termination location is correct.
LOCATING YOUR STOVE
IMPORTANT: This appliance's venting system is
room sealed, which means that there should be no
provision to allow room air to be used in the com-
bustion process.
VENTING
Note: Only venting systems listed in this
manual may be used with the Tuscany. The
Simpson Duravent GS®, American Metal
Products and Security vent systems are listed
for use with the Tuscany. See the next page for
a full parts list.
PLANNING YOUR VENT INSTALLATION
This type of direct vent system may terminate in
one of two ways: Vertical termination using a vent
cap, or horizontally using a wall termination. There
are limitations to the vertical and/or horizontal
lengths. When calculating the length of the vent
pipe from the outlet of the appliance to termination,
allow for ceiling thickness, vertical rise in the attic
or second story and sufficient vertical height above
the roof.
Fire stops are required at each floor level the vent
passes through.
When carrying out vertical installations that require
45° elbows add additional pipe to allow for the
offset.

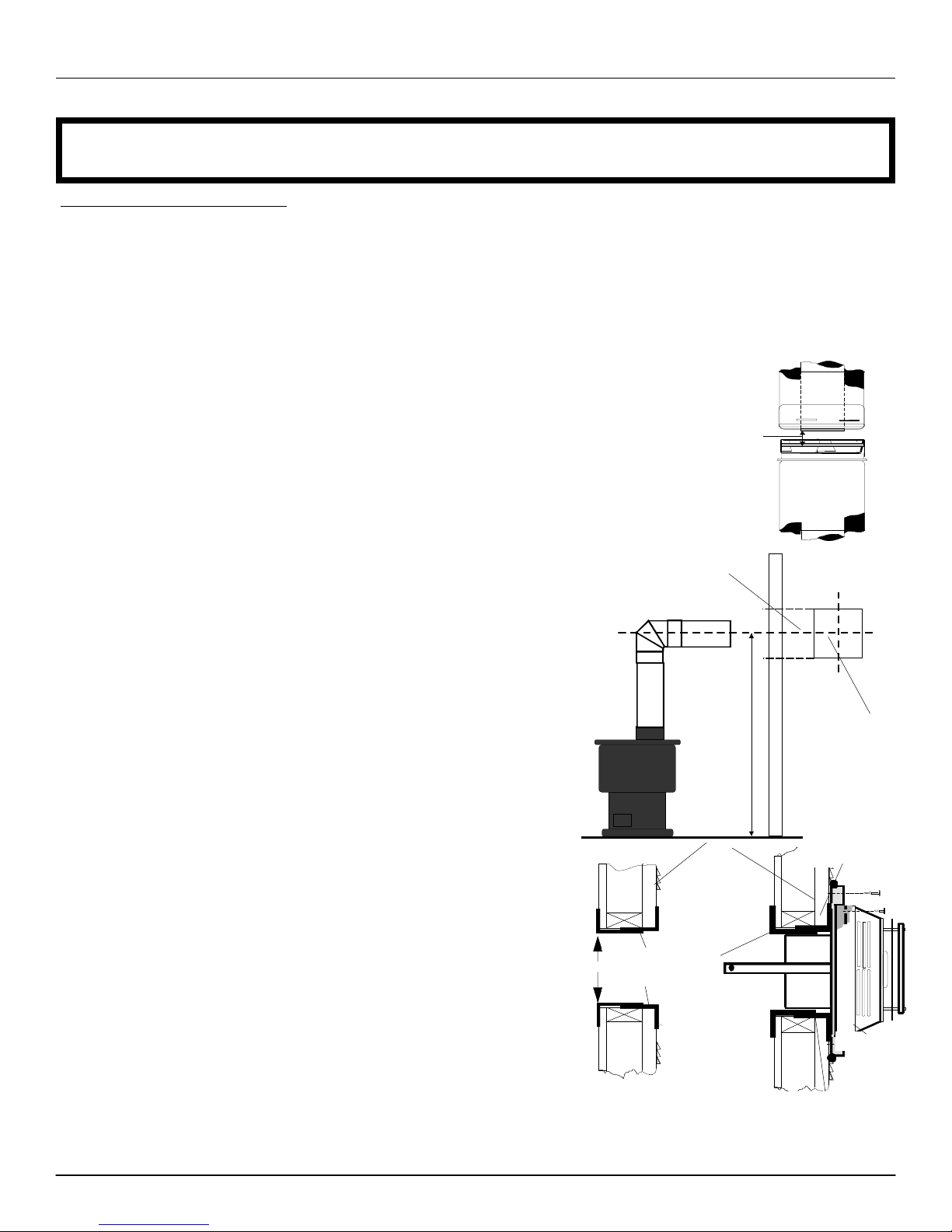

Installation Instructions
MODEL TUSCANY
A Side Wall to unit side 11” (275mm)
B Back wall to unit back 4” (50mm)
C Corner to side wall 2” (100mm)
Installation showing 36” section
and 14” Snorkel
36” section. Note: duravent also
supplies adjustable sections to
allow adjustment of section length
to suit installation (see parts list)
C/L
Cut 10” square hole.
Measure from floor
finish to center—20”
Follow venting manufacturer ‘s instructions and adhere to all
local codes, authorities and standards for your installation.
2” minimum. Install to
suit. Use adjustable
section if required
Corner install showing 45° elbow either straight off back of
unit or in mid section with snorkel kit.
REAR VENT—SNORKEL TERMINATION
MINIMUM VERTICAL RISE 36” Using American Metal snorkel
(part #4D36S)
MAXIMUM HORIZONTAL RUN 3 ft When using 36” Snorkel.
One 45° elbow may be used for
corner installs.
Installation showing 36” section
and 36” Snorkel
36” section. Note: duravent also
supplies adjustable sections to
allow adjustment of section length
to suit installation (see parts list)
36” Snorkel. American
Metal #4D36S
C/L
Cut 10” square hole.
Measure from floor
finish to center—20”
Follow venting manufacturer ‘s instructions and adhere to all
local codes, authorities and standards for your installation.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 10
DATE PRINTED: 4/7/11
Version 1.08 SIT
Installation Instructions
SIMPSON DURAVENT DIRECTVENT PRO / GS SYSTEM PARTS LIST
Description Part # Old Part #
Horizontal Termination Kit - In Canada - Mandatory to add a wall thimble (46DVA-KHC.) 46DVA-KHA 971
Vertical Termination Kit - 978
6” Pipe Length -Black 46DVA-06B 908B
6” Pipe Length –Galvanized 46DVA-06 908
8,5” Black Extension (3”-7”) 46DVA-08AB -
8,5” Galvanized Extension (3”-7”) 46DVA-08A -
9” Pipe Length-Black 46DVA-09B 907B
9” Pipe Length-Galvanized 46DVA-09 907
12” Pipe Length-Black 46DVA-12B 906B
12” Pipe Length-Galvanized 46DVA-12 906
16” Black Extension (3”-14.5”) 46DVA-16AB -
16” Galvanized Extension (3”-14.5”) 46DVA-16A -
24” Pipe Length-Black 46DVA-24B 904B
24” Pipe Length-Galvanized 46DVA-24 904
36” Pipe Length-Black 46DVA-36B 903B
36” Pipe Length-Galvanized 46DVA-36 903
48” Pipe Length-Black 46DVA-48B 902B
48” Pipe Length-Galvanized 46DVA-48 902
11”- 14 5/8” Adjustable Pipe Length-Black - 911B
17”- 24” Adjustable Pipe Length-Black - 917B
45° Elbow-Black 46DVA-E45B 945B, 945BG
45° Elbow-Galvanized 46DVA-E45 945, 945G
90° Elbow-Galvanized 46DVA-E90 990, 990G
90° Elbow-Black 46DVA-E90B 990B, 990BG
Vertical High Wind Termination Cap (must be used for all vertical terminations) 46 DVA-VCH 991
Horizontal. DV Termination with 1” return - 984GL
Horizontal. Square Termination Cap - 984
Horizontal. Square High Wind Termination Cap 46DVA-HC 985
Horizontal Round Termination Cap 46DVA-HRCS -
Sconce Termination Cap 46DVA-HSC -
Wall Thimble Cover—Support Box 46DVA-DC 940
Cathedral Ceiling Support Box 46DVA-CS 941
Brass Trim fro Ceiling Support Box - 3951
Firestop Spacer 46DVA-FS 963
Flashing 0/12-6/12 46DVA-F6 943
Flashing 7/12-12/12 46DVA-F12 943S
Storm Collar 46DVA-SC 953
Vinyl Siding Standoff 46DVA-VSS 950
Wall Strap 46DVA-WS 988
Wall Pen Heat Shield (Wall Thimble) 46DVA-WT 942

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 11 DATE PRINTED: 4/7/11
Version 1.08 SIT
AMERICAN METAL PRODUCTS COMPONENTS LIST
Description Part #
7” Pipe Length 4D7
12” Pipe Length 4D12
2’ Pipe Length 4D2
3’ Pipe Length 4D3
4’ Pipe Length 4D4
4” - 10” Adjustable Length 4D12A
45° Elbow 4D45L
90° Elbow 4D90L
Vertical Termination 4DVC
Horizontal Termination 4DHC
Wall Thimble 4DWT
Wall Strap 4DWS
Firestop Support Plate 4DFSP
Faceplate, Ceiling Support / Wall Thimble 4DFPB
Roof Support 4DRSB
Storm Collar 4DSC
Standard Flashing 4DF
Steep Pitch Flashing 4DF12
Attic Insulation Shield 4DAIS12
6” Pipe Length SV4L6
12” Pipe Length SV4L12
24” Pipe Length SV4L24
36” Pipe Length SV4L36
48” Pipe Length SV4L48
6” Adjustable Length SV4LA
12” Adjustable Length SV4LA12
45° Elbow SV4E45
90° Elbow SV4E90
Wall Band SV4BM
Insulated Attic Shield SV4RSA
Wall Shield SV4RSM
Fire stop SV4BF
Adjustable Roof Flashing 1/12 — 7/12 SV4FA
Horizontal Termination SV4CHC
Vertical Termination SV4CGV
SECURITY VENTING COMPONENTS LIST
Snorkel 36” 4D36S

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 12
DATE PRINTED: 4/7/11
Version 1.08 SIT
INSTALLATION INSTRUCTION APPENDIX FOR BLAZE KING MODEL: 6003T-****-NT
Selkirk Model Direct-Temp™direct venting system has now been added as an approved venting option by our
safety certification organization, Intertek Testing Services / Warnock Hersey (ITS/WH), for the above referenced direct
vent gas appliances.
When using Selkirk Direct-Temp™as an alternative venting system, follow the same system layout, clearance to
combustibles and other guidelines as currently included in our main installation instructions for the above referenced
appliances. The Selkirk Direct-Temp™installation instructions are included with all Selkirk Direct-Temp™terminations
and provide clarification on how certain parts / pieces are assembled, but do not give specifics on system layout options.
Follow both sets of instructions.
Below is a cross-reference chart for the Selkirk Direct-Temp™system versus the system currently referenced in our
instructions.
If any questions arise with respect to correlating parts or issues associated with the Selkirk Direct-Temp™system,
contact Selkirk Technical Support at 800-848-2149, ext. 203 or our Technical Support at [phone] in USA or 250-
493-7444 in Canada.
SELKIRK DIRECT-TEMP™INSTRUCTIONS
Selkirk Direct-Temp™Simpson Dura-Vent Direct Vent GS®
Stock No. Description Stock No. Description
4DT-6 6" Pipe Length, Galvanized 908 6" Pipe Length, Galvanized
4DT-6B 6" Pipe Length, Black 908B 6" Pipe Length, Black
4DT-9 9" Pipe Length, Galvanized 907 9" Pipe Length, Galvanized
4DT-9B 9" Pipe Length, Black 907B 9" Pipe Length, Black
4DT-12 12" Pipe Length, Galvanized 906 12" Pipe Length, Galvanized
4DT-12B 12" Pipe Length, Black 906B 12" Pipe Length, Black
4DT-18 18" Pipe Length, Galvanized n/a n/a
4DT-18B 18" Pipe Length, Black n/a n/a
4DT-24 24" Pipe Length, Galvanized 904 24" Pipe Length, Galvanized
4DT-24B 24" Pipe Length, Black 904B 24" Pipe Length, Black
4DT-36 36" Pipe Length, Galvanized 903 36" Pipe Length, Galvanized
4DT-36B 36" Pipe Length, Black 903B 36" Pipe Length, Black
4DT-48 48" Pipe Length, Galvanized 902 48" Pipe Length, Galvanized
4DT-48B 48" Pipe Length, Black 902B 48" Pipe Length, Black
4DT-AJ Adjustable Length, 11"-14", Galv. 911 Adjustable Length, 11"-14", Galv.
4DT-AJB Adjustable Length, 11"-14", Black 911B Adjustable Length, 11"-14", Black
4DT-EL45 45° Elbow, Galvanized 945 45° Elbow, Galvanized
4DT-EL45B 45° Elbow, Black 945B 45° Elbow, Black
4DT-EL90 90° Elbow, Galvanized 990 90° Elbow, Galvanized
4DT-EL90B 90° Elbow, Black 990B 90° Elbow, Black
4DT-AA Appliance Adaptor, Black n/a n/a
4DT-RD Restriction Disc 929 Restrictor Disc
4DT-CS Ceiling Support 940 Round Ceiling Support/
Wall Thimble Cover
4DT-CSS Cathedral Support Box 941 Cathedral Ceiling Support Box
4DT-WS/B Wall Support/Band 988 Wall Strap
4DT-OS Offset Support 989 Elbow Strap
4DT-WT Round Wall Thimble, Black 942 Wall Thimble
4DT-FS Firestop Spacer 963 Ceiling Firestop
4DT-TP Trim Plate, Black n/a n/a
4DT-HKB Horizontal Term. Kit B 971 Horizontal Termination Kit A
4DT-VKC Vertical Termination Kit 978 Vertical Termination Kit
4DT-HVC High Wind Vertical Cap 991 High Wind Termination Cap
4DT-HHC High Wind Horizontal Cap 985 Horiz. Square High Wind Termination
4DT-SC Storm Collar 953 Storm Collar
4DT-AF6 Adjustable Flashing, 0/12-6/12 943 Adj. Roof Flashing 0/12-6/12
4DT-AF12 Adjustable Flashing, 6/12-12/12 943S Steep Roof Flash. 7/12-12/12
4DT-VS Vinyl Siding Standoff 950 Vinyl Siding Standoff
4DT-VSP Vinyl Siding Shield Plate n/a n/a

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 13 DATE PRINTED: 4/7/11
Version 1.08 SIT
NO INSTALLATION
horizontal length
in feet (ft)
MAXIMUM VERTICAL RISE 30 ft Using (measured from the top of the
stove)
MAXIMUM HORIZONTAL
RUN
10 ft with minimum 4 ft. vertical rise (measured
from the top of the stove).
Restrictor Sizes
vertical height
in feet (ft)
none NO INSTALLATION

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 14
DATE PRINTED: 4/7/11
Version 1.08 SIT
Vent Restrictors
General
When air is heated within a firebox it raises into the vent system. This rising air creates a pressure
difference within the system, which is called draft. To ensure proper combustion and safety the draft
within a system must be between lower and upper limits. Generally as the length of the vent system
is increased the draft increases and can reach unacceptable levels. The vent kit restrictor is provided
to limit the draft at the firebox when using different length vent systems on a top vent stove. It is very
important that a qualified gas tradesman checks and ensures the unit is venting properly.
WARNING: IMPROPER VENTING CAN CAUSE UNSAFE OPERATION OF YOUR STOVE,
ENSURE THAT A QUALIFIED LICENSED TRADESMAN INSTALLS AND CHECKS THE
SYSTEM FOR PROPER VENTING AND DRAFT CONDITIONS.
The owner’s manual provides charts to guide the installer in choosing the correct restrictor for each
individual installation.
INSTALLATION
1) Install the restrictor at the top of the vent pipe just below the high wind vent cap. This is to
allow you to change it if necessary without disassembly of the entire system.
2) Choose the vent restrictor according to the charts provided in the owners manual
3) Bend tabs on vent restrictor so restrictor fits snugly in vent pipe ,place the corner of the
restrictor in the groove approximately 3” down from the top of the pipe, slide the restrictor
down until the opposite corner “clips” into the groove in the pipe as shown in picture #1.
4) Place a small tack of high temperature silicon on each corner of the restrictor to ensure it
will stay in place and not rattle. See picture #2
5) Install the high wind vent cap and check to ensure all vent connections are seating
properly.
6) Carefully light the appliance several times and ensure there is no flame lifting or
“ghosting”. Carefully monitor the flame and ensure the air adjustment is correct to provide
the desired flame and proper burning efficiency.
G:\pubdata\manual\Ventrestrictor_IN.pub

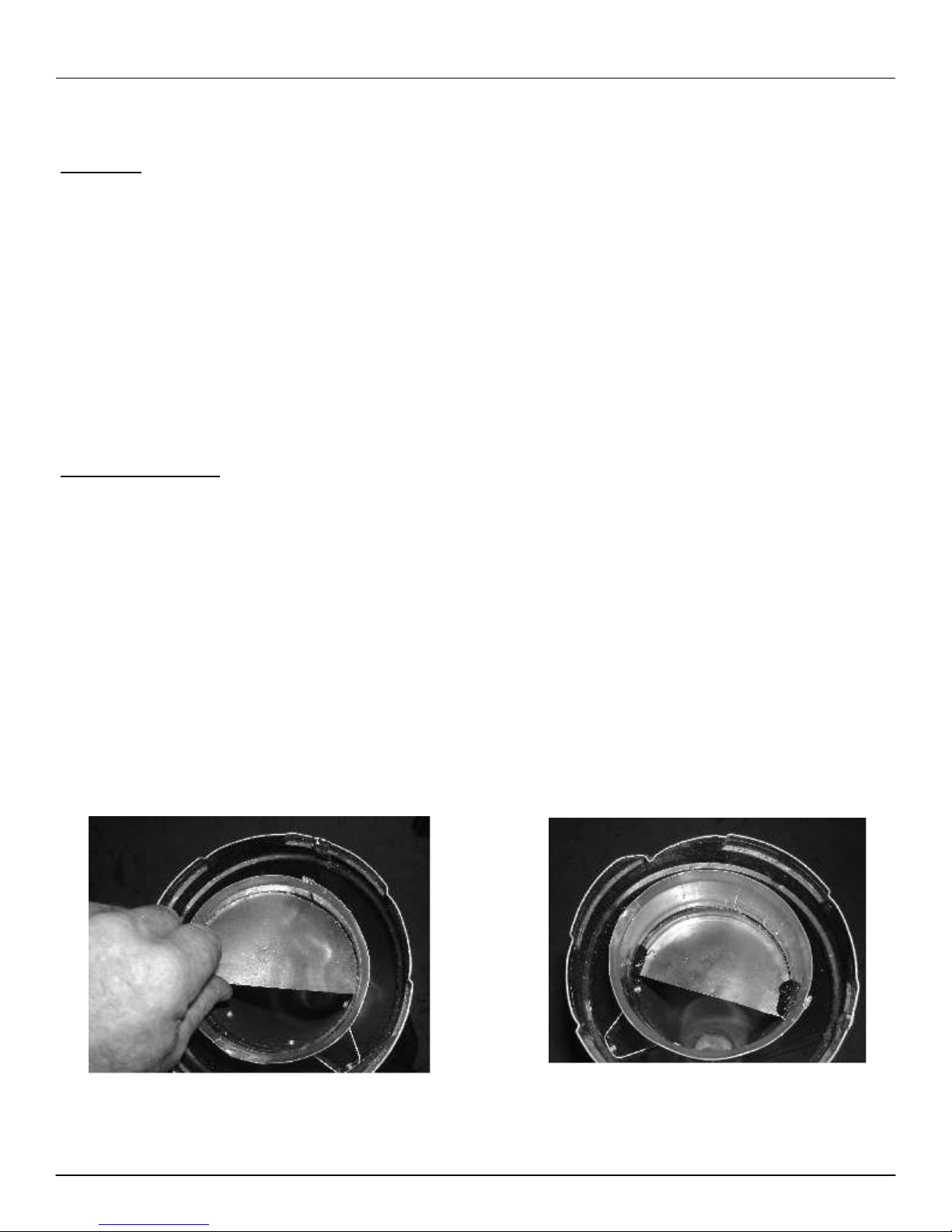

Picture #1 Picture #2

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 15 DATE PRINTED: 4/7/11
Version 1.08 SIT
The vent systems use twist lock connections. The adaptor attached to the unit connects to the approved venting system.
Assemble the vent system using the desired combination of sections and fittings required for your particular installation. While
you are assembling the pipe bear in mind the best visual appearance. Seams should be aligned and hidden as much as possible.
Make sure you twist the mating section all the way to make a solid connection.
Note: As this system is a sealed system, a high temperature sealing compound must be used to seal
the metal to metal joint.
Apply a bead of high temperature sealant to both the 4” exhaust and 6-5/8” intake section of the
male pipe. The female section of the pipe/fitting has four indentations evenly spaced around the
pipe. These indentations are designed to slide over the male section of the pipe and locate into
the four entry slots of the male section of pipe. Twist the female section clockwise a quarter
turn to fully lock the sections together.
Vent Pipe Assembly Procedure
WARNING: A minimum clearance of 2” to combustibles must be maintained around the vent
pipe on horizontal pipe runs and 1” on vertical runs.
Installation Instructions
Attach the correct length of vertical section pipe and an elbow fitting to the stove.
Mark the center line of the pipe facing the wall (allowing for a 1/4” rise per foot of
horizontal run). Example 10 ft of horizontal would require a rise of 2.5”.
NOTE: ALLOWING THE VENT PIPE TO SLOPE DOWN TOWARDS THE VENT
TERMINATION COULD CAUSE POOR COMBUSTION AND/OR HIGH
TEMPERTURES THAT MAY PRESENT A FIRE HAZARD. Mark a 10” x 10”
square around the center mark (inside dimensions).
Cut and frame the exterior wall to accept the wall penetration heat shield. Install
the penetration shield using wood screws. If the wall being penetrated is
constructed of non-combustible material a 7” hole sufficient for the vent pipe, is
acceptable.
Horizontal Wall Vent Terminations
The position of the horizontal vent termination must be positioned to meet all local
building codes (see termination chart on page 16).
Caution: When installing the termination on to vinyl siding, a vinyl siding
kit or furring strips must be used. This prevents the termination from being
recessed into the siding.
Siding
Apply sealant
On four sides
Siding standoff
10”
Screws
C
L
C
L
Center of
hole
10” square hole
High
Temperature
Sealant
(Mil-Pac / RTV)
When the termination is to be attached to vinyl siding apply a bead of non-
hardening mastic around the outside edge to form a seal between the standoff
and the termination cap. Attach the termination cap to the exterior wall inserting
four wood screws through the holes in the corner of the vent termination.
Complete the installation by applying a bead of mastic around the outer edge of
the vinyl standoff. With the termination cap installed you can now connect the
completed vent assembly by sliding the unit back towards the wall and carefully
inserting the pipe into the terminal. Before the final connection is made slide on
the decorative wall thimble. Secure the termination cap by securing the
termination straps to the pipe as close to the exterior wall as possible using
sheet metal screws. Ensure that the straps are hidden by the wall thimble cover.
Apply decorative trim if required.
Wall penetration
heat shield
TOP VENTED APPLIANCES ONLY
You must install the top venting adapter on this Tuscany 6003T-NT gas apliance before you can connect the vent system. Parts
included with the appliance are: 1 Inner gas vent adapter connector 1 Small gasket
1 Outer intake air vent adapter connector 1 Large gasket 12 Sheet metal screws
Install the inner adapter c/w gasket and then the outer adapter c/w gasket provided, then proceed with vent pipe installation.

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 16
DATE PRINTED: 4/7/11
Version 1.08 SIT
Vent Restrictors
Due to the extra flow
produced by certain
venting configurations
vent restrictors must be
placed in the vent to
maintain performance.
The vent restrictors
come in four sizes.
When your installation
r e q u i r e s a v e n t
restrictor the correct
restrictor is placed
inside the vent adaptor
collar on the unit.
Proper instructions for
in stalling a vent
restrictor are included
in the vent restrictor kit.
4” Collar attached
Adaptor
Before sliding the pipe into the termination ensure that you
slide the decorative wall thimble cover and penetration heat
shield over the pipe.
Slide the pipe into the vent, making sure there is at least 1”
overlap between the pipe and the terminal. Attach the pipe by
attaching two sheet metal screws through the termination
straps and into the pipe. Bend back the straps towards the
termination cap making sure they are hidden by the
decorative thimble. Finally attach the wall penetration heat
shield and secure with wood screws.
HOT
Vertical Installations
Always maintain the 1” clearance around the vent pipe
(vertical), when passing through ceilings, walls, roofs,
enclosures, attic rafters or any combustible surfaces.
DO NOT PACK AIR SPACES WITH INSULATION.
Refer to the vent chart for maximum allowable vertical and
horizontal installations.
When planning your installation determine if ceiling joists, roof
rafters or other framing will obstruct the vent system. You may
have to use 45° elbows to navigate around any obstacles.
When passing through a flat ceiling install a Box/Wall thimble.
Cut a 10” square hole and frame as shown in the diagram
opposite.
Ensure all pipe sections are fully twist locked.
Basement Installations
To achieve the minimum vertical rise a 36” snorkel may be used.
Where the bottom of the terminal may be blocked by snow etc
ensure provision is made for adequate drainage.
Drainage
Minimum 12”
NOTE: ALWAYS CHECK YOUR LOCAL CODES
BEFORE INSTALLING VENTING. NECESSARY
CLEARANCES AND REQUIRMENTS MAY VARY
FROM STATE TO STATE(PROVINCE TO
PROVINCE).
Installation Instructions
Restrictor Sizes

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 17 DATE PRINTED: 4/7/11
Version 1.08 SIT
Through Roof Framing
Maintain 10” opening relative to the pitch of the roof.
10” square
Use a suitable round or square support
through the roof. Ensure adequate heat
shield protection is provide. See diagram and
chart for minimum protection.
Consult local codes for minimum vent cap height
above the roof (X).
Termination Above Roof
X
To prevent water seepage install the flashing with
upper portion slid under the roofing material and
the lower portion over the roofing material.
Note: Do not fasten down until the final
adjustments to the vent have been made.
Installation Instructions
0/12 - 2/12 4”
2/12 - 7/12 5 1/2”
7/12 - 12/12 6 3/4”
12/12 - 24/12 7 1/2”
24/12+ 12 1/2”
Pitch (Ratio) ‘X’

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 18
DATE PRINTED: 4/7/11
Version 1.08 SIT
Offset
Height
L

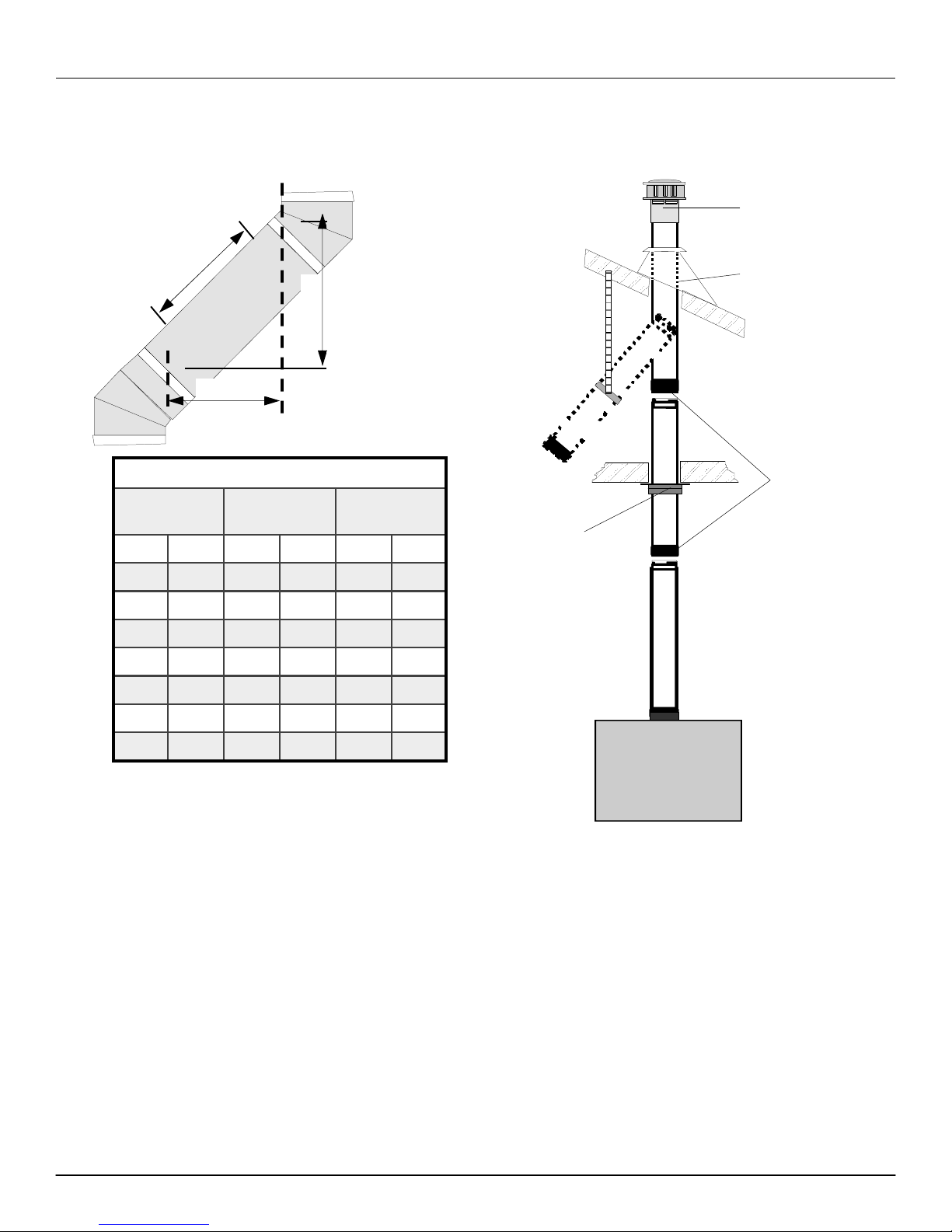

Offset Chart
Offset chart for 45° Elbows
Offset Pipe Length
(L)
inches mm inches mm inches mm
43/4 121 0 0 131/4 337
9 229 6 152 171/2 445
111/4 286 9 229 191/2 495
131/4 337 12 305 213/4 552
213/4 552 24 610 301/4 768
301/4 768 36 914 39 991
38 965 48 1219 47 1194
Height
Typical vent Installation
High wind Vertical
Termination Cap
Flashing
Twist lock
Joints
Wall thimble or
fire-stop
Alternate 45° pipe
requiring strap
support
Installation Instructions

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T Page 19 DATE PRINTED: 4/7/11
Version 1.08 SIT
Canadian Installations US Installations
_______________________________________________________________________________________________________________
A= Clearance above grade, veranda *(min. 12”/30 cm) *(min. 12”/30 cm)
porch, deck or balcony
_______________________________________________________________________________________________________________
B= Clearance to window or door *(min. 12”/30 cm) *(min. 12”/30 cm)
that may be opened
_______________________________________________________________________________________________________________
C= Clearance to permanently closed *(min. 12”/30 cm) *(min. 12”/30 cm)
window
_______________________________________________________________________________________________________________
D= Vertical clearance to ventilated *min. 18” (46 cm) *min. 18” (46 cm)
soffit located above the terminal within check with local check with local
a horizontal distance of 2’ (61 cm) from code code
the centerline of the terminal
_________________________________________________________________________________________
E= Clearance to unventilated soffit *min. 15” (38 cm) *min. 15” (38 cm)
_______________________________________________________________________________________________________________
F=Clearance to outside corner *with DuraVent Cap min. 13”/33cm *with DuraVent Cap min. 13”/33cm
_______________________________________________________________________________________________________________
G=Clearance to inside corner *with DuraVent Cap min. 12”/30cm *with DuraVent Cap min. 12”/30cm
_______________________________________________________________________________________________________________
H= Clearance to each side of centerline 3’ (91cm) within a height 15’ (4.5m) *
extended above meter/regulator assembly above the meter/regulator assembly
_______________________________________________________________________________________________________________
I= Clearance to service regulator vent outlet 3’ (91cm) *
_______________________________________________________________________________________________________________
J= Clearance to no mechanical air supply inlet 12” (30cm) 9” (23cm)
to building or the combustion air inlet to any
other appliance
_______________________________________________________________________________________________________________
K= Clearance to a mechanical air supply inlet 6’ (1.83 m) 3’ (91 cm) above if within 10’ (3 m)
horizontally
_______________________________________________________________________________________________________________
L= Clearance above paved sidewalk or paved 7’ (2.13 m)† *
driveway located on public property
_______________________________________________________________________________________________________________
M = Clearance under veranda, porch, deck or 12” (30 cm)‡ *
balcony
_______________________________________________________________________________________________________________
1In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves
both dwellings.
‡ Permitted only if veranda, porch, deck or balcony is fully open on a minimum of two sides beneath the floor.
* For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, one of the following shall be indicated:
a) A minimum clearance value determined by testing in accordance with section 2.23.7, or ;
b) A reference to the following footnote: “Clearance in accordance with local installation codes and the requirements of the gas supplier”
Installation Instructions

The Tuscany by Blaze King Owners Installation and Operation Manual
OM-6003T
Page 20
DATE PRINTED: 4/7/11
Version 1.08 SIT
EXISTING GAS SUPPLY
Before interrupting the existing gas supply it is recommended that the following be checked.
 Shut down all gas appliances and carry out a pressure test to insure there are no existing leaks
in the system.
 Before connecting the appliance to the gas supply line, double check that the appliance you
have purchased is designed for the gas type you are using. The gas type markings are located
on the certification label and also on the appliance’s gas valve.
 Check the gas pressure to insure you will be able to supply the minimum inlet pressure for the
appliance.
 Check your pipe sizing to insure sufficient volume will be supplied to the appliance.
Provide adequate clearance for proper installation and checking of the gas connections.
Have your gas supplier or a qualified gas fitter run a gas supply line into the gas appliance. The line
must be properly sized and fitted according to the installation codes. The installation must provide
an easily accessible manual shut-off valve, upstream of the appliance supply connection.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa). Failure to follow these instructions will damage the appliance’s gas valve.
Such damage is not covered by the manufacturer’s warranty.
Check for proper gas supply pressure by loosening the set-screw on the inlet pressure tap (marked
IN) on the gas valve with a small screw driver and placing a test gauge on the tap.
The minimum permissible gas supply pressure is 5.0 in. w.c. (1.24 kPa) for natural gas and 12.0 in.
w.c. (3.00 kPa) for propane. Maximum gas supply pressure should never exceed 14.0 in. w.c. (3.48
kPa) or 1/2 psi. for both natural gas and propane.
BE SURE TO TIGHTEN THE PRESSURE TAP SET-SCREW AFTER CHECKING THE
PRESSURE. CHECK ALL GAS CONNECTIONS FOR GAS LEAKS.
GAS SUPPLY INSTALLATION
Installation Instructions (Gas Supply)
ONLY PERSONS LICENSED TO WORK WITH GAS PIPING MAY MAKE THE NECESSARY GAS
CONNECTION TO THIS APPLIANCE. YOU ARE NOW READY TO HOOK UP THE GAS
SUPPLY. BE SURE GAS PLUMBING INSTRUCTIONS AND ALL STATE/PROVINCIAL AND
LOCAL CODES ARE CAREFULLY FOLLOWED. USE APPROVED FLEXIBLE GAS
CONNECTIONS OR RIGID PIPING, DEPENDING ON PROVINCIAL AND LOCAL CODES, TO
ATTACH BURNER TO GAS SUPPLY. BE SURE TO USE PROPER SIZE GAS SUPPLY LINE.
CAREFULLY CHECK ALL CONNECTIONS FOR GAS LEAKS WITH SOAP AND WATER
SOLUTION.
EACH INSTALLATION MUST CONFORM TO ALL LOCAL, STATE/PROVINCIAL AND
NATIONAL CODES. REFER TO THE NATIONAL FUEL GAS CODE, LOCAL ZONING AND
CODE AUTHORITIES FOR DETAILS ON INSTALLATION REQUIREMENTS.
