Blaze King TORINO Owner's manual

The torino Page 1
THE TORINO
FREESTANDING DIRECT VENTED
TOP OR Rear VENT GAS Room Heater
For use with natural gas or propane
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER
CUSTOMER: PLEASE KEEP MANUAL FOR FUTURE REFERENCE
WARNING: If the information in this manual is not
followed exactly, fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
—WHAT TO DO IF YOU SMELL GAS
· Do not try to light any appliance.
· Do not touch any electrical switch; do not use any
phone in your building.
· Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
· If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Version 1.08
Oct2010
USERS’
INSTALLATION
OPERATION &
MAINTENANCE
MANUAL
Pour la version française de nos manuels S.V.P. vous référez à notre site web : www.blazeking.com

The torino Page 2
CONTENTS
Introduction 3
Copy of certification label 4
General Information & Specifications 5
Appliance Dimensions 6
Installation Clearances 7
Assembly Instructions 8 - 9
Installation Instructions 10 - 19
Rigid Venting Parts List 20 - 22
Intermittent Pilot & Valve Information 23 - 24
Wiring Diagram 25
Lighting Instructions 26
Remote Control Setup and Operation instructions 27-31
Maintenance 32-33
Servicing 34-35
Fuel Conversion 36-37
Burner Tray Removal & Installation 38
Valve Removal & Installation 39
Fan Removal & Installation 40
Allowed Termination Location 41
Troubleshooting 42-43
Top / Rear Vent Conversion 44
Warranty 45
Replacement Parts 46-47
Notes & Service History 48
Patents Pending
MANUFACTURED IN USA BY:
Blaze King Industries
146 A Street
Walla Walla, WA.
99362
Ph# 1-509-522-2730
Email [e-mail]
MANUFACTURED IN CANADA BY:
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC
V2A 3H5
Ph# 1-250-493-7444
Email [e-mail]

The torino Page 3
INTRODUCTION
Thank you for purchasing the The Torino Freestanding Fireplace Gas Heater.
The Torino is one of the most advanced direct vented freestanding fireplace gas heaters
on the market. It is designed using the latest technology and manufactured to the
highest quality.
Some of the many features are:
Electronic Valve Intermittent pilot & remote capability.
Heater Classification It is classified as a heating appliance. Therefore, it can be
operated continuously for zone heating.
High Efficiency It has high efficiency; therefore, it is less expensive to operate.
Adjustable Flame The flame aesthetics and heat output can be adjusted to suit the
owner’s moods and heating needs.
Solid Construction It is constructed mainly of 16 and 14 gauge steel with stainless
steel baffle for long life and durability.
Please read the manual carefully prior to installation and operation of the
appliance. Proper installation, operation and maintenance of the appliance will
provide you with many years of enjoyment.
CAUTION
Due to high temperatures, the appliance should be located out of traffic and
away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface
temperature and stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room
as the appliance.
Clothing or other flammable material should not be placed on or near the
appliance.
Any parts removed or opened for servicing of the appliance must be properly
replaced prior to operating the appliance.
The appliance must be inspected before use and at least annually by a qualified
service person. More frequent cleaning maybe required due to excessive lint
from carpeting, bedding material, etc. It is imperative that the control
compartments, burners and circulating air passageways for the appliance be
kept clean.
Venting terminals shall not be recessed into a wall or siding.
This gas appliance must not be connected to a chimney flue serving a separate
solid fuel burning appliance.

The torino Page 4
Note: A copy of the certification label is provided here for your review. Due to constant up-grades it
is possible that the information shown here may not coincide with the label as attached to the unit.
In the event of a discrepancy between the labels, the label on the unit is considered as the correct

The torino Page 5
GENERAL INFORMATION
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372 m) above sea level, the appliance must be properly
de-rated and installed according to local codes, in the absence of local codes, with the current National
Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CSA-B149.1, in Canada.
SPECIFICATIONS
APPLIANCE CERTIFICATION
This appliance is tested and certified to the following US and Canadian gas appliance standards.
- ANSI Z21.88b-2007 / CSA 2.33b-2007 Vented Gas Fireplace Heaters,
- CAN/CGA-2.17-M91 Gas-Fired Appliance fo Use at High Altitudes
- CSA P.4.1-02 Testing Method for Measuring Annual Fireplace Efficiency
Please contact Valley Comfort or Blaze King, if you have any questions regarding the certification of this
appliance.
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer. The installation must conform with
the local codes or, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/
NFPA 54, in the US or Installation Code, CSA-B149.1, in Canada. Electrical connections and grounding
must be in accordance with local codes, if any, if not, follow the current CAN/CSA C22.1 in Canada and
ANSI/NFPA 70 in the US. This appliance is certified for installation in a bedroom or a bedsitting room.
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an
aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit
is used. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 1411,
Mobile Housing, or with the Manufactured Home Construction and Safety Standard Title 24 CFR, Part
3280, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured
Home Installations Standard.
Only for direct discharge without duct connection. This appliance must be direct vented using listed and
approved Simpson Dura-Vent, Selkirk, Security or American Metal Products vent components.
MODEL The Torino Natural Gas (NG) Propane (LP)
Manifold Pressure 3.5 in. w.c.
( 0.87kPa) 10.0 in. w.c. (2.49kPa)
Min. Supply Pressure for
Purpose of Input Adjustment 5 in. w.c.
(1.24 kPa) 12.0 in. w.c. (3.0 kPa)
Orifice Size DMS # 39 left / 52 right DMS # 53 left / 59 right
Nominal Input Rating 36,000 BTU/hr 37,000 BTU/hr
Minimum Input Rating 25,000 BTU/hr 27,000 BTU/hr
Altitude 0 - 4,500 ft. (0 - 1372 m) 0 - 4,500 ft. (0 - 1372 m)
Primary Air Opening 50% (Minimum). open
Electrical Rating 120 V.A.C. System 120 V.A.C. System

The torino Page 6
APPLIANCE DIMENSIONS

The torino Page 7
INSTALLATION CLEARANCES
CLEARANCES TO COMBUSTIBLES
MODEL - The Torino
A Alcove Width min. 46-3/8” (1178 mm)
B Alcove Height min. 48” (1219 mm)
C Top of Unit to Alcove Ceiling min. 12-1/2” (318 mm)
D Side of Unit to Sidewall min. 10” (254 mm)
E Alcove Depth max. 37” (940mm)
F Back of Unit to Back Wall min. 6” (152mm)
G Corner of Unit to Side Wall min. 4-3/8" (111 mm)
Vertical Vent 1” (25 mm) to outside surface
Horizontal Vent 1” (25 mm) to outside side and bottom surface
2” (50 mm) to outside top surface.
Note: Check local codes for floor requirements. This fireplace is suitable for installation on a
combustible surface.
Figure 2

The torino Page 8
ASSEMBLY INSTRUCTIONS
GLASS DOOR REMOVAL
Removing the Glass Door
- Open the right side panel.
- Unhook the door latch.
- Swing the door open.
- Using a screw driver, remove the top glass retainer, making sure to hold the glass from falling out.
- Lift out and remove door glass with the gasket attached.
- If the glass door is damaged, it must be replaced with another glass door certified with this
appliance only.
- Replacement glass doors are available through your Blaze King dealer (See Replacement Parts
page 46)
Replacing the Glass Door
- Check the condition of the glass and the gasket before installing door.
- Replace the window glass and gasket and re-install the top glass retainer.
- Swing the door shut and re-attached the door latch.
If the glass has been damaged contact your dealer and replace the glass and gasket with a new
glass and gasket provided by your dealer.
WARNING:
-Do not attempt to remove the glass door when the appliance is hot.
- Do not abuse the glass door.
- Do not strike or slam the glass.
- Do not operate this appliance with cracked or broken glass.
- Do not use any substitute materials.

The torino Page 9
ASSEMBLY INSTRUCTIONS Cont...
PLACEMENT OF LOGS AND TWIGS
WARNING : Do not place the logs in any other configuration than the one shown. Fire,
explosion or excessive carbon monoxide (CO) may result, causing property
damage, personal injury or loss of life.
Step 3: Install pins in holes
“arrows” and place final log on
pins as shown.
Step 1: Place rear log on log on
pins near the rear center of the
burner.
Step 2: Install pins in holes
“arrows” and place next log on
pins and log support.
MAIN FLAME INTERMITTENT PILOT FLAME:
Figure 3

The torino Page 10
INSTALLATION INSTRUCTIONS
PRECAUTIONS
 This appliance must be installed by a qualified gas installer and the installation conform to
the installation codes.
 This appliance needs fresh air for safe operation and must be installed so there are
provisions for adequate ventilation air. Provide adequate clearance around air openings of
the appliance. Never obstruct front openings.
 Provide adequate clearances for proper operation and servicing of the appliance.
 This appliance must be properly connected to a venting system.
 This appliance must NOT be connected to a chimney flue serving a solid-fuel appliance.
LOCATING GAS FIREPLACE
The venting system of this appliance must be installed in a location that is free of plumbing,
electrical wiring and heating or air conditioning ducts. Select a location that is accessible for
venting. See the ALLOWABLE TERMINATION LOCATIONS - page 41, in this manual.
VENT TERMINATION LOCATION
1.Establish a suitable vent termination location. (See ALLOWABLE TERMINATION
LOCATIONS - page 41)
2.In heavy snowfall areas make sure vent termination is located where it can not be blocked by
snowfall or snow from snow removal equipment.
3.Locate vent termination away from plants, bushes or any other object on or near the vent
termination that will interfere or obstruct the air flow around it.
4.DO NOT recess vent termination into walls, sidings or planters.
5.Vent terminations located below 7 ft (2130 mm) from grade level or anywhere that it is a burn
hazard to the public, such as patios and balconies, must be protected with an approved
termination cage.
Mobile Home Installation
Two holes are provided in the pedestal base of the unit to allow for anchoring down the
appliance. To access the mounts simply remove the pedestal back panel, or lift off the
pedestal valve access panel at the front of the unit. The pedestal back unscrews with 4 screws,
the pedestal front lifts off 2 hooks and 2 magnets. Lift up and pull towards you.

The torino Page 11
GAS CONNECTIONS
Have your gas supplier or a qualified gas fitter run a gas supply line into the gas fireplace. The
line must be properly sized and fitted according to the installation codes. Upstream of the supply
connection, the fitter shall provide a manual shut-off valve.
CAUTION: The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure-testing of that system at test pressures
in excess of 1/2 psig (3.5 kPa). The appliance must be isolated from the gas
supply piping system by closing its individual manual shutoff valve during any
pressure-testing of the gas supply piping system at test pressures equal to or less
than 1/2 psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve.
Such damage is not cover by the manufacturer’s warranty.
INSTALLATION INSTRUCTIONS Cont...
Check for proper gas supply pressure by loosening the set screw on supply pressure tap on the
gas valve with a small flat tip screw driver and placing a test gauge on the tap.
The minimum permissible gas supply pressure is 5.0 in. w.c. (1.24 kPa) for natural gas and 12.0
in. w.c. (3.0 kPa) for propane. Maximum gas supply pressure should never exceed 14.0 in. w.c.
(3.48 kPa) or 1/2 psi. for both natural gas and propane.
BE SURE TO TIGHTEN THE PRESSURE TAP SET SCREW AFTER CHECKING THE
PRESSURE.
Before connecting the appliance to the gas supply line, double check that the appliance you
have purchased is designed for the gas type you are using. The gas type markings are located
on the certification label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be
provided. All gas connections must be checked for gas leaks.
Pedestal Access
The pedestal / gas controls can be accessed for
set up or servicing and adjusting. The pedestal
rear cover can be removed with 4 screws, while
the front lifts off 2 hooks and magnets. Use care
when removing these parts that you do not
accidentally scratch the paint on the pedestal
base. When the covers are removed, you
should have easy access for connections and
testing purposes. Re-install these components
after servicing, again, being careful not to
damage the painted services of the stove.

The torino Page 12
INSTALLATION INSTRUCTIONS Cont...
WARNING: A minimum clearance of 1” to combustibles must be maintained
on vertical pipe runs and 2” for horizontal pipe runs (sides and bottom 1”)
Attach the correct length of vertical section pipe and an elbow fitting to the stove.
Mark the center line of the pipe facing the wall (allowing for a 1/4” rise per foot of horizontal
run). Example 10 ft of horizontal would require a rise of 2.5”.
NOTE: ALLOWING THE VENT PIPE TO SLOPE DOWN TOWARDS THE VENT
TERMINATION COULD CAUSE POOR COMBUSTION AND/OR HIGH TEMPERTURES
THAT MAY PRESENT A FIRE HAZARD. Mark a 10” x 10” square around the center mark
(inside dimensions).
Cut and frame the exterior wall to accept the wall penetration heat shield. Install the
penetration shield using wood screws. If the wall being penetrated is constructed of non-
combustible material a 7” hole sufficient for the vent pipe, is acceptable.
Horizontal Wall Vent Terminations
The position of the horizontal vent termination must be positioned to meet all local building
codes (see termination chart on page 41).
Caution: When installing the termination on to vinyl siding, a vinyl siding kit must be
used. This prevents the termination from being recessed into the siding.
The rigid vent systems use twist lock connections. The adaptor attached to the unit
connects to the approved venting system. While you are assembling the pipe bear in mind the
best visual appearance. Seams should be aligned and hidden as much as possible. Make sure
you twist the mating section all the way to make a solid connection.
Note: As this system is a sealed system, a high temperature sealing compound must be
used to seal the metal to metal joint.
Apply a bead of high temperature sealant to both the 4”
exhaust and 6-5/8” intake section of the male pipe. The
female section of the pipe/fitting has four indentations
evenly spaced around the pipe. These indentations are
designed to slide over the male section of the pipe and
locate into the four entry slots of the male section of pipe.
Twist the female section clockwise a quarter turn to fully
lock the sections together.
High
Temperature
Sealant
(Mil-Pac / RTV)
When the termination is to be attached to vinyl siding apply a bead of non-hardening mastic
around the outside edge to form a seal between the standoff and the termination cap. Attach
the termination cap to the exterior wall inserting four wood screws through the holes in the
corner of the vent termination. Complete the installation by applying a bead of mastic around
the outer edge of the vinyl standoff.
With the termination cap installed you can now connect the completed vent assembly by
sliding the unit back towards the wall and carefully inserting the pipe into the terminal. Before
the final connection is made slide on the decorative wall thimble. Secure the termination cap by
securing the termination straps to the pipe as close to the exterior wall as possible using sheet
metal screws. Ensure that the straps are hidden by the wall thimble cover. Apply decorative
trim if required.

The torino Page 13
INSTALLATION INSTRUCTIONS Cont...
Vertical Installations
Always maintain the 1” clearance around the vent pipe (vertical), when passing through
ceilings, walls, roofs, enclosures, attic rafters or any combustible surfaces.
DO NOT PACK AIR SPACES WITH INSULATION.
Refer to the vent chart for maximum allowable vertical and horizontal installations.
When planning your installation determine if ceiling joists, roof rafters or other framing will
obstruct the vent system. You may have to use 45° elbows to navigate around any obstacles.
When passing through a flat ceiling install a Box/Wall thimble. Cut a 10” square hole and frame
as shown in the diagram opposite.
Ensure all pipe sections are fully twist locked.
NOTE: ALWAYS CHECK YOUR LOCAL CODES BEFORE INSTALLING VENTING.
NECESSARY CLEARANCES AND REQUIRMENTS MAY VARY FROM STATE TO STATE
(PROVINCE TO PROVINCE).

The torino Page 14

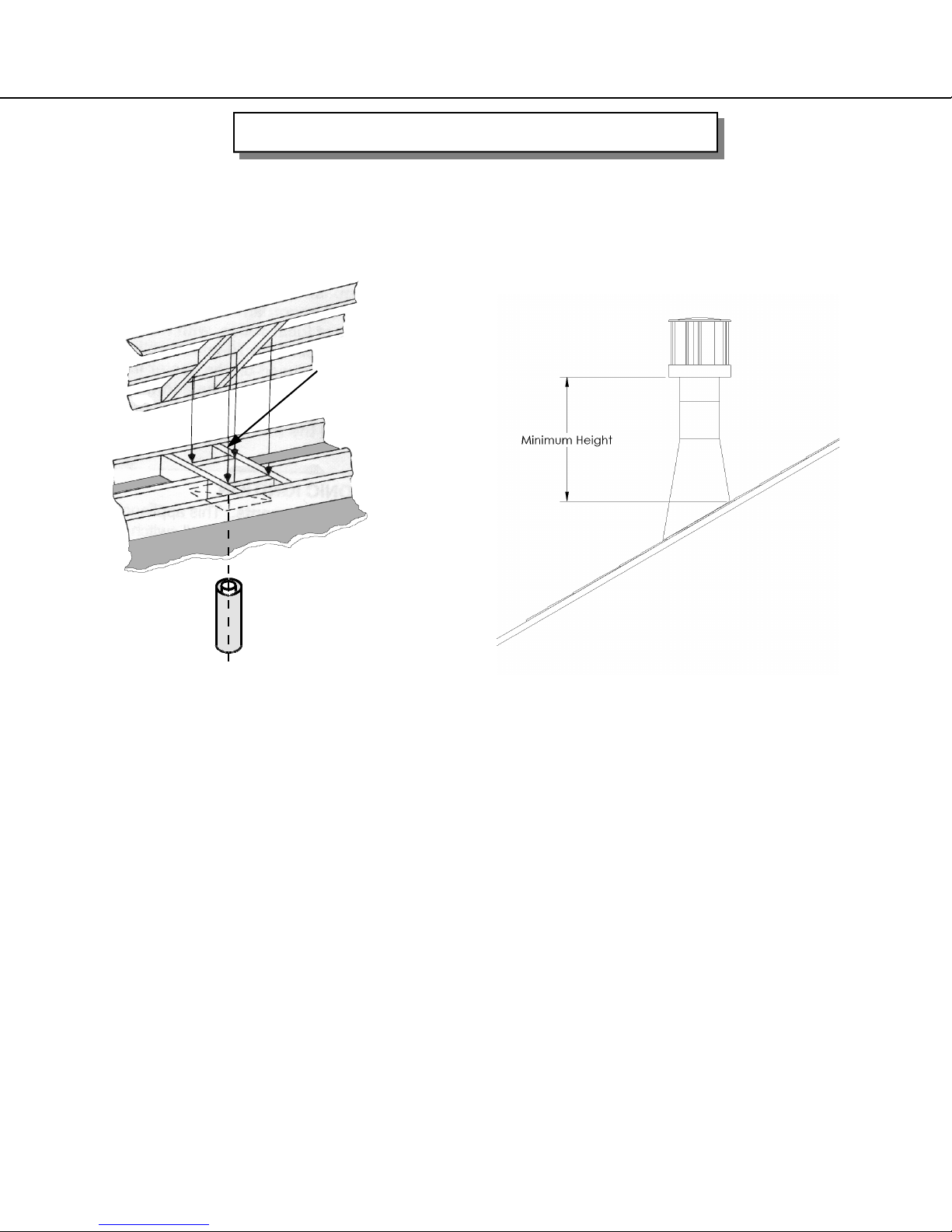

Through Roof Framing
Maintain 10” opening relative to the pitch of
the roof.
10” square
Use a suitable round or square support
through the roof. Ensure adequate heat
shield protection is provided.
Termination Above Roof
Consult local codes for minimum vent cap
height above the roof, vent must be a
minimum 2’ from any wall.
install the flashing with upper portion slid
under the roofing material and the lower
portion over the roofing material.
Note: Do not fasten down until the final
adjustments to the vent have been
made.
INSTALLATION INSTRUCTIONS Cont...

The torino Page 15
INSTALLATION INSTRUCTIONS Cont...
VENTING - Rear Vent
This appliance will not function without being connected to a proper venting system.
This unit can be used with Selkirk (Direct-Temp), American Metal, Security Chimneys
or Simpson Duravent 4" x 6-5/8" venting, but for the snorkel only the American Metal
can be used. Read the manufacturer’s installation instructions before installing the
venting system.
WARNING: never mix parts from different systems.
Typical Installation (for rear vented appliance)
- 36”(max) horizontal vent pipe exiting wall behind the appliance and 36" snorkel
(American Metal #4D36S only)
- One 45oelbow is allowed for corner installations (24” total length max).
VENTING - Top Vent
This appliance will not function without being connected to a proper venting system.
This unit can be used with Selkirk (Direct-Temp), American Metal, Security Chimneys
or Simpson Duravent 4" x 6-5/8" venting. Read the manufacturer’s installation
instructions before installing the venting system.
Typical Installation
- 24”(min) vertical vent pipe on top of the appliance,
- One 90oelbow, and up to 24” (max) horizontal run to the outside (with a 2' vertical
rise).
Other installations
- Up to 4 - 90oelbows, or equivalent, maximum.
- Minimum 2’ (610mm) straight length between bends.
- The total vertical height up to 30’ (9.14 m) maximum
- Use vent restrictor over 20’ vertical height
- The total horizontal run up to 16’ (4.88m) maximum.
- Note: 2’ (0.6m) minimum of vertical height required.
Note: Maximum vent lengths may be subject to local codes.

The torino Page 16
INSTALLATION INSTRUCTIONS Cont...
For best venting performance, here are some general venting rules:
1. Use only vent systems and components certified for use with this appliance
2. Maintain a minimum of 1” (26 mm) clearance to combustibles from the outside
surfaces of vertical vents and minimum of 1” (26 mm) sides and bottom, and 2” (51
mm) from top surfaces of horizontal vents. Always use a wall thimble when passing
through combustible construction.
3. Observe all local code restrictions, if any, regarding the installation of this type of gas
appliance.
4. Observe the vent height and length restrictions given in this manual.
5. Never slope horizontal vents downwards.
6. Maintain at least an upward slope of 1/4” (7 mm) for every 1 ft (305 mm) of
horizontal vent.
7. Terminate the vent with a termination certified for use with this appliance.
8. Support horizontal vent every 3 ft (915 mm) to prevent it from sagging.

The torino Page 17
INSTALLATION INSTRUCTIONS Cont...
TOP VENT VERTICAL VENTING
Example 1
V Value = 3A (12') + 1C (3') = 15'
H Value = 2B (4') =4'
V Value = Total length of all vertical sections in feet.
H Value = Total length of all horizontal sections in
feet.
Note:
 for H & V values for 45º venting see Chart IV
 elbows are not counted in H or V values
 vent chart starts from the top of the unit

The torino Page 18
INSTALLATION INSTRUCTIONS Cont...
Vent Restrictor (P/N 1748)
Due to the extra flow produced by certain venting configurations a vent restrictor must
be placed in the vent to maintain performance. All top vent installations over 20'
require the use of a 60% restrictor. The restrictor is installed in the exhaust of the
appliance as shown in Figure's 4 & 5.
The rear vent configurations do not require a vent restrictor.
If a restrictor is necessary it can be installed in the following order:
1. Turn off the appliance and allow it to cool to room temperature.
2. Carefully remove the logs and brick panels and place them in a safe location.
3. Remove the firebox baffle (4 screws).
4. Install the vent restrictor in the exhaust (2 screws) as shown in Figure 5.
5. Install the firebox baffle.
6. Install the logs.
firebox baffle
Figure 4
restrictor
Figure 5

The torino Page 19
INSTALLATION INSTRUCTIONS Cont...
CHART IV
Typical vent Installation
High Wind Vertical
Termination Cap
Flashing
Twist Lock
Joints
Wall Thimble or
Fire-Stop
Alternate 45° pipe
requiring strap
support

The torino Page 20
SIMPSON DURAVENT GS SYSTEM PARTS LIST
Description Part #
Horizontal Termination Kit - In Canada—Mandatory to add a wall thimble. 971
Vertical Termination Kit 978
6” Pipe Length -Black 908B
9” Pipe Length-Black 907B
12” Pipe Length-Black 906B
12” Pipe Length-Galvanized 906
24” Pipe Length-Black 904B
24” Pipe Length-Galvanized 904
36” Pipe Length-Black 903B
36” Pipe Length-Galvanized 903
48” Pipe Length-Black 902B
48” Pipe Length-Galvanized 902
11”- 14 5/8” Adjustable Pipe Length-Black 911B
17”- 24” Adjustable Pipe Length-Black 917B
45° Elbow-Black 945B
45° Elbow-Galvanized 945
45° Elbow-Swivel-Black 945BG
45° Elbow-Swivel-Galvanized 945G
90° Elbow-Galvanized 990
90° Elbow-Black 990B
90° Elbow-Swivel-Galvanized 990G
90° Elbow-Swivel-Black 990GB
Vertical High Wind Termination Cap (must be used for all vertical terminations) 991
Horizontal. DV Termination with 1” return 984GL
Horizontal. Square Termination Cap 984
Horizontal. Square High Wind Termination Cap 985
Snorkel-36” Rise Termination Cap 981
Wall Thimble Cover—Support Box 940
Cathedral Ceiling Support Box 941
Brass Trim fro Ceiling Support Box 3951
Firestop Spacer 963
Flashing 0/12-6/12 943
Flashing 7/12-12/12 943S
Storm Collar 953
Vinyl Siding Standoff 950
Wall Strap 988
Wall Pen Heat Shield (Wall Thimble) 942
SIMPSON DURAVENT DIRECTVENT PRO / GS SYSTEM PARTS LIST
Description Part # Old Part #
Horizontal Termination Kit - In Canada—Mandatory to add a wall thimble
(46DVA-KHC.) 46DVA-KHA 971
Vertical Termination Kit - 978
6” Pipe Length -Black 46DVA-06B 908B
6” Pipe Length –Galvanized 46DVA-06 908
8,5” Black Extension (3”-7”) 46DVA-08AB -
8,5” Galvanized Extension (3”-7”) 46DVA-08A -
9” Pipe Length-Black 46DVA-09B 907B
9” Pipe Length-Galvanized 46DVA-09 907
12” Pipe Length-Black 46DVA-12B 906B
12” Pipe Length-Galvanized 46DVA-12 906
16” Black Extension (3”-14.5”) 46DVA-16AB -
16” Galvanized Extension (3”-14.5”) 46DVA-16A -
24” Pipe Length-Black 46DVA-24B 904B
24” Pipe Length-Galvanized 46DVA-24 904
36” Pipe Length-Black 46DVA-36B 903B
36” Pipe Length-Galvanized 46DVA-36 903
48” Pipe Length-Black 46DVA-48B 902B
48” Pipe Length-Galvanized 46DVA-48 902
11”- 14 5/8” Adjustable Pipe Length-Black - 911B
17”- 24” Adjustable Pipe Length-Black - 917B
45° Elbow-Black 46DVA-E45B 945B, 945BG
45° Elbow-Galvanized 46DVA-E45 945, 945G
90° Elbow-Galvanized 46DVA-E90 990, 990G
90° Elbow-Black 46DVA-E90B 990B, 990BG
Vertical High Wind Termination Cap (must be used for all vertical termina-
tions) 46 DVA-VCH 991
Horizontal. DV Termination with 1” return - 984GL
Horizontal. Square Termination Cap - 984
Horizontal. Square High Wind Termination Cap 46DVA-HC 985
Horizontal round termination cap 46DVA-HRCS -
Sconce Termination Cap 46DVA-HSC -
Wall Thimble Cover—Support Box 46DVA-DC 940
Cathedral Ceiling Support Box 46DVA-CS 941
Brass Trim fro Ceiling Support Box - 3951
Firestop Spacer 46DVA-FS 963
Flashing 0/12-6/12 46DVA-F6 943
Flashing 7/12-12/12 46DVA-F12 943S
Storm Collar 46DVA-SC 953
Vinyl Siding Standoff 46DVA-VSS 950
Wall Strap 46DVA-WS 988
Wall Pen Heat Shield (Wall Thimble) 46DVA-WT 942
