Blizzard Lighting Tour QT Skywire User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014
qt
tm

Page 2
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
TABLE OF CONTENTS
Tour QT Skywire™ 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Tour QT Skywire™ 3
Features 5
DMX Quick Reference 5
The Tour QT Skywire™ Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of Tour QT Skywire™ Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
Using Skywire™ Wireless DMX 10
4. Operating Adjustments 11
Navigating The Control Panel 11
Control Panel Menu Structure 12
DMX Mode 13
Master/Slave Mode 13
Standalone (Program) Mode 13
Sound Active Mode 13
Static Colors + Color Jumping 13
Manual Color Adjustment 14
DMX Channel Values In-Depth 14
Troubleshooting 15
5. Appendix 16
A Quick DMX Lesson 16
Keeping Your Tour QT Skywire™ As Good As New 17
Returns (Gasp!) 17
Shipping Issues 17
Tech Specs 18
Dimensional Drawings 19

Page 3
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x Tour QT Skywire™ Professional LED Fixture
• An Ever-So-Handy Power Cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the cute and tiny, yet powerful and feature packed
Tour QT Skywire™ LED par xture! All your friends are SO going to be like, WOW, and
totally jealous! Now that you’ve got your hands on a Tour QT Skywire™ (or hopefully,
Q-Tees!), you should carefully unpack the box and check the contents to ensure that
all parts are present and in good condition. If anything looks as if it has been damaged
in transit, notify the shipper immediately and keep the packing material for inspection.
Again, please save the carton and packing materials. If a xture must be returned to
the factory, it is important that it be returned in its original factory box and packing.
Powering Up!
All xtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that
the xture you receive is suitable for your local power supply. See the label on the
xture or refer to the xture’s specications chart for more information. A xture’s
listed current rating is its average current draw under normal conditions. Check the
xture or device carefully to make sure that if a voltage selection switch exists that it is
set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied
does not match the voltage indicated on the voltage selector switch. All
xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardlighting.
com and open a support ticket. We’ll be happy to help, honest.
Blizzard Lighting
N16 W23390 Stoneridge Dr. Suite E
Waukesha, WI 53188 USA
www.blizzardlighting.com
414-395-8365
Disclaimer: The information and specications contained in this document are subject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability
for any errors or omissions that may appear in this user manual. Blizzard Lighting™
reserves the right to update the existing document or to create a new document to
correct any errors or omissions at any time. You can download the latest version of this
document from www.blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 10/23/2014 J. Thomas 10/23/2014

Page 4
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
cord. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact Blizzard Lighting by us-
ing our support ticket system at www.blizzardlighting.com/tickets.

Page 5
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
2. MEET THE TOUR QT SKYWIRE™ LED FIXTURE
CONTROL FEATURES
• Color mixing via 7x 15-watt 6-in-1 RGBAW+UV LEDs
• 2.4Ghz built-in wireless DMX receiver
• 512 auto-assigning frequencies in 7 groups
• Variable electronic dimming & strobe
• 25 degree beam angle
• Built-in color & chase macros via DMX
• Built-in automated via master/slave
• Built-in sound active programs
• Color mixing ability in standalone mode
• RGBAW+UV/Strobe (7-Ch), RGBAW+UV/Dimmer/Strobe (7-Ch), & Extended
w/32-bit Dimmer (11-Ch) DMX Proles
ADDITIONAL FEATURES
• Rugged and well-built (It hits the gym regularly)
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning exibility
• Flicker-free constant-current 600hz LED driver
• 3-pin male input and 3-pin female output
• PowerCon™ compatible AC power In/Out connectors
DMX Quick Reference - 11/8 Channel Modes
Channel 11-Channel 8-Channel
1 Dimmer Dimmer
2 Red Intensity Red Intensity
3 Green Intensity Green Intensity
4 Blue Intensity Blue Intensity
5 Amber Intensity Amber Intensity
6 White Intensity White Intensity
7 UV Intensity UV Intensity
8 Strobe Strobe
9 Static Colors + Auto Run ---
10 Built-in Programs ---
11 32-Bit Dimmer ---
DMX Quick Reference - 7-Channel Mode
Channel 7-Channel
1 Red Intensity
2 Green Intensity
3 Blue Intensity
4 Amber Intensity
5 White Intensity
6 UV Intensity
7 Strobe

Page 6
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Figure 1: The Tour QT Skywire™ Pin-Up Picture
15w 6-in-1
RGBAW+UV LEDs
Heavy-Duty Cast
Aluminum Enclosure
Dual Adjustable
Mounting Brackets
Figure 2: The Rear Connections
AC Power Out
DMX In DMX Out
AC Power In
4-Character LED
Control Panel
Secure Grip
Locking Knobs
Antenna
RF-ID LED
Indicator

Page 7
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
3. SETUP
Fuse Replacement
CAUTION! The Tour QT Skywire™ utilizes a high-output switch-
mode power supply with an internal fuse. Under normal operating
conditions, the fuse should not require replacement. The fuse is eld
replaceable, however it is an advanced procedure suited to qualied
individuals. Should your Tour QT Skywire™ fuse require replacement,
please contact Blizzard Lighting for instructions, or to return your unit
for service.
Connecting A Bunch of Tour QT Skywire™ Fixtures
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more xtures set to sync in mas-
ter/slave operating mode. The combined number of channels required
by all the xtures on a serial data link determines the number of x-
tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 xtures on one serial data link without
the use of a DMX optically-isolated splitter may result in deterioration
of the digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640
ft). The maximum recommended number of xtures on a serial data
link is 32 xtures.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distanc-
es. In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 8
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC

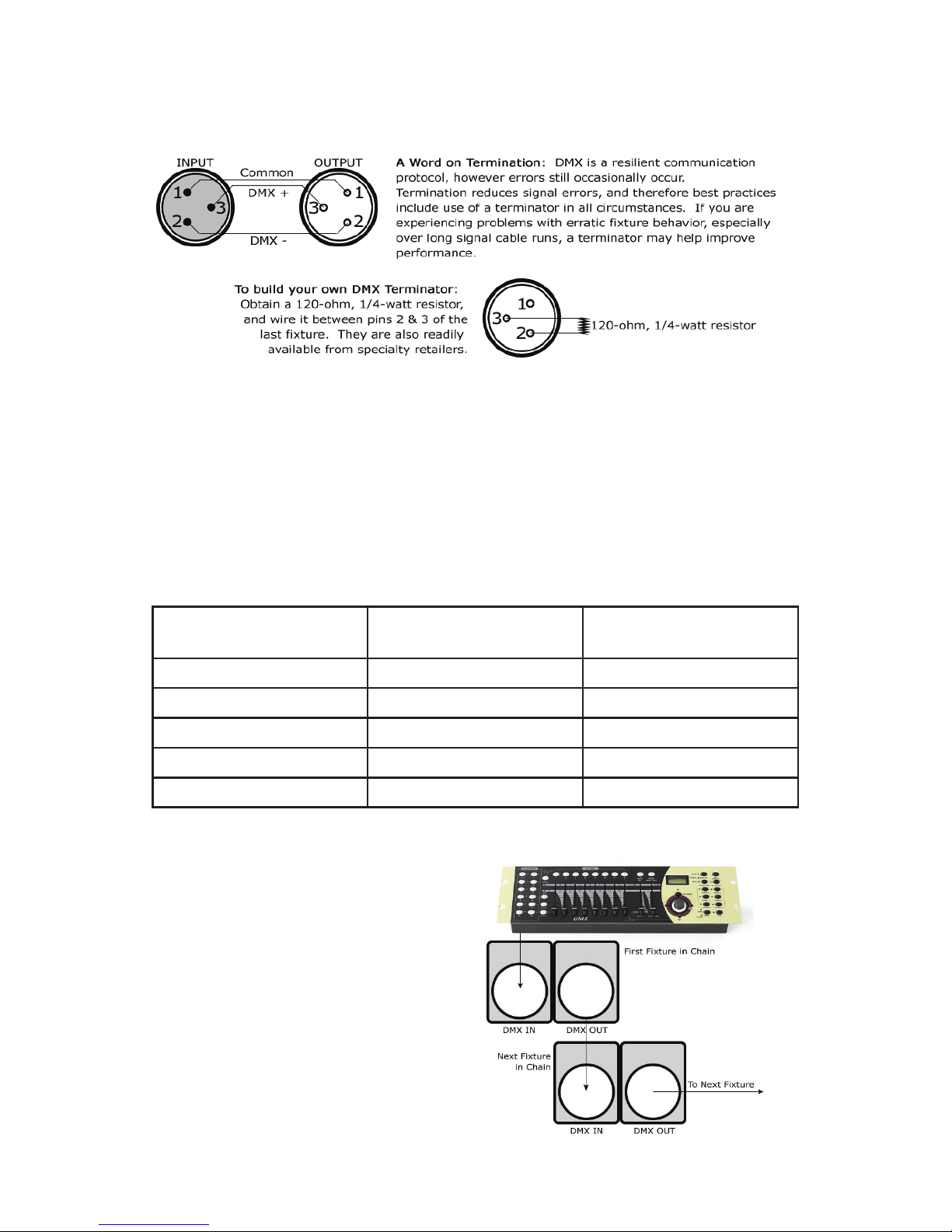

Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the x-
ture’s chassis ground. Grounding the common can cause a ground
loop, and your xture may perform erratically. Test cables with an
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.
They are widely available over the internet and from specialty retailers If you’d like to build your own, the
chart below details a proper cable conversion:
Conductor 3-Pin Female
(Output)
5-Pin Male
(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not Used. No Connection. No Connection.
Not Used. No Connection. No Connection.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connec-
tor (input). Note: It doesn’t matter which
xture address is the rst one connected.
We recommend connecting the xtures in
terms of their proximity to the controller,
rather than connecting the lowest xture
number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture
to ensure best communication.

Page 9
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the
DMX cable to the output (female) 3 pin connector of
the rst xture.
2. Connect the end of the cable coming from the
rst xture which will have a (female) 3 pin connec-
tor to the input connector of the next xture con-
sisting of a (male) 3 pin connector. Then, proceed
to connect from the output as stated above to the
input of the following xture and so on.
A quick note: Often,
the setup for Master-
Slave and Standalone
operation requires that
the rst xture in the
chain be initialized for
this purpose via either
settings in the control
panel or DIP-switches.
Secondarily, the xtures
that follow may also re-
quire a slave setting.
Check the “Operating Adjustments” section in this manual for com-
plete instructions for this type of setup and conguration.
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is
enough room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the
xture using a suitable “C” or “O” type clamp. The clamp should be
rated to hold at least 10x the xture’s weight to ensure structural sta-
bility. Do not mount to surfaces with unknown strength, and ensure
properly “rated” rigging is used when mounting xtures overhead.
Adjust the angle of the xture by loosening both knobs and tilting the
xture. After nding the desired position, retighten both knobs.
• When selecting installation location, take into consideration lamp
replacement access (if applicable) and routine maintenance.
• Safety cables MUST ALWAYS be used.
• Never mount in places where the xture will be exposed to rain,
high humidity, extreme temperature changes or restricted ventilation.

Page 10
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Using Skywire™ Wireless DMX
In addition to the unbridled thrill you already received the rst time you turned on your
xture, you’ll be delighted to know that the Tour QT’s wireless Skywire™ DMX system
is designed to work seamlessly with all Blizzard Lighting standard (non-WDMX) 2.4 GHz
wireless DMX products.
The Tour QT Skywire™ is equipped to release
you from the crushing chains of cable-fed DMX
lighting! It features 512 auto-assigning frequencies
in 7 groups allowing up to 7 systems to run
simultaneously in the same space, completely free
of interference! It’s capable of reliable wireless communication for over 1000 feet, line-
of-sight!
So rst, you’ll either need a Blizzard wiCICLE® transmitter, Lightcaster™ wireless
transceiver, or any Blizzard Lighting controller that has a built-in wireless transmitter
(such as the Kontrol 5 Skywire™) to act as a transmitter for your lights. The 7 DMX
receiving frequencies in the Tour QT Skywire™ are designed to match up perfectly with
the 7 frequencies of all Blizzard wireless DMX products.
If you’re using a Blizzard Lighting controller with built-in wireless DMX transmission,
please refer to the instruction manual of that controller for specic information.
Ready to move on? Well alrighty!
1. If you’re using an external wireless DMX transmitter like our wiCICLE® transmitter
or LightCaster® transceiver, plug it into the “DMX OUT” connector of the controller
and verify it is receiving power. If you are using a DMX controller with a built-in DMX
transmitter like our KONTROL 6 SKYWIRE™, enable the DMX transmitter on that unit.
Please refer to your transmitters user manual for specic instructions on enabling
wireless DMX output and/or its changing its channel group selection.
2. Set the wireless channel group to match the transmitter group ID number/color code.
a.) Press <MENU> and then use the <UP/DOWN> buttons to reach RF-ID.
b.) Press <ENTER>, then use the <UP/DOWN> buttons to select the group 1-7.
c.) Press <ENTER> to conrm the setting.
Note: The 7-Color Status LED will change color to indicate the current channel group:
· GROUP 1: RED
· GROUP 2: GREEN
· GROUP 3: YELLOW
· GROUP 4: BLUE
· GROUP 5: VIOLET
· GROUP 6: CYAN
· GROUP 7: WHITE
3. The LED on the transmitter will blink RED slowly until communication is established
with the receiver. The status LED on the receiving xtures will ash GREEN slowly
until communication is established.
4. Once the clearest channel is auto-selected, the status LEDs will blink quickly on both
the transmitter and receiver. NOTE: The color of the Tour QT’s status LED DURING
operation does not indicate channel group, instead it indicates whether the unit is
receiving signal. That’s It!
tm

Page 11
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the Tour QT Sky-
wire™ are accessed by using the control panel on the rear of the
xture. There are 4 control buttons below the LED display which allow
you to navigate through the various control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
The Control Panel LED Display shows the menu items you select from
the menu map on page #12. When a menu function is selected, the
display will show immediately the rst available option for the selected
menu function. To select a menu item, press <ENTER>.
Press the <MENU> button to start at the top level in the menu. Use
the <UP> and <DOWN> buttons to navigate the menu options. Press
the <ENTER> button to select the menu function currently displayed,
or to enable a menu option. To return to the previous option or menu
without changing the value, press the <MENU> button.

Page 12
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Control Panel Menu Structure
Addr d001 - d512 To choose the DMX address
SLAU SL.AU To run the xture in slave mode
CHnd 11CH 11-channel DMX mode
8CH 8-channel DMX mode
7CH 7-channel DMX mode
nodE nod0 - nod4 Dimming mode (0-4)
SP-- SP00 - SP15 Speed adjustments (0-15)
Pr-- Pr00 - Pr63 Built-in programs (0-63)
ASC- AC00 - AC15 Auto mode (0-15)
FAdE FA00 - FA15 Fade settings (0-15)
FLAS FL00 - FL15 Flash / strobe speed (0-15)
rL-- r.000 - r.255 Red intensity (0% <--> 100%)
GL-- G.000 - G.255 Green intensity (0% <--> 100%)
bL-- b.000 - b.255 Blue intensity (0% <--> 100%)
AL-- A.000 - A.255 Amber intensity (0% <--> 100%)
UL-- U.000 - U.255 White intensity (0% <--> 100%)
uL-- u.000 - u.255 UV intensity (0% <--> 100%)
SouA So.uA Sound active mode
LED on - off Display menu on/off
rF <ENTER> Wireless channel group selection (1-7)
Table 1: Static Colors
00 Red 21 Red+Green+Blue 42 Red+Green+Blue+White
01 Green 22 Red+Green+Amber 43 Red+Green+Blue+UV
02 Blue 23 Red+Green+White 44 Red+Green+Amber+White
03 Amber 24 Red+Green+UV 45 Red+Green+Amber+UV
04 White 25 Red+Blue+Amber 46 Red+Green+White+UV
05 UV 26 Red+Blue+White 47 Red+Blue+Amber+White
06 Red+Green 27 Red+Blue+UV 48 Red+Blue+Amber+UV
07 Red+Blue 28 Red+Amber+White 49 Red+Blue+White+UV
08 Red+Amber 29 Red+Amber+UV 50 Red+Amber+White+UV
09 Red+White 30 Red+White+UV 51 Green+Blue+Amber+White
10 Red+UV 31 Green+Blue+Amber 52 Green+Blue+Amber+UV
11 Green+Blue 32 Green+Blue+White 53 Green+Blue+White+UV
12 Green+Amber 33 Green+Blue+UV 54 Green+Amber+White+UV
13 Green+White 34 Green+Amber+White 55 Blue+Amber+White+UV
14 Green+UV 35 Green+Amber+UV 56 Red+Green+Blue+Amber+White
15 Blue+Amber 36 Green+White+UV 57 Red+Green+Blue+Amber+UV
16 Blue+White 37 Blue+Amber+White 58 Red+Green+Blue+White+UV
17 Blue+UV 38 Blue+Amber+UV 59 Red+Green+Amber+White+UV
18 Amber+White 39 Blue+White+UV 60 Red+Blue+Amber+White+UV
19 Amber+UV 40 Amber+White+UV 61 Green+Blue+Amber+White+UV
20 White+UV 41 Red+Green+Blue+Amber 62 All Colors: R+G+B+A+W+UV

Page 13
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
1.) The default mode for the xture is DMX, which appears as d001 on the LED
readout. To select a different DMX address, using the <MENU> button, select
Addr, then hit <ENTER>. Use the <UP/DOWN> buttons to select the correct
address, then hit <ENTER> to conrm.
Setting the DMX Channel Mode:
1.) To select a DMX channel mode, press the <MENU> button, then use the
<UP> or <DOWN> buttons until the display reads Chnd and press the <MENU>
button. Then use the <UP> or <DOWN> buttons until the display reaches your
desired channel mode. Press the <MENU> button to conrm.
Stand-Alone, Master/Slave, Auto, Sound Active Modes:
Allows a single or Master/Slaved units to run factory installed programs at user selectable
speeds.
1.) To set the xture in Flash/Fade mode, select FLAS or FAdE. To conrm, press
the <ENTER> button.
2.) Now, you can adjust the ash settings from FL00-FL15 or the fade settings
from FA00-FA15. Then press the <ENTER> button to conrm.
3.) To use the xture in automatic mode, select ASC-, and press the <ENTER>
button. Then use the <UP/DOWN> to choose from AS00-AS15, then press the
<ENTER> button to conrm.
4.) Adjust the speed of the chase as above using SP15 (slowest) to SP00
(fastest) then press the <ENTER> button to conrm.
5.) To set the xture as a slave unit, select SLAU, and hit <ENTER>. The unit
will display a ashing SL.AU to indicate it is in slave mode.
Sound Active Mode:
1.) To use sound active mode, select SouA, then press the <ENTER> button to
conrm.
Static Colors + Color Jumping:
Allows a single unit to display a variety of colors and programs without a DMX controller.
1.) Use the <UP/DOWN> buttons to navigate to Pr-- and press <ENTER>.
2.) Then use the <UP/DOWN> buttons to select any preset color from 00-62,
or select 63 to automatically run through all of the colors. To conrm, press the
<ENTER> button. (see Table 1 on p. 12).
3.) You can adjust the speed of the chase by navigating to SP-- from the main
menu and press the <ENTER> button, then use the <UP/DOWN> buttons to
select from SP00 (fastest) to SP15 (slowest), and press the <ENTER> button to
conrm your choice.

Page 14
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Manual Color Adjustment:
Mix your own custom colors using the R/G/B/A/W/UV intensity level setting.
1.) Use the <MENU> and <UP/DOWN> button to select rL-- (Red Level),
GL-- (Green Level), bL-- (Blue Level), AL-- (Amber Level), or UL-- (White
Level), then hit <ENTER>.
2.) Using the <UP/DOWN> buttons, select the maximum level for each
color between x000-x255 (000=off), then hit <ENTER> to conrm.
DMX Values In-Depth (11-Channel Mode)
Ch. Value What It Does
1 000 <--> 255 Dimmer (0% <--> 100%)
2 000 <--> 255 Red Intensity (0% <--> 100%)
3 000 <--> 255 Green Intensity (0% <--> 100%)
4 000 <--> 255 Blue Intensity (0% <--> 100%)
5 000 <--> 255 Amber Intensity (0% <--> 100%)
6 000 <--> 255 White Intensity (0% <--> 100%)
7 000 <--> 255 UV Intensity (0% <--> 100%)
8 000 <--> 010
011 <--> 255
No Function
Strobe Speed (slow <--> fast)
9Value What It Does Value What It Does Value What It Does
000 <--> 015
016 <--> 018
019 <--> 021
022 <--> 024
025 <--> 027
028 <--> 030
031 <--> 033
034 <--> 036
037 <--> 039
040 <--> 042
043 <--> 045
046 <--> 048
049 <--> 051
052 <--> 054
055 <--> 057
058 <--> 060
061 <--> 063
064 <--> 066
067 <--> 069
070 <--> 072
073 <--> 075
076 <--> 078
Dimming
R
G
B
A
W
UV
R+G
R+B
R+A
R+W
R+UV
G+B
G+A
G+W
G+UV
B+A
B+W
B+UV
A+W
A+UV
W+UV
079 <--> 081
082 <--> 084
085 <--> 087
088 <--> 090
091 <--> 093
094 <--> 096
097 <--> 099
100 <--> 102
103 <--> 105
106 <--> 108
109 <--> 111
112 <--> 114
115 <--> 117
118 <--> 120
121 <--> 123
124 <--> 126
127 <--> 129
130 <--> 132
133 <--> 135
136 <--> 138
139 <--> 141
142 <--> 144
R+G+B
R+G+A
R+G+W
R+G+UV
R+B+A
R+B+W
R+B+UV
R+A+W
R+A+UV
R+W +UV
G+B+A
G+B+W
G+B+UV
G+A+W
G+A+UV
G+W+UV
B+A+W
B+A+UV
B+W+UV
A+W+UV
R+G+B+A
R+G+B+W
145 <--> 147
148 <--> 150
151 <--> 153
154 <--> 156
157 <--> 159
160 <--> 162
163 <--> 165
166 <--> 168
169 <--> 171
172 <--> 174
175 <--> 177
178 <--> 180
181 <--> 183
184 <--> 186
187 <--> 189
190 <--> 192
193 <--> 195
196 <--> 198
199 <--> 201
202 <--> 204
205 <--> 255
R+G+B+UV
R+G+A+W
R+G+A+UV
R+G+W+UV
R+B+A+W
R+B+A+UV
R+B+W+UV
R+A+W+UV
G+B+A+W
G+B+A+UV
G+B+W+UV
G+A+W+UV
B+A+W+UV
R+G+B+A+W
R+G+B+A+UV
R+G+B+W+UV
R+G+A+W+UV
R+B+A+W+UV
G+B+A+W+UV
Full ON
Auto Run
10 000 <--> 015
016 <--> 250
251 <--> 255
No Function
Color Fade (slow <--> fast)
Sound Active
11
000 <--> 005
006 <--> 055
056 <--> 105
106 <--> 155
156 <--> 205
206 <--> 255
32-Bit Dimmer
As set in the control menu display
Mode 0 = 8-bit, 256 dimming steps
Mode 1 = 32-bit, 0-25% intensity range
Mode 2 = 32-bit, 0-50% intensity range
Mode 3 = 32-bit, 0-75% intensity range
Mode 4 = 32-bit, full intensity dimming

Page 15
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
DMX Values In-Depth (8-Channel Mode)
Ch. Value What It Does
1 000 <--> 255 Dimmer (0% <--> 100%)
2 000 <--> 255 Red Intensity (0% <--> 100%)
3 000 <--> 255 Green Intensity (0% <--> 100%)
4 000 <--> 255 Blue Intensity (0% <--> 100%)
5 000 <--> 255 Amber Intensity (0% <--> 100%)
6 000 <--> 255 White Intensity (0% <--> 100%)
7 000 <--> 255 UV Intensity (0% <--> 100%)
8 000 <--> 010
011 <--> 255
No Function
Strobe Speed (1-20Hz)
DMX Values In-Depth (7-Channel Mode)
Ch. Value What It Does
1 000 <--> 255 Red Intensity (0% <--> 100%)
2 000 <--> 255 Green Intensity (0% <--> 100%)
3 000 <--> 255 Blue Intensity (0% <--> 100%)
4 000 <--> 255 Amber Intensity (0% <--> 100%)
5 000 <--> 255 White Intensity (0% <--> 100%)
6 000 <--> 255 UV Intensity (0% <--> 100%)
7 000 <--> 010
011 <--> 255
No Function
Strobe Speed (1-20Hz)
Troubleshooting
Symptom Solution
Fixture Auto-Shut Off Check the fan in the xture. If it is stopped or moving slower than nor-
mal, the unit may have shut itself off due to high heat. This is to protect
the xture from overheating.
Beam is Dim Check optical system and clean excess dust/grime. Also ensure that the
220V/110V switch is in the correct position, if applicable.
No Light Output Check to ensure xture is operating under correct mode, IE sound ac-
tive/auto/DMX/Etc., if applicable.
Chase Speed Too Fast/Slow Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Slow Movement Verify that 220V/110V switch is in the correct position, if applicable. Also
check that speed channels are set appropriately.
No Response to Audio Verify that the xture is in “Sound Active” mode.
Fixture Not Responding /
Responding Erratically
Make sure all connectors are seated properly and securely.
Use Only DMX Cables and/or check cables for defects
Install a Terminator.
Reset xture(s).
If your problem persists or isn’t listed, please open a support ticket at:
www.blizzardlighting.com/tickets.

Page 16
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre
Technology (USITT) as a standardized method for connecting lighting consoles to lighting
dimmer modules. It was revised in 1990 and again in 2000 to allow more exibility. The
Entertainment Services and Technology Association (ESTA) has since assumed control over
the DMX512 standard. It has also been approved and recognized for ANSI standard clas-
sication.
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communications standard used by lighting and related stage equipment.
DMX provides up to 512 control “channels” per data link. Each of these channels was origi-
nally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting
console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an
8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb
being completely off while 255 corresponds to the light bulb being fully on.
DMX data is transmitted at 250,000 bits per second using the RS-485 transmission stan-
dard over two wires. As with microphone cables, a grounded cable shield is used to prevent
interference with other signals.
There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for
“Primary” communication which goes from a DMX source to a DMX receiver, and two wires
for a “Secondary” communication which goes from a DMX receiver back to a DMX source.
Generally, the “Secondary” channel is not used so data ows only from sources to receiv-
ers. Hence, most of us are most familiar with DMX-512 as being employer over typical
3-pin “mic cables,” although this does not conform to the dened standard.
DMX is connected using a daisy-chain conguration where the source connects to the input
of the rst device, the output of the rst device connects to the input of the next device,
and so on. The standard allows for up to 32 devices on a single DMX link.
Each receiving device typically has a means for setting the “starting channel number” that
it will respond to. For example, if two 6-channel xtures are used, the rst xture might
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
xture would be set to start at channel 7 so it would respond to channels 7 through 12.
The greatest strength of the DMX communications protocol is that it is very simple and
robust. It involves transmitting a reset condition (indicating the start of a new “packet”),
a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As
soon as one packet is nished, another can begin with no delay if desired (usually another
follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will
be sent out over and over again. This is a great feature of DMX -- if for some reason the
data is not interpreted the rst time around, it will be re-sent shortly.
Not all 512 channels need to be output per packet, and in fact, it is very uncommon to nd
all 512 used. The fewer channels are used, the higher the “refresh” rate. It is possible to
get DMX refreshes at around 1000 times per second if only 24 channels are being trans-
mitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per
second.
In summary, since its design and evolution in the 1980’s DMX has become the standard
for lighting control. It is exible, robust, and scalable, and its ability to control everything
from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for
any lighting designer or lighting performer.

Page 17
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Keeping Your Tour QT Skywire™ As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equip-
ment, and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
You should absolutely keep the xture clean, especially if you are using it in an
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
the xture running cool and prevent damage from overheating.
In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
xtures.
Common sense and taking care of your xtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your cli-
ent’s satisfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But, like
any complex piece of equipment designed and built by humans, once in a while,
something doesn’t go as planned. If you nd yourself with a xture that isn’t
behaving like a good little xture should, you’ll need to obtain a Return Authori-
zation (RA).
Don’t worry, this is easy. Just go to our website and open a support ticket at
www.blizzardlighting.com/tickets, and we’ll issue you an RA. Then, you’ll need
to send the unit to us using a trackable, pre-paid freight method. We suggest
using USPS Priority or UPS. Make sure you carefully pack the xture for transit,
and whenever possible, use the original box & packing for shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember that
any shipping damage which occurs in transit to us is the customer’s responsibil-
ity, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page 18
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Width 7.1 inches (181 mm)
Depth 4 inches (100.1 mm)
Height 7.9 inches (200.5 mm)
Weight 4 lbs (1.8 kg)
Power
Operating Voltage 100-264VAC, 47-63 Hertz
Power Consumption 27W, .33A, pf: .63
Light Source
LED 3x 15W 6-in-1 RGBAW+UV LEDs
Optical
Beam Angle 25 degree beam
Luminous Intensity Lux/m Red Green Blue Amber White UV ALL
1m 1,000 893 905 567 1,555 364 3,000
2m 205 215 192 123 295 80 1,670
Thermal
Max. Operating
Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 7/8/11-channel DMX
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating
Modes Standalone, Master/Slave, Sound Active, Color Preset
Other Information
1 is loneliest number. 3 is the assiest number.
Warranty
2-year limited warranty, does not cover malfunction caused
by damage to LEDs.
DISCLAIMER:
The power connector tted to the xture and xture cord are designed for compatibility with products
manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured
by, afliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power-
CON® are registered trademarks of Neutrik AG.

Page 19
Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC
Dimensional Drawings
5.3 inches (134.9 mm)
3.4 inches (86.40 mm)
7.1 inches (181 mm)
5 inches (127.1 mm)
4 inches (100.1 mm)
7.9 inches (200.5 mm)

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
