Blomberg TROCKNER TAF 7230 A User manual

Dryer
Trockner
TKF 7230

1 - EN
Please read this manual first!
Dear Customer,
We hope that your product which has been manufactured in modern facilities and
passed through a strict quality control procedure will give you the best results.
Therefore, we advise you to read through this manual carefully before using your product
and keep it for future reference.
This operation manual will…
…help you use your machine in a fast and safe way.
 •PleasereadtheOperationManualbeforeinstallingandstartingyourmachine.
 •Particularlyfollowtheinstructionsrelatedtosafety.
 •KeepthisOperatingManualwithineasyreach.Youmayneeditinthefuture.
 •Pleasereadalladditionaldocumentssuppliedwiththismachine.
PleasenotethatthisOperatingManualmaybeapplicableforseveralothermodels.
Differences between models will be identified in the manual.
Explanation of symbols
ThroughoutthisOperationManualthefollowingsymbolsareused:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning for supply voltage.
This appliance’s packaging material is recyclable. Help recycle it and protect the environment by
droppingitoffinthemunicipalreceptaclesprovidedforthispurpose.Yourappliancealsocontains
a great amount of recyclable material. It is marked with this label to indicate the used appliances
that should not be mixed with other waste. This way, the appliance recycling organised by your
manufacturer will be done under the best possible conditions, in compliance with European
Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or
your retailer for the used appliance collection points closest to your home. We thank you doing
your part to protect the environment.

2 - EN
1 Your Dryer 3
Overview 3
Technical Specifications 4
2 Warnings 5
General Safety 5
First Use 5
Intended use 5
Safety instructions 5
If there are children in your house... 5
3 Installation 6
Appropriate installation location 6
Under Counter Installation 6
Use on a washing machine 6
Adjusting the feet 6
Ventilation hose and connection (for
products equipped with an outlet vent) 6
Connection to a water drain (for products
equipped with a condenser and heat
pump) 7
Electrical connection 7
Destroying the packaging material 8
Disposing of the old machine 8
4 Initial preparations for drying9
Garments suitable for drying in the
machine 9
Preparingclothestobedried 9
Correct load capacity 9
Loading door 10
5 Selecting a Program and
Operating Your Machine 11
Control panel 11
Turning the machine on 11
Programselection 11
Programselectionandconsumptiontable
13
Auxiliary function 14
Warning indicators 14
Time delay 14
StartingtheProgram 14
Progressofprogram 15
Changing the program after the program
has started 15
Child-proof lock 15
Ending the program through canceling16
End of program 16
6 Maintenance and cleaning 17
Cover filter 17
For the condenser (products equipped
with a condenser); 17
Filter drawer (for products equipped with
a heat pump) 17
Condenser sponge (for products
equipped with a heat pump) 18
Sensor and drum fin 19
Water tank (for products equipped with a
Condenser and a Heat pump) 19
7 Solution suggestions for
problems 20
TABLE OF CONTENTS

3 - EN
Rating label
ControlPanel
Cover filter (inside the cover).
Filter drawer (behind the kick plate)
Kickplate
Ventilation grid
Adjustable Feet
Pumpcap
Powercord
Overview
1Your Dryer
Figure 1
1
2
3
4
5
6
7
8
9
1
2
3
4
56
6
7
9
8

4 - EN
Technical Specifications
Specifications of this appliance may change without notice to improve the quality of the
product. Figures in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are
obtained in laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the appliance, values may vary.
Filling capacity (Dry laundry weight placed in the washing machine)
White / Colored / Cotton clothes max.kg 7.0
Synthetics max.kg 3.0
Single piece max.kg 1.5
Ventilation/Refreshing max.kg 7,0 / 3,0
Time programms (10', 20', 40', 60') max.kg 7,0 / 3,0
Delicates max. 4 pieceskg 1.0
Drying system Condenser Dryer with electronic Sensor control
Dimensions
Height / Height forfixed installation cm 85,0 / 82,0
Width cm 59,5
Depth / Depth for under counter installation cm 60 / 59
Depth with door opened cm 106.5
Adjusting height of the feet cm 0.5
Weight Unpacked ~ 42
Ambient temperature (+ 5°C) , (+ 35°C)
Electrical connection
Voltage 230 V 50 Hz
Power 2800 W / 1900W
Fuse 16 A / 10 A
Directly delivering the condensed water to outdoors
Hose diameter cm 1
Hose length max.cm 140
Highest point of the hose max.cm 80
Consumption values Amount of
Laundry (kg)
Spin Speed
(rpm)
Remaining
humidity (%)
Power
(kwh) Time (minutes)
Cottons Ready to Wear 7 1400 %50 4.00 100
Cottons Ready to Iron
Cottons Ready to Wear* 7 1000 %60 4.38 125
Cottons Ready to Iron 7 1000 %60 4.00 105
Synthetics Ready to Wear 3 600 %50 1.70 50
*:EnergyLabelstandardprogram(EN61121:2005)
AllvaluesgiveninthetablehavebeenfixedaccordingtoEN61121:2005Standard.Consumptionvaluesmaydeviatefrom
the table up to 10% according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

5 - EN
2Warnings
Pleasereadthefollowinginformation.
Otherwise,theremaybetheriskof
personal injury or material damage.
Moreover,anywarrantyandreliability
commitment will become void.
General Safety
• Neverplaceyourmachineonacarpet
coveredfloor.Otherwise,lackof
airflow from below of your machine
may cause electrical parts to overheat.
This may cause problems with your
machine.
• Ifthepowercableormainsplugis
damaged you must call Authorized
Service for repair.
• Yourwashingmachineisdesignedto
stop operating in the event of power
resumingafterapowerfailure.Press
Start/Pause/Cancelbuttontoresume
theprogram.Pressthe“Start/Pause/
Cancel” button for 3 seconds to
cancel the program. (see, Canceling a
Program)(see,CancelingaProgram)
• Yourmachinecanbeoperatedat
temperatures between +5°C and
+35°C.
First Use
• Currentvalueofthefuseatyour
home must conform to the current
value of the machine indicated on the
“technicalspecificationstable”.
• Donotneglecttohavethegrounding
installation made by a qualified
electrician.Ourcompanyshallnotbe
liable for any damages that may arise
when the machine is used on a line
without grounding.
• PleasecalltheAuthorizedServiceto
commission your machine.
• Whenoperatingyourmachineforthe
first time, partly load it with wet pieces
of clothes and let it run approximately
for 15 minutes.
• Youmaysmellanunpleasantodor
and excessive fibre/lint may accumulate
during first drying cycle.
• Forsafetyandperformancepurposes,
clean the filters after each drying cycle.
Intended use
• Thisproducthasbeendesignedfor
home use.
• Theappliancemayonlybeusedfor
drying of textiles that are marked
accordingly.
• Pleasefollowthemaintenanceand
care instructions given on the textile
labels.
Safety instructions
• Thisappliancemustbeconnectedto
an earthed outlet protected by a fuse
of suitable capacity.
• Unplugthemachinewhenitisnotin
use.
• Neverwashdowntheappliancewith
water! There is the risk of electric
shock! Always disconnect from the
mains by unplugging before cleaning.
• Nevertouchtheplugwithwethands.
Never unplug by pulling on the cable,
always pull out from the plug only. Do
not operate the machine if the power
cord or plug is damaged.
• Neverattempttorepairthemachine
yourself.Otherwise,youmaybe
putting yours and other's lives in
danger.
• Formalfunctionsthatcannotbe
solved by information in the operating
manual:Turnoffandunplugthe
appliance and call an authorized
service agent.
• Donotuseyourdryertodrygarmentsthat
were dry-cleaned or processed with
stain removers. Vapors from the material
may be combustible, poisonous and
explosive. It may harm you or damage
your machine.
If there are children in your
house...
• Electricalappliancesmaybe
dangerousforthechildren.Keep
children away from the machine when
it is operating. Do not let them tamper
with the machine.
• Closetheloadingdoorwhenyou
leave the area where the machine is
located.

6 - EN
Rotate the feet to adjust until the machine
stands level and firmly.
CNever unscrew the adjustable feet
from their housings.
Ventilation hose and
connection (for products
equipped with an outlet vent)
Ventilation hose assures exhausting of the
air from inside the machine.
There are 3 air outlets on the rear, left and
right sides of a vented dryer. The sides are
covered by a replaceable plastic cover.
Stainless sheet metal or aluminum pipes
can be used instead of the hose. The
diameter of the pipe to be used should be
minimum 10 cm.
Maximumhoseandpipelengthsaregiven
in the table below.
Hose Pipe
Maximumlength 8 m 10 m
1 elbow 45° -1.0 m -0.3 m
1 elbow 90° -1.8 m -0.6 m
1 elbow 90° short -2.7 m
1 wall passage -2.0 m -2.0 m
CEach elbow and other passages
should be subtracted from the above
maximum length.
To connect a ventilation hose;
1. Fit the hose adaptor (90° or flat
adaptor) by pressing it on the air outlet
at the rear of your machine. Close
the remaining 2 air outlets with plastic
covers.
2. Connect the air outlet hose to the
hose spacer piece (90° or flat adaptor)
by turning it anti-clockwise.
3. Makethehosepassagesasshown
below.
3Installation
Appropriate installation
location
• Installyourmachineinenvironments
which have no risk of freezing and in a
stable and level position.
• Donotplaceyourmachineonalong
pile rug or on similar surfaces.
• Operateyourmachineinawell
ventilated, dust-free environment.
• Donotblocktheairductsinfrontof
and under the machine with materials
such as long pile rugs and wooden
bands.
B Makesurethatyourmachineisnot
placed on the power cable.
B Keepatleast1.5cmfromtheedges
of other furniture.
Under Counter Installation
• Aspecialpart(Partno 295 950
0100) replacing the top trim must
be provided and installed by the
Authorized Service in order to use
the machine under a counter or
in a cupboard. It should never be
operated without the top trim.
• Leaveatleast3cmofspacebetween
the side and rear walls of the machine
and the walls of the counter/cupboard
when installing your machine under a
counter or in a cupboard.
Use on a washing machine
• Afittingdeviceshouldbeused
between the two machines for use on
a washing machine. The fitting device
(Partno.2955600100white/295
560 0200 grey) must be installed by
the Authorized Service.
• Placethemachineonasoundfloor.If
it is to be placed on top of a washing
machine, the approximate weight
together may reach 180 kg when they
are full. Therefore, the floor must be
capable of carrying the load on it!
Adjusting the feet
In order to ensure that your machine
operates more silently and vibration-free, it
must stand level and balanced on its feet.
Balance the machine by adjusting the feet.

7 - EN
CExhaust of humid air from the dryer
into the room is inconvenient. It may
damage the walls and furniture in the
room.
CThe ventilation hose can be routed
outdoors via a window or it can be
connected to the air outlet in the
bathroom.
CAir outlet hose must be extended
directly to the outdoors. There must
be a small number of elbows as not to
hinder air ventilation.
CTo prevent water accumulation in the
hose, make sure that it is not folded
on the floor.
BThe air ventilation hose should not be
connected to the chimney of a stove
or a fireplace.
BDo not operate your machine at the
same time with heaters such as a coal
or gas stove. Airflow may cause the
chimney to flare up. Airflow may cause
the chimney to flame up.
Connection to a water drain
(for products equipped with a
condenser and heat pump)
In products equipped with a condenser
unit the water accumulated during the
drying cycle is collected in the water tank.
Youshoulddraintheaccumulatedwater
after each washing cycle.
Youcandirectlysendtheaccumulated
water out through the water drain hose
supplied with the machine instead of
periodically draining the water collected in
the water tank.
Connecting the water drain hose;
1. Remove the hose on the machine by
pulling it out from its end. Do not use
any tools to take out the hose.
2. Connect the special drain hose
supplied with the machine to the pipe
fitting.
3. The other end of the drain hose
can be directly connected to the
wastewater drain or to the washbasin.
The fitting must always be secured in
alltypesofconnections.Yourhouse
may be flooded if the hose gets out of
its housing during water discharge.
CWhen you direct the water drain out,
“WaterTank”warningLEDwilllightup
at the end of each program.
Important:
• Thehoseshouldbeattachedtoa
height of maximum 80 cm.
• Youmustbecarefulnotthepinchor
bend the hose.
• Theendofthehoseshouldnotbe
bent, it should not be stepped on and
it must not be folded between the
drain and the machine.
Electrical connection
Connect the machine to an earthed outlet
protected by a fuse of suitable capacity.
Important:
• Connectionshouldcomplywith
national regulations.
• Powercordplugmustbewithineasy
reach after installation.
• Thevoltageandtheallowedfuse
protection are specified in the section
“TechnicalSpecifications”.

8 - EN
• Thespecifiedvoltagemustbeequalto
your mains voltage.
• Connectionviaextensioncordsor
multi-plugs should not be made.
• Themainfuseandswitchesmust
have a contact distance of minimum 3
mm.
BA damaged power cable must be
replaced by a qualified electrician.
BThe appliance must not be operated
unless it is repaired! There is the risk of
electric shock!
Destroying the packaging
material
Packagingmaterialcanbedangerousto
children.Keepthepackagingmaterialsout
of the reach of children or dispose of them
accordingly. Do not dispose them together
with normal domestic wastes.
Packagingmaterialsofyourmachineare
manufactured from recyclable materials.
Disposing of the old machine
Dispose of your old appliance in an
environmental friendly manner.
• Youmayrefertoyourlocalagentor
solid waste collection center in your
municipality to learn how to dispose of
your machine.
Before disposing of your old washing
machine, cut off the mains plug and make
the door lock unusable.

9 - EN
Garments suitable for drying in
the machine
Always follow the advice on the garment
labels. With this dryer, dry only the laundry
having a label stating that they are suitable
for drying in a dryer by selecting the
appropriate program.
Garments unsuitable for drying in the
machine
• Laundryitemswithmetalattachments
such as, belt buckles and metal
buttons can damage your machine.
• Donotdryitemssuchaswoolen,
silk garments and nylon stockings,
delicate embroidered fabrics,
garments with metal accessories and
items such as sleeping bags in the
machine.
• Garmentsmadeofdelicateand
valuable fabrics as well as lace
curtains can be creased. Do not dry
these in your machine!
• Donotdryitemsmadeofhermetic
fibers such as pillows and quilts in the
drying machine.
• Garmentsmadeoffoamorrubber
may be deformed.
• Donotdryclothescontainingrubber
in the machine.
• Donotdryclothesexposedto
petroleum, oil, combustible or
explosive agents in the machine even
if they are washed beforehand.
• Overlywetlaundryorlaundrywith
dripping water must not be put into
the machine.
Preparing clothes to be dried
• Alllaundrymustbespunatthe
highest possible spin speed your
washing machine allows for the textile
type.
• Laundrymaybetangledafter
washing. Separate your laundry before
placing them into your dryer.
• Sortyourlaundryaccordingtotheir
types and thicknesses. Dry the same
typeoflaundrytogether.E.g..:fine
kitchen towels and table cloths dry
faster than the thick bath towels.
Correct load capacity
A Pleaseconsidertheinformationinthe
"ProgramSelectionTable".Always
start the program in accordance with
the maximum load capacity.
CAdding laundry to the machine
more than the level shown in the
figure is not recommended.. Drying
performance will degrade when the
machine is overloaded. Furthermore,
your machine and your clothes might
be damaged.
C Placeyourgarmentsintothedrum
loosely so that they will not get
tangled..
C Largepieces(E.g.:bedsheets,quilt
covers, large tablecloths) may bunch-
up. Stop the machine 1-2 times during
drying process to separate bunched-
up laundry.
4Initial preparations for drying
Do not dry
with drier
A
High-
temperature
Drying
B
Normal-
temperature
Drying
Suitable for
drier
C
Dry
horizontally
l
Dry on a
hanger
m
Hang without
spinning
n
Can be ironed
with hot iron
o
Can be
ironed with
warm iron
p
Do not iron
q
D

10 - EN
Following weights are given as examples.
Home articles Approximate weights (gr)
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Garments Approximate weights (gr)
Blouses 150
Cotton shirts 300
Shirt 200
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs 100
T-Shirts 125
Loading door
• Opentheloadingdoor.
• Placelaundryitemslooselyintothe
machine.
• Pushtheloadingdoortoclose.
Ensure that no items are caught in the
door.
Drying

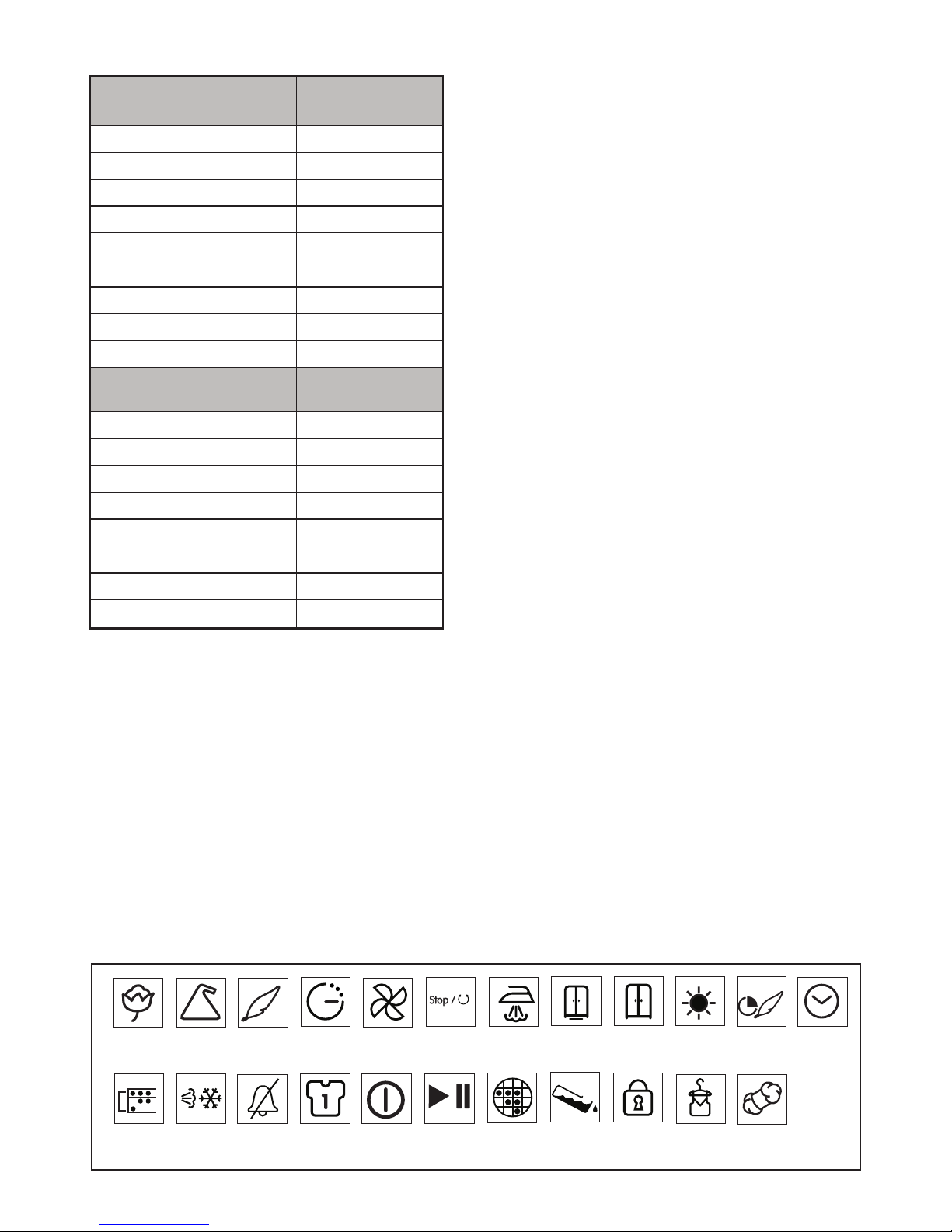

Cottons Delicates Timer
program
Synthetics Ventilation End
/Anti-
creasing
Iron Dry Extra Ready
to Wear Ready to Wear
Condenser
cleaning Cancel Audio
Warning
Cooling one
piece On/Off Start/Pause/ Cancel Filter cleaning Child-proof lock
Tank
full silk
Ouick
Delicate
Woollen
Time
programs

11 - EN
5Selecting a Program and Operating Your Machine
Control panel
Figure 2
10.Programfollow-upindicator
11.On/offbutton
12.Programselectionknob
13. Auxiliary functions
14. Warning indicators
15.Start/Pausebutton
16. Time delaying buttons
Turning the machine on
Preparemachineforprogramselectionby
pressingthe“On/Off”button.
C Pressingthe“On/Off”buttondoesnot
necessarily mean the program has
started.Press“Start/Pause/Cancel”
button to allow the machine start the
program.
Program selection
Decide the appropriate program from
the table below which includes drying
temperature in degrees. Select the desired
program with the program selection
button.
Extra dry
Dry at high temperature
only for cotton laundry.
Thick and multi layered
laundry(E.g.:towels,
linens, jeans) are dried
in a way that they do
not require ironing
before placing in the
Cupboard.
Ready to
Wear
Normallaundry(E.g.:
tablecloths, underwear)
are dried in a way that
they do not require
ironing before placing in
the drawers.
Ready to Iron
Normal laundry. (E.g.,
Shirts, dresses) are
dried ready to be
ironed.
C Always select the highest temperature
required for drying. High temperature
10 11
12
13
14
15
16

12 - EN
will ensure energy and time saving.
C For further program details, see,
“ProgramSelectionTable”
Main programs
Depending on the type of textile, the
followingmainprogramsareavailable:
•Cottons
Youcandryyourdurableclotheswiththis
program. Dries at a higher temperature.
It is recommended to use for your cotton
items (such as bed sheets, quilt cover,
underclothing, etc.).
•Synthetics
Youcandryyourlessdurableclothes
with this program. It dries at a lower
temperature compared to the cottons
program. It is recommended for your
synthetic clothes (such as shirts, blouses,
synthetic/cotton blended garments, etc.).
C Do not dry curtains and lace in your
machine.
•Anti-creasing
A 2-hour anti creasing program to prevent
laundry from creasing will be activated
if you do not take the laundry out after
the program has come to an end. This
program rotates the laundry in 60-second
intervals to prevent creasing.
Special programs
For special cases, there are also extra
programsavailable:
CAdditional programs may differ
according to the model of your
machine.
•Single Piece
Youcandrysingleitems(suchas,jeans,
sweatshirts, etc.) in a shorter time.
•Delicates
Youcandryatalowertemperatureyour
very delicate laundry that are suitable for
drying or laundry which is advised to be
hand-washed.
CIt is recommended to use a cloth bag
to avoid certain delicate garments
and laundry from getting creased
or damaged. Take your garments
immediately out of the dryer and hang
them after the program ends in order
to prevent them being creased.
•Ventilation
Onlyventilationisperformedfor20
minuteswithoutblowinghotair.You
can air your clothes that have been kept
at closed environments for a long time
thanks to this program to deodorize
unpleasant odors.
• Timer programs
are composed of 10, ..... 60-minute
programs.Youcanperformdryingunder
standard temperature within the time you
selected.
CThis program may come to an end at
the end of the selected time or may be
stopped by the drying sensor when the
laundry reaches to the extra dryness level
in order to protect the laundry.

13 - EN
Program selection and consumption table
*:EnergyLabelstandardprogram(EN61121:2005)
AllvaluesgiveninthetablehavebeenfixedaccordingtoEN61121:2005Standard.
These values may deviate from the table according to the laundry type, laundry spin
speed, environmental conditions and voltage fluctuations.
Symbol Program Laundry type Capacity
Cottons
AExtra dry
For durable laundry, e.g., bed sheet, towel, bathrobe,
underwear 7.0
Cupboard dry
Iron dry
Synthetics
BCupboard dry For your synthetic clothes that are not resistant to high
heat, e.g., shirst, blouses, clothes with synthetic blends 3.0
Iron dry
Special programs
B
Single piece For your single item laundry, e.g. jeans 1.5
Silk For your silk clothes 1.5
Woolens For your clothes with a dry
cleaning label, e.g., woolens 1-4 pieces
Delicates For your delicate clothes
E.g..:Fineundergarments 1
Ventilation To ventilate laundry and remove odors, e.g., tobacco
odor 7.0 / 3.0
Timer programs
B60 minutes
To dry wet clothes in little amount within the desired
time, 7.0 / 3.0
40 minutes
20 minutes
10 minutes

14 - EN
Time delay
If you wish to dry your clothes at a later
time, thanks to the time delay function,
you can delay the program start up to 3
hours, 6 hours or 9 hours.
1. Opentheloadingdoorandputthe
laundry in.
C Makesurethatallairoutletsareopen,
door filter is cleaned and the water
tank is empty.
2. Set the drying program, temperature,
spin speed and, if required, the
auxiliary functions.
3. When the time programming button
is pressed once, a 3 hour delay is
selected and the relevant led lights.
When the same button is pressed
again, 6 hours; and if pressed once
more, 9 hours delay will be selected.
If the time programming button is
pressed one more time, time delaying
function will be cancelled. Set the time
delay as you require.
4. Delayed operation of the selected
program is started by pressing the
"Start/Pause/Cancel"buttonafter
selecting the time delay.
CAdditional laundry may be loaded /
taken out during the time delay period.
Canceling the time delay
If you want to cancel the time delay
countdownandstarttheprogram:
1. Press“Start/Pause/Cancel”button
forabout4seconds.The“:”inthe
middle of the screen will stop flashing.
“Start/Pause/Cancel”lightwillgooff
and the remaining time on the screen
disappears.
2. Press"Start/Pause/Cancel"buttonto
start the program right away.
Starting the Program
1. Press"Start/Pause/Cancel"buttonto
start the program.
2. “Start/Pause/Cancel”buttonwilllight
up to indicate that the program has
started.
Auxiliary function
Cancel Audio Warning
Yourmachinewillsendoutanaudio
warning when the program comes to an
end. If you do not want to hear this
buzzing,youneedtopressthe“Cancel
Audio Warning” button. The relevant LED
will light up when this button is pressed
and an audio warning will not be given
when the program comes to an end.
C Youcanselectthisfunctioneither
before or after the program starts.
Warning indicators
CWarning indicators may differ
according to the model of your
machine.
Child-proof lock
A warning LED will light up as long as the
child-proof lock remains activated.
Filter cleaning
A warning LED will light up to remind filter
cleaning after the program finishes.
CIf the filter cleaning warning lights up
continuously,pleasereferto,“Solution
suggestions for problems”.
Tank full
A warning LED will light up at the end of
the program or when the tank is full with
water. The machine stops operating
when this warning LED lights up during a
program running. To restart the machine,
please drain the water in the water tank.
Press"Start/Pause/Cancel"buttontostart
the program after you have emptied the
water tank. The warning LED goes off and
the program resumes operating.
Cleaning the condenser.
It will light up periodically after maximum 5
drying cycles for the purpose of reminding.
In this case and after drying, clean as
explainedinthesection“Maintenanceand
Cleaning”.

15 - EN
Progress of program
Progressofarunningprogramisshown
through the program follow-up indicator.
At the beginning of every program step,
the relevant indicator lamp will light up and
light of the completed step will turn off.
"Drying":
- Drying level will be illuminated during
the whole drying process until the drying
degree reaches "iron dry".
"Iron Dry":
- Starts to illuminate when the drying
degree reaches "iron dry" step and remains
illuminated until the next step.
" Cupboard Dry":
- Starts to illuminate when the drying degree
reaches " Cupboard dry" step and remains
illuminated until the next step.
“Cooling”:
- It lights up during the 4-minute cooling
phase at the end of drying.
“Final / Anti-creasing”:
- Illuminates when the program comes
to an end and anti-creasing function is
activated.
Important:
If more than one LED light up or flash
concurrently, it means there is malfunctioning
or a failure (please see, Solution
suggestions for problems).
Changing the program after the
program has started
Youcanusethisfeatureafteryourmachine
has started to dry your clothes under higher
or lower temperatures.
For example;
Pressandholdthe“Start/Pause/Cancel”
buttonforabout4secondsto“Cancel”
theprograminordertoselect“ExtraDry”
programinsteadof“IronReady”program.
Selectthe“ExtraDry”programbyrotatingthe
program knob.
Press"Start/Pause/Cancel"buttontostart
the program.
CThe program which is selected first will
go on even if the program selection
button is moved and another program
mode is selected while the machine is
operating.Youmustcanceltheongoing
program in order to change the drying
program. (See, Ending the program
through canceling)
Adding/removing laundry in standby
mode
In order to add or take out laundry after the
start-up of the program;
1. Pressthe“Start/Pause/Cancel”button
toswitchthemachineto“Pause”mode.
Drying process will stop.
2. OpenthedooratPausepositionand
close it again after adding or taking out
laundry.
3. Press"Start/Pause/Cancel"buttonto
start the program.
CAny laundry added after the drying
process was started may cause the
already dried clothes in the machine
intermingle with wet clothes and the
result will be wet laundry after the drying
process is over.
CLaundry may be added or taken out
as much as desired during a drying
process, but as this process will interrupt
drying continuously, it will extend
the program duration and increase
energy consumption. Therefore, it is
recommended to add laundry before the
drying program is started.
Child-proof lock
There is a childproof lock to prevent any
program interruption due to the pressing
of keys while the program is on. In order
to activate the childproof lock, press on
the“AudioWarning”and“timedelay”
buttons simultaneously for 2 seconds. The
“Childprooflock”willbeactivatedanda
warning led will light up.

16 - EN
To start a new program after the program
is over or to interrupt the program, the
childproof lock should be deactivated. To
deactivate the childproof lock, press the
samebuttonsfor2sec.The“Childproof
lock” will be deactivated and the warning
light will go off.
Ending the program through
canceling
The program which is selected first will keep
on going even if the position of the program
selection button is changed. A new program
canbeselectedandstartedafter“Program
cancel” is activated in order to change the
drying program.
To cancel any selected program;
• Press“Start/Pause/Cancel”buttonfor
aboutadurationof4seconds.The“Filter
cleaning”,“End/Anti-creasing”warning
lights will light up at the end of this period
for reminding purposes.
AAs the inside of the machine will be
excessively hot when you cancel the
program while the machine is running,
activate the ventilation program to cool it
down.
End of program
The“End/Anti-creasing”lampandthe“Filter
cleaning” warning led on the program follow
up indicator will light up when the program
comes to an end. The door can be opened
and the machine becomes ready for a
second cycle.
Pressthe“On/Off”buttontoshutdownthe
machine.
CA 2-hour anti creasing program to
prevent laundry from creasing will be
activated if you do not take the laundry
out after the program has come to an
end.
CClean the filter after each drying (please
see, Filter cleaning).

17 - EN
Filter drawer (for products
equipped with a heat pump)
Lint and fibre that could not be caught
by the cover filter are blocked in the filter
drawerbehindthekickplate.“Condenser
cleaning” warning light will light up
periodically after a maximum 5 drying
cycles as a reminder.
In order to get the best performance from
your machine, clean the cover filter and the
filter drawer after each drying cycle. There
is a two-phase filter in the drawer. The first
phase is the cover filter and the second
phase is the filter sponge in the filter drawer.

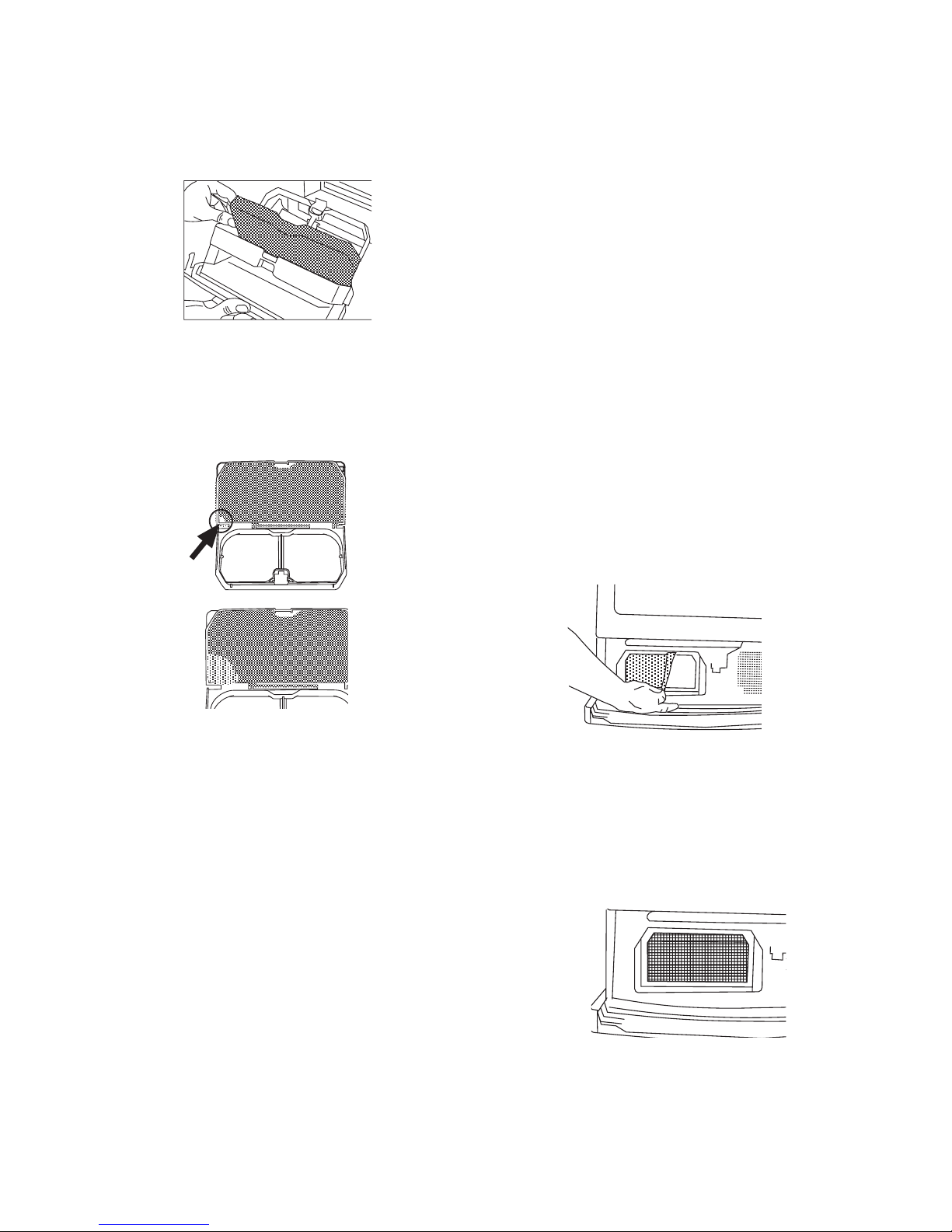

To clean the filter drawer;
1 Pulloutthefilterdrawer.
2 Clean lint, fibre, and cotton raveling by
hand or with a soft piece of cloth.
3 Openthefilterdrawerbypressingthe
red button.
4 Take out the filter drawer sponge.
5 If the sponge is covered with lint
and fibers, it must be cleaned. Wash
the sponge by hand to clean it and
squeeze to drain excessive water.
After washing the sponge, any remaining
Cover filter
Lint and fibres released from the laundry
to the air during the drying cycle are
collected in the "Cover Filter". Such
fibre and lint are generally formed during
wearing and washing.
C Always clean the filter after each
Drying process.

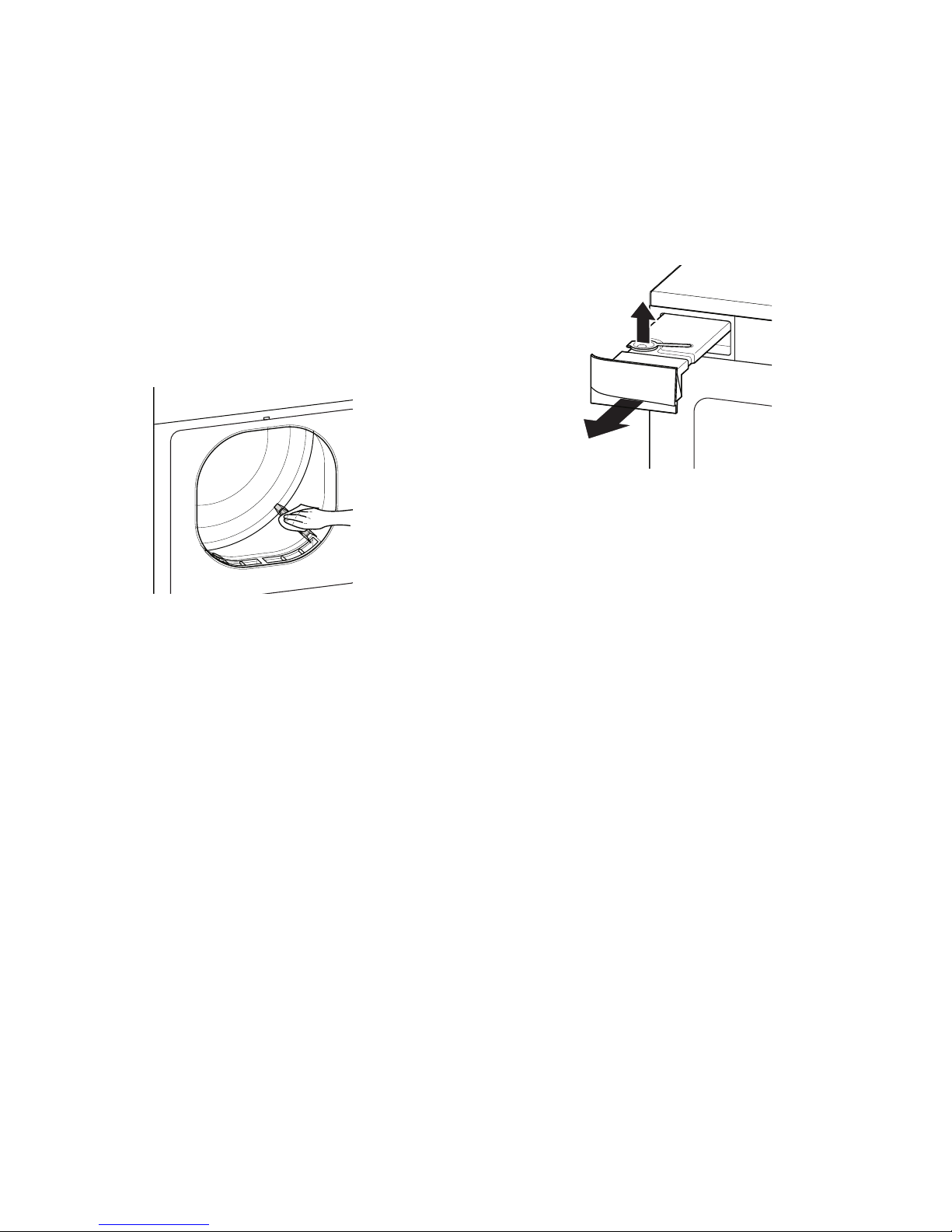

For Filter cleaning;
1 Take out the cover
2 Lift the Cover filter up to pull out.
3 Clean lint, fibre, and cotton raveling by
hand or with a soft piece of cloth.
4 Placethefilterbackintoitsplace.
For the condenser (products
equipped with a condenser);
Hot and humid air in the condenser is
cooled with the cold air from the room. Thus,
the humid air circulating in your machine is
condensed and then pumped into the
tank.
CClean the condenser after every 20
drying cycles or once a month.
To clean the condenser;
1 If a drying process has been carried
out, open the door of the machine and
wait until it cools down.
2 Unlock the 3 condenser locks after
opening the kick plate.
3 Pulloutthecondenser.
4 Clean the condenser with pressurized
water and wait until the water drains.
5 Replace the condenser with the side
labeled "Top" facing upwards. Lock
the 3 condenser locks.
6 Close the kick plate cover.
6Maintenance and cleaning

18 - EN
Condenser sponge (for
products equipped with a heat
pump)
It is very important that the lint and fibres
are caught completely by the filters of
your machine which is equipped with
a condenser with heat pump. Failure in
functioning of the filters may cause a drop
in the performance or breakdown of your
machine. Therefore, in addition to the
“CoverFilter”and“FilterDrawer”filtering
phases in your machine, there is also a
“CondenserSponge”pieceforprotection
purpose.Ifthe“CoverFilter”and“Filter
Drawer” are functioning appropriately, ,
“the“CondenserSponge”pieceshould
be checked every 3 months. Any layer of
accumulated lint on the sponge must be
removed.
CIf the lint and fibre collected on the
sponge is sparse and small, you do
not have to clean the sponge.
To clean the condenser sponge;
1 Take out the condenser sponge from
its place.
C Youcanreachthecondenserfilter
after taking out the filter drawer.
CA wire grid can be seen after taking
out the condenser sponge.
2 Clean the sponge and place it properly
backintoitsplace.Putthespongein
its housing between the wire grid and
plastic frame.
Important:
• Whenplacingthecondensersponge,
make sure that some part or whole of
lint particles among the pores is not
important.
CIf the lint and fibres collected in the
drawer is sparse and small, you do
not have to clean the sponge.
6 Placethespongebackintoitsplace.
7 Close the filter unit as to lock the red
button.
8. Placethefilterdrawerbackintoits
place and push forward until a click
sound is heard.
Important:
• Dryingwithoutthefilterspongewill
damage your machine!
• Adirtyheatpumpwillcauselonger
drying periods and higher energy
consumption.
• Placethespongeasshownbelow,
withoutforcingit.Payattentiontoseat
the left side of the sponge into the
appropriate housing in the filter drawer
as marked in the picture.
• Donotsqueezethespongetomake
it go into the inner frame as shown in
the picture below.

19 - EN
ACondensed water is not drinkable!
If you forget to drain the water tank, your
machine will stop during the following
drying cycles when the water tank is full
and the "Tank Full" warning light will light
on. If this is the case, press the "Start/
Pause/Cancel"buttontoresumethe
drying cycle after draining the water tank.
In order to drain the water tank;
1 Carefully pull the water tank to take it
out.
3 Drain the water.
4 If there is lint accumulation in the
cover, clean it and press to close.
5 Slide in the water tank until it stops.
the sponge does not run over the
plasticframe.Misplacingwilllead
unsatisfactory filtering and may cause
a drop in the performance of or
damage to your machine.
C Aspare“FilterDrawerSponge”anda
spare“CondenserSponge”pieceare
supplied together with the machine.
Youmustbecarefulnotthelosethese
spare parts.
Sensor and drum fin
There are humidity sensors in your
machine that detect whether the laundry is
dry or not.
To clean the sensors and drum fin;
1 Openthecoverofyourmachine.
2 Allow the machine to cool off if drying
has been carried out.
3 Wipe the metal sensors with a soft
cloth, dampened with vinegar and dry
them.
CClean metal sensors 4 times a year.
ANever use solvents, cleaning agents
or substances alike when cleaning as
these might cause fire and explosion!
Water tank (for products
equipped with a Condenser
and a Heat pump)
The moisture in the damp laundry is taken
from the laundry and condensed. Drain
the water tank after each drying cycle or
during drying when "tank full" warning light
comes on.
C Youcanusethewaterinthewater
tank in your steam irons or air
humidifiers.
ANever take out the water tank when
the program is running!
