Bloomfield Horizon 0401 User manual

PRINTED IN CHINA
714
p/n 77380 Rev.(-) ECN-12917 M714 050913 cps
Model: 0401
OWNERS MANUAL
For
HOT WATER
DISPENSER
MODELS:
0401 Hot Water Dispenser
Includes:
Installation
Operation
Use & Care
Servicing Instructions

NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory.
Upon acceptance of this shipment, the transportation
company assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill
or express receipt, and that the note of loss or damage
is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This
must be done within fifteen (15) days from the date the
delivery was made to you. Be sure to retain the
container for inspection.
Bloomfield Industries cannot assume liability for damage or
loss incurred in transit. We will, however, at your request,
supply you with the necessary documents to support your
claim.
WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS
SHIPPING DAMAGE CLAIMS PROCEDURE
1. Resetting of safety thermostats, circuit breakers,
overload protectors, or fuse replacements unless
warranted conditions are the cause.
2. All problems due to operation at voltages other than
specified on equipment nameplates; conversion to
correct voltage must be the customer’s responsibility.
3. All problems due to electrical connections not made in
accordance with electrical code requirements and
wiring diagrams supplied with the equipment.
4. Replacement of items subject to normal wear, to include
such items as knobs and light bulbs. Normal maintenance
functions including adjustment of thermostats, microswitches,
and replacement of fuses and indicating lights are not
covered under warranty.
5. All problems due to inadequate water supply, such as
fluctuating, or high or low water pressure.
6. All problems due to mineral/calcium deposits, or
contamination from chlorides/chlorines. De-liming is
considered a preventative maintenance function and is
not covered by warranty.
All electrical equipment manufactured by BLOOMFIELD
INDUSTRIES is warranted against defects in materials and
workmanship for a period of one year from the date of original
installation or eighteen (18) months from the date of shipment
from our factory, whichever comes first, and is for the benefit
of the original purchaser, except that:
a. airpots carry a 30 day parts warranty only.
b. dispensers; i.e., tea and coffee carry a 90 days parts
warranty only, excludes decanters.
THE FOREGOING OBLIGATION IS EXPRESSLY GIVEN IN
LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, WHICH ARE HEREBY EXCLUDED.
BLOOMFIELD INDUSTRIES DIVISION / CARRIER
COMMERCIAL REFRIGERATION
SHALL NOT BE
LIABLE FOR INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES FROM ANY
CAUSE WHATSOEVER.
This warranty is void if it is determined that upon inspection by
an Authorized Service Agency that the equipment has been
modified, misused, misapplied, improperly installed, or
damaged in transit or by fire, flood or act of God.
It also does not apply if the serial nameplate has been
removed or unauthorized service personnel perform service.
The prices charged by Bloomfield Industries for its products
are based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of defects
without charge by a Bloomfield Industries Authorized Service
Agency or one of its sub-agencies. This service will be
provided on customer’s premises for non-portable models.
Portable models (a device with a cord and plug) must be
taken or shipped to the closest Authorized Service Agency,
transportation charges prepaid, for services.
In addition to restrictions contained in this warranty, specific
limitations are shown below (Additional Warranty Exclusions).
Bloomfield Industries Authorized Service Agencies are located
in principal cities.
This warranty is valid in the United States and void elsewhere.
Please consult your classified telephone directory or your food
service equipment dealer; or, for information and other details
concerning warranty, write to:
Service Parts Department
Bloomfield Industries
P.O. Box 280
Verdi, NV 89439
Phone: [phone] Fax: [phone]
7. Full use, care and maintenance instructions are supplied
with each machine. Those miscellaneous adjustments
noted are customer responsibility. Proper attention will
prolong the life of the machine.
8. Travel mileage is limited to sixty (60) miles from an
authorized Service Agency or one of its sub-agencies.
9. All labor shall be performed during normal working hours.
Overtime premium shall be charged to the customer.
10. All genuine Bloomfield replacement parts are warranted
for ninety (90) days from date of purchase on non-
warranted equipment. Any use of non-genuine
Bloomfield parts completely voids any warranty.
11. Installation, labor and job check-out are not considered
warranty.
12. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technicians ability
to perform services are not covered by warranty.
This includes institutional and correctional facilities.
xi
685 77110 Owners Manual Horizon™ Brewers

kmeets Canadian Standards
MODEL STYLE VOLTS WATTS AMPS
1ø POWER SUPPLY CORD
0401 HOT WATER
DISPENSER 120 1800 15.0 NEMA 5-15P
k0401CA 1500 12.5
1
TABLE OF CONTENTS
SPECIFICATIONS
Thank You for purchasing this
Bloomfield Industries appliance.
Proper installation, professional
operation and consistent
maintenance of this appliance will
ensure that it gives you the very
best performance and a long,
economical service life.
This manual contains the
information needed to properly
install this appliance, and to use,
care for and maintain or repair the
appliance in a manner which will
ensure its optimum performance.
WARRANTY STATEMENT xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION INSTRUCTIONS 4
OPERATION 7
CLEANING INSTRUCTIONS 9
TROUBLESHOOTING SUGGESTIONS 10
SERVICING INSTRUCTIONS 11
Deliming Instructions 14
WIRING DIAGRAMS 15
EXPLODED VIEW & PARTS LIST 16
APPLICABILITY
This manual applies to the following Bloomfield Industries products:
0401, 0401CA, 0401PE
685 77110 Owners Manual Horizon™ Brewers

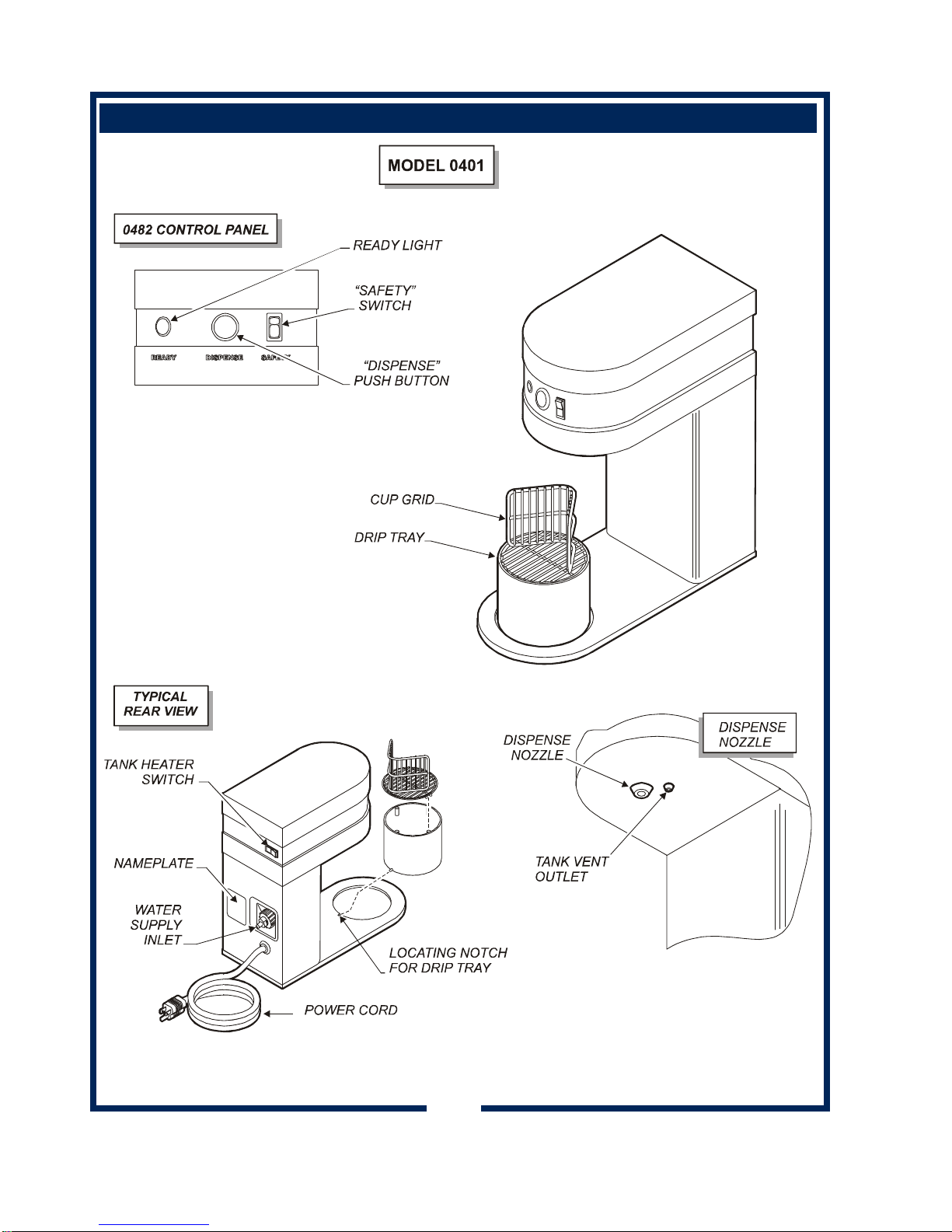

FEATURES AND OPERATING CONTROLS - HOT WATER DISPENSER
2
Fig. 1 Features & Operating Controls
685 77110 Owners Manual Horizon™ Brewers

PRECAUTIONS AND GENERAL INFORMATION
3
WARNING: ELECTRIC SHOCK HAZARD
All servicing requiring access to non-insulated components must be performed by qualified
service personnel. Do not open any access panels which require the use of tools.
Failure to heed this warning can result in electrical shock.
WARNING: INJURY HAZARD
All installation procedures must be performed by qualified personnel with full knowledge of all
applicable electrical and plumbing codes. Failure could result in property damage and
personal injury.

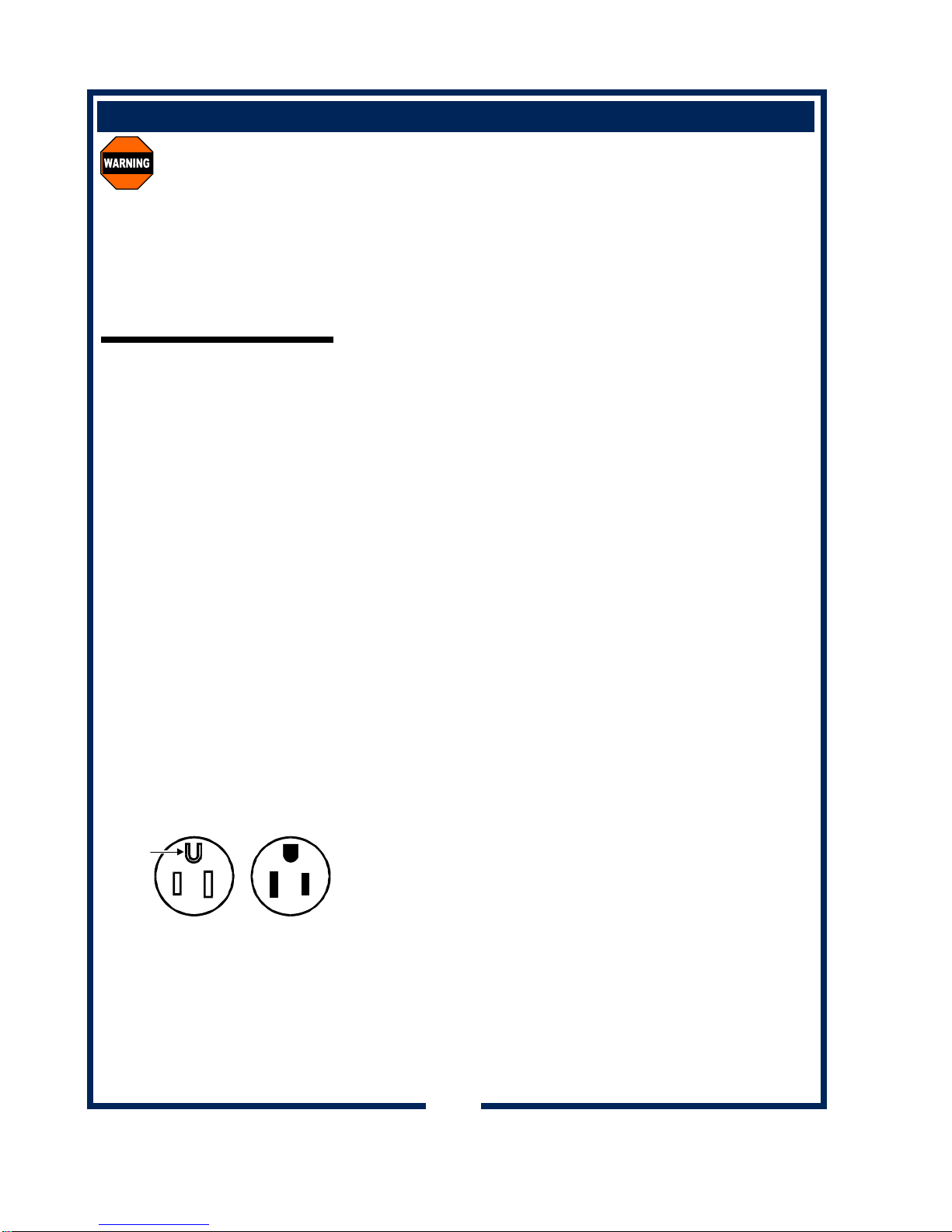

WARNING: ELECTRIC SHOCK HAZARD
Dispenser must be properly grounded to prevent possible shock hazard. DO NOT assume a
plumbing line will provide such a ground. Electrical shock will cause death or serious Injury.
WARNING: BURN HAZARD
This appliance dispenses very hot liquid. Serious bodily injury from scalding can occur from
contact with dispensed liquids.
This appliance is intended for commercial use only.
This appliance is intended for use to dispense hot water for
human consumption. No other use is recommended or
authorized by the manufacturer or its agents.
The following trouble shooting, component views and parts lists
are included for general reference, and are intended for use by
qualified service personnel.
This manual should be considered a permanent part of this
appliance. The manual must remain with the appliance if it is
sold or moved to another location.
This brewer is and listed under UL file E9253.
This brewer meets Standard 4 only when installed,
operated and maintained in accordance with the enclosed
instructions.
AGENCY LISTING INFORMATION
CAUTION:
ELECTRICAL DAMAGE
DO NOT plug in or energize this
appliance until all Installation
Instructions are read and followed.
Damage to the Brewer will occur if
these instructions are not followed.
E9253
STD 4
E9253
685 77110 Owners Manual Horizon™ Brewers

INSTALLATION
4
READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION
Unpack the unit. Inspect all components for completeness and
condition. Ensure that all packing materials have been removed
from the unit.
LEVELING THE UNIT
Set Dispenser on a solid level surface.
Be sure all four feet touch the counter to prevent tipping.
IMPORTANT:
To enable the installer to make
a quality installation and to
minimize installation time, the
following suggestions and tests
should be done before the
actual unit installation is started:
CAUTION:
ELECTRICAL
DAMAGE
DO NOT plug in or energize this
appliance until all Installation
Instructions are read and
followed. Damage to the
Dispenser will occur if these
instructions are not followed.
CAUTION:
UNSTABLE
EQUIPMENT HAZARD
It is very important for safety
and for proper operation that
the brewer is level and stable
when standing in its final
operating position. Failure to
provide a stable, level counter
for the dispenser will result in
movement of the dispenser
which can cause personal
injury and/or property damage.
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

INSTALLATION (continued)
5
READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION
PLUMBER’S INSTALLATION INSTRUCTIONS
Dispenser should be connected to a POTABLE WATER, COLD
WATER line. Flush water line before connecting to Dispenser.
DO NOT use a saddle valve with a self-piercing tap for the water
line connection. Such a tap can become restricted by waterline
debris. For systems that must use a saddle tap, shut off the main
water supply and drill a 3/16” (minimum) tap for the saddle
connection, in order to insure an ample water supply. Remember
to flush the line prior to installing the saddle.
The Dispenser must be installed on a water line with average
pressure between 20 PSI and 90 PSI. If your water pressure
exceeds 90 PSI at anytime, a pressure regulator must be
installed in the water supply line to limit the pressure to not more
than 90 PSI in order to avoid damage to lines and solenoid.
A water shut-off valve should be installed on the incoming water
line in a convenient location (Use a low restriction type valve,
such as a 1/4-turn ball valve, to avoid loss of water flow thru the
valve.
NSF requires that the Dispenser be able to be moved for
cleaning underneath. Loops of copper tubing will satisfy this
requirement. See Figure 2 below.
In some areas, local codes require a backflow preventer (check
valve) to be installed on the inlet water line. If a backflow
preventer is used, you must install a water hammer arrester in
the incoming line, between the backflow preventer and the
Dispenser water inlet, as far away from the Dispenser as space
will allow. This will relieve the excessive back pressures that
can cause leaks and solenoid malfunctions.
CAUTION:
ELECTRICAL
DAMAGE
DO NOT plug in or energize this
appliance until all Installation
Instructions are read and
followed. Damage to the
Brewer will occur if these
instructions are not followed.
IMPORTANT:
Tank must be full of water
before connecting dispenser to
electric power. Heating
elements will be damaged if
allowed to operate without
being fully submerged in water.
See instructions for filling tank,
page 7.
Damage caused by operating
the dispenser without water in
the tank is NOT COVERED BY
WARRANTY.
NOTE: Water supply inlet line
must meet certain minimum
criteria to insure successful
operation of the brewer.
Bloomfield recommends 1/4"
copper tubing for installation of
less than 12 feet and 3/8" for
more than 12 feet from a 1/2"
water supply line.
NOTE: This equipment must be
installed to comply with
applicable federal, state and
local plumbing codes and
ordinances.
Fig. 2 Water Supply Installation
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

INSTALLATION (continued)
6
ELECTRICIAN’S INSTALLATION INSTRUCTIONS
REFER TO ELECTRICAL SPECIFICATIONS - Page 1
Check the nameplate to determine correct electrical service
required for the Dispenser to be installed.
IMPORTANT: Before connecting to electricity, make sure
Dispenser is connected to the water supply.
Dispenser is equipped with a cord and plug. It will require a
115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground,
with NEMA 5-15R Receptacle).
See Figure 3 at left.
WARNING:
SHOCK HAZARD
Dispenser must be properly
grounded to prevent possible
shock hazard. DO NOT
assume a plumbing line will
provide such a ground.
Electrical shock will cause death
or serious injury.
IMPORTANT:
Supply power must match
nameplate for voltage and
phase. Connecting to the
wrong voltage will damage the
Dispenser or result in de-
creased performance. Such
damage is not covered by war-
ranty.
IMPORTANT:
Do not connect Dispenser to
electrical power until you have
filled the tank. See instructions
on page 7.
IMPORTANT:
The ground prong of the plug is
part of a system designed to
protect you from electrical shock
in the event of internal damage.
Never cut off the ground prong
nor twist a blade to fit an
existing receptacle. Contact a
licensed electrician to install the
proper circuit and receptacle.
NEMA 5-15R
RECEPTACLE
NEMA 5-15P
PLUG
GROUND
PIN
Fig. 3 Power Supply Plug
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

OPERATION
A. START-UP
For initial start-up, or if the dispenser has not been used for an
extended period of time:
♦ Be sure the water supply is properly connected and the water
supply valve is turned ON.
♦ Be sure the WATER TANK IS FILLED.
IMPORTANT: Fill the water tank before energizing this dispenser.
1. Verify the water supply is properly connected and the water supply
valve is turned ON.
2. Be sure the TANK HEATER SWITCH is OFF before connecting
the dispenser to electric power. Plug the power cord into an
appropriate electrical receptacle.
3. Allow the tank to fill for several minutes. Place an empty container
under the dispense nozzle.
Press and hold the SAFETY switch, then press the DISPENSE
push-button. When water flows from the nozzle in a steady stream,
tank is full.
4. Press the TANK HEATER SWITCH ON. When READY light glows,
unit is ready for use.
5. Be sure the DRIP TRAY is empty and the CUP GRID is properly
installed. Locate the cup grid and drip tray in place under the
dispense nozzle.
B. USING THE DISPENSER
Place a cup on the cup grid. DO NOT hold cup while filling.
Press and hold SAFETY switch.
Press DISPENSE push-button. Release when water in cup reaches
desired level. Release SAFETY switch. Remove cup from cup grid.
Be careful not to spill or splash water from cup
7
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser
IMPORTANT:
TANK MUST BE FULL
OF WATER BEFORE
CONNECTING BREWER
TO ELECTRIC POWER.
Heating elements will be
damaged if allowed to
operate without being
fully submerged in water.
Damage caused by
operating the brewer
without water in the tank
is NOT COVERED BY
WARRANTY.
CAUTION:
BURN HAZARD
This appliance dispenses
very hot liquid. Serious
burns can occur from
contact with dispensed
liquids.
DO NOT hold cup while
filling.
DO NOT spill or splash
water from cup.

OPERATION
8

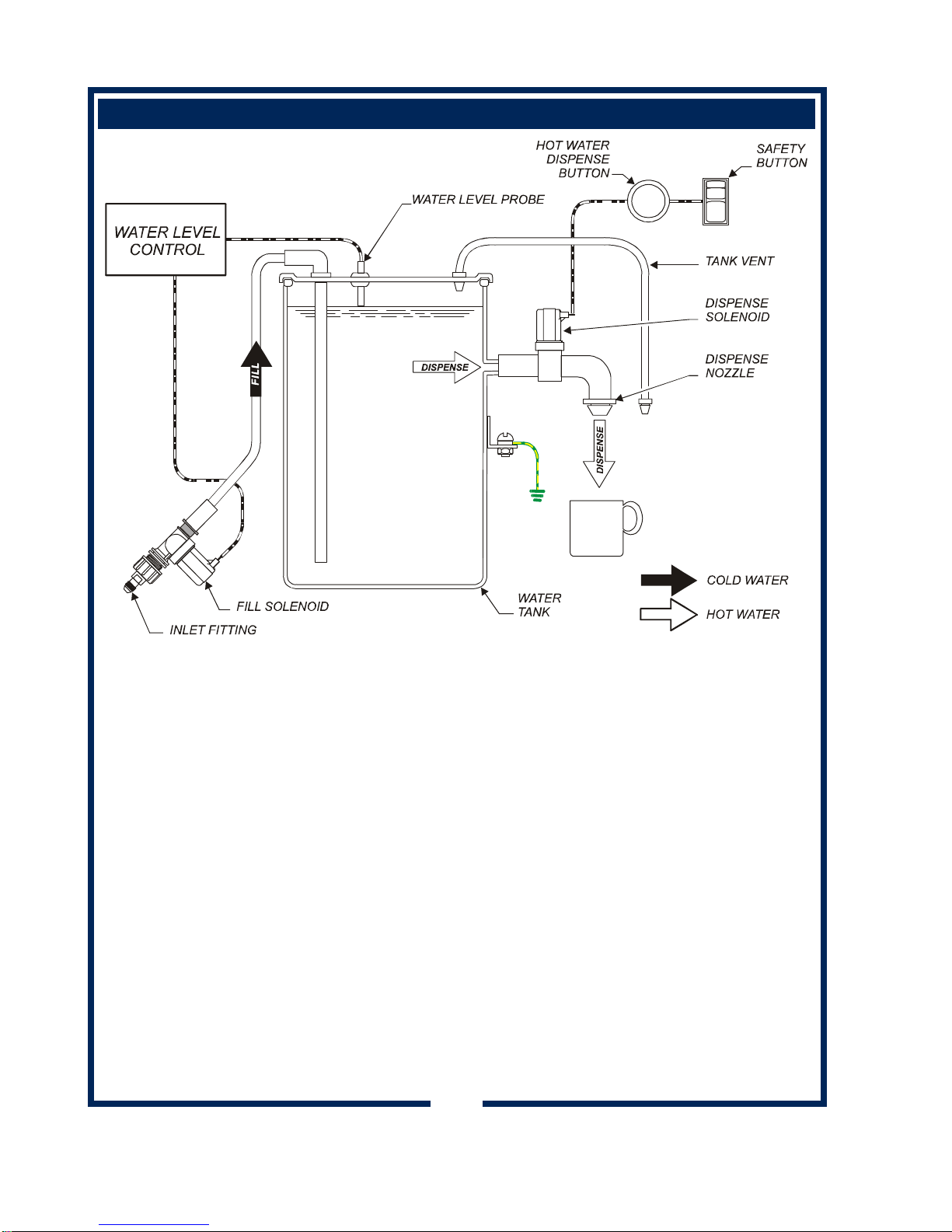

Fig. 4 Dispenser Operation Diagram
WATER HEATER
Water temperature is sensed by thermobulb inserted into the water tank. Temperature is controlled
by a mechanical thermostat.
The setpoint temperature is adjustable by turning the thermostat shaft.
Excessive temperature will trip the hi-limit safety switch, disabling the heating element. The hi-limit
will automatically reset when the dispenser cools.
WATER LEVEL
Water level is controlled by an electronic controller. The water level probe senses chassis ground
through the water. When the water level is below the probe no ground is sensed. The controller
opens the fill solenoid until the water level makes contact with the probe.
DISPENSING
Heated water flows from the tank to the dispense nozzle through an electrically controlled solenoid.
Both the safety switch and the dispense push-button must be pressed at the same time in order to
activate the dispense solenoid.
712 76580 Owners Manual Hot Water Dispenser

CLEANING INSTRUCTIONS
PROCEDURE: Clean Hot Water Dispenser
PRECAUTIONS: Disconnect dispenser from electric power.
Allow dispenser to cool.
FREQUENCY: Daily
TOOLS: Mild Detergent, Clean Soft Cloth or Sponge
Bristle Brush
1. Disconnect dispenser from electric power.
Allow to cool before cleaning.
Remove cup grid & drip tray
2. Wipe exterior of dispenser with a soft clean cloth or sponge
moistened with mild detergent and clean water. Rinse by
wiping with a soft clean cloth or sponge moistened clean
water.
3. Wipe dispense nozzle to remove any mineral deposits.
A bristle brush may be used to remove stubborn mineral
build-up.
4. Empty drip tray. Drip tray and cup grid may be washed in
the sink with warm water and mild detergent if necessary.
Rinse with clean water and allow to air dry.
5. Reassemble cup grid to drip tray, then reinstall under
dispense nozzle
Procedure is complete
CAUTION:
Burn Hazard
Dispensed water is extremely
hot. Hot water will cause
serious skin burns.
CAUTION:
Electric Shock
Hazard
Do not submerge or immerse
dispenser in water.
IMPORTANT:
DO NOT use steel wool, sharp
objects, or caustic, abrasive or
chlorinated cleansers to clean
the dispenser's stainless steel
surfaces.
9
712 76580 Owners Manual Hot Water Dispenser

7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser
TROUBLESHOOTING SUGGESTIONS
10
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
Water won’t heat Dispenser unplugged or circuit
breaker tripped Check power supply cord Check / reset circuit breaker
Tank heater switch "OFF" Press switch to "ON"
Temperature setpoint too low Adjust thermostat for desired
temperature
Hi-Limit safety switch tripped Allow to cool hi-limit will self-
reset
Damaged internal component or
wiring Examine wiring & connectors, controller, power board and
heating element
Repair/replace as needed
Water supply OFF Turn water supply ON
Inlet solenoid strainer plugged Clean strainer
Dispense solenoid damaged Replace dispense solenoid
Water level probe grounded Check / repair wiring to probe
Check / replace probe sleeve
Replace probe
Water level controller damaged Check / repair controller wiring
Replace controller
Dispense nozzle drips Debris in dispense solenoid Replace dispense solenoid
Debris in fill solenoid seat
(drips from vent tube) Replace inlet solenoid
Unit overfills Water level probe out of place or
coated with minerals Clean, reinstall or replace water level probe
Wiring loose or damaged Repair or replace wiring as
required. Carefully examine
ground connection for tightness
Controller damaged Replace controller
No flow from dispense nozzle

7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser
SERVICING INSTRUCTIONS
TEMPERATURE ADJUSTMENT
Disconnect dispenser from electric power. Remove top panel.
Pull vent tube out of tank lid and insert a thermometer of known
accuracy in hole. Reconnect dispenser to electrical power.
Place empty container under dispense nozzle.
Energize dispenser and allow unit to heat. When READY light
glows, read the temperature displayed on thermometer.
Adjust thermostat by turning shaft; clockwise increases
temperature. 1/8 turn = approximately 10ºF.
Refer to Table 1 below for proper brewing temperature based on
altitude.
Upon completion, remove thermometer and reinstall the vent
tube.
Fig. 5 Checking and Adjusting Water Temperature
CAUTION:
SHOCK HAZARD
These procedures involve
exposed electrical circuits.
These procedures are to be
performed by qualified
technical personnel only.
IMPORTANT:
A mechanical thermostat will
maintain temperature within
±5ºF. To prevent boiling water
in the brewer, thermostat should
be adjusted to a maximum
temperature equal to the local
boiling temperature minus 5ºF.
Table 1 Boiling Temperature by Altitude
11

SERVICING INSTRUCTIONS (continued)
12
IMPORTANT:
Water pressure must be
between 20 p.s.i and 90 p.s.i.
flowing pressure. If water
pressure exceeds this value,
or if water pressure varies
greatly, a pressure regulator
must be installed in the water
supply line.
IMPORTANT:
Before setting assembly into
tank, make sure tank lid gasket
is properly seated on flange of
lid. DO NOT OVER-TIGHTEN.
IMPORTANT:
When mounting thermostat, be
sure to insert sensing bulb to
the bottom of the bulb well.
Tighten capillary lock nut only
enough to ensure no water
leakage. Excessive tightening
is not necessary.
IMPORTANT:
When replacing heating
element, also replace seal
gaskets.
REMOVE TANK LID ASSEMBLY
Disconnect dispenser from electric power. Turn OFF water
supply. Remove top panel. Pull vent tube and inlet elbow out of
tank lid.
Disconnect all wiring from thermostat, hi-limit, and heating
element. Loosen and free jam nut from pass-thru fitting securing
temperature sensing bulb to tank lid. Remove bulb from tank lid.
Loosen two nuts on tank hold-down bracket. Remove hold-down
bracket by sliding short slotted end off of locking stud and lifting it
off. Remove cover assembly by lifting it straight up.
Reassemble in reverse order.
REPLACE THERMOSTAT
Disconnect dispenser from electric power. Turn OFF water
supply. Remove top panel. Remove mounting screw from
terminal block and position terminal block out of the way.
Disconnect all wiring from thermostat only. Loosen and free jam
nut from pass-thru fitting securing temperature sensing bulb to
tank lid. Remove two screws holding thermostat to bracket.
Lift out thermostat, sensing bulb and bulb well.
Reassemble in reverse order. BE SURE the bulb well is fully
seated in the tank fitting, and that the temperature sensing bulb is
inserted to the very bottom of the bulb well.
REPLACE HEATING ELEMENT
Remove tank lid assembly per above.
Remove two hex nuts holding element to cover. Pull element
from mounting holes.
Reassemble in reverse order.
REPLACE BREW READY LIGHT, SAFETY SWITCH or
DISPENSE PUSH-BUTTON
Unplug power cord. Disconnect electric leads from light. Or
switch.
Using a thin screwdriver, compress mounting tabs then pry light
or switch from mounting hole.
Reassemble in reverse order.
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

SERVICING INSTRUCTIONS (continued)
13
REPLACE FILL SOLENOID
IMPORTANT: Shut-off water and disconnect dispenser from
electric power before removing hoses or wiring.
Remove top cover and detach solenoid access door from
cabinet.
Remove water supply inlet flare fitting
Note: Service wrench #86660 is designed to hold the flats of the
solenoid inlet fitting while attaching ot removing the flare nut.
a. Slide the 5/8" end of wrench #86660 over the flats on
the valve inlet fitting of .
b. Hold the wrench to prevent the inlet fitting from turning
while installing or removing the inlet water supply flare
nut.
Disconnect wiring.
Remove two screws holding solenoid to access door.
Reassemble in reverse order.
REPLACE DISPENSE SOLENOID
Disconnect dispenser from electric power. Turn OFF water
supply. Remove top panel. Remove mounting screw from
terminal block and position terminal block out of the way.
Disconnect wiring from dispense solenoid.
Slide hoses from solenoid. Remove two screws holding solenoid
to bracket.
Reassemble in reverse order.
CLEAN SOLENOID SCREEN
Symptom: Dispenser will not flow water.
Disconnect dispenser from electric power. Turn OFF and
disconnect water supply from dispenser inlet fitting.
Unscrew water inlet fitting from solenoid.
Using needle-nose pliers, withdraw strainer screen from solenoid.
Clean screen under faucet. A stiff bristle brush may be used if
necessary.
Reinsert screen in solenoid. Be careful to maintain correct
orientation. (The OPEN END of the screen goes in FIRST.)
Reassemble in reverse order.
Fig. 7 Clean Inlet Solenoid
Strainer Screen
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser
Fig. 6 Use wrench #86660 to
Attach or Undo the Inlet
Fitting Flare Connection

SERVICING INSTRUCTIONS (continued)
14
PROCEDURE: Delime the Water Tank
PRECAUTIONS: Disconnect dispenser from electric power.
Allow dispenser to cool.
FREQUENCY: As required (Dispenser slow to heat)
TOOLS: Deliming Solution
Protective Gloves, Goggles & Apron
Mild Detergent, Clean Soft Cloth or Sponge
Bristle Brush, Bottle Brush
Large Sink (or other appropriate work area)
1. Disconnect dispenser from electric power. Disconnect the
water supply line from the inlet fitting.
2. Remove the tank lid assembly as described on page 12.
3. Remove two screws holding tank to dispenser cabinet.
Remove the water tank from the dispenser body by lifting
straight up. Disconnect chassis ground lead from tank.
Empty all water from the tank. Set the tank back into the unit.
4. Mix 2 quarts of deliming solution according to the
manufacturer’s directions. Carefully pour the deliming
solution into the water tank. Lower the lid assembly back
onto the tank. Allow to sit for 30 minutes, or as directed by
the manufacturer.
5. At end of soaking period, remove lid assembly from tank.
Thoroughly rinse internal components of lid assembly with
clear water. Using a stiff bristle brush, scrub the heating
element to remove lime and calcium build-up. Rinse with
clean water. Store lid assembly in a safe location.
6. Remove the tank from the dispenser and empty. Using a stiff
bristle brush, scrub the interior of the water tank to remove
lime and calcium build-up. Rinse with clean water.
7. Reconnect the chassis ground lead and set the tank back into
the dispenser. Install the two mounting screws. Reassemble
the tank lid to the water tank. Make sure the gasket is
properly in place, then reinstall the hold-down strap.
8. Reinstall wiring to heating element and thermostat. Reinstall
the hi-limit thermostat (if removed). Verify that all internal
components are dry, then reinstall the top panel.
10. Reconnect dispenser to electrical supply and reconnect water
supply.
11. Place an empty container under the dispense nozzle.
Dispense at least 10 full cups of water and discard all water
generated.
12. Dispenser is ready to use.
CAUTION:
CHEMICAL BURN
HAZARD
Deliming chemicals may be
caustic. Wear appropriate
protective gloves and goggles
during this procedure.
Never siphon deliming
chemicals or solutions by
mouth.
This operation should only be
performed by qualified and
experienced service personnel.
IMPORTANT: DO NOT spill,
splash or pour water or deliming
solution into or over any internal
component other than the inside
of the water tank.
IMPORTANT: DO NOT allow
any internal components to
come into contact with the
deliming solution. Take care to
keep all internal components
dry.
NOTE: Repeat steps 4 thru 5
as required to remove all scale
and lime build-up.
NOTE: Normally, silicone
hoses do not need to be
delimed. Should deliming
hoses become necessary,
Bloomfield recommends
replacing the hoses.
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

WIRING DIAGRAM
15
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

EXPLODED VIEW & PARTS LIST
16
PLUMBING & RELATED COMPONENTS
MODELS: 0401
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

EXPLODED VIEW & PARTS LIST (continued)
17
CABINET & CHASSIS ELECTRICAL COMPONENTS
MODEL: 0401
7145 77380 Owners Manual Horizon™ 0401 Hot Water Dispenser

PRINTED IN CHINA
Bloomfield Industries, Inc.
Division of Carrier Commercial Refrigeration
In US and Canada
Telephone: [phone]
Fax: [phone]
Fax: [phone] ()
website: www.wellsbloomfield.com
for orders only
Bloomfield Industries proudly supports CFESA
Commercial Food Equipment Service Association
