blossom-ic Magelan App Socket User manual
MAGELAN
App Socket
Assembly instructions
intelligent | economic | cost-saving | individual | exible | user-friendly | smart | protable | innovative
1.0
Version
The app socket oers the possibility to create personalized schedules for
switching devices on and o to simulate presence and deter potential
burglars. Helps to reduce electricity costs. The app socket also serves as a
repeater for the blossom-ic system
Brief description:
blossom-ic GmbH & Co. KG |Intelligent Controls
2
Contents...
Connection of the Gateway GT-100 ............3
Registration of the App Socket ..................3
Control via blossomic app ........................ 4
Technical data......................................6
Safety instructions ...............................6
Declaration of conformity ........................6
Warning notice ....................................6
Intended Use.......................................6
Assembly instructions: Magelan App Socket 3

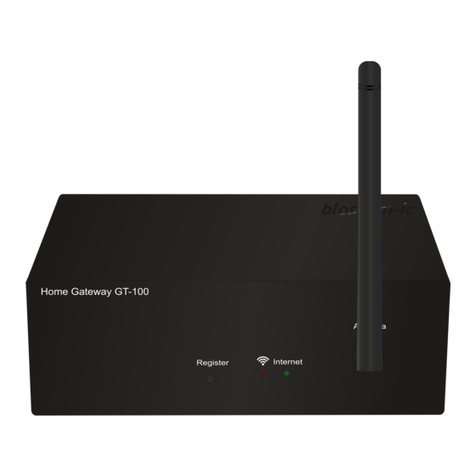

Connection of the Gateway GT-100
Screw on the antenna Connect power supply unit Connect the network cable
Both diodes light up
permanently: Gateway active
Check status
Green diode lights up constantly: Internet
connection is establishing.
Green diode lights up constantly: Internet
connection is successfully established
1. 2. 3.
4. 5. Hint:
Functionality in the home safe area. Internet
connection is used for convenient setting
and control via smartphone.
The system functionality is guaranteed even
if no Internet connection is available.
Registration of the App Socket
Plug in the socket Press the „Register“ button on
the gateway
Press the button on the front of
the socket for 3 seconds
1. 2. 3.
blossom-ic GmbH & Co. KG |Intelligent Controls
4
LED on the socket starts to flash
4.
LED on the socket lights up
continuously
=> Registration successful
5. Note:
If the LED on the App Socket goes out aer
flashing -> registration failed
1
2
App Socket
When you register an app socket,
this icon appears in the system
overview
Additional function
The app socket automatically serves
as a repeater for all battery-powered
devices
Group settings
Assign the same settings to several
devices.
Current status
System overview
Device control
Radiator Underfloor Boiler
Leakage
system
Security
system
PI-SensorBlinds Socket
Help
PDF Manuals
system Fan-Coil
App-Socket
Garden pump ID: 20
On
ID: 1
ID: 8
On
ID: 13
On
Online
Online
Online
Online
1
2
Control via blossomic app
Assembly instructions: Magelan App Socket 5
1
2
3
4
5
1
2
3
Naming
Settings
Aer selecting a button, the time can
be set.
The button in GREEN means that the
time setting is active.
Save changes
All changes must always be
confirmed
Individual time setting
Auto/Time Mode
Up to three times can be switched
ON or OFF per day.
Create group
Click the checkbox to assign the
same settings to several devices.
Setting ON/OFF
Mode selection
App-Socket
Submit
On
6:00 am
Manual Auto/Time
06:20 pm
04:30 pm
On
12:00 pm
10:00 pm
01 2
05 9
06
20
06:20 pm
On
04:30 pm
1
2
3
4
5
ID: 1
ID: 8
Submit
Online
Online
Garden pump ID: 20 Online
ManualA uto/Time
ID: 13 Online
On
1
2
3
blossom-ic GmbH & Co. KG |Intelligent Controls
6
Attention! Important Note:
Installation and assembly of electrical devices may only be carried out by a qualified electrician. Failure to observe the assembly and installa-
tion instructions can result in fire or other dangers.
Safety instructions
Hereby blossom-ic GmbH & Co. KG hereby declares that the following product: Magelan App Socket ASD-3984 is in conformity with the essen-
tial requirements and other relevant provisions of Directive 2014/53/EU. The complete declaration of conformity can be found at the following
address: www.blossomic.de/downloads Declaration of conformity.
Declaration of conformity
The App Socket is not suitable for children and must not be used as a toy. Store and dispose of packaging materials in a child-proof manner.
Do not disassemble the App Socket, as it does not contain any user-serviceable parts. If defects occur, please return the App Socket to the
dealer. This appliance may be used by children over 8 years of age and by persons with reduced physical, Sensory or mental abilities or lack
of experience and knowledge, provided they have been supervised or instructed in the safe use of the appliance and understand the dangers
involved. Children must not play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Warning notice
The Magelan App Socket is exclusively for controlling electrical devices with a power supply. Please note the maximum load of 2000 W or 10
amperes.
Intended Use
Technical data
Technical data - Magelan App Socket
Ambient temperature
Ambient humidity
Mains voltage
Dimension
Wireless frequency
Ampere
Watt
Protection class
RF-Test
CE
RoHs
Type of antenna
0 ~ 50°C
90% (non-condensing)
230V AC / 50/60Hz
L110 x W62 x H73 (mm)
2.4GHz, ISM Band, 16 channels
max. 10A
2000W
IP 30
RED 2014/53/EU
Available
Available
PCB antenna
Assembly instructions: Magelan App Socket 7
Notes
blossom-ic GmbH & Co. KG
Oberer Buxheimer Weg 60, 87700 Memmingen, Germany
P: +49 8331-756 965 80 E: [email protected]
W: www.blossomic.de
