Blu Stream ACM500 User manual

ACM500 QUICK REFERENCE GUIDE
01Contact: [e-mail]|[e-mail]|[e-mail]

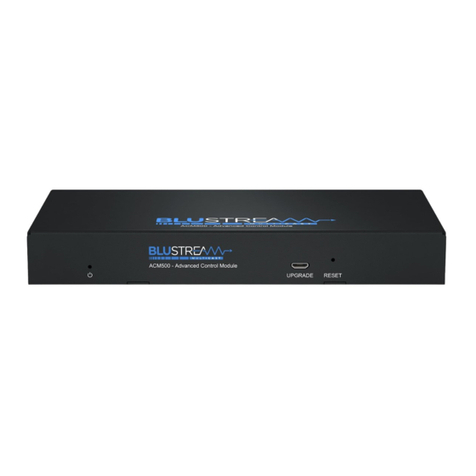

ACM500
Quick Reference Guide
OurUHDSDVoEMulticastdistributionplatformallows distributionof thehighest
quality,uncompromised4KwithzerolatencyAudio/Videoover copperor optical
fibre10GbE networks.
TheACM500ControlModulefeaturesadvancedthirdpartycontrolof theSDVoE
10GbEMulticastsystemusingTCP/IP,RS-232 andIR.TheACM500includesa web
interfacemoduleforcontroland configurationoftheMulticastsystemandfeatures
‘dragand drop’sourceselectionwithvideo previewand independentroutingof IR,
RS-232,USB/KVM,AudioandVideo.Pre-builtBlustreamproductdrivers simplify
Multicastproductinstallationandnegatetheneedfor anunderstandingofcomplex
networkinfrastructures.
Introduction
FEATURES:
• Webinterface moduleforconfigurationandcontroloftheBlustreamSDVoE10GbEMulticastsystem
• Intuitive‘drag&drop’sourceselectionwithvideopreviewfeatureforactivemonitoringof systemstatus
• Advancedsignalmanagementforindependentroutingof IR,RS-232,CEC,USB/KVM,audio andvideo
• Autosystemconfiguration
• 2xRJ45LANconnectionstobridgeexistingnetwork toMulticast video distributionnetwork,resultingin:
-Bettersystemperformanceas network traicisseparated
-Noadvancednetwork setuprequired
-Independent IPaddressperLAN connection
-Allows simplified TCP/ IPcontrolofMulticastsystem
• DualRS-232 portsforcontroloftheMulticastsystemorpass-throughofcontroltoremotethirdpartydevices
• 5V /12VIRintegrationforcontrolofMulticastsystem
• PoE(Power overEthernet)topowerBlustreamproduct fromPoEswitch
• Local12Vpowersupply(optional) shouldEthernetswitchnotsupportPoE
• SupportforIOSandAndroidApp control
• 3rdpartydriversavailableforallmajorcontrolbrands

ACM500 QUICK REFERENCE GUIDE
02 www.blustream.com.au|www.blustream-us.com|www.blustream.co.uk
RearPanelDescription
1PowerConnection(optional) -use12V1ADCpowersupplywherePoEswitchdoes notprovidepowerfromVideo
LAN switch
2Video LAN(PoE)-connect tothenetworkswitchthattheBlustreamMulticastcomponentsareconnectedto
3ControlLANPort -connecttoexistingnetwork thatathirdparty controlsystemresides on. The ControlLAN portis
used forTelnet/IPcontrolof the Multicast system. NotPoE.
4RS-2321ControlPort –connect toa thirdpartycontrol deviceforcontroloftheMulticast systemusingRS-232.
5RS-232 2 ControlPort–connecttoathirdpartycontroldevicefor controloftheMulticast systemusingRS-232.
6GPIOConnections- 6-pinPhoenixconnect forinput /outputtriggers(reservedforfutureuse)
7GPIOVoltageLevelSwitch (reservedforfutureuse)
8IRCtrl (IRInput)– 3.5mmstereojack.Connect tothirdpartycontrol systemifusingIRasthechosenmethodof
controllingtheMulticast system.Whenusingthe included3.5mmstereotomonocable,ensurethe cabledirection
iscorrect.
9IRVoltageSelection- adjustIR voltagelevelbetween5Vor12Vinputfor IR CTRL connection.
SignIn
BeforeloggingintotheACM500,ensurethatthecontroldevice(i.e.laptop /tablet)is connected tothesame network
astheACM500’sControlport.Tologin,open awebbrowser(i.e.Firefox,InternetExplorer,Safarietc.)and navigate to
thedefault (static)IPaddressoftheACM500whichis:
192.168.0.225
TheACM500canalsobe foundatthebeacon addressat:
http://acm500.local
TheIPaddressand/orbeacon addresscan beamendedfrom theweb-GUIofthe ACM500.Pleaserefertothefull
instruction manualwhichcanbedownloadedfromtheBlustreamwebsite.
TheSignIn pageispresentedonconnection totheACM500.Thedefault admincredentialsareasfollows:
Username:blustream Password:1 2 3 4
Thefirst timetheACM500issignedinto, you willbepromptedtoseta new Adminpassword. Pleaseinserta new
password,confirm your new password,andensurethis iskeptsafe.TheACM500will requirethe unittobesignedinto
againusingthenewAdminpassword.
1 2 3 4 5 6 7 8 9

ACM500 QUICK REFERENCE GUIDE
03Contact: [e-mail]|[e-mail]|[e-mail]
Schematic
Example Schematic ACM500
Reserved for future update
Control Processor
Optional 12V PSU where no PoE is available
10 GbE Multicast UHD
Network Switch
IP500UHD-TZ
10GbE Managed Network Switch
Customer Home / Business
Network Switch
Network Switch
RS-232 LAN IR SFP+ Fibre Connection 10 GBase - T LAN
Impotant Note:
TheBlustream IP500UHDMulticast system distributesHDMIvideoover 10GbEManagednetworkhardware. Itisadvisedthat
BlustreamMulticastproducts areconnectedonanindependentnetworkswitchtopreventunnecessaryinterference, orreduction
insignalperformanceduetoothernetworkproductsbandwidthrequirements.Pleasereadandunderstandtheinstructions in
thisandthe manualavailableonline,andensurethatthenetworkswitchisconfiguredcorrectlypriortoconnectinganyBlustream
Multicast products.Failuretodo sowillresultinproblemswith configurationofthe system,and videoperformance.

ACM500 QUICK REFERENCE GUIDE
04 www.blustream.com.au|www.blustream-us.com|www.blustream.co.uk
PackageContents
Specifications
• 1xACM500
• 1xIRControlCable-3.5mmto3.5mmCable
• 1xMountingkit
• 4xRubber feet
• 1xQuickReferenceGuide
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
ACM500
• Ethernet port: 2x LANRJ45connector(1xPoEsupport)
• RS-232 serial port: 2x 3-pinPhoenixconnector
• I/O port: 1x 6-pinPhoenixconnector(reservedforfutureuse)
• IR input port: 1 x3.5mmstereojack
• Product upgrade: 1x MicroUSB
• Dimensions (W x D x H): 190.4mmx93mmx25mm
• Shipping weight: 0.6kg
• Operating temperature: 32°F to104°F(0°C to40°C)
• Storage temperature: -4°F to140°F(-20°Cto60°C)
• Power supply: PoEor12V 1ADC(soldseparately) -wherePoEnotdeliveredbyLANswitch
RevA1_QRG_ACM500_040122
FCC NOTICE
Thisequipmenthasbeentestedandfoundtocomplywith
thelimitsforaClassBdigitaldevice,pursuanttopart15ofthe
FCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgenerates,uses,andcanradiate
radiofrequencyenergyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthis
equipmentdoescauseharmfulinterferencetoradioortelevision
reception,whichcanbedeterminedbyturningtheequipmento
andon,theuserisencouragedtotrytocorrecttheinterference
byoneormoreofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdierentfrom
thattowhichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianfor
help.
CAUTION -changesormodificationsnotexpresslyapproved
bythepartyresponsibleforcompliancecouldvoidtheuser’s
authoritytooperatetheequipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
ThisClassBdigitalapparatuscomplieswithCanadianICES-003.
Operationissubjecttothefollowingtwoconditions:(1)this
devicemaynotcauseinterference,and(2)thisdevicemustaccept
anyinterference,includinginterferencethatmaycauseundesired
operationofthedevice.
CORRECT DISPOSAL OF THIS PRODUCT
Thismarkingindicatesthatthisproductshouldnotbedisposed
withotherhouseholdwastes.Topreventpossibleharmtothe
environmentorhumanhealthfromuncontrolledwastedisposal,
recycleitresponsiblytopromotethesustainablereuseofmaterial
resources.Toreturnyouruseddevice,pleaseusethereturnand
collectionsystemsorcontacttheretailerwheretheproductwas
purchased.Theycantakethisproductforenvironmentallysafe
recycling.
