HEX70ARC-KIT QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
HEX70ARC-KIT
Quick Reference Guide
01
The HEX70ARC-KIT 4K HDBaseT™ ARC extender set oers market leading features
for the custom installation industry. The product delivers HDMI, ARC, Optical Audio
Return, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input*
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management
* Please note: When using an eARC display, only 2 channel PCM audio is supported.

HEX70ARC-KIT QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail] 02

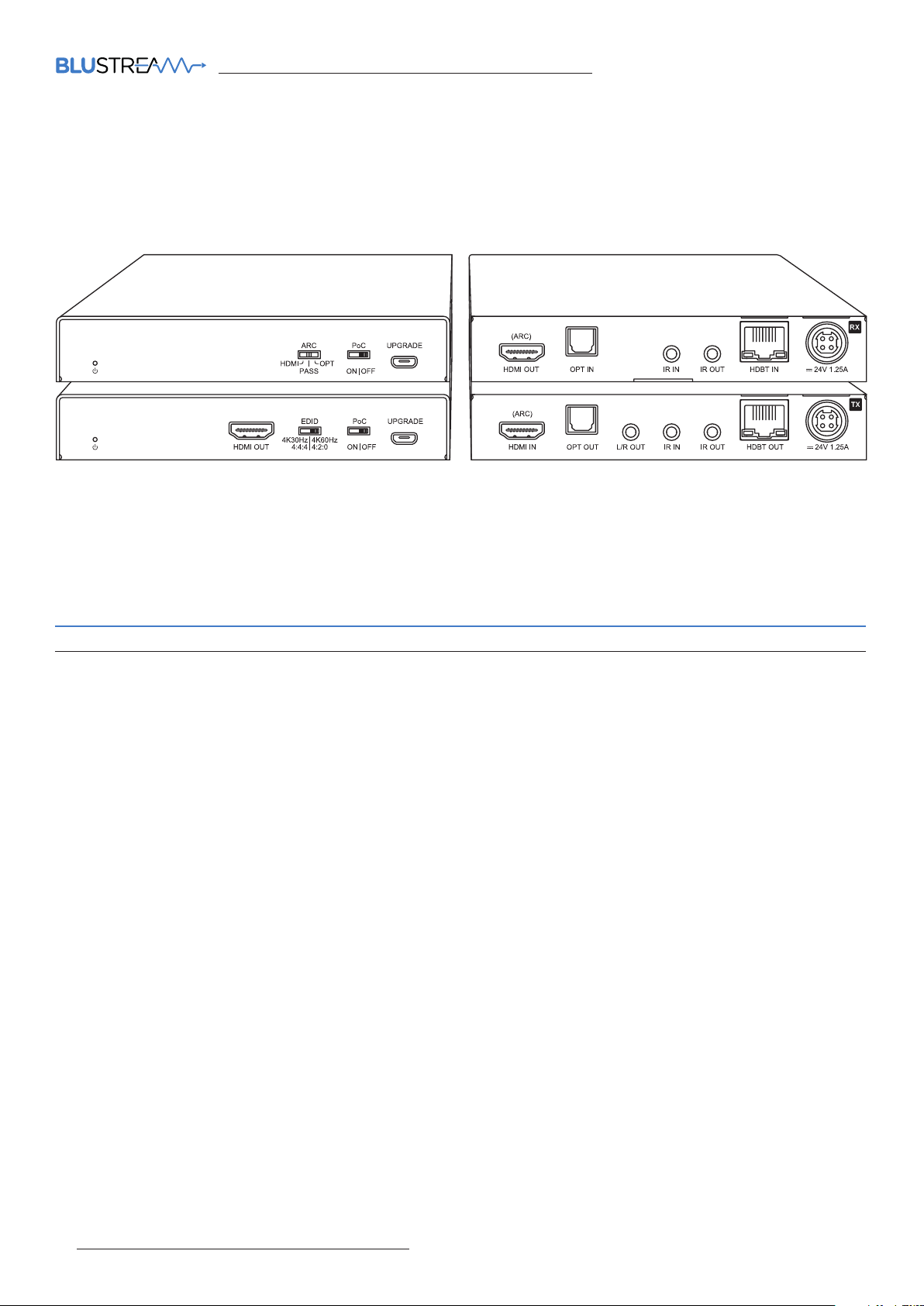

TX Panel Descriptions
Front
Front
Rear
Rear
1Power status indicator
2HDMI Output (loop) - connect to local HDMI display
3EDID switch - select between 4K30Hz 4:4:4 or 4K 60Hz 4:2:0
4Power over Cable (PoC) switch (ON / OFF) - to enable / disable PoC being sent from the transmitter
5Upgrade - micro-USB port for firmware upgrade of product
6HDMI (ARC) Input - connect to source device, or HDMI audio processor (AVR)
7Optical Output - connect to audio amplification or distribution device
8L/R Output - audio breakout from receiver ARC signal
9IR Input - connect to Blustream 5V 3.5mm IR receiver or from control processor
qIR Output - connect to Blustream 5V 3.5mm IR emitter
wHDBaseT™ output
e24V/1.25A DC power input 4-pin DIN connector
1Power status indicator
2ARC switch - select how audio is to be managed
3Power over Cable (PoC) switch (ON / OFF) - to enable or disable PoC being sent from the receiver
4Upgrade - micro-USB port for firmware upgrade of product
5HDMI (ARC) output - connect to HDMI display
6Optical Input - connect to optical output of display
7IR Input - connect to Blustream 5V 3.5mm IR receiver
8IR Output - connect to Blustream 5V 3.5mm IR emitter
9HDBaseT™ input
q24V/1.25A DC power input 4-pin DIN connector
4
4
5
5
6
6
7
7
RX Panel Descriptions
2
2
1 8
8
93
3
10 11 12
1 9 10

HEX70ARC-KIT QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
03
Terminating the Interconnecting HDBaseT™ CAT Cable
It is important that the interconnecting CAT cable between the Blustream HDBaseT products is terminated using the
correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this
is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution
products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 (or better)
cable for your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal
distribution.
Understanding the HDBaseT™ Signal Status Lights
The Blustream HDBaseT™ extender solutions include status LED indicators on both the Transmitter and Receiver products to
show all connections are active and to help diagnose possible problems.
Understanding the RJ45 connector status lights on both TX and RX units
• The orange HDBaseT™ link light will be o when there is no CAT cable / active HDBaseT™ signal on the RJ45 HDBaseT™ connection
• The orange HDBaseT™ link light will blink if there is an unstable connection between the Transmitter and Receiver
• The orange HDBaseT™ link light will be lit when a CAT cable is connected to the HDBaseT™ RJ45 output on the Transmitter
and an active connection is achieved with the input of the Receiver
• The green HDBaseT™ HDCP light will be o when no video signal is being transmitted between Transmitter and Receiver
• The green HDBaseT™ HDCP light will flash when there is video signal without HDCP being transmitted
• The green HDBaseT™ HDCP light will be on when there is video signal with HDCP being transmitted
• The power link light will be o when no power is connected to either the Transmitter or Receiver unit
• The power link light will be on when power is connected directly to either of the units and fed remotely to the other side of
the link
Using ARC / Optical Audio Return
Depending on the position of the switch on the front of the HDBaseT™ receiver unit, the HEX70ARC-KIT allows for audio
from either HDMI (ARC) or Optical (S/PDIF) to be returned from RX to TX when watching a device input locally to the
display, or when using the display as a source device.
Switch Position:
See below the combinations of input and output connections on both transmitter and receiver units and how audio
return is managed through the HEX70ARC-KIT:
Please Note: Video and audio from transmitter to receiver is not aected by the switch position.
Analogue out only supports 2ch PCM audio signals.
When using an eARC display, only 2 channel PCM audio is supported.
Switch Position HDBaseT™ Receiver HDBaseT™ Transmitter CEC Pass-through
HDMI HDMI ARC In HDMI ARC, Optical & Analogue Out Blocked
PASS HDMI ARC In HDMI ARC, Optical & Analogue Out Enabled
OPT Optical In Optical & Analogue Out Blocked

HEX70ARC-KIT QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail] 04
Package Contents
Specifications
HEX70ARC-KIT
• 1 x HEX70ARC-TX and 1 x HEX70ARC-RX
• 1 x 24V/1.25A DC Power Supply
• 1 x IR Emitter
• 1 x IR Receiver
• 2 x Mounting Bracket Sets
• 1 x Quick Reference Guide
NOTE: Specifications are subject to change without notice. Weights and
dimensions are approximate.
HEX70ARC-TX
• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45
connector, 1 x HDMI Type A, female
• Audio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm
L/R analogue audio
• IR Input Port: 1 x 3.5mm stereo jack
• IR Output Port: 1 x 3.5mm mono jack
• Product Upgrade: 1 x Micro-USB, female
• Casing Dimensions (W x D x H): 135 x 84 x 21mm
HEX70ARC-KIT
• Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connector
• Box Dimensions (W x D x H): 248 x 151 x 103mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
RevA5_HEX70ARC-KIT_QRG_210901
HEX70ARC-RX
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, female
• IR Input Port: 1 x 3.5mm stereo jack
• IR Output Port: 1 x 3.5mm mono jack
• Product Upgrade: 1 x Micro-USB, female
• Casing Dimensions (W x D x H): 135 x 84 x 21mm
