opticis HDFX-100-TR User manual

Manual Contents
__________________________________________
Manual Contents 1-0
Welcome ! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-6
Product Specifications 1-7
Warranty Information 1-8
Regulatory Statements 1-9
Pictorials
Figure 1 –Overall Connection of HDFX-100 1-1
Figure 2 –Connection of HDMI cable between
Tx box and media receiver 1-3
Figure 3 –Connection of HDMI cable between
Rx box and display 1-3
Figure 4 –Connection of one (1) SC single-mode fiber 1-4
Figure 5 –Connection of AC/DC power adaptor 1-4
1-0 Manual Contents
User’s Manual for the
HDFX-100-TR & HDFX-10R-TR
1 fiber HDMI / RS-232
extender

Welcome!
Congratulations on your purchase of the one (1) fiber HDMI extender, HDFX-
100-TR and one (1) fiber HDMI and RS-232 extender, HDFX-10R-TR. This
manual contains information that will assist you in installing and operating the
product.

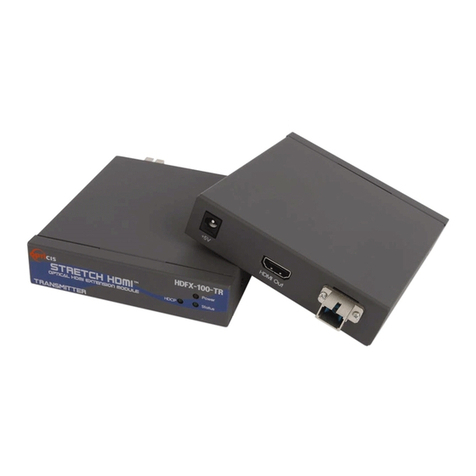

Product Description
The HDFX-100-TR transmits all HD resolutions up to 1080p at 60Hz of digital
graphic data up to 1000 meters (3280 feet) over one (1) SC single-mode fiber,
directly connected between HDMI sources and displays. The transmitter,
located in a HDMI source and receiver in a display are connected to each of
them by a 1.0m HDMI copper cable. HDFX-10R-TR adopts RS-232 port as
well as HDMI digital graphic data. Both two (2) models support HDCP (High
Definition Contents Protection) interface over the same fiber.
The Shipping Group of HDFX-100-TR and HDFX-10R-TR are;
Tx and Rx boxes: One (1) Transmitter (Tx) Box and One (1)
Receiver (Rx) Box.
AC/DC power adapter: Two (2) +5V units
User’s Manual
Option: One (1) SC optical cable (single-mode glass fiber), 9-pin D-
sub RS-232 cable, 2 pcs x 2 m HDMI copper cable.
Figure 1 –Overall Connection of Optical HDFX-100
1-1 Welcome, Product Description
System Requirements for Setup
□Hardware requirements
▪Most of DVD, Blu-ray or media receiver with HDMI ports are
compatible with the extender.
▪In case of using computers as a graphic source, regardless of
OS version, HDMI ports are required to be embedded.
▪Only HDMI TVs or monitors are applicable.
▪Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
□Software requirements
▪No special needs, but make sure that media contents protected
by HDCP should be played with HDCP certified players and
TVs.
□AC/DC Power Adapter Technical Advisory
▪The power of HDFX-100-TR and HDFX-10R-TR is designed to
supply to both boxes of Tx and Rx by plugging the external
powers.
□EDID Emulation Advisory
▪Before use the product, the Smart- EDID procedure should be
done as shown in the Installation (Step 6)
▪We strongly recommend you to do Smart- EDID procedure
again if you want to change HDMI display. But, it can be
displayed without re-emulation between same resolution TVs.
□Connection Advisory
▪We strongly recommend you to connect HDMI media source
directly into HDMI display output via HDFX-100-TR and HDFX-
10R-TR without connecting any distributor, switcher, selector
etc, which could make incompatibility.
1-2 System Requirements for Setup
HDMI Input
(DVD Player)
Audio/Display
Output
One (1) Optical Fiber

Step 4
Remove the module dust covers and connect Transmitter and Receiver over
SC to SC single-mode fiber, as shown in Fig. 4. Ensure the SC connector is
fully engaged.
Figure 4 –Connection of one (1) SC single-mode fiber cable
Step 5
Connect the AC/DC power adapters to both of the Transmitter and Receiver
and make the device of source and the display power ON.
Figure 5 –Connection of AC/DC power adaptor
Notice: Please DO NOT look directly into the SC receptacles of the
Transmitter box, while it is powered on, although this product is regulated
strictly enough to operate under the LASER Class I, classified by CDRH/FDA
for Eye Safety.
1-4 Installation (continued)
Installation
Important: Please follow the installation procedure below. Improper or
no operation may result if the start-up sequence is not correctly
followed.
Step 1
Carefully unpack the contents in the shipping group.
Step 2
Connect the Transmitter to the HDMI sources (DVD, media receiver) over
HDMI cable. In case of HDFX-10R-TR, make the RS-232 connection between
transmitter and RS-232 devices.
Figure 2 –Connection of HDMI cable between Transmitter box and media receiver
Step 3
Connect the Receiver to the HDMI display over HDMI cable. In case of
HDFX-10R-TR, make the RS-232 connection between receiver and RS-232
devices.
Figure 3 –Connection of HDMI cable between Receiver box and display
1-3 Installation
Audio/Display
Output
One (1) SC Optical Fiber

Troubleshooting
The display displays only black screen.
Check that all AC and DC plugs and jacks used by external power
supplies (both Opticis and others) are firmly connected.
Ensure that power bars are live.
Ensure that the Tx and Rx boxes plug correctly to the media receiver
or computer and display, respectively.
Check if the media receiver or computer and display are powered on
and properly booted.
Re-boot up the system after reconnecting the optical system cable.
Screen is distorted or displays noises.
Check if the graphic resolution is properly set. Go to the display
properties and tap the settings. Ensure that the resolution sets less
than 1080p (1920x1080) at 60Hz refresh ratio.
Reset the system.
Power down, disconnect and reconnect the optical system cable or
DC power adaptors, and power up.
Maintenance
No special maintenance is required for the optical system cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis or its authorized distributor.
1-6 Troubleshooting, Maintenance, Technical Support
Step 6
(This step 6 should be done only when the initial installation of HDFX-
100-TR or HDFX-10R-TR is done or attached display is changed.)
i) Disconnect the HDMI cable from the Transmitter
ii) Disconnect the AC/DC adapter in Transmitter and connect it
again to trigger EDID emulation.
Then, the Transmitter start to read EDID from display and write in it
while HDCP LED in Transmitter flash around 10 sec. (This could be
repeated up to twice.)
HDCP LED in Transmitter will blink at every 0.5 sec. (It means EDID
emulation is done.)
iii) Connect Transmitter to HDMI sources over HDMI cable again.
Then, HDCP LED will be turned off.
1-5 Installation (continued)

5
Product Specifications
One (1) fiber HDMI Extender, HDFX-100-TR and HDFX-10R-TR
Compliance with HDMI standard: supports HDMI 1.3a, using fiber-
optic communication link and fully function in HDCP.
Extension limit:
Up to 1000 meters (3280feet) for 1080p at 60Hz over the single-
mode fiber
Fiber-optic Connection: The transmitter and receiver boxes of
HDFX-100-TR and HDFX-10R-TR have SC fiber-optic connectors
and should be used with Single-mode fiber or 9/125m or 8/125m
Initialization Time: Less than 5 sec. after connecting and playing
when reconnect any power/HDMI/fiber optic cable of Tx/Rx while
playing.
Mechanical specifications of Tx and Rx boxes
Dimensions: 108mm / 25mm / 115mm (W/H/D)
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 85°C
Humidity: 5% to 95%
AC/DC Power Adapter
Power Input: Universal AC 100-240V, 50/60Hz, AC power cord with
power jack.
Power Output: +5 V, 3.0 A SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer cylinder is GND.
Certification: PSE, UL, cUL, FCC, CE, TUV-GS
1-7 Product Specifications
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical HDMI module to be free from defects in workman
ship and materials, under normal use and service, for a period of one (1) year
from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part, d
eliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or me
mory data of customer contained in, stored on, or integrated with any product
s returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-8 Warranty Information

FCC/CE Statement for regulation of Electro-magnetic
emission
This device complies with part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 and 2 of FCC Rules, EN 55022/55024/61000-3 for CE
certification. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and. if not installed and used in accordance with the instruction guide,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to comply with FCC/CE emission limits. Changes or modifications not
expressly approved by the party responsible for compliance could void the
user s authority to operate the equipment.
Certification for Safety
The extension system is certified pursuant to IEC60065 and its AC/DC power
adapter is certified by UL1310, 1950, 60950 for North America, cUL or CSA
for Canada, TUV-CE & GS for EU and PSE for Japan.
Certification of Eye Safety
This laser product is inside implemented by using 850nm VCSEL (Vertical
Cavity Surface Emitting Laser) Transceivers, manufactured by Opticis Co.,
Ltd., which are all certified by CDRH/FDA referred in Accession Number
0210774 as classified in LASER Class 1 Eye Safety.
1-9 Regulatory Statements
© 2011 Opticis Co., Ltd. All Rights Reserved
Revision 1.0. Feb. 21, 2011
