Blu Touchbook 7.0 3G User manual
BLU Touchbook 7.0 3G
Service Manual

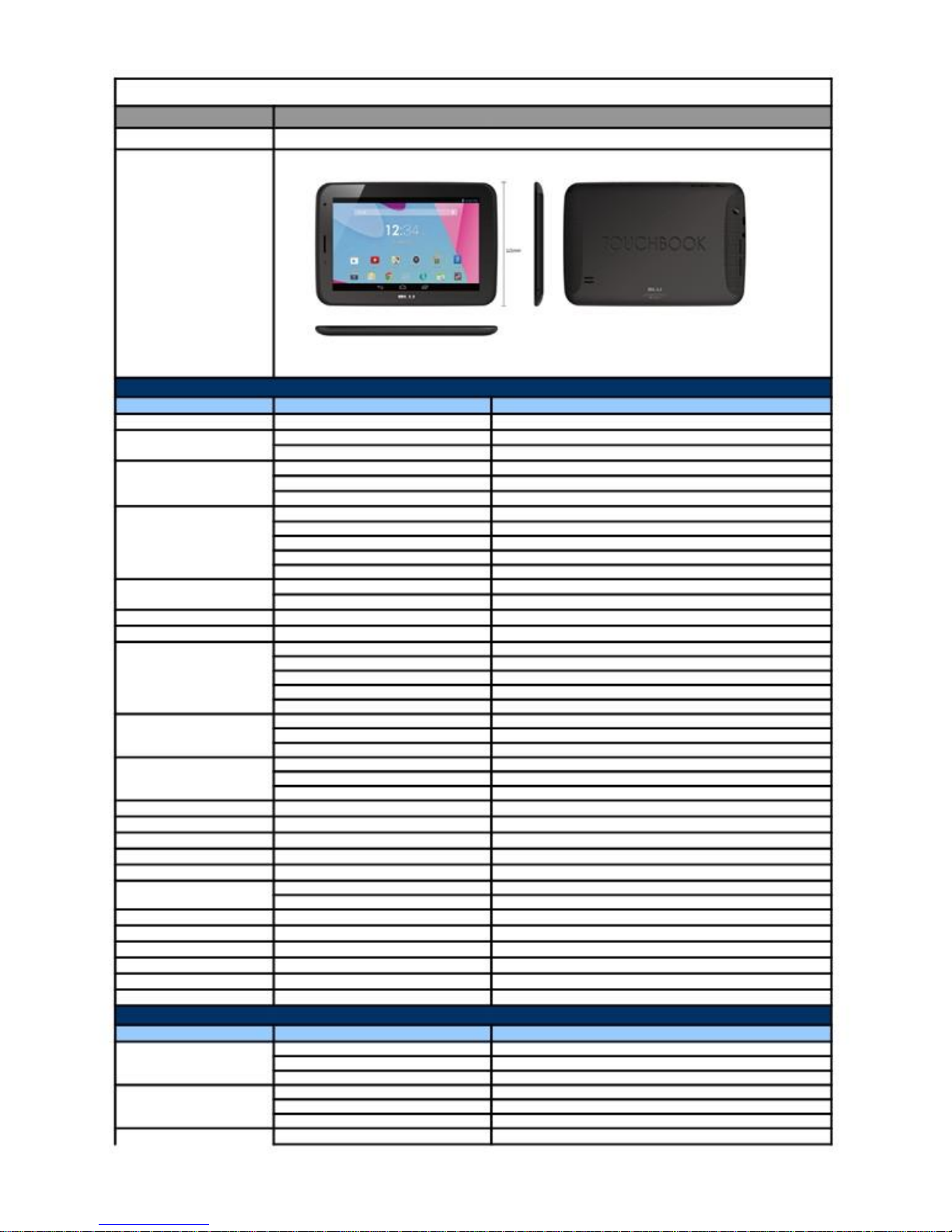

Product Specification Sheet
Product Model
Product Type Tablet PC
System Physical Standard Configuration:
Type Details Descriptions
Chipset Chipset MT8312V/X
CPU Type Cortex A7/ Dual core
Frequency 1.3 GHz
Renderer Mali400 MP2
GPU Frequency 416MHz
OPENGL OPENGL ES2.0
Type PLS
Screen Size 7 inch
LCD Colors 16.7M
Brightness Typical 300cd/m2
Screen Resolution 1024*600
TP Type Capacitive Multi-Touch (5 Dots)
Hardness Etching under printing
RAM Capacity 512M/1GB DDR3L (optional)
ROM Flash Capacity 4G/8G/16GB EMMC (optional)
Type Lithium-ion Polymer Battery
Capacity 3000mAh/3.7V
Battery Charge time About 3hours
Battery Time Video Playing（HD）About 4.5 hours
Fuel Gauge IC N/A
Multi-media Phote Viewer JPG, JPEG, BMP,GIF,PNG
(Hardware Video Format MPEG-4,H.263, H.264,VP8
encoding/decoding) Audio Format APE,FLAC,MP3,WAV,MP2,AMR,VDRBIS
Front Camera 0.3MP
Camera Rear Camera 2MP
Rear Flash Light N/A
Speaker Size Built-in 8Ω/1W speaker x 1
Receiver Built-in YES
Mic Built-in YES
G-Sensor Built-in YES
Gyro Sensor Built-in N/A (optional)
GPS Built-in YES
A-GPS YES
E Compass Built-in N/A (optional)
Proximity Sensor Built-in N/A
Light Sensor Built-in N/A
Hall Switch Sensor Built-in N/A (optional)
Motor Built-in YES (optional)
Voltmeter Built-in N/A
Network Connections:
Type Details Descriptions
WI-FI Module WIFI 802.11 b/g/n
WI-FI Cryptographic Algorithms WEP (40-bit、64-bit、128-bit), WPA (TKIP 128-bit), WPA2 (AES 128-
Max range of wireless connection 30m
Version Bluetooth V3.0
Bluetooth Cryptographic algorithms GFSK,DQPSK,DPSK
Max range of wireless connection 10m
HSDPA/WCDMA WCDMA
3G
WCDMA(850MHz/1900MHz/2100MHz)
Band
Band 850/900/1800/1900MHz
2G GPRS Yes
EDGE Yes
Interface Configuration:
Type Details Descriptions
SIM Card Slot SIM Card Slot Standard
Memory card socket External Memory Support micro-SDHC/SDXC,up tp 32GB
HOST USB Data Transfer Micro USB 5pin * 1
Charge Charge Connecter Micro USB
Headset Jack Music Output ∮3.5mm standard headphone jack
HDMI interface Video Output N/A
Key Configuration:
Type Details Descriptions
Key Definition: POWER key、Volume-、volume+ Support
Window log key N/A
Software Configuration:
Type
Operating System
Details Descriptions
OS Version Andriod 4.4
Language Multi-language support
GMS TBD
OTA Support
HTML5 Support
Office TBD
FLASH Player Support
Email Support
Browser Support
Calculator Support
Calendar Support
System Software Clock Support
Search Support
Gallery Support
Downloads Support
Camera Support
Music Support
MoviePlayer Support
FileBrowser Support
AppInstaller Support
Settings
ID 子件编号 物料名称
0 SMB-E70060030 [Product]-Tablet
子件规格
SMB-E7006 CTIA(APPLE) standard gravity induction
dual-core MT8312V/X CPU 4G INAND 512M DDR3L
8804C,V2.0,2014.03.18, halogen, SAM070DP28V1 /
POWERPHONIX CO.
SMB-E7006, HW201402016 TOUCHBOOK703G
单位用量 位号 备注
1.000000
1 0990020020483 Accessories [Virtual assem Accessories
2 1011000020229 User Manual BLU,Touchbook 7.0 3G, User Manual, V1.0, halogen
SMB-E7006, HW201402016 TOUCHBOOK703G
3 0990030020540 Packages Packages
4 0101010299885 Ordinary PE bags 125*180mm,NA,NA
5 0104020020337 gift box inner box BLU,TOUCHBOOK 7.0 3G,V1.0,NR
BLU,TOUCHBOOK 7.0 3G,V1.0（color carton with
1.000000
1.000000
1.000000
User manual packaging bag
1.000000
1.000000
6 0108020020345 Printed carton glossy lamination, NR 0.100000 10 PC in one carton
"560 PC/pallet。14 cartons in one
layer，4 layers in one pallet;that
7 0107010099997 splint pallet
8 0109000099961 Paper corner protector
9 0103010320018 Coaming plate lining
10 0105070020037 paperboard Sheet
1219*1016*129mm, NA (plywood)
960*60*60*5mm
inside dimension 1170*1020*965mm, AB-flute
1150*1000mm,AB-flute
0.001800
0.007200
0.001800
0.001800
is,56 cartons (560 PC) each pallet.
After palletizing,dimension is as
follow：1219*1016*1101mm."
4 Paper corner protector each
palle,stuck on the top of pallet in
case strapping tape damages
boxes
1 Coaming plate liningeach pallet 1
paperboard Sheet each pallet
covers on the top of pallet
11 0990010020966
12 0301020120100
13 1013010320018
14 1013010320448
identification component t [VSMB-E7006, HW201402016, BLU TOUCHBOOK703G
identification component(package) white
Irregularly shaped PET proSMBE7006-BF02,Threelayers of mobile phone screen
protective film 0.1PET, NR
Coated paper self-adhesivLi-battery goods label,120*110mm, coated paper self-
adhesive
Coated paper self-adhesivSMB-E7006, T03, BLU, TOUCHBOOK703G, gift box
sticker (white) English,V1.0, NR
1.000000
store in the box
1.000000 1 Coated paper self-adhesive
0.110000 sticker each carton (10 PC), and 4
each pallet(560PC)
Paste box
1.000000
15 1013010320449 Coated paper self-adhesivSMB-E7006, T04, BLU, TOUCHBOOK703G, carton
sticker (white), English,V1.0, NR one was stuck on the
0.200000 carton,another put into the carton
US-AH-2000, American standard, fixed leg, customerized
16 0422010020133 Purchased -AC adapter
17 0991540020015 Wire function component
18 0414130020022 USB with cable
19 SMBE700610030 [main engine]-Tablet
& English, USB, straightpeen, black halogen/A16-3970-
502000/Aohai CO.
SMB-E7006, USB cable (USB-12mm+0.5/-0-identification
component printed on the reverse side-male-straight
peen) black
USB-12mm+0.5/-0-identification component printed on the
reverse side-male-straight peen=MICRO USB-
5.5mm+0.2/-0-identification component printed on thereverse
side-male-straight peen, [1.0m, without magnetic ring,
black]/R-Red Trading CO.
SMB-E7006 CTIA(APPLE)standard gravity induction
dual-core MT8312V/X CPU 4G INAND 512M DDR3L
8804C, V2.0, 2014.03.18, halogen
SAM070DP28V1/POWERPHONIX CO.
1.000000
1.000000
1.000000
1.000000
20 0990010020956 identification component [VSMB-E7006,HW201402016,BLU TOUCHBOOK703G
identification component(assembly ) 1.000000
21 1013010320417 Coated paper self-adhesivSMB-E7006, T01, BLU, TOUCHBOOK703G, product,
function Screen stickers English, V1.0, NR
SMBE7006-BF03,transparent protective film sleeve
stuck on the front side of the
1.000000 machine's transparent protective
sleeve
22 0301060020001 Other protective film 0.05OPP,NR 1.000000 Package the machine
stuck on the back side of the
23 1013010320440
24 1013010320455
Coated paper self-adhesivSMB-E7006,T02,BLU,TOUCHBOOK703G,back cover
sticker of the body,English,V1.0,NR
Coated paper self-adhesivSMB-E7006,T05,BLU,NR,data line sticker,NR,V1.0,NR
1.000000 machine's transparent protective
sleeve
1.000000 note:stuck on the USB cable
25 1013010220125
Ordinary paper self-adhesSMB-D7018,T02,Eastern Europe
Prestigio,PMP5670C,Water loss sticker 7*5mm,NR,V1.0 stuck on the designated place of
1.000000 the mainboard
26 0990040020691
27 0723000020630
28 0616201020320
structural components [VirSMB-E7006,HW201402016 TOUCHBOOK703G
structural components(white)
SMB-E7006,back coverassembly,PU paint Common
Assembly components ceramic white
(BLU silk printing HW201402016-V1.0), NR
SMBE7006-RE03, back cover, PUpaint, Common
Rear housing plastic parts ceramic white
(BLU silk printing HW201402016-V1.0), NR
SMBE7006-RE04,three-in-onepower +volume button, UV
1.000000
1.000000
1.000000
29 0616010020234 Plastic parts of button
30 0602010020166 IrregularPoron
paint, black, NR
SMBE7006-H04,horn sealing foam, ES,single sided
adhesive, black, NR
1.000000
1.000000
31 0602010020165 IrregularPoron
32 0602010020167 IrregularPoron
SMBE7006-H03, rear camera foam,ES,single sided
adhesive,ordinary adhesive, black,NR
SMBE7006-H05,MIC sealed foam, ES, One sideordinary
adhesive, black, NR
1.000000
1.000000
33 0616170120019
34 0610020120004
35 0615020020033
Plastic parts of the die cuttSMBD7803-H10, camera lens, One side 3M9448
adhesive,silk printing, black
Nickel plating machine scrM1.4*3.5CMHNI(NYLOK), D=2.4, K=0.5
Regularconstant voltage d3M9080,12*3mm, 0.1
1.000000
3.000000
1.000000
36 0602020020086 RegularPoron 5*5*1.2, HH48C, One side Tesa4972 adhesive,black, NR 1.000000
37 0602020020087 RegularPoron 10*5*0.5, ES,One sideordinary adhesive, black, NR 1.000000
38 0602020020003 RegularPoron 45*10*0.5, ES, One side 3M9080 adhesive, black 2.000000
39 空1.000000
40 0991160020238 Camera function componeSMB-E7006, front camera 0.3 M pixel+back camera 2M
pixel (U-SMB-D7021-0329-2235-V2.0) 1.000000
U-SMB-D7021-0329-2235-V2.0,CMOS,front camera 0.3
41 0715000020107 Built-in Camera M pixel& back camera 2M pixel,front camera 640*480
pixel & back camera 1600*1200 pixel, YUV/UNISON
42 0991010320232 WCDMA3G function comp SMB-E7006, WCDMA (850MHz/1900MHz/2100MHz)
N18-0519-R0A, FPC, 800MHz~2170MHz, lead wireI-PEX
1.000000
1.000000
43 0224010020254 Built-in passive antenna D0.81*L160, halogen free/Southstar CO. 1.000000 3G antenna
44 0991150020193 EMI CountermeasuresfuncSMB-E7006, Import the EMI function configuration 1.000000
45 0304010020068 Regular conductive foam NR,conductive,single sided adhesive, 5*5*4mm,NR,
halogen/GR00415P/HFC TECHNOLOGY CO.
attach to the middle frame of the
4.000000 LCD, please refer to the process
guidance book in detail
46 0303010000017 Regular conductive cloth
47 0303010099964 Regular conductive cloth
48 0705020020086 Nude battery pack
plain weave,Double-sided conductive, single sided
adhesive,Back painted conductive,10*7mm, NR
plain weave,Double-sided conductive,single sided
adhesive,Back painted conductive,15*10mm,NA
BT-D005L,3569110(Lithium polymer-Meibai-Meibai),
3000mAh,3.7V, halogen
stuck ont the SD card and
1.000000 Shielding cover, please refer to the
process guidance book in detail
stuck on the camer of FPC and
WIFIShielding, please refer to the
1.000000 process guidance book in detail
1.000000
49 0991260020070 ngine function componentsSMB-E7006, Vibration motor function 1.000000
LCM-0827A1988F(50mm line with terminal+0.5mm
50 0221020020025 DC Engine spongy cushion), halogen/LCM-0827A1988F/LEADER 1.000000
CO.
51 空1.000000
SMB-E7006,Touch screen and LCD screen
52 SMBE700620011 [Semifinished product]-LC
53 0703010020233 Touch screen panel
54 7008010120126 [Semifinished product]-LC
assembly SAM070DP28V1/POWERPHONIX CO.
assembly ACE-GG7.0A-408-P,V1.0 black HW201402016
TOUCHBOOK703G structural components (white)
ACE-GG7.0A-408-P, V1.0, capacitance, 7''&16:9, without
back paint, halogen free/ACETECH CO.
SAM070DP28V1/POWERPHONIX CO.assembly
1.000000
1.000000
1.000000
55 0725000020061 LCD panel components
56 0719000020018 Liquid crystal glass plate
MWL070.024.1329-000, backlight module,halogen
/POWERPHONIX CO.
LSL070NL01,Samsung,7“&16:9 number, halogen/CoAsia
Microelectronics Corp.
0.000000 single dosage：1 LCD
1.000000
57 0990040020692
construction part[Virtual asSMB-E7006, HW201402016 TOUCHBOOK703G LCD
structural components (white)
SMB-E7006, front cover assembly, white(front coverUV),
1.000000
58 0723000020631 Assembly components NR 1.000000
59 0616201120189 Fronthousing plastic partsSMBE7006-RE01, front cover, UVpaint, white, NR 1.000000
60 0608030000008 Coppernut M1.4*2, copper, knurl 6.000000
61 0615010020157
62 0723000020629
63 0616201520046
Irregular double-sided adhSMBE7006-H01, SAINT GO BAIN CO.V2020, touch
screen constant voltage diode, NR
Assembly components SMB-E7006, middle coverassembly, black, NR
Middle housing plastic parSMBE7006-RE02, middle cover, NR, black, NR
1.000000
1.000000
1.000000
64 0617240020042 bracket's metal parts
65 0617240020083 bracket's metal parts
66 0607000020021 Horn net
67 0602010020172 IrregularPoron
SMBD7021-PT01, Battery holder, 0.2mm stainless steel
SMBE7006-PT04, Speaker support plate,0.2mm tin-
covered plate, pallet, NR
SMBD7021-PT02, Receiver filter 0.1 Nickel piece,
tesa4972 adhesive, oxidize, black
SMBE7006-H09,Touch screen foam hydrops
WS07,Double back paint
Tesa4972/Tesa68562,black,NR
1.000000
1.000000
1.000000
1.000000
68 0610020120004 Nickel plating machine scrM1.4*3.5CMHNI(NYLOK), D=2.4, K=0.5
SMBE7006-H02, front camera foam, ES, single sided 3.000000
69 0602010020164 IrregularPoron adhesive, ordinary adhesive, black, NR 1.000000
70 0615020020038 Regularconstant voltage d3M9080,5mm*9mm,0.1
F01-2053-R0A,FPC,1570MHz~2500MHz,goldfinger，
4.000000
71 0224010020253 Built-in passive antenna halogen free/Southstar CO. 1.000000 GPS/WIFI Antenna
SMB-E7006mainboard8804C,DIP
CTIA(APPLE)standard gravity induction dual-
coreMT8312V/X CPU 4G INAND 512M DDR3L
72 SMBE700630009 [Semifinished product]-Mo8804C,V2.0,2014.03.18,halogen Vibration motor BT- 1.000000
E002,3569110( without chargedgauge5PIN) leading-in
EMI WCDMA(850MHz/1900MHz/2100MHz) front
camera 0.3M pixel+back camera 2M pixel
73 0991410020209 Plate type of functional comSMB-E7006mainboard8804C,DIP Shared folders 1.000000
74 0991150020191 EMI CountermeasuresfuncSMB-E7006mainboard8804C,EMI function DIP 1.000000
75 0617160020143
Shielding cover's metal paSMBE7006-PT03,power Shielding cover,0.2mmtin-
covered plate,pallet,NR 1.000000
76 0617160020141 Shielding cover's metal paSMBE7006-PT02,mainboardShielding cover,0.2mmtin-
covered plate,pallet,NR 1.000000
77 0311020020046 Irregularly shaped InsulatinSMBD7031-H05,mainboardShielding coverInsulating
pad,ordinary adhesive,black,NR 1.000000
78 0311020020056
79 SMBE700640009
Irregularly shaped InsulatinSMBE7006-H06,power Shielding coverInsulating
pad,One sideordinary adhesive,black,NR
SMB-E7006mainboard8804C,SMT
CTIA(APPLE)standard gravity induction dual-
coreMT8312V/X CPU 4G INAND 512M DDR3L
8804C,V2.0,2014.03.18,halogen vibration motor
[Semifinished product]-Mo
1.000000
1.000000
function BT-E002,3569110( without charged gauge
5PIN) leading-in EMI
WCDMA(850MHz/1900MHz/2100MHz) front camera
0.3M pixel+back camera 2M pixel
80 0991410020224 Plate type of functional comSMB-E7006mainboard8804C,V2.0 SMT Shared folders 1.000000
R1025,R1027,R1030,
R1032,R106,R109,R
81 0210050200202 Chip Registor
82 0210050200206 Chip Registor
83 0210050200207 Chip Registor
0201,0R,1/20W,J,SMD/RC0201JR-070RL/YAGEO/RC-
01W000JT/So Gaoke company
0201,27R,1/20W,J,SMD/RC0201JR-
0727RL/YAGEO/RC-01W27RFT/So Gaoke company
0201,33R,1/20W,J,SMD/RC0201JR-
0733RL/YAGEO/RC-01W33RJT/So Gaoke company
1101,R1720,R1721,R
20.000000 203,R209,R211,R222
,R420,R802,R803,R9
24,R926,R929,R945
1.000000 R510
1.000000 R423
0201,56R,1/20W,F,SMD/RC01W56RFT/So Gaoke
84 0210050220129 Chip Registor
85 0210050200211 Chip Registor
86 0210050200212 Chip Registor
87 0210050220062 Chip Registor
company/RC0201FR-
0756RRL/YAGEO/CR0201F56R0T/Akani CO.
0201,100R,1/20W,J,SMD
0201,240R,1/20W,F,SMD/RC0201FR-
07240RL/YAGEO/RC-01W241FT/So Gaoke company
0201,470R,1/20W,J,SMD/RC0201JR-
07470RL/YAGEO/RC-01W471JT/So Gaoke
company/CR0201J0471T/Kaishine Group
1.000000 R207
3.000000 R405,R406,R501
2.000000 R502,R503
2.000000 R407,R408
88 0210050200248 Chip Registor
89 0210050200214 Chip Registor
90 0210050220065 Chip Registor
91 0210050200252 Chip Registor
92 0210050200308 Chip Registor
93 0210050200219 Chip Registor
94 0210050200341 Chip Registor
0201,1K,1/20W,J,SMD/RC0201JR-0701KL/YAGEO
0201,1K,1/20W,F,SMD
0201,1.5K,1/20W,F,SMD/RC0201FR-071K5L/YAGEO
0201,2.49K,1/20W,F,SMD
0201,3.3K,1/20W,J,SMD/RC0201JR-
073K3L/YAGEO/RC-01W332JT/So Gaoke company
0201,4.7K,1/20W,J,SMD/RC0201JR-
074K7L/YAGEO/RC-01W472JT/So Gaoke company
0201,5.1K,1/20W,F,SMD/RC0201FR-
075K1L/YAGEO/RC-01W512FT/So Gaoke company
6.000000
2.000000
4.000000
1.000000
1.000000
6.000000
1.000000
R316,R412,R414,R5
05,R1801,R1802
R401,R404
R206,R402,R403,R4
13
R936
R334
R214,R215,R216,R2
17,R218,R219
R213
95 0210050220064 Chip Registor
96 0210050200193 Chip Registor
97 0210050200224 Chip Registor
98 0210050200228 Chip Registor
99 0210050299999 Chip Registor
100 0210050299891 Chip Registor
101 0210050200143 Chip Registor
102 0210050299993 Chip Registor
103 0210050299946 Chip Registor
104 0210050299931 Chip Registor
105 0210050299930 Chip Registor
106 0210050299898 Chip Registor
107 0210050299826 Chip Registor
108 0210050299859 Chip Registor
109 0210050299810 Chip Registor
110 0210050299813 Chip Registor
0201,8.06K,1/20W,F,SMD/RC0201FR-078K06L/YAGEO
0201,10K,1/20W,J,SMD/RC0201JR-0710KL/YAGEO
0201,47K,1/20W,J,SMD/RC0201JR-
0747KL/YAGEO/RC-01W473JT/So Gaoke company
0201,470K,1/20W,J,SMD/RC0201JR-
07470KL/YAGEO/RC-01W474JT/So Gaoke company
0402,0R,1/16W,J,SMD/RC0402JR-
070RL/YAGEO/CR0402J0000T/Housheng Co./RC-
02000JT/So Gaoke company
0402,2.2R,1/16W,J,SMD
0402,267R,1/16W,F,SMD
0402,1K,1/16W,J,SMD
0402,16.9K,1/16W,F,SMD
0402,20K,1/16W,F,SMD
0402,20K,1/16W,J,SMD
0402,27K,1/16W,F,SMD
0402,51K,1/16W,F,SMD
0402,39K,1/16W,F,SMD
0402,60.4K,1/16W,F,SMD
0402 56K 1/16W F SMD
2.000000 R204,R205
R1710,R1711,R1713,
8.000000 R1714,R1715,R1719,
R804,R934
1.000000 R411
1.000000 R410
3.000000 R1022,R220,R303
1.000000 R10
1.000000 R1718
2.000000 R1706,R42
1.000000 R1707
1.000000 R970
2.000000 R317,R318
1.000000 R1708
1.000000 R21
2.000000 R1705,R1709
1.000000 R971
2 000000 R424 R425
111 0210050299918 Chip Registor 0402,220K,1/16W,F,SMD
112 0210050200318 Chip Registor 0402,330K,1/16W,F,SMD
113 0210050299841 Chip Registor 0402,470K,1/16W,J,SMD
114 0210050200005 Chip Registor 0603,0R,1/10W,F,SMD
0805,4.7R,1/8W,F,SMD,halogen free/RC0805FR-
115 0210050220145 Chip Registor 074R7L/YAGEO/RS-05L4R7FT/So Gaoke
company/CR0805F04R7T/Housheng Co.
116 0208080200119 Multilayer Ceramic Capaci0201,15pF,25V,COG,0.3mm,J,SMD
117 0208080200107 Multilayer Ceramic Capaci0201,18pF,25V,COG,0.3mm,J,SMD
118 0208080200085 Multilayer Ceramic Capaci0201,33pF,25V,COG,0.3mm,J,SMD
119 0208080200101 Multilayer Ceramic Capaci0201,100PF,25V,COG,0.3mm,J,SMD
120 0208080220030 Multilayer Ceramic Capaci0201,150pF,25V,0.3mm,K,SMD
1.000000
1.000000
1.000000
3.000000
2.000000
1.000000
4.000000
6.000000
5.000000
1.000000
R20
R124
R904
FB10,FB11,R906
R907,R908
C1009
C319,C324,C1008,C
1010
C405,C406,C421,C4
22,C426,C427
C404,C425,C1014,C
1015,C1016
C1703
121 0208080220048
122 0208080200104
123 0208080200087
124 0208080200088
Multilayer Ceramic Capaci0201,220pF,25V,X7R,0.3mm,K,SMD/CC0201KRX7R8BB
221/YAGEO
Multilayer Ceramic Capaci0201,680PF,25V,X7R,0.3mm,K,SMD
Multilayer Ceramic Capaci0201,102,25V,X5R,0.3mm,K,SMD
Multilayer Ceramic Capaci0201,472,10V,X7R,0.3mm,K,SMD
1.000000 C434
1.000000 C1704
2.000000 C437,C438
1.000000 C1018
125 0208080200091
126 0208080200062
127 0208080299969
128 0208080299967
Multilayer Ceramic Capaci0201,223,6.3V,X5R,0.3mm,K,SMD/CC0201KRX5R5BB2
23/YAGEO/C0603X5R0J223KT00NN/TDK
Multilayer Ceramic Capaci0201,104,6.3V,X5R,0.3mm(Max.),K,SMD
Multilayer Ceramic Capaci0402,100pF,50V,NPO,NA,J,SMD
Multilayer Ceramic Capaci0402,102,50V,X7R,0.5mm,K,SMD
2.000000 C432,C441
C105,C114,C118,C1
21,C126,C141,C145,
C146,C147,C149,C1
53,C154,C159,C160,
C161,C162,C164,C1
65,C167,C171,C172,
C173,C174,C176,C2
02,C203,C241,C326,
C407,C423,C424,C4
31,C1017,C1712,C17
76.000000 13,C1801,C501,C502
,C503,C504,C505,C5
06,C507,C508,C509,
C510,C511,C512,C5
13,C514,C515,C516,
C517,C518,C531,C5
32,C533,C535,C536,
C538,C938,C944,C9
61,C962,C963,C964,
C965,C966,C967,C9
68,C969,C970,C971,
C972 C973 C974
2.000000 C1004,C54
1.000000 C1402
129 0208080299937
130 0208080299966
131 0208080299909
Multilayer Ceramic Capaci0402,222,50V,X7R,0.5mm,K,SMD/CC0402KRX7R9BB22
2/YAGEO
Multilayer Ceramic Capaci0402,103,25V,X7R,0.5mm,K,SMD
Multilayer Ceramic Capaci0402,473,10V,X7R,NA,K,SMD
1.000000 C10
1.000000 C1005
1.000000 C1706
C320,C52,C1411,C1
132 0208080200108 Multilayer Ceramic Capaci0402,104,25V,X5R,0.55mm,K,SMD
133 0208080299961 Multilayer Ceramic Capaci0402,104,50V,Y5V,NA,Z,SMD
13.000000
2.000000
029,C801,C55,C806,
C266,C321,C325,C1
404,C318,C981
C56,C57
C1007,C1022,C177,
C408,C150,C242,C3
04,C307,C409,C539,
134 0208080299960
135 0208080299932
Multilayer Ceramic Capaci0402,1uF,10V,X5R,0.5mm,K,SMD/CC0402KRX5R6BB10
5/YAGEO
Multilayer Ceramic Capaci0402,2.2uF,6.3V,X5R,0.5mm,M,SMD/CC0402MRX5R5B
B225/YAGEO
C169,C1714,C322,C
27.000000 927,C1025,C175,C98
0,C170,C308,C316,C
352,C243,C353,C171
5,C1028,C166,C264
C336,C519,C520,C5
21,C522,C523,C524,
C525,C526,C527,C5
20.000000 28,C529,C530,C534,
C802,C803,C804,C8
05,C975,C976
C168,C428,C537,C9
136 0208080200039 Multilayer Ceramic Capaci0402,4.7uF,6.3V,X5R,0.65mm,C,SMD
137 0208080299880 Multilayer Ceramic Capaci0603,104,50V,X7R,NA,K,SMD
138 0208080200148 Multilayer Ceramic Capaci0603,105,25V,X5R,0.8mm,K,SMD
139 0208080220032 Multilayer Ceramic Capaci0603,225,16V,X5R,0.9mm(Max.),K,SMD
140 0208080299812 Multilayer Ceramic Capaci0603,4.7uF,16V,X7R,NA,K,SMD
10.000000
5.000000
2.000000
3.000000
5.000000
04,C905,C1003,C102
6,C1101,C1707,C53
C1406,C1407,C1408,
C1409,C929
C1701,C1702
C334,C435,C436
C301,C302,C303,C3
09,C439
C135,C137,C138,C1
39,C163,C306,C311,
141 0208080299874 Multilayer Ceramic Capaci0603,10uF,6.3V,X5R,NA,M,SMD 15.000000 C410,C430,C914,C1
708,C1710,C1711,C1
705,C51
142 0208080200106 Multilayer Ceramic Capaci0603,22uF,6.3V,X5R,0.8mm,M,SMD/CC0603MRX5R5B
B226/YAGEO 2.000000 C417,C418
143 0208080220104 Multilayer Ceramic Capaci0805,4.7uF,50V,X5R,1.25±0.20mm,M,SMD/UMK212BBJ
475MG-T/TAIYO 1.000000 C928
144 0208080200011
145 0208080200029
146 0207040220002
147 0207040299999
148 0207080000011
Multilayer Ceramic Capaci0805,22uF,6.3V,X5R,NR,M,SMD/CC0805MRX5R5BB22
6/YAGEO/0805X226M6R3NT/So Gaoke company
Multilayer Ceramic Capaci0603,1uF,25V,X7R,0.8mm,K,SMD
gh frequency common moDLP0NSN900HL2L,90R@100MHz,SMD
gh frequency common moACM2012-900-2P,90@10M,SMD(halogen free)
Patch stacked inductor 0402,82nH,-5%~+5%,200mA,8@100MHz,SMD
VLS252010MNT-R68N,L2.5*W2*H1.0,0.68uH,-
3.000000 C341,C64,C50
1.000000 C1401
L904,L905,L906,L907
5.000000 ,L908
1.000000 L1402
2.000000 L401,L1005
149 0207030020035 工-Shaped Inductance
150 0207030020038 工-Shaped Inductance
150 0207030000176 工-Shaped Inductance
151 0207030020014 工-Shaped Inductance
152 0207030020026 工-Shaped Inductance
153 0207030020050 工-Shaped Inductance
153 0207030020054 工-Shaped Inductance
154 0207080020003 Patch stacked inductor
155 0210080000014 Piezoresistor
156 0210080020005 Piezoresistor
157 0211010020007 TVS Diode
158 0211080000022 constant voltage diode
159 0211090100003 Single Schottky Diode
160 0205040099974 General Bead
161 0205040020000 General Bead
162 0205040099986 General Bead
163 0205010020001 magnetic bead
164 0205010099969 magnetic bead
165 0225000099980 passive filter
166 0201360320006 Video Converter IC
167 0201180020009 Reset IC
167 0201180020006 Reset IC
168 0201120320003 PMU powerIC
30%~+30%,3.0A,SMD/TDK
VLS252010MNT-2R2M,L2.5*W2*H1.0,2.2uH,-
20%~+20%,1.6A,SMD/TDK
LVF252A12-2R2M-N,L2.5*W2*H1.2,2.2uH,-
20%~+20%,1.8A,SMD
HPC4018B-100M,L4*W4*H1.8,10uH,-
20%~+20%,1.2A,SMD/TAI-TECH CO.
HPC4018B-2R2M,L4*W4*H1.8,2.2uH,-
20%~+20%,2.2A,SMD/TAI-TECH CO.
VLS252010HBT-R68M-LR,L2.5*W2*H1.0,0.68uH,-
20%~+20%,3.2A,SMD/TDK
VLS252010HBX-R68M,L2.5*W2*H1.0,0.68uH,-
20%~+20%,4.17A,SMD,halogen free/TDK
0201,7.5nH,-5%~+5%,300mA,14@500MHz,SMD
ES0402V014BT-MP,0402,0.25pF,14V,SMD
AVLC 5S 02 050,0402,50pF,5.5V,SMD/AMECS
ESD7951ST5G,5.0V,150mW, 双向,SOD923,SMD/ON
PZ3D4V2H,5.1V,-
10%~+10%,5mA,SOD323,SMD/Presemi
1N5819HW,40V,1A,SOD-123,SMD
0402,120R,500mA,SMD
0402,600R,300mA,SMD
0603,50R,3A,SMD
BLM15HD102SN1,0402,1000R@100MHz&2000R@1Gh
z,250mA,SMD
NA,0603,220R,2A,SMD
SAFEB1G57KE0F00,Soundsurface,1411,SMD/Murata
MT8193,LVFBGA150,SMD/MTK
TPS3421EGDRYR,DFN-6,SMD,halogen free/TI
FT7522L6X,DFN-6,SMD/Fairchild
MT6323GA/A,VFBGA-145L,SMD/MTK
1.000000
1.000000
1.000000
1.000000
2.000000
1.000000
1.000000
1.000000
16.000000
4.000000
1.000000
1.000000
1.000000
2.000000
1.000000
1.000000
7.000000
2.000000
1.000000
1.000000
1.000000
1.000000
1.000000
L303
L302 main material
alternative material
L302
L901
L1701,L8
L301 main material
alternative material
L301
L1009
RV1702,RV409,RV41
0,RV1101,RV1104,R
V1803,RV1105,RV11
07,RV1801,RV1802,
RV411,RV1102,RV17
01,RV412,RV1106,R
V1103
RV413,RV405,RV404
,RV403
RV406
D302
D901
FB801,R1102
FB1001
FB412
FB1002,FB1003,FB4
07,FB408,FB409,FB4
10,FB411
FB413,FB414
SAW1002
U3
U202 main material
alternative material
U202
U301
169 0201170120005 Analog audio power amplifAW8736FCR,FC-16,SMD 1.000000 U402
170 0201050120003 Capacitive touch control ICGT910,QFN40,SMD(GOODIX) 1.000000 U801
171 0201150020004 Modulation & DemodulatioMT6627N/A,QFN,SMD/MTK 1.000000 U1001
172 0201170220000 RF AmplifierIC BGU7005,XSOU6,SMD/NXP 1.000000 U1002
173 0201040120000 Nonlinear charge manageBQ24196RGER,QFN24,SMD 1.000000 U1701
174 0201120220024 MOS built-in DC-DC poweSGM3732,SOT-23-6,SMD/SGMICRO 1.000000 U901
175 0201120220012 MOS built-in DC-DC poweSY8089AAAC,SOT-23-5,SMD 1.000000 U20
176 0201310220019 LDO nonadjustable voltag TLV70233DBVR,SOT23-5,SMD,halogen free/TI 1.000000 U905
177 0201310220018 LDO nonadjustable voltag TLV70212DBVR,SOT23-5,SMD,halogen free/TI 1.000000 U906
RFDIP1608060TM7T62,L1.6*W0.8*H0.6,SMD/Walsin
178 0201420020017 Diplexer IC
179 0218010020010 crystal
180 0218020020001 oscillator
180 0218020000035 oscillator
181 0502110000015 Conventional socket
182 0502010200065 Horizontal FPC socket
183 0505030020003 Micro SD Card
184 0502030020014 Micro USB socket
CO.
7M26000028,26.000MHz,-
10PPM~+10PPM,4P,L3.2*W2.5*H0.7,SMD/TXC
1XXB26000CTF,26.000MHz,-
0.5PPM~+0.5PPM,1.8V,SMD
7L26002009,26.000MHz,-
0.5PPM~+0.5PPM,1.70V~3.30V,SMD/TXC
SUR0.8-2A,single row,horizontal type
,SMD
6P,0.5mm,Non-breaking plate,Cover
type,downcast,single-row,SMD
GTF016-C1E,Board type,ejectable,with the card
detection,SMD
DX4R005JJE,Non-breaking plateplain end, Positive
paste,SMD/JAE
1.000000 SAW1003
1.000000 Y901
1.000000 Y1001 main material
alternative material
1.000000 Y1001
2.000000 CN402,CN403
1.000000 CN1909
1.000000 TF1
1.000000 JP4
NJP372-103T,D3.5,3channel,with switch, breaking plate
185 0502230820026 Headset audio and video s type
,horizontal type,SMD/MeiQi CO.
39P,0.3mm,Non-breaking plate,frontcover type
1.000000 JP3
186 0502010200038 Horizontal FPC socket
187 0502010220041 Horizontal FPC socket
188 0502220020007 coaxial socket
,downcast,biserial,SMD/FH26-39S-0.3SHW(05)/HRS
35P,0.3mm,Non-breaking plate,front Cover type
,downcast,biserial,SMD/FH26-35S-0.3SHW(05)/HRS
PAN00-01120-0107,dome-typed,,without
switch,vertical,SMD/LCN
1.000000 CN801
1.000000 CN1917
2.000000 ANT1006,ANT1007
189 0617160020110 Shielding cover's metal paSMBD7021-PT04,WIFIShielding cover,0.2tin-covered
plate 1.000000
190 0211010000032 TVS Diode
191 0218010099944 crystal
192 0226010020564 PCB
193 0210050299853 Chip Registor
LXES15AAA1-017,15V,NR,two-way,0402,SMD
FC-135,32.768KHz,-
20PPM~+20PPM,2P,L3.2*W1.5*H0.8,SMD
8804C,V2.0,2014.03.18,halogen
0402,43K,1/16W,F,SMD
3.000000 RV408,RV407,RV414
1.000000 Y301
1.000000
1.000000 R125
194 0991040020186 DDR functional componenSMB-E7006mainboard8804C,with 512M DDR3L function
195 0201071220024 DDR3 SDRAMIC H5TC2G83EFR-PBA,FBGA78,SMD/SKhynix
196 0991110020363 Memory function assemblySMB-E7006mainboard8804C,with 4G INAND function
197 0201070520008 INAND FLASHIC KE4CN2H5A,FBGA153,SMD(Kingston CO.)
197 0201070520018 INAND FLASH IC THGBM5G5A1JBAIR,FBGA153,SMD/TOSHIBA
197 0201070520019 INAND FLASH IC KLM4G1YEMD-B031,FBGA153,SMD/SAMSUNG
1.000000
2.000000 U501,U502
1.000000
1.000000 U503 main material
alternative material
1.000000 U503 alternative material
1.000000 U503
198 0991190020127 CPU dominant frequency fSMB-E7006mainboard8804C,MT8312V/X CPUdual-core 1.000000
199 0201260220029 CPU controller IC MT8312V/X,MT8312V/X,FCCSP475,SMD/MediaTek.Inc 1.000000 U201
200 0991010320231
201 0201150020005
202 0201170200005
203 0201420020016
204 0201420020006
205 0201170200004
206 0201170200009
207 0201170220010
208 0201420020005
209 0207080000048
WCDMA3G Function keysSMB-E7006 Motherboard 8804C,with
WCDMA(850MHz/1900MHz/2100MHz)
modulate&demodulator ICMT6166V/A,TFBGA,SMD/MTK
RF magnifier IC RF7241,RF7241DS,SMD
duplexer IC SAYFH836MCC0F0A,L2.0*W1.6*H0.6,SMD/Murata
duplexer IC SAYRF1G88CA0B0A,L2.0*W1.6*H0.6,SMD/Murata
RF magnifier IC RF7245,RF7245DS,SMD
RF magnifier IC RF7242,RF7242DS,SMD
RF magnifier IC SKY77589,6*6*0.9mm,SMD/SKYWORKS
duplexer IC SAYRF1G95HQ0F0A,L2.0*W1.6*H0.6,SMD/Murata
Patch stacked inducto 0201,8.2nH,-5%~+5%,180mA,14@500MHz,SMD
1.000000
1.000000 U602
1.000000 U701
1.000000 SAW702
1.000000 SAW703
1.000000 U702
1.000000 U703
1.000000 U616
1.000000 SAW701
2.000000 L625,L711
210 0207080000053 Patch stacked inducto 0201,2.2nH,-0.2nH~+0.2nH,600mA,14@500MHz,SMD 4.000000 L618,L622,L708,L723
211 0207080000056 Patch stacked inductor 0201,18nH,-5%~+5%,160mA,14@500MHz,SMD 1.000000 L707
212 0207080000061 Patch stacked inductor 0201,10nH,-5%~+5%,250mA,10@500MHz,SMD 2.000000 L600,L619
0201,39nH,-
213 0207080020006 Patch stacked inductor 5%~5%,120mA,10@300MHz,SMD/MLG0603P39NJT/TD 1.000000 L602
K
0201,4.3nH,-
214 0207080020027 Patch stacked inductor 0.3nH~+0.3nH,220mA,13@500MHz,SMD/SDCL0603Q4 1.000000 L704
N3ST02 /Sunlord
0201,2nH,-
215 0207080020043
216 0207080020051
217 0207080000029
218 0208080200062
219 0208080220095
Patch stacked inductor 0.3nH~+0.3nH,380mA,4@100MHz,SMD/HK06032NOS-
T/TAIYO
0201,1nH,-
Patch stacked inductor 0.2nH~+0.2nH,1000mA,14@500MHz,SMD/MLG0603P1
N0CT/TDK
Patch stacked inductor 0201,1.5nH,-0.3nH~+0.3nH,430mA,6@100MHz,SMD
Multilayer Ceramic Capaci0201,104,6.3V,X5R,0.3mm(Max.),K,SMD
0201,3.6pF,50V,NP0,0.3mm,C,SMD/CC0201CRNP09BN
3R6/YAGEO/0201N3R6C500CT/HuaXin
Multilayer Ceramic Capaci
3.000000 C739,L705,C750
2.000000 L623,L626
1.000000 C758
2.000000 C607,C1203
1.000000 C746
corporation/0201CG3R6C500NT/FengHua high
technology corporation
220 0208080200083 Multilayer Ceramic Capaci0201,22pF,25V,COG,0.3mm,J,SMD
221 0208080200085 Multilayer Ceramic Capaci0201,33pF,25V,COG,0.3mm,J,SMD
222 0208080200086 Multilayer Ceramic Capaci0201,56pF,25V,COG,0.3mm,J,SMD
0201,474,6.3V,X5R,0.3mm,M,SMD/CC0201MRX5R5BB4
223 0208080200094 Multilayer Ceramic Capaci 74/YAGEO/C0603X5R0J474MT00NE/TDK/JMK063BJ47
4MP-F/TAIYO YUDEN
224 0208080200100 Multilayer Ceramic Capaci0201,4.7pF,25V,COG,0.3mm,C,SMD
225 0208080200101 Multilayer Ceramic Capaci0201,100PF,25V,COG,0.3mm,J,SMD
4.000000
1.000000
2.000000
6.000000
2.000000
3.000000
C691,C693,C698,C6
99
C608
C614,C723
C669,C674,C675,C6
76,C677,C684
C738,C741,
C718,C721,C724
226 0208080200107 Multilayer Ceramic Capaci0201,18pF,25V,COG,0.3mm,J,SMD
227 0208080200108 Multilayer Ceramic Capaci0402,104,25V,X5R,0.55mm,K,SMD
C613,R717,L701,R71
4.000000 8
3.000000 C725,C730,C734
228 0208080220048
Multilayer Ceramic Capaci0201,220pF,25V,X7R,0.3mm,K,SMD/CC0201KRX7R8BB
221/YAGEO 1.000000 C606
229 0208080220049
230 0208080220086
231 0208080299874
232 0208080299920
Multilayer Ceramic Capaci0201,39pF,25V,NPO,0.3mm,J,SMD/CC0201JRNPO8BN
390/YAGEO
0201,2pF,50V,NPO,0.3mm,C,SMD/CC0201CRNPO9BN
Multilayer Ceramic Capaci 2R0/YAGEO/CC0201N2R0C250T/HuaXin/0201CG2R0C
250NT/FengHua high technology corporation
Multilayer Ceramic Capaci0603,10uF,6.3V,X5R,NA,M,SMD
Multilayer Ceramic Capaci0402 39pF 50V NPO NA J SMD
1.000000 C609
1.000000 C742
1.000000 C604
1 000000 C611
233 0208080299932
234 0208080299951
235 0208080299960
236 0210050200193
Multilayer Ceramic Capaci0402,2.2uF,6.3V,X5R,0.5mm,M,SMD/CC0402MRX5R5B
B225/YAGEO
Multilayer Ceramic Capaci0402,152,50V,X7R,NA,K,SMD
Multilayer Ceramic Capaci0402,1uF,10V,X5R,0.5mm,K,SMD/CC0402KRX5R6BB10
5/YAGEO
Chip Registor 0201,10K,1/20W,J,SMD/RC0201JR-0710KL/YAGEO
0201,0R,1/20W,J,SMD/RC0201JR-070RL/YAGEO/RC-
1.000000 C631
3.000000 C722,C728,C732
C602,C683,C717,C7
6.000000 31,C1202,C733
1.000000 R612
237 0210050200202 Chip Registor
238 0210050200206 Chip Registor
239 0210050200248 Chip Registor
240 0210050200249 Chip Registor
01W000JT/FengHua High Technology Corporation
0201,27R,1/20W,J,SMD/RC0201JR-
0727RL/YAGEO/RC-01W27RFT/ FengHua high
technology corporation
0201,1K,1/20W,J,SMD/RC0201JR-0701KL/YAGEO
0201,34.8R,1/20W,F,SMD
2.000000 R640,R641
2.000000 R629,R630
R602,R604,R607,R6
4.000000 08
1.000000 R632
0201,24K,1/20W,J,SMD/RC0201JR-
241 0210050200312 Chip Registor
242 0210050220059 Chip Registor
243 0210050220060 Chip Registor
244 0210050299999 Chip Registor
245 0210080000014 Piezoresistor
246 0218010020010 passive crystal
246 0218010020016 passive crystal
247 0225000020019 passive filter
248 0502220020000 coaxial socket
249 0502220099989 coaxial socket
250 0505080020013 SIM card
251 0617160020142 shielding cover's metal pa
252 0207080000035 patch stacked inductor
253 0207080020046 patch stacked inductor
0724KL/YAGEO/RC-01W243JT/FengHua high
technology corporation
0201,51R,1/20W,J,SMD/RC0201JR-0751RL/YAGEO
0201,2K,1/20W,F,SMD/RC0201FR-072KL/YAGEO
0402,0R,1/16W,J,SMD/RC0402JR-
070RL/YAGEO/CR0402J0000T/HouSheng/RC-
02000JT/FengHua high technology corporation
ES0402V014BT-MP,0402,0.25pF,14V,SMD
7M26000028,26.000MHz,-
10PPM~+10PPM,4P,L3.2*W2.5*H0.7,SMD/TXC
X3S026000B71HZ-HPR,26.000MHz,-
10PPM~+10PPM,4P,L3.2*W2.5*H0.65, SMD/JiaGao
corporation
RFBLN2012090BM5T25, MLC,2.0*1.2*0.9, SMD/PSA
C168-JL-1663, MHF3, without switch,vertical,SMD
MM8430-2610RB3, I-PEX, with switch, vertical,SMD
JSY-SIM-8-1(with pillar), pop up, SMD/JinShuoYuan
corporation
SMBE7006-PT01,3G sheilding cover,0.2mm tin plate,
pallets,NR
0201,3.0nH,-0.3nH~+0.3nH, 330mA,7@100MHz,SMD
0201,5.6nH,-
0.3nH~+0.3nH,350mA,14@500MHz,SMD/MLG0603P5N
6STZ10/TDK
1.000000
1.000000
1.000000
2.000000
4.000000
1.000000
1.000000
1.000000
1.000000
1.000000
1.000000
1.000000
1.000000
1.000000
R613
R720
R600
R603,R673
RV1201,RV1202,RV1
203,RV1204
Y601 main material
alternative material
Y601
SAW603
ANT601
ANT602
SIM1
L713
L709
254 0208080220083 Multilayer Ceramic Capaci0201,8.2pF,50V,NPO,0.3mm,C,SMD/CC0201CRNPO9B
N8R2/YAGEO 1.000000 C745
0201,5.1nH,-
255 0207080020053 patch stacked inductor 0.3nH~+0.3nH,250mA,5@100MHz,SMD/MLG0603P5N1 2.000000 C740,C748
ST000,halogen free/TDK
256 0207080000057 patch stacked inductor 0201,33nH,-5%~+5%,130mA,10@500MHz,SMD 1.000000 L616
0201,1.5nH,-
257 0207080020054 patch stacked inductor 0.2nH~+0.2nH,800mA,22@800MHz,SMD/MLG0603P1N 1.000000 L702
5CT000,halogen free/TDK
258 0991060020099
259 0210050200211
260 0208080200062
261 0201060300015
262
gravity sensing function coSMB-E7006 motherboard 8804C, with gravity sensing
function component
Chip Registor 0201,100R,1/20W,J,SMD
Multilayer Ceramic Capaci0201,104,6.3V,X5R,0.3mm(Max.),K,SMD
acceleration transducer BMA250E,LGA-12,SMD/BOSCH
SMB-E7006 motherboard 8804C,with front camera
1.000000
2.000000 R1601,R1602
2.000000 C1603,C1604
1.000000 U1602
1.000000
263 0991160020237 camera function compone
264 0210050299999 Chip Registor
0.3Mp+rear camera 2Mp
0402,0R,1/16W,J,SMD/RC0402JR-
070RL/YAGEO/CR0402J0000T/HouSheng
corporation/RC-02000JT/FengHua high technology
1.000000
1.000000 R1503
265 0208080200062 Multilayer Ceramic Capaci0201,104,6.3V,X5R,0.3mm(Max.),K,SMD 3.000000 C1501,C1502,C1503
266 0208080299932 Multilayer Ceramic Capaci0402,2.2uF,6.3V,X5R,0.5mm,M,SMD/CC0402MRX5R5B
B225/YAGEO 2.000000 C1504,C1506
267 0208080299960 Multilayer Ceramic Capaci0402,1uF,10V, X5R, 0.5mm, K,
SMD/CC0402KRX5R6BB105/YAGEO
AXT530124, 0.4mm,30P, double row, vertical, SMD/
1.000000 C1507
268 0502210020020 special socket Panasonic corporation 1.000000 CN1501
269 0991670020090
earphone standard functioSMB-E7006 motherboard 8804C,with CTIA(APPLE)
standard function configuration
0201,0R,1/20W,J,SMD/RC0201JR-070RL/YAGEO/RC-
1.000000
270 0210050200202 Chip Registor 01W000JT/FengHua high technology corporation 2.000000 R415,R419
271 0991230020134
connector function componSMB-E7006 motherboard 8804C, battery without
coulomb counter(5PIN)
MH1.25-5A, single row, horizontal,SMD/ xinxun
1.000000
272 0502110020012 conventional socket
273 0210050299764 Chip Registor
274
275 0991260020069 motor asembly
technology corporation
0603,0R,1/10W,J,SMD/RC0603JR-070RL/ YAGEO/
CR0603J0000T /HouSheng/RS-03000JT/FengHua high
technology corporation
SMB-E7006 motherboard 8804C, with vibrating motor
function configuration
1.000000 CN1914
2.000000 R909,R910
1.000000
1.000000
276 0208080299960 Multilayer Ceramic Capaci0402,1uF,10V,X5R,0.5mm,K,SMD/CC0402KRX5R6BB10
5/YAGEO 1.000000 C440
277 0211090120003 single Schottky diode RB521CS-30,30V,100mA,SOD-923,SMD/ROHM 1.000000 D401
278 0502110000015 conventional socket SUR0.8-2A, single row, horizontal,SMD 1.000000 CN404
279 1.000000
280 0991150020192
281 0230010000002
282
EMI measures of functionaSMB-E7006 motherboard 8804C, import EMI function
configuration
shielding cover's fixed seaICSRC5210SFR, L5.2*W1.0*H1.3, SMD
KRB4015RCL87JD-623-R, D4.6*H2.3, with SUR0.8-2P-
1.000000
CN1903,CN1904,CN
1916,CN1902,CN191
0,CN1901,CN1912,C
N1905,CN1906
1.000000
283 0228000020026 electret receiver 87mm red black, halogen/ JiaXinNanHu corporation 1.000000
284 0226020120149 Irregular flexible circuit boa8803C, V1.0, 2014.02.14, halogen 1.000000 LCD connecting line
285 0226020120158 Irregular flexible circuit boa8801C, V2.0, 2014.03.01, halogen 1.000000 key board
286 0227000020101 Speaker MA2415G-6,1W, 8R,L24*W15*H3.8, with 0.8-2Y-60mm
red black twisted line, halogen/XinRuiSheng corporation
1.000000 main material
286 0227000020095 Speaker
287 0303010020065 Regular conductive cloth
288 0311010020026 Regular insulting mat
KDS2415T-38T60D01-A,1W,8R,L24*W15*H3.8, with 0.8-
2Y-60mm red black twisted line,halogen/JinQi corporation
check, double-sided conductive, single sided adhesive,
adhesive conductive, 25*5*0.14mm,NR,
halogen/GMC2329B/XinFuCheng corporation
8*5*0.05MM, one side ordinary adhesive, black
1.000000
1.000000
1.000000
alternative material
pasted on microphone, refer to
arts&crafts documents
pasted on microphone, refer to
arts&crafts documents
2 Overview
Front Camera
Headphone
Volume Button Power Button
Rear Camera
Micro USB Port
Earphone Jack
Micro SD Port
SIM Card Port
Speaker

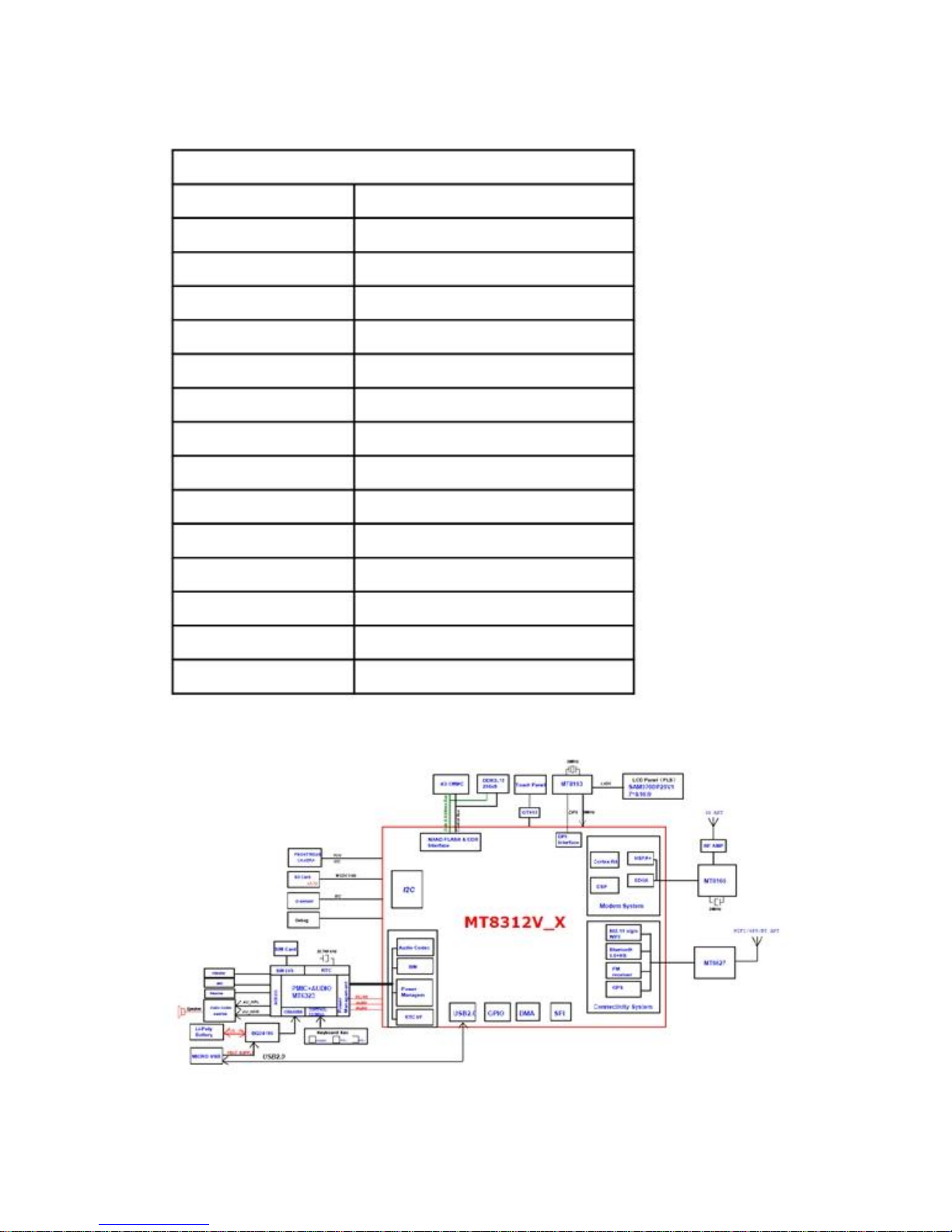

Specifications
Main Feature
Chipset MTK MT8312V/X
Type Cortex A7/ Dual core
Frequency 1.3GHz
Capacity 512M DDR3L
Capacity 4GB eMMC
LCD Screen Type IPS
Screen Size 7 inch
Description 1024*600
Front Camera 0.3MP
Rear Camera 2MP
SIM Card Slot YES
Data Transfer Micro USB 5pin * 1
Charge Connecter Micro USB
WI-FI Module WIFI 802.11b/g/n
FM Radio YES

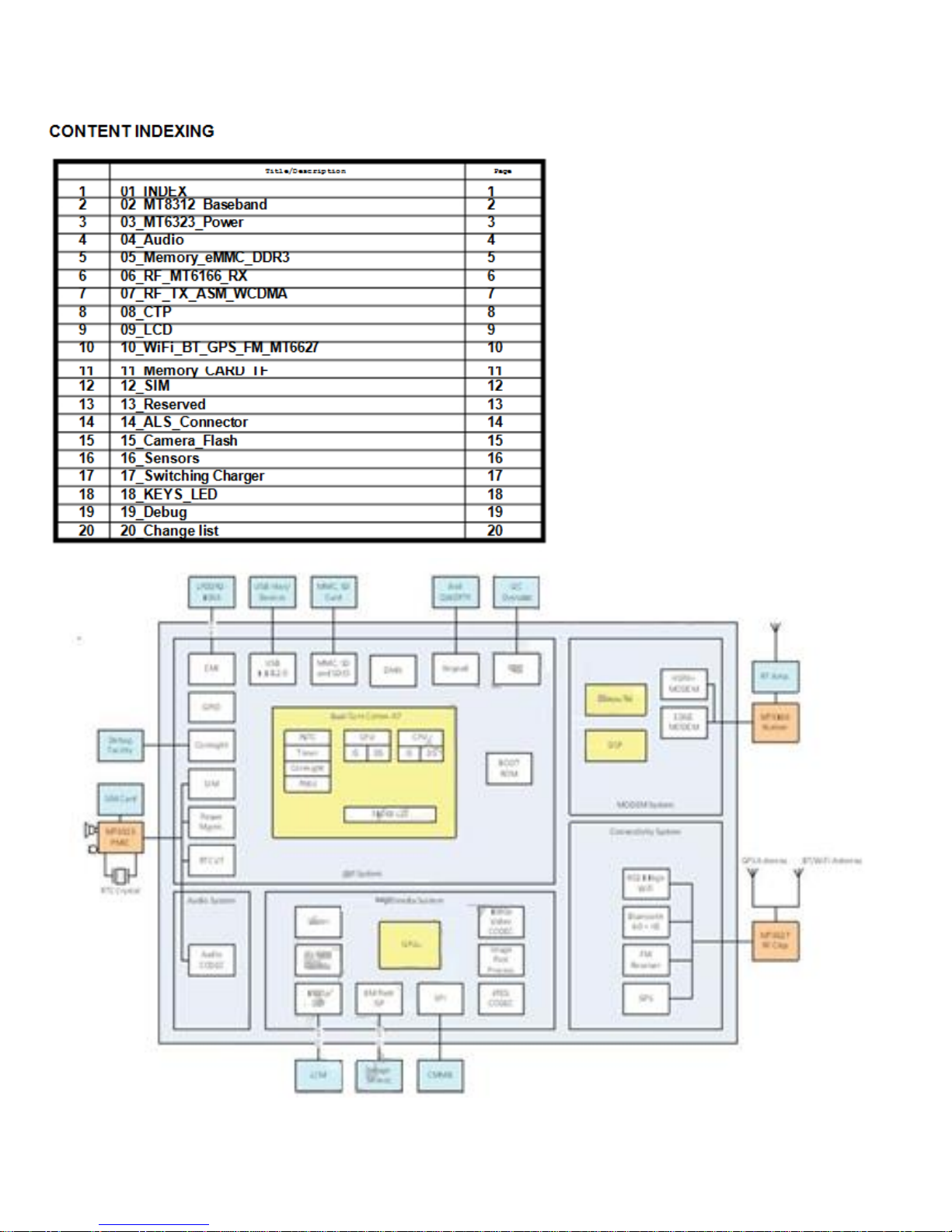

Schematic Diagram

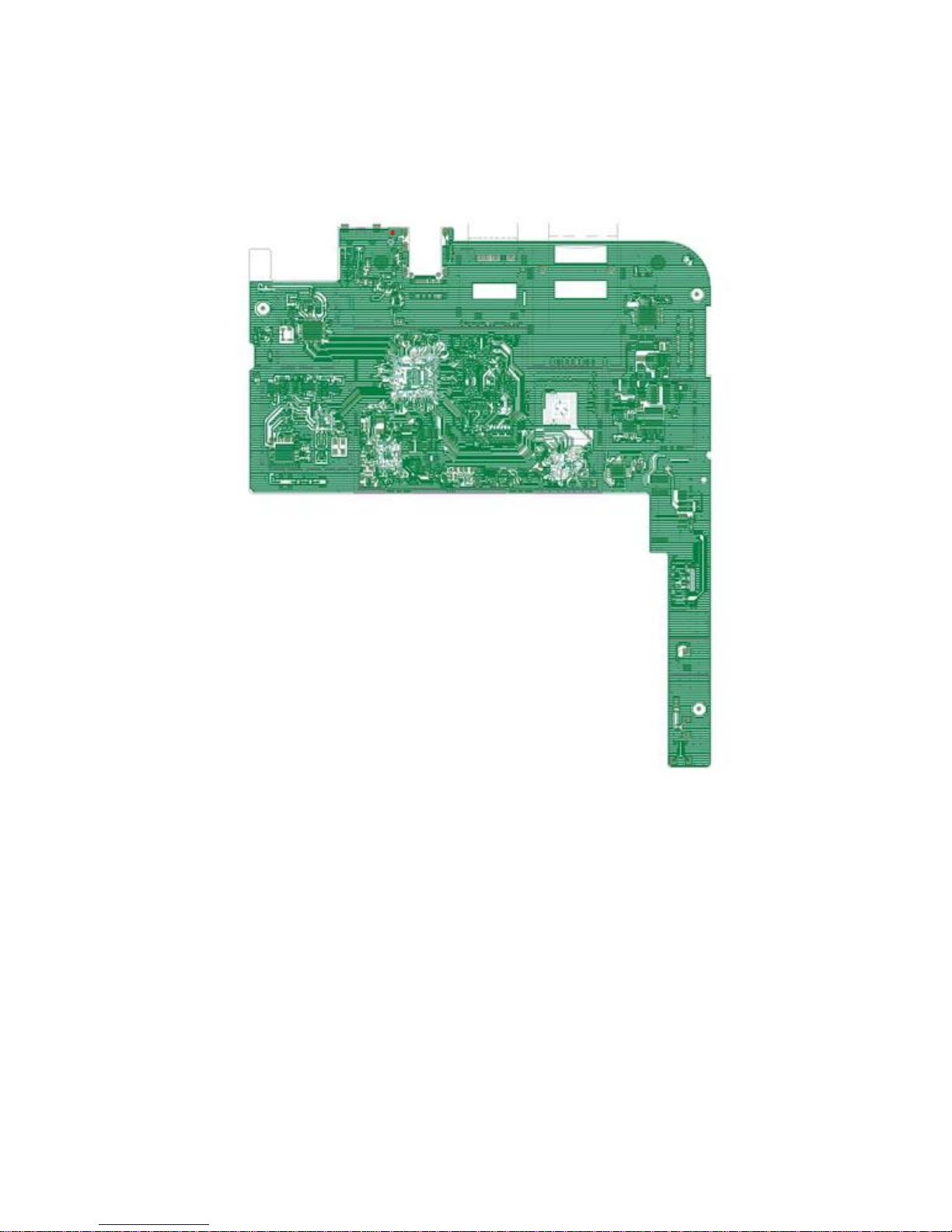

Printed Circuit
Main board 8804C
A: TOP LAYER
B:L2 LAYER
C: GND3 LAYER
D: L4 LAYER
E: VOLTAGE LAYER
F: Bottom LAYER
Detailed Circuit
MAIN BOARD
Table of contents
Other Blu Tablet manuals
