bluBathworks Blu-stone SA0102.01 User manual

blu·stone™countertop basins
Installation Guide
2021-06
1 866 907 0122 blubathworks.com
SA0210 SA0211SA0107N37 SA0107N38
SA0209N37 SA0209N38 SA0305N37 SA0305N38
SA0102.01 SA0204.01

1 866 907 0122 blubathworks.com
2020-06
1
1
Attention — Before Installation
If you are installing this product in a new construction or remodel, please make sure you are following all local plumbing
and building codes. Carefully unpack and examine your new xture for damage. To help insure that the installation
process will proceed smoothly and correctly, please read these instructions carefully before you begin.
Installation Requirements
Please read the instructions carefully so as to avoid any damage to the xture.
1. To ensure this product is installed properly, you must read and follow these guidelines.
2. The owner/user of the product must keep this information for future reference.
3. Consult local building codes to make sure the installation complies with standards.
4. Remove the unit from its packaging. Before disposing of it, inspect the unit to make sure its in good shape. Should
inspection reveal any damage or defect in the nish, contact your distributor. The warranty does not cover damages
or defects in the nish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon
delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made
directly to the carrier.
5. Place the unit in the bathroom before you start working. Conserve all nuts and bolts.
6. To protect the unit during installation, we recommend that you lay a piece of cardboard on the bottom.
7. If the unit is covered with polyethylene protective lm, do not remove until installation is complete to grant maximum
protection. However, remove lm where any two surfaces will be in permanent contact.
8. Verify that all dimensions on the plan are the same as the ones of the unit.
Installation Notes
Important! Install this product according to the installation guide. Product does have an overow. Spout must provide a
minimum of 5” reach for adequate clearance into basin. Our products must be installed by certied professionals only
and according to our installation guide as well as federal, provincial / state and local building codes and regulations.
Technical Support Assistance
If further assistance is required, please contact:
Product Support at 1.866.907.0122 (09:00 – 17:00hrs PST) or email [email protected]
North America
Blu Bathworks Inc.
188 Smithe Street,Vancouver, BC, Canada, V6B 6A9
T +1.604.299.0122 F +1.604.299.0125
Please refer to blubathworks.com for warranty, terms & conditions under warranty & procedure for warranty service.

2020-06
1 866 907 0122 blubathworks.com
2
Installation for Countertop Basins
NOTE: There is no template supplied with these basins
PREPARATION
1. Use the basin as a template.
2. Position the basin in the correct desired location and using a non-permanent marker draw an outline of the basin and
drain hole.
3. Note: Allow adequate clearance between the backsplash and the lavatory. If the basin is being combined with either
a deck mounted or wall faucet, mark the desired faucet location, making sure the chosen faucet has adequate
clearance and reach.
INSTALLATION
4. Cut or drill out the drain opening on the counter top using the appropriate drill by following the drain opening cut line
as illustrated.
5. Temporarily set the lavatory on the counter top to check for t.
6. Install the faucet and drain ttings (not included) per the manufacturer’s instructions.
7. Apply 2 beads of waterbased adhesive caulk (not provided) on the bottom surface of the lavatory. Apply the rst bead
approx. 1/4” (6.35 mm) from the outside edge. Apply the second bead about 5/8” (15.875 mm) from the rst bead.
On basins with a narrow rim: Apply a bead of adhesive caulk on the bottom surface of the lavatory. See illustration.
FINISHING
8. Finish up the faucet and drain connections.
9. Run water into the lavatory and check for leaks.

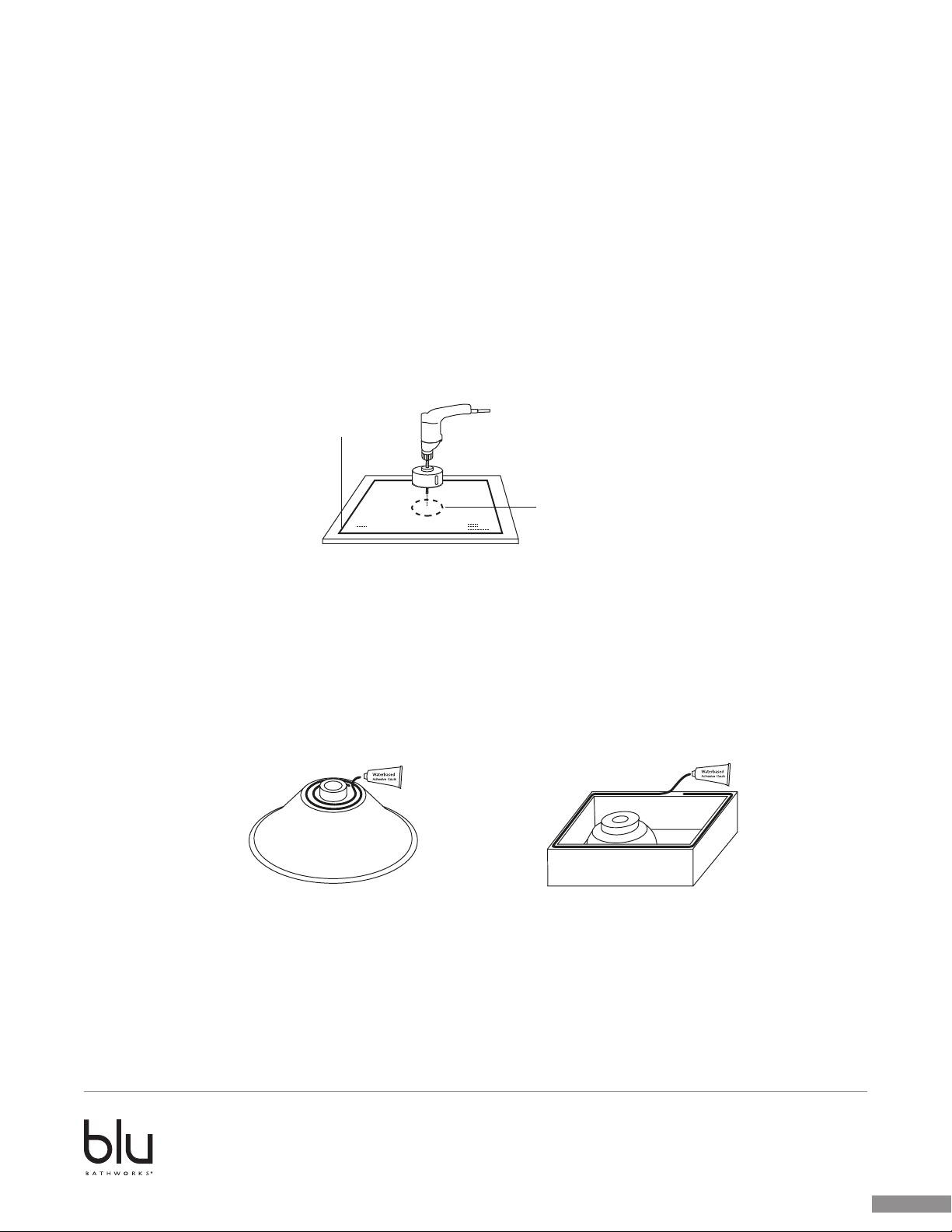

Outline of basin
Outline of drain hole
Outline of basin
Outline of drain hole
Outline of basin
Outline of drain hole

2020-06
1 866 907 0122 blubathworks.com
3
4
Under-Counter Basin
NOTE: T here is no template supplied with these basins
PREPARATION
1. I nstall the basic plumbing components: water inlet and drain
2. Determine the size of your opening based on the basin chosen. For example a basin with inside dimensions of
19-3⁄4” x 13” (Fig 1), will require a counter opening of 19-1⁄2” x 12-3⁄4” (Fig 2 & 3), ie 1⁄4” less in both depth and
length.
3. Install the basin drain. Read the manufacturer’s instructions to ensure you are installing the equipment as you
should. Before the final installation phases, check that all connections are waterproof.
INSTALLATION
To fix the basin under the counter:
4. Cover the flat rim of the basin with a silicon sealer. Fig 4.
5. Place the basin undernerath the counter and press up to ensure there is a good adhesion between the two
surfaces that are touching. Fig 5.
6. Prop the basin with a stick to maintain pressure until such time as the silicon sealer has set.
FINISHING
8. Remove the excess sealer.
9. Connect all of the final plumbing. Hook up the water to the valving.
Basin inner dimensions Size of the opening Sectional views
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"
13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
12 ½"13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"
13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ½"
12 ½"13"
1
5
2 3
4
Installation for Under-Counter Basins
NOTE: There is no template supplied with these basins
PREPARATION
1. Install the basic plumbing components: water inlet and drain
2. Determine the size of your opening based on the basin chosen. For example a basin with inside dimensions of
19¾" x 13" (Fig 1), will reccommend a counter opening of 19½" x 12½" (Fig 2 & 3), ie ¼" less in both depth and length.
3. Install the basin drain. Read the manufacturer’s instructions to ensure you are installing the equipment as you should.
Before the nal installation phases, check that all connections are waterproof.
INSTALLATION
To x the basin under the counter:
4. Cover the at rim of the basin with a water based adhesive caulk. Fig 4.
5. Place the basin undernerath the counter and press up to ensure there is a good adhesion
between the two surfaces that are touching. Fig 5.
4
Under-Counter Basin
NOTE: T here is no template supplied with these basins
PREPARATION
1. I nstall the basic plumbing components: water inlet and drain
2. Determine the size of your opening based on the basin chosen. For example a basin with inside dimensions of
19-3⁄4” x 13” (Fig 1), will require a counter opening of 19-1⁄2” x 12-3⁄4” (Fig 2 & 3), ie 1⁄4” less in both depth and
length.
3. Install the basin drain. Read the manufacturer’s instructions to ensure you are installing the equipment as you
should. Before the final installation phases, check that all connections are waterproof.
INSTALLATION
To fix the basin under the counter:
4. Cover the flat rim of the basin with a silicon sealer. Fig 4.
5. Place the basin undernerath the counter and press up to ensure there is a good adhesion between the two
surfaces that are touching. Fig 5.
6. Prop the basin with a stick to maintain pressure until such time as the silicon sealer has set.
FINISHING
8. Remove the excess sealer.
9. Connect all of the final plumbing. Hook up the water to the valving.
Basin inner dimensions Size of the opening Sectional views
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"
13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
12 ½"13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ¾"
12 ½"
13"
SiliconeCounter Vessel Basin
19 ¾"
19 ½"
19 ½"
12 ½"
12 ½"13"
1
5
2 3
4
Waterbase
Adhesive Caulk

2020-06
1 866 907 0122 blubathworks.com
4
FINISHING
6. Position the lavatory squarely under the cutout and use a ‘C’ clamp to pressure and hold the basin securely to allow the adhesive to dry.
6
7. Install steel strapping or “L” brackets for extra support. Fig 6.
8. Wipe away excess sealant and ll any voids as necessary. Allow adhesive to set for 24 hours prior to use.
9. Connect the trap to the drain and complete faucet installation per manufacturer’s specications.
10. Run water into lavatory and check entire installation for leaks.
For additional xing for ONLY the following models: SA0107N37, SA0107N38, SA0209N37, SA0209N38, SA0305N37 & SA0305N38
You may use the provided xing bag set, but it is required to drill your countertop.
MODEL mm inches
SA0107N37 310 12 "
SA0107N38 250 9⅞"
SA0209N37 310 12 "
SA0209N38 250 9⅞"
SA0305N37 510 20 "
SA0305N38 450 17¾"
Fixing hole
Fixing hole

2020-06
1 866 907 0122 blubathworks.com
5
T1.604.299.0122 | TF 1.866.907.0122 | F1.604.299.0125 | blubathworks.com
blu·stone™cleaning & repair guide
blu·stone™is Blu Bathworks’ signature eco-friendly stone collection; a durable, low maintenance and hygienic material that is high
pressure injection molded, non-porous and anti-microbial. blu·stone™products are stain, scratch and impact resistant, and easy
to clean: after each use, simply wipe with a soft cloth to remove any surface dirt.
routine care
• Never expose blu·stone™to petroleum based products, such as paint removers, oven cleaners or other solvents
(Note: personal hygiene products and cosmetics will NOT damage the surface)
• We recommend that stains are removed within 24 hours
• Do not directly cut on the blu·stone™surface
• Blu Bathworks does not recommend exceeding US/ Canada maximum hot water temperature regulations of 150ºF/65ºC,
respectively. Exceeding stated temperatures could result in damage to blu·stone™products
standard cleaning
For standard cleaning of both gloss and matte nishes, we recommend using widely available cleaning products such
as Mr. Clean, Fantastik, VIM, CIF etc. Matte nished products may occasionally require a mildly abrasive product.
blu·stone™matte finish:
• For more dicult stains, use a mildly abrasive cream cleanser such as Soft Scrub, Comet Soft Cleanser, CIF or VIM
blu·stone™gloss finish:
• Do not use abrasive products or cream cleansers
scratched or damaged surfaces
blu·stone™matte finish:
• Ensure there is no surface dirt by ushing with water
• Rub the 600-grit sanding block, provided, in a gentle circular motion
• Higher grit sandpaper may be required to blend the repaired area to match the existing product nish
blu·stone™gloss finish:
• Ensure there is no surface dirt by ushing with water
• We recommend sanding the area starting with 600, 800 and 1200-grit sandpaper: begin with the lower number (coarser)
grit followed with each higher number (ner) in ascending order
• Finish by polishing the surface using a cloth and white polishing compound for automobiles
repairs
For more extensive repairs, send a photograph of your blu·stone™ product to Blu Customer Service
([email protected]), who will inform you as to the most appropriate methods to use.
limited warranty
Blu Bathworks’ (“Blu”) warranty on blu·stone™ products covers all defects in materials and manufacturing for a period of ve (5)
years from the date of purchase. This limited warranty, starting on the original purchase date, is only oered to the original
purchaser who acquires the product directly from Blu or from its authorized dealers. This limited warranty does not apply to cases
in which a product was incorrectly installed, nor to damage due to negligence, misuse, thermal shocks, cigarettes, ames, natural
catastrophes or other accidents. Blu is not responsible for costs and claims that may arise from purchase of a product unsuited to
the structure of the existing building. Any transformation or alteration made to a Blu product automatically voids the warranty.
Blu’s warranty is limited to repair or replacement (with a product of equal value), provided the claim is made to an authorized
dealer or directly to Blu, within the warranty period. Labor costs and any other expenses entailed by replacement of a Blu product
are not covered by the warranty.
