BlueHive 035-7308-6 User manual

Bluetooth®
Neckband Sport Earbuds
User Manual
Model No. 035-7308-6
BUILT-IN
MICROPHONE

Usage precautions
Key Parts Diagram
9
17
8
3
6
2
4
5
LM S
1. Use the product for its intended purpose only.
2. Do not disassemble product. This product does not contain parts that are
entitled to self-sufficient repair.
3. Keep away from children under the age of 3, as it contains small parts.
4. Avoid use in humid conditions. Never immerse the product in liquids.
5. Keep away from vibrations and mechanical stress, which can cause
mechanical damage to the product. In case of mechanical damage,
warranty is voided.
6. Do not use product while driving any vehicle as it may distract your
attention. Check your local laws and regulations.
7. High volume may lead to permanent hearing damage and hearing loss.
Set the volume at a reasonable setting and avoid loud volumes at all
times.
8. Danger of fire, explosion and burns if the operating temperature is
substantially exceeded, if the electronics housing is opened and in case
of battery short-circuit, when touching the leaking battery.

4
5
6
7
8
9
Volume up /
Next track button
Volume down /
previous track button
Power
(Multi-function/MFB)
button
Micro USB charging port
Microphone
LED Indicator
Magnet Base
USB Charging Cable
3 pairs of Earbuds Caps
and Fins
To charge the battery, use the charger with a
USB port and Micro USB cable.
For voice communication
Shows the status of ear buds.
Easily stow your Earbuds by wearing them
around your neck.
For charging the device.
The medium size of Earbud Caps and fins
have been placed on the Earbuds.
Change to another size of caps and fins to fit
your ears.
Power on: Press and hold the button for 3 seconds.
Power off: Press and hold the button for 3 seconds.
Answer phone call: Press the button once.
Reject phone call: Press and hold the button for 2
seconds.
End call: During a phone call press the button once.
Redial last phone number: Press the button twice.
Play/Pause: Press the button once to pause the
multimedia; press again to resume.
1
2
3
Press the button to increase the volume;
press and hold the button to go to the next
track. When the max. volume is reached,
an indication sound will be heard.
Press the button to reduce the volume;
press and hold the button to go to the
previous track.

Earbuds LED Indicator
Earbuds status
In idle mode after paired
Incoming call
Low battery
Charging
Fully charged
Power on
Power off
Bluetooth®pairing
Connected
LED Indication
Blue light flickers once every 10 seconds
Blue light flickers once every 10 seconds
Red light flickers once every 5 seconds
Red light is on
Blue light is on
Blue light flickers three times
Red light flickers three times
Blue and red light flickers alternatively
Blue light flickers once every 10 seconds
Sounds & Voice Prompt Functions
Charging Your Earbuds
Function
Powering on your Earbuds
Powering off your Earbuds
Power on and Pairing
Disconnecting from Bluetooth®
Low battery power
Bluetooth®pairing
Bluetooth®connected
Voice Prompt / Audio Tone
Power On
Power Off
Power On, Pairing
Disconnected
Low battery
Pairing
Connected
The Earbuds need to be fully charged for
the first time. It takes 2 hours to fully
charge the unit.
Connect the USB charging cable with an
AC adaptor (max. output: 5 V, 1 A ) or a
PC.
The red LED charging indicator will light
up and turn to blue after fully charged.
The Earbuds can not be operated during
charging.

Pairing Your Earbuds with a Bluetooth®Device
035-7308-6 Connected
MY DEVICES
Bluetooth
Bluetooth
Sengs
To connect a second Bluetooth®device
Disconnect the bluetooth on Phone A after connecting successfully.
Connect to the second Bluetooth®device (Phone B) by referring to the above
instruction #2.
Open Bluetooth of phone A and re-connect to "035-7308-6".
Two Bluetooth®devices are now connected simultaneously.
1. Press and hold button for 5
seconds until the red and blue LED
indicator flickers alternately, with
prompt of "Power On" and
"Pairing" to indicate your Earbuds
are in pairing mode.
2. Go to the Bluetooth®settings
menu on your phone / tablet /
Bluetooth®devices. Make sure
that Bluetooth®is turned on.
Connect to the device listed as
"035-7308-6". A glowing blue
LED light with prompt "Connected"
indicates your device has been
successfully connected and the
Earbuds are ready to use.

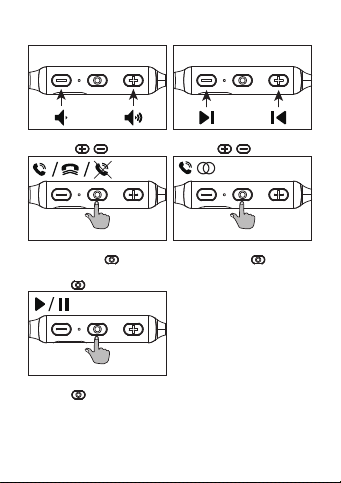

Using Your Earbuds
Change the volume
by pressing / .
Jump to the next / previous track
by pressing / for 2 seconds.
Answer/End calls by
pressing MFB button once.
Reject the call by pressing
MFB button for 2 seconds.
Redial last phone number by
pressing MFB button twice.
PLAY/PAUSE by pressing
MFB button once.

Specifications
Bluetooth®Specifications: V 5.0
Bluetooth®profiles supported: HSP / HFP / A2DP / AVRCP
Effective Range: Up to 10 m (32')
Battery: 80 mAh rechargeable battery
Charging Time: 2 hours
Working Time: 7 hours
Standby Time: 250 hours
Frequency Response: 20-20k HZ
Includes Charging Cable, 3 pair of Earbud Caps (S,M,L),
3 pair of fins (S,M,L)
Working temperature: -5°C to 35°C (23°F to 95°F)
Storage temperature: -5°C to 60°C (23°F to 140°F)
The Bluetooth®word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Shenzhen Wintop
Electronics Co., Limited is under licence. Other trademarks and trade names
are those of their respective owners.
Made in China
Imported by Trileaf Distribution Toronto, Canada M4S 2B8
Product must be recycled or disposed of properly. Dispose of as per
the requirements of your local municipality.
This Class B digital apparatus complies with Canada ICES-003.
CAN ICES-3(B)/NMB-3(B)
IC: 20956-BT572S
This device complies with Industry Canada licence-exempt RSSs. Operation
is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
The term “IC: “ before the certification/registration number only signifies that
the Industry Canada technical specifications were met. This product meets
the applicable Industry Canada technical specifications.
