Bluestream HMXL44AB User manual

HMXL44AB
User Manual
4x4 4K HDBaseT™ Matrix

HMXL44AB User ManUal
Surge protection device
recommended
This product contains sensitive electri-
cal components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Best Cabling Practices
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) for
LAN cables is recommended for better
performance.
To reduce the interference among the
unshielded twisted pairs of wires in
LAN cable, do not run HDBaseT / Zone
Cat5e/6/6a cabling with or in close par-
allel proximity to mains power cables.
Do not substitute or use any other
Power Supply other than the enclosed
unit, or a Blusteam approved Replace-
ment Part..
Do not disassemble either the Trans-
mitter or Receiver for any reason.
Doing so will void the manufacturer’s
warranty.
Introduction 03
Features 03
Panel Descriptions 03/04
Remote Control Descriptions 04
Specifications 05
Package Contents 05
Maintenance 05
Application Diagram 06
RS-232 Pin Assignment 07
RS-232 and Telnet Commands 07
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
02 www.blustream.co.uk

HMXL44AB User ManUal

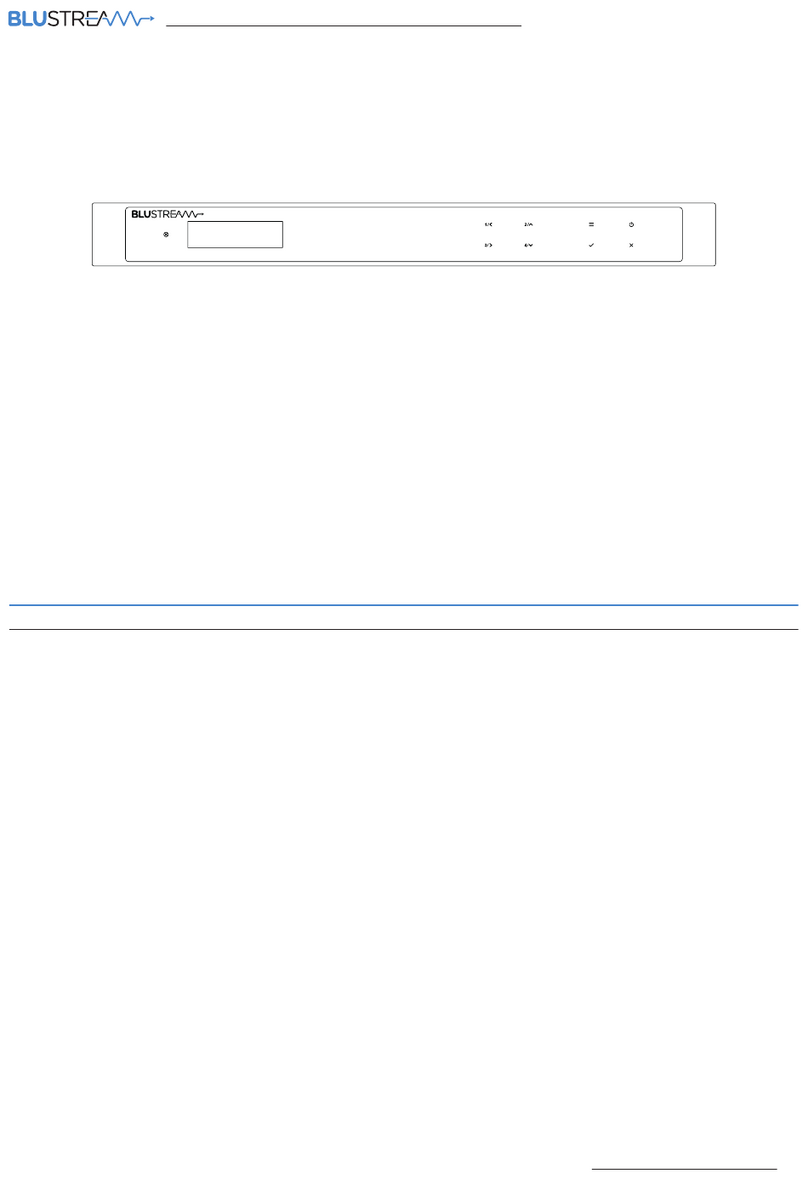

Front Panel 1 2 4
11
5
12
6
13
7
14
8
15
9
16
3
10
1 LCD display – Shows the status
of input-output selection, EDID
info etc.
2 IR receiver window
3 Power LED indicator
4 Power button – Press to power on/
o the matrix.
5 HDMI output selection button 1 to
4 - to select the output from 1 to 4.
6 All button for HDMI outputs – All
outputs will works as one. (Selects
all outputs)
7 Menu button – Press to enter EDID
set mode (see page 5)
8 Up selection button - Press to
change segment’s value.
9 ESC – Press to quit EDID set mode.
q Lock indicator
w Lock button – Press to lock the but-
tons of the front panel.
e HDMI input selection button 1 to 4 –
Press to select the input from 1 to 4.
r PTP button – Press to mirror all
inputs and outputs (e.g. output 1 to
input1, output 2 to input2)
t Selection button – Press to select
segment to change setting.
Selected segment will blink.
y Down selection button – Press to
change segment’s value.
u Enter button – Press to set EDID
to specified INPUT or copy EDID
from specified OUTPUT to
specified INPUT.
Our Essential 4x4 HDBaseT™ Matrix oers unprecedented performance and value for the
custom installation market. The HMXL44-KIT is a 4K 4x4 matrix package, delivering HDMI,
Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix
also provides advanced features including Audio breakout, simultaneous HDMI outputs
and RS-232 pass through to enable 3rd party control of displays. The HMXL44- KIT is
supplied with 4 x HEX70ED Receivers.
Introduction
FEATURES:
• Features 4x HDMI inputs which can
be independantly routed to 4x
HDBaseT™/HDMI outputs
• Simultaneous HDBaseT™ and HDMI
outputs to allow connection to dual
displays per zone
• HDMI audio de-embedded to
associated analogue L/R audio
outputs
• Extends up to distance of 70m over
single CAT cable
• Supports 4K UHD video up to 40m
(3840 x 2160 @30Hz 4:4:4, 4096 x 2160
@24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video
resolutions including VGA-WUXGA
and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio
formats including Dolby TrueHD,
Dolby Atmos, Dolby Digital Plus and
DTS-HD Master Audio transmission
• Supports bi-directional IR from all
input and output locations
• Supplied with Blustream IR receivers
and emitters
• Control via front panel, IR, RS-232 and
TCP/IP
• Supports PoH (Power over
HDBaseT™) to power compatible
HDBaseT™ receivers
• 3rd Party drivers available for all
major home control brands
• Advanced EDID management
• HDCP compliant
• Matrix kit is supplied with 4 x RX70ED
HDBaseT™ receivers
• 1U Design for 19” rack mount
integration - mounting kit included
03
contact [email protected]o.uk / [e-mail]

HMXL44AB User ManUal
Rear Panel
HMXL44AB ZONE
7 8 8 8 8 9 10 117 7 7
1 3 3 12 13
6
45
1 IR inputs – 3.5mm stereo jack.
Transmits IR to the zone receiver
(Displays). When using the provided
cable ensure the end marked ma-
trix is used
2 IR outputs – 3.5mm mono jack – IR
returning from extender (Room
end) to supplied IR emitters.
3 Zone specific bidirectional RS232
ports – Connect to PC or control
processer to control RS232 devices
in the rooms via the HDbaseT room
receivers RS232 port.
4 RJ45 – Connect to LAN for TCP &
GUI control
5 RS232 port – For control of the
matrix switcher from PC or control
processer
6 HDMI inputs – Connect to HDMI
sources
7 HDBT output – Connect to HDBa-
seT receivers.
8 HDMI output – works simultane-
ously with HDBaseT output.
9 IR input for matrix control – For
hard wired IR connection. Use
mono cable only. Connect to
control processor or IR connecting
block.
q POH Power port – Use supplied
12V/5A DC adaptor to power the
HDBaseT extenders.
w Power port – Use supplied 12V/5A
DC adaptor to power matrix.
e L/R analogue audio output –
3.5mm stereo jack. Extracted audio
will follow the I/O selection. Please
note: input must be PCM. Bitstream
cannot be decoded by matrix
r GND – Connect to ground.
Remote Control Description
OUTPUT AND INPUT SELECTION
A Selects the zone OUTPUT you wish to
change the source on (Numbers 1 - 4
correspond to the zone outputs 1 - 4)
B Selects the source INPUT you wish
to change on the selected zone (Num-
bers 1 - 4 correspond to the source
inputs 1 - 4)
EXAMPLE
To switch source 2 to zone 4 you would
press 4 in the output section (A) followed
by pressing 2 in the Input section (B).
ALL button: The all button selects all the
inputs or outputs in its corresponding box.
Example: (The “All” button in the Output
box selects all the zones so all zones will
change to what source input is selected
next)
PTP: This button will align all the zone
outputs with the like numbered source
inputs. Example: Input 1 to output 1, input
2 to output 2, etc
EDID SET UP
The MX44AB provides a comprehensive
range of EDID settings. Below are three
examples of how to deploy the desired
EDID setting when using the supplied
remote.
A. Fix EDID to an INPUT or ALL in-
puts: Press the desired video resolu-
tion button (1080I / 1080P / 3D / 4K),
then select the desired audio format
(2.0CH / 5.1CH / 7.1CH), then select
the source input you want this EDID
information allocated to by pressing
the INPUT 1 – 4 or the ALL button
B. Copy EDID of OUTPUT-X to an
INPUT or ALL: Press the COPY but-
ton then select the OUTPUT you wish
to copy the EDID information from,
then select the source input you want
to copy this EDID to by selecting the
INPUT 1-4 or the ALL button.
C. User defined EDID to an INPUT or
ALL inputs: Press USER1 / USER2
button then select the source you
wish to assign this EDID to by select-
ing INPUT 1-4 or the ALL button
NOTE: The button press sequence should
be finished in 5 seconds, otherwise the
operation is discarded.
A
B
EDID
04 www.blustream.co.uk

HMXL44AB User ManUal
EDID Control
EDID (Extended Display Identification Data) is a data structure
that is used between a display and a source. This data is used
by the source to find out what audio and video resolutions
are supported by the display then from this information the
source will determine what the best resolution is to output.
While the objective of EDID is to make connecting a digital
display to a source a simple plug and play procedure issues
do arise when multiple displays or video matrix switching is
introduced because of the increased number of variables.
By pre-determining the video resolution and audio format of
the source and display device we can remove the need
for EDID hand shaking thus making switching quicker and
more reliable
InpuT VIDeOAuDIO nOTe
IN1 1080I 2.0CH.
IN2 1080P 5.1CH
IN3 3D 7.1CH
IN4 D1024 D1024=DVI 1024 x 768
IN5 D1080 D1080=DVI 1920 x 1080
IN6 D1200 D1200=DVI 1920 x 1200
IN7 OUT1 OUT1=Copy OUTPUT1 EDID to INPUTx
ALL OUT2 ALL=Set EDID to ALL INPUTs
OUT2=Copy OUTPUT2 EDID to INPUTx
OUT3 OUT3=Copy OUTPUT3 EDID to INPUTx
OUT4 OUT4=Copy OUTPUT4 EDID to INPUTx
OUT5 OUT5=Copy OUTPUT5 EDID to INPUTx
OUT6 OUT6=Copy OUTPUT6 EDID to INPUTx
OUT7 OUT7=Copy OUTPUT7 EDID to INPUTx
OUT8 OUT8=Copy OUTPUT8 EDID to INPUTx
Three EDID segments will display on the LCD panel:
Specifications
• 1 x HMXL44AB
• 4 x HEX70ED-RX
• 1x Rack mounting kit for HMXL44AB
• 4 x Mounting kit for HEX70B-RX
• 2 x 12V/5A power supply
• 1 x Remote control
• 4 x IR control cable - 3.5mm-3.5mm cable
• 4 x IR emitter
• 5 x IR receiver
• 1 x User manual
Clean this unit with a so, dry cloth. Never use alcohol, paint
thinner or benzene to clean this unit.
• Video Input Connectors: 4x HDMI Type A, 19-pin, female
• Video Output Connectors: 4x HDMI Type A, 19-pin, female,
4x HDBaseT™ RJ45 connector
• Audio Output Connectors: 4x 3.5mm stereo jack
• RS-232 serial port: 5x DB-9, female
• TCP/IP Control: 1x RJ45, female
• IR Input Ports: 5x 3.5mm stereo jack
• IR Output Ports: 4x 3.5mm mono jack
• Rack-Mountable: 1U rack height, rack ears included
• Dimensions (WxDxH): 428x235x43mm, without feet
• Shipping Weight: 2.7kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/5A DC (main), 12V/5A DC (POH), screw
type connectors
Package Contents:
Maintenance
05
contact [email protected]o.uk / [e-mail]

HMXL44AB User ManUal
CONNECTION DIAGRAM
1 2 3 4
Cat 5/5e/6 Network Connection RS232 HDMI Stereo Audio IR Cable
DISPLAY 1 DISPLAY 2
HDBT RECEIVER
ZONE
01
ZONE 01
ZONE 02
ZONE 03
ZONE 04
SOURCE 01
SOURCE 02
SOURCE 03
SOURCE 04
ZONE 01
ZONE 02
ZONE 03
ZONE 04
ZONE
02
ZONE
03
ZONE
04
ZONE
01
ZONE
02
ZONE
03
ZONE
04
in
out
70m max
12V POH
IR Emitter
Link to source
HDMI RS232 IR
HEX70ED-Rx
Audio Output
Link to HDMI Zone Outputs
IR Receiver
Link to control device
MAXIMUM OF 4 SOURCES
Control Processor
A
A
B
C
D
BCD
HMXL44AB ZONE
Receiver
06 www.blustream.co.uk

HMXL44AB User ManUal
RS232 Pin Assignment
MT0404-QFI reMOTe cOnTrOL cOnsOLe
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
RS232 and Telnet Commands
No. ComANd ACtioN
1? Print Help Information
2 HELP Print Help Information
3STATUS Print System Status And Port Status
4 PON Power On, System Run On Normal
State
5 POFF Power O, System Run On Power
Save State
6 IR ON/OFF Set System IR Control On Or O
7 KEY ON/OFF Set System KEY Control On Or O
8 APM ON/OFF Set Advanced Process Mode On Or
O
9 BEEP ON/OFF Set Onboard Beep On Or O
10 RESET Reset System To Default Setting,
(Should Type \”Yes\” To Confirm,
\”No\” ToDiscard)
11 OUT xx ON/OFF Set OUTPUT:xx On Or O,
xx=[01...04]
OUT 01 ON/OFF Set OUTPUT 1 ON or OFF
OUT 02 ON/OFF Set OUTPUT 2 ON or OFF
OUT 03 ON/OFF Set OUTPUT 3 ON or OFF
OUT 04 ON/OFF Set OUTPUT 4 ON or OFF
12 OUT xx FR yy Set OUTPUT:xx From INPUT:yy,
xx=00: Select All OUTPUT
Port,xx=[01...04]: SelectOne OUT-
PUT Port,yy=[01...04]: Select One
INPUT Port
OUT 01 FR 01 OUTPUT 1 to INPUT 1
OUT 01 FR 02 OUTPUT 1 to INPUT 2
OUT 01 FR 03 OUTPUT 1 to INPUT 3
OUT 01 FR 04 OUTPUT 1 to INPUT 4
OUT 02 FR 01 OUTPUT 2 to INPUT 1
OUT 02 FR 02 OUTPUT 2 to INPUT 2
OUT 02 FR 03 OUTPUT 2 to INPUT 3
OUT 02 FR 04 OUTPUT 2 to INPUT 4
OUT 03 FR 01 OUTPUT 3 to INPUT 1
OUT 03 FR 02 OUTPUT 3 to INPUT 2
OUT 03 FR 03 OUTPUT 3 to INPUT 3
OUT 03 FR 04 OUTPUT 3 to INPUT 4
OUT 04 FR 01 OUTPUT 4 to INPUT 1
OUT 04 FR 02 OUTPUT 4 to INPUT 2
OUT 04 FR 03 OUTPUT 4 to INPUT 3
OUT 04 FR 04 OUTPUT 4 to INPUT 4
07
contact [email protected]o.uk / [e-mail]

www.blustream.co.uk
www.blustream.com.au
