boAt AAVANTE BAR 2050 User manual

Model No: - AAVANTE BAR 2050
Bluetooth Name: AAVANTE BAR 2050
Thank you for choosing the boAt Aavante Bar 2050 as the audio source for your home.
Discover a new level of immersive, cinematic audio experience at home with the boAt
Aavante Bar 2050. A powerful 160 W total output, a slim sound bar and versatile 2-way
subwoofer brings every aspect of your entertainment be it a song, show or movie to life.
Drivers at each end of your sound bar deliver a clear mid and high range, while an 80W
subwoofer lls in the rumbling lows. The 2.1 channel sound system provides a balanced
sound and deep bass for your movies, music and even video games and you can
experience cinematic sound that revolves around you. Stay plugged into the sound with
an array of wired connections, and Bluetooth® wireless technology. Bring your home to life
with the boAt Aavante Bar 2050. We request that this installation guide carefully for proper

Includes:
• DSP technology Soundbar
• Digital wireless subwoofer
• Remote Control
• 2 X AAA Batteries
• Owner manual
• RCA Cable
• Wall mount Hardware

AAVANTE BAR 2050

FEATURES
• 40” 400W SoundBar w/Wireless Subwoofer/Bluetooth/HDMI/ Optical
• 400 Watts peak power/ 160 Watts RMS power (continuous)
• Seamlessly pairs with included wireless subwoofer
• Built-in Bluetooth wireless audio streaming with long range and distortion free playing
• USB Input plays back music stored on a thumb drive (up to 32Gb)
• Controls: Volume, Bass, Treble, DSP mode
• Includes a wall bracket and mounting hardware
• Recessed Input panel makes it easy to lug in your devices
• Drivers: Soundbar has (4) 2.25” drivers and the Subwoofer has a 6.5”driver
• No distorting even at max volume
• Wireless subwoofer with 6.5”driver delivers power deep bass
• Inputs: 1 optical digital audio, 1 Digital USB, and 1 HDMI (ARC)
• Multichannel stereo sound to deliver a cinematic experience
• LED display shows volume, track, etc…
• Powered by a digital amplier with DSP for audiophile sound quality
• PCM decoder

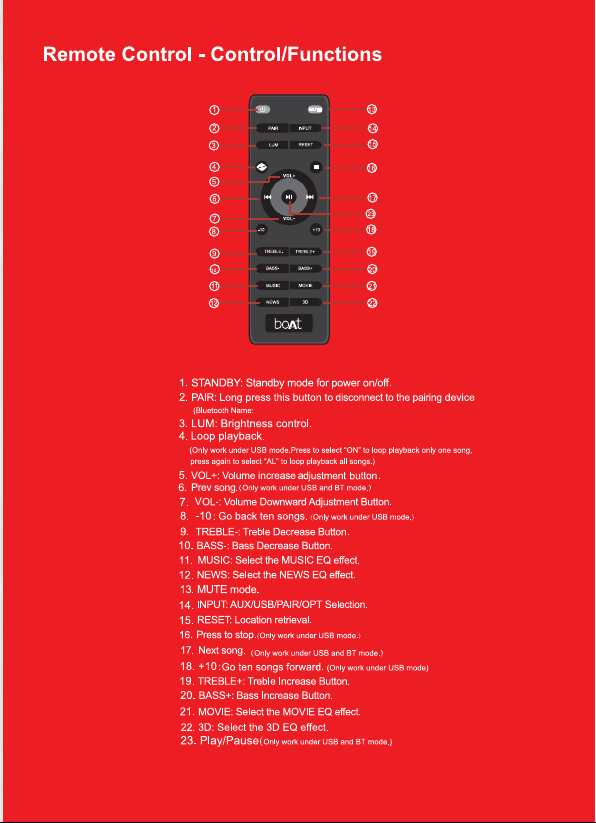

• Remote control
• Frequency response: 45Hz – 20KHz
• S/N ratio: 72 dB
• Wireless Subwoofer and recessed Input panel allows you to enjoy a clutter free beautiful setup
and easy Installation
• HDMI (ARC): Easily connect to your TV or other devices with HDMI (ARC)
• DSP modes: Music, Movies, 3D, News
• 110/230 volt auto switching power supply for use worldwide
• Unit weight: 14.4 lbs.
• Dimensions: 2.75” x 3.07’ x 37/8* (sound bar)
6.7’ x 14.96’ x 12.05” (subwoofer)

To Pair The Subwoofer
OPERATION
1. To power on the SoundBar and Subwoofer, connect both to an AC power source. The blue LED
pairing indicator on the back of the unit will begin to ash slowly (meaning that it has switched
on). Use a small pin to press the WPS auto pair button. The subwoofer will enter pairing mode and
the blue LED indicator will begin to ash quickly as a sign of this.
2. Power-on the boAt Aavante Bar 2050 and press the power/standby button to put the Soundbar
into pairing mode.
3. Within 30 seconds, the ashing blue LED indicator will stabilize indicating that the subwoofer
has paired with the SoundBar.
4. The SoundBar and Subwoofer will pair automatically after having been connected successfully
the rst time.
Please note: The subwoofer will automatically enter standby mode within 5 minutes of being
turned on if it has not been connected to the SoundBar. The LED light will switch from a blinking
blue to a solid red meaning that the Subwoofer is in standby mode. To avoid wireless signal
interference, please keep the system at an appropriate distance from other 2.4 GHz wireless
devices
Bluetooth Mode
1. Power-on the boAt Aavante Bar 2050 and Subwoofer. This can be done by pressing the Standby
button on the side of the Soundbar or on the remote control. The LCD display will showcase “bt
(Bluetooth)” ashing steadily.
2. Turn on Bluetooth on your phone and search for available devices within range, select boAt
Aavante Bar 2050.
3. If a password is asked for, enter “0000.”
4. Playing/pausing tacks, controlling volume and the choosing of tracks can all be done from your
connected device; there is no need to interact with the SoundBar. The remote control can also be
used at this time.
Please note:
For Apple products, you can raise the volume on your SoundBar and vice versa using the volume
option on your Apple device. When an android device is connected, you will need to adjust the
SoundBar’s and the device’s volume separately.
Optical Mode
Optic cable ports are fairly common amongst Digital set-top boxes, TV’s, game consoles and DVD
players, here is how to get your optical cord connected and going.
1. Power on the Aavante Bar 2050 by connecting it to an AC power source and pressing the
standby mode. You can use either the SoundBar unit or the remote control (input) to switch to
Optical mode.
2. Use a digital optical cable to connect the SoundBar to the sound source. The volume level on
both the SoundBar and your connected device will work independantly and will have to be
adjusted as such.

HDMI Mode
1. The boAt Aavante Bar 2050 can be connected to devices through an ARC (Audio Return
Channel) enabled HDMI port and is fairly common now. It allows for both video and audio output
through the same connection. Using either the buttons on the SoundBar or the “Input” button on
the remote, you can activate HDMI mode once the SoundBar has been switched on.
2. Connect a HDMI cable to your sound bar and the other end to your device to activate the HDMI
ARC. Your TV should have a label near the port indicating whether it is HDMI ARC or not. If it
cannot be seen, please refer to your TV manual to conrm and whether it requires manual
activation or not.
3. Please ensure that an HDMI ARC port is in use, it is mandatory for the eective functioning of
the SoundBar through this particular option.
USB Mode
Plug in your pendrive after switching the SoundBar on, the unit will automatically read through
the les and begin playing music.
2. Music playback can be controlled from the buttons on the SoundBar – Volume, Play/pause,
change tracks.
3. Simply remove the USb if you wish to exit this mode, or utilize the Soundbar buttons or the
Input button on the remote to change the mode. The indicator for USB mode on the SoundBar is
“USB” , this will be displayed on the tiny in-built LCD screen.
Please note: Up 32 GB USB drives containing MP3 le formats are compatible with the SoundBar
AUX Mode
1. Use a 3.5mm AUX jack to connect any device you intend to use with the boAt Aavante Bar
2050. Using either the buttons on the SoundBar or the “Input” button on the remote, you can
locate and activate AUX mode.
2. Please ensure that the SoundBar has been switched on before beginning the above mentioned
step.
3. Playback functions (play/pause, volume, tracks) cannot be adjusted through the SoundBar
remote when in Aux mode. It can only be done through the Bluetooth connected device.

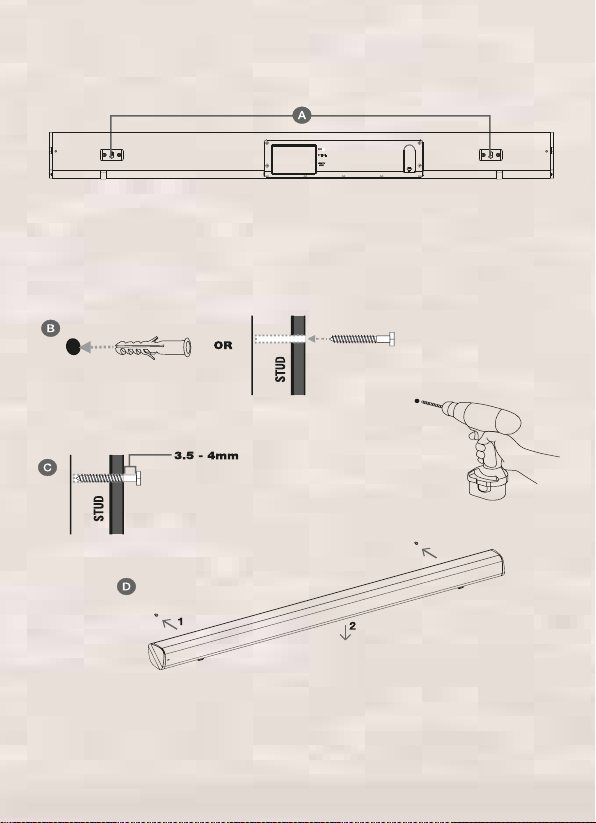

MOUNTING INSTRUCTIONS
Please measure the distance between the centre holes on the wall brackets before beginning your
work.
Open you’ve selected the place you would like to mount the SoundBar on, drill two holes the
same distance as the holes on the wall brackets of the SoundBar.
Wall anchors (g B) are recommended for this task, or drilling into a stud. If you are using anchors,
make sure that the holes you have made are deep enough to accommodate them. Be sure to
leave a 3.4 – 4mm gap between the wall and the screws head (g C).
(1) Align the Soundbar with the mounting screws and slide it onto the same.
(2) Tug the Soundbar down slightly to ensure that it is seated properly (g D)

Safety Instructions
• This sound bar was especially developed for LED/LCD/Plasma televisions. It should not be used
with CRT (Cathode Ray Tube) televisions in order to avoid image interference.
• Do not place the boAt Aavante Bar 2050 on any unstable surfaces. The speaker may topple over,
causing serious damage either to persons, the unit or both.
• Do not take the SoundBar near water, such as bathtubs etc… and any areas that contain a high
amount of moisture.
• Likewise, please keep the SoundBar away from heat sources such as radiators, heat registers,
stoves or other devices that produce heat.
• Ensure that the SoundBar is being inserted into a power supply outlet of the same voltage.
There is also a risk of someone tripping over or pinching the wires once they have plugged in.
Please make sure that the plug points are strategically placed as to avoid these circumstances.
• Clean the SoundBar with only a soft damp cloth and make sure to unplug the unit from the wall
socket before starting.
• If any servicing of the unit is required, please do not dissemble the SoundBar yourself. All
maintenance must be done ONLY a service provider or from a manufacturer. Doing so on your
own will automatically make the warranty null and void.
• Do not replace any of the parts on your own, and do NOT use parts that are not factory
authorized. It can result in res, electrical shock or other hazards.
To reduce the risk of electrical shock, do not
remove the amplier plate. No users serviceable
part are inside. we recommend taking the unit to
a qualied service technician for any repairs.

PROBLEM
TROUBLESHOOTING
No power
No Sound
Subwoofer pairing fails
Bluetooth pairing fails
Flies on USB memory device
will not play back
No sound when receiving TV
Input
SOLUTION
1. Make sure the boAt Aavante Bar and the subwoofer
are plugged in and turned on
1. Make sure you’ve selected the proper source
2. Make sure the volume is set properly on the unit and
at the correct playback mode- (Bluetooth Android
device, Optical, HDMI and AUX inputs
1. Check that both units are plugged in and turned on
2. Ensure the boAt Aavante Bar 2050 is not in standby
mode
3. Make sure that the SoundBar and the Subwoofer are
within 10m of each other.
4. Make sure there are no obstructions between the
Soundbar and the Subwoofer
1. Check to see that both devices are turned on and
that your Bluetooth device is discoverable
2. Turn both devices o and on again
3. Make sure you’ve selected the proper output mode
(HDMI, optic etc..)
4. Make sure that the Bluetooth is within 5 feet of the
unit
5. Move both devices away from other Bluetooth
devices, microwaves, wireless routers, and other
electronics
6. Make sure that the unit is not paired to a previously
paired device
1. Make sure you’ve selected the proper source
2. Make sure that the audio les are in MP3 format.
3. Make sure that the memory device is no more than
32 Gb
1. Make sure that all connections are secure
2. If using HDMI, make sure that the TV has a dedicated
HDMI ARC port
3. Make sure the volume I set properly on the unit and
at the television
