Boca Flasher HPCCS User manual

Installation Manual
HPCCS
WARNING: DO NOT LIFT FIXTURE BY CABLES.
This could result in permanent damage to both the xture and the cables. Damage resulting from grasping cables and/
or putting undue pressure on the cable connections will not be covered under the warranty!
DO NOT ATTEMPT TO INSTALL OR USE THE HPCCS FIXTURE WITHOUT READING THE INSTALLATION
INSTRUCTIONS AND SAFETY LABELS COMPLETELY.
Failure to adhere to these instructions could result in serious injury or property damage.
DO NOT MODIFY, ALTER OR ATTEMPT TO SERVICE THE HPCCS. DOING SO WILL VOID THE WARRANTY.

Installation Instructions
HPCCS
Indoor/Outdoor Line Voltage
Model Dependent
Max temp: 55C
Min. temp: -40C
DAMP LISTING
IP65
WET LISTING
IP68
Turn Power Off At Circuit Breaker Before Beginning Installation!
DO NOT LIFT FIXTURE BY CABLES!
INCLUDED IN THIS PACKAGE:
Mounting Brackets
(2 brackets per xture)
12
PAGE 2 OF 6
HPCCS Fixture
(In lengths shown on job specic drawings)
3Job Specic Drawings
AC100
Introduction:
The Boca Flasher’s HPCCS is perfect for color washing long runs and large areas. LEDs are spaced 1.00”apart in a two rows to create an
even wide wash of light. The housing is anodized aluminum and is weather and abrasion resistant. This light xture can use any standard
DMX 512 controller or can incorporate Boca Flasher’s Digital Mainframe controller (Demo Version Only). The Digital Mainframe can run
independently, creating many stand-alone color washing and solid color eects, as well as responding to DMX commands for total control of
your lighting experience.
Maintenance:
CLEANING Dry and Damp (IP65) Rated Fixtures: To clean surface use a soft damp cloth.
Wet (IP68) Rated Fixtures: To clean surface use a soft cloth with mild soap & water.
STORAGE Store in a dry, well-ventilated area when product is not in use.
Keep the electrical cord away from heated surfaces when in use or not in use.
If cord shows signs of damage do not use, return product to manufacturer.
Electrical Specifications:
1. Input Voltage: 90-120VAC or 230-277VAC
(See layout drawings for spec.)
2. Total linear ft per 20A breaker: 55 ft.
3. Total linear ft per 15A breaker: 40 ft.
4. Input Current: 272mA RMS per linear ft. for RGB,
272mA RMS per linear foot for WM
Power cord length is
6.5 ft. per UL standard.
DMX cables are
5 ft. long.
Fixtures must be installed by a
qualied and licensed electrician
in accordance with all national,
state and local electrical codes
and regulations. If any part of
this manual does not meet the
necessary codes and regulations,
contact the factory for more
information before attempting
to install.
Fixed
Hinged
or
Rotate Fixture to see
label on bottom.

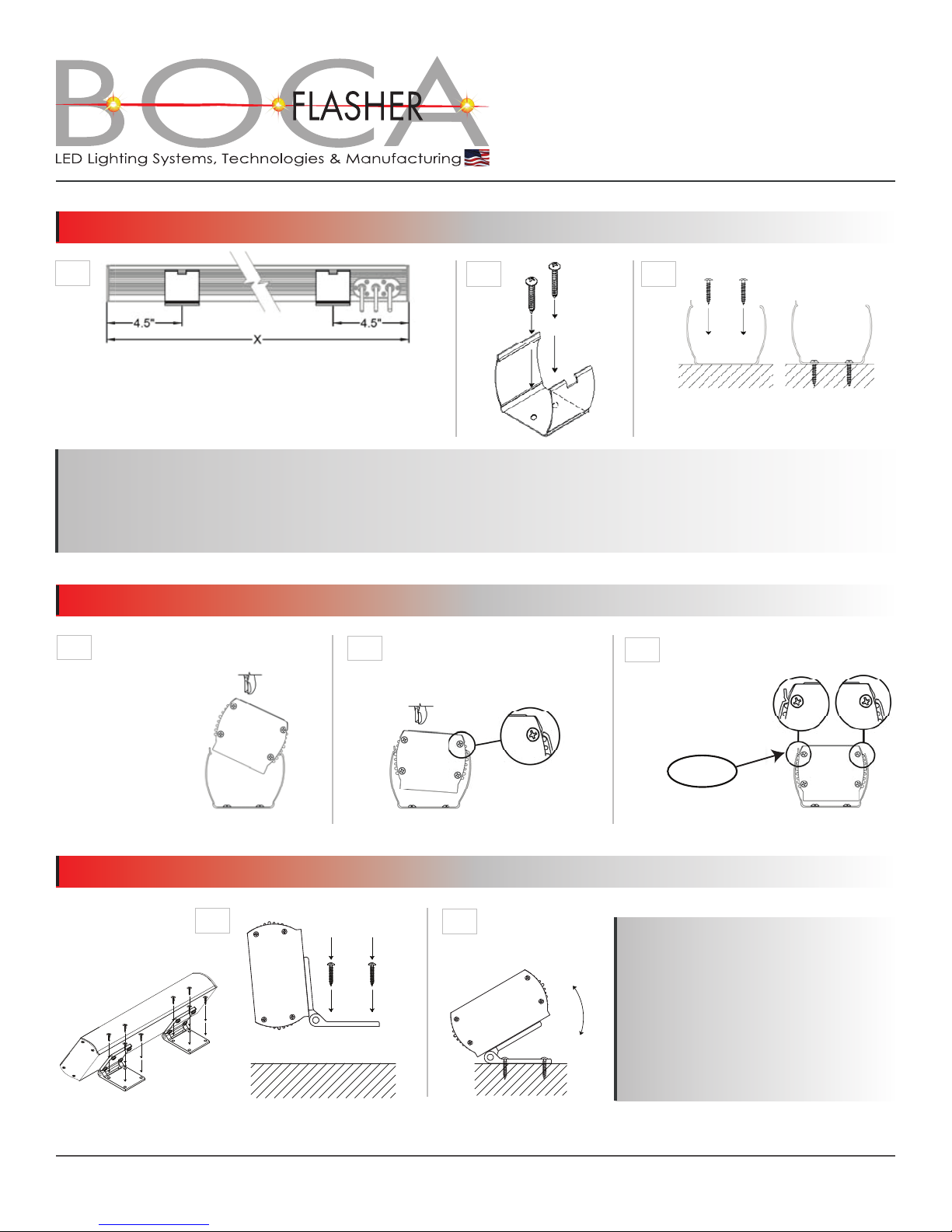

Determine layout of xture or composition of xtures
and locate appropriate clip location.
CLIP MUST BE A MINIMUM OF 4.5” FROM END-CAP TO
ALLOW CLEARANCE OF MOLDED CORDS.
2. INSTALL FIXTURE INTO FIXED CLIPS
Installation Instructions
HPCCS
PAGE 3 OF 6
1. INSTALL CLIPS INTO SUBSTRATE
1a 1b
2a Tab on side of clip should go in
notch at the top of the xture.
2b
3.
1c
Angle xture into opening,
pushing clip wider as
you push.
2c
snap!
Clip will securely snap
into place.
Screw Information:
1. Screws not provided by Boca Flasher.
2. Boca Flasher recommends wide washer at head Philips
#8 screw (not to exceed .418”).
3. Length of screw will vary depending on mounting surface.
4. For outdoor installations, installer should use a screw with weather
proof coating.
5. One foot xtures only require one hinge bracket.
3a 3b
Installing Hinge Clips:
Hinge clips come installed on the xture.
Therefore it is easy to determine where
to predrill the holes into the substrate
before doing so. Installing is only a
matter of drilling in the proper screws,
recommended.
INSTALL FIXTURE INTO HINGE CLIPS

4. CONNECT DMX CABLES TOGETHER
AS SHOWN ON JOB SPECIFIC DRAWINGS
Installation Instructions
HPCCS
PAGE 4 OF 6
▶
▶
◀
▶
HPCCS
▶
▶
BF-01
4a Rotate xture to see bottom and
note each label.
NOTE:
Contractor cannot install
more than 32 xtures
per data stream.
4a Cross-reference with Job
Specic Drawing.
The HPCCS does not
daisy-chain by power.*
Labels on xtures
correspond with
nomenclatures
on drawings.
4c Connect DMX IN on a xture with
DMX out separate xture. 4d Push together until you hear a “Click”.
DMX In
DMX Out
Power Feed click!
DMX In
DMX Out
DMX In
DMX Out
NOTE:
Outdoor version will screw together, not click.
* Consult factory for options.

5. CONNECT FIXTURES TO POWER AND CONTROLS
SINGLE RUN INSTALLATION
Installation Instructions
HPCCS
PAGE 5 OF 6
NOTE:
Contractor cannot install
more than 32 xtures
per data stream.
MULTI RUN INSTALLATION
Power Cable is 6.5ft
per UL standard
White (Neutral)
Black (Line)
White (Neutral)
Black (Line)
Green (Ground)
Green (Ground)
Note: More than one
connection can be made
in each connection box.
*Note: XLR 5 pin DMX
connection standard.
Cable is typically 5 ft in
length. Call Factory for
more information.
RJ45 (Ethernet) to an XLR
connection is available
upon request.
(5 ft) (5 ft) (5 ft) (5 ft)
ADD Tape
NOTE:
Contractor cannot install
more than 32 xtures
per data stream.
ADD Tape
(5 ft) (5 ft)
White (Neutral)
Black (Line)
Green (Ground) Green (Ground)
White (Neutral)
Power Cable is 6.5ft
per UL standard
Note: More than one
connection can be made
in each connection box.
(5 ft) (5 ft)
(5 ft) (5 ft) (5 ft) (5 ft)
(XLR 5-pin)
(XLR 5-pin)
*Note: XLR 5 pin DMX connection
standard. Cable is typically 5ft
in length. Call Factory for more
information. RJ45 (Ethernet) to an XLR
.tseuqernopuelbaliavasinoitcennoc
For Exterior Use Only
* Add tape to twist locks.
Place thumb over tape at
starting point and
PULL around connector
area until tape overlaps
itself.
* Add tape to twist locks.
Place thumb over tape at
starting point and
PULL around connector
area until tape overlaps
itself.
* For weather-tight applications only. See
additional instructions for weather-tight tape.
* For weather-tight applications only. See
additional instructions for weather-tight tape.

Installation Instructions
HPCCS
IMPORTANT SAFETY REMINDERS:
We are constantly improving our fixtures and reserve the right to change options and specifications. Additional information &
details at www.bocaflasher.com. For specific requirements, contact your Boca Flasher sales representative. Boca Flasher, Inc. 508
S. Military Trail, Deerfield Beach, Florida 33442 USA Phone: [phone] Fax: [phone] © 2017 Boca Flasher, Inc. All rights
reserved. All names and trademarks are property of their respective owners. REV 06-2017
DAMP LISTING
IP65
WET LISTING
IP68
1. DANGER:
To reduce the risk electric shock, always unplug the HPCCS from electrical outlet before
cleaning. Cut breaker if outlet is not available.
2. To reduce the risk of burns, re, electric shock or injury to persons:
 • UsetheHPCCSonlyforitsintendeduseasdescribedintheseinstructions.
 • DonotuseattachmentsnotrecommendedbyBocaFlasher.
 • NeveroperatetheHPCCSifithasadamagedcord,cableorplug,ifitisnotworking
properly, if it has been dropped or damaged, or dropped into water.
 • Ifthesealappearstobedamaged/broken/tornreturnthexturetoaservicecenterfor
examination or repair.
 • Keepcablesawayfromheatedsurfaces.
 • Neverdroporinsertanyobjectintoanyopening.
 • Donotoperatewhereaerosol(spray)productsarebeingusedorwhereoxygenis
being administered.
3. WARNING:
Do not attempt to install or use the HPCCS without reading the installation instructions
and safety labels. Failure to adhere to these instructions could result in serious injury
or property damage.
4. Do not modify, alter or attempt to service the HPCCS:
Doing so will void the warranty.
5. Do not use sharp tools near or on the xture lens:
Doing so will result in property damage and void the warranty.
Boca Flasher, Inc.
508 S. Military Trail nDeerfield Beach, Florida n33442 USA
Phone: [phone] nFax: 561-982-8323
www.bocaflasher.com
