Overview
The ColorSource Spot V is an affordable LED fixture that uses the RGBIL
(red, green, blue, indigo, and lime) color system to provide a rich, bright
light. The fixture features wireless configuration and control via NFC and
the Set Light app. The ColorSource Spot V also can be purchased with
wireless DMX via Multiverse®.
The ColorSource Spot V is UL924 listed as a Directly Controlled Luminaire
for use in emergency lighting systems when used with the ETC DMX
Emergency Bypass Controller (DEBC).
This light engine can be used with standard ETC shutter barrels, lens
tubes, fresnel adapters, CYC adapters, and accessories.
Note: Features described in this document require the latest
version of software. For information on updating fixture software,
see Update the Fixture Software on page13.

ETC Installation Guide
ColorSource Spot V1.0
Safety
For professional use only. Read the entire manual before using this
equipment.
WARNING:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not mount the fixture on or near a flammable
surface.
•
When the fixture is mounted, the axis between the
yoke attachment points must be parallel to the ground.
Mounting the fixture in a non-parallel orientation risks
property damage or bodily injury.
•
Disconnect the fixture from power and DMX and allow
it to cool before installing accessories or performing
any cleaning and maintenance.
AVERTISSEMENT :
•
Risque de lésion oculaire. Ne fixez pas directement la
lumière.
•
Ne pas installer le projecteur sur ou à côté d’une
surface inflammable.
•
Lorsque le luminaire est accroché, l'axe entre les points
de fixation de la lyre doit être parallèle au sol. Le
montage du luminaire dans une orientation non
parallèle risque de causer des dommages matériels ou
corporels.
•
Débranchez le projecteur de son alimentation et du
DMX et laissez-le refroidir avant d’installer des
accessoires ou d’effectuer un nettoyage ou un
entretien.
WARNING: The ColorSource Spot V is a Directly Controlled
Luminaire suitable for use in emergency lighting
applications in accordance with 2017 National Electrical
Code section 700.24 when used with an ETC DMX
Emergency Bypass Controller. Equipment intended for this
purpose must be properly selected, installed, and
maintained so that facility conformance can be obtained.
Installation and servicing shall be performed by qualified
service personnel.
ColorSource Spot V Page 2 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
WARNING: RISK OF ELECTRIC SHOCK! The light source in
this luminaire is not user-replaceable, and must be replaced
only by a qualified technician. Contact ETC Customer
Support for assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La
source lumineuse de ce projecteur n'est pas remplaçable
par l'utilisateur et ne doit être remplacée seulement par un
technicien qualifié. Contactez le service client ETC pour
obtenir de l’assistance.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
•
Do not use outdoors.
•
Do not let power supply cords touch hot
surfaces.
•
Do not mount near gas or electric
heaters.
•
Equipment should be mounted in
locations and at heights where it will not
readily be subjected to tampering by
unauthorized personnel.
•
The use of accessory
equipment not
recommended by the
manufacturer may cause
an unsafe condition.
•
Do not use this
equipment for other
than intended use.
SAVE THESE INSTRUCTIONS
The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté
avec les déchets ménagers mais
doit être déposé dans une collecte
de déchets électroniques ou dans
un point de collecte.
Protective earth (ground) Protection Classe I Mise à la terre
ColorSource Spot V Page 3 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Emergency Lighting Considerations
Luminaires that are used in emergency lighting applications must provide
a minimum illumination level over the identified means of egress path in
accordance with the Life Safety Code®, NFPA 101. A luminaire that is
intended to serve this purpose must be mounted at a height where it will
not readily be subjected to tampering by unauthorized personnel and
where the minimum required illumination level over the egress path can
be achieved. The ETC DMX Emergency Bypass Controller that is driving
the luminaire upon loss of utility power must be programmed to drive the
ColorSource Spot V to full illumination.
Installation
Install a Shutter Barrel
Insert and rotate
one eighth turn
The ColorSource Spot V can be
purchased with or without a
shutter barrel. To install a
shutter barrel you will need a #2
Phillips screwdriver (not
provided).
The ColorSource light engine
includes a barrel screw. The
small screw used to secure the
top of the shutter barrel is
included with the shutter barrel.
1. Align the barrel to the front of the ColorSource Spot V and rotate it
one eighth turn (45°) counter-clockwise before inserting.
2. Insert the shutter barrel into the front of the light engine and rotate
clockwise until it is fully threaded onto the light engine.
3. Insert the barrel screw at the bottom of the light engine and tighten.
4. Insert the small screw into the top of the light engine and tighten
using the Phillips screwdriver.
ColorSource Spot V Page 4 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0

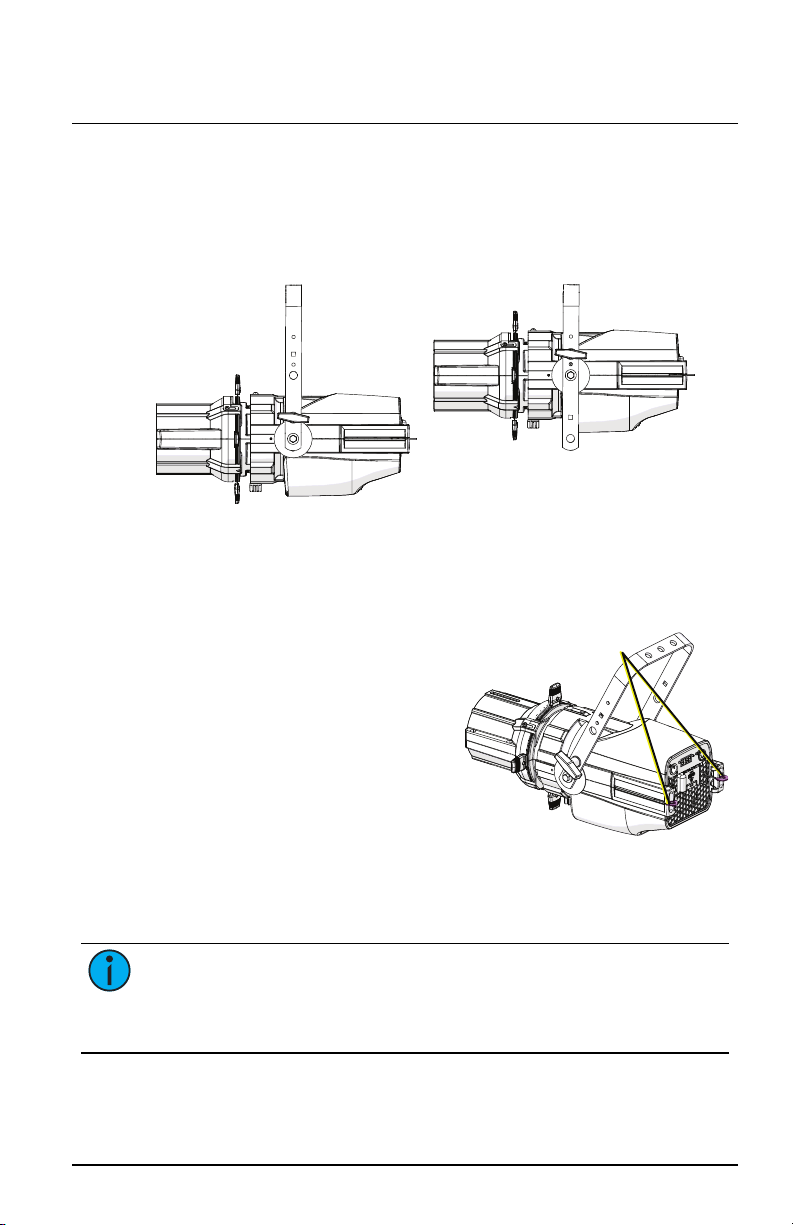

Mounting
The ColorSource Spot V ships with a standard yoke for mounting with a
clamp. You can adjust the position of the yoke when necessary for low-
clearance mounting.
Standard yoke position Low-clearance yoke position
You can attach a ColorSource Relay to the yoke. See etcconnect.com for
more information about ColorSource Relay.
Safety cable
attachment loops
Safety Cable
A safety cable (or other approved
safety device) must be attached to the
fixture. Attachment loops are on the
rear of the fixture. Leave as little slack
as possible in the safety cable to
avoid catching the yoke of the fixture.
Connectors
•
Power: Two powerCON®TRUE1®connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin XLR connectors for data in and
thru
Note: The ColorSource Spot V is not self terminating. You must
terminate the last fixture in line with a 120 Ohm resistor. To
purchase a terminator, please contact ETC customer service and
request part number SGE1507 (XLR terminator).
ColorSource Spot V Page 5 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Set Up the Fixture
1. Plug the power cord into the powerCON TRUE1 In connector on the
rear of the fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX
line, terminate the fixture. See Connectors on the previous page .
4. Plug the power cord into the power source.
Power Up
Press any button to wake the display. The display shows the DMX
address. See Set the DMXAddress below .
You can press the Mode button to access the Presets/Sequences menu.
See Play Presets and Sequences on page11 .
Adjust the Tilt
The fixture can be tilted up and down and rotated (panned) as needed.
1. Loosen, but do not remove the yoke locking knobs.
2. Tilt the fixture to the desired angle.
3. Tighten the yoke locking knobs.
Set the DMXAddress
1. Press any button to wake the display. The display shows the DMX
address.
2. Use the Up and Down buttons to select the DMX address for the
fixture.
You can also set the DMX address using RDM or using the Set Light app.
See RDM Values on page15 or Configure Fixtures Using the Set LightApp
on page10 .
ColorSource Spot V Page 6 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of four available
mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows
ctL (Control).
3. Press the Mode button. The display shows the current DMX control
mode.
4. Press the Up button or Down button to change the DMX control
mode. (The currently saved mode is indicated by a decimal point at
the end of the mode name.)
•
Stn: Standard mode (intensity, red, green, blue, strobe, and fan).
This is the default mode.
•
dir: Direct emitter control (intensity, red, green, blue, indigo,
lime, strobe, and fan).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults to
3200K White).
•
rgb: RGB mode (red, green, and blue).
5. Press the Mode button to confirm your selection. The display shows
ctL (Control).
6. Navigate to the rtn (Return) option to return to the DMX address
display.
The display will automatically return to the DMX address after 10 seconds
of inactivity, and edits to the DMX control mode will not be saved. This
cancels unsaved changes.
DMXControl Channels
DMXChannel Stn
Standard
dir
Direct
1ch
1 Channel
rgb
RGB
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue
5 Strobe* Indigo
6Fan* Lime
7 Strobe*
8 Fan*
* See DMX Parameter Values below for the DMXvalues that set these parameters.
ColorSource Spot V Page 7 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
DMX Parameter Values
Parameter DMX Value Description Comments
Fan
0–9 Auto
As fixture temperature increases, the
fan speed increases to accommodate
it.
10–19 Off
When the fixture gets too hot, the
fixture reduces the intensity instead of
turning on the fan.
20 Slow Minimum fan speed
21–248 Linear Increase in
Speed
Fan speed remains constant, and
intensity is reduced as needed when
the fixture gets too hot.
249 Fast Maximum fan speed (100%)
250–255 Auto
Strobe
0 No Strobe Shutter open
1–40 Dark Strobe Range is 1–40Hz.
41–80 Bright Strobe Range is 1–40Hz.
81–120 Pulse Strobe Strobe includes a fade up and fade
down on each pulse.
121–160 Random Strobe Strobe pulses at random intervals.
161–200 Flicker Effect Strobe pulses at random intervals and
at random intensity levels.
201–240 No Strobe Shutter open
241–254 LEDs Off Shutter closed
255 No Strobe Shutter open
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
•
If you selected a preset or sequence, that preset or sequence
automatically plays.
•
If no preset or sequence is active in the background, the fixture goes
dark and the DMXstart address flashes on the user interface.
ColorSource Spot V Page 8 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Use Wireless Control
Set Up Multiverse Wireless Communication
This section applies only to the ColorSource Spot V fixture with the
optional Multiverse wireless DMXfeature.
You can use a City Theatrical Multiverse®transmitting device to wirelessly
configure and control the fixture. For information on using Multiverse
products, see the documentation provided with the products.
Note: For additional guidance and troubleshooting resources
when setting up your wireless system, download the Multiverse
Wireless Setup Information Guide at etcconnect.com.
To use Multiverse wireless communication, configure the Multiverse
settings on the fixture.
1. With the display showing the DMX address, press and hold the Mode
button for 3 seconds. The display shows ctL (Control).
2. Press the Up button or Down button until the display shows rAd
(Radio), and then press the Mode button to display the Multiverse
settings.
3. Use the Up button or Down button to navigate to the Multiverse
setting that you want to change (see table that follows). Press the
Mode button to select the setting, use the Up button and Down
button to modify it, and then press the Mode button again to return
to the Multiverse settings. (The currently saved mode is indicated by a
decimal point at the end of the mode name.)
Note: To disable wireless communication on the fixture, set the
Radio Strength (Str) to Off (oFF).
4. When you have finished configuring the Multiverse settings, navigate
to the rtn (Return) option to return to the rAd (Radio) option, and
then navigate to the rtn (Return) option to return to the DMX
address display.
001
Connection Status
The dot between the second and third digit on the
7-segment display indicates the current status:
•
On solid: Connected to a transmitter and
receiving data
•
On flashing: Connected to a transmitter, but not receiving data
•
Off:Not connected to a transmitter
ColorSource Spot V Page 9 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Display Setting Values Description
Uni Universe 001 – 999 Set the Universe value.
id SHoW ID 100 – 359
Set the value of the final three digits of the Show
ID (the prefix "24" is not displayed). For example,
for the SHoW ID24200, set the value to 200. This
value must match the SHoW ID value on the
Multiverse transmitting device.
PAS SHoW
Key 000 – 500
Set the SHoW Key value. This value must match
the SHoW Key value on the Multiverse
transmitting device.
Str Radio
Strength
•
Off
(oFF)
•
1 – 4
Set the value to the minimum level required for
successful communication between transmitters
and fixtures. Excess power output can cause
reflections and can degrade performance.
Off=Turns off power to the Multiverse radio.
Use this setting to disable wireless
communication on the fixture.
1=Low
2=Medium
3=High
4=Maximum
qAL Signal
Quality 1 – 100
Display of the signal quality. Values above 50%
are good signal quality, and above 80% are
excellent. This value can be helpful when
troubleshooting wireless performance.
SSi Signal
Strength -20 – -120
Display of RSSI(Received Signal
Strengthindicator) in dBm, ranging from -20
(strongest) to -120 (weakest). (Note that the
negative symbol does not display on the fixture.)
A display of "---" indicates that there's no
connection.
rtn Return Return to the rAd option.
Configure Fixtures Using the Set LightApp
Set Light app
Download the Set Light app to a smartphone with NFC
functionality, use the app to set fixture parameters, and
then tap the smartphone to the NFC tag on the fixture
to configure it wirelessly—even when the fixture is not
powered on. Or, after you configure the Multiverse
settings on the fixture, use the Set Light app to
configure one fixture or multiple fixtures wirelessly
from a smartphone or tablet.
Visit etcconnect.com/Apps or scan the code for more
information about the Set Light app.
ColorSource Spot V Page 10 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-
configured sequences. When you play a preset or sequence on a fixture:
•
The same preset number or sequence number plays on any
connected fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes when
you power it on again.
You can re-record presets and sequences through an RDM device or
manually on the fixture. See Re-record Presets on the next page .
1. Press the Mode button to activate the Presets/Sequences menu. The
last active preset or sequence plays automatically. (If DMX data is
present, the current preset or sequence plays in the background and
DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Mode button a
second time. The display will revert to show the DMX start address.
Pre-configuredPresets
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
ColorSource Spot V Page 11 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel
mode (1ch), you cannot re-record presets.
When you re-record presets with the fixture in RGB mode (rgb),
the intensity is set to full and the strobe is turned off.
See Change the DMXControl Mode on page7.
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and
then press the Up button or Down button to select the preset that
you want to edit.
3. Press and hold the Mode button for 3 seconds. The display shows L:
followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of
the preset in real time.
5. Press the Mode button to confirm your selection and return to
thePresets/Sequences menu. (If you don't press the Mode button,
the display returns to thePresets menu after 10 seconds without
saving your changes.)
ColorSource Spot V Page 12 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Troubleshooting
Lock the User Interface
After you have set up the fixture, you can lock the user interface to
prevent additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user
interface is locked.
2. To unlock the user interface, press and hold the Up button and Down
button simultaneously for 3 seconds.
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software
updates. For information on UpdaterAtor, see the UpdaterAtor Software
Quick Guide and the UpdaterAtor Software ReleaseNote , which you can
download from etcconnect.com.
You can push newer software versions from a connected fixture to other
ColorSource Spot V fixtures of the same type.
Note: If you have other types of fixtures in your DMX run, you do
not need to disconnect them before pushing the updated fixture
software. The update process will ignore any other fixture types in
the DMXrun.
Note: Not sure what version of fixture software is installed?The
version number appears on the display when the fixture powers
up.
1. Remove power and DMX In from the fixture that is running the
software version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously while
restoring power.
3. The display shows Udt rdy to indicate the update mode is selected.
4. Press the Mode button to start the update process.
•
The first time that you push an updated software version,
additional required files must be copied before the update can
begin. The display alternates between Udt and c:XX to indicate
the percentage complete while required data is copied.
•
The display alternates between Udt and the percentage complete
while updating the connected fixtures.
•
The display blinks once to indicate that the update is complete.
5. Reconnect DMX In on the fixture.
ColorSource Spot V Page 13 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5 seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
These error codes may display on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem
with the color calibration. The fixture will need to be returned to the
ETC factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the
fixture has gone into over-temperature protection mode to avoid
damaging the fixture. If the error does not clear, contact
ETCTechnical Support (visit etcconnect.com/contactETC).
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear
the error. If the error persists, contact ETC Technical Support (visit
etcconnect.com/contactETC).
Specifications and Reference
For current and complete compliance and specifications, see the
ColorSource Spot V datasheet at etcconnect.com.
Environment
•
Maximum recommended ambient operating temperature: Ta=40°C
(104°F)
•
Maximum anticipated external surface temperature at 40°C
ambient: Tmax = 80°C (176°F)
•
External temperatures after 5 minutes of full-brightness operation at
25°C (77°F) ambient: 30°C (86°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 37°C
(99°F)
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz,
or at 208VAC L-L.
•
Maximum power consumption is 245 W.
•
Up to 7 luminaires(15 A max) may be linked via power thru
connector (8 luminaires total per circuit) when used with an
R20Relay Module or Unison Echo Relay Panel. Consult breaker trip
curves when used with other equipment. Requires power from a
non-dimmable source.
•
Inrush:
-
120 V: 55 A (first half-cycle)
-
240 V: 59 A (first half-cycle)
ColorSource Spot V Page 14 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Typical Power Consumption
100 V 120 V 208 V 230 V
Power Current Power Current Power Current Power Current
Idle 2.1W 0.07A 2.1W 0.08A 2.1W 0.11A 2.1W 0.10A
Direct
atFull 198.5 W 2.00A 196.5W 1.65A 193.8 W 0.98A 193.7W 0.90A
RDM Values
Parameter Value Description
Manufacturer ID 0x6574 Electronic Theatre Controls
Model ID 0x0290 ColorSource Spot V with Multiverse
0x0291 ColorSource Spot V
DMXStart Address 0x00F0 Range = 1–512
DMX Personality 0x00E0
1 = Standard
2 = Direct
3 = 1 Channel
4 = RGB
Output Frequency 0x8123 0 = Standard (5 kHz)
1 = High (25 kHz)
Multiverse
Universe* 0x8C05 Set the Universe value.
Multiverse
SHoWID* 0x8C00 Set the SHoW IDvalue. This value must match the SHoW ID value on the Multiverse transmitting device.
Multiverse
SHoWKey* 0x8C03
Set the SHoW Key value. This value must match the
SHoW Key value on the Multiverse transmitting
device.
Multiverse Radio
Strength (Enable)* 0x8C04
0 = Off
1=Low
2=Medium
3=High
4=Maximum
*Multiverse parameters are applicable only to the ColorSource Spot V fixture with the
optional Multiverse wireless DMX.
ColorSource Spot V Page 15 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
FCC Compliance
ColorSource Spot V
(For any FCC matters):
Electronic Theatre Controls, Inc.
3031 Pleasant View Road
Middleton, WI 53562
[phone]
etcconnect.com
This device complies with Part 15 of the FCCRules. Operation is subject
to the following two conditions:(1) this device may not cause harmful
interference, and (2)this device must accept any interference received;
including interference that may cause undesired operation. Visit
etcconnect.com/products for current and complete compliance
information including FCC compliance.
Note: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. Any modifications or
changes to this product not expressly approved by Electronic
Theatre Controls, Inc. could void the user’s authority to operate
the product. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at their own expense.
This device contains a wireless module with the following identification
numbers:
FCC ID: VU65995
ISED Compliance
This device contains a license-exempt transmitter/receiver that complies
with Innovation, Science, and Economic Development Canada’s license-
exempt RSSs. Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Contains IC ID: 7480A-5995
CANICES-005 (A)
ColorSource Spot V Page 16 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
Conformité ISDE
Cet appareil contient un émetteur/récepteur conforme aux CNR
d'Innovation, Sciences et Développement économique Canada (ISDE)
applicables aux appareils radio exempt de licence. Son fonctionnement
est soumis aux deux conditions suivantes:
1. L'appareil ne doit pas produire d'interférences.
2. L'utilisateur de l'appareil doit accepter toute interférence, même si
l'interférence est susceptible d'en compromettre le fonctionnement.
Contient ID IC: 7480A-5995
CAN NMB-005 (A)
Licensed Software
This product uses licensed software provided by third parties. Please visit
etcconnect.com/licenses for licensing information.
ColorSource Spot V Page 17 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
ColorSource Spot V Page 18 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
ColorSource Spot V Page 19 of 20 ETC

ETC Installation Guide
ColorSource Spot V1.0
ColorSource Spot V Page 20 of 20 ETC
