BOCCHI V-Tondo 1416-001-0128 User manual

(HIDDEN INSTALLATION-FROM THE TOILET SEAT PART)
A0803

“Parts 1 and 2 are mounted on the product at the factory.”
EN WALL HUNG WC PAN INSTALLATION

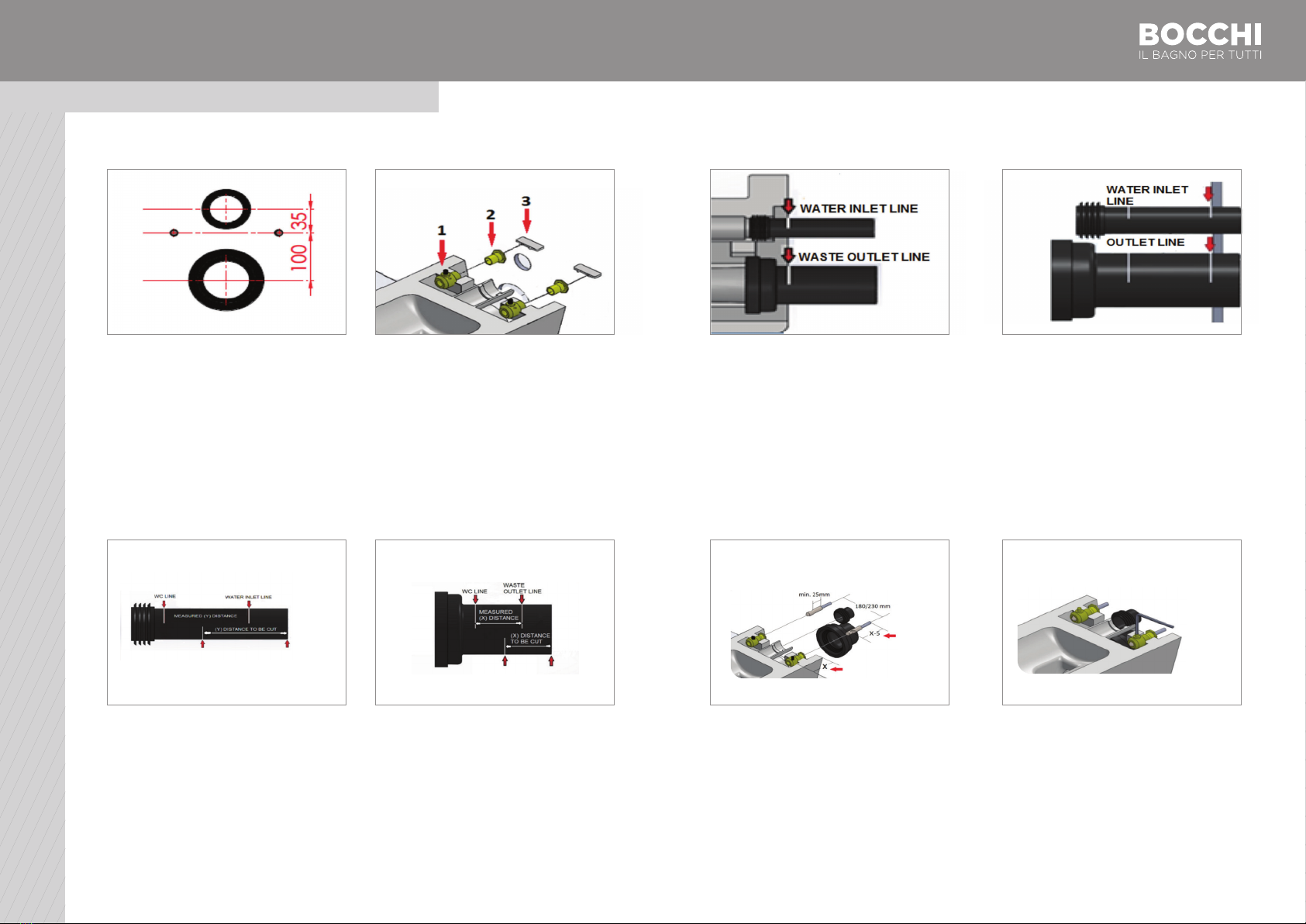

Figure-1:
WARNING:
* THE DISTANCE BETWEEN THE INSTALLATION
HOLES SHOULD BE 180 / 230 MM.
* THE DISTANCE BETWEEN CENTER OF THE
INSTALLATION HOLES AND CENTER OF THE
WATER INLET HOLE MUST BE 35 MM.
* THE DISTANCE BETWEEN CENTER OF THE
INSTALLATION HOLES AND CENTER OF THE
WATER OUTLET HOLE MUST BE 100 MM.
Figure-2:
Tighten parts no:1 and no:2 that are placed
in the installation holes by using the wrench
no: 3.
Figure-3:
Place water inlet and drain outlet pipes on
the corresponding holes on the toilet body.
Mark the pipes on the point where they meet
the toilet body.
Figure-4:
Water inlet and drain outlet pipes are placed
into the installation holes on the wall. Mark
the points on the both pipes where they meet
the wall.
Figure-5:
Measure the distance between two marks
on water inlet pipe (y) and cut this length
from the end of the pipe as shown in the
picture. Therefore prepare the pipe for
installation
Figure-6:
Measure the distance between two marks
on the drain pipe (X) and cut this length
from the end of the pipe as shown in the
picture. Therefore prepare the pipe for
installation
Figure-7:
Measure the distance on the WC pan which
is marked as (X) in the picture. Adjust the
mounting screw so that the center of the
head piece is 5 mm. less than the measured
distance (X-5).
WARNING:
IN ORDER TO ACHIEVE A LEAK-PROOF
CONNECTION NO SILICON SHOULD BE
APPLIED TO THE SEALING GASKETS.
Figure-8:
Put the toilet in its place as shown above. Place the
allen wrench at the hole. Finalize the installation
by tightening the screws on the pivot bolt.
