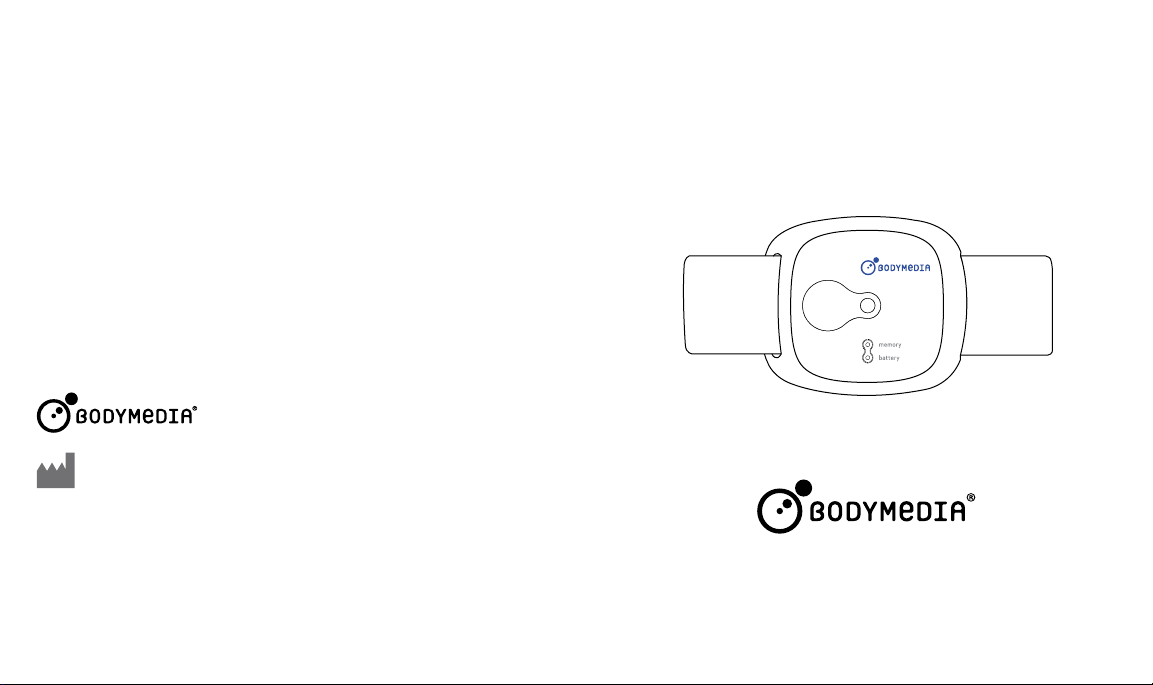

BodyMedia AB185 User manual

100706_REV2 © Copyright 2010 BodyMedia, Inc.
BodyMedia, Inc.
One Gateway Center
420 Fort Duquesne Blvd.
Suite 1900
Pittsburgh, PA 15222
USA
www.bodymedia.com Armband Model AB185
BodyMedia FIT
Armband BW Manual

BodyMedia FIT Armband BW Manual
Purpose of the System .......................................................... 3
Setup Instructions ................................................................. 4
Armband Operating Instructions.......................................... 4
Proper Wear and Cleaning.............................................. 4
Removing the Armband strap from the Armband ........ 6
Armband Status Indicators ............................................ 6
Bluetooth® Wireless Technology Instructions .............. 8
Water Resistance ................................................................... 9
Care Instructions ................................................................... 10
Symbol Definitions ................................................................ 11
Cautions ................................................................................. 12
Safe Disposal ......................................................................... 15
End User License Agreement ................................................ 15
Troubleshooting ..................................................................... 16
Product Specifications ........................................................... 16
Accuracy ................................................................................. 17
Warranty ................................................................................. 18
User Environment ................................................................. 20
Regulatory Statement ............................................................ 24
Copyright, Patent, and Trademark Notice ............................ 26
Table of Contents

BodyMedia FIT Armband BW Manual 3
Intended Use
The system records and analyzes physiological parameters, and uses algorithms
to report daily movement, calories burned, degree of physical activity, and steps
taken. These objective health metrics facilitate maintenance of a healthy weight and
an active lifestyle, and in conjunction with a balanced diet can result in a favorable
influence on overall health. Maintaining a healthy weight, balanced diet and active
lifestyle are routinely cited as key to combating and managing serious medical
conditions including obesity, cardiovascular disease and diabetes. The information
presented by the system can be used by a physician or healthcare practitioner and
may aid the assessment and medical management of conditions influenced by
weight and activity.
Risks and Benefits
The predominant benefit of the product is the enabling of the monitoring and
management of daily metabolic and lifestyle data in order to reach your activity and
weight goals. In addition to weight management, known benefits of increasing
activity levels include increased life expectancy, improved sleep, and enhanced
appearance and self perception.
Analysis and post market surveillance indicate that risks of using the products are
extremely low. No significant health risks have been identified. The most frequently
reported health risk, occurring in less than 1% of users, is a mild to severe skin irri-
tation resulting from wearing the Armband. The issue is often resolved by following
proper wear and cleaning guidelines. Skin irritation may still occur for individuals
with highly sensitive skin or for those with a specific allergy to materials used in the
Armband and/or strap. However, it is best to discontinue use and consult a physi-
cian regarding skin irritations.
If you have a known metal allergy, consult your physician prior to using the
Armband. Read the instructions provided and review the Cautions section of this
manual before using the Armband.
Purpose of the System

BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
4. Wear the Armband no more than 23 hours a day.
Be sure to leave it off 1 hour per day.
5. Replace the strap if it has lost its elasticity.
Information on obtaining replacement parts can
be found in the Quick Start.
The Armband will turn on and begin collecting data within 10 minutes. Activation
is indicated by a series of audio tones. Please note that there is no power button on
the Armband.
If you haven’t worn your Armband in a while, press the status button to activate it
before wearing it again.
To clean the Armband:
1. Gently wipe the side of the Armband that touches the skin with a soft cloth or
towel moistened with a mild soap and water.
2. Wipe with a clean damp cloth to remove any excess soap.
3. Use a dry, soft cloth or towel to completely dry before wearing it.
To clean the Armband strap:
1. Hand wash with mild soap and warm water, rinse, then air dry.
2. Machine drying may affect the performance and lifespan of the strap.
4
Proper Wear and Cleaning
Wear your Armband on the back of the upper left arm (the tricep). To work properly,
the Armband logo must face upward towards the shoulder and the silver sensors
on the underside of the Armband will be in contact with your skin.
1. Be sure the upper left arm is clean, dry, and free
of lotion or oil then slide the Armband onto your
left arm.
2. Adjust the strap so that it fits comfortably, and
then secure the Velcro pull-tab. Ensure that the
sensors on the underside of the Armband
maintain continuous contact with your skin and
that the Armband does not slide off your arm.
3. Do not secure the strap too tightly. You should be
able to place two fingers beneath the strap. Once the strap is adjusted to a
comfortable fit, there is no need to readjust the Velcro tab. Simply slide the
Armband on and off your arm by stretching the strap.
Setup Instructions
Please refer to the Quick Start included in the package for instructions on how
to begin using the system. It only takes a few minutes to get set up and moving
toward a healthier lifestyle.
Armband Operating Instructions
5

BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual 76
Removing the Armband strap from the Armband
You will need to remove the Armband from its strap to upload data or to clean the
Armband.
1. With the Armband logo facing upward, apply
continuous downward pressure to the right side
of the Armband until it separates from the
Armband strap.
2. To reattach to the strap, locate the USB port on the Armband, then align port
with the indentations on the left side of the strap. Apply upward pressure to the
right side of the Armband until it snaps into place.
Armband Status Indicators
Power
When the Armband makes contact with your body, it will automatically power on.
This may take up to 10 minutes. Activation is indicated by a series of audio tones.
Please note that there is no power button on the Armband.
Battery
Before first use, fully charge your Armband battery by removing the Armband strap
and connecting the Armband to your computer with the included USB cable. Charg-
ing will take approximately three hours. The battery light will flash green when the
Armband is fully charged.
• Model AB185 will function 2-4 days before recharging is needed
To check the battery power level, remove the Armband from your arm and press the
Armband’s Status Button. The battery light will indicate the power level as:
• Green (solid) = More than 24 hours of battery life remain.
• Amber (flashing) = Less than 24 hours of battery life remain.
• Red (flashing) = Battery needs to be charged immediately and the
Armband cannot collect data. Charge the battery before continuing use.
Memory
The Model AB185 Armband can store 14 days worth of data before needing to be
uploaded. To check the memory status, remove the Armband and press the Arm-
band’s Status Button. The memory light will indicate memory level as:
• Green (solid) = More than 24 hours of memory life remain.
• Amber (flashing) = Less than 24 hours of memory life remain.
• Red (flashing) = Memory is full and the Armband cannot collect
additional data. Connect the Armband to your computer via the USB
cable and upload data before continuing use.
Status Button
Monitor
Status Lights
Armband strap
