Bofa V600 User manual

V
600
Issue 2 Jan 2017

Overview
01

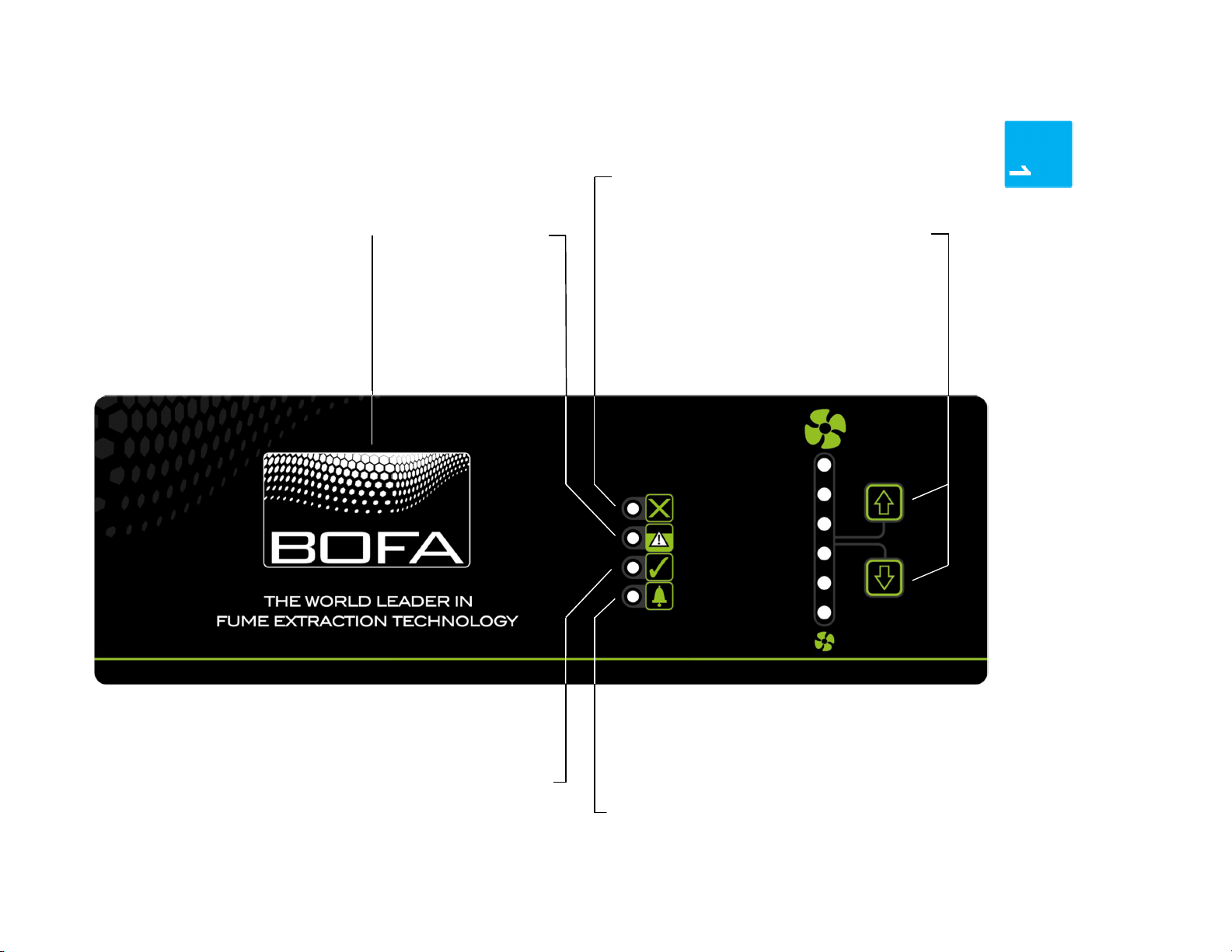

Control Panel
Feet
Clips
Handles

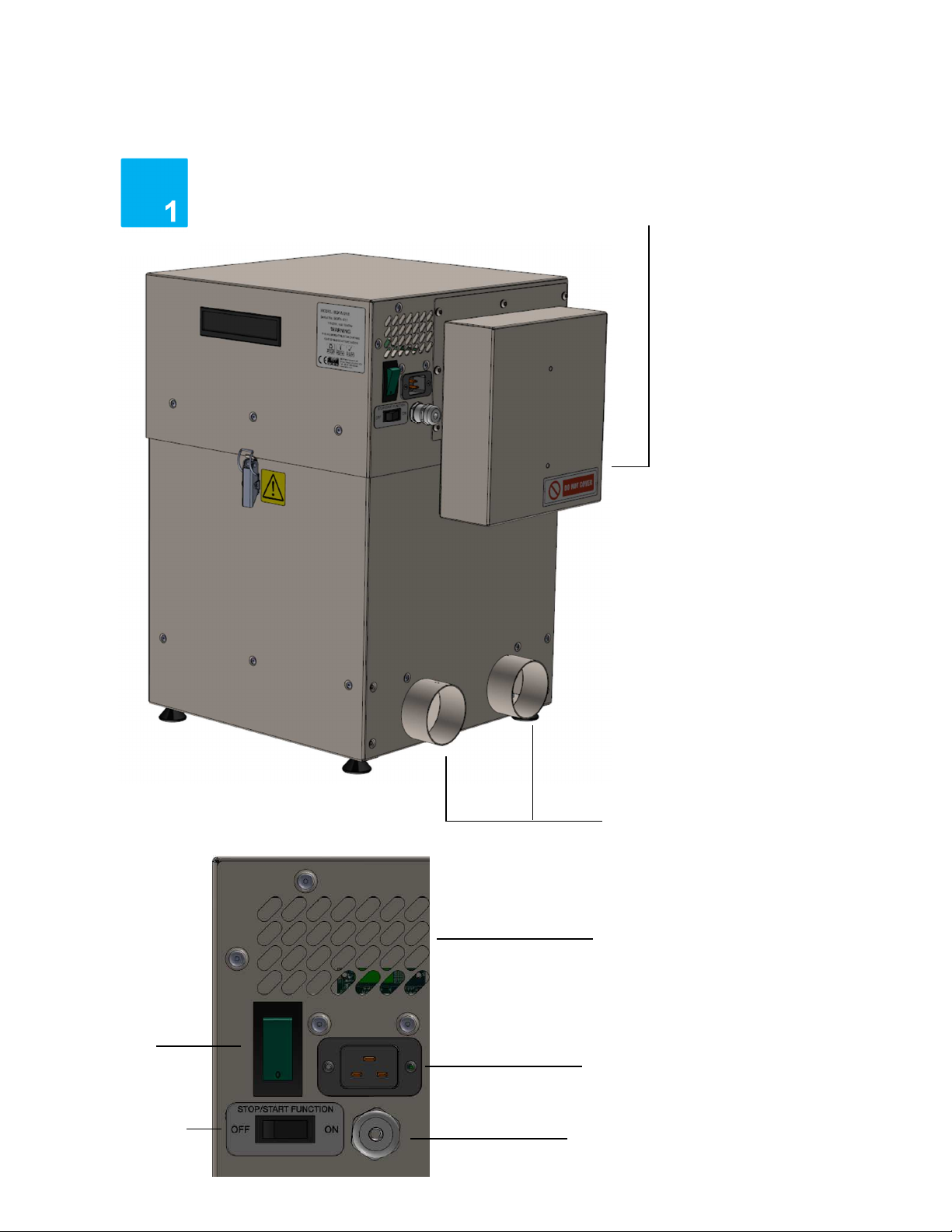

Overview
02
Air Inlet
Mains Inlet
Signal Cable Inlet
Air Outlet
Mains Isolation
Switch
Motor Cooling
Override Switch

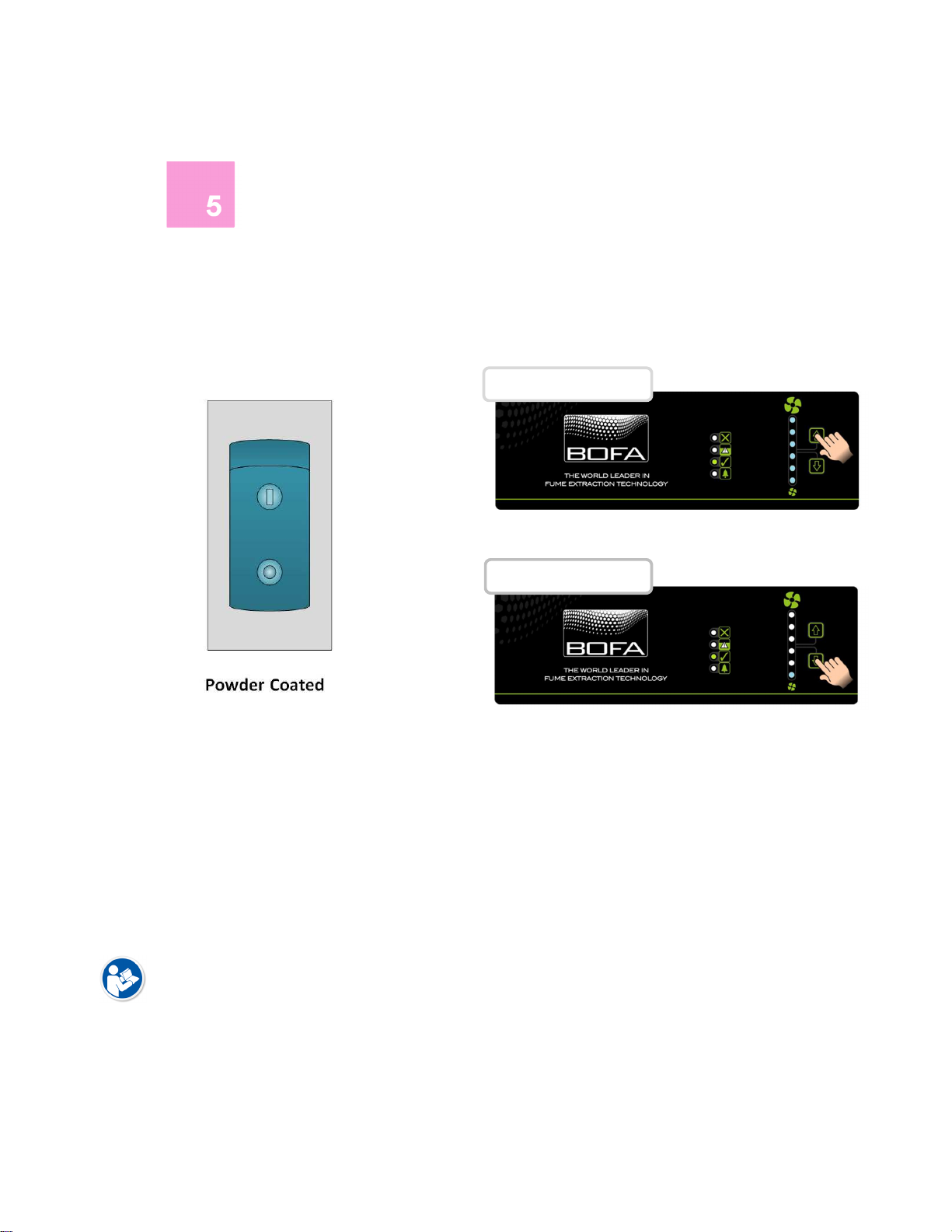

Overview
Flow
Adjustment
03
Company
randing
Filter locked
Filter 75% full
System
Running Clean
VOC Alarm

Safety Instructions
Important safety notes
Concerning symbols used on the extraction unit and referred
to within this manual.
Danger
Refers to an immediately impending danger. If the danger is
not avoided, it could result in death or severe (crippling)
in ury. Please consult the manual when this symbol is
displayed.
Warning
Refers to a possibly dangerous situation. If not avoided it
could result in death or severe in ury. Please consult the
manual when this symbol is displayed.
Caution
Refers to a possibly harmful situation. If not avoided,
damage could be caused to the product or something in its
environment.
Important (Refer to manual)
Refers to handling tip and other particularly useful
information. This does not signify a dangerous or harmful
situation. Refer to manual when this symbol is displayed.
Electrical Safety
The V600 has been designed to meet the safety
requirements of the Low Voltage Directive 2006/95/EC
(previously numbered 73/23/EEC)
Warning
When working with the pump/motor housing open, Live
230/115 volt mains components are accessible. Ensure that
the rules and regulations for work on live components are
always observed.
Important
To reduce the risk of fire, electric shock or in ury:
1. Always isolate the system from the mains power
supply before removing the pump/motor access
panel.
2. Use only as described in this manual.
3. Connect the system to a properly grounded outlet.
Dangers to eyes, breathing and skin
Once used, the filters within the V600 system may contain a
mixture of particulates, some of which may be sub-micron
size. When the used filters are moved it may agitate some of
this particulate, which could get into the breathing zone and
eyes of the operative. Additionally, depending on the
materials being processed, the particulate may be an irritant
to the skin.
Caution When changing used filters always wear a mask,
safety shoes, goggles and gloves.
Carbon selection
Please note that the media within the filter fitted in the
V600 is capable of adsorbing a wide range of organic
compounds. However, it is the responsibility of the user to
ensure it is suitable for the particular application it is being
used on.
BOFA Technical Service
If problems arises with your V600 unit or if it displays a fault
code, please contact us:
•Visit our website at www.bofa.co.uk for on-line help.
•Or contact the helpline on [phone],
Mon-Fri, 9am-5pm.
Email: Techni[email protected].uk
Serial Number
For future reference, fill in your system details in the space
provided. The serial number is on the rating label located on
the side/rear of the unit.
Serial Number:
01

Safety Instructions
Warning and Information labels
The following listing details labels used on your V600 unit.
Goggles, Gloves & Mask Label
Location: Front face of filter.
Meaning: Goggles, Gloves and Masks should be worn while
handling used filters.
Do Not Cover Label
Location: Rear Exhaust Box
Meaning: Do not cover any louvers or holes ad acent to the
label.
Electrical Danger
Location: Electrical access panel, top half of unit.
Meaning: Removal of panels with this label attached will
allow access to potentially live components.
Warning Label
Location: Next to release clips.
Meaning: Power should be isolated before the panel with
this label attached is opened/ removed.
Serial Number Label
Location: right face of unit, top right corner.
Meaning: This label contains a variety of information about
the extraction unit, including.
•Company name, Address & Contact number
•Extractor model
•Unit serial number
•Operating voltage range
•Maximum current load
•Operating frequency
•Year of Manufacture
•Relevant approval markings/ logos
PLEASE NOTE If the equipment is used in a manner not
specified by the manufacturer, the protection provided by
the equipment maybe compromised.
Fire Risk Warning
In the very rare event that a burning ember or spark is drawn
into the fume extraction unit, it may be possible that the
filters will ignite. Whilst any resultant fire would typically be
retained within the fume extraction unit, the damage to the
extractor could be significant.
It is therefore essential to minimise the possibility of this
occurring by undertaking an appropriate Risk assessment to
determine:-
a). Whether additional fire protection equipment should be
installed.
b). Appropriate maintenance procedures to prevent the risk
of build-up of debris which could potentially combust.
This unit should not be used on processes where sparks
could occur, with explosive dusts and gases, or with
particulates which can be pyrophoric (can spontaneously
ignite), without implementation of additional precautions
It is essential that nozzles or other extraction/ fume capture
devices and hoses/pipework are cleaned regularly to prevent
the build-up of potentially ignitable debris
02
02

Before installation
Packaging Removal & Unit Placement
Before installation, check the extraction unit for damage.
All packaging must be removed before the unit is connected
to the power supply.
Please read all instructions in this manual before using
this extractor.
1. Move the unit to the location where it is going to be
installed and remove the outer packaging. This
unit should be installed in a well-ventilated area.
Ensure that 500 mm space is available around any
vented panels on the extractor to ensure adequate
airflow.
2. Check the filter is located in its correct position
before replacing the lid and securing the clips
Caution
Due to the weight of the extractor suitable lifting
equipment should be used and with regard to appropriate
safety precautions. (See Appendix for product weight
details)
Caution
Do not block or cover the cooling vents on the unit,
as this severely restricts airflow and may cause damage to
the unit.
Caution
Under no circumstances should the exhaust
outlet/s be covered as this will restrict the airflow and cause
overheating.
01

Installation
The V600 has been designed to remove and filter fume
containing potentially hazardous particulate and gases
generated during manufacturing processes. Such hazardous
substances are captured within a multistage filtration
system after which the cleaned air is returned to the
workplace.
Fume Capture Methods
The fume is normally captured by 1 of 3 methods.
•Flexible arm/ Nozzle
•Enclosures
•Cabinets
General Guidelines for a successful installation
•Keep duct run length to a minimum
•Avoid sharp bends / turns in the ductwork
•Avoid multiple bends / turns in the ductwork
•Use a larger diameter duct where able
•Position the capture device as close as possible to
the marking point. (if used on high speed lines,
position the capture device slightly downstream)
Flexible Arm & Nozzle Extraction
The stay put arm should be mounted as close as possible to
the marking point using the horseshoe clips. Unscrew the
push fit connector from the other side of the flexible hose.
Cut the flexible hose to suit the distance back to the
extractor connection and push onto the extractor inlet.
Purge air should be kept to a minimum, where possible, to
prevent the fume being blown away from the nozzle.
High speed bottling lines may need bigger scoops or nozzles
both sides of the bottles because of the turbulence caused
by the speed of the bottles.

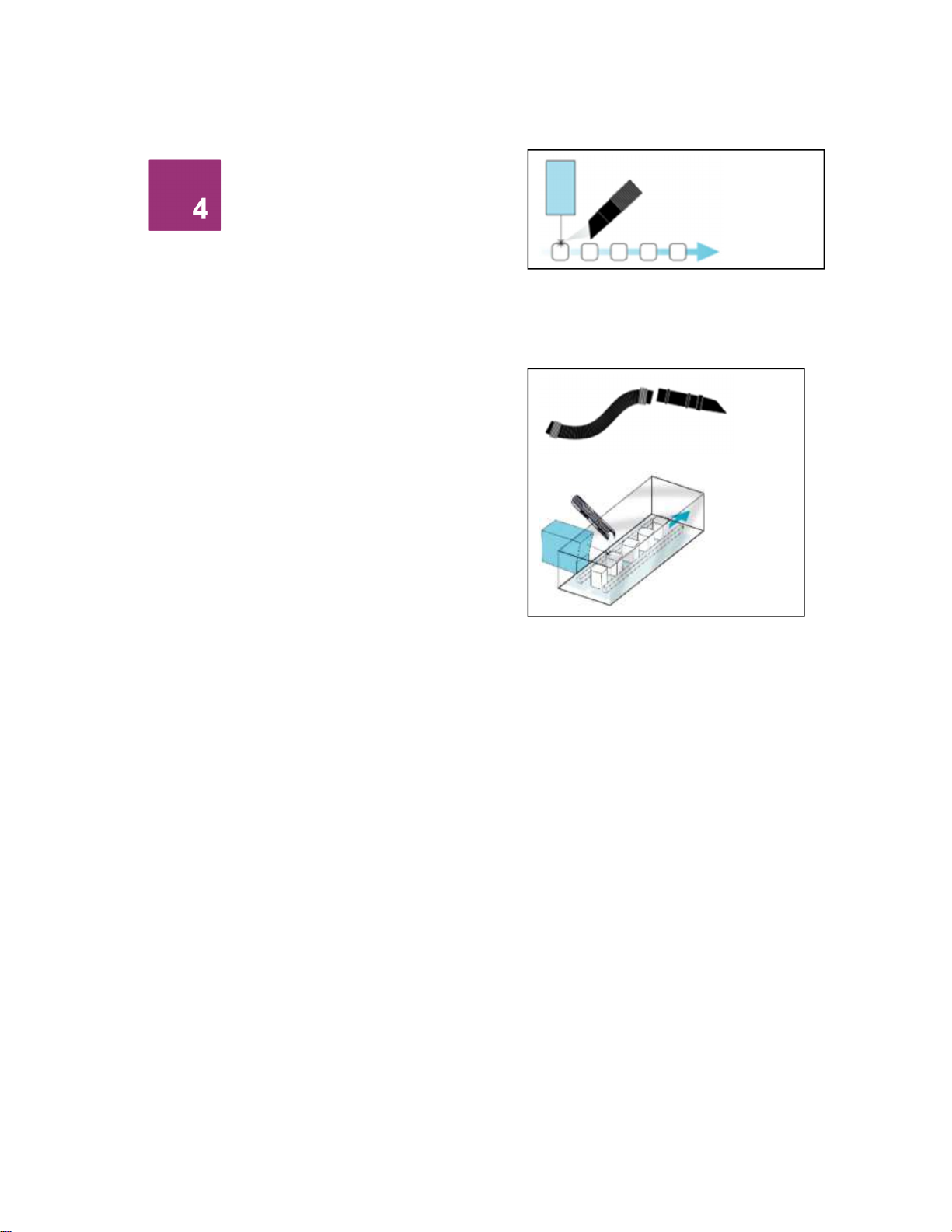

Moving products
For applications where the product to be marked is moving
past the stationary laser head the capture nozzle should be
positioned as close as possible to the marking area on the
side the product is moving towards.
Enclosures
The extraction hose and nozzle can be attached to the
enclosure surrounding the marking zone provided that the
extraction point is within 50-75mm of the marking point.
01

Installation
Specification
Dimensions: Height 590mm Depth 458mm Width 396mm
Weight: 35Kg
Voltage: 115-230V
Frequency: 50/60Hz
Full load current: 12.5A
Power: 1100W
Capacity:350m
3
/h
Connection to Power Supply
Please follow the above specification when selecting the
power supply outlet for the V600 system, ensure the power
supply is suitable before connecting the V600 system.
Check the Integrity of the electrical power cable, if the
supply cord is damaged the extraction unit should not be
connected to the mains. The supply cord should only be
replaced by a BOFA engineer as an electrical safety
test may be required after replacement.
The V600 MUST be connected to a properly earthed outlet.
If your V600 system was ordered with any
optional extras please read section 4.03 before
the power connection is made as additional connections
may be required before power is connected to the
extractor.
Connect the power cable to an isolated electrical supply.
The mains socket should be installed near the extractor it
should be easily accessible and able to be switched On/ Off.
The cable run should be arranged so as not to create a trip
hazard.
Cabinets
Cabinets normally have a 75mm 0r 100mm spigot for fume
extraction. For best performance use the same diameter
hose as the spigot and reduce at the extractor end if
necessary. Keep the hose run as short as possible.
Connection to extraction unit
All ductwork should be installed and connected to the
extraction unit before the extraction system is turned on.
Exhausting filtered air outside
If requested your extraction unit will have been fitted with
an exhaust outlet spigot. This provides a connection point
for exhaust pipework to be fitted. It is important to keep any
ducting to a minimum, in order to reduce back pressure
within the system.
02

Installation
Optional added features
The V600 can be configured to suit customer specification. These
optional extras would be discussed, arranged and installed prior to
delivery.
(If unsure what features your system is equipped with please
contact the seller with the unit serial number, (Refer to section 2
for location) who will be able to advise what specification has
been supplied.
Remote Stop/Start feature
Enables the extraction unit to be remotely turned On / Off via an
external signal.
Note Care must be taken to ensure that the system is correctly
wired in order for the extraction unit to function correctly.
DC Voltage input
This configuration requires the Black & Red cores of the signal
cable (Refer to section 1 for location) to be connected to a known
and tested DC power supply, in order to start the extractor.
The operating voltage for this signal is 24VDC. Only this voltage
should be connected. Voltages connected outside of this range
may cause irreversible damage to the relay.
Red cable = V+
Black cable = V-
When the extractor is provided with the correct DC voltage the
motor will start and maintain the set flow rate (Refer to section 5
for how to set the flow) when the DC voltage is removed the motor
will slow down and come to a stop.
The extractor will need to be turned on (See section 5 for turning
the extractor on) in order for this feature to operate.
Override
Enables the extractor to operate fully with or without either DC
voltage input or the Volt free input.
The override feature can be toggled On / Off by a switch mounted
on the internal motor access panel (see below for switch location)
Switch in “On” position
In this position the extractor will require a start signal (either
Voltage input or Volt free, depending on the requested
specification) to enable the motor within the extraction unit.
Switch in “Off” position
In this position the extractor motor will run without the
requirement for an external start signal. This feature is useful for
engineers carrying out works/ tests on the extractor without the
need for the laser / auxiliary signal being present.
Filter Blocked / System Fail Signal
With this option the extraction system will output a signal to alert
the user when the extractor has failed or when the filters are
blocked.
This feature will not directly stop the extractor from running
correctly, but if fitted this feature should be terminated correctly
before power is applied to the extraction system.
Connection specification
This signal is available via the Green and White cores of the signal
cable. The system will provide a volt free Open / Closed signal that
can be connected to an external interface, beacon or warning
device following the specification below.
•Maximum input voltage 24V AC
•Maximum current load 3A @ AC
OR
•Maximum input voltage 24V DC
•Maximum input load 3A @ DC
Filter Signal
When the filters become blocked or the system develops a fault
the connection between the Green & White cables will become
“Open”
When the extraction system is running normally the connection
between the Green & White cables will become “Closed”
03

Operation
Turning extraction unit On
The main isolation switch must be switched to the “On”
position (Refer to section 1 for switch location) by
depressing the ‘I’ side of the switch.
Setting the desired airflow
The V600 features manual flow control. This enables the
user to set the required airflow rate. Over time as the filters
begin to block the user should manually increase the motor
speed to ensure the correct flow is maintained to
compensate for any loss in performance caused by the
added restriction of the partially blocked filters.
The extractor and all pipe work must be fully
installed and connected before the airflow is set.
To set the airflow
Press the Up arrow button to increase airflow and press the
down arrow button to decrease airflow. The level of airflow
is indicated by the vertical row of six blue LEDs to the right
of the mains isolation switch. As the airflow increases, more
blue LEDs light up and the opposite for decreasing the
airflow.
Remote Speed Control
If your V600 extraction unit is installed with this optional
extra the airflow can be remotely controlled from a
controller run from the unit on a signal cable. The airflow is
ad usted in the same way as detailed above.
01
Increase Airflow
Decrease Airflow

Maintenance
Maintenance UK
It is a legal requirement, under regulation 9 of the COSHH
regulations that all local exhaust ventilation systems are
thoroughly examined and tested at least once every 14
months (typically carried out annually). The approved code
of practice recommends that a visual check should be
carried out at least once a week.
COSHH requires the annual inspection and testing to be
carried out by a competent person and specifies that
documentation results are recorded in a log.
Contact the seller for more information about inspection
and certification.
Maintenance General
User maintenance is limited to cleaning the unit and filter
replacement, only the manufacturers trained maintenance
technicians are authorised to carry out component testing
and replacement. Unauthorised work or the use of
unauthorised replacement filters may result in a potentially
dangerous situation and/or damage to the extractor unit
and will invalidate the manufacturer’s warranty.
Cleaning the unit
The powder coat finish can be cleaned with a damp cloth
and non-aggressive detergent, do not use an abrasive
cleaning product as this will damage the finish.
The cooling inlets and outlets should be cleaned once a year
to prevent build-up of dust and overheating of the unit.
Filter Information
A log of filter changes should be maintained by the user.
The filters require attention when the display shows the
configuration shown on the next page or when the extractor
no longer removes fume efficiently.
It is recommended that a spare set of filters are kept on site
to avoid prolonged unit unavailability. Part numbers for
replacement filters can be found on the filters fitted in your
system.
To prevent overheating, units should not be run with a
blocked filter condition, or with dust obstruction of Inlets /
Outlets.
Fire Risk Warning
In the very rare event that a burning ember or spark is
drawn into the fume extraction unit, it may be possible that
the filters will ignite.
Whilst any resultant fire would typically be retained within
the fume extraction unit, the damage to the extractor could
be significant.
It is therefore essential to minimise the possibility of this
occurring by undertaking an appropriate Risk assessment to
determine:-
a). Whether additional fire protection equipment should be
installed.
b). Appropriate maintenance procedures to prevent the risk
of build-up of debris which could potentially combust.
This unit should not be used on processes where sparks
could occur, with explosive dusts and gases, or with
particulates which can be pyrophoric (can spontaneously
ignite), without implementation of additional precautions
It is essential that nozzles or other extraction/ fume capture
devices and hoses/pipework are cleaned regularly to prevent
the build-up of potentially ignitable debris
01

Maintenance
Filter Replacement
During use, the V600 will alert the user when its filter needs
replacing. When the filter needs to be changed, the LED to
the left of the bell symbol will glow red.
To remove and replace the pre filter follow the procedure
detailed below.
1. Isolate the electrical supply to the unit.
2. Undo the latches on either side of the unit and lift
the motor section off.
3. Remove the filters from the base.
4. Vacuum out any dust in the base.
5. Remove the pre filter from inside the combined
filter and replace with a new pre filter.
6. Locate the combined filter into the base.
7. Replace the motor section and fasten the latches.
8. Reconnect the power supply.
To remove and replace the combined filter follow the
procedure detailed below.
1. Isolate the electrical supply to the extractor
2. Undo the two clips on the sides of the unit and
remove the motor section using the two handles on
the sides of the lid.
3. Lift the filter out of the unit. Once removed it is
recommend that the used filters are bagged and
sealed.
4. Lower the new filter into position. If the current pre
filter is found to be serviceable place into the new
combined filter.
5. Replace the motor section, and fasten the two clips.
If the VOC (Volatile Organic Compound) alarm option is
installed in your V600 unit, the extractor will monitor and
detect the level of VOC particles in the air. If the VOC level
rises above a pre-set level then the LED to the right of the
bell symbol will illuminate red. This requires the
replacement of the filter.
Note The unit needs to be set at above 75% power for
the filter condition LEDs to function.
Note The filter MUST be fitted when the extractor is in
use.
02
VOC
Alarm
Pre Filter
Combined
Filter

Replacement Parts
Consumable Spares
The V600 extraction system contains two filters. These
should be replaced when instructed to do so by the V600
system (see section 6 for replacing the filters)
To maintain performance it is important that the filters are
replaced with identical BOFA filters. To re-order please refer
to the Filter number printed on the filter installed in your
extraction unit.
Maintenance Protocol
Users can record changes in filter change intervals on the
table below.
Unit Serial Number:
Pre Filter
Date
Engineer
Combined
Filter
Date Engineer
Filter disposal
The V600 combined filter is manufactured from non-toxic
materials. Filters are not re-usable, cleaning used filters is
not recommended. The method of disposal of the used
filters depends on the material deposited on them.
For your guidance
Deposit EWC
Listing*
Comment
Non
Hazardous
15 02 03 Can be disposed of as non-
hazardous waste.
Hazardous 15 02 02M The type of hazard needs to
be identified and the
associated risks defined. The
thresholds for these risks
can then be compared with
the amount of material in
the filters to see if they fall
into the hazardous category,
if so, the filters will need to
be disposed of in line with
the local/national
regulations.
*European Waste Catalogue
01

System Specifications
Unit V600
Capacity: 350 m³/hr (206cfm)
Weight: 35Kg (77lbs)
Motor: Centrifugal Fan
Output: 1.1Kw
Electrical supply: 115-230V
Hertz: 50/60Hz
Full Load Current: 12.5 A
Noise Level: Below 54dB (A)
(at typical operating speed)
Size:
Metric
(mm)
Imperial
(inches)
Height 590 23.1
Depth
458
18
Width 396 15.6
Filters:
Filter Type Surface
area
Efficiency
Pre Filter (F8) 4.2m
2
95% @ 0.9 microns
HEPA Filter
(Combined
filter)
2.1 m
2
99.997% @ 0.3µ
Filter Type Carbon
Type
Amount
Carbon filter
(combined
filter)
Activated
Carbon
8.5kgs
Environmental operating range:
Temperature: +5
o
C to + 40
o
C
Humidity: Max 80% RH up to 31
o
C
Max 50% RH at 40
o
C
01

Contact Information
BOFA Headquarters
21-22 Balena Close
Creekmoor industrial Estate
Poole
Dorset
BH17 7DX
UK
Phone [phone]
BOFA Americas
303 S.Madison Street
Staunton
Illnois
62088
USA
Phone [phone]
