Operating instructions
VACON frequency converter
for screw compressors

Page II BOGE – VACON frequency converter for screw compressors
Inhalt.pm6.5 - USA
Index

Index
BOGE – VACON frequency converter for screw compressors
Inhalt.pm6.5 - USA
Page III
Index
1.1 Safety ............................................................................................1.1
Warnings ........................................................................................ 1.1
Safety instructions..........................................................................1.1
Earthing and earth fault protection ...............................................1.2
Running the motor .........................................................................1.2
Maintenance ..................................................................................1.2
1.2 Control keypad .............................................................................1.3
Displays on the control keypad ......................................................1.3
Control keypad buttons ..................................................................1.4
Navigation on the control keypad ................................................... 1.6
Independent monitoring values ......................................................1.8
Monitoring values depending on version V1.10 .............................1.9
Monitoring values depending on version V1.30 .............................1.9
Monitoring values depending on version V1.40 .............................1.9
Trouble shooting........................................................................... 1.12
Part 1:
Frequency converter

Page IV BOGE – VACON frequency converter for screw compressors
Inhalt.pm6.5 - USA
Index

Frequenz.pm6.5 - USA
Page 1.1
Frequency converter
BOGE – VACON frequency converter for screw compressors
Safety
Safety
1.1
Warnings
Safety instructions
WARNING!
THE ELECTRICAL INSTALLATION MAY ONLY BE CARRIED OUT BY A
COMPETENT ELECTRICIAN!
The components of the frequency converter power unit are live when the
frequency converter is connected to mains potential.
Getting into contact with these live components is extremely dangerous
and may cause severe injury or even death.
The control unit is isolated from the potential.
The motor terminals U,V,W and the DC-link/brake resistor terminals (–/+) are
live, even if the motor is not running.
The control I/O-terminals are isolated from the mains potential. However,
the relay outputs and other I/O-terminals may have a dangerous control
voltage present even if the frequency converter is disconnected from mains.
The frequency converter generates a high capacitive leakage current.
Only genuine BOGE spare parts may be used.
The frequency converter is meant for fixed installations only.
Do not perform any measurements as long as the frequency converter is still
connected to the mains.
After disconnecting the frequency converter from the mains, wait until the fan
stops and the indicators on the keypad go out (if no keypad is connected
observe the indicators on the housing). Wait 5 more minutes before starting
any work on the frequency converter. Do not even open the housing before
this time has expired.
Do not perform any voltage proof tests on any part of the frequency converter.
Inspections and tests should be performed in accordance with the appropri-
ate inspection and test procedures to avoid damage to the product.
Prior to measurements on the motor or the motor cable, disconnect the mo-
tor cable from the frequency converter.
Do not touch the integrated circuits on the circuit boards. Static voltage dis-
charge may damage the components.
Before connecting the frequency converter to mains make sure that the front
cover and the cable covers are closed.

Frequenz.pm6.5 - USA
Page 1.2
Frequency converter
BOGE – VACON frequency converter for screw compressors
The frequency converter must always be earthed with an earth conductor
connected to the earth terminal .
The earth-fault protection protects only the converter itself against earth
faults in the motor or the motor cable.
Due to the high capacitive currents inside the frequency converter, residual-
current circuit breakers may not function properly.
Comply with EN 50178, chapter 5.2ff (VDE 0160).
Please note the directions given in the chapter "Electrical connection" of the
operating instructions for the compressor.
Warning symbols
For your own safety, please pay special attention to the instructions marked
with the following symbol:
Dangerous voltage
General warning
Hot surface
Warning!
This is a product of the restricted sales distribution class according to IEC
61800-3. In a domestic environment this product may cause radio interfer-
ence in which case the user may be required to take adequate measures.
While operating the equipment interferences in the civil radio communication
may occur in the proximity of the compressor under extremely unfavorable
conditions.
In normal conditions, BOGE NX frequency converters are maintenance-free.
However,we recommend to clean the heat sink with compressed air when-
ever necessary.
Simply the ventilator has to be replaced after approx. 45.000 operating hours.
This work may only be carried out by a specialist authorised by BOGE.
Maintenance
Earthing and
earth fault protection
Safety1.1
Running the motor

Frequenz.pm6.5 - USA
Page 1.3
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Displays on the control
keypad
Fig 1.1: Control keypad and drive status displays
Control keypad The control keypad is the link between the BOGE frequency converter and the
user. The control keypad features an alphanumeric display with seven status
displays (RUN, , READY, STOP, ALARM, FAULT) and three indicators for
the control place (I/O term/Keypad/BusComm).
Furthermore the control keypad has three status LEDs (green – green – red).
A detailed description you will find in the chapter "Status LEDs (green –
green – red)".
The control information, i.e. menu number, menu description or displayed
value and the numeric information are presented in three text lines.
The frequency converter can be operated by means of the nine push-but-
tons of the control keypad. Furthermore, the buttons can be used for setting
parameters or displaying operational data
The keypad is detachable and isolated from the input line potential.
Drive status displays
The drive status displays tell the user what the status of the motor and the
drive is and whether the motor control software has detected irregularities in
motor or frequency converter functions.
RUN = Motor is running – blinks, when the STOP command was entered
and the frequency converter is ramping the motor down.
= Indicates the direction of motor rotation.
STOP = Indicates that the drive is not running.
READY = Lights when the power supply is on.
In case of a failure the symbol will not light up.
ALARM = Indicates that the drive is running outside a certain limit range of
operation and a warning is given.
FAULT = Indicatesthat unsafeoperatingconditions occurred dueto which the
drive was stopped.

Frequenz.pm6.5 - USA
Page 1.4
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad buttons
Control keypad1.2
Control place indications
The symbols
I/O term,Keypad
and
Bus/Comm
indicate the choice made in
the menu "Keypad control" (M3).
I/O term
= I/O terminals are the selected control place; i.e. START/STOP
commands or reference values etc. are given via the I/O ter-
minals.
Keypad
= The control keypad is the selected control place; i.e. the
motor can be started or stopped, or its reference values etc.
changed via the keypad.
Bus/Comm
= The frequency converter is controlled via a fieldbus.
Status LEDs (green – green – red)
The status LEDs light up in connection with the drive status indicators READY,
RUN and FAULT.
READY = Lights up with the main power supply connected to the drive.
Simultaneously, the drive status display READY is lit up.
RUN = Lights up when the drive is running. Blinks when the STOP button
has been pushed and the drive is ramping down.
FAULT = Lights up when unsafe operating conditions occured due to which
the drive was stopped (fault clearance). Simultaneously, the drive
status display FAULT blinks and the fault description is displayed.
Text lines
The three text lines provide the user with information on his present location
in the keypad menu structure as well as with operational data of the drive.
1. line = Location indication – displays the symbol and number of menu,
parameter etc..
Example: M2 = Menu 2 (Parameter); P2.1.3 = Acceleration time 1
2. line = Description line – displays the description of menu, value or fault.
3. line = Value line – displays the numerical and textual values of refer-
ences, parameters etc. and the number of submenus available in
each menu.

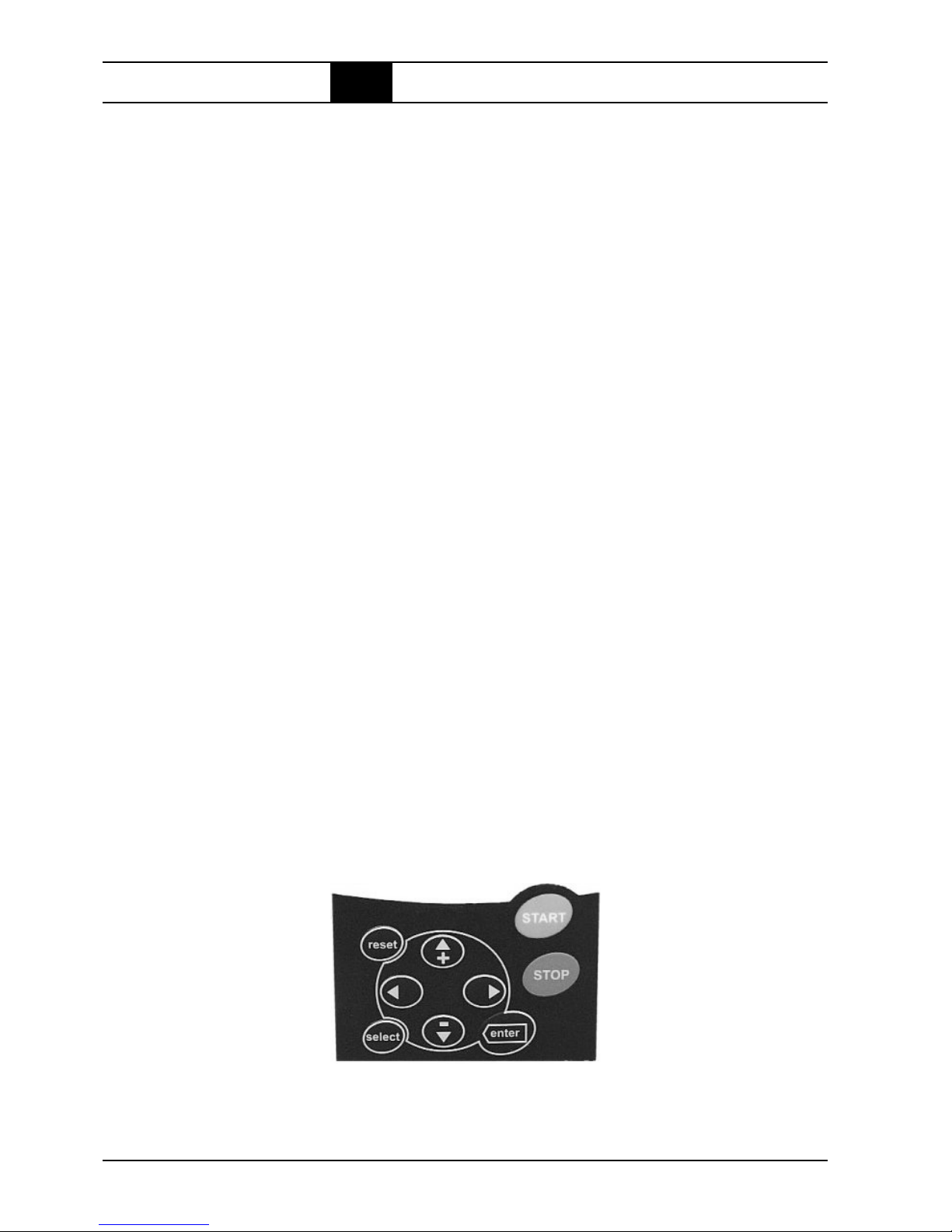

The alphanumeric control keypad features 9 push-buttons that are used for
the control of the frequency converter (and motor), parameter setting and
value monitoring.
Fig 1.2: Control keypad buttons

Frequenz.pm6.5 - USA
Page 1.5
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Button descriptions
reset = This button is used to reset active faults.
select = This button is used to switch between the last two displays.
It may be useful when you want to see how the changed new
value influences some other value.
enter = The Enter button is used to:
1) acknowledge selections
2) to reset the fault memory (2 – 3 seconds)
= Browser button (up)
Browse the main menu and the pages of different submenus.
Edit values.
= Browser button (down)
Browse the main menu and the pages of different submenus.
Edit values.
= Menu button (left)
Page backward in menu.
Move cursor to the left (in menu "Parameter" [M2]).
Exit edit mode.
Push down for 2-3 seconds to return to main menu.
= Menu button (right)
Page forward in menu.
Move cursor to the right (in menu "Parameter" [M2]).
Enter edit mode.
start = Start button
Pressing this button starts the motor if the keypad is the active
control place.
stop = Stop button
Pressing this button stops the motor (unless disabled by param-
eter R3.4/R3.6).
+
–

Frequenz.pm6.5 - USA
Page 1.6
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Navigation on the
control keypad

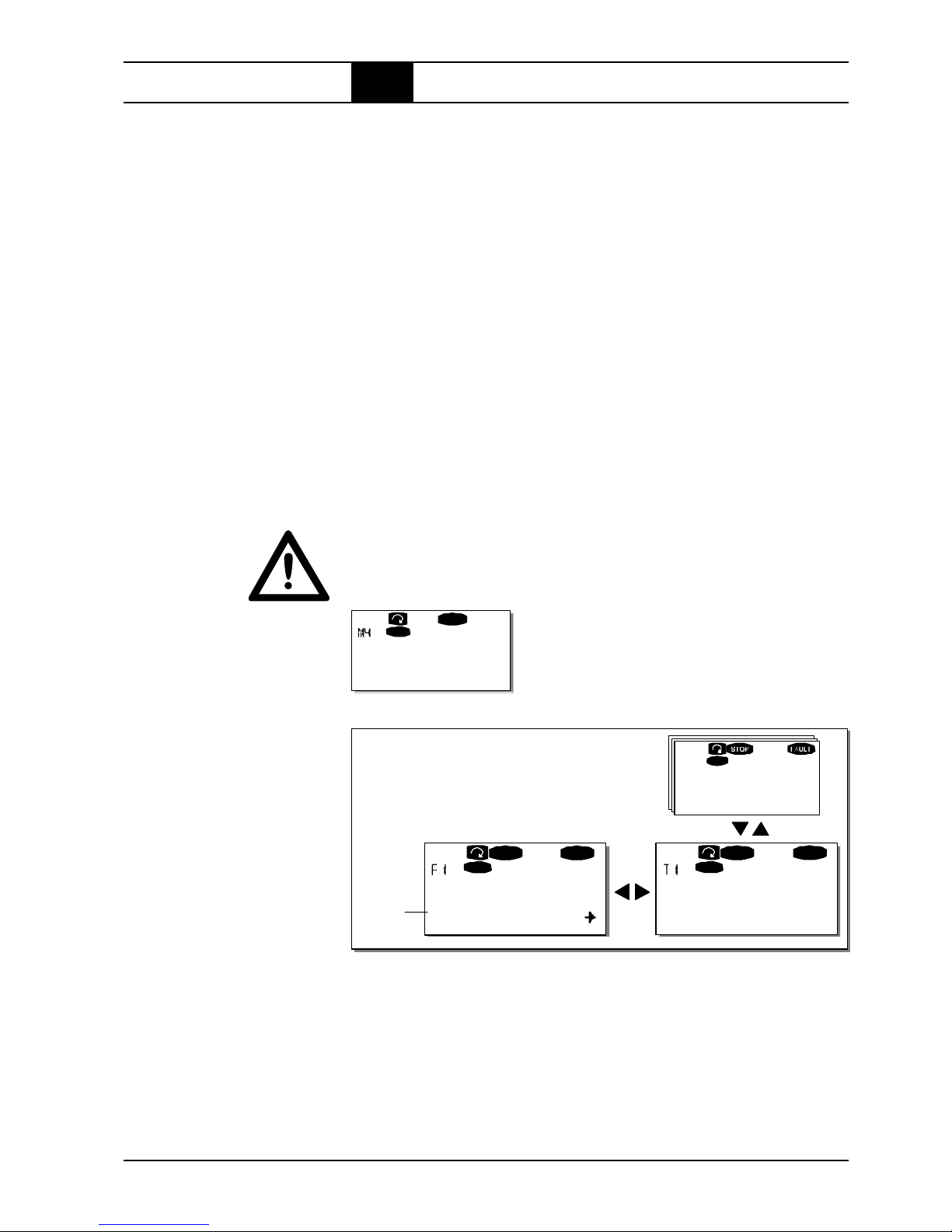

The data on the control keypad are arranged in menus and submenus. The
menus are used for example for the display and editing of measurement
and control signals, parameter settings, reference values and fault displays.
Through the menus, you can also adjust the contrast of the display.
The first menu level consists of menus M1 to M7 and is called the
Main
menu
. The user can navigate in the main menu upwards and downwards
using the
Browser buttons
. The desired submenu can be entered using the
Menu buttons
. If there are still any pages to enter below the currently dis-
played menu or page, an arrow () is shown in the lower right corner of the
display. By pressing the
Menu button (right)
, you can reach the next menu
level.
The control keypad navigation chart is shown on the next page. Please
note that the menu
M1
is located in the lower left corner. From there you will
be able to navigate your way up to the desired menu using the menu and
browser buttons.
A more detailed description of the menus you will find in the chapter below.
Menu "Monitoring" (M1)
You can enter the menu
"Monitoring"
from the Main menu by pressing the
Menu button (right)
when the location indication M1 is visible on the first line
of the display. Information how to browse the monitored values is shown in
figure 1.3.
The monitored values carry the identification V#.# and they are listed in table
1.1.The values are updated once every 0.3 seconds.
This menu is meant only for signal checking.The values cannot be changed
here.
V1
Î
V14
READY
Local
RUN
Monitor
Position
Description
Qty. of elements avail-
able; element value
Fig. 1.3: Menu"Monitoring"
V1
Î
V14
READY
Lo cal
13.95 Hz
READY
Lo cal
13.95 Hz
READY
Lo ca l
RUN RU N
RUN
Monitor Output frequency
FreqReference

Frequenz.pm6.5 - USA
Page 1.7
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Fig. 1.4: Keypad navigation chart
F T1
Î
T7
STOP FAULT
I/Oterm
STOP
I/Oterm
FAULT
H1
Î
H3
READY
I/Oterm
T1
Î
T7
I/Oterm
READY
I/ O t er m
READY
S1
Î
S9
STOP READY
I/Oterm
STOP READY
I/Oterm
enter
G1
Î
G5
RE A D Y
I/Oterm
A:NXOPTA1
READY
I/Oterm
G1
Î
G1
READY
I/ O t er m
V1
Î
V15
READY
I/Oterm
RU N
13.95 Hz
READY
I/Oterm
RUN
G1
Î
G9
READY
I/Oterm
P1
Î
P15
READY
I/Oterm
13.95 Hz
READY
Local
P1
Î
P3
READY
I/Oterm
ST OP READY
I/Oterm
ST OP
enter
enter
F0
STOP FAULT
I/Oterm
Parameters Basic parameters Min Frequency
11 Output phase Operation days
17
Fault history 11 Output phase Operation days
System Menu Language
Change
value
Browse
Expander boards Parameters
P1
Î
P3
Monitor Output frequency
No editing!
Keypad control Control Place
I/O Terminal
Change
value
Change
value
Browse
Browse
Active faults
17
English
or:

Frequenz.pm6.5 - USA
Page 1.8
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Independent monitoring values
Table 1.1a: Monitoring values
Code
V1.1
V1.2
V1.3
V1.4
V1.5
V1.6
V1.7
V1.8
V1.9
V1.10
V1.11
V1.12
V1.13
V1.14
V1.15
V1.16
V1.17
V1.18
V1.19
Parameter
Output frequency
Frequency reference
Motor speed
Motor current
Motor torque
Motor power
Motor voltage
DC link voltage
Unit temp.
Motor temperature
Analog input 1
Analog input 2
Analog input 3
Analog input 4
DIN 1, DIN 2, DIN 3
DIN 4, DIN 5, DIN 6
DO 1, RO 1, RO 2
Analog output 1
PID reference value
Description
Output frequency to motor
Frequency reference for motor control
Motor speed
Motor current
Torque in % of nominal torque
Motor shaft power
Calculated motor voltage
DC link voltage
Heat sink temperature
Calculated motor temperature
Setpoint value in Volt
0...10 V correspond to 0...16 bar, i.e. 0.1 bar correspond to 0.0625 V.
Setting of the setpoint value via potentiometer inside the switch
cabinet.
Example: Setpoint value 9.8 bar = 6.125 V
Actual value in milliampere
4...20 mA correspond to 0...16 bar, i.e.0.1bar corresponds to 0.1mA.
The input is supplied by the net pressure transmitter of the com-
pressor.
Example: Display 12.8 mA correspond to 8.8 bar.
not used
not used
Status of digital inputs 1...3
DIN 1: Start/Stop; contact closed = Start
DIN 2: not assigned
DIN 3: not assigned
Status of digital inputs 4...6
DIN 1: not assigned
DIN 2: Fixed speed; contact closed = fixed speed active
DIN 3: not assigned
Status of digital output 1 and relay outputs 1...2
DO 1: not assigned
RO 1: not assigned
RO 2: Fault inverted
Output frequency in milliampere
4...20 mA correspond to fmin...fmax
Example: Supposed fmin = 15 Hz and fmax = 60 Hz a displayed value
of 14.3 mA corresponds to a frequency of 34.5 Hz.
PID reference value in % related to max. frequency
Unit
Hz
Hz
1/min
A
%
%
V
V
°C
%
V
mA
mA
%

Frequenz.pm6.5 - USA
Page 1.9
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
Code
V1.20
V1.21
V1.22
V1.23
G1.24
Parameter
PID actual value
PID error value
PID output value
PT-100 temperature
Multimonitor
Description
Actual value of PID controller in % of max. actual value
Error value of PID controller in %
Output of PID controller in %
Highest temperature at used inputs
Displays three selectable monitoring values
top left: output frequency [Hz]
top right: frequency setpoint value [Hz]
bottom centre: Motor speed [1/min]
Unit
%
%
%
°C
Monitoring values depending on version V1.10
Table 1.1b: Monitoring values
Monitoring values depending on version V1.30
Code
V1.20
V1.21
V1.22
V1.23
V1.24
V1.25
G1.26
Parameter
PID controller
setpoint value
PID actual value
PID contr. act. value
PID error value
PID output value
PT-100 temperature
Multimonitor
Description
PID controller setpoint value in bar.
Setting via potentiometer in switch cabinet.
The PID controller setpoint value should lie between Pmax and Pmin
Actual value of PID controller in % of max. actual value
Actual value of PID controller bar (net pressure)
Error value of PID controller in %
Output of PID controller in %
Highest temperature at used inputs
Displays three selectable monitoring values
top left: setpoint value [bar]
top right: actual value [bar]
bottom centre: output frequency [Hz]
Unit
bar
%
bar
%
%
°C
Table 1.1c: Monitoring values
Menu "Parameter" (M2)
Parameters are used to transfer the user's commands to the frequency con-
verter. The parameter values can be edited by entering the menu
Param-
eter.
This menu can be called from the
Main Menu
when the location indica-
tion M2 is visible in the first line of the display. The value editing procedure
is shown in figure 1.5.
Monitoring values depending on version V1.40
Code V1.20 – V1.25 cf: Monitoring values V1.30 depending on version
Code
G1.27
Parameter
Multimonitor
Description
Displays three selectable monitoring values
top left: setpoint value [bar]
top right: actual value [bar]
bottom centre: output frequency [Hz]
Unit
Table 1.1d: Monitoring values

Frequenz.pm6.5 - USA
Page 1.10
Frequency converter
BOGE – VACON frequency converter for screw compressors
1.2 Control keypad
Press the
Menu button
(right) once to move into the menu
Parameter Group
(G#). Locate the desired parameter group desired by using the
Browser
buttons
and press the
Menu button (right)
again to enter the group and its
parameters. Use again the
Browser buttons
to find the parameter (P#) you
want to edit. From here you can proceed in two different ways: Pressing the
Menu button (right)
takes you to the editing mode. As a sign of this, the pa-
rameter value starts to blink.You can now change the value in two different
ways.
1. Just set the new desired value with the
Browser buttons
and confirm the
change with the
Enter button
. The blinking stops and the new value is
shown in the value field.
2. Press the
Menu button
(right) once again. Now you will be able to edit the
value digit by digit.This editing manner is convenient, if the desired value
is relatively greater or smaller than the displayed value. Confirm the change
with the
Enter button.
The value will not change unless you press the Enter button. Pressing
the
Menu button
(left) takes you back to the previous menu.
Several parameters are locked, i.e. uneditable, if the drive is in RUN status.
If you try to change the value of such a parameter the text
*Locked*
will
appear on the display. The frequency converter must be stopped in order to
edit these parameters.
The parameters values can also be locked using the function in menu M6.
You can return to the
Main menu
anytime by pressing the
Menu button (left)
for 1 – 2 seconds.
Once in the last parameter of a parameter group, you can move directly to
the first parameter of that group by pressing the
Browser button (up).
Note: All parameters are set and optimized in the factory.
Do not change any parameter as long as you are not aware of the resulting
consequences.
Fig. 1.5: Changing of parameter values
G1
Î
G8
REA D Y
Keypad
P1
Î
P18
READ Y
Keypad
13.95 Hz
REA D Y
Keypad
G1ÎG8
Keypad
REA D Y
Keypad
13.95 Hz
enter
REA D Y
Keypad
14.45 Hz
Parameters Basic parameters Min Frequency
Input signals
Min Frequency Min Frequency

Frequenz.pm6.5 - USA
Page 1.11
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad
1.2
Menu "Keypad control" (M3)
In the
menu Keypad Control
, you can choose the control place and edit the
frequency reference. Enter the submenu level with the
Menu button (right)
.
The menu point (M3) may only be processed by specially trained personnel.
Menu "Active faults" (M4)
The menu
Active faults
can be entered from the
Main menu
by pressing the
Menu button (right) when the location indication M4 is shown in the first line
of the display.
In case the frequency converter is stopped by a fault, the location indication
F1, the fault code, a short description of the fault and the fault type symbol
will appear on the display. In addition, the indication FAULT or ALARM is dis-
played. If a FAULT occurred, the red LED on the keypad starts to blink. If
several faults occur simultaneously, the list of active faults can be browsed
with the
Browser buttons
.
The fault memory can store the maximum of 10 active faults in the order of
appearance. The display can be cleared with the Reset button and the read-
out will return to the same state it was before the fault trip. The fault remains
active until it is cleared with the Reset button or with a reset signal from the
I/O terminal.
Note!
Reset external Start signal before resetting the fault to prevent unintentional
restart of the drive.
Fig. 1.6: Fault display
Normal state,
no faults:
F0
READY
I/O term
Active faults
Fault type
symbol
F T1
Î
T13
STOP FAULT
I/O term
STOP
I/O term
FAULT
34:21:05
I/Oterm
17
11 Output phase Operations days
Operation hours

Frequenz.pm6.5 - USA
Page 1.12
Frequency converter
BOGE – VACON frequency converter for screw compressors
Control keypad1.2
As soon as a fault is detected by the control electronics of the frequency con-
verter, the drive is stopped and the fault symbol Ftogether with the ordinal
number of the fault, the fault code and a short fault description appear on the
display. The fault can be reset with the
Reset button
on the control keypad.
The faults are stored in the menu "Fault history" (M5) which can be browsed
by the operator. The different fault codes you will find in the table below.
The fault codes, their causes and correcting actions are described in the table
below.
Trouble shooting
Fault Fault
code
1 Overcurrent
2 Overvoltage
3 Ground fault
5 Charging switch
6 EMERGENCY
OFF
7 Saturation trip
8 System fault
Possible cause
The frequency converter has detected
too high a current (>4*In) in the motor
cable:
– sudden load increase
– short circuit in motor cables
– unsuitable motor
The DC-link voltage has exceeded
the limits.
– delay time too short
– high overvoltage peaks in the
power supply
Current measuring has detected that
the sum of the motor phases does not
equal zero.
– Insulation failure in cables or motor
Charging switch open, when START
command was given.
– malfunction
– component failure
The supplementary board has created
a stop signal.
Increased overload
Defective component
The diagnostic program of the
frequency converter is unable to
locate the fault.
Corrective actions
Check loading.
Check motor size.
Check cable.
Extend delay time.
Check motor cable and motor.
Reset fault and restart.
Should the fault reoccur contact your
BOGE dealer.
Cannot be reset from the keypad.
Disconnect power supply.
Should you fail to correct the fault
contact your next BOGE dealer.
Reset fault and restart.
Should the fault reoccur contact your
BOGE dealer.

Frequenz.pm6.5 - USA
Page 1.13
Frequency converter
BOGE – VACON frequency converter for screw compressors
1.2 Control keypad
Fault Fault
code
9 Undervoltage
10 Net phase
supervision
11 Output phase
supervision
12 Brake chopper
supervision
13 Insufficient tem-
perature in fre-
quency converter
14 Excess tempera-
ture in frequency
converter
15 Motor blocked
16 Excess tempera-
ture inside motor
17 Motor underload
22 EEPROM-
23 checksum fault
24 Data change
warning
25 Microprocessor
watchdog fault
Possible cause
DC-link voltage is below the limit
values.
– probable reason:
supply voltage too low
– internal frequency converter fault
Net phase missing.
Current measuring has detected, that
current is missing in one motor phase.
– no braking resistor installed
– braking resistor damaged
– brake chopper failure
Heat sink temperature below –10°C.
Heat sink temperature above +90°C.
Excess temperature warning is issued
once the heat sink temperature
exceeds 85°C.
Motor blocking protection has triggered
Motor overheating has been detected
by frequency converter motor tem-
perature model.
Motor overloaded.
Motor underload protection has tripped
Parameter saving error.
– malfunction
– component failure
Due to a power failure changes might
have occurred in the various counter
data.
– malfunction
– component failure
Corrective actions
In case of temporary supply voltage
break reset the fault and restart the
frequency converter.
Check supply voltage.
If it is o.k., an internal fault has
occurred.
Contact your next BOGE dealer.
Check supply voltage and cables.
Check motor cables and motor.
Check braking resistor.
If the resistor is o.k., the chopper is
faulty.
Contact your next BOGE dealer.
Check quantity and flow of cooling air.
Check heat sink for soiling.
Check ambient temperature.
Make sure, that the switching frequency
is not too high in relation to ambient
temperature and motor load.
Check motor.
Reduce motor load.
If no motor overload exists, check the
temperature model parameters.
No special measures necessary.
Check counter data regularly.
Reset fault and restart.
Should the fault reoccur contact your
BOGE dealer.

Frequenz.pm6.5 - USA
Page 1.14
Frequency converter
BOGE – VACON frequency converter for screw compressors
1.2 Control keypad
Fault Fault
code
32 Fan cooling
34 CAN bus error
36 Control unit
37 Device changed
38 Device added
39 Drive removed
40 Unknown device
41 IGBT
temperature
42 Braking resistor
overtemperature
43 Encoder fault
50 Analog input
Iin < 4 mA
(selected signal
range 4 to 20 mA)
51 External fault
52 Communication
fault
53 Fieldbus fault
54 Slot fault
Possible cause
Frequency converter fan does not
start.
NXS control unit can not control NXP
power unit and vice versa
Supplementary board exchanged.
Different power ratings.
Supplementary board added.
Drive with other power ratings added.
Supplementary board removed.
Drive removed.
Unknown supplementary board or
unknown drive.
Overtemperature protection of IGBT
inverter has detected an increased
short-time overload current.
Overtemperature protection of internal
braking resistor has detected
too heavy braking.
Note deviating fault time data record.
Additional codes:
1 = Encoder 1
A channel not available
2 = Encoder 1
B channel not available
3 = Neither A nor B channel available
4 = Encoder reversed
Current at the analog input is smaller
than 4 mA.
– control cable broken or loose
– signal source faulty
Digital input fault
Connection between keypad and
frequency converter interrupted.
Data connection between Master
appliance and supplementary board is
interrupted.
Supplementary board or slot
defective.
Corrective actions
Contact your nearest BOGE dealer.
Replace control unit
Reset.
Reset.
Reset.
Check loading.
Check motor size.
Extend delay time.
Use external braking resistor.
Check current loop circuit.
Check keypad connection and
possible keypad cable.
Check installation.
If installation is o.k. contact your
nearest BOGE dealer.
Check board and slot.
Contact your nearest BOGE dealer.
Table 1.2: Fault codes

Frequenz.pm6.5 - USA
Page 1.15
Frequency converter
BOGE – VACON frequency converter for screw compressors
1.2 Control keypad
Menu "Fault history" (M5)
The menu
Fault history
can be entered from the
Main menu
by pressing the
Menu button
(right) when the location indication M5 is shown in the first line
of the keypad display.
All faults are stored in the menu
Fault history
which you can browse using
the Browser buttons. Additionally, the
Fault time data record
pages for each
fault are accessible. You can return to the previous menu anytime by press-
ing the
Menu button
(left).
The memory of the frequency converter can store a maximum of 30 faults in
the order of appearance. The number of faults currently in the fault history is
shown in the value line of the main page (H1 H#). The order of the faults
is indicated by the location indication in the upper left corner of the display.
The latest fault carries the indication F5.1,the second latest F5.2 etc. If there
are 30 uncleared faults in the memory the next occurring fault will erase the
oldest from the memory.
Fault time data record
When a fault occurs the information described in chapter
Fault codes
is dis-
played. By pressing the
Menu button
(right) you will enter the
Fault time data
record
menu indicated by T.1 T.13. In this menu, some selected important
data valid at the time of the fault are recorded.This feature is intended to help
the user or the service person to determine the cause of fault.
The following data are available:
T.1 Number of operation days d
T.2 Number of operating hours hh:mm:ss
T.3 Output frequency Hz
T.4 Motor current A
T.5 Motor voltage V
T.6 Motor power %
T.7 Motor speed %
T.8 Voltage (DC) V
T.9 Unit temperature °C
T.10 Operating status
T.11 Direction of rotation
T.12 Warnings
T.13 0-speed
Table 1.3: Fault time recorded data
Table of contents
