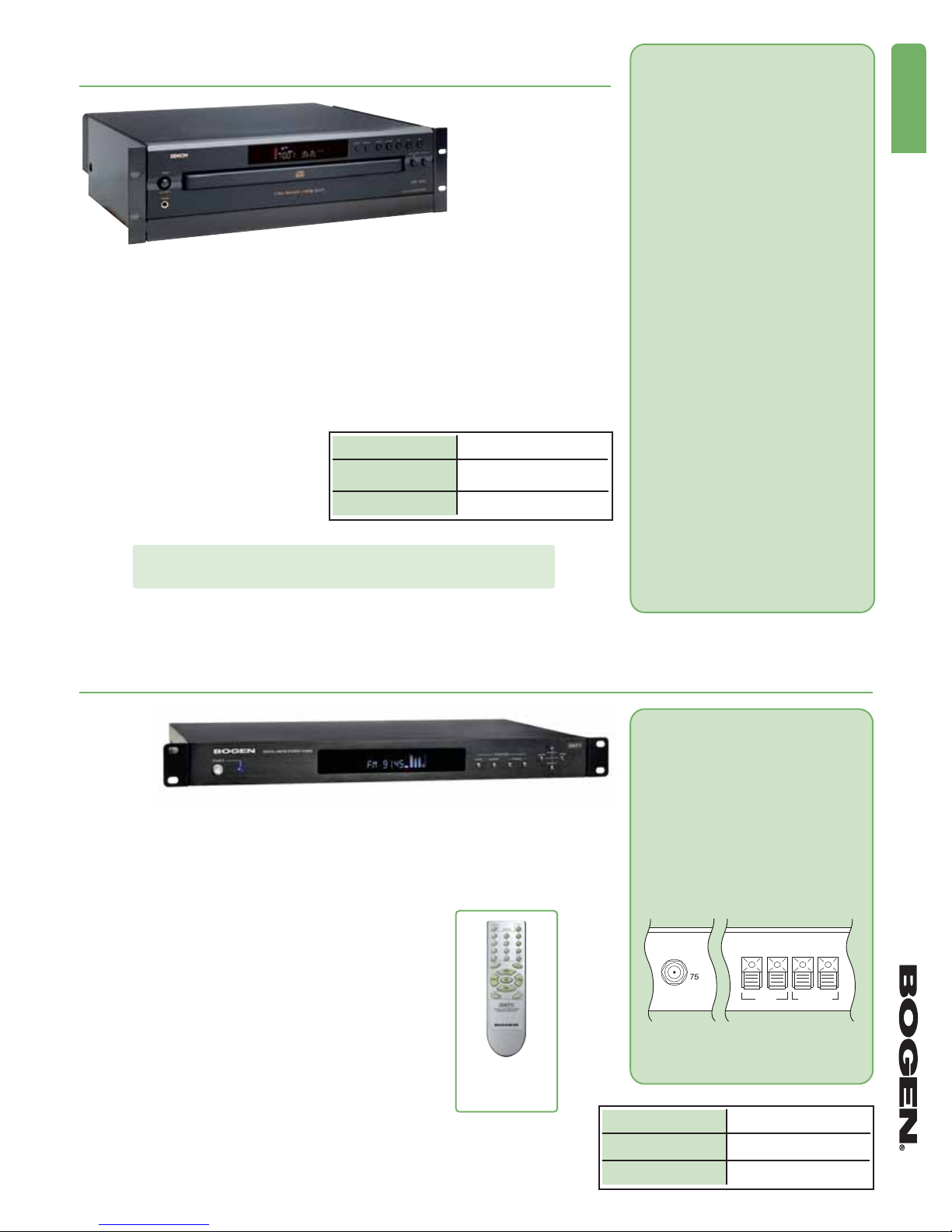

Output Connections
The DCM290P provides separate stereo
outputs via analog RCA connectors and
digital optical and coaxial connectors.
MP3/WMA Decoders
MP3/WMA decoders play finalized CD-
R/RW discs containing MP3 or WMA
audio files. A single CD-R/RW disc can
contain up to 10 times more tracks than an
ordinary audio CD.Installations requiring
long-play background music are excellent
applications for CD-R/RW discs contain-
ing a large number of MP3 files.
Playback Modes
Audio track selection can be configured in
a variety of ways for playback.Tracks can
be played back sequentially or randomly,
manually or programmed (up to 32 tracks)
from any one or up to five loaded discs.
Random playback functions include ran-
dom playback of tracks from one, all or
programmed tracks from the loaded discs.
Once all tracks are played back in random
order, "repeat playback" plays back the
same selected tracks in a different random
order.
Intelligent Disc Scan
When using the remote control, the disc
skip button rotates the carousel tray
clockwise or counterclockwise when
searching for a disc for faster playback.
This 5-Disc CD Player is capable of loading and removing discs without
interrupting play. Plays audio CDs as well as CD-R/RW discs with MP3
and WMA files. A rack mounting kit is included.
Product Features:
•5-Disc CD changer
•Load or remove discs without
interrupting play mode
•Stereo output via analog RCA jacks
and digital output via coaxial and
optical jacks
•Program up to 32 tracks from up to
five separate discs
•MP3 and WMA decoders
•Infrared remote control
•3-mode random playback (full random,
program random, disc sequential random)
•Includes rack mount kit (3 rack spaces)
•UL and C-UL listed
DCM290P*
5-Disc
CD Player
Power Requirements: 120V AC
Dimensions:
17-1/8" W x 4-3/4" H x 15-3/4" D
(without Rack Kit)
Product Weight: 13 lb.
Power Requirements: 120V AC nominal @ 60Hz
Dimensions: 16-7/8" W x 1-3/4" H x 10" D
Product Weight: 5lb.
The DST1 Digital Tuner incorporates a digital PLL-synthesized tuner for precise reception
of FM and AM signals. The DST1 features the ability to store up to 60 total presets (FM and
AM). It is designed for shelf- or rack-mounted installation and is one rack space (1 RU)
high. Removable rack ears are included with the unit.
Product Features:
•PLL-synthesized tuning with digital readout
•60 Presets total (FM and AM), with scan feature
•Stereo and Mono outputs
•Volume control (rear panel-mounted)
•Connectors for 75-ohm FM, 300-ohm FM,
and AM loop antennas
•FM dipole and AM loop antennas included
•Bright alphanumeric, fluorescent display panel
•Operates from nominal 120V AC, 60 Hz
•Handheld remote control
•Stereo output cable
•Shelf- or rack-mounted installation, one rack space
high (1 RU, removable rack ears included)
•Listed to UL Standard 60065 for US and Canada
DST1
www.bogen.com
55
MUSIC & INPUT SOURCES
MULTI-DISC CD PLAYER
DIGITAL STEREO TUNER
Antenna Connections
Anyone who has installed a tuner inside
an industrial building knows that radio
signals don’t penetrate too far into these
steel-laced structures. Because the DST1
is designed for industrial installations, it
contains inputs for both external 300-
ohm (twin line) and 75-ohm (coaxial)
antenna feeds. The 75-ohm input uses
an “f” connector and can receive feeds
from antenna distribution systems or
cable systems.
Whether sitting on a shelf or mounted in
a rack, the DST1 is a great choice for an
industrial-grade tuner.
FM GND GND AM
FM
Ω
AM LOOP
300Ω
*This product is covered by original manufacturer’s 1-Year Limited Warranty.
Please contact Customer Service for warranty information on this product.
Remote
Control
(included)

Paging Input Details
The DRZ35 has a full-featured micro-
phone paging input. The microphone
input is a low-impedance balanced input
that works with dynamic or condenser
microphones. Whenever a page is made,
the AUX or Tuner feed is muted via a
VOX detector. When the page is com-
pleted, the other source smoothly fades
back in.
By using aWMT1A matching transformer,
the MIC input can be connected to the
paging port of a telephone system.
Speaker Zones
Built into the DRZ35 is a convenient
4-zone selector switch group. These
push-on/push-off switches allow you
to control how paging is distributed
throughout a facility. Simply turn on and
off groups of speakers as needs
change.
The DRZ35 is a unique, self-contained 4-zone music and paging system for small-
to medium-sized applications. It has a digital AM/FM tuner, as well as MIC,
LINE, and AUX inputs. It has 35 watts of output power, and is capable of driving
4-ohm, 25- or 70-volt speaker systems.
The DRZ35 permits connection of up to four switch-selectable paging zones.
It also features Bass and Treble controls and a Master Volume control with a
5-segment LED output meter. The built-in tuner uses a PLL synthesizer to provide
accurate frequency selection.
DRZ35
www.bogen.com
56
MUSIC & INPUT SOURCES
AM/FM 35-WATT RECEIVER
•Self-contained, 4-zone music and paging
system with Tuner
•35 watts of output power
•For use with 4-ohm, 25- or 70-volt
speaker systems
•Select 1-4 zones for music or paging
•3 external audio inputs: MIC, LINE, & AUX
•MIC input uses a standard XLR three-pin
connector for balanced Lo-Z microphone
•Phantom power (21V DC)
•Microphone paging priority with
VOX-activated music muting
•LINE and AUX stereo combining RCA inputs
•Built-in digital AM/FM Tuner, with PLL
synthesizer to provide accurate
frequency selection
•Auto station search and manual tuning
•Backlit tuner display, LCD
•10 FM and 10 AM station presets
•Tuner has sleep mode/auto shut-off feature
•FM 75Ω coaxial (F-type), FM 300Ω,
and AM Loop terminals antenna
•Large master volume control
•Bass and treble controls
•5-segment LED output level meter
•Booster amplifier output with Pre- or Post-
Volume selector
•Power on LED indicator
•Rack-mountable with included brackets
•FM dipole and AM loop antennas (included)
•FCC Compliant
•Listed to UL Standard 60065
for US and Canada
Product Features:
Power Requirements: 120V AC @ 60 Hz
Dimensions:
17" W
x
5-1/4" H
x
13-5/8" D
Product Weight: 20 lb.

Space Saving
The CDR1 incorporates a full-featured
AM/FM receiver and CD player in an
extremely compact size. When rack-
mounted using the optional mounting kit,
the CDR1 fits in 2 rack spaces.
Dual Outputs
A unique feature of the CDR1 is its dual
outputs. Since it is designed for paging
systems, a set of signal level RCA outputs
is available on the rear of the unit.These
outputs can feed the music or AUX inputs
of a paging system directly.But the CDR1
also contains a pair of 1-watt outputs that
can drive 8-ohm speakers directly. These
outputs provide a convenient way to
supply local speakers or to monitor the
receiver tuning, without the need to run
paging speakers into the equipment
room.
RK78
Rack
Mount Kit
PRS40C
Power Supply
(12V DC)
Commercial Sound Use
The FMR is an advanced commercial music
source.It may be housed in a compact and
familiar package,but this is no simple tran-
sistor radio. It has two types of outputs.The
line output is designed to interface with
any AUX input, and the 1-watt output has
enough power to supply various external
equipment.They both have level controls
so you can use them simultaneously.
The
FMR also has a tone control to further
shape
the sound.
Another feature that makes the FMR
unique is its external antenna connec-
tions. The built-in telescoping antenna is
convenient, but radio signals don’t pene-
trate very far into most industrial build-
ings. Connect the FMR’s external antenna
terminals to a roof antenna or RF distri-
bution feed for crystal-clear reception.
Accessories
Accessories
Product Features:
•Single Disc CD Player & AM/FM Receiver
•Stereo & Mono signal out
•1W minimum, @ 8-ohms stereo output
•Adjustable loudness contour
•12-hour time display
•AUX input via 1/8" stereo jack
•Pluggable screw terminal connector
for antenna & speaker wiring
•Rack-mountable (2 rack spaces)
w/accessory mounting kit
•External power supply (UL and C-UL listed) included
CD Player: •Plays CD, CD-R, and CD-RW discs
•Browse, Repeat, Random Play, and Pause functions
Receiver: •30 Station presets: 5 selectable bands (3 FM and 2 AM)
can be programmed with 6 stations each
•Manual Tuner, Auto Seek, and Preset Scan features
•Pluggable screw terminal inputs for AM loop and FM dipole antennas
•F-Type connector for coaxial 75-ohm antenna
Power Requirements: 12V DC / 3A
Dimensions: 7-1/4" W x 2-1/8" H x 9-1/4" D
Product Weight: 4lb.
CDR1
The CDR1 is a combination
CD Player and AM/FM Receiver.
FMR
This economical FM Radio Receiver
provides 8-ohm and 600-ohm output
and is wall-mountable.
Product Features:
•Automatic Frequency Control
prevents signal drift
•LED indicator illuminates when
the signal is strongest
•1W, 8-ohm output
•600-ohm Line-level output
•Connects to a variety of paging
systems, including self-amplified
speaker systems
•Built-in monitor speaker makes
tuning easy
•Telescoping antenna built-in or
connect to an external antenna
•Volume and tone controls
•Wall-mountable
Power Requirements: 12V or 24V DC power supply
(not included)
Dimensions: 3-3/8" W x 6" H x 1-1/2" D
Product Weight: 1 lb.
www.bogen.com
57
MUSIC & INPUT SOURCES
CD PLAYER & AM/FM RECEIVER
FM RADIO RECEIVER
Actual Display may
differ in appearance from
image shown here.

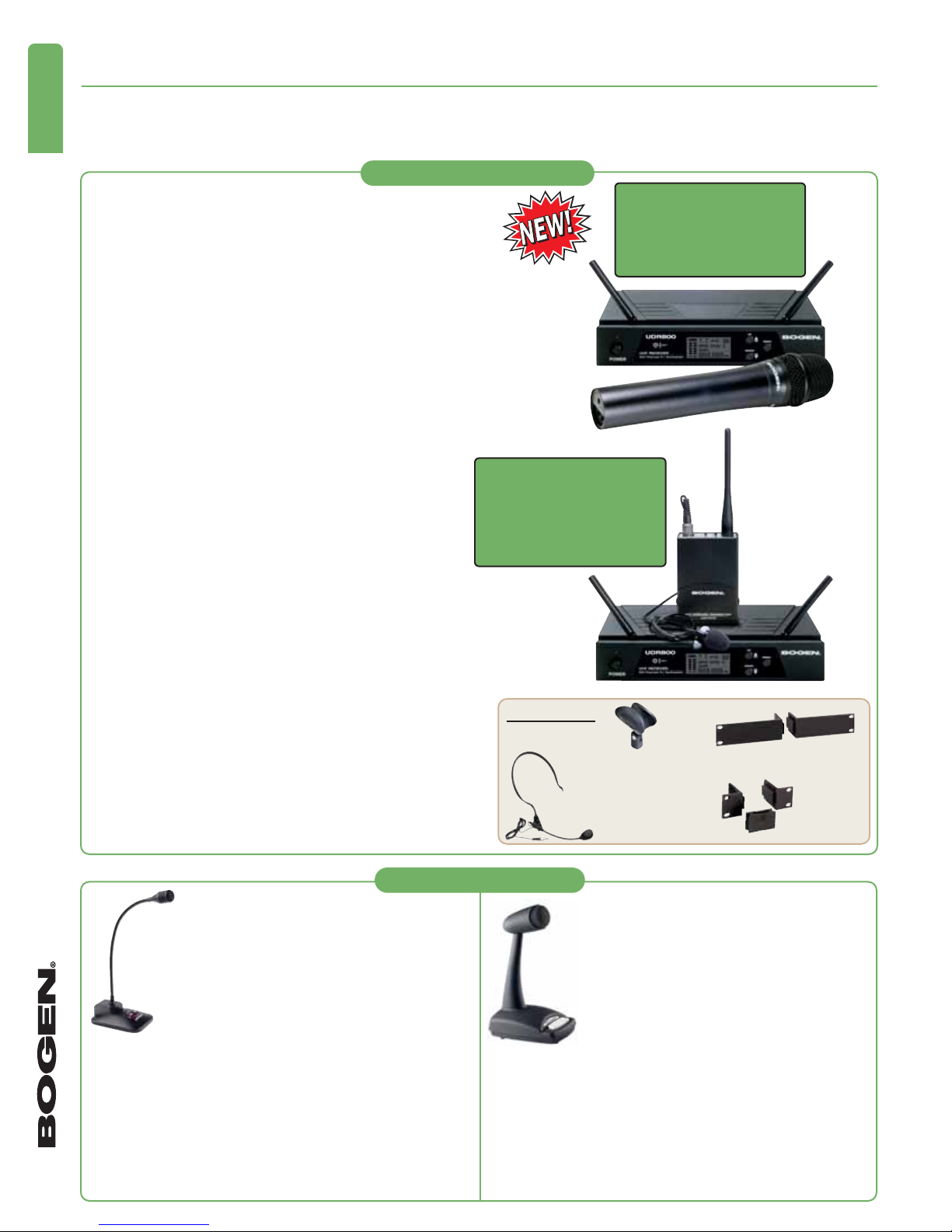

Bogen's microphone line includes a variety of types and styles (handheld, wireless handheld/lavaliere, desktop, gooseneck, boundary,
and overhead hanging) to meet your application needs, from paging systems to instrument and vocal reproduction. These
microphones provide clear, natural, intelligible sound reproduction with accurate response and dependable performance.
DESKTOPS
www.bogen.com
58
MICROPHONES
MICROPHONES
Dynamic Desktop Microphone
DDU250
The DDU250 is a high-quality, dynamic, gooseneck desktop
microphone ideal for any PA system. The gooseneck permits
the user to adjust the microphone’s angle and height to suit
the user’s needs. 4-1/4" W x 18-1/4" H x 6-1/4" D; 3.5 lb.
UHF Wireless Microphone Systems
UDMS800HH, UDMS800BP
These Wireless Microphone Systems offer users the freedom to move around
while speaking. System choices consist of a 800-channel PLL-synthesized
UHF Receiver with either a handheld microphone or lavaliere microphone
and body-pack transmitter. Headset microphone available.
•Cardioid pickup pattern
•Push-to-lock and push-to-talk switches
•Excellent speech intelligibility with low ambient noise
•Effective feedback control
•16" long, fully flexible gooseneck stalk shock-mounted to a heavy
zinc die cast base
•10-ft. cable with external contact closure outputs for the talk switches
•500-ohm Impedance
•Frequency response range of 100 Hz to 12 kHz
•Sensitivity of -76 dB +/- 3 dB
Desktop Paging Microphone
MBS1000A
•Cardioid pickup pattern
•Locking mechanism with push-to-talk bar for
long announcements
•Push-to-talk or lift-to-talk operation
•Impedance: Hi-Z, 50k ohms; Lo-Z, 500 ohms
•Frequency response range of 45 Hz to 15 kHz
•Sensitivity: Lo-Z: -72 dB +/- 3 dB; Hi-Z: -52 dB +/- 3 dB
•ABS plastic with rubberized black finish, and die cast base
•7-ft. long; 4-conductor, 2-shielded cable included
The MBS1000A is a dynamic, dual-impedance,
desktop microphone designed for all industrial and
commercial public address and paging applications.
4
-3/8 " W x 9 -3/8 " H x 5 -7/8 " D; 1.25 lb .
WIRELESS SYSTEMS
UHT800
UDR800
UBP800
UDR800
•Sleek metal housing with internal antenna
for optimum aesthetics and durable long life
•Uni-directional neodymium dynamic cartridge
for optimum sound, maximum feedback rejection,
and minimal handling noise
•Audio mute switch allows convenient audio muting while
leaving the transmitter "ON"
•LED indicator: Unit "ON", and "Low Battery Alert"
•Convenient, economical operation with AA alkaline
or NiMH batteries (2x)
• 9-1/8" long x 2" dia.; 10 oz. (without batteries)
UHT800 Handheld Microphone
•Audio mute switch allows convenient audio muting while
leaving the transmitter "ON"
•LED indicator: Unit "ON", and "Low Battery Alert"
•Locking 3.5mm mini-jack provides secure connection for
removable microphone
•Convenient, economical operation with AAA alkaline
or NiMH batteries (2x)
• 2-1/4" W x 3-3/8" H x 1" D; 2.8 oz. (without batteries)
•Lavaliere Mic: 4 ft. long cord; 0.6 oz.
UBP800 Body-Pack w/Lavaliere Microphone
•Offers 800 user-selectable frequencies in UHF 470-490 MHz band;
120 dB dynamic range; operation up to 500 feet line-of-sight
•DigiTRU Diversity™ for maximum range and dropout protection,
full LED indicators, 1/4" unbalanced and XLR balanced outputs,
Tone Squelch™ for locking out potential interference, noiseless
transmitter ON/OFF switching, and level control for unbalanced output
•Half-rack receiver design with front panel dual antennas, powered
by wall power adapter (included)
• 8" W x 1-5/8" H x 5-1/8" D; antenna 2-3/4"; 1 lb.
UDR800 800-Channel PLL-Synthesized UHF Receiver
UDMS800HH
includes:
• UHT800 Handheld Mic
• UDR800 UHF Receiver
UDMS800BP
includes:
• UBP800 Body-Pack
& Lavaliere Mic
• UDR800 UHF Receiver
MC28 Microphone Clip
(for UHT800)
RPK89 Rack Mount
(Single Unit)
RPK90
Rack Mount
(Double Unit)
Accessories
BCHM
Headset Microphone
(UBP800 Body-Pack required)

Dynamic Gooseneck
Microphone
GDU150
The GDU150 is a dynamic, gooseneck microphone that features
a durable all-metal case with a non-glare black finish. It has
a 10" long, fully flexible neck section with an integral XLR
mounting base. 16-3/4" Long; 11 oz.
•Cardioid pickup pattern
•Outstanding speech intelligibility, feedback rejection,
and user sound isolation
•High sound pressure capability and low sensitivity
to breath/pop noise
•Superior shock-mount system to reject handling
and cable noise
•Integral multi-layer breath/wind filter
•500-ohm Impedance
•Frequency response range of 100 Hz to 12 kHz
•Sensitivity of -75 dB +/- 3 dB
•Silent push-on/push-off talk switch on base
•Rugged, reliable construction
Condenser Gooseneck
Microphone
GCU250
The GCU250 is a high-performance, partially rigid, adjustable
gooseneck condenser microphone capable of meeting the strin-
gent demands of today's conference and PA systems. It is an in-
telligent choice for sound reinforcement applications. It has an
integral XLR male connector mounting base and requires a 9V-
52V DC phantom power source. Slim and compact, the GCU250
is designed to minimize intrusion between the user and the
audience. 18 -1/2 " Long; 4 oz.
•Cardioid pickup pattern
•Clean, accurate vocal reproduction with low ambient noise
•Integral breath/wind filter
•250-ohm Impedance
•Frequency response range of 50 Hz to 18 kHz
•Sensitivity of -65 dB +/- 3 dB
•Snap-on windscreen
•Durable all-metal case with non-glare black finish
•5-1/2" adjustable lower stalk, with 9-1/2" rigid upper section
Industrial Gooseneck
Microphone
MGN19
•Omni-directional pickup pattern
•Rugged, reliable design for quality, long-term use
under strenuous handling conditions
•400-ohm Impedance
•Frequency response range of 50 Hz to 12 kHz, w/2 kHz boost
•Sensitivity of -76 dB +/- 3 dB
•Push-to-talk switch on MIC housing
• Chrome-plated screen & gooseneck with black plastic housing
•4-conductor, 2-shielded cable included
•19" flexible neck with mounting flange
The MGN19 is a dynamic, push-button activated
microphone designed for all industrial and commercial
public address and paging applications.
23 -1/2 " Long; 1.25 lb.
Accessories
www.bogen.com
59
MICROPHONES
MICROPHONES
Professional Handheld
Stage Microphone
HDU250
The HDU250 is a dynamic microphone ideal for acoustically
demanding environments. It features a heavy zinc die cast case
with a rigid, low noise cable-mount system and a lockable silent
reed switch. 7" D x 2 " dia.; 13 oz.
•Cardioid pickup pattern
•High-output design with excellent gain before feedback characteristics
•High sound pressure capability without distortion
•Low sensitivity to breath/pop noise
•Efficient shock-mount system prevents handling and
transmission noise
•High sensitivity Neodymium capsule
•250-ohm Low-impedance
•Frequency response range of 50 Hz to 18 kHz
•Sensitivity of -72 dB +/- 3 dB
•Integral multi-layer breath/wind filter; includes mic clip
•Rubberized black finish; rugged, reliable construction
Handheld Public
Address Microphone
HDO100
The HDO100 is an attractive, dynamic microphone perfectly suited for
public address applications and instrument sound reproduction.
6 -1/2 " D x 1 -1/2 " dia.; 13 oz.
•Omni-directional pickup pattern
•Clean, clear reproduction with minimal ambient sound
•Low sensitivity to handling noise and stage vibrations
•Lockable, silent on/off reed switch
•500-ohm Impedance
•Frequency response range of 70 Hz to 15 kHz
•Sensitivity of -72 dB +/- 3 dB
•Internal rubber shock isolation system
•Rugged, reliable construction; includes mic clip
•Rubberized black finish
Handheld Stage
Microphone
HDU150
The HDU150 is an attractive, dynamic, all-purpose microphone ideally
suited for a wide variety of vocal and sound reinforcement applications.
6 -1/2 " D x 1 -1/2 " dia.; 13 oz.
•Cardioid pickup pattern
•Wide dynamic range with high-end sparkle and minimum feedback
•Low sensitivity to breath and popping sounds
•Lockable, silent on/off reed switch
•500-ohm Impedance
•Frequency response range of 70 Hz to 15 kHz
•Sensitivity of -70 dB +/- 3 dB
•Rubber shock-mount system for attenuation of handling & cable noise
•Rigid, low-noise cable-mount system
•Rubberized black finish; durable ball-shaped design; includes mic clip
HANDHELDS GOOSENECKS
WSGCU250
Mic Windscreen
(for GCU250)
MC27
Mic Clip
(for HD Handhelds)
More Microphone
Accessories
on Page 60

XLR25 - Microphone Cable
•For use with models HDU250,
HDU150, & HDO100
•25' cable; Male XLR to female XLR,
2-conductor plus shield; 12 oz.
MSM - Shock-Isolated Microphone Base
•For use with models GCU250 & GDU150
•Provides superior mechanical noise
and vibration handling
•Lightweight ABS material housing
•XLR (female) connector
•Thick, shock-absorbing rubber cushion
•4- 3/4 " W x 1- 3/4 " H x 4" D; 6 oz.
OVERHEAD BOUNDARY
CABLES
MOUNTS
MAC - Microphone Cable Assembly
•For use with models HDU250,
HDU150, & HDO100
•25' cable; Female XLR to stripped and tinned
wires, 2-conductor plus shield; 1 lb. MAC
MSM
XLR25
www.bogen.com
60
MICROPHONES & ACCESSORIES
MICROPHONES
MICROPHONE ACCESSORIES
Professional Overhead
Hanging Microphone
WCU250
The overhead WCU250 is a back electret condenser, professional
microphone perfectly suited for picking up audio from large
groups. Because it can hang from the ceiling and is compact in
size, the WCU250 is very useful in minimizing visual distrac-
tion for the performers and the audience alike, and limits
intrusion into the working space.
The WCU250 cable is terminated by a mini-XLR (female).
A mini-XLR to standard XLR adapter (included) houses the pre-am-
plifier. It requires an external 9V to 52V DC phantom power supply.
1
-1/4 " D x 1/2 " dia.; 5 oz.
•Cardioid pickup pattern
•Clear, crisp sound with outstanding ambient noise isolation
•Utilizes a superior-quality, state-of-the-art transducer element
and circuitry
•Transformerless, direct-coupled design to ensure clear, transparent
reproduction of even the most delicate transients at the highest
output levels
•Phantom power operated
•250-ohm Impedance
•Frequency response range of 50 Hz to 18 kHz
•Sensitivity of -65 dB +/- 3 dB
•Integrated metal hanger; matte black finish; 20-ft. cable included
•Stainless steel, adjustable black hanger
Professional Boundary
Microphone
SCU250
•Cardioid pickup pattern
•Full, rich reproduction of voice and music
•Low sensitivity to stage vibration and thumping noise
•Well-suited in capturing the sound source and immediate surroundings
•Excellent user sound isolation with excellent feedback rejection
•Phantom power operated
•250-ohm Impedance
•Frequency response range of 20 Hz to 18 kHz
•Sensitivity of -58 dB +/- 3 dB
•Low-impedance balanced output
•Mounting keyways for hanging or for secure attachment to
the mounting surface
•Heavy-duty metal case; matte black finish
•Outputs for interfacing with auxiliary equipment
•26-ft. long Quad cable, attached
The SCU250 is an unobtrusive, surface-mount, boundary, condenser
microphone ideal for meeting rooms, conferences, and stage productions
where minimum visibility is ideal. It requires an external 9V to 52V DC
phantom power supply. 2 -3/4 " W x 3/4 " H x 3 -1/4 " D; 11 oz.
STANDS
SF4 - Floor Stand
•34" to 62" adjustable height
•Round 10" diameter die cast
base, 9 lb.
•Grip-action clutch and
chrome-plated tubing
SB6 - Floor Boom Stand
•Telescopic floor stand
•Sliding 30" boom arm
•34" to 62" adjustable
height, 6 lb.
•Chrome-plated tubing
•Tripod base
DS3 - Desk Stand
•3" chrome-finish tube;
4" high with base
•6" dia. cast iron base, 3 lb.
DS3
SB6 SF4
(other accessories listed on page 59)
