Bogen ASM1 User manual

• Installs in less than a minute
• Self-contained 1W amplifier
• High intelligibility and sensitivity
• Wide-range frequency response
• Direct and reflected sound paths create wide
dispersion angle
• Lightweight and durable plastic shell with a
paintable finish
• Simple, three-step installation process
• No tool(s) installation
• Color-coded mounting studs identify polarity
to make the power and audio connections
easier (no external wires)
• Front-mounted volume control for easy
access
• Transformer-isolated, balanced audio input
• Can be installed in any drop ceiling with stan-
dard ceiling tiles
• Surface-mounting design eliminates need to
cut ceiling tile, no mess installation
• Contemporary design blends/matches any
decor
• O-ring seal holds speaker tight to ceiling sur-
face, eliminating whistling and ensures
smoother sound without peaks
• Textured studs easily pierce ceiling tile and
secure wire nut connections
• Wide-bottom, easy-to-handle mounting wing
nuts provide secure speaker mounting
• All necessary mounting hardware included
• Tile Bridge available for weight distribution
(model SMTB, sold separately)
• Complies with NFPA National Code 160b
and UL-2043 (Report available)
The Bogen ASM1Easy Install®Self-Amplified Speaker is a surface-mount speaker, designed to typ-
ically install in less than a minute. Installation is a simple, three-step process that does not require
tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom-designed wing
nuts secure the speaker to the ceiling. Third, standard wire nuts make the power and audio con-
nections directly to the color-coded studs. The ASM1is lightweight, durable, and features a low-
profile contemporary design, making it versatile enough to be installed in just about any installation
with standard ceiling tiles.
The ASM1is a 1-watt, self-amplified speaker. There is an exterior volume control for easy balanc-
ing that is easily accessible, but doesn’t attract tampering.
Features
Description
Specifications subject to change without notice.
© 2006 Bogen Communications, Inc.
Part No. 54-8023-37B 0804
Easy Install®
Self-Amplified
Speaker
Model ASM1
Power Rating (max.): 1W
Frequency Response: 125 Hz-15 kHz
Sensitivity (min., 1-watt @ 1meter on axis): 90 dBspl, 125 mV input
Supply Voltage Range: 12 - 30V DC
Typical Current Units: -1 CU (50 mA)
Idle Current: 5 mA (nominal)
Input Sensitivity: 125 mVrms
Input Impedance: 2k ohms
Dispersion (min.): 120°
Controls: Volume control
Cone: 4" Speaker cone
Magnet Weight: 6 oz.
Product Weight: 2 lb.
Shipping Weight: 3 lb.
Diameter: 9-1/2"
Height: 3"
Base Diameter (against ceiling): 8-3/4"
Construction: ABS Plastic
Flame Rating: 94-5VA
Technical
Specifications
Architect
& Engineer
Specifications
50 Spring Street, Ramsey, NJ 07446
Tel. 201-934-8500, Fax: 201-934-9832
www.bogen.com
The speaker shall be a Bogen Model ASM1. The fre-
quency response shall be 125 Hz to 15 kHz.
Dispersion angle shall be no less than 120°.
Sensitivity, measured 1-watt @ 1meter on axis, shall
be a minimum of 90 dBspl.
The speaker shall have a 1-watt amplifier. The typical
current consumption shall be 1CU (50 mA).
Frequency response shall be 125 Hz – 15 kHz. Input
sensitivity shall be 125 mVrms. Input impedance shall
be 2k ohms. Dispersion shall be 120°.
The speaker shall comply with NFPA National Code
160b that allow speakers to be installed in plenums
and other air handling spaces. The speaker shall also
comply with UL-2043 (report available).
The speaker shall be of durable ABS plastic con-
struction and shall be mounted using specially
designed studs that easily pierce ceiling tiles.
Custom-designed wing nuts shall be used for secur-
ing the speaker to the ceiling tile. Four standard wire
nuts will connect the speaker wires to the studs.
One set of studs shall be used to connect 24V (nom-
inal) power, and the other set shall be used to con-
nect an audio signal to the speaker. In each set of
studs color-coding will be used as a means of desig-
nating polarity. Copper-plated studs shall be positive
(+) and nickel-plated studs shall be negative (-). The
speaker shall include a large, rubber O-ring seal to
hold the base of the speaker cavity tight to the ceil-
ing tile.
The unit shall measure 9-1/2" in diameter by 3" in
depth. Base diameter against ceiling shall be 8-3/4".
Product weight shall be 2 lb.
Front View Side View

Other Bogen Speakers manuals

Bogen Easy Design WB1EZ User manual

Bogen

Bogen Easy Design WB1EZ User manual

Bogen BBFM6 User manual

Bogen

Bogen BBFM6 User manual

Bogen CSD2X2 User manual

Bogen

Bogen CSD2X2 User manual

Bogen NEAR A-Series A12 User manual

Bogen

Bogen NEAR A-Series A12 User manual

Bogen Easy Design CS1EZ User manual

Bogen

Bogen Easy Design CS1EZ User manual

Bogen NEAR A2 User manual

Bogen

Bogen NEAR A2 User manual

Bogen Nyquist NQ-S1810CT-G2 User manual

Bogen

Bogen Nyquist NQ-S1810CT-G2 User manual

Bogen HFCS1 Guide

Bogen

Bogen HFCS1 Guide

Bogen Easy Design WB1EZ User manual

Bogen

Bogen Easy Design WB1EZ User manual

Bogen Speaker Line Attenuator UTI1 AUX User manual

Bogen

Bogen Speaker Line Attenuator UTI1 AUX User manual

Bogen Easy Design CS1EZ User manual

Bogen

Bogen Easy Design CS1EZ User manual

Bogen MB8TSL User manual

Bogen

Bogen MB8TSL User manual

Bogen CSD1X2 User manual

Bogen

Bogen CSD1X2 User manual

Bogen BDT30A User manual

Bogen

Bogen BDT30A User manual

Bogen BAH User manual

Bogen

Bogen BAH User manual

Bogen AMBSL1 User manual

Bogen

Bogen AMBSL1 User manual

Bogen A8 User manual

Bogen

Bogen A8 User manual

Bogen SPT-5A User manual

Bogen

Bogen SPT-5A User manual

Bogen SPT30A User manual

Bogen

Bogen SPT30A User manual

Bogen Orbit NEAR OCS1 Guide

Bogen

Bogen Orbit NEAR OCS1 Guide

Bogen CSD1X2NBVR Owner's manual

Bogen

Bogen CSD1X2NBVR Owner's manual

Bogen NEAR LB4TM User manual

Bogen

Bogen NEAR LB4TM User manual

Bogen Nyquist NQ-S1810CT-G2 User manual

Bogen

Bogen Nyquist NQ-S1810CT-G2 User manual

Bogen FG15 User manual

Bogen

Bogen FG15 User manual

Popular Speakers manuals by other brands

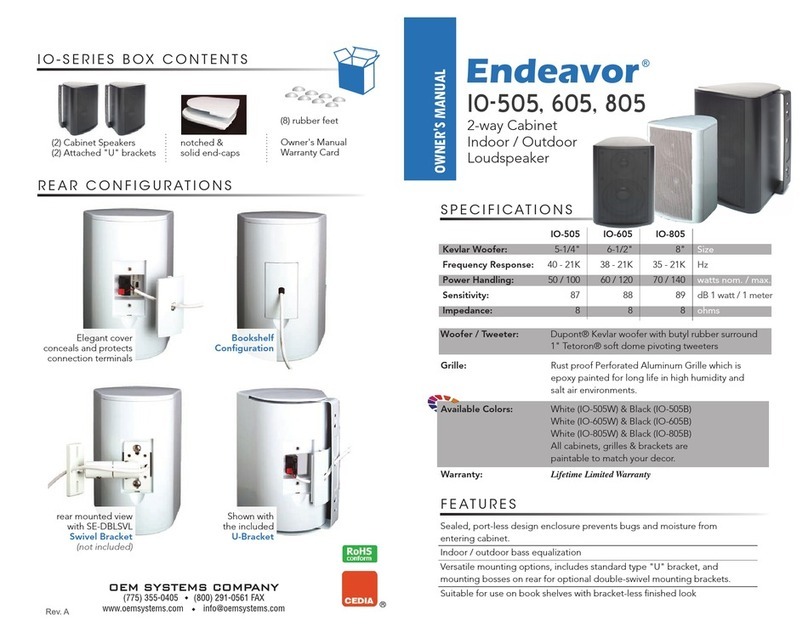

Endeavor IO-505 owner's manual

Endeavor

Endeavor IO-505 owner's manual

Audio Pro Evo Series Evo 30 Specifications

Audio Pro

Audio Pro Evo Series Evo 30 Specifications

Bose FreeSpace FS4SE manual

Bose

Bose FreeSpace FS4SE manual

Magnat Audio MONITOR SUPREME 2000 owner's manual

Magnat Audio

Magnat Audio MONITOR SUPREME 2000 owner's manual

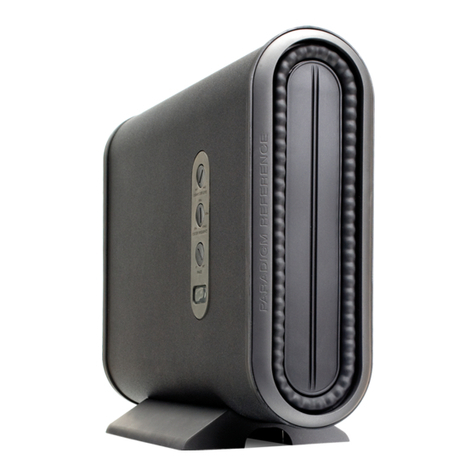

Paradigm MilleniaSub manual

Paradigm

Paradigm MilleniaSub manual

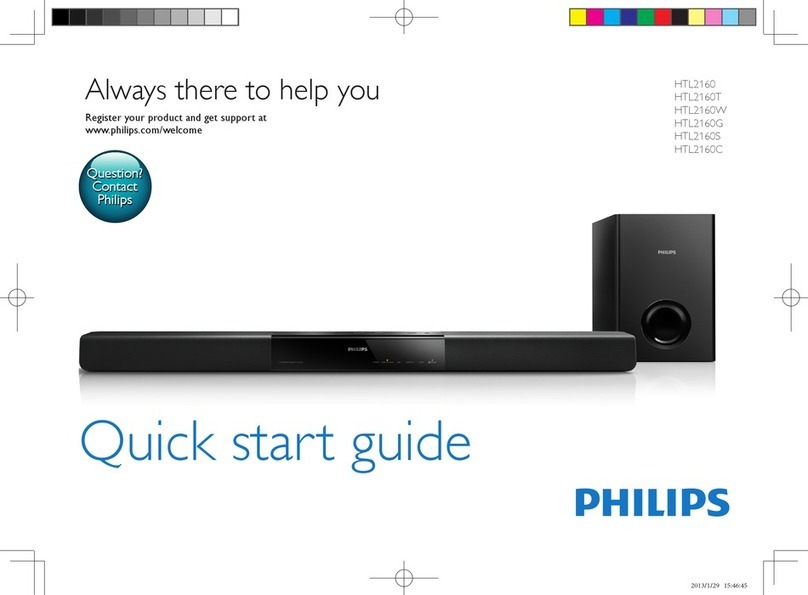

Philips HTL2160 quick start guide

Philips

Philips HTL2160 quick start guide

K-array AnaKonda KAN200 user guide

K-array

K-array AnaKonda KAN200 user guide

QSC ILA Series Installation

QSC

QSC ILA Series Installation

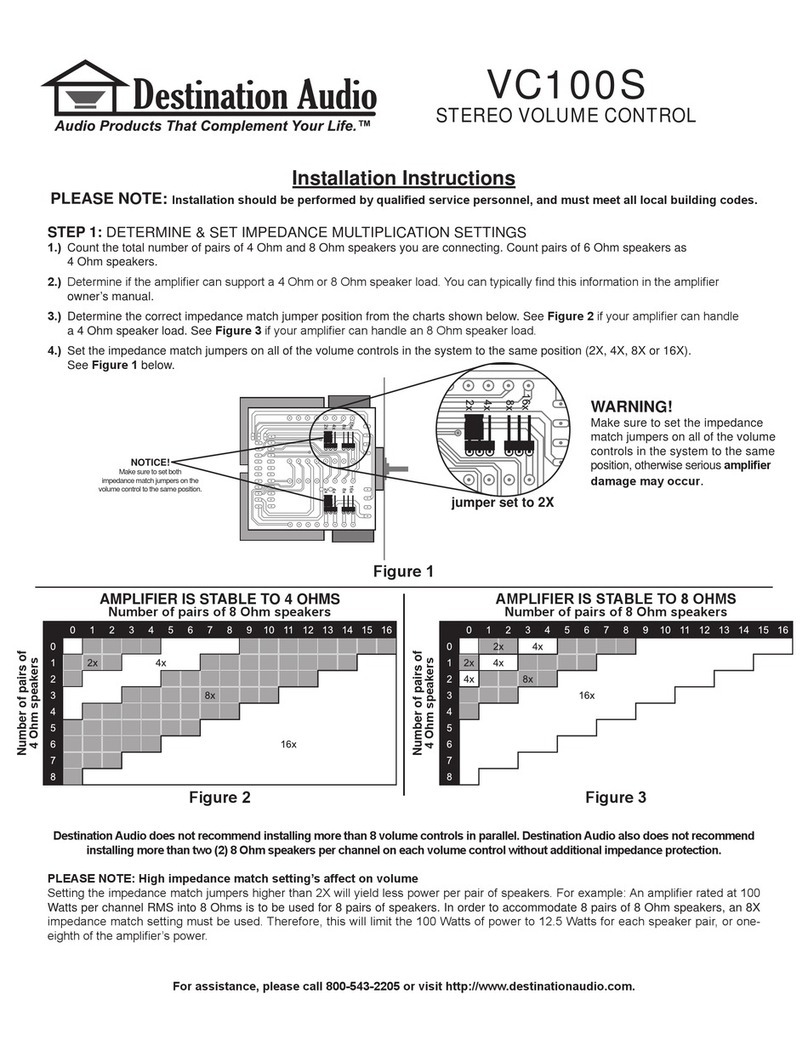

Destination Audio VC100S installation instructions

Destination Audio

Destination Audio VC100S installation instructions

LENCO PA-80 user manual

LENCO

LENCO PA-80 user manual

ItsImagical sound-system bluetooth manual

ItsImagical

ItsImagical sound-system bluetooth manual

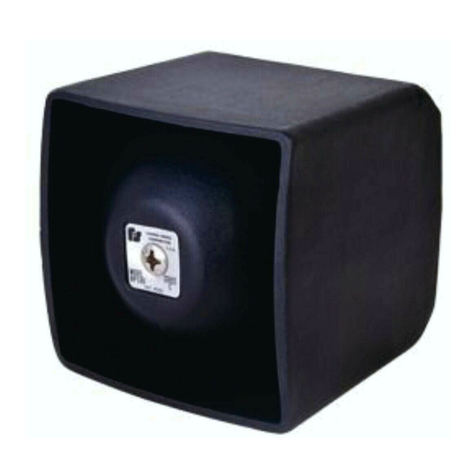

Federal Signal Corporation BP100 Installation and operating instructions

Federal Signal Corporation

Federal Signal Corporation BP100 Installation and operating instructions

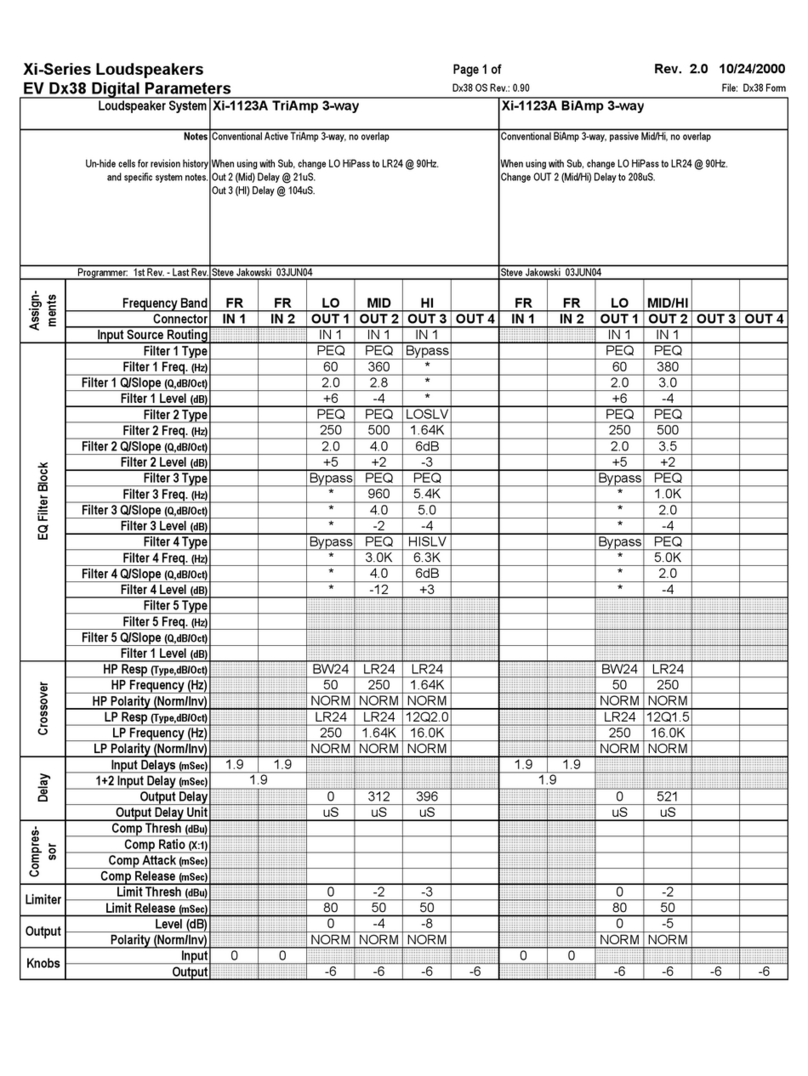

Electro-Voice Loudspeaker Xi-Series Specifications

Electro-Voice

Electro-Voice Loudspeaker Xi-Series Specifications

Ibiza sound PORT85VHF-BT instruction manual

Ibiza sound

Ibiza sound PORT85VHF-BT instruction manual

Sony BSP60 user manual

Sony

Sony BSP60 user manual

Snell IW-K7 owner's manual

Snell

Snell IW-K7 owner's manual

Omnitronic AZ-208 user manual

Omnitronic

Omnitronic AZ-208 user manual

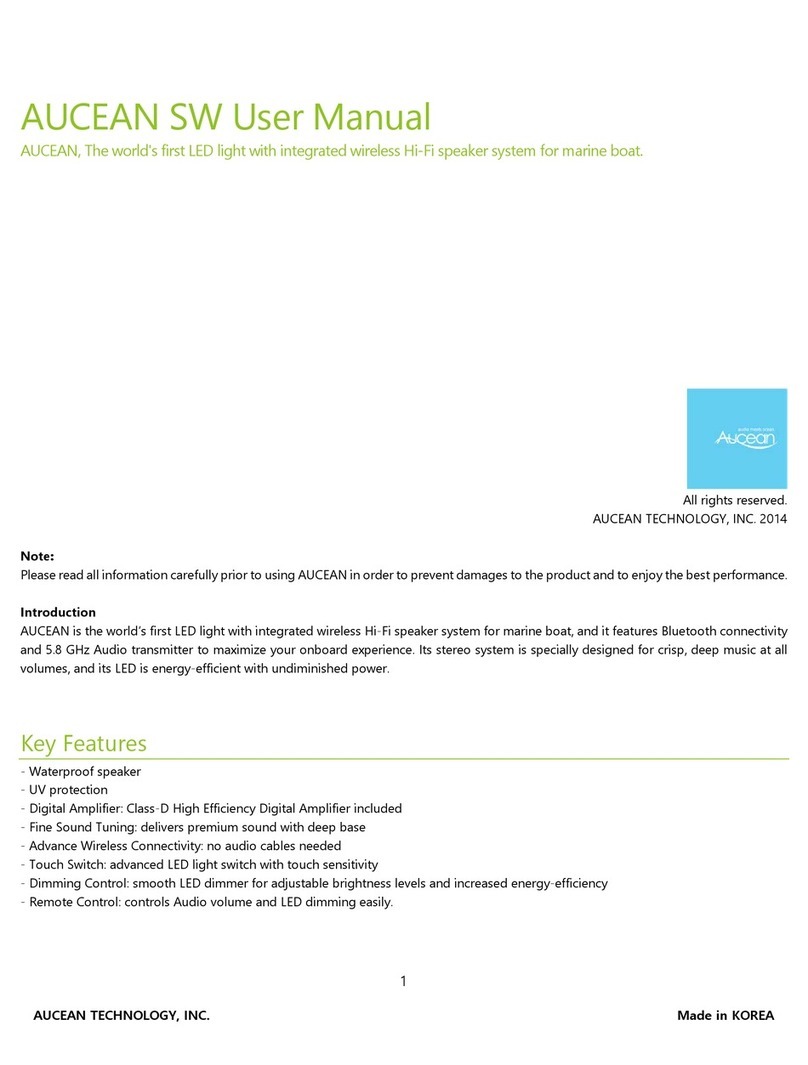

Aucean Technology AUCEAN SW user manual
