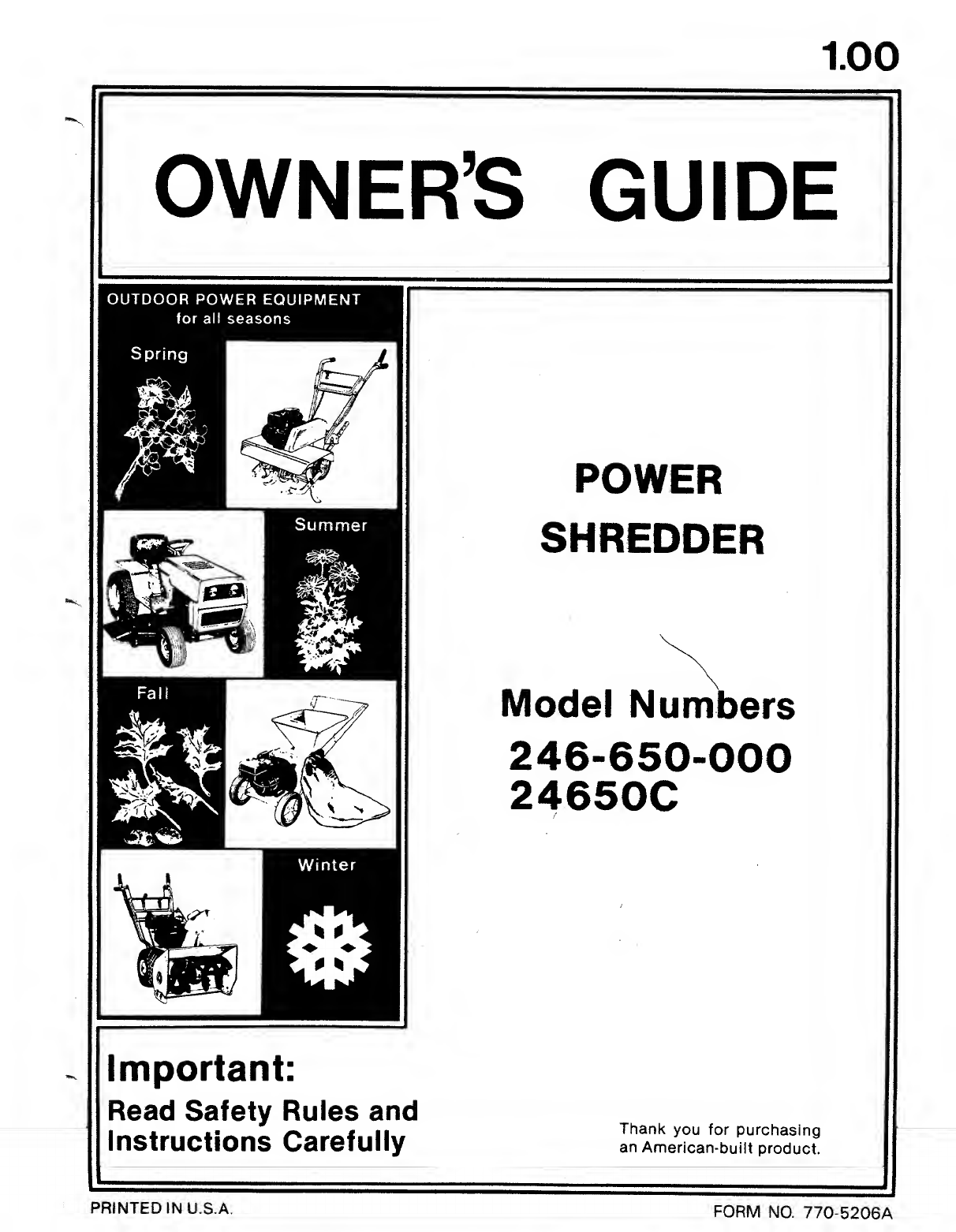

Bolens 246-650-000 User manual

1.00
Important:
Read Safety Rules and
Instructions Carefully
POWER
SHREDDER
Model Numbers
246-650-000
24650C
Thank you for purchasing
an American-built product.
PRINTED IN U.S.A.
FORM NO. 770-5206A

INDEX
Safe Operation Practices. 3
Assembly Instructions. 4
Operation. 6
Adjustments . 8
Lubrication.. 9
Maintenance .. 9
Off-Season Storage.
Illustrated Parts. K
Parts List.11
Instructions given with this symbol are
for personal safety. Be sure you follow
them
Ac
WARNING {
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a
spark arrester meeting applicable local or statu laws (ifany). If a spark arrester is used, it should be maintained
in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal lews apply on federal lands. A spark arrester muffler is available at
your nearest engine authorized service center.
2

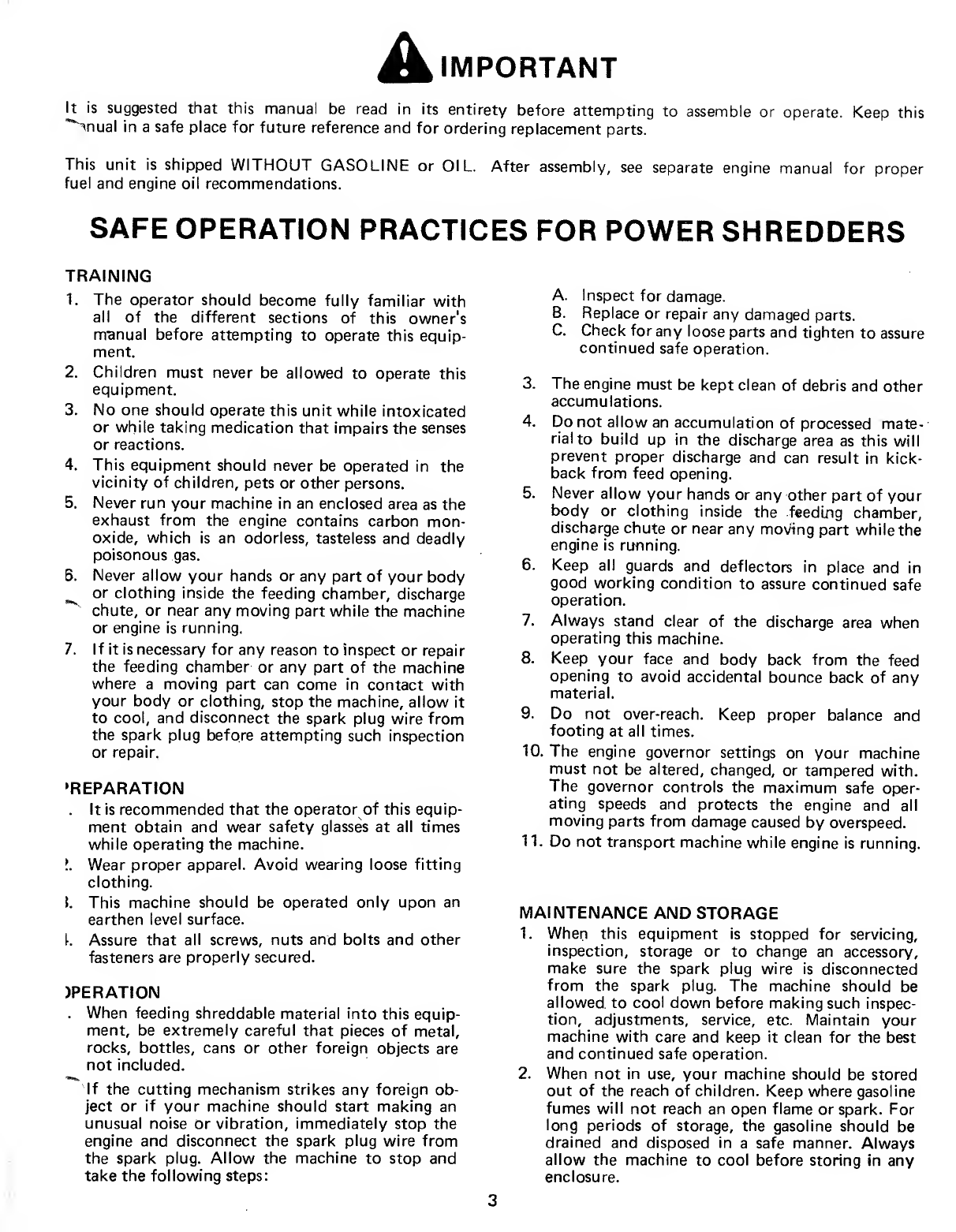

A IMPORTANT
It is suggested that this manual be read in its entirety before attempting to assemble or operate. Keep this
""Nnual in a safe place for future reference and for ordering replacement parts.
This unit is shipped WITHOUT GASOLINE or OIL. After assembly, see separate engine manual for proper
fuel and engine oil recommendations.
SAFE OPERATION PRACTICES FOR POWER SHREDDERS
TRAINING
1. The operator should become fully familiar with
all of the different sections of this owner's
manual before attempting to operate this equip¬
ment.
2. Children must never be allowed to operate this
equipment.
3. No one should operate this unit while intoxicated
or while taking medication that impairs the senses
or reactions.
4. This equipment should never be operated in the
vicinity of children, pets or other persons.
5. Never run your machine in an enclosed area as the
exhaust from the engine contains carbon mon¬
oxide, which is an odorless, tasteless and deadly
poisonous gas.
6. Never allow your hands or any part of your body
^ or clothing inside the feeding chamber, discharge
chute, or near any moving part while the machine
or engine is running.
7. If it is necessary for any reason to inspect or repair
the feeding chamber or any part of the machine
where a moving part can come in contact with
your body or clothing, stop the machine, allow it
to cool, and disconnect the spark plug wire from
the spark plug before attempting such inspection
or repair.
•REPARATION
. It is recommended that the operator of this equip¬
ment obtain and wear safety glasses at all times
while operating the machine.
!. Wear proper apparel. Avoid wearing loose fitting
clothing.
I. This machine should be operated only upon an
earthen level surface.
k Assure that all screws, nuts and bolts and other
fasteners are properly secured.
)PERATION
. When feeding shreddable material into this equip¬
ment, be extremely careful that pieces of metal,
rocks, bottles, cans or other foreign objects are
not included.
If the cutting mechanism strikes any foreign ob¬
ject or if your machine should start making an
unusual noise or vibration, immediately stop the
engine and disconnect the spark plug wire from
the spark plug. Allow the machine to stop and
take the following steps:
A. Inspect for damage.
B. Replace or repair any damaged parts.
C. Check for any loose parts and tighten to assure
continued safe operation.
3. The engine must be kept clean of debris and other
accumulations.
4. Do not allow an accumulation of processed mate¬
rial to build up in the discharge area as this will
prevent proper discharge and can result in kick-
back from feed opening.
5. Never allow your hands or any other part of your
body or clothing inside the feeding chamber,
discharge chute or near any moving part while the
engine is running.
6. Keep all guards and deflectors in place and in
good working condition to assure continued safe
operation.
7. Always stand clear of the discharge area when
operating this machine.
8. Keep your face and body back from the feed
opening to avoid accidental bounce back of any
material.
9. Do not over-reach. Keep proper balance and
footing at all times.
10. The engine governor settings on your machine
must not be altered, changed, or tampered with.
The governor controls the maximum safe oper¬
ating speeds and protects the engine and all
moving parts from damage caused by overspeed.
11. Do not transport machine while engine is running.
MAINTENANCE AND STORAGE
1. When this equipment is stopped for servicing,
inspection, storage or to change an accessory,
make sure the spark plug wire is disconnected
from the spark plug. The machine should be
allowed to cool down before making such inspec¬
tion, adjustments, service, etc. Maintain your
machine with care and keep it clean for the best
and continued safe operation.
2. When not in use, your machine should be stored
out of the reach of children. Keep where gasoline
fumes will not reach an open flame or spark. For
long periods of storage, the gasoline should be
drained and disposed in a safe manner. Always
allow the machine to cool before storing in any
enclosure.
3

[

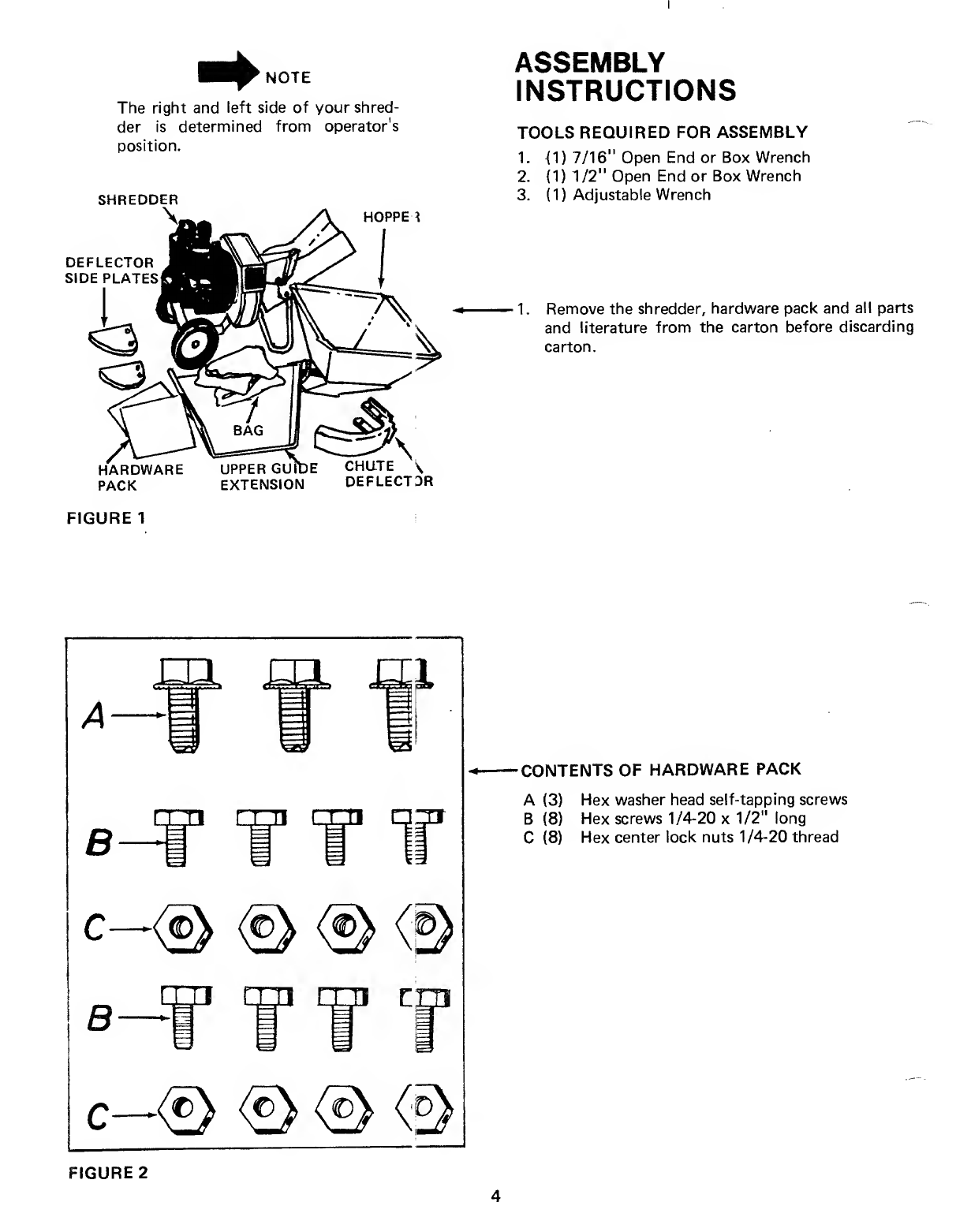

The right and left side of your shred¬
der is determined from operator's
position.
SHREDDER
ASSEMBLY
INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
1. (1) 7/16" Open End or Box Wrench
2. (1) 1/2" Open End or Box Wrench
3. (1) Adjustable Wrench
1. Remove the shredder, hardware pack and all parts
and literature from the carton before discarding
carton.
CONTENTS OF HARDWARE PACK
A (3) Hex washer head self-tapping screws
B (8) Hex screws 1/4-20 x 1/2" long
C (8) Hex center lock nuts 1/4-20 thread
FIGURE 2
4

2. Insert the deflector side plates inside the chute
deflector, one on each side. Place the chute
and deflector side plates in position on the left
hand side of shredder.
3. Secure with four hex screws (B) and hex center
lock nuts (C). Heads of screws are assembled
from the inside. Nuts go on the outside. Start
all four screws and nuts, then tighten with an
adjsutable wrench and 7/16" wrench. See figure
FIGURE 4
4. P lace the hopper on the shredder. Start all three
self-tapping screws (A) by hand, then tighten
with a 1/2" wrench. See figure 4.
5. Loosen the hand knob on the right hand side of
the shredder. See figure 5.
6. Place upper guide extension in place on guide
extension. Secure with four hex screws (B) and
hex center lock nuts (C). A 7/16” wrench and
adjustable wrench are required. See figure 5.
FIGURE 5
5

I
7. Place the bag over the chute deflector. Pull on the
drawstring and lock. See figure 6.
OPERATION
BEFORE STARTING ENGINE
1. Fill fuel tank with fresh regular gasoline. [)o Not
mix oil with gasoline.
2. Fill crankcase with oil. Refer to separate engine
manual packed with your shredder.
TO START ENGINE
Tecumseh Engine
1. Place control lever (on engine) in "RUN 1 posi¬
tion. See figure 7.
2. For cold engine start, move carburetor control
to "CHOKE" position. See figure 7.
3. Pull rewind starter using a quick, full arm stroke.
Keep a firm grip on the handle. Return rope
slowly.
4. After engine starts, move choke lever on carbure¬
tor gradually to "OFF" position.
Briggs and Stratton Engine
1. Place control lever (on engine) in "CHOKE"
position. See figure 7A.
NOTE
A warm engine may not require chok¬
ing. Simply place control lever in
"RUN" Position.
NOTE
A warm engine may not require choking
CONTROL LEVER
N START POSITION
CARBU IETOR
CONTROL
(CHOKE )
FIGURE 7 - TECUMSEH ENGINE
FIGURE 7A - BRIGGS AND STRATTON ENGINE
2. Pull rewind starter using a quick, full arm stroi
Keep a firm grip on the handle. Return rope
slowly.
3. After engine starts, move control lever gradually
to "RUN" position.
6

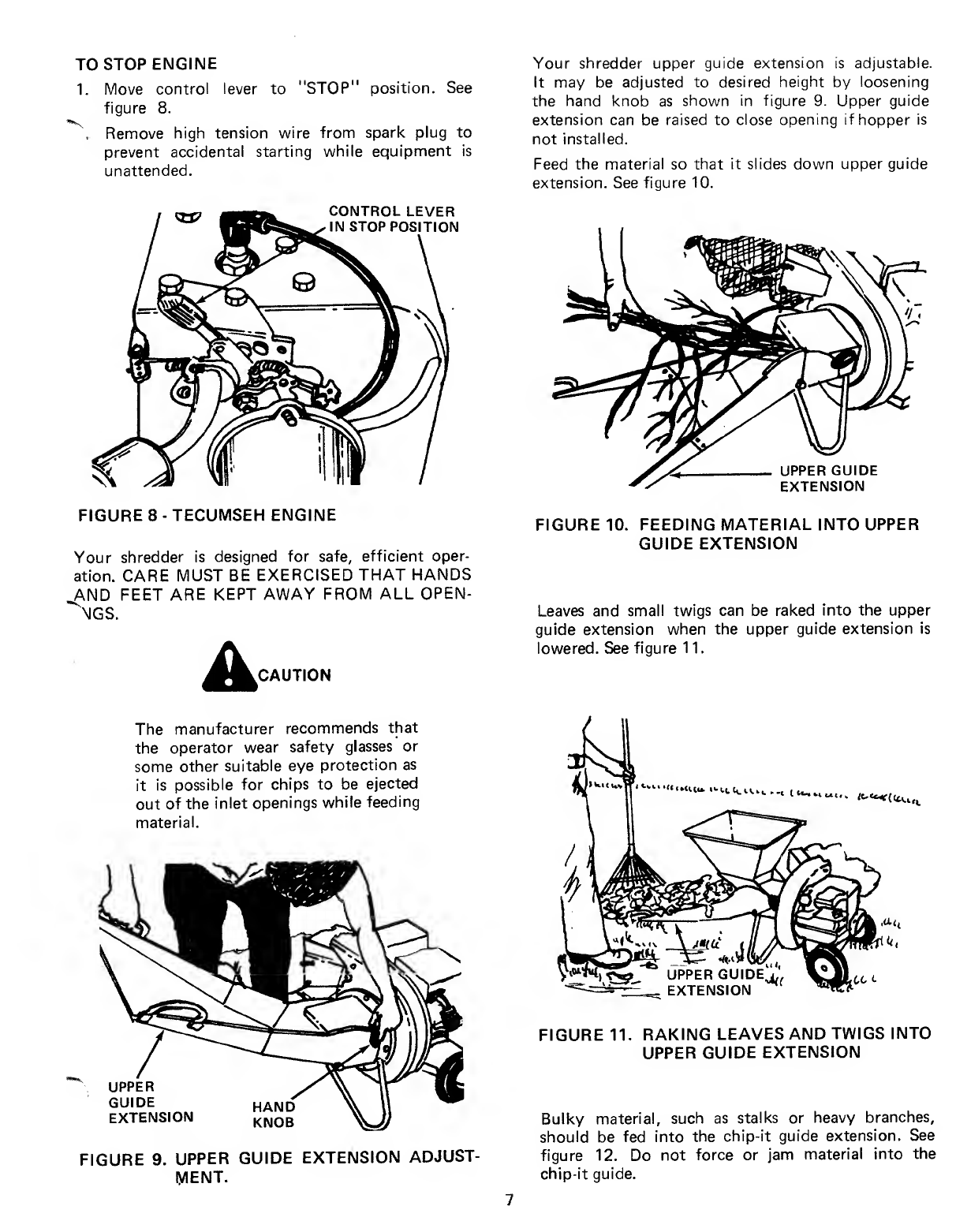

TO STOP ENGINE
1. Move control lever to "STOP" position. See
figure 8.
, Remove high tension wire from spark plug to
prevent accidental starting while equipment is
unattended.
Your shredder upper guide extension is adjustable.
It may be adjusted to desired height by loosening
the hand knob as shown in figure 9. Upper guide
extension can be raised to close opening if hopper is
not installed.
Feed the material so that it slides down upper guide
extension. See figure 10.
UPPER GUIDE
EXTENSION
FIGURE 8 - TECUMSEH ENGINE
Your shredder is designed for safe, efficient oper¬
ation. CARE MUST BE EXERCISED THAT HANDS
AND FEET ARE KEPT AWAY FROM ALL OPEN¬
INGS.
A
FIGURE 10. FEEDING MATERIAL INTO UPPER
GUIDE EXTENSION
Leaves and small twigs can be raked into the upper
guide extension when the upper guide extension is
lowered. See figure 11.
CAUTION
The manufacturer recommends that
the operator wear safety glasses or
some other suitable eye protection as
it is possible for chips to be ejected
out of the inlet openings while feeding
material.
FIGURE 9. UPPER GUIDE EXTENSION ADJUST¬
MENT.
It?? UPPER GUIDE
^ z ~ — EXTENSION
FIGURE 11. RAKING LEAVES AND TWIGS INTO
UPPER GUIDE EXTENSION
Bulky material, such as stalks or heavy branches,
should be fed into the chip-it guide extension. See
figure 12. Do not force or jam material into the
chip-it guide.

I
KEEP UPPER GUIDE EXTENSION
UP WHEN USING CHIP-ITGUIC E
.. CHIP-IT GUIDE!
'LtlWltWl, '*' ( U
iCWCll4jlU.lv
FIGURE 12. FEEDING MATERIAL INTO CHIP-IT
GUIDE
Leaves and smaller branches can be fed into the
hopper. See figures 13 and 14.
^^^CAUTION
Do not deposit material larger than
1/2" diameter in hopper. This may
cause damage to the shredding mech¬
anism. Any material heavier than 1/2"
should be fed into the chip-it guide
extension. See figure 12.
It is possible to feed too fast. It will take some
experimenting with feeding rates to get the most
out of your shredder without stalling the engine.
Rotate the material. A steady flow of.material pro¬
vides the best results.
Under certain conditions, it may be necessary to push
the materials into the inlet guide assembly. When
this becomes necessary, use a small diameter stick -
NOT YOUR HANDS. The stick should be of a size
that will be ground up if it gets into the impeller
assembly.
The discharge chute will direct the shredded material
into a pile, a container or the bag.
Your shredder is equipped with a ny¬
lon bag with drawstring lock. This will
accommodate a perforated disposable
plastic bag.
A CAUTION
Keep away from the chute area since
the shredded material comes out with
considerable velocity. Always stop
engine and disconnect spark plug wire
when changing bags.
FIGURE 14. FEEDING MATERIAL INTO HOF PER
ADJUSTMENTS
WARNING
If any adjustments are made to the
engine while the engine is running
(e.g. carburetor), keep clear of all
moving parts. Be careful of heated
surfaces and muffler.
CARBURETOR ADJUSTMENTS
Do not make unnecessary adjustment. Factory set¬
tings are correct for most applications. If adjustments
are needed, refer to the engine manual packed with
your shredder.
8

LUBRICATION
WHEELS - The wheels require no lubrication.
-^ENGINE - Follow engine manual for lubrication
istructions.
MAINTENANCE
A CAUTION
Always stop engine and disconnect
spark plug wire before performing any
maintenance.
CUTTING BLADE
The blade may easily be removed for grinding or
replacement as follows:
1. Remove guide extension assembly by removing
four elastic lock nuts (Ref. No. 11). See page 10.
2. Remove bolt (Ref. No. 38), lock washer (Ref. No.
37) flat washer (Ref. No. 36) which holds blade
(Ref. No. 45), and blade retainer (Ref. No. 48)
to engine crankshaft. See page 10.
NOTE
Blade is reversible and can be as¬
sembled to crankshaft with either
side showing.
When sharpening blade, follow the original angle of
grind as a guide. It is extremely important that each
cutting edge receives an equal amount of grinding
to prevent an unbalanced blade. An unbalanced blade
will cause excessive vibration when rotating at high
speeds and may cause damage to the unit. Upon
reassembly, make certain all parts are assembled prop¬
erly and tightened securely.
FLAILS AND FINGERS
The flails and fingers can be reversed when they
become dull.
ENGINE OIL
1. Change oil in crankcase after first two (2) hours
of operation. Then change oil every twenty-five
(25) operating hours or sooner if equipment is
operated in extremely dusty or dirty conditions.
Unscrew oil drain plug located on the side at the
bottom of the engine (see figure 15). Always tip
engine towards oil drain hole. Be sure oil drains
completely.
Replace oil drain plug and refill with oil as directed
on page 6.
FIGURE 15
2. Check oil every five (5) operating hours or each
time equipment is used. Add oil as necessary to
keep level full to point of overflowing.
CLEAN ENGINE
Clean cylinder fins and underside of tank or housing
thoroughly of all accumulated grass and debris. This
is an aircooled engine which operates most effeciently
when the cooling fins are clean.
AIR CLEANER
The air cleaner prevents damaging dirt, dust, etc. from
entering the carburetor and being forced into the
engine and is important to engine life and perfor¬
mance.
To service air cleaner, refer to the engine manual
packed with the shredder.
NEVER RUN YOUR ENGINE WITHOUT AIR
CLEANER COMPLETELY ASSEMBLED.
OFF SEASON STORAGE
In event engine is to be stored for any length of time
(30 days or more), prepare as follows:
1. Drain gasoline by tipping or syphone hose, then
run engine until remainder is used and tank and
carburetor are empty.
CAUTION
Drain gasoline into container outdoors,
away from fire or flame.
2. Protect the inside of engine for storage by remov¬
ing spark plug and pouring one ounce of SAE 30
oil through spark plug hole into cylinder. Crank
engine, without starting, several times to spread
oil over cylinder walls.
A CAUTION
When storing any type of power equip¬
ment in an unventilated or metal
storage shed, care should be taken to
rust proof the equipment. Using a
light oil or silicone, coat the equip¬
ment, especially all moving parts.
9

Model 650
PARTS LIST FOR MODEL 650 SHREDDER
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
11476
Door Chip It
31
714-0144
Cotter Pin 1/8" Dia. x 1.00"
2
710-0465
Hex Bolt 1/2-20 x 4.50" Lg.*
1
Lg.* (Special)
3 711-0580
Clevis Pin
32
736-0192
FI-Wash. .531" I.D. x 937
4
711-0579
Flail Spacer 7/32" Lg.
O.D. x .09
5
11455
Cutting Finger
33
11459
Flail
6 736-0921
L.-Wash. 1/2" Scr.*
34
711-0564
Flail Spacer 23/32" Lg.
7
726-0111
Palnut 3/16" Dia.
35
711-0578
Clevis Pin .50" Dia. x 3.0" Lc
8 712-0922
Hex Jam Nut 1/2-20 Thd.*
36
736-0247
FI.-Wash. .406" I.D. x 1.25"'
9
714-0507
Cotter Pin 3/32" Dia. x 3/4"
O.D. Hdn.
Lg.*
37
736-0217
L.-Wash. 3/8" Scr. H.D.
10
11465-488
Chute Deflector
38
710-0151
Hex Bolt 3/8-24 x 2.00" Lg.
11
712-0107
L.-Nut 1/4-20 Thd.
H.T.
12
710-0289
Hex Bolt 1/4-20 x .50" Lg.*
39
14575-488
Flail Housing Ass'y- -Comp.
13 714-0114
Sq. Key 1/4" x 2.00" Lg.*
40
712-0107
Hex Cent. L-Nut 1/4-20 Thd.
14
13430 /
Impeller Assembly
41
11477
Upper Guide Extension
15
710-0157 \
Hex Bolt 5/16-24 x 3/4" Lg.*
Ass'y.
16 736-0119
L-Wash. 5/16" Scr.*
42
11478
Hinge Pin
17
14573
Hopper to Engine Mtg. Plate
43 726-0111
Palnut 3/16" Dia.
18
Engine
44
712-0109
Wing Nut Elastic 1/4-20 Thd.
19 11464
Engine Mounting Plate
45
13431
Blade
20
712-0123
Hex Nut 5/16-24 Thd.-*
46 11460 -488
Guide Extension Assembly
21
736-0119
L.-Wash. 5/16" Scr.*
47
11472-488
Guide Extension
l 22
738-0521
Shaft
48 736-0264
FI.-Wash. 5/16" Scr.*
I
49
11481 -488 Hopper Assembly
23 736-0170
Special L.-Wash. 5/16" I.D.
50
710-0601
Hex Wash. Hd. Self-Tap Scr.
124
726-0221 Push Cap
5/16-18 x .50" Lg.
711-0494
Spacer
51 11479
Clamp Rod Assembly
26
734-1056
Wheel Ass'y. -Comp.
52
11454
Back-Up Plate
27 736-0100
FI.-Wash. .50" I.D.*
53 11467
Inlet Guide Assembly
28
710-0624
Hex Bolt 5/16-24 x 1.50"
54
09966
Knob Ass'y.
Lg.*
55 11480
Stop Washer
29
712-0429
Elastic Stopnut 5/16-18 Thd.
56 710-0542
Hex Bolt 5/16-18 x 8.38" Lq.
30 710-0237
Hex Bolt 5/16-24 x .62" Lg.*
57 15798
Deflector Side Plate
764-0126
Bag (Not Shown)
(615 - Red)
(488- Mack Truck Yellow)
When ordering parts, if color or finish is important use the ap¬
propriate color code shown above (e.g. Mack Truck Yellow
Finish—11907(488).)
'For faster service obtain standard nuts, bolts and washers
locally. If these items cannot be obtained locally, order by
part number and size as shown on parts list.
The engine is not under warranty by the shredder manufacturer. If repairs or service is needed on the
1
engine, please contact your nearest authorized engine service outlet. Check the "Yellow Pages” of
your telephone book under "Engines—Gasoline.”
1
This instruction manual covers various mod¬
els and all specifications shown do not
necessarily apply to your model. Specifica¬
tions subject to change without notice or
obligation.
11

I
TROUBLE SHOOTING CHART
PROBLEM CAUSE
REMEDY
1. Material not Shredding.
Blade and/or Flails not Sharp.
Sharpen or Reverse Blade and Flails.
2. Excessive Vibration
A. Bent Cran (shaft.
B. Out of Balance Conditon in
Plate Assembly.
A. Replace Crankshaft (should be
done by an Authorized Service
Dealer).
B. Replace Impeller Assembly.
3. Engine Bogs Down or
Stalls.
A. No Gas in Fuel Tank.
B. Feeding Material into the
Machine too Quickly.
A. Fill Tank if Empty.
B. Do Not Force Material through
Openings, Gradually Feed
Material into Openings.
4. Engine Fails to Start.
A. Check Fu( 1 Tank for Gas.
B. Spark Plu< Lead Wire
Disconnected.
C. Faulty Sp< rk Plug.
A. Fill Tank if Empty.
B. Connect Lead Wire.
C. Spark Should Jump Gap Between
Control Electrode and Side
Electrode. If Spark does not
jump. Replace the Spark Plug.
5. Hard Starting or Loss
of Power.
A. Spark Pluc Wire Loose.
B. Dirty Air Cleaner.
A. Connect and Tighten Spark Plug
Wire.
B. Clean Air Cleaner as Described in
Engine Manual.
6. Engine Overheats. A. Carbureto Not Adjusted
Properly
B. Air Flow Restricted. *
C. Engine Oil Level Low..
A. Adjust Carburetor. See Engine
Manual.
B. Remove Blower Housing and Clean
as Described in the Engine Manual
C. Fill Crankcase with the Proper Oil.
NOTE: For repairs beyond the minor adjustment listed above, please contact your local service dealer.
MTD PRODUCTS INC
YaRD- MaN COMPANY
P.O. BOX 3690( • CLEVELAND OHIO 44136
