Bolt JL HOOD User manual

6X
Plastic
Push Pins
4X
1/4” Rivets
Rivet Gun
Phillips Head
Screwdriver
Flathead
Screwdriver
Instructions for coding lock cylinder
1. Read and remove warning sticker
- Remove key from key chain
- Keep hand/ngers away from
pivoting lever while coding
2. Do not pull up/down on key
while coding
While maintaining full key insertion,
turn the key clockwise until it stops
- the lock is now coded to your key!
3. Remove key the lock is now in the
unlocked position - keep lock in this state
during installation.
Unlocked
JL HOOD LOCK KIT
JL Hood Lock
JL Grille Insert
Code lock cylinder before
installing JL Hood Lock in Jeep
FOR SPANISH AND FRENCH TRANSLATIONS GO TO:
HTTP://WWW.BOLTLOCK.COM/ABOUT-STRATTEC/BOLT-LITERATURE
4737932AA
Locked

6. Line up the mounting holes in JL hood
lock with existing holes on the vehicle
frame - Using the rivet gun install the 4
rivets in place - start with the 2 front holes
as shown.
9. Position the grille back into place using 6 new
push pins provided.
10. Close and latch hood shut, insert key, turn to the left to lock the
hood, and remove your key.

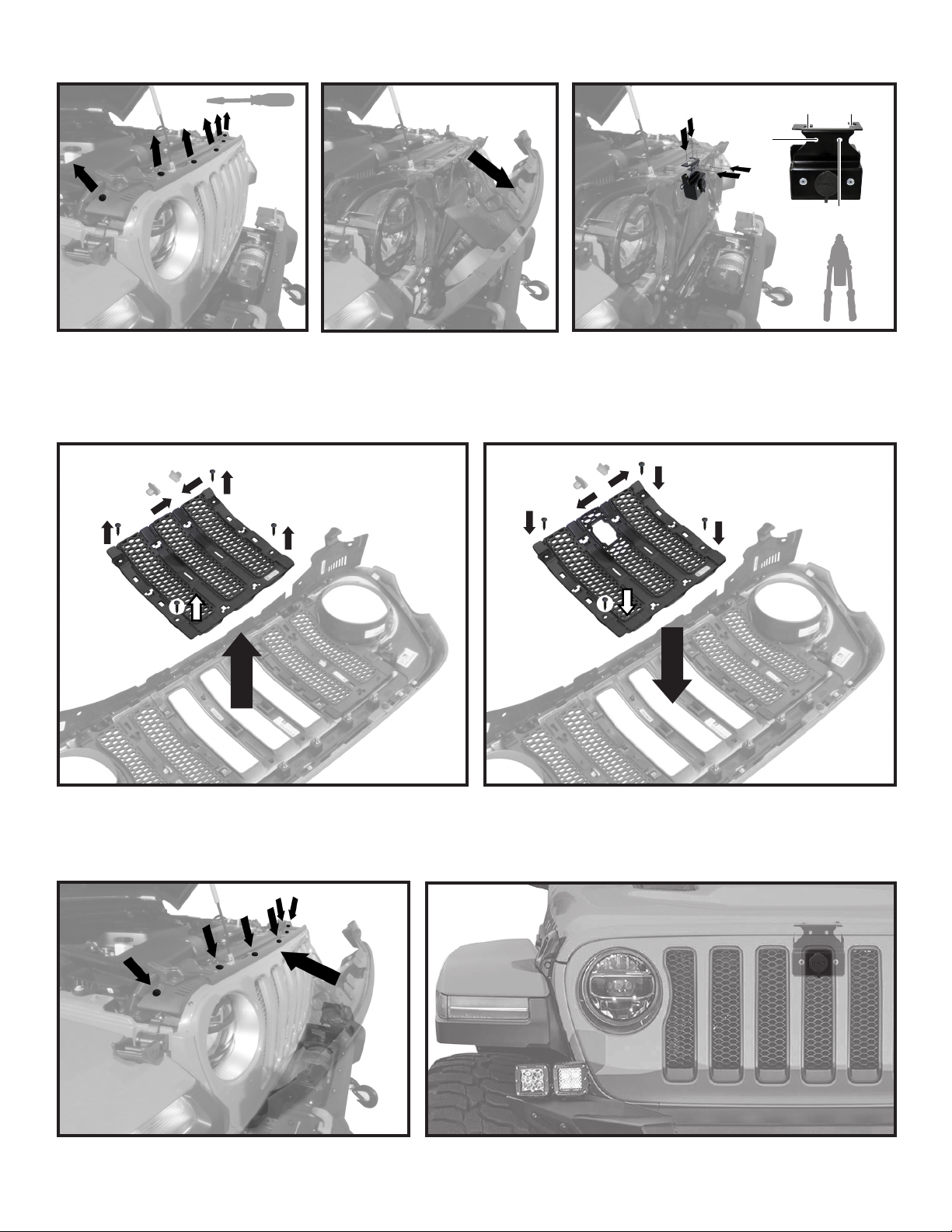

Instructions for Installation
4. Open hood; using a at head
screwdriver, remove the 6 plastic
push pins from the top of the grille.
5. Pull grille forward and downward
to unhinge the snaps along the
bottom.
7. Lay the grille down on a protected surface (cardboard)
with the interior facing up. Using a phillips screw driver,
remove the 4 screws and 2 plastic clips, and remove the
middle section of the grille.
8. Position the new grille insert in place and secure using the
same 4 screws and 2 plastic clips.
1st Rivet
3rd and 4th (no preference)
2nd Rivet
4737932AA
