USER MANUAL
Read this manual carefully before using your electric moped.
PREFACE
This product was developed for environmentally friendly transport.
It contains safety, maintenance, and basic storage instructions.
That hi-tech vehicle that you bought. Contains the following parts:
• Brushless DC motor with high eciency
• Digital Smart Driver with low power protection
• Braking with throttle-o feature that ensures safe driving
• High capacity batteries with longer range and high performance
• Pleasant and comfortable driving with a high-quality suspension system
• Appropriate motorcycle equipment that meets European standards
These operating instructions for your vehicle will be an indispensable part
of your vehicle. Make sure you get this with the vehicle you purchased.
If you have problems with your vehicle, do not use any parts other than
the original parts oered by the authorized service center.
These operating instructions were created jointly for electric scooter from
Volta Motor. The images and technical features used may not exactly
match the vehicle you have purchased. The main purpose of this user
guide is to introduce the product and ensure safe use.
Thank you for choosing our product. We wish you pleasant and safe driv-
ing with your electric scooter.
WARNING:
CAUTION:
- Laws limit the use of your electric scooter based on age and driver’s license. Users with a
driver’s license in each class can use the electric scooter safely. Please ensure users have
a driver’s license (in some European countries it can be used with special certificates).
- Do not change, disassemble or modify any part without service knowledge. Changes
that you do not have the service make will aect the authenticity of your product and
will void the guarantee. Please have all changes made by authorized service centers.
- Modifications are not legal. Modifications aect the main structure and performance of
vehicles. This will shorten the life of your vehicle. In addition, modified vehicles are not
taken into account under the guarantee. Always use dealer-approved replacement parts.
- The vehicle listed in these operating instructions may not match your vehicle.
- This manual is an integral part of your product. You will receive it together with the
purchase of the product.
CAUTION
- These headings are written to protect you from serious personal injury or possible
death.
- These headings are written to protect you from serious personal injury and mechan-
ical damage.
www.volta.com.tr
4
CONTENTS
Preface ………………………………………………………....……….……….…….….……….….….…….. S.02
1. Safety Measures ……….…….….….…….….….…….….….…….….….…….….….…….….…. S.05
1.1. General View ………………………………………………………....……….……….……. S.05
1.2. Rainy Weather ….….….…….….….…….….….…….….….…….….….…….….…... S.05
1.3. Night Drive ….….….…….….….…….….….…….….….…….….….…….….….….. S.05
2. General View ……………………………………………………………………………………… S.06
2.1. Display Panel …………………………………………………………………………… S.07
2.2. Ignition switch ……………………………………………………………………… S.08
4. Driving Instruction …………………………………………………………………………………. S.11
4.1. Check the Following Parts Before Use ………………………………… S.11
4.2. Driving Instruction ……………………………………………………………………………. S.11
4.3. Posture Positions ………………………………………………………………………… S.11
4.4. Main Stand ……………………………………………………………………………………… S.11
4.5. Seat ………………………………………………………………………………………………. S.12
4.6. Front and Rear Brake ………………………………………………………………………… S.12
4.7. Ecient driving instructions ………………………………………………………… S.12
5. Troubleshooting………………………………………………………………………………………….. S.13
6. Maintenance and Adjustment …………………………………………………………… S.14
6.1. Battery……………………………………………………………………………………………… S.14
6.2. Charger …………………………………………………………………………………………..… S.14
6.3. Cleaning …………………………………………………………………………………………….. S.14
6.4. Brake Inspection ……………………………………………………………………………….. S.15
6.5. Control unit maintenance for motor and drive………………………… S.16
6.6. Routine maintenance ………………………………………………………………… S.16
6.7. Maintenance records ……………………………………………………… S.18
7. Technical Specifications ………………………………………………………………….. S.19
8. Authorized Service ………………………………………………………………………….. S.20
9. Vehicle Registration Information ……………………………………………………………. S.21
10. Warranty ……………………………………………………………………………………………… S.22
3. Battery Charging ……………………………………………………………………………… S.09
www.volta.com.tr 5
1. SAFE DRIVING
1.1 General Rules
1.1.1 Always wear a helmet when using your electric scooter. Also, make sure that
your helmet is being used in accordance with the usage and maintenance instructions
and that it fits snugly on your head.
1.1.2 When using it, obey all trac laws that are followed by all other motor vehicles.
For example, stopping at a red light, watch out for pedestrians and use the blinker
when turning.
1.1.3 Use the vehicle in a straight line. Given that other land vehicles will find you dif-
ficult to spot, you should adopt a defensive style of driving.
1.1.4 Focus on the road in front of you. Stay away from potholes, puddles of water and
oil, bumps, gravel and all other obstacles on the road.
1.1.5 Always keep in mind that unexpected events such as sudden opening of vehicle
doors and falling parts of vehicles can occur. Be very careful at intersections and when
overtaking vehicles
1.1.6 Do not go into trac without getting used to using features such as turn signals,
brakes, and horns.
1.1.7 When using an electric scooter, do not load packages and passengers that ob-
struct your view of the road. Also, stay away from headphones that prevent you from
hearing during use.
1.1.8 Maintain a safe braking distance to vehicles, pedestrians and all other objects.
The safe braking distance depends on the weather conditions.
1.1.9 When road conditions are bad, drive slowly.
1.1.10 Please do not exceed the maximum load capacity. If you exceed this value, the
specified range will be reduced. In addition, exceeding the maximum load capacity
can permanently damage the vehicle.
1.2 Rainy Weather
1.2.1 Pay more attention on wet floors.
1.2.2 Brake earlier in wet conditions. Note that the stopping distance will increase.
1.2.3 Reduce your speed, avoid sudden braking and pay more attention when
cornering.
1.2.4 Wear clothes that will make you look more comfortable on the road.
1.2.5 Wear reflectors and use safety lights.
1.2.6 ZHoles, bumps, painted areas, level crossings become more dangerous in rainy
weather. Be careful.
1.3 Night Drive
1.3.1 Make sure your headlight is on.
1.3.2 Wear light colored clothing with reflectors.
1.3.3 Use in the evening only when required. Use familiar and well-lit streets whenever
possible.
www.volta.com.tr
6
2. GENERAL VIEW

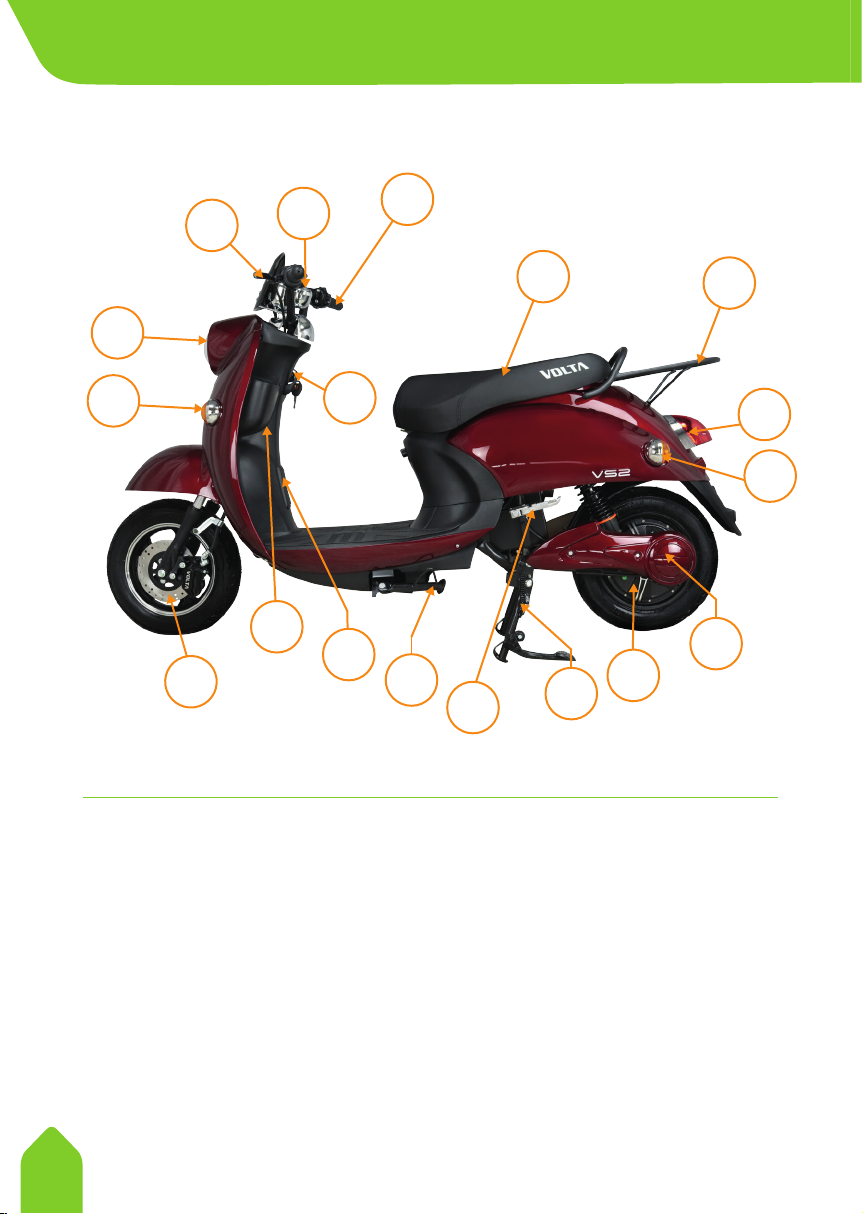

VS2
1- Headlight
2- Brake Bar
3- Instrumental Panel
4- Front Signal
5- Throttle
6- Seat
7- Ignition Switch
8- Rear Carrier
9- Stop Light
10- Rear Signal
11- Motor
12- Main Stand
13- Side Stand
14- Windshield
15- Front Disc Brake
16- Passenger Foot Rest
17- Rear Fork Cover
18- Chassis Number cover
2
3
5
7
68
13 12
1
4
14
9
10
11
15
16
17
18
www.volta.com.tr 7
1- Led speed and battery indicator
2- If you turn the throttle grip coun-
terclockwise with the ignition on, the
vehicle will speed up.
3- Headlight on-o button
4- Gear Shifter
5- Horn
6- Signal button “◄” sembol shows
left turn, “►” sembol shows right turn.
7- High and low beam on / o button
7
6
1
2
4
53
INDICATOR MARKS
VS2
2.1 DISPLAY PANEL
Remaining
Headlight
Energy
Headlight
WARNING
CAUTION
- All parts specified in the instructions have been listed as references.
The manufacturer can change them without notice.
- Please do not use thr horn in places where it is prohibited.
www.volta.com.tr
8
2.2 IGNITION SWITCH

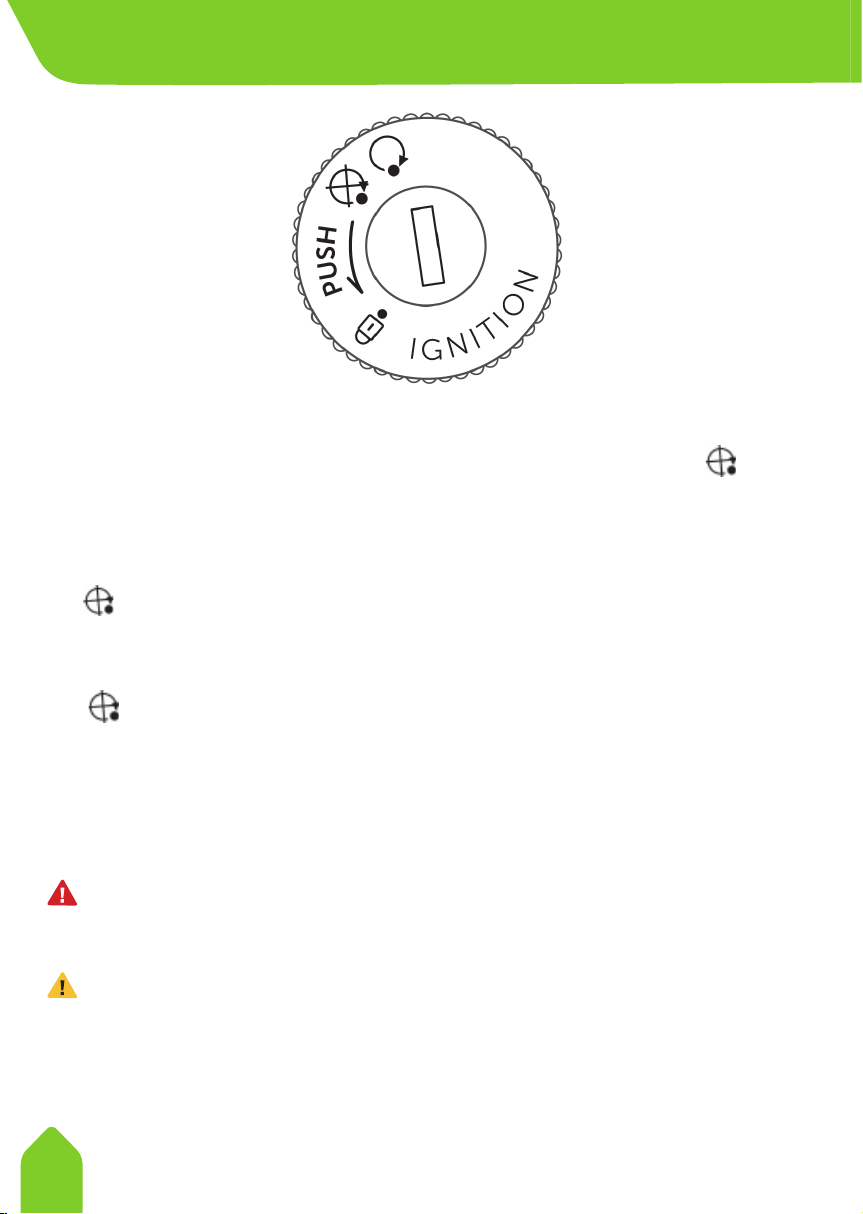

2.2.1 On/O : Insert the key and move it from position to position . The
vehicle will start. If you do otherwise, the vehicle will shut down
2.2.2 Steering Locking: The vehicle is equipped with a steering lock feature to
prevent it from being stolen. If you twist your handlebar all the way to the left
and then move it to the locked position, your vehicle’s steering will lock.
Similarly, if you slowly turn your steering wheel to the right when moving it
from its locked position
to the symbol, your steering wheel will be unlocked
2.2.3 Seat Locking: With the seat closed, if you insert the key into the key
slot next to your seat and turn it to the left and slowly lift your seat upwards,
your seat will be opened. If you switch o your currently open seat, it will lock
automatically.
- Do not drag your vehicle while your steering is locked. The steering wheel will
overturn as it is in one direction.
- Lock and remove the steering wheel from the parking position. This will keep
your vehicle safe.
- Protect your vehicle from direct sunlight. In vehicles exposed to direct sunlight,
high heat and UV rays cause the paint reaction with your ABS plastic part. Your
vehicle changes colour. Protect your vehicle from direct sunlight. Do not expose
to sunlight when not in use.
Dierent models can be shown with dierent symbols.
WARNING
CAUTION
www.volta.com.tr 9
3. BATTERY CHARGING
Before driving for the first time, charge your vehicle with the supplied charger
for 6-8 hours (for VRLA Gel Battery) and 4-6 hours (for Li-Ion Battery). You
should charge your batteries after each use. If you haven’t driven your vehicle
for a month or more, it should be charged to keep your battery performing.
The charging time of your batteries is 6 to 8 hours for lead-acid batteries. 4-6
hours for lithium batteries. (These times apply to completely discharged bat-
teries. Charge your batteries proportionally to their current state). The elec-
trical installation is designed for 230 V alternating current. A higher or lower
voltage can damage your charger and as a result of damage your charger
may not switch o after charging. For this reason, charging the batteries for
more than the maximum charging time can inflate the batteries. Please cre-
ate a fault record for your chargers that are being charged over a longer peri-
od of time. Your battery capacity partially decreases in the winter months. Try
to keep the batteries as full as possible.
3.1 Battery Charging On Your Vehicle

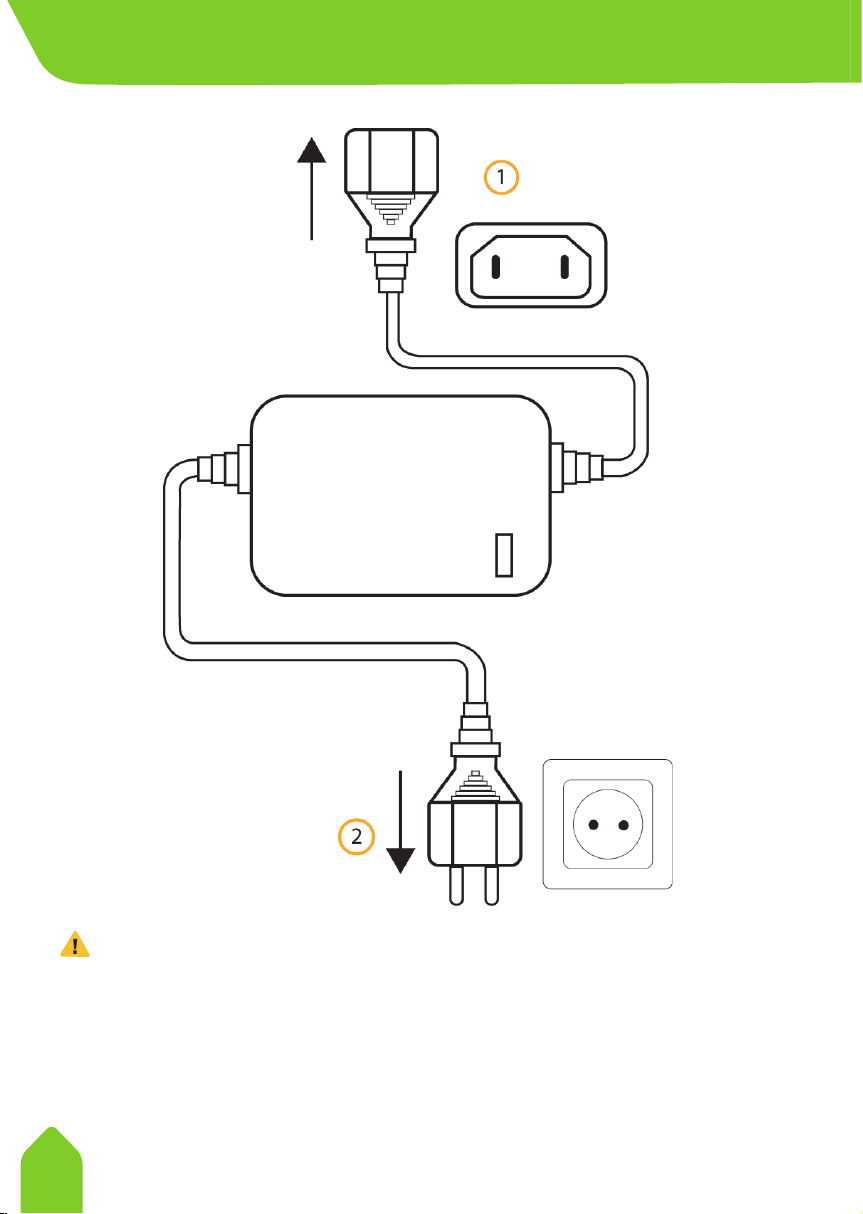

Turn o your vehicle. Connect the part marked 1 of the charger to your ve-
hicle and the part marked 2 to the socket. Connect your charger first, then
connect it to your vehicle. A possible high / low voltage would damage your
charger and not your vehicle. When the indicator light on your battery is
green, the battery is fully charged. If you have fully charged the battery and
then plug it back in for 1-2 hours, you will be able to charge it more success-
fully. When charging is complete, pull the power plug out of the socket. Also,
unplug your charger from the wall socket when you are not using it. This will
extend the life of your product.
www.volta.com.tr
10
3. BATTERY CHARGING
- Your chargers, which deteriorate due to voltage dierences in
your electrical installation, can damage your vehicle. These types of
malfunctions are not covered under warranty. If your vehicle does
not charge for this reason, unplug the charger from the socket
CAUTION
www.volta.com.tr 11
4. DRIVING INSTRUCTION
4.1 Check the following parts before use
4.1.1 Check that your tires are in good condition.
4.1.2 Check the condition of the moving parts.
4.1.3 Check the tire pressures.
4.1.4 Check the horn and rear view mirrors.
4.1.5 Make sure all nuts and bolts are properly tightened. Also, check that
the brake cable and other cables are not pinched and that they are working
properly.
4.1.6 Charge the battery when not in use. In times of non-use; Charge every
30 days in summer and every 15 days in winter.
4.1.7 Check all rotating parts and add oil if necessary.
4.1.8 Check all lighting systems.
4.2 Driving instructions
4.2.1 Hold the handlebars with both hands, balance them, and lower them
o the center stand.
4.2.2 Turn the ignition on position.
4.2.3 Place your right hand on the throttle. Turn slowly to avoid sudden ac-
celeration. The speed of your vehicle increases as you turn the throttle. To
stop your vehicle, take your hand o the accelerator and slowly pull the brake
lever toward you. When you pull the brake lever, the throttle will automati-
cally switch o.
4.3 Posture position
4.3.1 Middle stand: Used for long-term parking.
4.3.2 Side stand: It is used in short-term parks.
4.4 Driving Instructions
Do not place heavy and / or large objects in the footrest area. It disturbs the
balance of your vehicle and creates danger.
Connection and Assembly
Connection and assembly are done only by authorized services, only in authorized service
www.volta.com.tr
12
4. DRIVING INSTRUCTION
- Brake can be adjusted according to sensitivity. For a safer deceleration,
front and rear brakes should be used together.
- Do not use the brake for a long time. If you brake for a long time, the
brake sets get hot and lose their performance. This increases your braking
distance.
- Please release the throttle while depressing the brake levers.
4.5 Seat
4.5.1 Seat Lock: There is a key entry under your seat on the left side of your
vehicle. If you insert a key into this input and turn it counterclockwise, your
seat will be unlocked.
4.5.2 Let go of your seat slowly and close it. It will lock automatically.
4.6 Front and Rear
Before the left and right brake levers can recognize their function, they
move 10 to 20 mm empty. This distance is called the free distance. Free
distances can be adjusted by tightening or unloading the nuts.
4.7 Ecient driving instructions
- If you have regular maintenance of your electric scooter,
- When you comply with the maximum load limits in the certificate of con-
formity,
- When you use it under suitable weather and road conditions,
- When you charge your electric scooter by following the safe charging
guidelines,
- If the maximum speed limit is followed, the driving distance and eciency
of your vehicle will increase.
- If your vehicle’s side leg is open, the throttle will not work as the
system will break the circuit. Close the side stand to start moving again.
(Applies to some models.)
- Tire pressure is very important both to the overall life of your prod-
uct and to the proper operation of the system. Excessive low / high tire
pressure will break down your vehicle. The tire pressure we recommend
for our vehicles is 30 psi.
WARNING
CAUTION
www.volta.com.tr 13
5. TROUBLESHOOTING
PROBLEM REASON SOLUTION
The power light is on but
your vehicle is still not
moving
1. Throttle does not work.
2. Side stand open.
1. Replace the throttle
handle.
2. Close the side stand.
Your vehicle does not start
even though the ignition is
switched on
1. Burnt fuse or fuse
socket.
2. Battery connections are
incorrect.
1. Replace the fuse or fuse
socket.
2. Bring the battery con-
nections to the position
where they should be.
Range shortened
1.Low pressure in tires
2.Battery filling is not
complete
3. Stopping and getting
up frequently, overload-
ing, climbing hills, being
exposed to wind.
1. Inflate the tires.
2. Charge or replace the
batteries.
3. Use in certain road con-
ditions.
The vehicle is not charging
1.Main fuse may be o
2.The charger may be
defective.
1. Open the insurance.
2. Consult the service.
Your electric vehicle is
losing speed
1.Battery low
2.Battery is faulty
1. Fully charge the battery.
2. Change the batteries
2. Consult the service
NOT:
If any other fault occurs, please do not repair your vehicle yourself. Please contact
our nearest authorized service center.
www.volta.com.tr
14
6. MAINTENANCE AND ADJUSTMENT
6.1 Battery
If possible, store your vehicle in your garage in places away from cold. This
will extend the life of your battery.
6.1.1 Do not remove the batteries.
6.1.2 Keep batteries out of the reach of children.
6.1.3 Do not connect the charger anode and cathode while charging or dis-
charging. Never use a conductor between the anode and cathode.
This can lead to a short circuit.
6.1.4 Do not leave the batteries in water.
6.1.5 Keep the batteries away from temperatures of 60 degrees and more.
6.1.6 Do not subject them to physical shock such as hitting, throwing, or
falling.
6.1.7 Do not tamper with the batteries with cutting or punching tools.
6.1.8 If a leak occurs and it comes into contact with your skin or eyes, imme-
diately flush it out with plenty of water.
6.1.9 If physical changes such as smell, warming, fire or changes in color
occur to the battery, immediately disconnect it from the vehicle and leave
the vehicle.
6.1.10 Batteries and battery waste should be left to our authorized services or
waste collection points in order not to harm the environment.
6.2 Charger
6.2.1 Only use the original charger specially designed for your product.
It works with 220V. Absolutely do not drop to 110V.
6.2.2 While your vehicle is charging, it must be turned o.
6.2.3 Do not shake your vehicle while it is charging.
6.3 Cleaning
6.3.1 Use only the original charger that was specially developed for your
product. It works on 220V. Definitely don’t let it drop to 110V.
6.2.2 Your vehicle must be parked while it is charging.
6.2.3 Do not shake your vehicle while it is charging.
www.volta.com.tr 15
6.3.2 Never lubricate the braking system or the tires.
6.3.3 Use oil to clean the metal parts of your vehicle.
6.3.4 Always use standard cleaning agents to clean painted plastic parts.
Rinse with a cloth after cleaning.
6. MAINTENANCE AND ADJUSTMENT
6.4 Brake Inspection
6.4.1 Disc Brake:

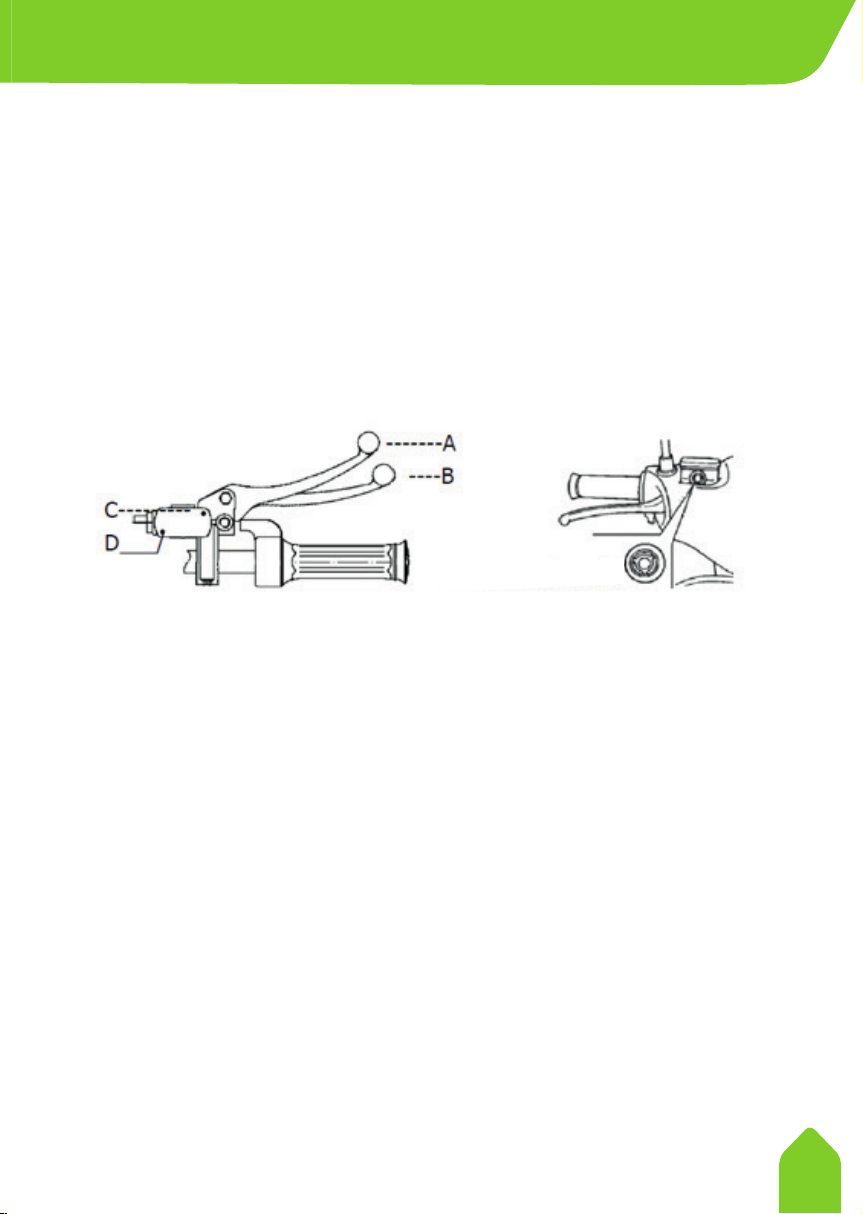

6.4.1.1 The brake lever on the right side of the handlebar is part of the disc
brake. The free distance between A and B position is 10-20 mm.
6.4.1.2 If the clearance is not 10-20 mm, the brake fluid is low. Add special
brake fluid to the opened part by loosening nuts C and D.
www.volta.com.tr
16
6.5 Control unit maintenance for engine and drive
6.5.1 During the rainy season, do not let the water level get to where the
shaft is in the center of the motor. This behavior protects the engine from
combustion and failure.
6.5.2 Do not press the accelerator and brake at the same time to prevent
other parts from deteriorating.
6.5.3 When the road surface is bad, slow down. Excessive vibration motor
and drive may cause the cables to break inside the computer.
6.6 Regular Maintenance
- 180-day periodic maintenance is performed only by authorized services
property. Daily and 60-day treatments can be done by the consumer.
CAUTION
Controll Adjust
Tire pressure
Horn
Bulbs
Charger and batteries
Brake
Rim
Front fork
Throttle and rotating parts
Brake pads and discs
Daily 60 days 180 days
Replace Lubricate
6. MAINTENANCE AND ADJUSTMENT
www.volta.com.tr 17
The maintenance intervals for the first 20,000 km are as follows.
- 500 kilometers maintenance
- 2000 kilometers maintenance
- 4000 kilometers maintenance
- 6000 kilometers maintenance
- 8000 kilometers maintenance
- 10000 kilometers maintenance
- 12000 kilometers maintenance
- 14000 kilometers maintenance
- 16000 kilometers maintenance
- 18000 kilometers maintenance
- 20000 kilometers maintenance
The interval between any two maintenance should not exceed 4 months. The
consumer, who does not reach the maintenance intervals for more than 4
months, should take the product to the authorized service for maintenance.
Vehicles that do not comply with maintenance intervals and kilometers will
not be covered by the warranty.
Your vehicle should be serviced for the first time after 500 km or 1 month.
The first maintenance is for control purposes. Your first service after this ser-
vice will be performed when your vehicle reaches 2000 km. After this care,
each treatment will be 2000 and its multiples.
- Vehicles that do not have regular maintenance once every 4 months will
be considered out of warranty.
!
6. MAINTENANCE AND ADJUSTMENT
www.volta.com.tr
18
6.8 Transport
Make sure that the ignition and the fuse are turned o while carrying your
vehicle. Also, remove one of the battery connections. Apply the front rear
brakes. In order to prevent any external damage to your vehicle, you can
safely carry it by wrapping cardboard on a metal cage.
6.7 Maintenance Records
DATE PROBLEM AND SOLUTION RESPONSIBLE NOTES
6. MAINTENANCE AND ADJUSTMENT
www.volta.com.tr 19
7.TECHNICAL SPECS
FeaturesParameters
Dimensions
Weights
Main Features
Battery Features
Motor Features
Display
Power (W)
Display Type LCD
Display
LCD
Display
Maximum Speed (km/h)
Voltage (V)
Capacity (Ah)
Battery
Charger Features
Range (km)
(Length/Width/Height)
[mm]
Unit (kg) 89 kg
1790/750/1055 mm
45 km/h
50 km
60 V
22 Ah
VRLA Gel
60V/20A
2000 W
VRLA Gel Li-ION
64 kg
1790/750/1055 mm
45 km/h
50 km
60 V
20 Ah
Li-ION
60V/2A
2000 W
www.volta.com.tr
20
8. AUTHORIZED SERVICE
The lifespan of your electric scooter is 10 years and the
maximum repair time is 45 working days. If you encounter
a problem with your vehicle, you can visit our website at
www.volta.com.tr and contact one of our authorized ser-
vices, the number of which is more than 350.
MANUFACTURER COMPANY
Volta Motor Sanayi ve Ticaret A.Ş.
- Selamlar Köyü Selamlar Mevkii Gümüşova OSB
1. Sokak Volta Motor San. ve Tic. A.Ş. Blok No:10
Gümüşova / DÜZCE / TURKEY
Tel : 0850 222 28 65 - 0380 731 25 25
Volta Motor Sanayi ve Ticaret A.Ş. - Tübitak Teknoloji Serbest Bölgesi
- Tübitak MAM Teknoloji Serbest Bölgesi Barış SB. Mh. 5001 Sk.
No:3 A/B Gebze / KOCAELİ / TURKEY
Tel : 0850 222 28 65
Volta Motor Sanayi ve Ticaret A.Ş - Çin Halk Cumhuriyeti
- No. 36-37, Yougu Industrial Park, No:58
Jinghong Road, Xibei Town, Xishan
District, Wuxi City JIANGSU / CHINA
地址： 无锡市锡山区锡北镇泾虹路58
号优谷产业园36-37号
Table of contents
