User Manual
Model 01-2720 Wireless Remote Control
Figure 1) - KEYFOB BUTTON CONFIGURATION AND GRAPHICS
1.0) Functional requirements: With generator engine switch in the REMOTE (far left) position-
1.1) Receiver logic functions
1.11) To activate the remote control, press and hold the UNLOCK button for at least 3
seconds, then release. Until this is done, the remote control will not respond to any other
buttons. This takes the receiver out of its low power or sleep mode. The sleep mode
conserves battery power, making it un-necessary for us to have an on-off switch on the
receiver. With this scheme, a fresh generator battery will not be discharged by the
receiver for at least 6 months. For longer storage, it’s recommended that the receiver
power be disconnected from the battery.
1.12) The remote control will remain active for 3 minutes once the receiver is taken out
of sleep mode. During this time, all other button functions are active. After the 3 minute
time out, the UNLOCK button must be pressed (refer to section 1.11) once again to re-
activate all button functions.
1.13) To start the generator once the remote is unlocked, press and release the ARM
button, then press and release the START button. The start output is activated for 3
seconds to start the generator. If the generator does not start on the first try, repeat
starting procedure. For each attempt to start the generator, ARM must be pressed
before pressing START.
1.14) To stop the generator, press the STOP button. The stop output is activated as
long as the STOP button is pressed. NOTE: STOP function remains active once remote
is in sleep mode. The UNLOCK button doesn’t need to be activated to use this feature.

Bolton Conductive Systems 1164 Ladd Rd, Walled Lake, MI 48390 [phone] http://www.boltonconductivesystems.com
1.15) If more than one button is pressed simultaneously, the remote control will
automatically go back into “sleep” mode and requires the UNLOCK button to be pressed
(refer to section 1.11) to be re-activated; This helps prevent un-intentional operation
functions from taking place in a scenario where the buttons are pressed in the users
pocket, etc.
1.2) Message encryption/security
1.21) The remote kit utilizes a rolling code security system to insure a unique transmitter
and receiver communication link. This prevents other wireless systems from
unintentionally communicating with the receiver.
1.3) Range requirement
1.31) In an open area (without obstructions or reflecting objects), the radio range shall be
at least 100 feet. It is recommended that the receiver be mounted in the position shown in
figure 2 for optimal wireless range and performance.
1.4) Environmental operating conditions and requirements
1.41) The remote control shall maintain all functional and range requirements when
operated in ambient temperatures between 0ºF and 130ºF.
1.42) The receiver is considered “water resistant” and will protect against small amounts
of rain for a short period of time, but it is not “water proof”. The remote is not intended for
prolonged use in wet environments such as rain. As such, the receiver will not withstand
any under water submersion.
1.5) Vibration/shock/drop
1.51) The transmitter and receiver are designed to withstand a drop from 3 feet onto
most surfaces without affecting the functionality or performance. Prolonged abuse or
excessive drops could result in permanent damage.
1.6) Electrical characteristics
1.61) Receiver operating voltage and current
Voltage range 10 - 14 volts
12 volts nominal
1.63) Receiver standby current
3 mA max standby current
1.64) Transmitter battery
Transmitter uses 2 - CR2016 3 volt lithium coin cell batteries
Battery life- brand new batteries last approximately two years depending on how
often the remote is used and the manufacturer of the batteries.

Bolton Conductive Systems 1164 Ladd Rd, Walled Lake, MI 48390 [phone] http://www.boltonconductivesystems.com
1.7) Generator compatibility
1.71) The wireless remote is compatible with these Honda generator models:
EU6500is
EM5000is
1.8) Additional transmitters
1.81) One pre-programmed wireless remote transmitter is included with each remote kit.
Additional transmitters are available for purchase with detailed and easy to follow
instructions included for “learning” additional transmitter(s) into the receiver.
Receiver can be programmed with up to 4 different transmitters
2.0) Regulatory requirements
2.1) The remote kit complies with all regulatory requirements of:
2.11) FCC (USA)
2.12) IC (Canada)
This device complies with part 15 of the FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) this device must
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: Changes or modifications not expressively approved by the party
responsible or compliance could void the user’s authority to operate the
equipment. The term “IC:” before the radio certification number only signifies that
Industry Canada technical specifications were met.

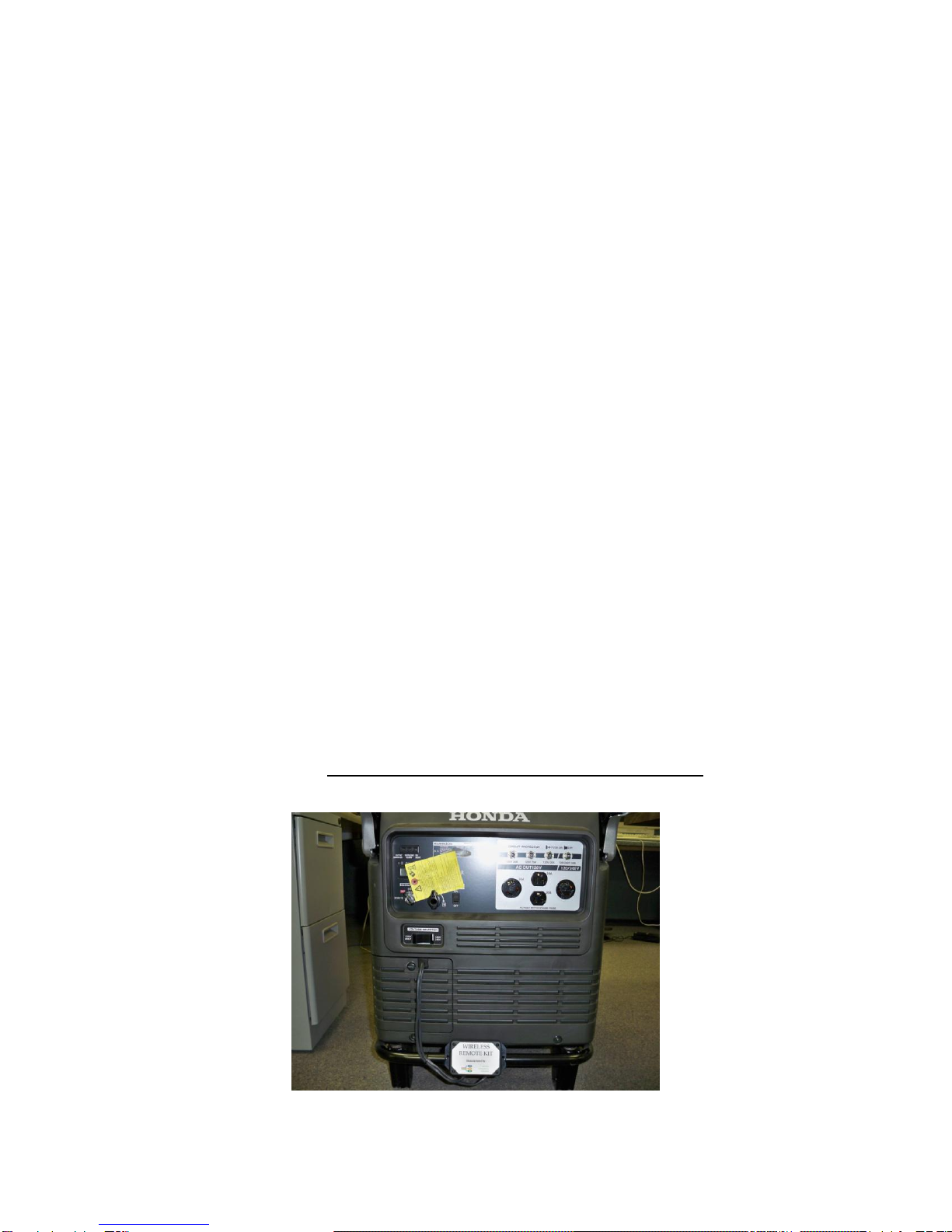

Figure 2) - RECOMMENDED RECIEVER MOUNTING POSITION
