BOMANN TSG 707 User manual

TSG 707

Toreviewthe sectiononTroubleshootingTips
will help youto solve some common problems
by yourself .
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
If you can not resolve the troubles by yourself ,
please ask for the help of professional technicians.
Dishwasher Features.................................... ...3
AttentionbeforeorafterloadingtheDishwasher
Baskets..........................................................9
Filtering System.............................................14
Caring for the Dishwasher..................... .........15.
A Loading the Salt into the Softener.................5、
B Fill the RinseAid Dispenser.........................5、
C Function ofDetergent.................................6 、

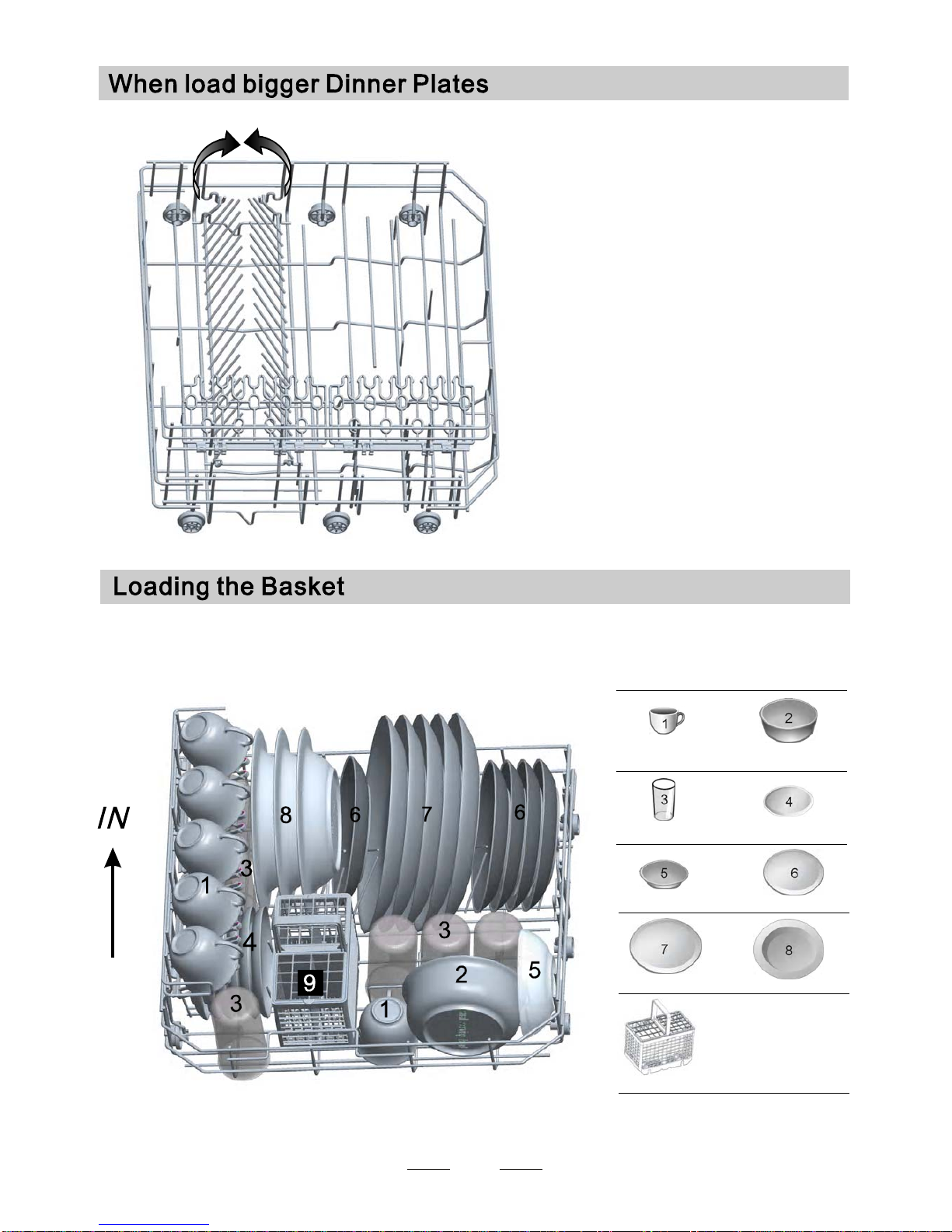

Loading the Basket...........................................9

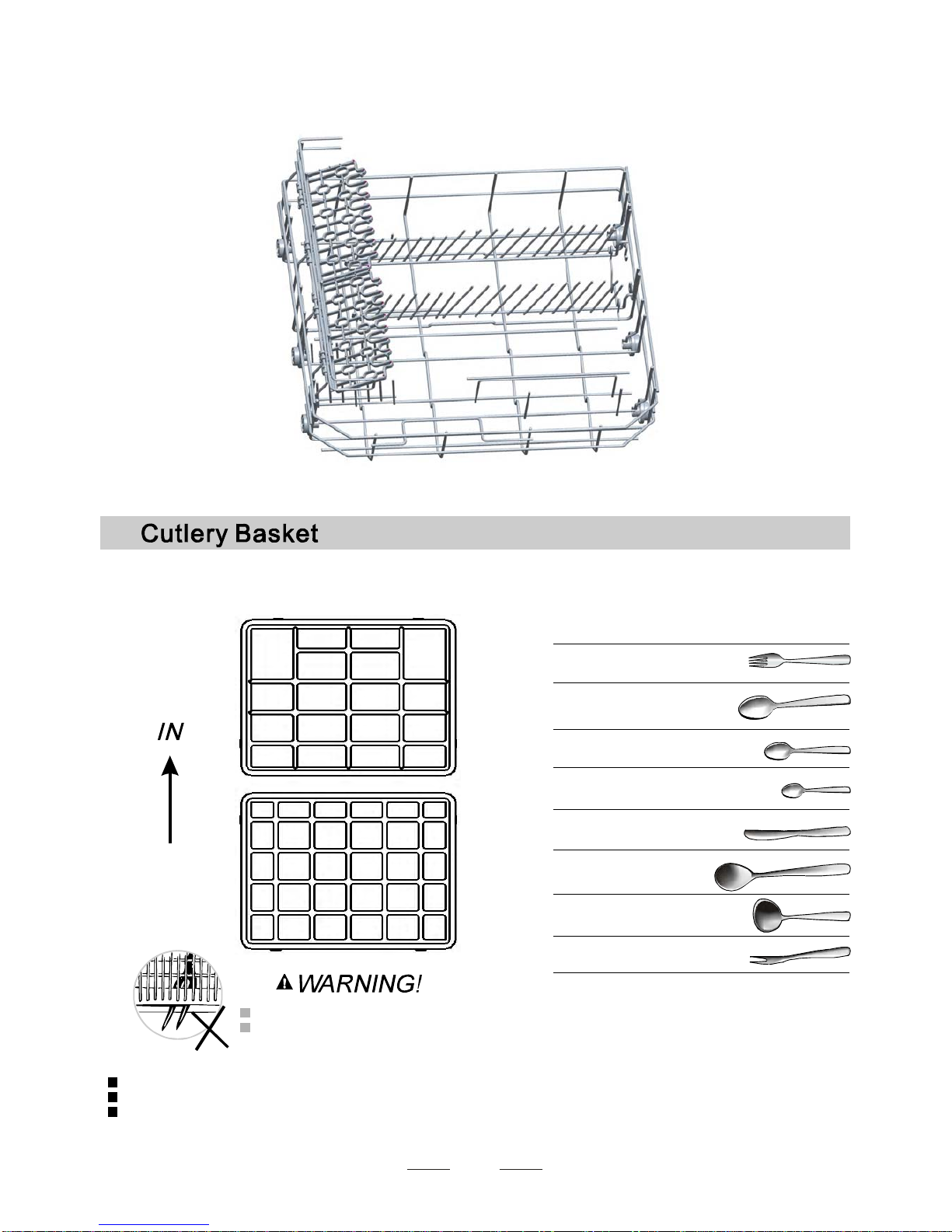

Cutlery Basket.............................................. 10

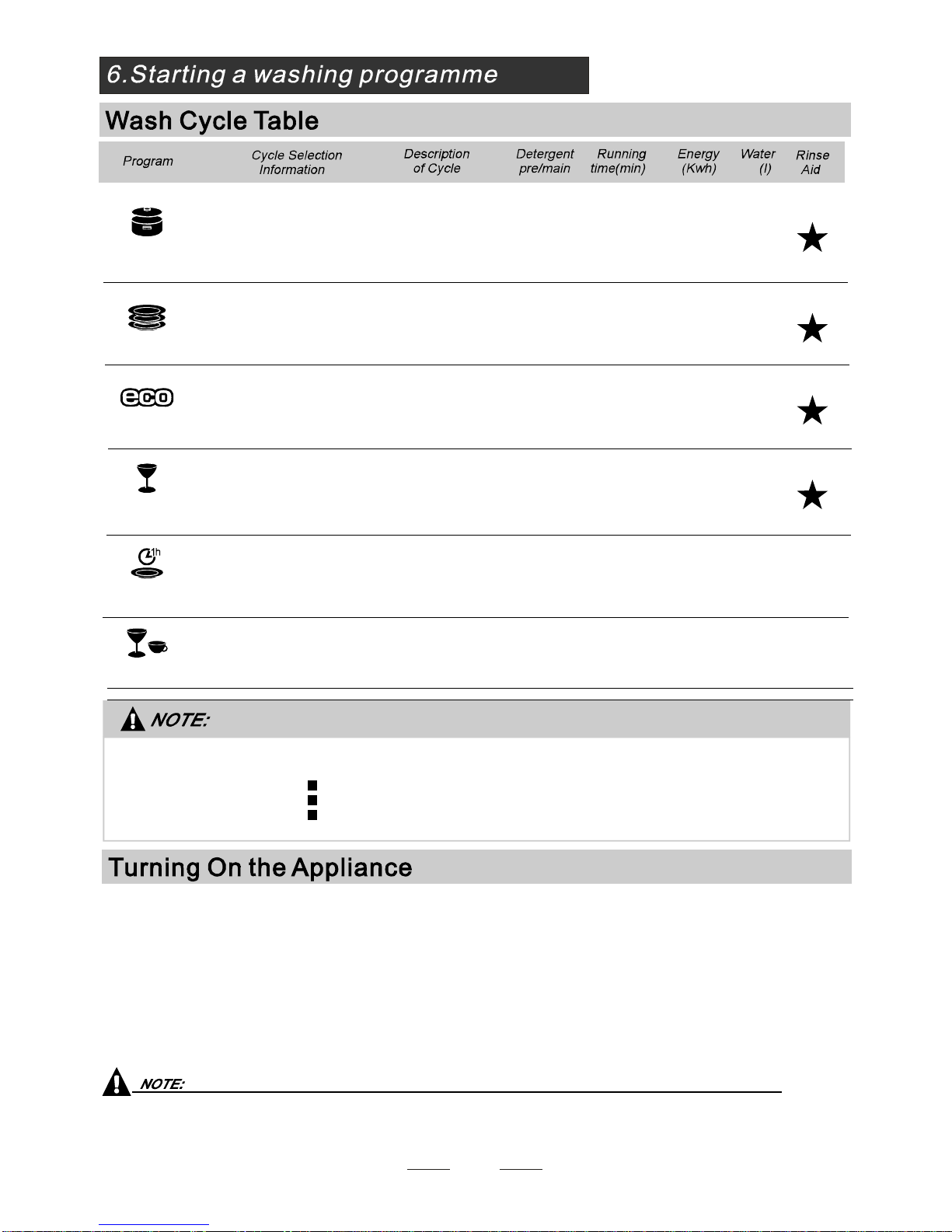

Wash CycleTable...........................................12
Turning on theAppliance................................12
Change theProgramme.............. ................13....
At theEnd of the Wash Cycle...........................13
PositioningtheAppliance................... ..........17..
WaterConnection.................................. .......17.
About Power Connection........................ .......17.
Connection of Drain Hoses..................... .......18.
Start of dishwasher............................. .. ......19.. ..
Before calling for service........................... .....20.
Errorcodes.................................... ..............21.
ControlPanel...................................................3
Adjusting Salt Consumption........................ 5
When load bigger Dinner Plates .................... 11
Dear Customer,
Please carefully reading it before usingthe dishwasher
will help you to use and maintain the dishwasher properly.
Pass it onto anysubsequentowner of the appliance.
This manual contains sections of Safety Instructions,
OperatingInstructions,Installation Instructions and
Troubleshooting Tips, etc.
Keep it to refer to at a later date.
This appliance is intended tobe used in household
andsimilar applications suchas:
-staff kitchen areas in shops,offices and other
working environments;
-farm houses;
-byclients inhotels,motels and otherresidential
type environments;
-bed and breakfast type environments.

1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundrydetergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation,the powersupply mustnot
be excessively ordangerouslybentorflattened.
Thedoorshouldnot be left intheopenposition
sincethis could present atrippinghazards.
Do not tamper with controls.
Do not place any heavy objects of stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locatesharp itemsso that theyarenot likely
todamagethedoor seal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from comingintocontact
withheatingelement.(Thisinstruction isonly
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by themanufacturer or its serviceagent ora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyesandkeep children away
from the dishwasher when the door is open.
Check that the detergent receptible is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hosesets and that oldhose-sets
should not be reused.
The maximumnumber ofplacesettings to be
washed is6.
The maximumpermissible inlet water pressureis
1Mpa.
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it is not fit for
the outlet. Have a proper outlet installed by a
qualified electrician.

2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging materialcouldbe dangerous for children!
Fordisposing ofpackage and theappliance please goto arecycling centre. Therefore cut
off the powersupplycable and make the door closing device unusable.
Cardboard packaging ismanufactured from recycledpaperand shouldbedisposedin the
waste paper collection for recycling.
By ensuring thisproduct is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handling of this product.
For moredetailed informationabout recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






3
beforeusing it for the first time.
To get the best performance fromyour dishwasher, read all operatinginstructions
5
Delay time: To display booking time .
Delayed Start Button: Press this button to set the
delayed hours for washing.You can delay the start
of washing up to 24 hours. One pressonthis
button delays the start of washing by one hour.
6
7
9
Poweronlight:TocomeonwhenPowerON/OFF
button is pressed down.
RinseAid Warning Light: Tobe on whenthe
rinseaid dispenser needs to be refilled.
1
2
3
4
ON/OFFButton:Toturn on/offthe powersupply.
Program indicator light: when you select washing
program, the correspond light will display.
8
SaltWarning Light :To beonwhen the softener
needs to be refilled.
Program indicator button: when you press washing
program button, the correspond light will display.
Start/Reset Button: Press this button to start
or pause the dishwasher, the process pilot
lamp will be blinking when starting.

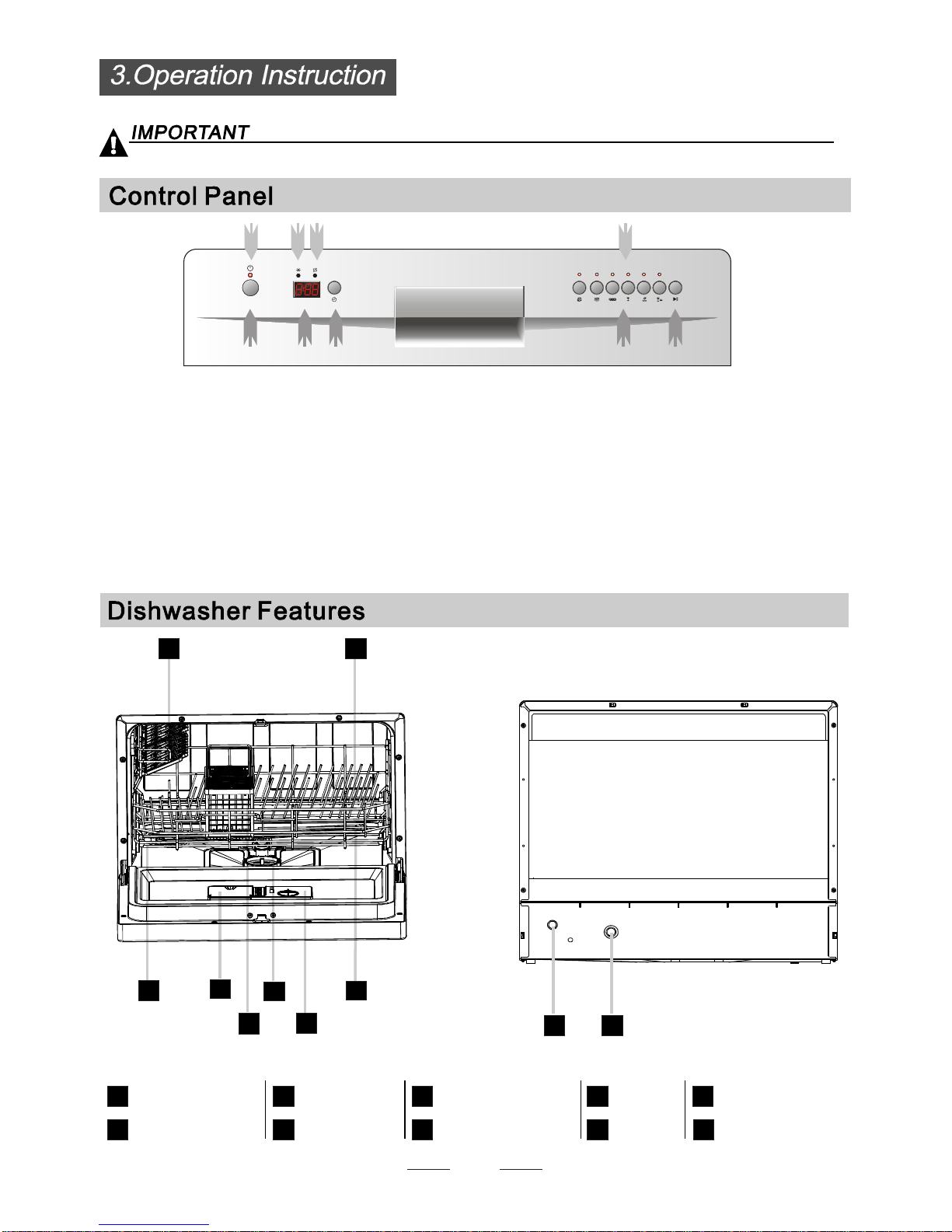

Front view Back View
Filter assemblyDetergent Dispenser
Cup Shelf
Cutlery Basket Rinse Aid Dispenser
Inletpipe connector
Drainpipeconnector
SprayArms Basket
1
Salt Container
5
67 89 10
3
2 4
3
26
4
7 8
910
5
1
ON/OFF h. min.
ON/OFF
1347
6
5
29
8

normal for a small amount of water to come out of the salt container.Itis
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how fully the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (For some Models),you can judge when to load
the salt into the softener by the cycles that the dishwasher had run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
Always use salt intended for use with dishwasher.
The salt container is located beneath the basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers!All other types of
salt not specifically designed for use in a dishwasher, especially table salt, will
damage the water softener. incase of damagescaused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any caused
damages.
Only fill withsalt just before starting one of thecomplete washingprogrammes.
This will prevent any grains of salt or salty water, which may have been split,
remaining of the bottom of the machine for any period of time, whichmay cause
corrosion.
4
ARemove the basket and then unscrew and remove the cap from the salt container.
BBefore first wash, add 1lt. of water in the salt container of your machine.
CPlace the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
DAfter filling the container , screw the cap tightly back clockwise.
EUsually, the salt warning light will be cease to be illuminated within2-6 daysafter the salt container has been filledwith
salt.
FImmediately after filling the salt into the salt container, a washing programme should be started
Otherwisefiltersystem, pumpor other important parts ofthemachinemay be damagedby salty
water. Itisoutof warranty.
If your model have water softener, youmay skip this section.no

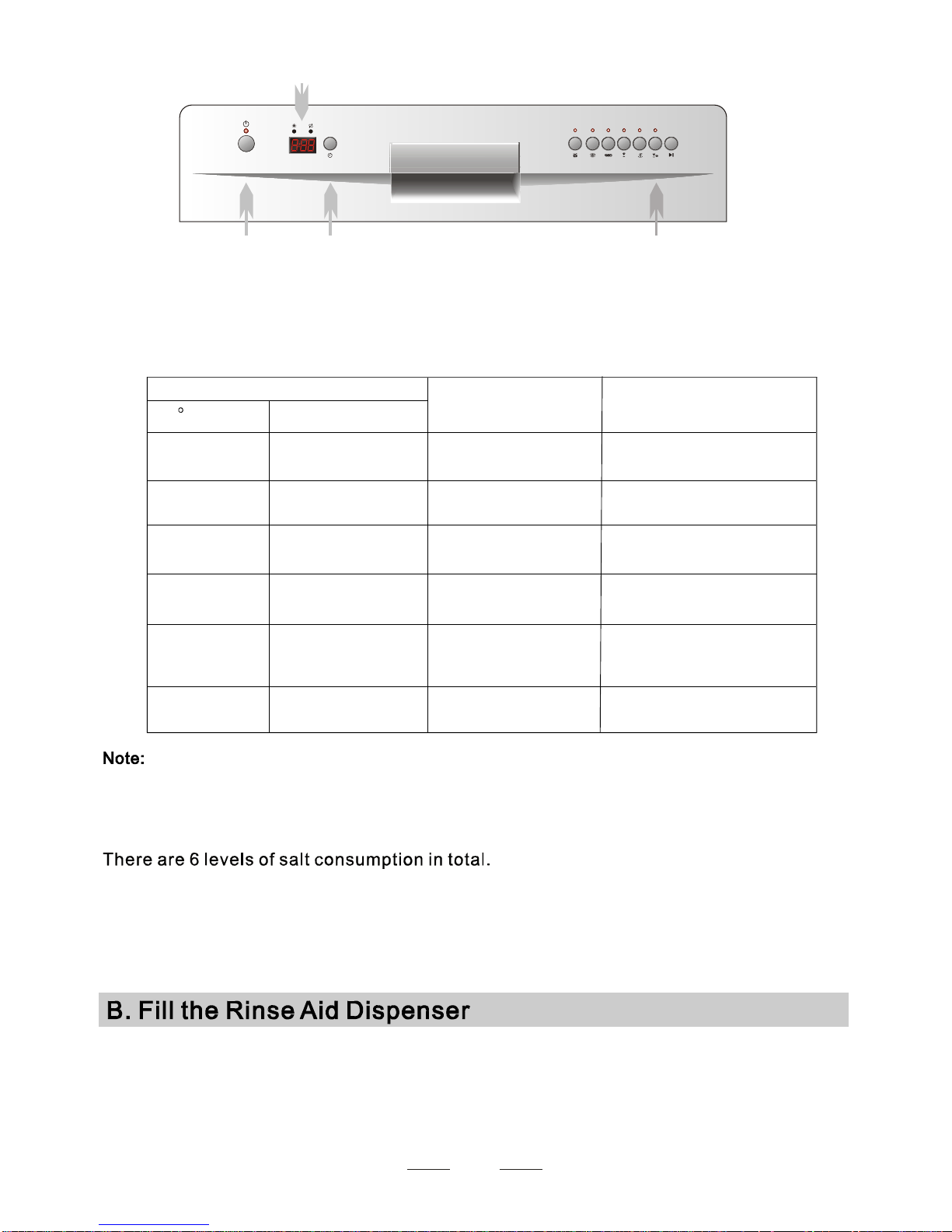

Step 1: Enter the status of saltadjustment
Adjusting Salt Consumption
Close the door, within 60second after power on, press Start/Pause button
for 5 secondsto enter setting mode.
Digital display stalls"H *", the controller factory default H6

Thedisplay willshow differentlevelof salt consumption.
It is recommended to select this level according to below table:
Step 2: select a certain level of salt consumption
Setting on the
water softener Digital display stalls
1
H1
2
3
4
5
6
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
*) factory setting
dH
Water Hardness level
mmol/l
1) 2)
*
0-5 0-0.9
6-11 1.0-2.0
12-17
18-22
23-34
35-45
2.1-3.0
3.1-4.0
4.1-6.1
6.2-8.0
H2
H3
H4
H5
H6
1) When you push Start/Pause button , digital display stallsof information.
Press stallsby H1H2H3H4H5H6"cycleofchange
2)
3)
Start/Pause button every time, "H6
After setting, reboot the dishwasher, the setting level will be remembered.
Then you can use it as usual .
5

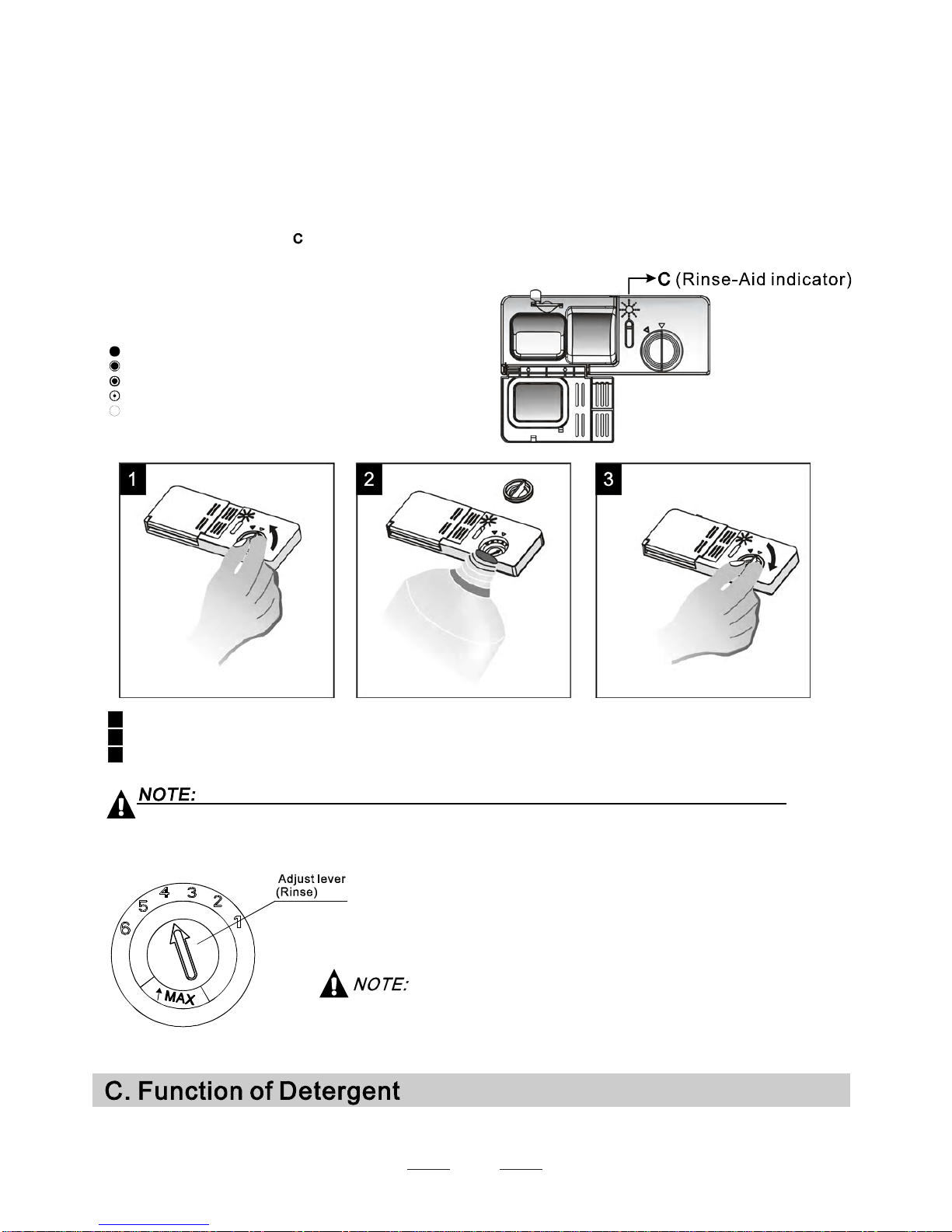

The rinse aid is released during the final rinse toprevent water fromforming droplets on your dishes. That can leave
spots and streaks. Italso improvesdrying by allowingwaterto sheet off thedishes. Yourdishwasheris designed to
use liquid rinse aids. Therinse aid dispenser is located insidethe door nextto the detergent dispenser. To fill the
dispenser, openthe cap and pourtherinse aid into the dispenser untilthe level indicator turns completely black.
The volume of the rinse aid container is about 110ml.
RinseAidDispenser
ON/OFF h. min.
ON/OFF
Digital display
Start/Pause
Button
Delay
Button
Power
Button

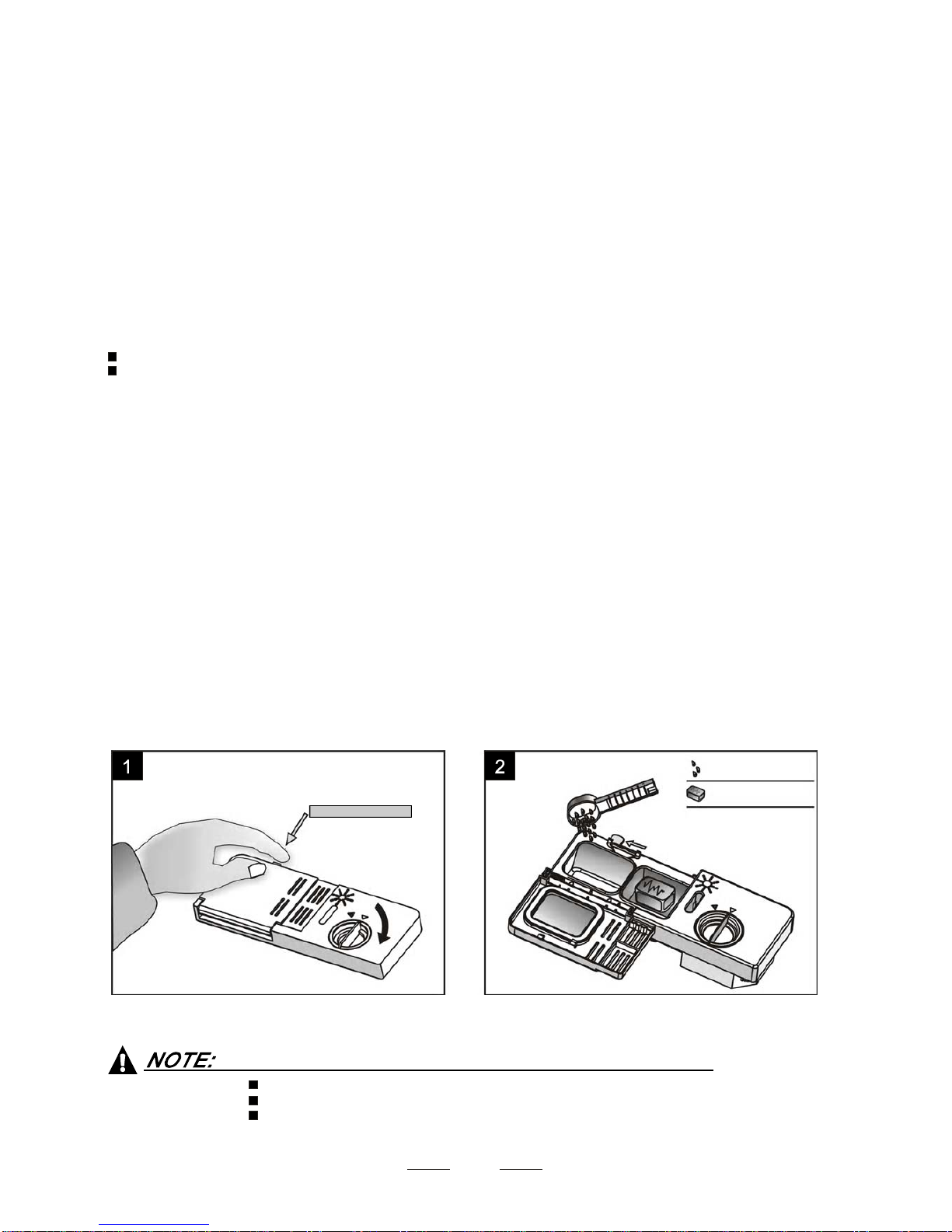

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it totheclosed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are problems, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are spotted, adjust the dial to the next
higher number until your dishes are spot-free.The recommended setting is "4".
(Factory value is "4".)
Increase the dose if thereare drops of wateror limespotson the dishes after washing.
Reduce it ifthere are sticky whitish stains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
ontherinseaidlevel indicator changes,as illustrated below.
Full
3/4full
1/2full
1/4 full-Should refill to eliminate spotting
Empty
6
When to Refill the RinseAid Dispenser
If thereis no rinse-aid warning light in the control panel, you can judgethe amount of rinse-aid by the color
oftheoptical level indicator located next to the cap. Whentherinse-aidcontainer isfull, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
therinseaidgetbelow1/4full.
during the nextwash. Don'tforget to replacethe cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crushdirt and transport it out of the dishwasher.
Most of commercial quality detergents are suitable for this purpose.
""
Attention!
Only use branded rinse aid for dishwasher. Never fillthe rinseaid dispenserwith anyother substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

7
Amountof Detergentto Use
Based ontheir chemicalcomposition, dishwasher can be split intwobasic types:
Detergent tabletsof different brandsdissolve at different speeds. For thisreasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programmes.Therefore pleaseuselong programmes whenusingdetergenttablets,to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table .Your dishwasher uses less detergentandrinse aidthen
conventionaldishwasher. Generally, only one tablespoon of detergent isneededfor
anormal wash load.Also, moreheavilysoiled items need more detergent.Always add the
detergent just before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfor dishwasher.
If the lid is closed: press release button.The lid springs open.
conventional, alkaline detergents with causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thewatersoftenerfunctionof
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardnessof wateris only 6 dH. If detergentswithout phosphate were usedin case ofhardwater
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a programme with higher Temperature.
°
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Push latch to open
Detergent tablet
Detergent powder

8
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendationsas stated onthedetergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, that according to the level soiling and the specific hardness of water differencesare possible.
Pleaseobservethemanufacturer's recommendations onthe detergent packaging.
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewteror cooper items
crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
heat resistant
Some types of glasses can become
dull aftera large number of washes
Silverand aluminium parts havea
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are of limited suitability
Don't put powder detergentintothedispenser until you're readyto washdishes.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Usea mild detergent that isdescribed as'kind ofdishes'.If necessary, seek further
information from detergent manufacturers.
For particular items, select a programme with as low a temperature.
Toprevent damage, donot take glass andcutlery out of the dishwasher immediately
after the programmehas ended.
Consider buying utensils which are identified as dishwasher-proof.

9
Position the dishes and cookware so that they will notget moved by the spray of water.
Dishesand itemsof cutlery mustnot lie insideoneanother, or cover each other.
Toavoiddamage to glasses,theymustnot touch.
Loadlargeitemswhicharemostdifficulttocleanintothebasket.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the basket.
Please do not overload your dishwasher.
Load hollowitems suchas cups, glasses, pans etc. With the opening downwards sothat
water cannot collect in the container or a deep base.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are face down.
2.Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray arms can rotated freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Saucers
Mediumserving bowl
Glasses
Cups
Oval platter
Dinner plates Soup plates
Dessertdishes
Dish
10
Cutlery basket

10
Cutlery should be placed inthe cutlery basket with handles atthe bottom. If the rack has side baskets, the spoon
shouldbe loaded individually into the appropriateslots, especially long utensils shouldbeplaced inthehorizontal
position at the frontof the upperbasket as shown.
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
For personal safetyand a top quality clean, place the silverware in the basket:
They do not nest together.
Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up.
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles
Plate racks of Basket
66
1
55
55
3
3
55
3
33
34
4
4
4
22
22
1
1
4
4
8
2
7
1
1
1
2

11
Plate racks of Basket
When load bigger Dinner plates,
please fold the rack to left picture
showed location.
The maximum plate can be loaded
is 270mm(10 inches) diameter.
Position the dishes and cookware so that they will not get moved by the spray of water.
Saucers
Large serving bowl
Glasses
Cups
Dinner plates Soup plates
Dessert dishes
9
Dish
Cutlery basket

12
Pre-wash 50
Wash (70 )
Rinse
Rinse
Rinse(70 )
Drying
（℃）
℃
℃
3/15 g.
140
0.90 11.0
Intensive
3/15 g. 120 0.65 9.0
Pre-wash
Wash (60 )
Rinse
Rinse(70 )
Drying
℃
℃
Normal
15g. 60 7.0
1hour
0.55
170 0.61 7.0
Pre-wash
Wash (50 )
Rinse
Rinse(70 )
Drying
℃
℃
Wash (45 )
Rinse
Rinse(60 )
Drying
℃
℃
(EN 50242) 3/15 g.
75 0.50 7.0
Glass
15g.
15g. 30 6.0
Rapid
0.25
Wash(40 )℃
Rinse
Rinse
(40 )℃
Wash (65 )
Rinse(50 )
Rinse(50 )
Drying
℃
℃
℃
Starting a washcycle...
1.Drawoutthe basket(see the sectionentitled Loading the Dishwasher ).
2. Pourin thedetergent(seethesectionentitled Detergent and RinseAid ).
3. Insert the plug into the socket. The power supply is 220-240VAC 50 HZ,
the specification ofthe socket is 10A 250 VAC.
4. Make sure that the water supply is turned on to full pressure.
“”
“”
5.Turn on the power button, press the program button that you want , the response light will light.
Then press the Start/Reset button, the dishwasher begins to start.
When you press the Start/Reset button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless you press the Start/Reset button to start.
*EN 50242 :This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity:6 setting
The power consumption of off-mode is 0.49W
left-on mode is0.49W
Rinse aid setting: 6
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
、
、
For normally soiled loads,
such as pots plates
glasses and lightly
soiled pans.
、、
Standard daily cycle for
normally soiled loads,
such as pots plates
glasses.
、、
For lightly soiled crockery
and glass.
For lightly soiled loads that
do not need excellent drying
efficiency.
A shorter wash for lightly
soiled loads and quick
wash.

It is dangerous to open the door when washing, because the hot water may scald you.
Whenthe working cycle has finished, the buzzerof dishwasher will sound 8 seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait afew minutes before unloadingthe dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turnoffthewater tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removingfromthe appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
13
will keep on working after 10 seconds.
Ifyou open the door when washing, the machine will pause. When you close the door , the machine
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the
door completely.
2
3
Open the door a little to stop the washing.
14
5
6
Press the start/reset button
Press the start/reset button, the dishwasher will run
after 10 seconds.
Premise:You can modify the washing program, When the dishwasher just
runs for a short time. Otherwise, the detergentmay have already been
released, and the appliance may havealready drained the wash water. If this
isthe case, the detergent dispenser must be refilled (seethe section entitled
" Loading the Detergent " ).
Ifthe machine operation, you want toconvert program, press theStart/Pause button,
and then click Program Button that you want to choose more than3 seconds,
can be turned to the program, enter standby(see the section entitled " Starting a wash cycle. . ." ).
The display show the state of the dishwasher:
a)The colon of display lights on but not blinking -------stand by or pause
b)The colon of display blinks slowly----------run

14
The filter prevent larger remnants of food or otherobjectsfrom gettinginside the pump.
The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
Food andsoil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
Main filter
1
Largeritems,such aspieces ofbone or glass,thatcould block
the drain are trapped in thecoarse filter. Toremovethe items
caught bythe filter,gently squeeze thetap on the top of this
filterand lift out.
Coarse filter
3
This filterholds soil and food residue in the sumparea and
prevents it from being redeposit on the dishes during wash cycle.
Fine filter
2
Filterassembly
Thefilter efficiently
For best performance and results, the filter assembly must be regularly. this reason, it is a good idea to
remove thelarger food particlestrapping in the filterafter each wash cycle byrinsing the filter and cup under
running water. To remove the filter assembly, pull on the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be re-cyclated during thecycle.
For
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performance level of the appliance
and damage dishesand utensils.
1
2
3
2
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
Step 2 lift the filter assy up：
1
Step 1 Turn the filter in anti-clockwise direction,：

The control panel can be cleaned byusinga lightly dampenedcloth and dry thoroughly.
The exterior use a good appliance polish wax.
Neverusesharp objects, scouring padsor harshcleaners onany partof the dishwasher.
ProtectAgainst Freezing
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water fromtheinlet pipe and water valve. (Use a pan to catch the water)
4.Reconnectthewater inletpipe tothewatervalve.
5.Remove the filter at the bottom of the tuband use a sponge touseup water in sump.
please take frost protection measures on dishwasher in winter.E fter washing cycles,
please operate as follows achtimea
：
- Inspect the filters for blockingevery time the dishwasher hasbeen used.
- By unscrewing the coarsefilter.you can remove thefilter system.Remove any food remnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning The Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use acleaning brush.Reassemble the filter parts as shown in the figures
in the last pageand reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.
The entirefilter assembly should be cleanedonce a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of dishwasher could be debased.
Never use a spray cleaner toclean the door panel asit may damage the door lock
and electrical components.
Abrasive agent or some paper towel should not be used becauseof the risk of
scratching or leaving spots on the stainless steelsurface.
15
If your dishwasher cannot work because of the ice, please contactprofessional servicepersons.
To cleantheedgearoundthe door,youshoulduseonlya soft warm,
dampcloth.To avoid penetration of water into the door lockand
electrical components, donot usea spray cleaner of any kind.

Itis recommendthat yourun awashcycle withthe
dishwasher empty and then remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstoast longerandpreventodours from forming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition.If absolutelynecessary, itcanbe
positioned on its back.
One of thefactors that cause odors to form inthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water with a little
vinegar, ora cleaning product madespecifically for
dishwashers.
After EveryWash
Remove the Plug
No SolventsorAbrasive Cleaning Moving theAppliance
Seals
When it is notin needfor a long time
16
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installingdishwasher.
Failureto do so can result in death
or electrical shock.
The installation position of dishwasher shouldbe near the existing inletand drain
hosesand powercord.
One side of the cabinet sink shouldbe chosen to facilitate theconnection of drain
hosesof the dishwasher.
Cleaning the SprayArms
Thespray arms can be easily removed for periodiccleaning
of the nozzles, to prevent possible clogging. Wash them
under running water and carefully replace them in their seats,
checking that their rotary movementis inno way impeded.
Graspthe middle of thespray arm, pull it upwards to remove
it.Wash thearms undera jetof running waterandreturn them
carefully to their seat. After reassembly, check that the spray
arms turn freely. Otherwise,check that they havebeen
installed correctly.

Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electricalsocket which isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replace the socket, ratherthan usinga adaptors or the likeas
they couldcause overheating andburns.
Please look at therating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, timedelay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with
a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
17
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply
Position the appliance in the desired location. The back should rest against the wall behind it,
and drain hoses thatcanbepositioned to theright ortheleftto facilitate properinstallation.
Ahose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is
recommended thet the hose be disconnected and the hole plugged.
Pull The safetysupply hoses completely out from storage compartment locatedat rear of dishwasher.
Turn water fully on before starting the dishwasher.
1
Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water
in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full
of water.
2
3
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum
consult our Service Department for advice.

18
Insert the drain hose into a drain pipe with a minimum diameterof 4cm, orlet it
runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespe ial
plastic support that comes with the appliance. The free endof the hose must be
at a height lowerthan75cm and must not be immersed in water to avoid the back
flow of it.
c
The special plastic hose support must be solidlyfastened to the wall to
prevent thedrain hose frommovingand allowing water to spill outside
the drain.
Turn off the water.
Release thewater pressureby depressingthepressure releasebutton.This relieves waterpressureandprotects
you,andthe room, from severe splashing.
Unscrew The safety supply hose from the faucet..
3
2
1
Connectthe cold water supply hose to a threaded 3/4(inch) connectorand make sure that it is fastened tightlyin place.
If the water pipes arenew or havenot been used for an extended period oftime, let the water run to make sure that the
water is clearand free ofimpurities. If thisprecaution is not taken,there isa risk thatthe waterinlet can getblocked and
damage the appliance.
