BOND MANUFACTURING firebowl User manual

READ BEFORE USE!
OWNER'S MANUAL
Propane cylinders sold separately.
Factory No.: Style No.: 67229
WARNING
For Outdoor Use Only! Use Propane Gas Only !
DANGER
Improper installation,
adjustment,alteration,service or maintenance can cause
injury or property damage. Read the owner's manual
thoroughly before installing or servicing this equipment.
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
WARNING
WARNING
WARNING
USE PROPANE GAS ONLY!
-Do not store or use gasoline or other flammable
vapors in the vicinity of this or any other
appliance.
-Service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING
The propane cylinder must be disconnected
when this firebowl is not use.
DANGER
If the firebowl is stored indoors,detach ans leave
propane cylinder outdoors.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclose space
such as a camper, tent, car or home.
DANGER
This firebowl must be attended at all times!
WARNING
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
WARNING
WARNING
For use with cylinders marked PROPANE only.
DO NOT connect to a remote gas supply.
Design certified under ANS Z21.97-2010 Standard for
Outdoor Decorative Gas Appliances & CGA CR97-003
Requirements for Outdoor Gas Fireplaces.
If you smell gas:
1.Shut off gas to the appliance.
2.Extinguish any open flame.
3.If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
1

DANGER
*Do not use this firebowl for cooking.
*Do not burn any other materials that are supplied with and intended for use in this firebowl.
*Do not pour water into firebowl.
*The installation of this product must conform with local codes or, in the absence of local codes, with either the National Fuel Gas
Code, ANSIZ223.1/NFPA 54, or CAN/CGA-B149.1, National Gas and Propane Installation Code.
*Do not use this firebowl if any part has been under water.
*Do not store a spare or disconnected propane cylinder under or near this firebowl.
*After a period of storage, and/or non use, the propane firebowl should be checked for gas leaks and burner obstructions before use.
*Do not operate the propane firebowl if there is a gas leak present.
*Never use a flame to check for gas leaks.
*Combustible materials should never be within 48 inches of the top, back or sides of your propane firebowl.
*Do not put any other fireblow cover or anything flammable on, or beneath the firebowl.
*The propane firebowl should never be used by children. Children must be supervised when they are anywhere
near the appliance.
*Users should be alerted to the hazards of high surface temperatures and keep a safe distance to avoid burning or
clothing ignition.
*Pay attention when operating the firebowl. It is hot in use and should never be left unattended. Do not transit it
while in operation.
*Should fire go out while burning, turn the gas valve off. Follow the instruction and wait five minutes before attempting to
relight.
*Never use charcoal or any other solid fuel in the fireblow. Never parch clothing or other flammable materials on or near
the firebowl.
*Never lean over the open firebowl or place hands or fingers on the upper portion of an operational unit.
*
Keep ventilation openings in cylinder enclosure(FIREBOWL BODY) free and clear of debris.
WARNING
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or
death, or in a fire or an explosion causing damage to property.
*The max inlet supply pressure "Max.gas supply 11 inch w.c. (2.74kPa).
*Use LP cylinders only with these required measurements: 12"(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity
maximum.
*Clean the battery contacts and also those of the device prior to battery installation.
*Remove batteries from equipment which is not to be used for an extended period of time.
*Remove used batteries promptly.
Keep
ventilation
openings
in
cylinder
enclosure(FIREBOWL
BODY)
free
and
clear
of
debris.
*Do not rest feet on the firebowl.
*Please take out the battery when not using the firebowl for an extended length of time.
*Do not enlarge valve orifices or burner ports when cleaning the valve or burner.
*Cylinder supply system must be arranged for vapor withdrawal.
*Propane Tank used must include a collar to protect the cylinder valve.
*Never fill the cylinder beyond 80% full.
*Propane gas is not natural gas. Only use propane for this firebowl.
*The conversion or attempted use of natural gas in a propane unit propane gas in a natural gas unit is dangerous.
*Do not use this firebowl on vehicles or boats. Always operate the appliance on flat ground outdoors.
*Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
*Do not use this firebowl unless all parts are in place.
2

Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
• Installation and repair should be done by a qualified service person. The appliance should be inspected before use and
at least annually by a qualified service person.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
• Young children should be carefully supervised when they are in the area of the appliance.
• Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
• Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the appliance.
FOR PROPANE GAS UNITS
*The gas pressure regulator provide with the propane fire bowl must be used.
*Do not attempt to disconnect the gas regulator or any gas fitting while your firebowl is in operation.
*A dented or rusty propane cylinder may be hazardous and should be checked by your gas supplier prior to use.
*Do not use a propane cylinder with a damaged valve and any other worn out parts.
*Transit and store the empty gas cylinders carefully and properly.
*If you see, smell or hear the hiss of escaping gas from the propane cylinder:
1. Turn off the gas supply and get away from the gas cylinder and the firebowl at once.
2. Do not attempt to correct the problem yourself.
3. Get to your gas supplier and/or the fire department for help.
• Installation and repair should be done by a qualified service person. The appliance should be inspected before use
and at least annually by a qualified service person. More frequent cleaning may be required as necessary.
It is imperative that control compartment, burners and circulating air passageways of the appliance be kept clean.
• Specific size and capacity of the cylinder to be used.
•How to disconnect a gas bottle
Turn OFF control knob and LP cylinder valve. Turn coupling nut counterclockwise by hand only - do not use tools to
disconnect .Loosen cylinder screw beneath bottom shelf, then lift LP cylinder up and out of shelf. Place dust cap on cylind
e
valve outlet whenever the cylinder is not in use.
• Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of reach of children. Disconnected cylinders must have
threaded valve plugs tightly installed and must not be stored in a building, garage or any other enclosed area.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a
qualified installer, service agency or the gas supplier.
The LP-gas supply cylinder must be disconnected when this appliance is not in use.
Only cylinder marked “propane” shall be used.
Caution:
Only use the pressure regulator and hose assembly supplied with this firebowl. Replacement pressure regulator and hose
assemblies must be specified or supplied by BOND MANUFACTURING CO.
• A statement that the LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for Lpgas cylinders of the U.S. Department of Transportation (DOT).
• Instructions to the effect that this appliance shall be used only outdoors in a well-ventilated space and shall not be used
in a building, garage or any other enclosed area.
3

*Do not light or use gas unit if lava rocks are wet. Ensure lava rocks are completely dry before igniting as intense heat
could cause the rock to crack.
*Lava Rocks could hit somebody's face or eyes during initial start of this unit, so please keep away from the firebowl for
the first 20 minutes after it has been ignited.
*LP GAS WARNING: Do not exceed 1/4" depth of fire glass or small lava rock directly above burner holes. Applying too
much media may result in unburned gas pooling in firebowl or firepit. Ventilation is required to allow fresh air into
enclosure and any residual gas to escape.
ACCESSORIES
WARNING!
Warranty and Installation Information
The Bond warranty will be voided by, and Bond disclaims any responsibility for, the following actions:
►Modification of the firebowl and/or components including the gas valve assembly.
►Use of any component part not manufactured or approved by Bond.
►Use and Installation other than as instructed in this manual.
ITEM DESCRIPTION
A LAVA ROCKS
B BATTERY(AAA)
CFIREBOWL
D DOOR
E PVC COVER 1PC
1PC
QTY
1 BOX
1PC
1PC
4

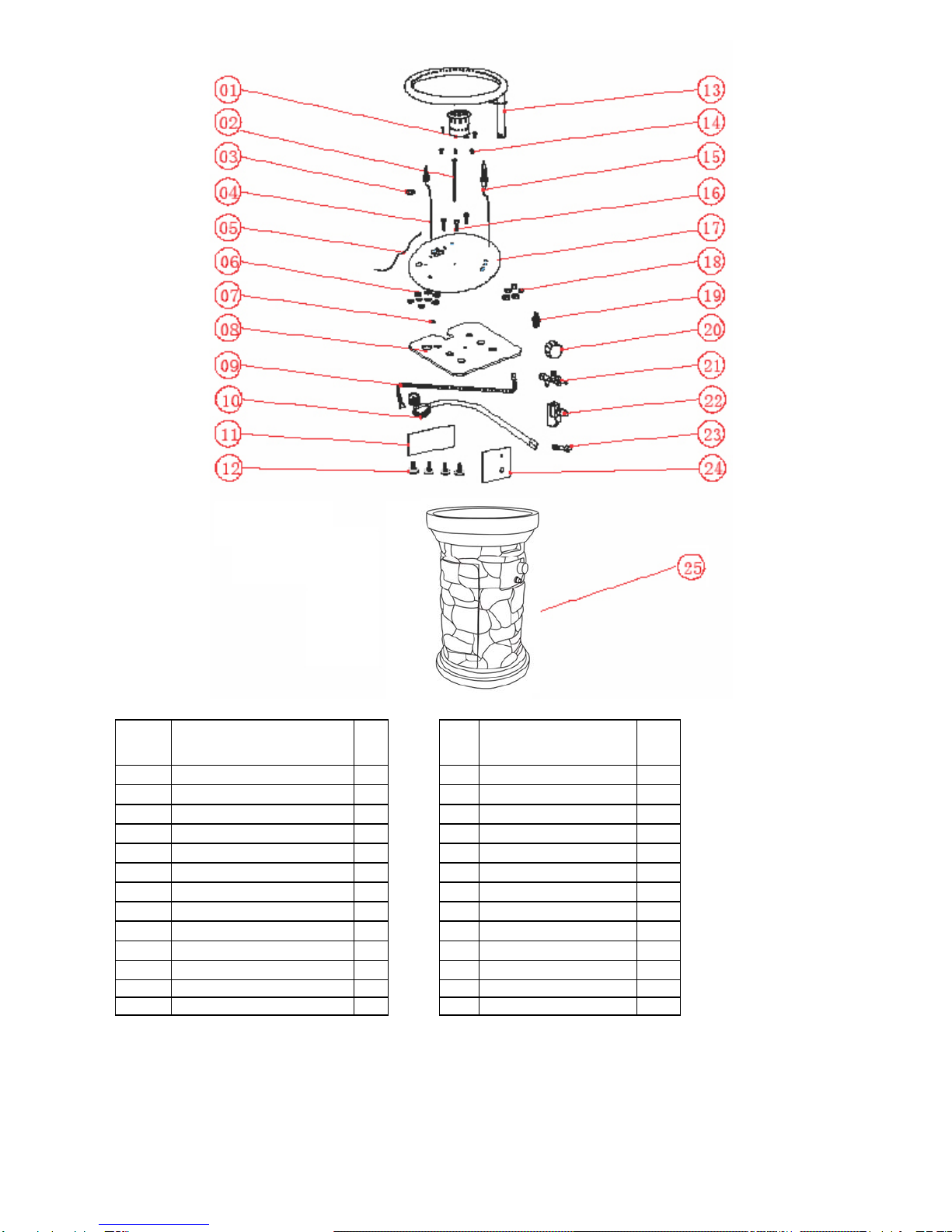

ITEM
NO. SPECIFICATION QTY ITEM NO. SPECIFICATION QTY
1 Guard 1 14 M4*10 screws 5
2 M5*120 Screws 1 15 Ignition Pin 1
3 ￠7 Washer 1 16 M6*10 Screws 3
4 Thermocouple 1 17 Fire Bowl Plate 1
5 Grounding Wire 1 18 M4 Nut 5
6 ￠6 Washer 8 19 Venturi Tube 1
7 M5 Nut 1 20 Control Knob 1
8 Heat Insulation Board 1 21 Gas Valve 1
9 Ripple Pipe 1 22 Pulse Ignition 1
10 Regulator 123 M8*30 Wing Screw 1
11 CSA Label 1 24 Control Panel 1
12 Adjustable Feet 4 25 Body 1
13 Burner 1
5

ASSEMBLY INSTRUCTIONS
STEP 2. (1) Turn the firebowl heads up on a flat ground.
(2) Cut off the binding tape on the polyfoam and remove all
the polyfoam rounding the top of the firebowl.
(3) Cut off the tie fastened to the regulator at the metal stand
and set it free for installation to Propane Tank.
See Figure STEP 2.
*If you have opened the carton and removed all packages, please disregard the STEP 1 and 2.
See the STEP 3 directly.
* Please keep this owner's manual for future reference.
STEP 1
. (1) Open the carton and turn it upside
down, make sure the 4 pieces of the carton being
open up as below Figure STEP 1.
(2) Lift off the carton carefully and be wary of the
accessories inside falling away. Take away the box
containing lava rock.
(3) Take all the packing materials away except for
the polyfoam rounding the top of the firebowl.
See Figure STEP 1.
STEP 3.
(I) Check each part before using the product. Make
sure the gas supply system is turned
"
OFF
"
before
** DO NOT COVER THE IGNITION SCREEN
when
placing the lava rock into the fire bowl. Always keep
Ignition Screen visible.
** Connect the Pressure-Regulating Valve to the gas
tank.See Figure VI.
1) Turn the cylinder valve clockwise to close the gas
supply on the gas tank.
2) Screw Regulator Coupling clockwise by hand only.
Make sure it is fastened.
sure
the
gas
supply
system
is
turned
OFF
before
assembling. See Figure I.
(II) Open the storing door on the firebowl for the gas
tank. See Figure I.
(III) Put the gas tank in the metal stand. Make sure the
gas tank sits on the metal stand completely. Turn the
wing screw on the outer part of metal stand clockwise
to secure the gas tank tightly. See Figure V.
connecting and operating conditions. See Figure VI
(IV) Locate the battery, remove the plastic cover first.
Unscrew the rubber cap of the Electric Ignitor, place a
AAA battery into the battery case. Make sure the
positive pole ("+") towards the cap. Screw the cap
back to the battery case tightly. See Figure II.
(V) Place the lava rock averagely in the fire bowl on
the top of the firebowl. See Figure III.
6

Perform leak test in a well ventilated area outside and where no source of spark can occur.
Remove battery from igniter. Open tank valve fully (counter-clockwise). Turn the on/off valve at the unit to the ‘off’
position to
pressurize the hose assembly. Use a soapy water solution to check all the connections leaks before attempting to light the
appliance. If a leak is found, turn the tank valve off and do not use the appliance until repairs can be made.

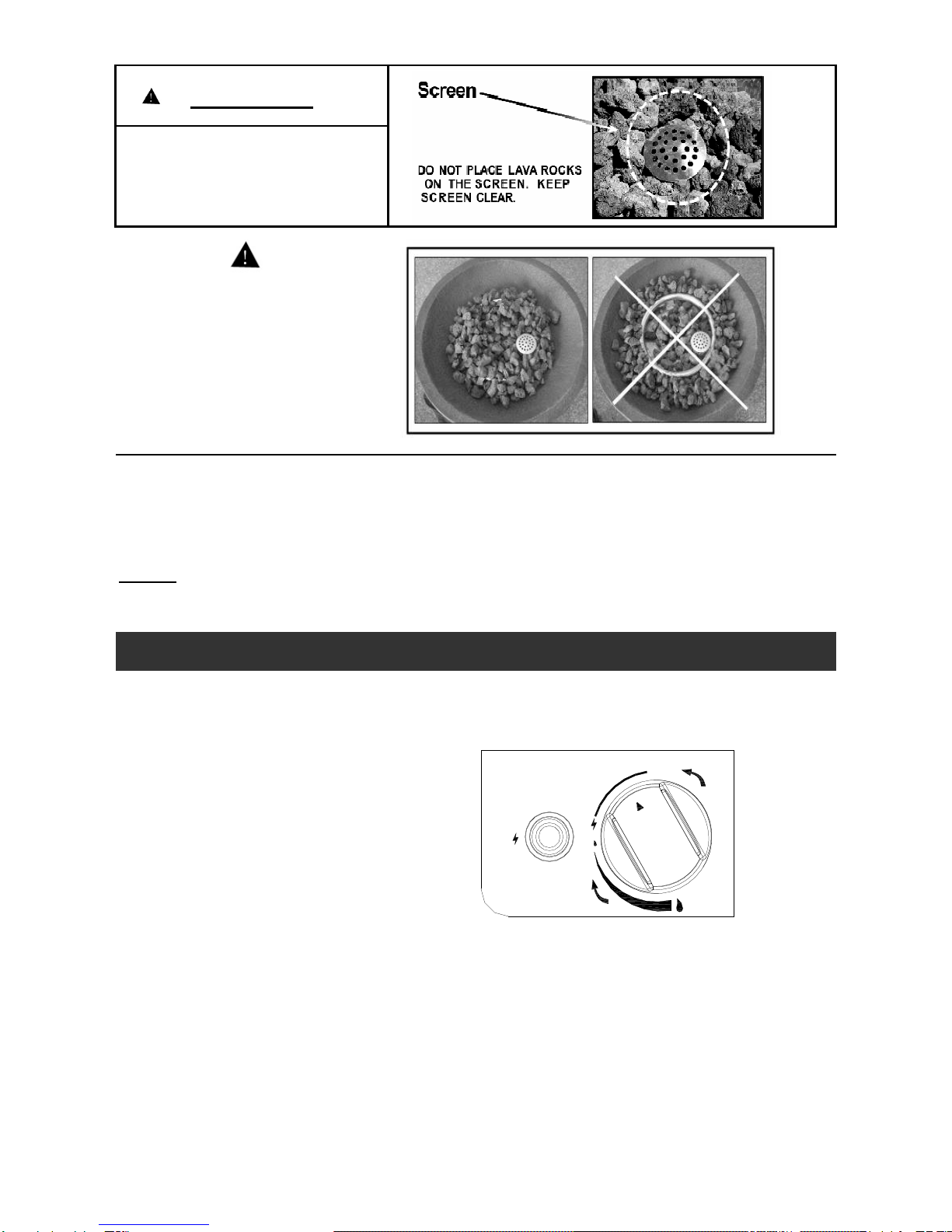

The burner of the firebowl must be
covered by lava rock completely.
Otherwise the flame may be
extinguished occasionally. See the
Figure CORRECT and INCORRECT
for reference.
See WARNING and Figures :
WARNING
This screen must be clear and free of
obstructions at all times to insure
proper operation.
CORRECT INCORRECT
TIPS: Before Beginning ●Read the instructions thoroughly.
●For future reference, save this instruction sheet.
●Check and make sure that all parts are present
.
Before each use, inspect all hose. Replace hose if there are any signs of cutting, wear or abrasion.
(1) Turn the cylinder valve on the gas tank counter-clockwise to open the gas supply.
(2) Close the storing door on the firebowl for the gas tank.
(3) Light the firebowl as below steps:
A. Press and hold the Electric Ignitor. Meanwhile, push and turn the Control Knob counter-clockwise to the
"LOW" position. Keep pushing the Control Knob to light the burner .
B. After ignition, release the Electric Ignitor. Continue to push and hold the Control Knob for 45 seconds.
C. If ignition does NOT immediately take place in seconds, push and turn the Control Knob clockwise to
"OFF". Wait 5 minutes, then repeat the lighting procedure as above.
Caution:
*If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could
accidently ignite with risk of injury.
TO LIGHT
LOW
HIGH
OFF
IGNITER-PUSH
7

ROUTINE CARE
TO EXTINGUISH

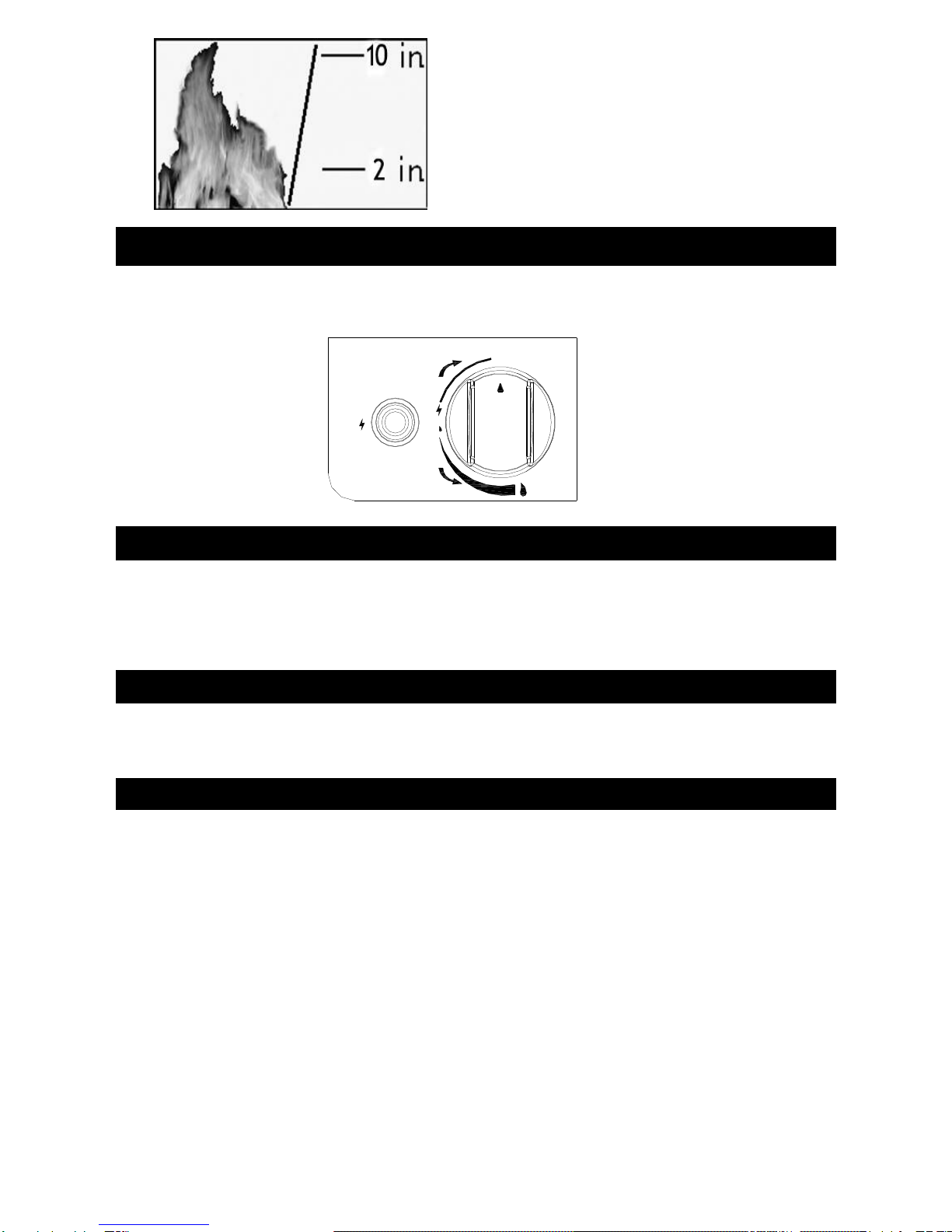

Observe flame height when lit:
Flame should possibly be a yellow/blue color between
2 to 10 inches high.
※Push the Control Knob and turn clockwise to the "OFF" position.
※Turn the cylinder valve on the gas tank clockwise to close the gas supply if not for use in a long time.(See
below figure)
LOW
HIGH
OFF
IGNITER-PUSH
※Keep your firebowl free and clear from combustible materials.
※Visually inspect burner from obstructions, keep fireplace free and clear from debris.
※After the burner and lava rocks are completely cooled down, use a soft brush to get rid of the mild stains,
loose dirt and soil. Wipe with a soft cloth.
STUBBORN STAINS
※Stubborn stains, discoloration and possibly rust pitting can occur from exposure to harsh outdoor conditions.
※Store the firebowl in a cool dry place away from direct sunlight.
※The propane cylinder must be disconnected and removed from the firebowl before the appliance can be stored indoors.
※Please contact the Manufacturer for information regarding replacement hoses, thermocouples, ignitors, lava rock, etc.
※Make sure both the gas and the firebowl are turned off before changing battery. Please refer to the process of
assembling battery.
PLEASE CALL BOND TOLL FREE #
MAINTENANCE
※Use Manufacturer approved or supplied replacement parts and accessories only. Otherwise may void the warranty of
this product and result in a hazardous condition.
1-866-771-BOND(2663) OR TO BETTER
EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US
[e-mail]
OR LOG IN TO OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT
※Be careful not let any powder or solvent come in contact with painted or plastic components as damage may
occur.
BOND MANUFACTURING CO.
www.bondmfg.co
m
OR
LOG
IN
TO
OUR
WEBSITE
UNDER
CUSTOMER
SERVICE
SUPPORT
1700 West 4th Street Antioch, CA 94509 USA
8
