Booster BMTV-9980DVUSBT Operating instructions

BMTV-9980DVUSBT
INSTALLATION /OWNER'S MANUAL
DVD Multimedia Receiver with 7" Digital Wide Touch Screen Display
In-Dash Fully Motorized TFT Monitor
DVD/AM/FM/ Bluetooth Receiver
With built-in Digital TV (ISDB)
with GPS Navigation

BMTV-9980DVUSBT
- 1 -
Table of Contents
Safety Information……………..…………………………………….………………………2
Features…………………………………………………………….………………………4
Accessories……………………………………….…….………………………………….5
Wire Connection……………...……………………………..……………………………….6
Unit Installation and Removal………………………….….………………………………10
Front Panel………………………………………………………..…..……………………15
Remote Control……………………………………………………………………………19
Touch Screen Operations………………………………………………….……………24
Touch Screen Calibration…………………………………….………………………24
Main Menu…………………………………………………….………………………25
Radio Operations…………………………………………………….……………….26
DVD Operations…………………………………………………….……………….27
Bluetooth Operations…………………………………………………….…………33
i-POD Operations…………………………………………………….……………….38
SD CARD Operations……………………………………………….………………..40
USB Operations…………………………………………………….………………..40
AV IN Operations…………………………………………………….………………41
AUX IN Operations………………………………………………….………………41
ISDB-T Operations………………………………………………….………………..42
Navigation Operations………………………………………….………………..49
System Parameters Setup………………………………...….……….……………..50
Specifications…………………………………………………………………………….....55
Troubleshooting………………………….……………………………………….….…...56
Disc Notes………………………………………………………………………………...58

BMTV-9980DVUSBT
- 2 -
SAFETY INFORMATION
PLEASE READ COMPLETELY AND BECOME FAMILIAR WITH THE CONTENTS
OF THIS MANUAL BEFORE INSTALLATION AND OPERATION OF THIS UNIT,
AND KEEP IT CAREFULLY FOR FUTURE REFERENCE.
This unit is a class 1 laser product. The laser beam may cause hazardous
radiation if exposure to laser system directly. Do not attempt to disassemble
the unit personally.
This unit has been designed and manufactured to assure personal safety. Improper
use can result in electric shock or fire hazard. The safeguards incorporated in this
unit protect you if you observe the following procedures for installation, use and
servicing. This unit doesn't contain any parts that can be repaired by the user. If the
unit requires maintenance, contact an authorized service center.
Warnings
1. Do not expose the product to rain, water or excessive moisture. This could
cause electrical shorts, fire or other damage.
2. This product is designed to operate with a 12 volt DC, negative ground
battery system. Use the proper power supply.
3. The monitor is operated automatically. Do not push in or pull out the monitor
or try to reverse the monitor manually! Do not attempt to adjust the monitor
angle upward or downward manually. It will cause damage to the Monitor
Mechanism Structure.
4. Do not impact the monitor with a hard object. It may cause permanent damage.
5. Do ground all equipments and works in order to avoid causing damage to the
unit by electrostatic discharges.
6. The user who handles this product takes all necessary precautions to avoid
ESD (Electro-Static Discharge) failures.
7. Do not attempt to install or service your unit by yourself. Installation or servicing
of the unit by persons without training and experience in electronic equipment
and automotive accessories may be dangerous and could expose you to the
risk of electric shock or other hazards.

BMTV-9980DVUSBT
- 3 -
Warnings
1. To reduce the risk of fire or electric shock, and annoying interference, use only the
recommended accessories.
2. While driving, keep the volume level low enough to be aware of road and traffic
conditions.
3. Parking in direct sunlight can produce very high temperatures inside your vehicle.
Give the interior a chance to cool down before starting playback.
4. Do not use any chemical solvent, cleaning agent or corrosive detergent to clean
away dirt on the surface of the TFT monitor screen. It may cause irreversible
damage.
5. Small black and shiny dots inside the liquid crystal panel are normal for liquid
crystal product.
6. In extremely cold temperatures, the movement of the picture may be slow and the
picture may be dark, but this is not a malfunction. The unit will work normally once
reach its operating temperature.
7. Do not use and store the unit in dusty, high temperature and high humidity
environments.
8. Do not use the unit immediately when you bring it from cold to warm place.
Sudden drastic change in temperature, may cause moisture condensing which
can influence the unit for certain time.
NOTE
This user's manual is only for reference.
Modifying rights are reserved.
Specifications are subject to change without notice.

BMTV-9980DVUSBT
- 4 -
FEATURES
1. ISO/1-DIN Size
2. DVD/DVD+/-R/DVD+/-RW/VCD/CD/CD-R/CD-RW/MP3 Compatible
3. 7" Wide-Screen Digital TFT/LCD Display
4. Touch Screen Panel Control
5. Graphic User Interface
6. High Brightness: 400 cd/m2
7. Resolution: 2400 x 480
8. Color, Contrast, Brightness, Tint controls
9. 32-bit RISC Processor for Graphic User Interface
10. Flash Movie for Opening Screen
11. Capture Images from DVD/USB/SD Card to display as Screen Saver and
Background
12. Fully Motorized Viewing Angle Adjustment
13. Last Angle Memory for Panel
14. Front Panel Display When the Monitor is Closed
15. Detachable Front Panel
16. Slim Type Car DVD Slot-in Mechanism
17. Digital & Mechanical Anti-Shock with ESP Memory
18. Built-In Dolby Digital Decoder
19. Built-In MP4 Decoder
20. Last Position DVD Memory
21. OSD (On Screen Display)
22. NTSC/PAL Compatible
23. Full Function Remote Control
24. AM/FM PLL Synthesizer Tuner with 30 Memory Presets
25. Auto Store Pre-set Scan
26. Preset EQ (POP CLASSIC ROCK JAZZ USER)
27. Bass/Treble/Fader/Balance Controls
28. Encoder Volume Control
29. Extending Amplifier Control
30. Auto Antenna Control
31. Brake Reminder System
32. Digital Clock
33. Hi Power 50W x 4
34. 4 RCA Audio Outputs
35. 2 RCA Sub-Woofer Outputs
36. 1 RCA Video Output
37. 1 Set RCA Audio Video Input
38. 1 RCA Rear View Camera Input
39. Built-In ISDB-T Digital TV
40. SD Card/Mini USB port （USB Cable supplied）
41. iPod Input Connection (Cable not supplied)
42. Bluetooth Hands Free Function
43. GPS Navigation
44. GPS Navi box (BNAV-9100GPS)

BMTV-9980DVUSBT
- 5 -
ACCESSORIES
Bolt and Nut M5 x 1 Back Strap x 1 M5X5 Screws x 4 Remote Control x 1
Power Wire x 1 Keys x 2 Mounting Sleeve x 1 Operational Manual x 1
Trim Bezel x 1 Slip cover x 1 External Microphone x 1 AUX Cable x 1
13
USB Cable x 1 Stylus x 1 ISDB-T Connection ISDB-T Antenna x 1
wire x 1（Optional）
SD Card x 1
GPS Antenna x 1 GPS Connection wire x 1 （Map Included）GPS Box x 1
1
2
3
56
8
9
10 12
4
7
11
1514 16
17 1918 20

BMTV-9980DVUSBT
- 6 -
WIRE CONNECTION
Cautions
1. To prevent short circuits, remove the key from the ignition and disconnect the
terminal of the battery.
2. Make the proper input and output cable connections for each unit.
3. Connect the wiring harness cables in the following order: ground wire, battery
wire, ignition wire.
4. Reconnect the terminal of the battery.
5. Do not connect the yellow wire of this product directly to the battery terminal.
6. Do remember to connect the red wire of this product to the ACC. of the ignition
key switch. Failure to do may result in draining off the battery charge prematurely.
7. If the fuse blows, first make sure that the cables have not caused a short circuit,
then replace the old fuse with new one with the same rating.
8. Do not let unconnected cables or terminals touch the metal on the car or other
conductor.
9. To prevent short circuits, do not remove the caps form unused terminals or from
the ends of the unconnected cables.
10. After the monitor unit is installed, check whether the brake lamps, blinkers, wiper,
etc. on the vehicle are working properly. If not, please make sure they are proper
installed.
11. Insulate unconnected wires with vinyl tape or other similar material.
Warnings
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-)
battery cable prior to installation.
Reconnecting the Battery
When wiring is complete, reconnect the battery negative terminal.
Fuse Replacement
Never replace any fuse with one of a higher value than the fuse supplied with
your unit. Using a higher current rated fuse may cause damage to your unit
and/or electrical wiring.

BMTV-9980DVUSBT
- 7 -

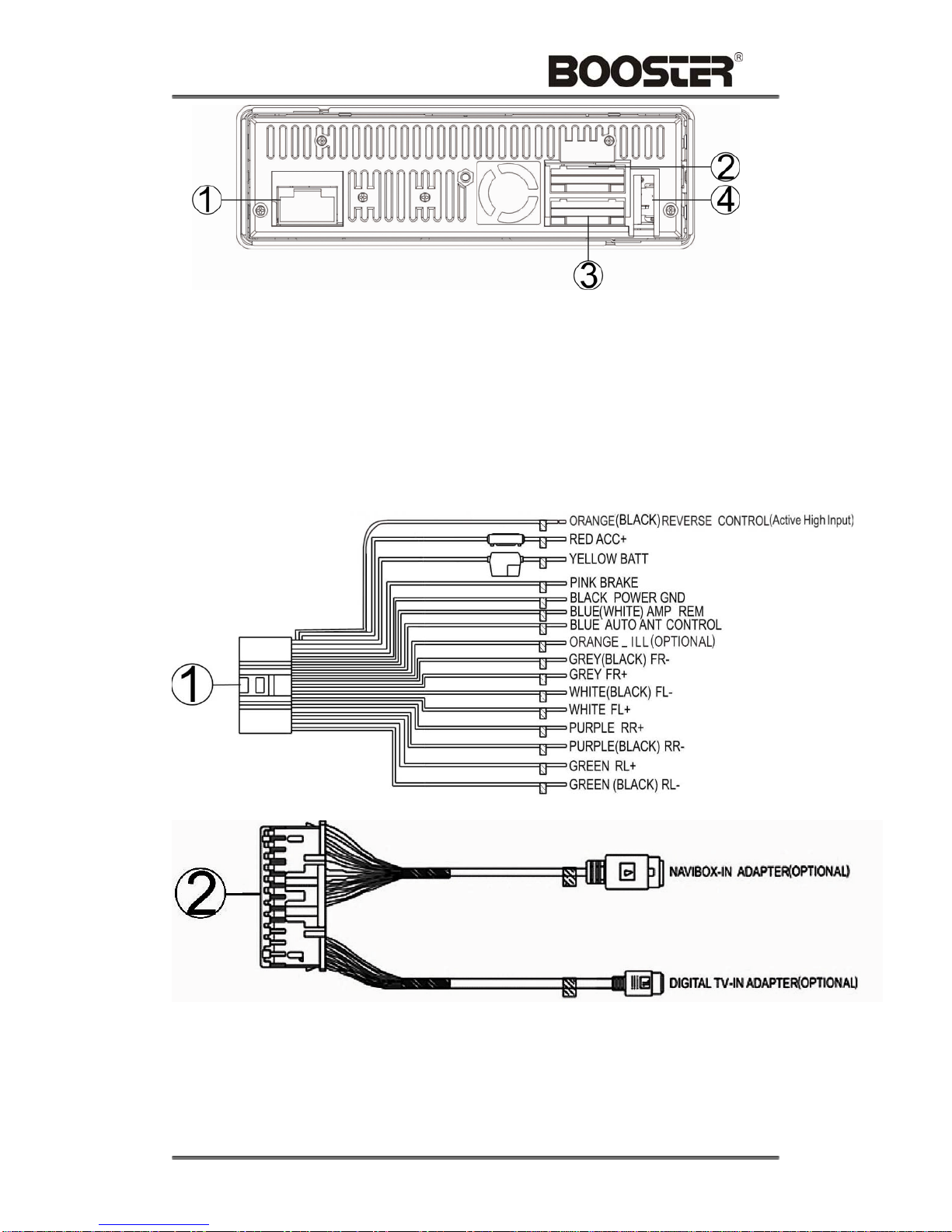

1. POWER WIRE
2. EXTERNAL NAVIGATION ADAPTOR
DIGITAL TV ADAPTOR

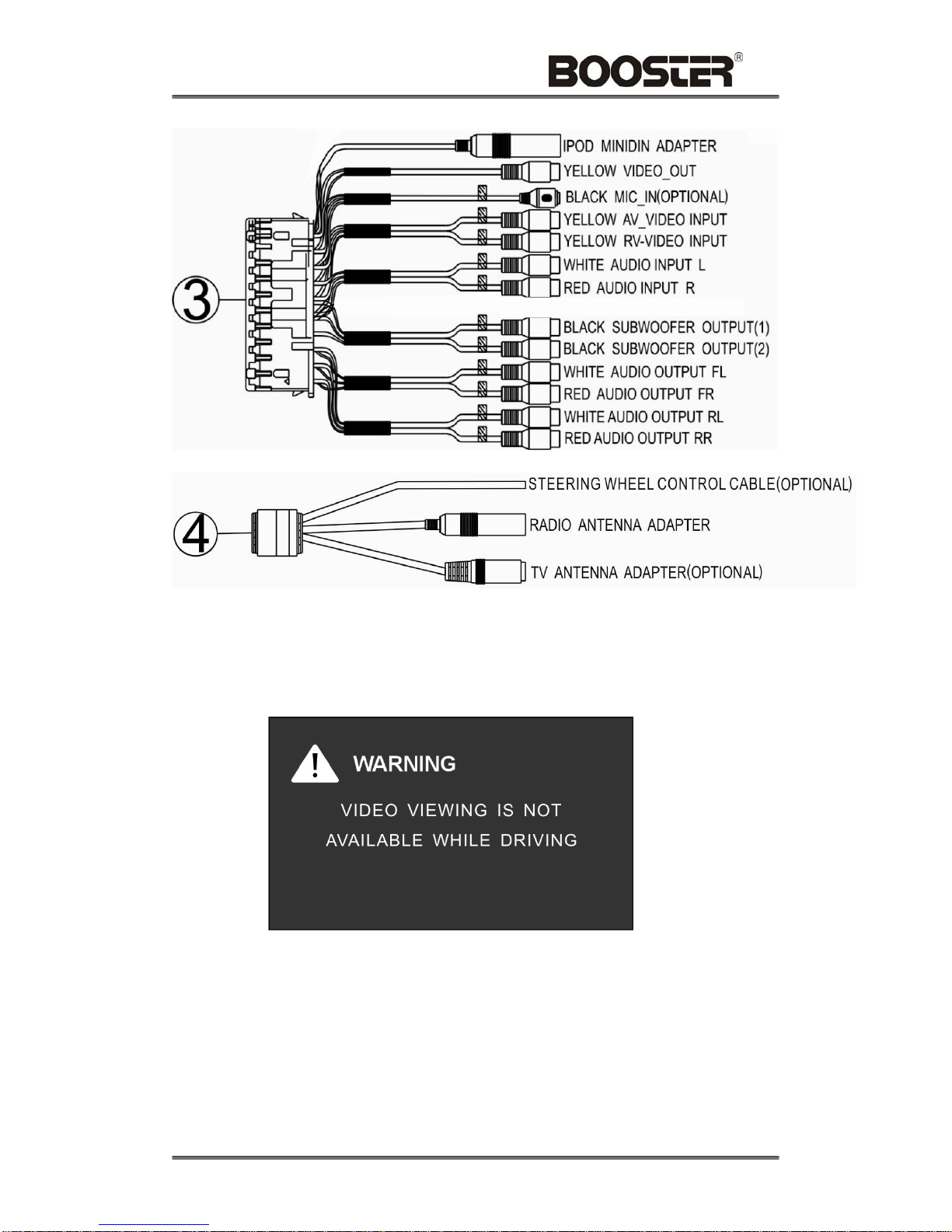

3. AUDIO/VIDEO OUTPUTS & INPUTS.
IPOD ADAPTOR
4. RADIO ANTENNA ADAPTER
DIGITAL TV ANTENNA ADAPTER
STEERING WHEEL CONTROL CABLE (OPTIONAL)

BMTV-9980DVUSBT
- 8 -
Brake Control
Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to
connect the Brake Control wire to the Hand-brake switch of the car. While driving, the
TFT monitor will display the alarm picture (see as follows) in order to ensure the
safety.
Under the Rear View Mode, the Brake Control function is no effective.
Auto Antenna Control
Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram). The
antenna will lift when the unit startup; it will descend when the unit turnoff
FUSE: When replacing the fuse, make sure that the new fuse is the correct type and
amperage. Using an incorrect fuse could damage the unit. This unit uses ( 2 amp )
Fuse for Ignition switch ( RED ACC+) & 15 amp Fuse for Memory Back up ( Yellow
Batt )

BMTV-9980DVUSBT
- 9 -

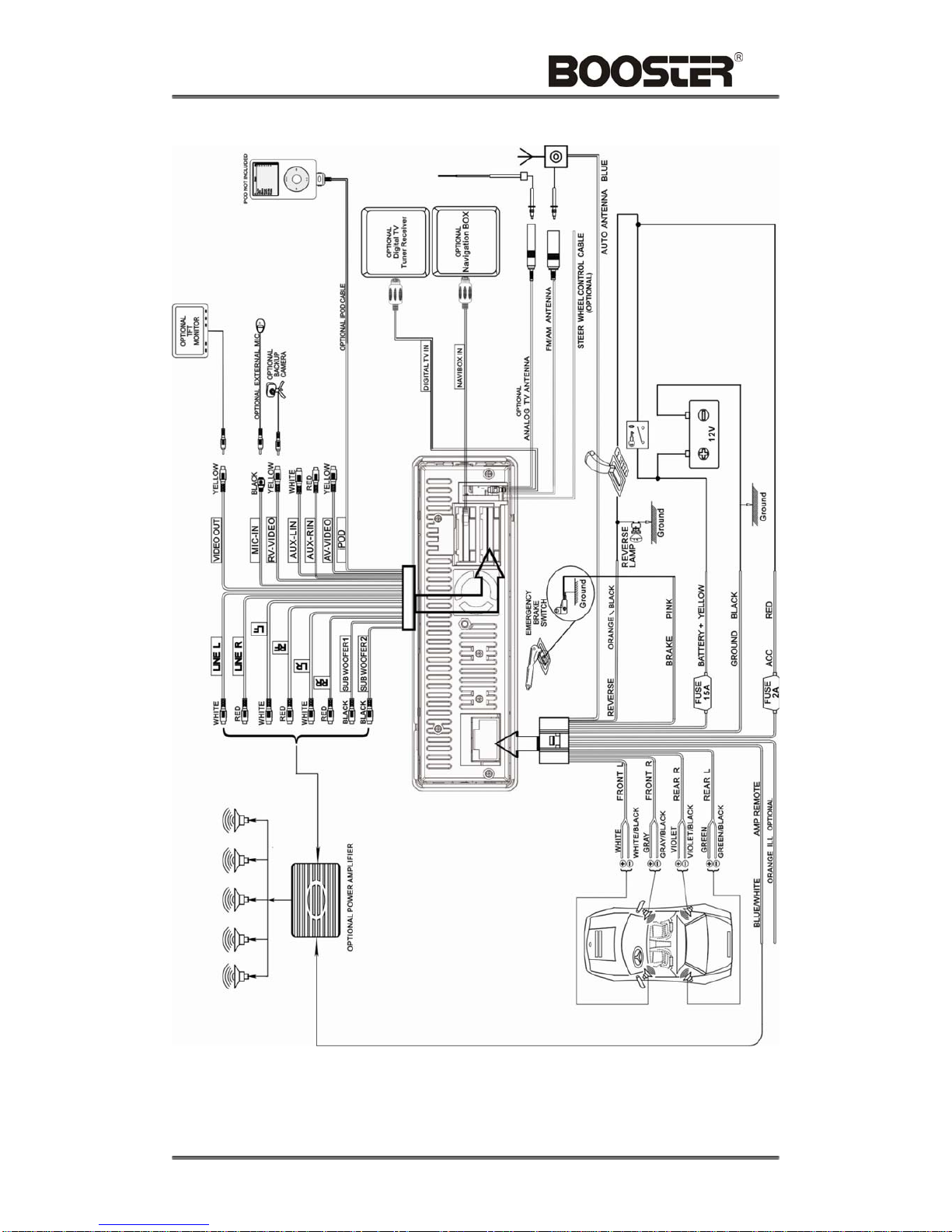

Wiring Diagram

BMTV-9980DVUSBT
- 10 -
UNIT INSTALLATION AND
REMOVAL
Please read all of the instructions before beginning the installation. Recommend
having your unit installed by a professional installation shop.
Tools and Supplies
You will need these tools and supplies to install your unit
1. Torx type, flat-head and Philips screwdrivers
2. Wire cutters and strippers
3. Tools to remove existing radio (screwdriver, socket wrench set or other tools)
4. Electrical tape
5. Crimping tool
6. Volt meter/test light
7. Crimp connections
8. 16 gauge wire for power connections
9. 8 gauge speaker wire
Warnings
Choose the mounting location where the unit will not interfere with the safe driving
conditions.
Install the unit where it does not get in the driver's way and can not injure the
passenger if there is a sudden stop, like an emergency stop.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater, or where it would be subject to dust,
dirt or excessive vibration.
Cautions
Before finally installing the unit, connect the wiring temporarily and make sure it is all
connected up properly, the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
If installation angle exceeds 30 degrees from horizontal, the unit might not
give its optimum performance
If the operating temperature exceeds under -20C or over +60C, the unit might not give
its optimum performance. The unit may need to be switched off & turned on again to
continue operations

BMTV-9980DVUSBT
- 11 -
Installation Method 1
1 Install the mounting sleeve into the
dashboard. 2Bend the claws into place to secure the sleeve.
3 Slide the units into the mounting
sleeve. 4Install the trim bezel onto the unit.
5 Sketch map when installation
finished.

BMTV-9980DVUSBT
- 12 -

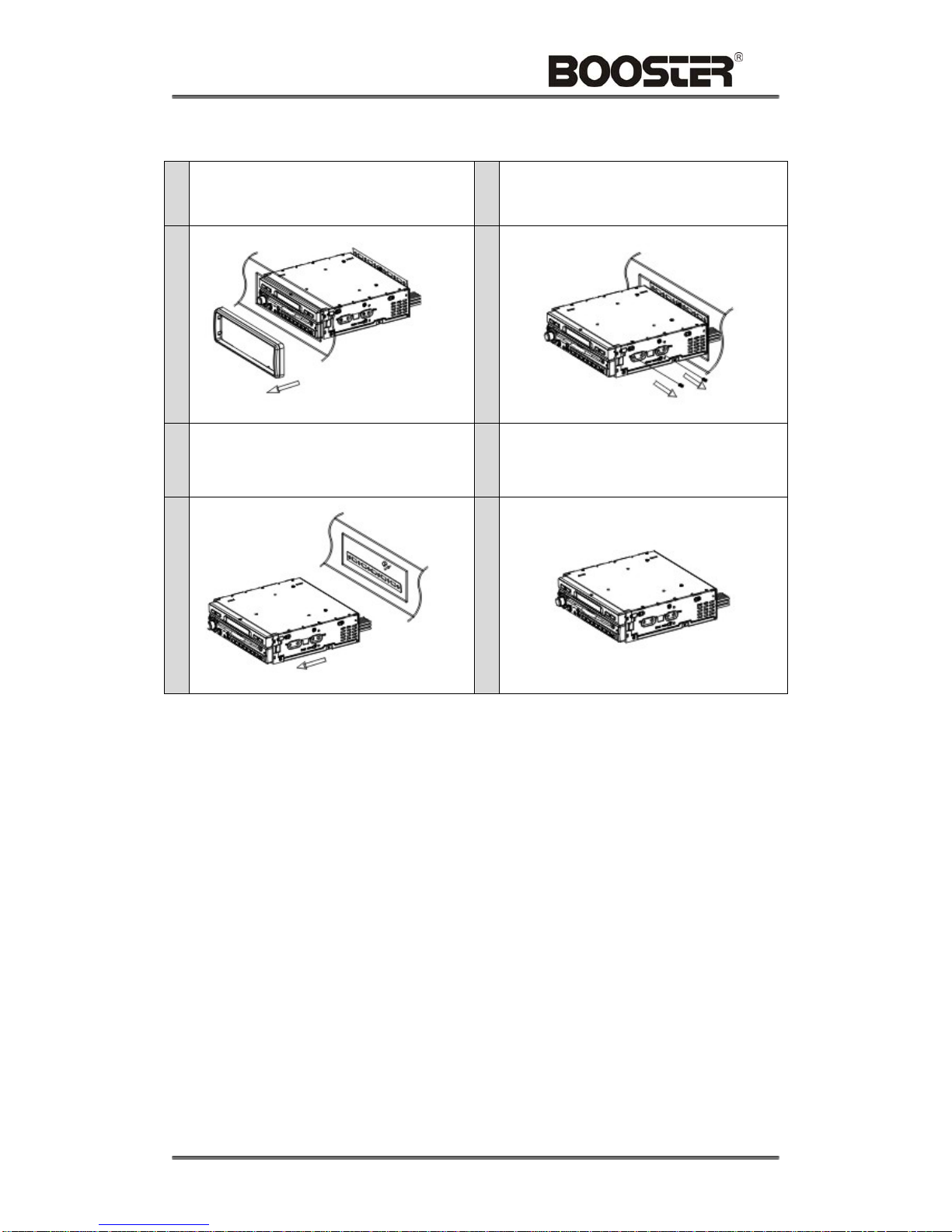

Removal Method 1
1 Detach the trim bezel. 2Insert the keys into the aperture
between the unit and the mounting.
3 Pull the unit out of the mounting
sleeve. 4
Sketch map when removal finished.

BMTV-9980DVUSBT
- 13 -
Installation Method 2
1 Tighten the bolt onto the rear panel of
the unit. 2Tighten the back strap onto your car inside the dashboard.
3 Place the unit into the dashboard;
make the bolt bar across back strap;
and then fix the bolt by the Nut M5.
4
Screw the unit on the car on the two
sides with M5×5 SCREWS.
5 Install the trim bezel onto the unit. 6Sketch map when installation.

BMTV-9980DVUSBT
- 14 -
Removal Method 2
1 Detach the trim bezel. 2Unscrew the unit off the car on two
sides.
3 Unscrew the Nut M5 screw on the
rear side of the unit and pull out the
unit.
4
Sketch map when removal finished.

BMTV-9980DVUSBT
- 15 -
FRONT PANEL
1 POWER 2 VOLUME / EQ /LOUD 3 MUTE
4 AUX IN 5 MINI USB PORT 6 REMOTE
7 BAND 8 PLAY / PAUSE 9 F. REV
10 F. FWD 11 PREV 12 NEXT
13 STOP 14 REL 15 EJECT
16 RESET 17 ANGLE +/ END CALL 18 ANGLE -/ CALL
19 DISPLAY 20 OPEN / CLOSE 21 OUT
22 IN 23 MENU/SYSTEM 24 NAVIGATION
25 SD CARD SLOT

BMTV-9980DVUSBT
- 16 -
1. Power When ACC is on, press to turn the unit on; hold on pressing the
button to turn off the unit. When the unit is on, press to switch
between different modes.
2. Volume / EQ/ Loud Rotate the button clockwise / anticlockwise to increase / decrease
the volume. Press vertically to switch the EQ setting as following:
USER – POP – CLASSIC – ROCK – JAZZ – USER
Hold on pressing the button to activate LOUD on / off.
3. Mute Press to switch off the sound; press it again to resume to the
previous volume level.
4. AUX IN Connect an external audio device to this jack to listen to the device
through your car speakers.
5. Mini USB Port The unit will be switched to USB Mode automatically when USB
connected, and play the songs, pictures, videos in USB.
6. REMOTE Remote infrared receiver. Press and hold this button to switch
back to all the original factory settings. Keep in mind this will
erase all your preset radio stations and any EQ settings you may
have made and saved
7. BAND Radio Mode, press to switch the wave band as following:
FM1 – FM2 - FM3 - AM1 - AM2 - FM1
8. PLAY / PAUSE Press to pause or resume the playback.
9. / 10. R. REV / F. FWD Press to fast reverse / fast forward at 2x speed. Each press
changes speed from 2x to 4x to 8x to 20x to then back to normal
play. Press the [PLAY/PAUSE] button to resume to normal
playback.
11. /12. PREV / NEXT Press to go to the next / pervious chapter, track or song.
13. STOP When DVD/VCD/CD disc playback, press the button once to stop
the playback, press the [Play/Pause] button to resume the
playback again. Press the button twice to stop the playback, press
the [Play/Pause] button to start the playback from the beginning of
disc. When MP3 disc playback, press the button to stop the
playback, press the [Play/Pause] button to start the playback from
the beginning of track.
Preset Stations
Radio Mode, press the buttons [1, 2, 3, 4, 5, 6] to select a preset
station, hold on pressing to store current radio frequency to the
preset station.
14. REL Press to take off the panel for burglar-proof purpose, the unit will
turnoff automatically and the TFT monitor will retract after 15
seconds automatically.
15. EJECT Press to eject / load a disc.
16. RESET Press and hold this button to switch back to all the original factory

BMTV-9980DVUSBT
- 17 -
settings. Keep in mind this will erase all your preset radio stations
and any EQ settings you may have made and saved.
17. / 18. ANGLE +/END
CALL / -/CALL Adjust the view angle of the monitor to choose the best displaying
effect.
1. Continual angle adjustment
Hold on pressing the [ANGLE +] / [ANGLE -] buttons to adjust
the angle of TFT monitor upward / downward by continual
increasing / decreasing.
2. Single step angle adjustment
Press the [ANGLE +] / [ANGLE -] buttons to adjust the angle of
TFT monitor upward / downward by singly increasing /
decreasing.
Bluetooth Mode, press the [CALL] button to receive a cell phone
call, press the [END CALL] button to reject or hang up a call.
19. DISPLAY Press to display the current playback information.
20. OPEN / CLOSE When unit power off, press the [OPEN] button to turn unit on and
the monitor will spread out and turn around to the last angle
position. When unit power on, press the [OPEN] button, the
monitor will spread out and turn around to the last angle position;
Press the [CLOSE] button, the monitor will turn downward and
completely retract in.
21. / 22. OUT / IN Press the [OUT] / [IN] buttons to move the monitor forward /
backward by singly step. There are 2 steps to move the monitor
forward / backward totally. NAVI mode, hold on pressing the [OUT]
/ [IN] buttons to decrease / increase the brightness of panel.
23. MENU/SYSTEM Press to return the main menu.
Hold on press to get into system parameter setup menu.
24. NAVIGATION Press to enter / exit the Navigation menu
25. SD CARD SLOT The unit will be switched to SD CARD Mode automatically when
SD Card is connected, and play the songs, pictures, videos in SD
Card.
Protection of the TFT Monitor
During the movement of the TFT monitor, if it is halted by force, then the unit will
begin self-protection to prevent from any damage on the motorized mechanical
structure.
Press the [OPEN] button or shut down the ACC and then restart, the TFT monitor will
act as the follow list to recover; if not, then please consult with an authorized service
center
It is advised not to extend the monitor further from its original position when open
button has been pressed for optimum performance & to extend durability of the
monitor.

BMTV-9980DVUSBT
- 18 -
Halt Self-protection Press the [OPEN]
button Shut down the ACC and restart
While extending Retraction Extending Retraction
While retraction
Stop at the halt place
and retract after 3
seconds
Extending Retraction
While turning
upward
Turning downward and
retraction Extending Turning downward and retraction
While turning
downward Turning upward Turning downward
and retraction
Turning downward
and retraction
FRONT PANEL DISPLAY
1. EQ Indicator
It turns on to indicate the POP/CLASSIC/JAZZ/ROCK when
corresponding setup.
2. Disc Icon It rotates when playing disc under the DVD Mode.
3. Main Display Area Display the information such as working mode, characters,
playback time & number of track, radio frequency etc.
4. LOUD Icon It displays when the LOUD on, it disappears when the LOUD off.
5. ST Icon It displays when the STEREO on, it disappears when the STEREO
off.
6. Disc Type Indicator It turns on to indicate DVD, CD, VCD, and MP3 when playing
corresponding discs.

BMTV-9980DVUSBT
- 19 -
REMOTE CONTROL
1 POWER/SOURCE 13 PREVIOUS 25 SYSTEM / NAVI
2 MUTE 14 SLOW / END CALL 26 F. FWD
3 NUMBER BUTTONS 15 TITLE / PBN 27 RIGHT (SEEK UP)
4 MENU / * 16 ZOOM / CALL 28 STOP
5 AUDIO / # 17 SUBTITLE / PBP 29 D. ANGLE
6 EQ / LOUD 18 OPEN / CLOSE / P.ANGLE / EJECT
7 UP (TUNE UP) 19 SETUP 30 PLAY / PAUSE
8 LEFT (SEEK DOWN) 20 VOLUME + 31 NEXT
9 ENTER / BAND 21 VOLUME - 32 A-B / PHONE PAIR
10 PROGRAM 22 DISPLAY 33 REPEAT / PHONE
11 DOWN (TUNE
DOWN)
23 PBC / AST / CLEAR 34 PAL / NTSC / AP
12 RANDOM /
TRANSFER 24 F. REV 35 STEREO / MP
NOTE
This is a universal remote, some functions would be optional.
