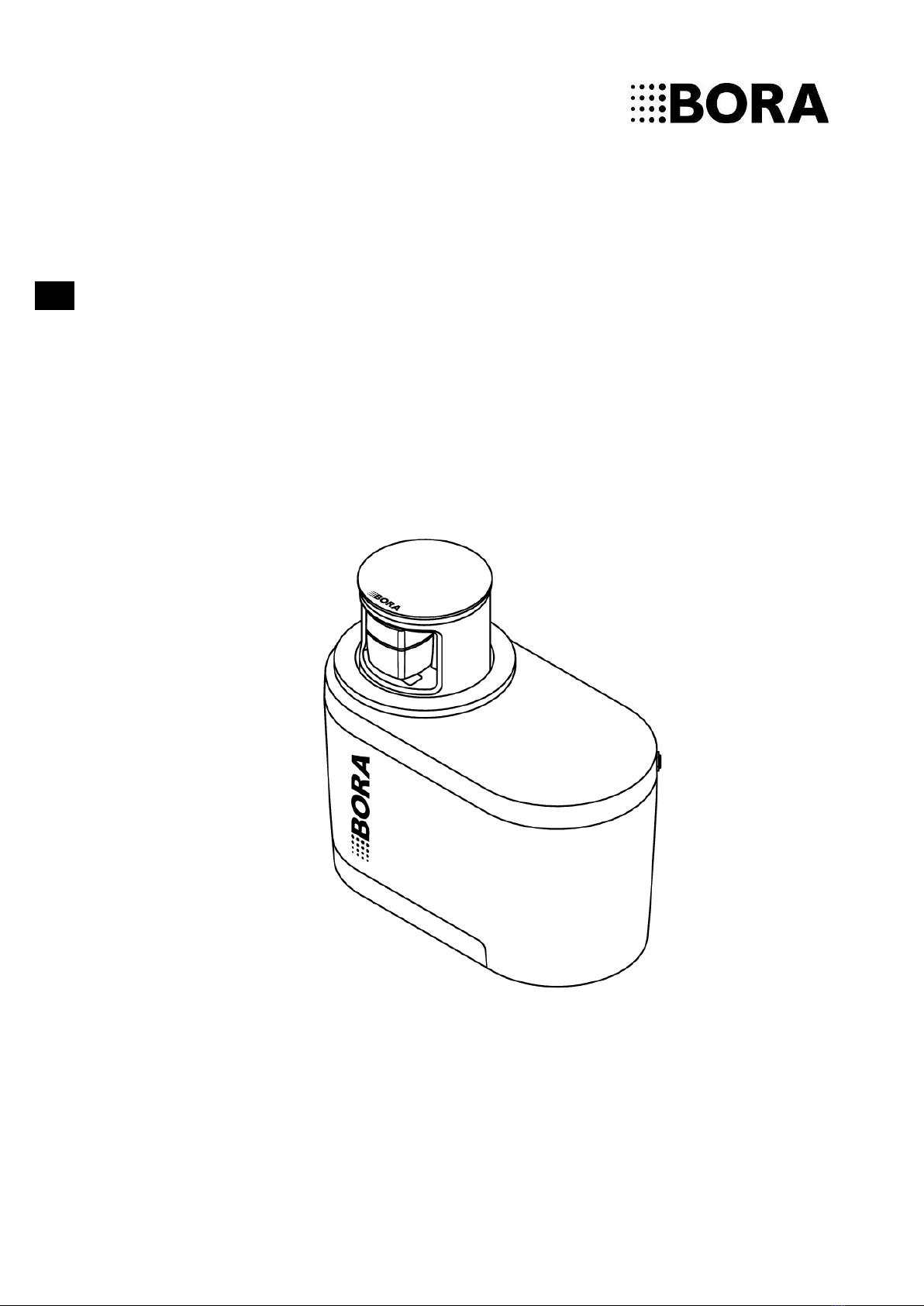

bora QVAC User manual

EN Operating and installation instructions QVAC
UMIM-QVAC-01-EN
bora.com

2bora.com
Contents
1 General information 3
1.1 Validity of the operating and installation
instructions ................................................................3
1.2 Liability ....................................................................... 3
1.3 Product conformity .................................................... 3
1.4 Presentation of information ......................................3
1.4.1 Safety and warning instructions ................................. 3
1.4.2 Figures........................................................................ 3
2 Safety 4
2.1 Intended use ..............................................................4
2.2 People with limited abilities ...................................... 4
2.3 General safety instructions ....................................... 4
2.4 Safety information for installation ............................ 5
2.5 Safety instructions – operation................................. 5
2.6 Safety instructions – cleaning and maintenance ..... 6
3 Technical data 7

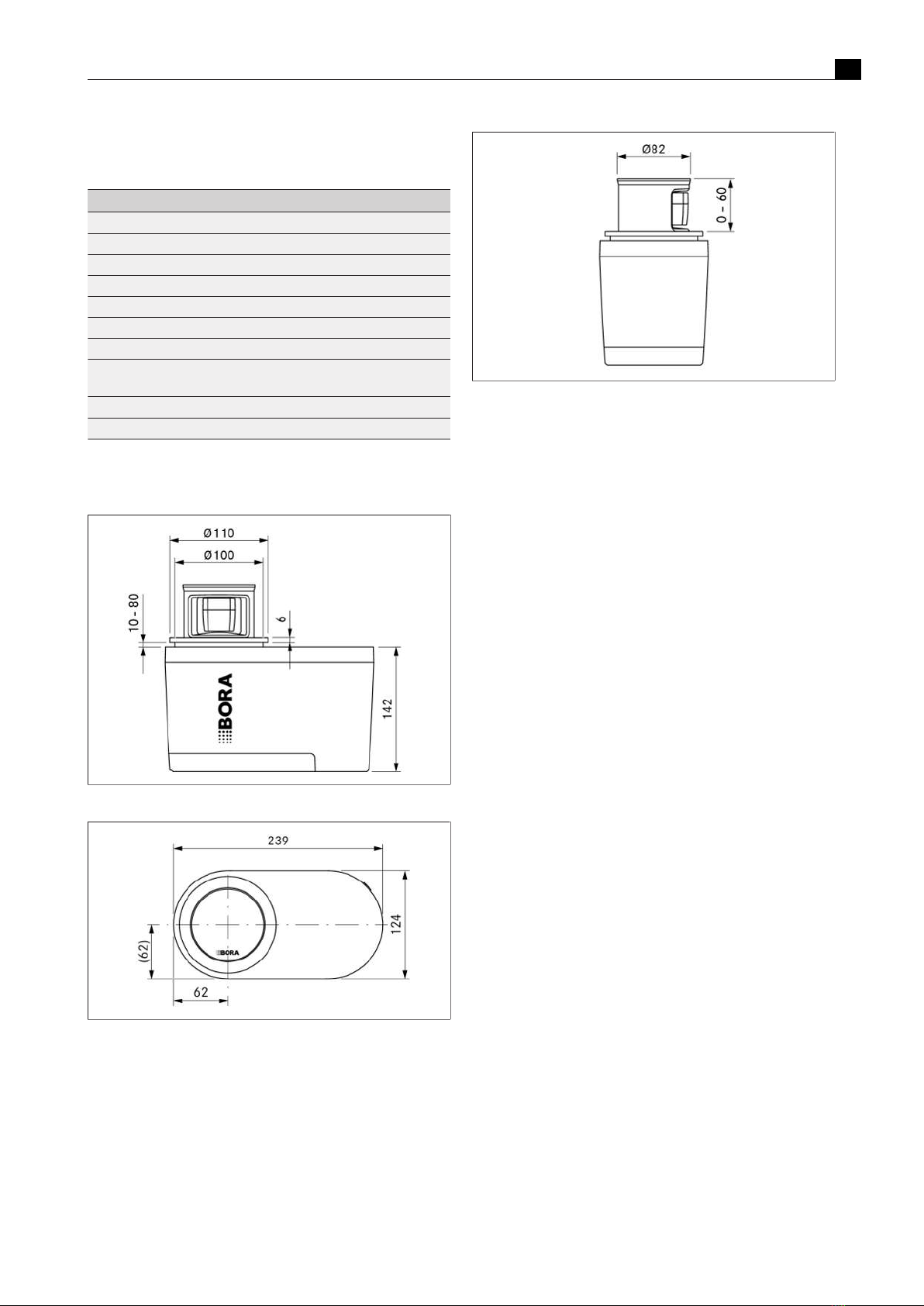

3.1 QVac appliance dimensions ...................................... 7
4 Appliance description 8
4.1 System description .................................................... 8
5 Functions and operation 9
5.1 How to use the appliance .......................................... 9
5.2 How to use the vacuum bags .................................... 9
5.3 How to use the vacuum boxes ..................................9
5.4 How to use the vacuum seal (power setting) .........10
5.5 How to use the marinating ring (for fast marinating)
..................................................................................10
6 Cleaning and maintenance 11
6.1 How to clean vacuum bags .....................................11
6.2 How to clean the vacuum boxes .............................11
6.3 How to clean the moisture trap ..............................11
6.4 How to clean and replace the vacuum hose...........11
6.5 How to remove water from the appliance ..............12
7 Troubleshooting 13
8 Installation 14
8.1 Scope of delivery .....................................................14
8.1.1 Components ............................................................. 14
8.2 Assembly instructions .............................................14
8.2.1 Installation options ................................................... 14
8.2.2 How to prepare the worktop..................................... 14
8.3 Worktop cut-out .......................................................14
8.3.1 Cut-out dimensions .................................................. 15
8.4 Installing the appliance ...........................................15
8.4.1 Preparing for installation .......................................... 15
8.4.2 Standard installation................................................. 16
8.5 Initial operation........................................................17
8.6 Sealing the appliances.............................................17
8.7 Handover to user .....................................................17
9 Decommissioning, disassembly and
disposal 18
9.1 Decommissioning ....................................................18
9.2 Disassembly .............................................................18
9.3 Environmentally-friendly disposal...........................18
9.3.1 Disposal of transport packaging ............................... 18
9.3.2 Disposal of the old appliance.................................... 18
10 Warranty, technical service, spare
parts, accessories 19
10.1 BORA manufacturer’s warranty ..............................19
10.1.1 Warranty extension................................................... 19
10.2 Service......................................................................19
10.3 Full replacement of the appliance...........................19
10.4 Accessories ..............................................................19

General information EN
bora.com 3
1 General information
These instructions contain important information to protect you from
injury and prevent damage to the appliance. Please read these
instructions carefully before installing or using the appliance for the
first time.
Other documents apply alongside these instructions. Please by all
means adhere to all documents that form part of the scope of
delivery.
Assembly, installation and commissioning must always occur in line
with national laws, regulations and standards.
All safety and warning information as well as the handling instructions
in the accompanying documents must be observed.
Please keep these instructions in a safe place and pass them on to
the next owner where applicable.
1.1 Validity of the operating and
installation instructions
These instructions apply to several appliance versions. It is therefore
possible that some of the features described do not apply to your
appliance. The details of the figures contained herein may differ from
some appliance versions and are to be understood as schematic
diagrams.
1.2 Liability
. BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC
Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as
BORA – do not assume any liability for damage arising from disregard
for or non-adherence to the documents included in the scope of
delivery!
Furthermore, BORA shall not be held liable for damage caused by
improper installation or failure to observe the safety and warning
information!
1.3 Product conformity
Directives
The appliances meet the following EU/EC directives:
T 2014/30/EU EMC Directive
T 2014/35/EU Low Voltage Directive
T 2009/125/EC Ecodesign Directive
T 2011/65/EU RoHS Directive
1.4 Presentation of information
We use standard formatting, numbering, symbols, safety instructions,
terms and abbreviations so that you can work quickly and safely
when using this manual. The article described in these instructions is
hereinafter also referred to as an appliance.
Instructions are indicated with an arrow.
u Always follow all instructions in the prescribed order.
Enumerations are indicated with a bullet point at the start of the line:
T Enumeration 1
T Enumeration 2
Information notes point to special features that must be taken
into account.
1.4.1 Safety and warning instructions
The safety and warning instructions in this manual are emphasised
with symbols and signal words. Safety and warning instructions are
structured as follows:
öDANGER
Type and source of danger
Results of non-compliance
u Measures to minimise risk
Please note:
T warning symbols draw attention to a high risk of injury.
T The signal word indicates the severity of that risk.
Warning
symbol
Signal word Risk
Danger Indicates an immediate, hazardous
situation which causes death or
serious injury if not respected.
Warning Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Caution Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Note Indicates a potentially hazardous
situation which can cause property
damage if not respected.
Tab.1.1 Meaning of the warning symbols and signal words
1.4.2 Figures
All measurements are provided in millimetres.

Safety
EN
4bora.com
2 Safety
The appliance complies with the stipulated safety requirements. The
user is responsible for the safe use of the appliance, cleaning and
maintenance. Improper use can lead to personal injury and damage
to property.
2.1 Intended use
This appliance is only intended for vacuum sealing food in the
containers and bags provided by BORA. The built-in vacuum sealer is
only intended for use in private households.
This appliance is not intended for:
T professional use (catering)
T outdoor use
T use in mobile installation sites such as motor vehicles, ships or
aeroplanes
T use at altitudes of over 2000m (metres above sea level)
T operation if installed in unsuitable, technically incorrect conditions
Any other use or any use that goes beyond that which is described
here is classed as unintended.
If the QVac built-in vacuum sealer is used as a freestanding appliance
(that is, not built in), this is considered to be technically incorrect
usage. Furthermore, this may lead to impaired performance as the
opening through which the air is suctioned is on the bottom of the
appliance.
BORA does not assume any liability for damages caused by
incorrect installation, improper use or incorrect operation.
All misuse is prohibited!
2.2 People with limited abilities
Children and people with reduced capacity
The appliance may only be used by children (at least 8 years of age)
and people with reduced physical, sensory or mental capacities if
they have been instructed on how to use the appliance safely and use
the appliance under supervision. Children must not play with the
appliance.
Any work involving cleaning and maintenance must not be
carried out by children unless they are supervised at all times
while doing so.
People with reduced physical, sensory or mental
capacities
The appliance can be used by people with reduced physical, sensory
or mental capacities or a lack of experience and/or knowledge if they
are supervised or have been instructed how to use the appliance
safely and understand the resultant risks.
2.3 General safety instructions
öDANGER
Risk of electric shock or injury from damaged
surfaces or mechanical damage
The underlying electronics can be exposed or
damaged due to fissures, fractures or cracks in
appliance surfaces, particularly in the vicinity of the
operating unit. This can cause an electric shock.
Furthermore, a damaged surface or mechanical
damage can cause injuries.
u Do not touch the damaged surface.
u In the event of any cracks, fissures, fractures or
mechanical damage, switch the appliance off
immediately.
u Safely disconnect the appliance from the power
supply.
u Do not try to repair any damage to the appliance
yourself.
u Contact the BORA Service Team.
öDANGER
Packaging components are a choking hazard
Packaging components (e.g. film, polystyrene) can
be life-threatening for children.
u Store all packaging components out of reach of
children.
u Dispose of the packaging properly and
immediately.
öWARNING
Risk of injury or damage due to incorrect
components or unauthorised modifications
Incorrect components can lead to personal injury or
damage to the appliance. Modifications, additions or
alterations to the appliance can lead to safety risks.
u Only use original components.
u Do not make any modifications, additions or
alterations to the appliance.

Safety EN
bora.com 5
öWARNING
Risk of injury from electric shock
Incorrect handling of electrical components may
lead to electric shock.
u Always unplug the device from the mains before
carrying out any work.
u The plug must be easy to access so that the
appliance can be quickly disconnected from the
mains supply in an emergency. The plug must be
kept outside of the appliance back area.
u Do not pull on the cable; instead, always grab the
plug connector to disconnect the appliance from
the mains supply.
u Pull out the mains plug in case of fault or shut off
the fuse.
u Do not damage the power cord.
u Do not operate any appliances with faulty power
cords.
PLEASE NOTE
Faults and errors
Any faults or incorrect handling may cause
malfunctions or damage the appliance.
u In the case of faults and errors, follow the
instructions in the “Troubleshooting” chapter.
u In the event of any faults or errors that are not
mentioned, switch the appliance off and contact
BORA Service.
PLEASE NOTE
Appliance damage caused by pets
Pets may damage the appliance or injure
themselves.
u Keep pets away from the appliance.
2.4 Safety information for
installation
öDANGER
Risk of electric shock from damaged appliance
A damaged appliance can cause an electric shock.
u Check the appliance for visible damage prior to
installation.
u Do not install or connect any damaged
appliances.
u Do not operate any damaged appliances.
öDANGER
Risk of injury from incorrect assembly
Failure to observe the installation instructions can
lead to injury.
u The appliance may only be installed with the
power disconnected.
u Only use the power supply unit provided.
PLEASE NOTE
Damage caused by improper installation
Parts of the kitchen units must be adapted to be
able to install and use the appliance.
u Have the appliance installed and connected by a
qualified tradesperson.
2.5 Safety instructions – operation
öDANGER
Risk from anaerobic bacteria
When vacuum sealed, many foods pose a risk to
health from anaerobic bacteria.
u Never vacuum seal fresh mushrooms, soft
cheese, onions or garlic.
u To ensure safe use of the appliance, please read
the section “Vacuum sealing and food safety” in
these instructions.
öWARNING
Risk of food poisoning
Improperly stored food may spoil. Vacuum sealing is
not a substitute for preservation.
u Preserve perishable foods by chilling or freezing
them, even when vacuum sealed.
u Do not re-freeze thawed/defrosted food.
öWARNING
Risk of injury from trapped fingers
There is a risk of injury when pushing down the pop-
up unit.
u Please mind your hands and fingers when
operating the mechanism.

Safety
EN
6bora.com
PLEASE NOTE
Appliance damage and malfunctions due to
unsuitable, soiled or damaged accessories
The appliance may be damaged or its function
impaired through the use of unsuitable, soiled or
damaged food containers, vacuum bags, vacuum
boxes or other accessories.
u Only use original BORA accessories.
u Only use clean vacuum bags, vacuum boxes and
other accessories.
u Do not use damaged, brittle or worn accessories.
PLEASE NOTE
Damage to accessories from improper use
The accessories (e.g. containers or bags) are
subject to a number of usage restrictions.
u Please observe the maximum temperature of 70
°C for containers and bags.
u Always allow food to cool to room temperature
before filling containers or bags.
u Do not use the containers in the microwave.
2.6 Safety instructions – cleaning
and maintenance
PLEASE NOTE
Appliance damage
Appliance damage due to improper cleaning.
u Only use soft cleaning cloths and pH-neutral
multi-purpose cleaning products.
u Never use steam cleaners, abrasive sponges,
scouring pads or chemically aggressive cleaning
agents (e.g. oven cleaner spray).
u Make sure that the cleaning agent does not
contain any sand, soda, acids, lyes or chloride.
PLEASE NOTE
Appliance damage due to soiled appliances
Dirt can lead to damage, restriction of functions, or
bothersome odours. In the worst case scenario, this
can become a hazard.
u Clean the appliance regularly.
u Remove dirt immediately.
u Please follow all instructions in the “Cleaning and
Maintenance” chapter.

Technical data EN
bora.com 7
3 Technical data
Parameter Value
Supply voltage 100–240V
Frequency 50–60 Hz
Maximum power consumption 24 W
Connection cable length 2 m
Suction power ≈ 10 L/min
Maximum vacuum pressure -90 kPa
Dimensions (width x depth x height) 239 × 124 × 142 mm
Weight (incl. accessories/
packaging)
3.48 kg
Surface material stainless steel
Vacuum hose extension length 400 mm
Tab.3.1 Technical data for QVac
3.1 QVac appliance dimensions
Fig.3.1 QVac front view
Fig.3.2 QVac top view
Fig.3.3 QVac side view

Appliance description
EN
8bora.com
4 Appliance
description
4.1 System description
T Unique installation concept
T Super-fast marinating
T Make liquids keep for longer
T Pop-up unit with automatic on/off function
T Pull-out suction head (400 mm)
T 3 function buttons for different vacuum-sealing programmes
T Audiovisual operating concept
The transparent moisture trap with a built-in safety shut-down
function protects the appliance if liquids enter through the valve
during operation. These liquids are trapped and when the container is
full, the appliance automatically switches off.
QVac built-in vacuum sealer
1
2
34 5
6
Fig.4.1 Structure
[1] Suction head with moisture trap
[2] Pop-up unit
[3] Vacuum hose release button
[4] Function buttons
[5] Housing
[6] Drip tray
QVac accessories
1
2
3
4
5
6
7
8
Fig.4.2 Accessories
[1] 1-litre vacuum box
[2] Lid with seal
[3] Valve and button to release the vacuum
[4] Marinating ring
[5] Grip seal
[6] Valve
[7] Vacuum seal
[8] 2-litre vacuum box
Function button Mode for
Left vacuum boxes + vacuum bags
Middle vacuum seal (power setting)
Right marinating mode
Tab.4.1 How it works
The power setting must not be used for vacuum boxes.

Functions and operation EN
bora.com 9
5 Functions and
operation
Vacuum sealing and food safety
Vacuum sealing is no replacement for the preservation, cooling or
freezing of foods. Removing air does not prevent microorganisms that
cause food to spoil from continuing to spread. Perishable foods must
also be chilled or frozen after vacuum sealing.
Due to the risk of anaerobic bacteria, soft cheese, raw garlic,
onions and mushrooms must never be vacuum sealed. Even
though they are very rare, anaerobic bacteria can be very
dangerous.
5.1 How to use the appliance
Hot foods must not be vacuum sealed. Contents must be
allowed to cool to room temperature before being vacuum
sealed.
u Press the round cover on the pop-up unit.
T The pop-up unit will come up.
u Take the suction head and pull the vacuum hose out to the desired
length.
T You will hear a click and feel some resistance.
T The appliance is now ready to use.
Fig.5.1 How to use the appliance
The vacuum hose can be pulled out to a maximum of 40 cm.
As soon as enough air has been removed during the
vacuuming process, the appliance will automatically switch
off.
After vacuum sealing wet products, the moisture trap must be
cleaned.
How to stop the vacuuming process
The vacuuming process can be stopped at any time by pressing the
corresponding function button.
5.2 How to use the vacuum bags
Do not use vacuum bags to store liquids!
Vacuum bags are suitable for use within a temperature range
from -18 to 85 °C.
u Place the food in the vacuum bag.
u Ensure that the valve on the bag stays clean and dry.
u Do not overfill the bag (only up to the line).
u Seal the bag by pressing the grip seal together and running your
finger all the way along it
u Check that the grip seal is positioned correctly to prevent leakage.
u Position the suction head over the valve on the vacuum bag (where
marked).
u Press the left function button .
u Gently press the suction head onto the valve.
u Reposition the suction head and repeat the above steps if the valve
on the vacuum bag does not open immediately.
You can repeat this process as often as is necessary until you achieve
the desired results.
Fig.5.2 How to use the vacuum bags
How to use the freezer stickers
When you wish to freeze vacuum-sealed foods for prolonged periods,
or use vacuum bags for sous-vide cooking, the valve must also be
sealed with a freezer sticker. This will prevent air from entering
through the valve and into the bag.
u Check that the valve is clean and dry before applying the sticker.
Fig.5.3 How to apply the freezer stickers
Sous-vide cooking
The vacuum bags are suitable for sous-vide cooking. The material is
designed to resist heat and water for long periods of time.
u Also seal the valve with a freezer sticker to prevent water from
getting into the bag and affecting the cooking process (see “How
to use the freezer stickers”).
Reusing vacuum bags
The vacuum bags can be reused; however, they must be thoroughly
cleaned after each use (see"6.1How to clean vacuum bags"). Bags
that have been used for raw meat, fish or poultry must not be reused.
5.3 How to use the vacuum boxes
QVac vacuum boxes are perfect for storing liquids as well as
dry or soft products (e.g. berries).
The power setting must not be used for vacuum boxes.
u Place the food to be vacuum sealed in the vacuum box.
u Please observe the maximum fill level.
T There must be a distance of at least 0.5 cm between the underside
of the lid and the contents.

Functions and operation
EN
10 bora.com

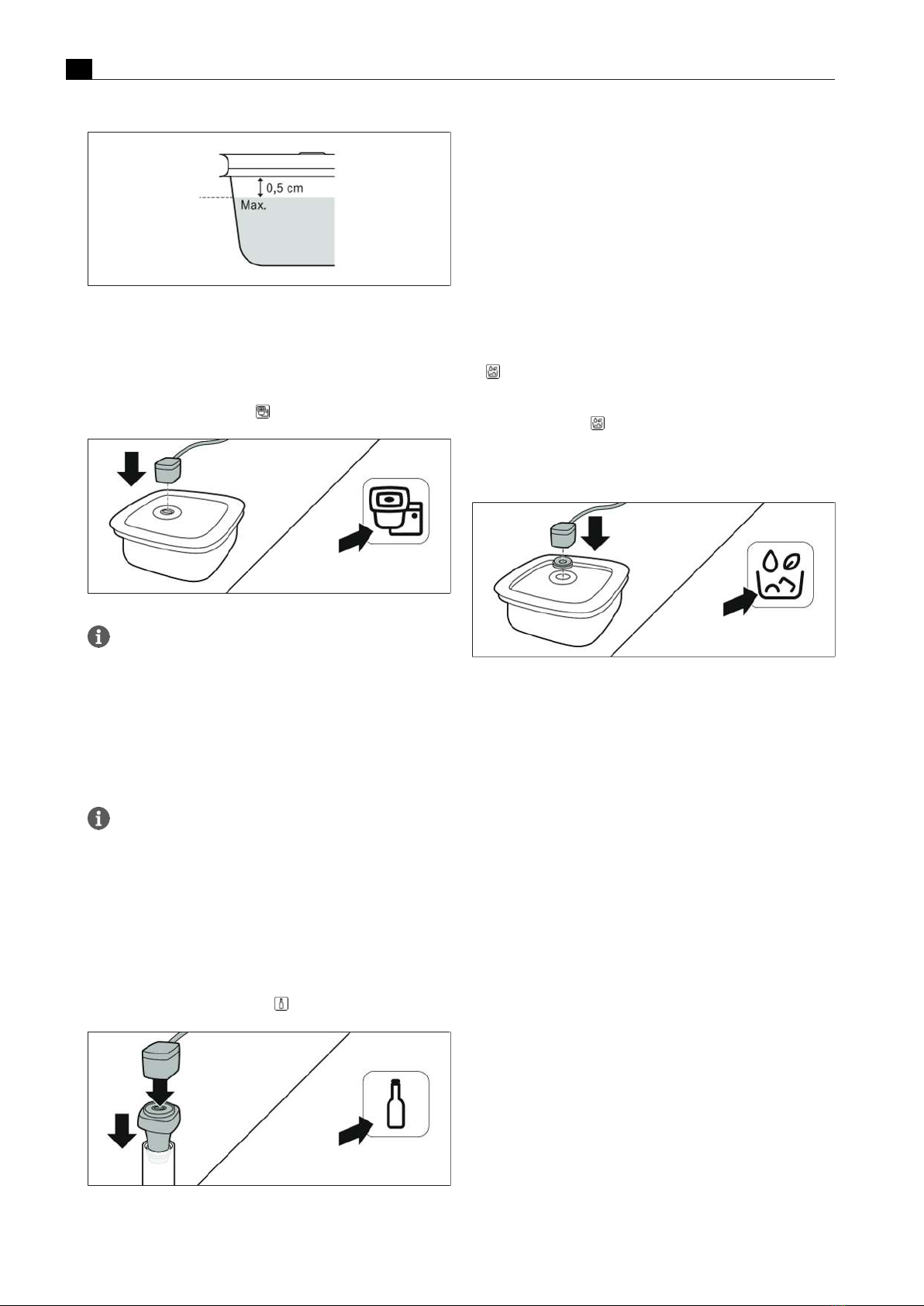

Fig.5.4 Maximum fill level
u Please ensure that the seals on the lid and valve are clean, dry and
undamaged.
u Place the lid on the container and press it on.
u Ensure that the lid is closed properly.
u Place the suction head on the round valve.
u Press the left function button .
Fig.5.5 How to use the vacuum box
Thanks to the snap lock, you do not need to hold the suction
head during the vacuuming process.
How to open the vacuum box after vacuum sealing
u The vacuum must be released to open the vacuum box.
u To do this, tilt the vacuum valve.
5.4 How to use the vacuum seal
(power setting)
The power setting generates maximum suction power and is
only intended for vacuum seals.
The QVac vacuum seal can be used with conventional glass bottles or
strong PET bottles with an opening diameter of 17 to 22 mm. Bottles
made of other materials can be crushed by the force generated by
the vacuum.
u Rinse the vacuum seal before use.
T The sealing process will work better if the vacuum seal is clean.
u Close the wine bottle with the vacuum seal.
u Connect the suction head to the valve on the vacuum seal.
u Press the middle function button .
Fig.5.6 How to use the vacuum seal
How to open the vacuum seal after vacuum sealing
u Release the vacuum to open the vacuum seal.
u To do this, tilt the vacuum valve.
5.5 How to use the marinating ring
(for fast marinating)
u Place the ingredients and the marinade in a vacuum box.
u Carefully remove the valve on the top of the vacuum box lid.
u Close the vacuum box with the lid.
u Place the marinating ring on the lid of the vacuum box.
u Connect the suction head to the marinating ring.
u Start the marinating process by pressing the right function button
.
T Throughout the process, the system will go through several cycles
that help the food to absorb the marinade in just a few minutes.
T The function button starts a marinating process that is five
minutes longer. Each time you press the button, the marinating
time is extended by 5 minutes. This will marinate the food more
effectively.
Fig.5.7 How to use the marinating ring

Cleaning and maintenance EN
bora.com 11
6 Cleaning and
maintenance
The appliance can be cleaned with warm water and washing-up liquid
or liquid glass cleaner and a soft cloth. Do not spray cleaning
products directly onto the appliance. Put your appliance away after
each use to prevent damage.
u Never use steam cleaners, abrasive sponges, scouring pads or
chemically aggressive cleaning agents (e.g. oven cleaner spray).
u Make sure that the cleaning agent does not contain any sand,
soda, acids, lyes or chloride.
6.1 How to clean vacuum bags
If you wish to reuse the vacuum bags, they must be thoroughly
cleaned after each use.
u Clean the vacuum bags in the dishwasher or with warm water and
washing-up liquid.
T Vacuum bags must be allowed to dry completely after cleaning.
6.2 How to clean the vacuum
boxes
QVac vacuum boxes can be cleaned in the dishwasher (programmes
up to 65 °C). The seal can also be taken out of the lid and cleaned
with a mild cleaning product (e.g. warm water and washing-up liquid).
6.3 How to clean the moisture trap
Every time that you use your appliance with vacuum bags or moist
foods, the moisture trap must be cleaned afterwards. To do this, use
two fingers to remove the transparent section from the black part of
the suction head.
u Clean the transparent section with warm water and washing-up
liquid and then leave it to dry.
The moisture trap can also be cleaned in the dishwasher.
When fitting the moisture trap on the suction head after
cleaning, ensure that it is positioned correctly. There is only
one position in which they can be joined without any
resistance or excessive force.
Fig.6.1 How to clean the moisture trap
6.4 How to clean and replace the
vacuum hose
The vacuum hose can be removed for cleaning or replacement.
u Pull the suction head out as far as it will go.
u With two fingers, press the two release buttons in the top of the
pop-up unit.
u At the same time, gently pull on the vacuum hose attachment.
u Pull the transparent vacuum hose out of the pop-up unit until the
hose coupling appears.
u Continue to pull until the roll-up mechanism reaches a stop
position. This will allow you to remove the hose.
u Use both hands to open the coupling and remove the vacuum
hose.
u Hold one side of the coupling tight and release the other side by
twisting it out of its attachment.
u Please ensure that you are only holding and turning the coupling
and not the hose.
Fig.6.2 How to pull out the vacuum hose coupling
Fig.6.3 How to remove the vacuum hose from the coupling
When you remove the vacuum hose, you must ensure that the
coupling is not drawn back into the pop-up unit without the
hose attached.
Never press the two release buttons after the hose has been
removed. This may cause the vacuum hose coupling to be
drawn back into the appliance.
u Remove the transparent moisture trap and rinse the hose with
alcohol or with warm water and washing-up liquid.
u Rinse all food and liquid residues well.
u Carefully shake the hose after cleaning to remove any remaining
liquid.
The hose does not need to be completely dry before using it
again. The appliance was designed to be able to handle small
amounts of liquid in the system.
u Check that the O-ring seal is on the hose and that it is clean and
undamaged.
u Reattach the vacuum hose to the coupling.
u Make sure it is positioned correctly.
u Please do not use excessive force.
The hose and coupling can only be joined in one direction without
using too much force.
When the vacuum hose has been reattached:
u pull the suction head out again and then let it go carefully.
u At the same time, press the two “release” buttons inside the pop-
up unit.

Cleaning and maintenance
EN
12 bora.com
Fig.6.4 How to attach the vacuum hose
If the vacuum hose needs to be replaced, follow the steps
above but using a new original spare part.
6.5 How to remove water from the
appliance
How to remove water from the appliance
If water gets into the appliance, it is caught in the drip tray.
There are two reasons why water may get into the appliance:
T liquid may enter the appliance through the hose;
T liquid may be spilled on the appliance and get inside through the
seal.
If a small amount of liquid has gathered in the drip tray, it will dry by
itself. However, if a larger amount of liquid has gathered in the drip
tray, it must be removed. The drip tray can only be accessed from
under the worktop where the appliance has been attached.
u Pull the drip tray out and empty it.
u Clean the drip tray and put it back in the housing.
Fig.6.5 How to pull out the drip tray

Troubleshooting EN
bora.com 13
7 Troubleshooting
u Observe all safety and warning information (Safety).
You can often remedy faults and errors yourself. This saves time and money as you don’t need to call out customer services.
Operating situation Cause Remedy
The appliance has no suction power There is no mains voltage Check that the buttons are lit up and that the
appliance is connected to the power supply.
System fault Restart the appliance. To do this, push the pop-
up unit back in and then back out again.
Soiling Ensure that the moisture trap is clean and that
the safety valve is not stuck.
Contact the BORA Service Team.
The appliance is not sucking air out of the
vacuum bag
The grip seal on the bag is not airtight or is faulty Check that the grip seal is closed properly.
Use another bag to check whether the same
problem arises.
The bag valve is dirty Place the bag on a flat surface and ensure that
there are no food residues under the valve.
The suction head is not positioned correctly Start the vacuuming process again and press the
suction head lightly onto the valve.
Air gets into the bag after vacuuming The grip seal or bag valve is dirty Check the grip seal and valve for food residues.
Clean the seal and the valve and dry the inside of
the bag before restarting the vacuuming process.
Air cannot be sucked out of the vacuum box or
vacuum seal or the seal will not stay in place
The valve or seal is dirty Ensure that the seal is clean and intact.
The vacuum box is not closed properly Press the lid down on all four sides so that the
vacuum box is tightly closed.
Faulty vacuum box Check the edges of the container for cracks and
scratches. Air can get back into the container
through any gaps.
The marinating function does not work or
switches off immediately after the
secondvacuuming attempt
The valve is fitted inside the lid Remove the valve from the lid before marinating.
The marinating ring is missing Place the marinating ring on the lid.
Soiled suction head Clean the suction head thoroughly.
Appliance is beeping (3 beeps in a row) Software error Disconnect the appliance from the mains, wait 20
seconds and then plug it back in.
Contact the BORA Service Team.
Tab.7.1 Troubleshooting

Installation
EN
14 bora.com
8 Installation
u Observe all safety and warning information (Safety).
8.1 Scope of delivery
Scope of delivery Quantity
Built-in vacuum sealer 1
Power supply 1
Vacuum box (1 litre) 1
Vacuum box (2 litres) 1
Vacuum bag (0.6 litres) 5
Vacuum bag (1.5 litres) 5
Vacuum bag (2.1 litres) 5
Freezer stickers 15
Vacuum seal 2
Marinating ring 1
Sealing tape 1
Tab.8.1 Scope of delivery
Checking the scope of delivery
u Make sure the delivery is complete and check it for damage.
u Immediately notify the BORA Service TeamTeam if parts are
missing or damaged.
u Do not under any circumstances install parts which are damaged.
u Dispose of transport packaging in the proper manner
(see"9Decommissioning, disassembly and disposal").

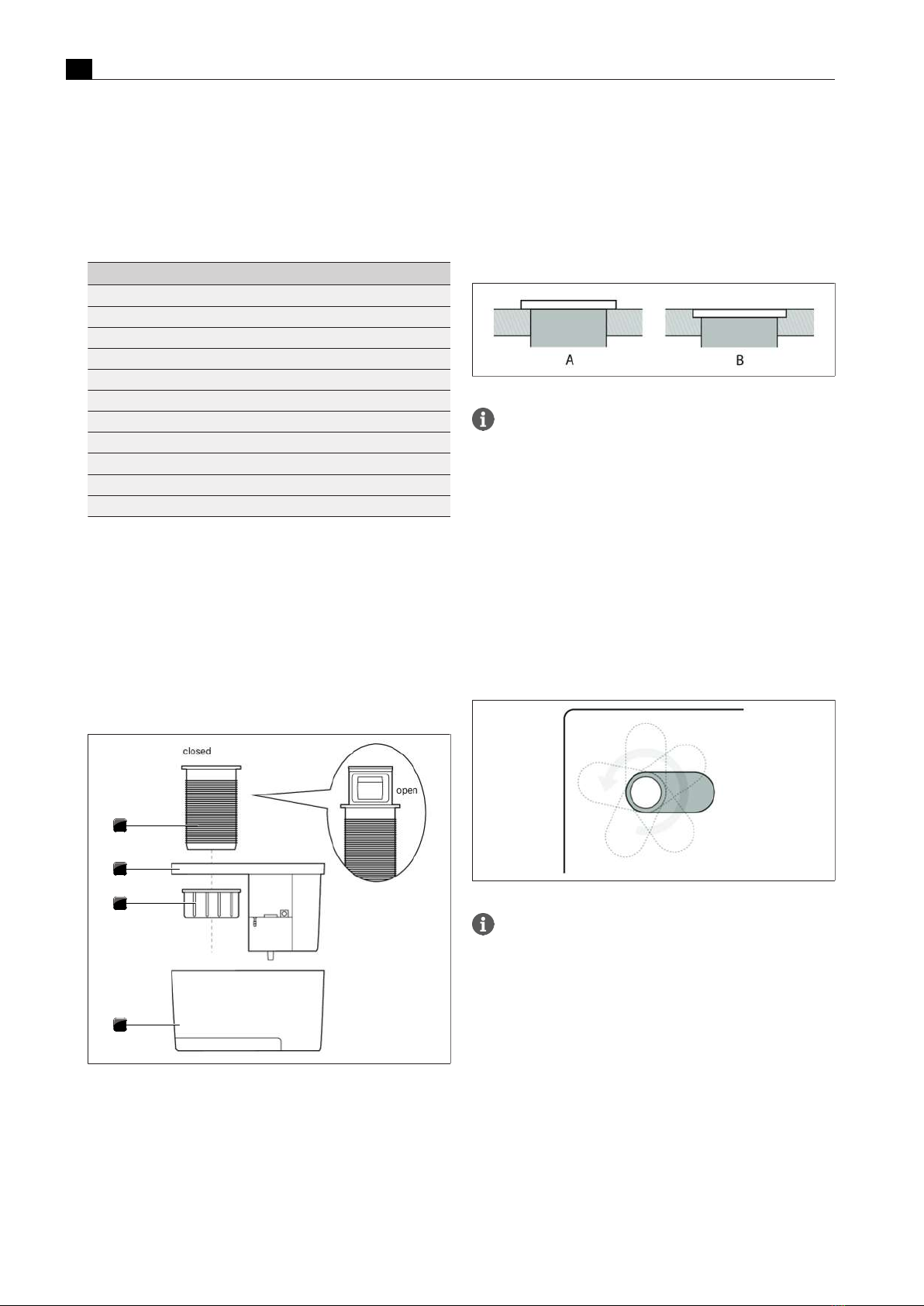

8.1.1 Components
1
2
3
4
Fig.8.1 Components
[1] Pop-up unit
[2] Base unit
[3] Mounting ring
[4] Housing
8.2 Assembly instructions
8.2.1 Installation options
There are two ways of installing the appliance:
T Surface mounting (A)
T Flush installation (B)
Fig.8.2 Installation options
For flush installation, the worktop must be at least 10 mm
thick. In the case of thinner worktops, a substructure is
required.
8.2.2 How to prepare the worktop
u Ensure that there is sufficient space under the worktop for the
base unit and housing.
T The mains supply cable is 200 cm long.
The housing can be installed independently of the pop-up unit in any
direction. This makes it easier to find a suitable place in the kitchen
for installation.
To be able to remove or insert it without any issues, it must be
positioned in such a way that the drip tray has 5 cm of clearance
underneath and to the side.
Fig.8.3 Variable positioning of the appliance
The housing must be accessible for maintenance work.
To make it easier to use, we recommend installing it a little further
back in the worktop. When the base unit and connections are turned
to the front, this makes it easier to reconnect the cables once the
base unit has been fixed to its installation site.
8.3 Worktop cut-out
u Create the worktop cut-out taking into account the specified cut-
out dimensions.
u Make sure that the cut surfaces of the worktops are properly
sealed.
u Comply with the instructions of the worktop manufacturer.

Installation EN
bora.com 15
8.3.1 Cut-out dimensions
Surface mounting
Fig.8.4 Cut-out dimensions for surface mounting
Fig.8.5 Dimension of support for surface mounting
Flush installation
Fig.8.6 Cut-out dimensions for flush installation
Fig.8.7 Flush installation rebate dimensions
8.4 Installing the appliance
8.4.1 Preparing for installation
Fig.8.8 Remove the screws
Fig.8.9 Tilt the housing
Fig.8.10 Remove the housing

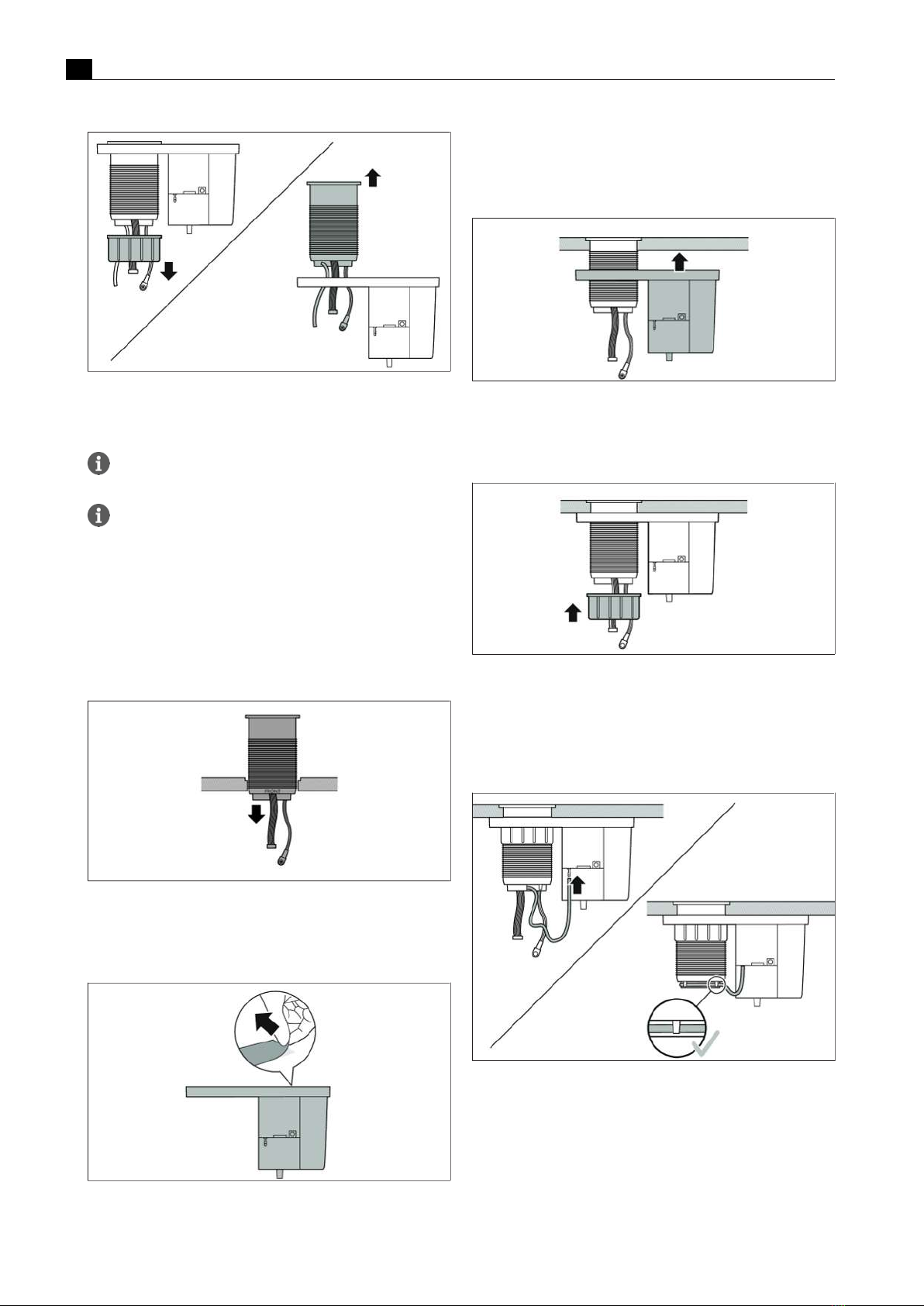

How to disassemble the pop-up unit
How to disassemble the housing
u Carefully remove the vacuum hose and the 2 electrical connections
from the base unit.
u Turn the mounting ring and remove it from the pop-up unit.
u Take the pop-up unit out of the base unit.
Fig.8.11 Remove the connections

Installation
EN
16 bora.com
Fig.8.12 How to disassemble the pop-up unit
8.4.2 Standard installation
In standard installation the base unit is attached with the
connections at the front.
The housing must be accessible for maintenance work.
How to fit the pop-up unit in the worktop
u Stick the sealing tape on the contact surface of the pop-up unit.
u Guide the pop-up unit down through the opening in the top of the
worktop.
u Ensure that the controls are facing forwards.
T The logo should be facing the user.
T The “FRONT” sticker on the pop-up unit shows the position of the
controls.
Fig.8.13 Insert the pop-up unit
u Remove the film from the adhesive on the top of the base unit.
T This will enable you to temporarily attach the base unit to the
underside of the worktop and will make installation easier.
Fig.8.14 Remove the film from the base unit
u Push the base unit over the pop-up unit cylinder under the
worktop.
u Press the base unit firmly onto the worktop from below.
T The adhesive will now ensure that the base unit stays in place.
Fig.8.15 Position the base unit
u Push the mounting ring over the cylinder.
u Turn the mounting ring anticlockwise right to the top to attach the
base unit to the worktop from below.
Fig.8.16 Secure the appliance

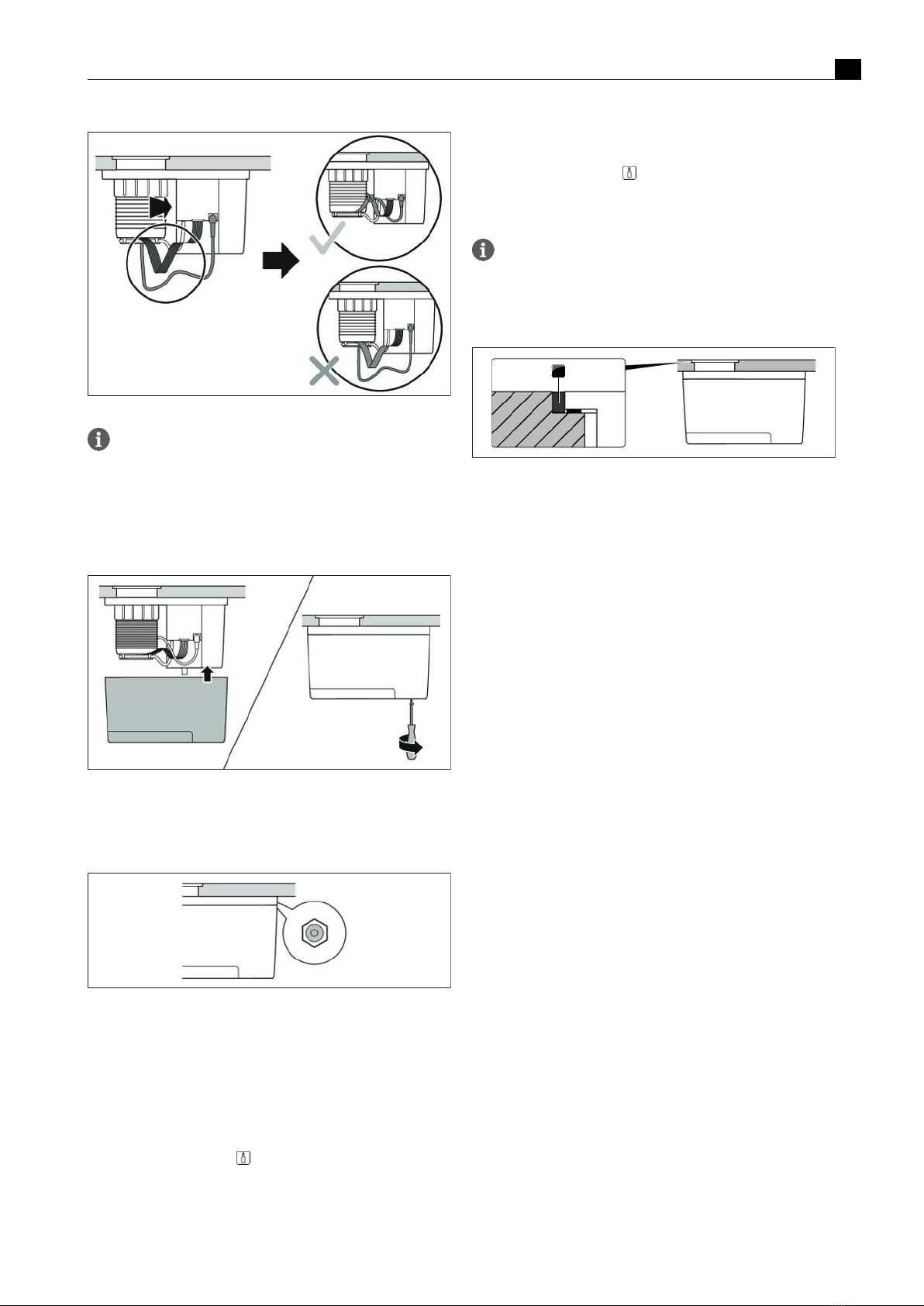

How to attach the vacuum hose
u Reattach the vacuum hose to its connector.
T Please ensure that there are no kinks in the vacuum hose.
u Fit the vacuum hose inside the clips around the bottom of the pop-
up unit.
Fig.8.17 Connect the vacuum hose and fix in place with the clips
Electricity supply
u Connect the two electrical connections on the base unit.
T The white cable must be plugged in with the safety clip facing
outwards.
T If the white cable is not correctly plugged in, the appliance will not
work.

Installation EN
bora.com 17
Fig.8.18 Connect the cables
If the appliance has been correctly connected to the mains,
an acoustic signal will confirm this when it is used for the first
time. If it has not been connected correctly, the appliance will
remain silent and the buttons will not light up, or a repetitive
acoustic signal will be heard.
How to fit the housing
Fig.8.19 Push the housing on and screw tight
How to connect the power supply
u Connect the mains supply cable to the base unit.
u Connect the mains supply cable to the mains.
Fig.8.20 Connect the mains supply cable
8.5 Initial operation
Function test
u Press the round cover on the pop-up unit.
T The appliance will pop up and the control unit with the extendable
suction head will be accessible.
u Pull out the suction head.
u Press the function button .
T The vacuum process will begin.
u Hold the suction head in your palm or on a hard surface.
You must be able to feel the suction. The appliance will switch off
automatically. Alternatively, you can switch off the appliance by
pressing the function button again.
8.6 Sealing the appliances
Step only required in the case of surface mounting.
u Once all of the installation work and initial operation is complete,
seal the pop-up unit all round with silicone sealant.
u Make sure that no silicone sealant gets under the cooktop.
1
Fig.8.21 Seal the pop-up unit
[1] Silicone sealant
8.7 Handover to user
Once installation is complete:
u Explain the main functions to the user.
u Explain all safety-related aspects of operation and handling to the
user.
u Provide the user with the accessories and operating and
installation instructions, which are to be kept in a safe place.

Decommissioning, disassembly and disposal
EN
18 bora.com
9 Decommissioning,
disassembly and
disposal
u Observe all safety and warning information (Safety).
u Follow the enclosed manufacturer’s information.
9.1 Decommissioning
Decommissioning refers to ultimate decommissioning and
disassembly. Following decommissioning, the appliance can either be
installed in another unit, sold on privately or disposed of.
u Switch the appliance off before decommissioning (see operating
instructions)
u Disconnect the appliance from the power supply.
9.2 Disassembly
To be removed, the appliance must be accessible for disassembly
and disconnected from the power supply.
u Dispose of the old appliance and any soiled accessories as
described under “Environmentally-friendly disposal”.
9.3 Environmentally-friendly
disposal
9.3.1 Disposal of transport packaging
The packaging protects the appliance from damage during
transport. The packaging materials have been selected taking
into account the environment and their disposal and are
therefore recyclable.
Recycling the packaging saves raw materials and reduces waste. Your
specialist retailer will take the packaging back.
u Give the packaging to your specialist retailer
or
u dispose of the packaging correctly observing regional regulations.
9.3.2 Disposal of the old appliance
Electrical appliances with this mark must not be
disposed of in the household waste at the end
of their service life. They must be disposed of at
a collection point for the recycling of electrical
or electronic appliances. Information on this can
be obtained from the city or local councils.
Waste electrical and electronic appliances often still contain valuable
materials. However, they also contain harmful substances that were
necessary to make them work and ensure their safety. If placed in the
household waste or handled incorrectly, they may harm human health
and damage the environment.
u Never dispose of your old appliance in the household waste.
u Take the appliance to a regional collection point for the return and
further processing of electrical and electronic components and
other materials.

Warranty, technical service, spare parts, accessories EN
bora.com 19
10 Warranty, technical
service, spare parts,
accessories
u Observe all safety and warning information (Safety).
10.1 BORA manufacturer’s warranty
BORA provides its end customers with a 2-year manufacturer’s
warranty for its products. The end customer is entitled to this
warranty in addition to the statutory claims for defects against the
sellers of our products.
The manufacturer’s warranty applies to the BORAproducts listed here,
which are sold by authorised BORA retailers or by BORA trained
salespersons and are installed within the European Union (overseas
territories excluded), Switzerland, Norway, UK and Iceland, with the
exception of BORA products labelled as universal or accessories:
T BORA QVac built-in vacuum sealer
T BORA products that were not sold by authorised BORA dealers or
salespersons trained by BORA
T Damage caused by non-adherence to the operating instructions
(including product care and cleaning). This represents improper
use.
T Damage to the following components:
vacuum valve, drip tray, decorative ring and decorative cover,
plastic parts and other wearable parts
T Secondary damage or claims for damages beyond the defect
Legal claims, particularly statutory claims for defects or product
liability are not limited by the warranty and can be asserted free of
charge.
If a defect is not covered by the manufacturer’s warranty, a claim may
be made against the BORA Technical Service.
. BORA shall not assume the resulting costs.
The laws of the Federal Republic of Germany apply to these warranty
conditions.
You can contact us at:
BORA Vertriebs GmbH & Co KG, Innstraße 1, 6342 Niederndorf,
Austria
T Telephone: [phone]
Monday to Thursday from 8 a.m. to 6 p.m. and Friday from 8 a.m.
to 5 p.m.
T Email: [email protected]
10.1.1 Warranty extension
You can extend the warranty by registering at www.bora.com/
registration .
10.2 Service
BORA Service:
see reverse side of operating and assembly instructions
u In the case of faults you cannot fix yourself, contact your BORA
specialised retailer or the BORA Service Teamappears in the
cooktop extractor control knob display.
The BORA Service Team Team will require the type designation and
serial number of your appliance (FD number).
This information is provided on the nameplate in the back of the
operating instructions as well as on the bottom of the appliance or on
the welcome card provided upon delivery.
10.3 Full replacement of the
appliance
u Use only original parts when fully replacing the appliance.
u A full replacement of the appliance may only be carried out by the
BORA Service Team.
10.4 Accessories
Special accessories for BORA QVac appliances:
T QVac 1 litre vacuum boxes
T QVac 2 litre vacuum boxes
T QVac vacuum seal
T QVac marinating ring
T QVac vacuum bag (0.6 litres)
T QVac vacuum bag (1.5 litres)
T QVac vacuum bag (2.1 litres)
T QVac vacuum bag set (5 × 0.6 litres/5 × 1.5 litres/5 × 2.1 litres)
