Operating and installation instructions CIW1
Induction glass ceramic wok
1034807
Operating and installation instructions: Original Translation
Manufacturer
BORA Lüftungstechnik GmbH
Rosenheimer Str. 32
83064 Raubling
Germany
Contact
T +49 (0) 8035 / 907-240
F +49 (0) 8035 / 907-249
www.bora.com
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless
expressly authorised.
© BORA Lüftungstechnik GmbH, 2014
All rights reserved.
EN
3
Table of Contents
www.bora.com
Table of Contents
1 General 4
2 Safety 6
2.1 General safety precautions.............................. 6
2.2 Safety instructions, operation.......................... 7
2.3 Safety instructions, assembly.......................... 8
2.4
Safety instructions, disassembly and disposal
... 8
2.5 Safety instructions, spare parts....................... 9
2.6 Use as intended............................................... 9
3 Technical data 10
4 Device description 11
4.1 Structure ....................................................... 11
4.2 Operating panel and operating principle ....... 11
4.3 Functional principle ....................................... 12
4.3.1 Power levels .................................................. 12
4.3.2 power setting................................................. 12
4.3.3 Automatic heat up function ........................... 12
4.3.4 Pan size recognition ...................................... 12
4.3.5 Pause function............................................... 12
4.3.6 Timer functions.............................................. 13
4.3.7 Suitable cookware ......................................... 13
4.4 Safety devices ............................................... 13
4.4.1 Residual heat display..................................... 13
4.4.2 Safety shut-down of the cooking zone .......... 13
4.4.3 Cooking zone overheating protection............ 14
4.4.4 Automatic switch-off if the button is
pressed and held ........................................... 14
4.4.5 Child safety lock............................................ 14
5 Installation 15
5.1 Checking the deliverables ............................. 15
5.2 Tool and aids ................................................. 15
5.3 Assembly instructions ................................... 15
5.3.1 Safety distances ............................................ 15

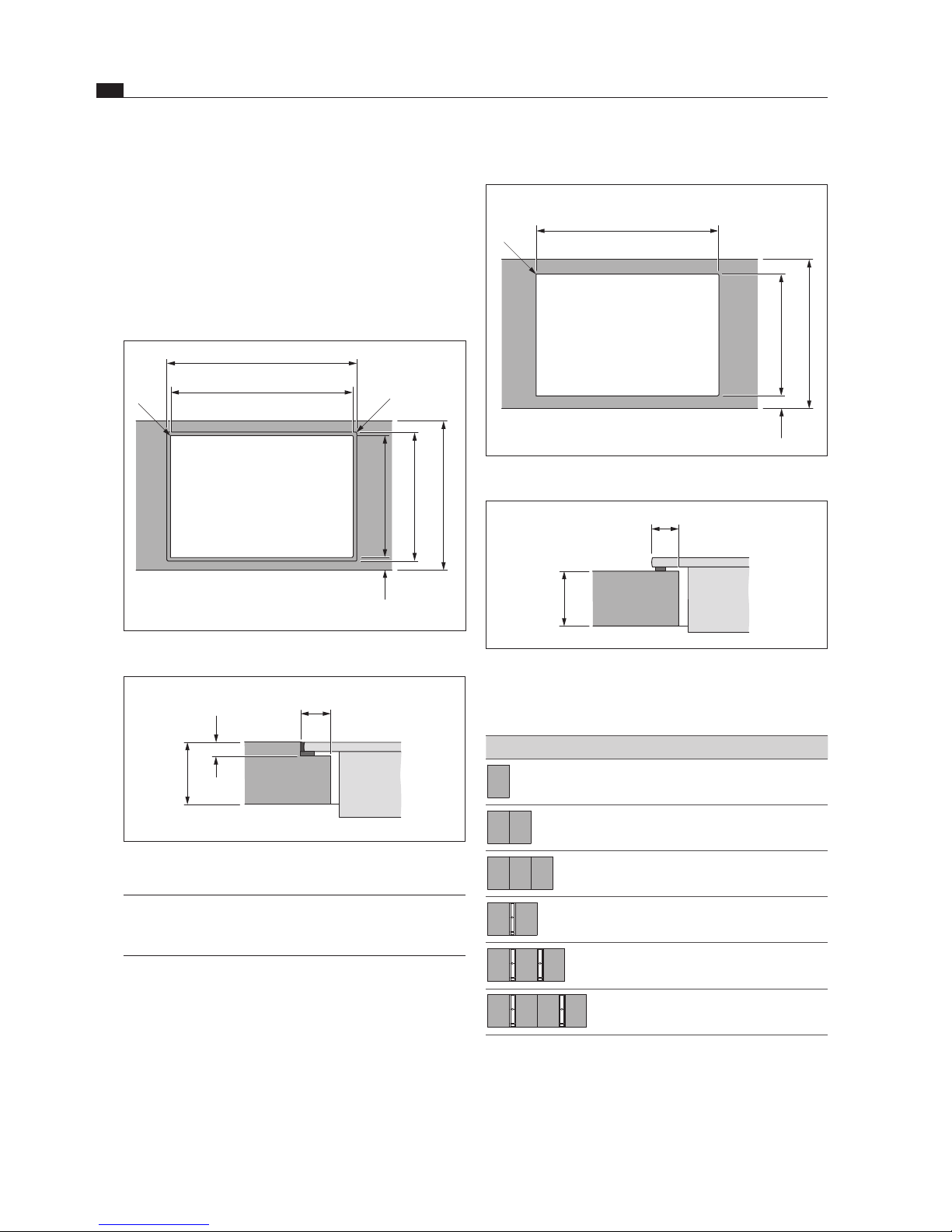

5.4 Cut-out dimensions ....................................... 16
5.5 Installing the cooktop.................................... 17
5.5.1 Installing the cooktop.................................... 17
5.6 Power connection.......................................... 18
5.7 Handover to user........................................... 18
6 Operation 19
6.1 Switching cooktop on/off.............................. 19
6.1.1 Switching on the cooking zone...................... 19
6.1.2 Adjusting the power level .............................. 19
6.1.3 Changing the power level .............................. 19
6.1.4 Switching on the power setting ..................... 19
6.1.5 Switching the power setting off early ............ 19
6.1.6 Switching off the cooking zone ..................... 19
6.1.7 Pause function............................................... 19
6.1.8 Automatic heat up function .......................... 19
6.1.9 Using the timer function................................ 20
6.1.10 Activating/deactivating the
childproofing feature ..................................... 20
7 Cleaning and Maintenance 22
7.1 Cleaning agents............................................. 22
7.2 Maintaining the cooktop................................ 22
7.3 Cleaning the cooktop .................................... 22
8 Troubleshooting 23
9 Decommissioning,
disassembly and disposal 24
9.1 Decommissioning .......................................... 24
9.2 Disassembly .................................................. 24
9.3 Disposing of the product in an
environmentally friendly way ......................... 24
10 Warranty, After Sales Service
and spare parts 25
10.1 Warranty ........................................................ 25
10.2 After Sales Service ........................................ 25
10.3 Spare parts.................................................... 25
11 Notes: 26
EN
4
General
www.bora.com
INFO BORA Holding GmbH, BORA Vertriebs
GmbH & Co KG, BORA APAC Pty Ltd and BORA
Lüftungstechnik GmbH - hereinafter referred
to as BORA - shall not assume any liability for
damage caused by non-compliance with these
documents nor by improper assembly!
The electricity and gas connections must be
implemented by a certified engineer.
Assembly must only take place in compliance
with the applicable norms, regulations and
laws. All safety and warning information and
handling instructions in the operating and
assembly instructions must be followed.
Validity of the operating and assembly
instructions
This manual is valid for several versions of the device. For
this reason, it is possible that individual features are
described in the manual that do not apply to your device.
Other applicable documents
Additional documents are valid as well as these operating
and assembly instructions, and likewise need to be obser-
ved.
Please observe all documents included in the scope of
delivery.
INFO BORA cannot assume any liability for damage
caused by non-compliance with these docu-
ments!
Guidelines
These devices meet the following EC guidelines:
2004/108/EC EMC Directive
2006/95/EC Low-Voltage Directive
2009/125/EC Ecological Design Directive
2011/65/EC RoHS Directive
1 General
Target group
These operating and assembly instructions are intended
for the following target groups:
Target group Requirements
Users The Device may be used by chil-
dren from the age of 8 as well as
by people with limited physical,
sensory or mental capabilities or a
lack of experience and/or knowl-
edge, provided they are super-
vised, have been instructed in the
safe use of the device and have
understood the dangers involved.
Children must be supervised. All
safety and warning information
and handling instructions in the
operating manual must be fol-
lowed.
Ambitious Diyers Ambitious Diyers may carry out all
the necessary carpentry and
assembly work themselves provi-
ding that they have the necessary
skills and knowledge. They must
not connect the current and gas
themselves.
Assembly
expert
The assembly expert must carry
out all the necessary carpentry
and assembly work taking existing
regulations into account. The cur-
rent and gas connections must be
approved for the system in use by
a certified electrician before use.
Electrical
expert
The electrical connection must
only be executed by a certified
electrician. He/she also assumes
responsibility for the proper elec-
trical installation and commission-
ing.
Expert
gas connection
The gas connection must only be
implemented by a certified gas
engineer. He/she also assumes
responsibility for the proper gas
installation and commissioning.
Tab. 1.1: Target groups
EN
5
General
www.bora.com
Depiction of information
We used standard formatting, numbering, symbols, safety
instructions, terms and abbreviations so that you can work
quickly and safely when using this manual.
Instructions are marked with an arrow.
Always perform all instructions in the prescribed
order.
Enumerations are indicated with a square bullet point at
the start of the line.
Enumeration 1
Enumeration 2
INFO Information notes point to special features
that must be taken into account.
Safety and warning instructions
The safety and warning instructions in this manual are em-
phasised with symbols and signal words.
Safety and warning instructions are structured as follows:
WARNING SYMBOL AND SIGNAL WORD!
Type and source of the danger
Results of non-compliance
Measures to minimise risk
Please note:
The warning symbol draws your attention to the risk.
The signal word indicates the severity of that risk.
Warning
symbol
Signal word Risk
DANGER Indicates an immediate, haz-
ardous situation which
causes death or serious
injury if not respected.
WARNING Indicates a potentially haz-
ardous situation which can
cause death or serious
injury if not respected.
CAUTION Indicates a possible hazard-
ous situation which can
cause minor injury if not
respected.
— CAUTION Indicates a situation which
can cause minor injury if not
respected.
Tab. 1.2: Meaning of the warning symbols and signal
words
EN
6
Safety
www.bora.com
Set the cooktop extractor to a low setting for about
15 minutes or activate the automatic after-run after
every use in the recirculated air mode.
Effects on pacemakers, hearing aids and metal
implants
INFO Induction cooktops generate a high-frequency
electromagnetic field in the area of the
cooking zones. The cooking zones may affect
pacemakers, hearing aids or metal implants
negatively or disturb their function when in
close proximity. A reduced function of the
pacemaker is unlikely.
If in doubt, contact the manufacturer of your medical
device or your doctor.
When there are children and people with
special needs in the house
This device may be used by children from the age of 8
as well as by persons with limited physical, sensory or
mental capabilities or a lack of experience and/or
knowledge, provided they are supervised, have been
instructed in the safe use of the device and have
understood the dangers involved.
Do not leave children unattended when they are near
the device.
Children must not play with the device.
Use the child safety lock in order to prevent children
from switching on the cooktop or changing the set-
tings when they are unattended.
Do not store any objects that could be of interest to
children in storage spaces above or behind the device.
Otherwise, the children will be tempted to climb onto
the device.
Keep children and other persons away from the coo-
king surfaces.
Unauthorised modifications
Due to unauthorised modifications
The device can constitute a hazard.
Do not make any changes to the device.
Cleaning and Maintenance
The device must be cleaned at regular intervals. Dirt can
lead to damage or odour nuisance.
Remove dirt immediately.
Any work involving cleaning and user maintenance
must not be carried out by children unless they are
supervised at all times while doing so.
Do not use a steam cleaner for cleaning. Steam can
cause a short circuit on live parts and thus lead to pro-
perty damage (see the Cleaning chapter).
2 Safety
2.1 General safety precautions
INFO The product complies with the mandatory
safety provisions.
The user is responsible for cleaning, care and
safe use of the device. Any improper use may
lead to personal injury and property damage.
This operating and installation instructions contain
important information concerning assembly and opera-
tion. It protects you from injury and prevents damage
to the product. You can find contact data to get
further information and answers to questions about
the use of the product on the last page of this opera-
ting and installation instructions.
The term "device" is used to refer to cooktop, cooktop
extractor or cooktop with integrated cooktop extrac-
tor.
Read this operating and installation instructions in full
before you assemble the device and start to use it.
Always keep these operating and installation instruc-
tions to hand so it is available when needed.
After selling the device, pass on the operating and ins-
tallation manual to the new owner.
Carry out all work with great care and attention.
Check the device for visible damage after unpacking.
Do not install a damaged device.
Do not use the device until installation is complete.
Only in this way a safe operation can be guaranteed.
Make sure contact with hot cooking surfaces is not
possible.
Avoid over-cooking.
Pay attention to the residual heat indicator.
Turn the device off after use. Do not rely on the pan
size recognition.
Keep pets away from the device.
Recirculated air mode
INFO Every time the device is used for cooking, sup-
plementary moisture is released into the room
air.
INFO In the recirculated air mode, only a small
amount of moisture is removed from the coo-
king vapours.
Make sure that the room is sufficiently ventilated to
the outside air in the recirculated air mode, e.g.
through an open window.
Ensure a normal and comfortable indoor climate
(45-60% humidity), e.g. through natural ventilation
openings or domestic ventilation systems.
EN
7
Safety
www.bora.com
WARNING!
Risk of burns caused by a hot cooktop!
The cooktop and its touchable parts become
hot during operation. After turning o the
cooking zone, allow it to cool down to less
than 60°C rst. Touching hot surfaces can
lead to serious burns.
Do not touch the hot cooktop.
Keep children away from the hot cooktop
unless they are under constant supervision.
WARNING!
Danger of fire caused by objects on the
cooktop!
The cooktop and its touchable parts become
hot when the cooking zone is switched on
and while it is cooling down. Objects on the
cooktop can heat up and ignite.
Do not leave any objects on the cooktop.
WARNING!
Risk of burns caused by hot objects!
The cooktop and its touchable parts become
hot when the cooking zone is switched on and
while it is cooling down. Objects (pot lid, cook-
top extractor cover) on the cooktop become
hot very quickly and can lead to serious burns.
Do not leave any objects on the cooktop.
Use suitable aids (pot cloths, thermal
glove).
WARNING!
Risk of burns caused by hot cookware!
Handles protruding over the worktops can
induce children to grab them.
Do not turn the handles on the pots or
pans to one side over the worktop.
Prevent children from pulling down hot
pots and pans.
A special stove guard for children (available
in specialist shops) reduces the danger.
WARNING!
Risk of burns!
Liquids between the cooking zone and base of
the pot can scald the skin when steaming up.
Make sure that the cooking zone and the
base of the pot are always dry.
CAUTION!
Damage caused by hard and pointed objects!
Hard and pointed objects may cause damage
to the glass ceramic plate of the cooktop.
Do not use the cooktop surface as a
kitchen worktop.
Do not use any hard and pointed objects
when working on the cooktop.
Do not place any hot cookware in the area of the con-
trol panel so as not to damage the underlying
electronics.
When cleaning the device, water must not penetrate
the interior of the device. Use only a slightly damp
cloth. Never spray the device with water. Water penet-
ration can cause damage!
Whenever possible, clean the cooktop after every use.
Clean the cooktop only after it has cooled down.
When cleaning, only use non-abrasive cleaning agents
to prevent scratching and abrasion on the surface.
Make sure that the base of the cookware as well as
the cooking zone are clean and dry.
Always lift (do not drag!) the cookware to prevent
scratching and abrasion on the surface.
2.2 Safety instructions, operation
Cooktop
DANGER!
Danger of fire caused by leaving the cooktop
unattended!
Oil or fat in the pot can quickly heat up and
ignite.
Never leave oil or fat to heat up unattended.
Never extinguish oil and fat fires with water.
Suffocate the fire, for example by using a lid.
DANGER!
Danger of explosion caused by flammable
materials!
Flammable materials (spray) in the vicinity of
the cooktop can explode and cause serious
injury.
Do not place any flammable materials in
the vicinity of the cooktop.
DANGER!
Danger of electric shock!
Cracks, ssures or fractures in the glass
ceramic panel can damage the underlying
electronics. This can cause an electrical
shock.
If there are any cracks, fissures or
fractures in the glass ceramic, switch the
device off immediately.
Safely disconnect the device from the
mains using miniature or automatic circuit
breakers, fuses or contactors.
EN
8
Safety
www.bora.com
DANGER!
Danger of electric shock!
The connection cable can be damaged if it
comes into contact with hot cooking zones.
A damaged connection cable can cause a
(fatal) electrical shock.
Make sure that the connection cable does
not come into contact with hot cooking
surfaces.
Make sure that the connection cable is not
caught or damaged.
CAUTION!
Back injury caused by heavy loads!
When removing and inserting the device,
incorrect handling may cause injuries to the
limbs and the trunk.
Always lift the device out of the packaging
with two persons.
Always place the device onto the worktop
cut-out with two persons.
Use suitable aids to prevent damage to the
limbs and the trunk.
Check the device for visible damages before installing it.
Do not install a damaged device.
A damaged device may put your safety at risk!
Repair and maintenance work may only be carried out by
specialists authorised by the manufacturer.
2.4 Safety instructions, disassembly
and disposal
Disassembly of the device may only be carried out by
trained personnel who are familiar with and comply
with common national regulations and supplementary
regulations of the local utility companies.
Work on electrical parts may only be carried out by trained
electrical personnel.
Work on the gas connection may only be carried out by an
authorised gas fitter in accordance with legal applicable
regulations. Comply with local regulations of the utility
companies.
CAUTION!
Damage caused by substances containing
sugar and salt!
Substances containing sugar and salt and
juices can damage the cooking zone when
they are spilled on its hot surface.
Make sure that no food or drinks
containing sugar or salt and juices are
spilled onto the hot cooking zones.
Immediately remove food or drinks
containing sugar or salt and juices
from the hot cooking zone.
2.3 Safety instructions, assembly
Installation and assembly of the device may only be
carried out by trained personnel who are familiar with
and comply with common national regulations and
supplementary regulations of the local utility companies.
Work on electrical parts must only be carried out by
trained electrical personnel.
The electrical safety of the device is only guaranteed if it
is connected to a properly installed protective conductor
system. Make sure that these basic safety precautions
have been taken.
Cooktop
DANGER!
Danger of electric shock!
Connecting the device incorrectly to the mains
poses a risk of electric shock.
Make sure that the device has a fixed
connection to the mains voltage.
Make sure that the device is connected to
a properly installed protective conductor
system.
Make sure that technical equipment is
provided to allow for all of the device's
poles to be disconnected from the mains
with a contact opening width of at least
3 mm (miniature and automatic circuit
breakers, fuses, contactors).
EN
9
Safety
www.bora.com
2.6 Use as intended
The device is solely intended for preparing food in private
households.
This device is not designed for:
use outdoors
installation in vehicles
heating the room
use in non-fixed installation sites (e.g. on ships)
use with an external timer or separate remote control
system.
Not using the device as described in this operating and
assembly manual is considered not using the device as
intended, as is using it beyond the purpose described here.
BORA shall not assume any liability for damages caused by
improper use or incorrect operation.
All misuse is prohibited!
INFO
BORA Holding GmbH, BORA Vertriebs GmbH &
Co KG, BORA APAC Pty Ltd and BORA Lüftungs-
technik GmbH shall not assume any liability
for damage arising from non-adherence to the
safety and warning instructions.
DANGER!
Danger of electric shock!
Disconnecting the device incorrectly from the
mains poses a risk of electric shock.
Safely disconnect the device from the
mains using miniature or automatic circuit
breakers, fuses or contactors.
Use a suitable measuring device to ensure
that the device is de-energised.
DANGER!
Risk of suffocation!
Parts of the packaging (e.g. lms, polystyrene)
can be fatal to children.
Store packaging materials away from the
reach of children.
Dispose of packaging correctly and
promptly.
2.5 Safety instructions, spare parts
WARNING!
Risk of injury and damage to property!
Incorrect parts can lead to injury to persons or
damage to device! Modications, attachment
parts or conversions to device can impair
safety.
Only use original spare parts when carrying
out repairs.
EN
10
Technical data
www.bora.com
3 Technical data
Parameter Value
Supply voltage 220 - 240 V
Frequency 50 Hz
Power consumption 3.0 kW
Fuse protection, minimum 1 x 16 A
Dimensions
(width x depth x height)
340 x 515 x 112 mm
Weight (incl. accessories/
packaging)
9.0 kg
Cooktop
Power levels 1 - 9, P
Wok cooking zone power
setting
Ø250 mm 2400 W
3000 W
Tab. 3.1: Technical data
Device dimension
340515
Ø 250
112
281
Fig. 3.1 Device dimension
EN
11
Device description
www.bora.com

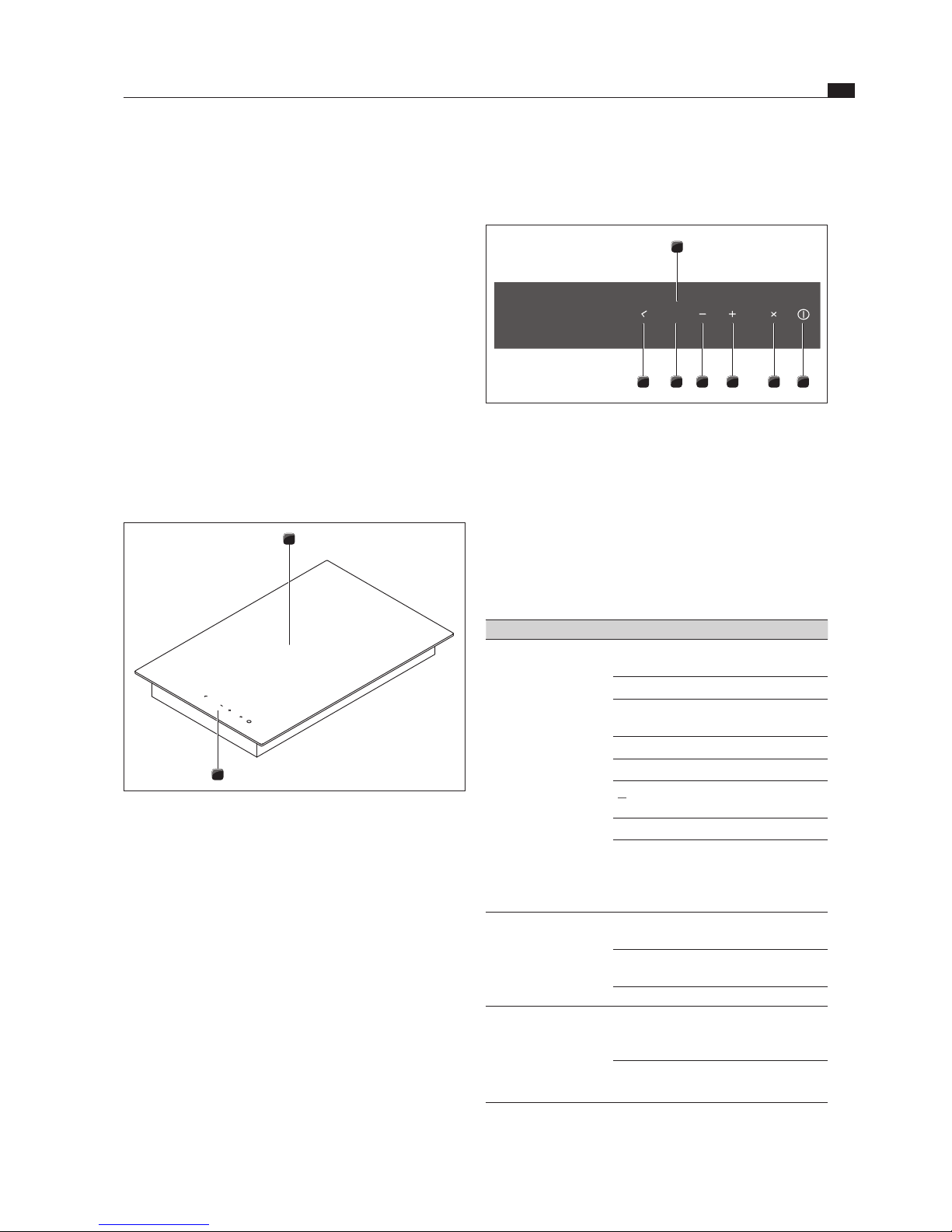

4.2 Operating panel and operating
principle
.
2345
76
1
Fig. 4.2 Operating panel
Sensor keys:
[2] switch cooktop on/off
[3] Pause button
Cooking zone:
[1] Indicator light for the activated timer
[4] increase power level
[5] reduce power level
[6] Cooking zone indicator
[7] Timer button
Display panel Display Meaning
Cooking zone
indicator
1... 9 Power level
Ppower setting
AAutomatic heat up
function
LChild safety lock active
II Break
VNo cookware or
cookware is too small.
/Button pressed and held
HResidual heat display:
Cooking zone is
switched off but still hot
(temperature > 60°C)
Cooking zone
indicator lamp
On Automatic cut-off (timer)
activated
Flashes Timer on (00);
no time set
Off Timer off
Timer display 01 ... 99
Set minutes for short
time (alarm) or automatic
cut-off (egg timer)
00 Timer on;
no time set
Tab. 4.1: Meaning of displays
4 Device description
Observe all safety and warning information during
operation (see the Safety chapter).
The cooktop has the following features:
Automatic heat up function
Safety shut-down
Electronic power control (9 levels)
Child safety lock
Pause function
power setting
Residual heat display
Timer functions
Pan size recognition
4.1 Structure
.
1
2
Fig. 4.1 Cooktop
[1] Induction cooking zone
[2] Operating panel
EN
12
Device description
www.bora.com
4.3.2 power setting
The cooking zone is equipped with a power-enhancing
power setting.
The power setting can be used in order to quickly heat
up large quantities of water. If the power setting is
activated, the cooking zones will run at extra high power.
After 10 minutes, the power level is automatically
switched to level 9.
INFO Never heat up oil, fat and the like at this power
setting. The bottom of the pan can overheat
due to the high power output.
4.3.3 Automatic heat up function
The cooking zone is equipped with an automatic heat up
function that can be activated.
The display shows A.
This function enables the cooking zone to work at full
power for a certain duration after switching on. After this
time, the power level is automatically switched back to the
power level set.
Power level 12345678
Cooking
duration in
min:sec
00:40 01:00 02:00 03:00 04:15 07:00 02:00 03:00
Tab. 4.3: Overview of the automatic heat up function
4.3.4 Pan size recognition
The cooking zone does not work
Vappears in the display.
If it is switched on without cookware or with
unsuitable cookware.
If the base diameter of the cookware is too small.
If the cookware is removed from a cooking zone that
is switched on.
4.3.5 Pause function
The cooking session can be briefly interrupted by pressing
the multi-functional button.
II appears in the display.
The cooking session and set timer are interrupted
while the pause function is active.
The pause function is limited to a maximum duration
of 10 minutes.
Touch control
The operating panel is fitted with electronic sensor buttons
and display panels. The sensor buttons respond to finger
contact.
You operate the device by touching the corresponding
sensor key with your finger. Keep the finger pressed on
the sensor key until you either hear an acoustic signal or
the display changes accordingly.
4.3 Functional principle
The induction coil is located underneath an induction
cooking zone. If the cooking zone is switched on, this coil
creates a magnetic field that acts directly on the base
of the pot thus heating it up. The cooking zone is only
indirectly heated up by the heat emitted by the pot.
Cooking zones with induction only work if the cookware
has a magnetisable base.
The induction automatically takes into account the size of
the used cookware which means that only the area in the
cooking zone covered by the base of the pot is heated up.
4.3.1 Power levels
The high power output of induction cooktops results in the
very quick heating up of cookware. A slight adjustment is
needed in comparison to conventional cooking systems
when selecting the power level in order to avoid burning
food.
Activity Power level
Keeping cooked food warm at approx.
75°C
V
Melting of butter and chocolate,
keeping food warm
1-2
Heating up food 3-6
Roasting food 7-9
Fast roasting and roasting of larger
amounts
P
Tab. 4.2: Recommendations for power levels
The specifications provided in the table are standard
values.
Depending on the cookware and filling quantity, it is
recommended to either decrease or increase the power
level.
EN
13
Device description
www.bora.com
Noises
Cookware may make the following noises when using
induction cooking zones, depending on the material and
finish of the base:
Humming may occur when using a high power level. It
decreases or disappears if the power level is decreased.
Crackling or whistling may occur due to the bases of
cookware made of different materials (e.g. sandwich
base).
Clicking sounds may occur during electronic switching
procedures especially at low power levels.
Whirring may occur when the cooling fan is switched
on. In order to increase the service life of the electro-
nic system, the cooktop is equipped with a cooling
fan. The cooling fan switches on automatically if the
cooktop is used intensively. You will hear a whirring
sound. The cooling fan may continue running after the
device has been switched off.
4.4 Safety devices
4.4.1 Residual heat display
INFO While His displayed in the cooking zone
indicator (residual heat display), do not touch
the cooking zone or place any heat-sensitive
objects on top of it. Risk of burns and fire!
After switching it off, the cooking zone remains hot.
His displayed in the cooking zone indicator (residual heat
indicator). The cooking zone indicator will go out after
sufficient cooling time (temperature < 60°C).
4.4.2 Safety shut-down of the cooking zone
The cooking zone is switched off automatically when the
cooking zone in the power level exceeds the maximum
operating duration. H(residual heat display) is then
displayed in the cooking zone indicator.
Power level 123456
Switch o after
hours:minutes
08:40 06:45 05:15 04:20 03:30 02:45
Power level 789
Switch o after
hours:minutes
02:20 01:45 01:30
Tab. 4.4: Overview of the safety shut-down
Switch the cooking zone back on (see Operating
control) if you want to put the cooking zone back into
operation.
4.3.6 Timer functions
You can use 2 timer functions:
Short-time timer (egg timer), no automatic switching
off of a cooking zone.
Automatic cut-off for automatically switching off a
cooking zone.
4.3.7 Suitable cookware
INFO The heating and heat through time for the
base of the cookware as well as the cooking
results are significantly influenced by the
structure and material of the cookware.
INFO Ensure that the radius of the wok corresponds
to the radius of the glass ceramic panel. This
is 210 mm.
INFO For woks with plastic coating (e.g. Teflon) a
maximum power level of 7 should be used.
Higher power levels can damage the coating.
Cookware with this symbol is suitable for
induction cooktops.
The cookware used for the induction cooktop
must be made of metal, feature magnetic
properties and possess a sufficient bottom
surface.
Suitable cookware is made of:
stainless steel with a magnetisable base
enamelled steel
cast iron
Perform a magnet test, if necessary. If a magnet sticks
to the base of the utensils, they are normally induction
compatible.
The bottom of the cookware must not have any
sharp grooves or sharp edges to avoid scratching the
cooktop.
Place the cookware (without a mat or similar) directly
onto the glass ceramic.
EN
14
Device description
www.bora.com
4.4.3 Cooking zone overheating protection
The induction coils and cooling elements of the electronic
system are equipped with an overheat protection. Before
the induction coils and/or cooling elements overheat,
the overheat protection will initiate one of the following
measures:
The power level Pis automatically switched to power
level 9after 10 minutes. The cooking zone indicator P
switches to 9.
The set power level is reduced.
The cooking zones switch off automatically. H (residual
heat display) is displayed in the cooking zone indicator
if the cooking zone is still hot.
4.4.4 Automatic switch-off if the button is
pressed and held
The cooktop will be switched off automatically when
one or more sensor buttons are touched for longer than
10 seconds (finger contact, objects, soiling).
The display shows /.
After a few seconds, the cooktop will switch off.
Remove the finger or object from the cooktop.
Clean the cooktop as required.
Where necessary, switch the cooktop back on.
4.4.5 Child safety lock
The child safety lock prevents the cooktop from being
switched on automatically. The child safety lock can only
be activated when the cooktop is switched on and all
cooking zones have been switched o (see the Operation
chapter).
EN
15
Installation
www.bora.com
5.3 Assembly instructions
1
3
2

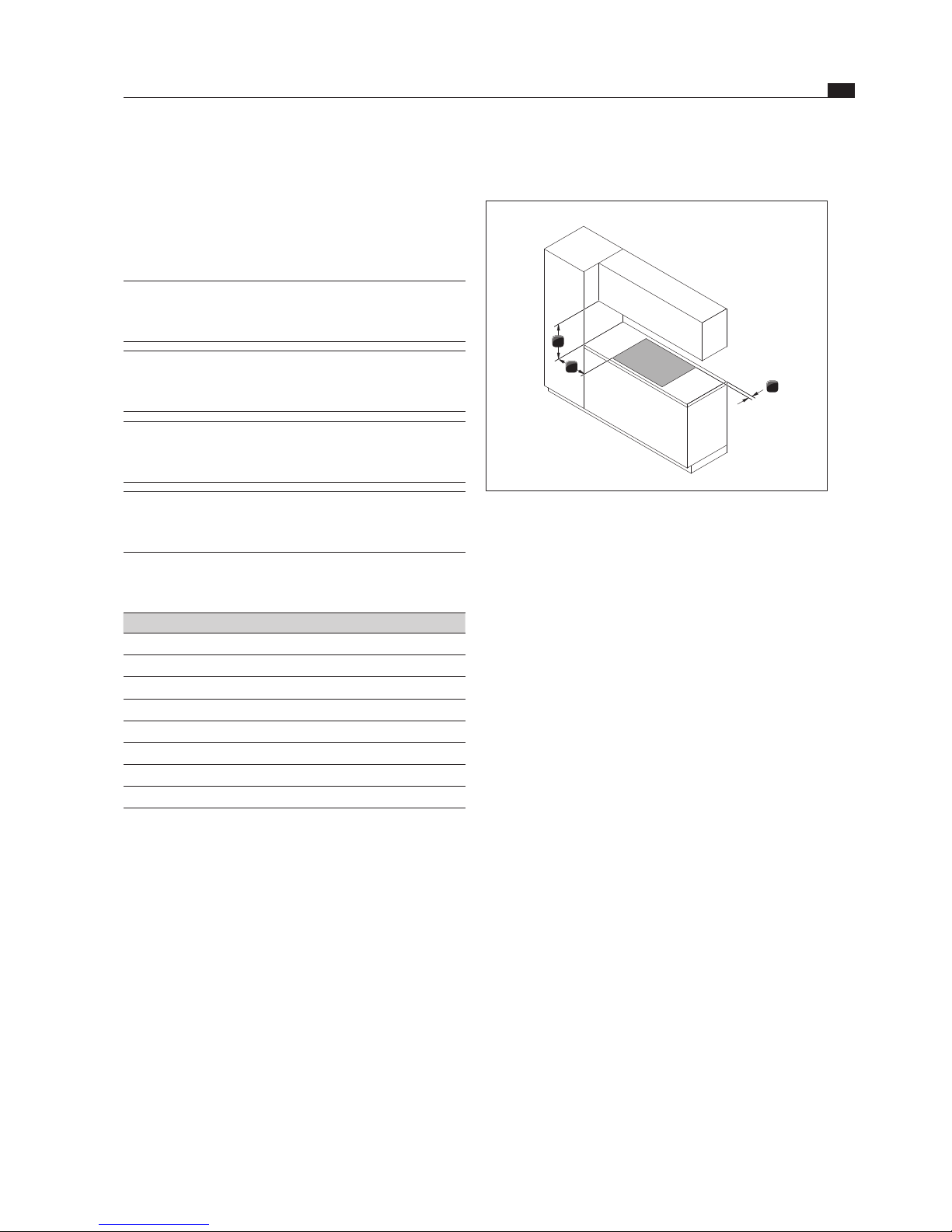

Fig. 5.1 Recommended minimum clearances
5.3.1 Safety distances
Maintain the following safety distances:
[1] Minimum distance of 50 mm at the back from of the worktop
cut-out to the rear edge of the worktop.
[2] Minimum distance of 50 mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall. For ergono-
mic reasons and to ensure efficient cooktop extraction, a
minimum clearance of 300 mm is recommended.
[3] Minimum distance of 700 mm between the worktop and the
wall unit. A minimum clearance of 1000 mm is recommen-
ded for ergonomic reasons.
5 Installation
Observe all safety and warning information (see Safety
chapter).
Follow the enclosed manufacturer's information.
INFO The device may not be installed above cooling
devices, dishwashing machines, stoves, baking
ovens as well as washing and drying machines
INFO The contact surface of the worktops and the
wall sealing strip must be made of a heat-
resistant material (up to approx. 90 °C).
INFO Countertop cut-outs must be moisture-sealed
using suitable means, where necessary fitted
with a thermal insulator.
INFO If the glass ceramic induction wok is used, the
rebate dimensions must be increased to 7 mm
for flush installation!
5.1 Checking the deliverables
Name Quantity
Operating and installation instructions 1
Cooktop mounting screws 4
Sealing tape 1
Cooktop 1
Glass ceramic scraper 1
Height compensation plate set 1
Cooktop mounting straps 4
Glass ceramic cleaning instructions 1
Tab. 5.1: Scope of delivery
Check the scope of delivery for damage and make
sure it is complete (see Tab. 5.1).
If there are any missing or damaged parts, please
notify BORA Customer Services.
Do not under any circumstances install parts which
are damaged.
Dispose of transport packaging in the proper manner
(see Decommissioning and Disposal chapter).
5.2 Tool and aids
The following tools are required for the correct installation
of the cooktop:
Phillips screwdriver Z2
Silicone for sealing cutting surfaces
EN
16
Installation
www.bora.com
Surface installation
B
<R5
> 50
495
> 600
Fig. 5.4 Surface installation
10
10 ... 40
Fig. 5.5 Surface mounting cut
Cut-out dimensions when installing cooktops or cooktops
and the BORA cooktop extractor next to each other:
Cooktops / cooktop extractor A in mm B in mm
1/0 344 320
2/0 685 661
3/0 1026 1002
2/1 776 752
3/2 1208 1184
4/2 1549 1525
Tab. 5.2: Cut-out dimensions
5.4 Cut-out dimensions
Preparing the worktop
Create the worktop cut-out.
Make sure that the cutting surfaces of the worktops
are properly sealed.
Observe the instructions provided by the worktop
manufacturer.
Flush installation
A
B
519
R5
<R5
> 50 495
> 600

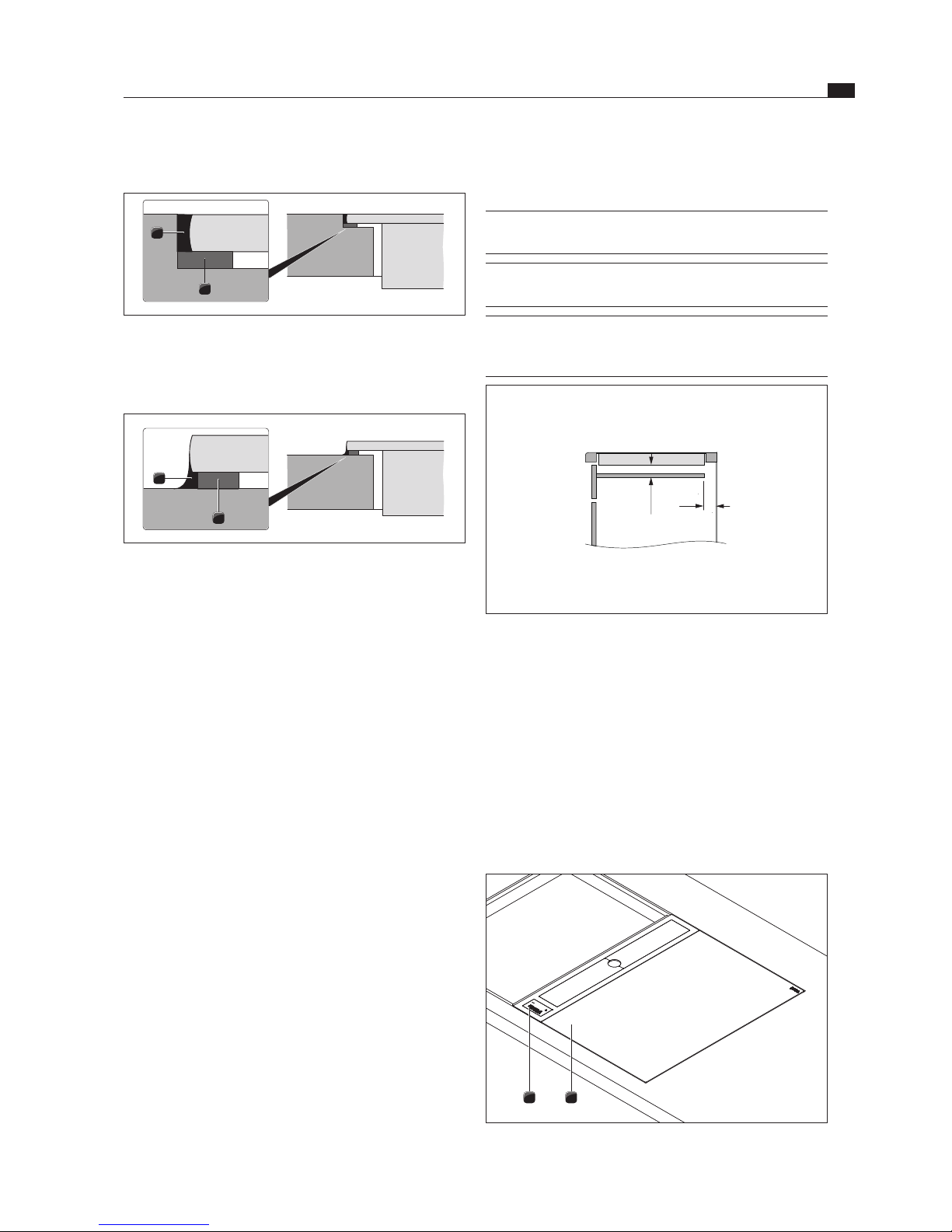

Fig. 5.2 Flush installation
5
12
10 ... 40
Fig. 5.3 Flush installation cut
INFO If the glass ceramic induction wok is used, the
rebate dimensions must be increased to 7 mm
for flush installation.
EN
17
Installation
www.bora.com
5.5 Installing the cooktop
INFO A gap of one millimetre should be planned
between the built-in appliances.
INFO A gap of two millimetres should be planned
around the built-in appliances.
INFO Cable protection (a false floor) should be
mounted below the devices. This needs to be
removable for maintenance work.
> 20
50
Fig. 5.8 Side view of the cable protection and ventilation
Cross bars on the unit in the area of the worktop cut-
out may need to be removed.
Make sure that the area below the cooktop is suffici-
ently ventilated. An opening cross-section > 50 cm2 at
the front side and in the intermediate bottom for the
ventilation of the induction equipment should be
available.
The drawers and/or shelves in the floor unit must be
removable for maintenance and cleaning purposes.
5.5.1 Installing the cooktop
12
Fig. 5.9 Built-in cooktop with cooktop extractor
Attaching the sealing tape
1
2
Fig. 5.6 Sealing tape, ush installation
[1] Black heat-resistant silicone sealing compound
[2] Sealing tape
2
1
Fig. 5.7 Sealing tape with surface installation
[1] Black heat-resistant silicone sealing compound
[2] Sealing tape
With surface installation, attach the enclosed sealing
tape [2], on the underside of the device before instal-
ling it. Do not leave any gaps.
With flush installation, attach the enclosed sealing
tape to the horizontal cutting edge in the worktop cut-
out, even if you seal the cooktop with a silicone
sealing compound [1] or similar.
Note down the type designation and build number of
the device (FD number) on the back of this manual.
Both designations can be found on the nameplate on
the underside of the device.
EN
18
Installation
www.bora.com
Tighten the mounting bracket screws [1] with max.
10 Nm.
Verify that the alignment is correct.
Seal the devices with black heat-resistant silicone
sealing compound after the installation work is com-
pleted.
5.6 Power connection
Observe all safety and warning information see the
chapter safety.
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection must only be imple-
mented by a certified engineer. He/she also
assumes responsibility for the proper installa-
tion and commissioning.
The power supply line for use (pre-assembled) must be at
least Type H05VV-F or H05VVH2-F.
Cross-section: 3G1,5 mm²
If the supply line is damaged, it must be replaced by a
specific one. This must be done by an authorized Cus-
tomer Service agent.
Establishing the power connection
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
Protect the main switch/automatic circuit breaker
from being switched on without permission.
Make sure the device is not energised.
Connect the power cable.
Connect the cooktop directly through a fixed connec-
tion to a power supply line.
1
L1
2
N PE
220 - 240 V~
Fig. 5.12 Single-phase wiring diagram
Verify that the installation was done correctly.
Switch on the main switch/automatic circuit breaker.
Put the cooktop extractor into operation (see the
Operation chapter).
Check all the functions are working correctly.
5.7 Handover to user
Once installation is done:
Explain the important functions to the user.
Explain all safety-relevant aspects of operation and
handling to the user.
Provide the user with the accessories and operating
and installation instructions to be kept in a safe place.
Insert the cooktop [1] next to the cooktop extractor
[2] already installed in the centre.
INFO The cooktop [1] rests on the lateral bar of the
cooktop extractor [2] and is thereby stabilised.
Align the cooktop [1] exactly.
Adjust the installation height of the cooktop with the
height compensation plates, if necessary.
1
2
Fig. 5.10 Cooktop and height compensation plates
[1] Cooktop
[2] Height compensation plates
For surface installation
Make sure that the sealing tape of the cooktop is res-
ting on the worktop.
For flush installation
Make sure that the sealing tape of the cooktop is
sealed well all the way round.
2
1
Fig. 5.11 Mounting brackets
[1] Screw
[2] Mounting bracket
Fasten the cooktop [1] using the mounting bra-
ckets [2].
EN
19
Operation
www.bora.com
After 10 minutes, the cooking zone is automatically
switched back to power level 9.
6.1.5 Switching the power setting off early
Continue pressing until the lower power level that
you want is displayed.
6.1.6 Switching off the cooking zone
INFO If a cooking zone indicator shows H,
the cooking zone is still hot.
Continue pressing or until the cooking zone
indicator displays power level 0. The display will show
a 0for a few seconds.
Press and simultaneously.
6.1.7 Pause function
INFO The pause function switches off automatically
after 10 minutes.
Press the pause button on the cooktop to briefly
interrupt the cooking session.
II is displayed in the cooking zone indicator.
Press the pause button again followed by or
to end the pause function.
By pressing the button when the pause function is
active, the previous setting can be activated again within
6 seconds.
To do so, press the button and then .
6.1.8 Automatic heat up function
Switching on the automatic heat up function
Prerequisite
The cooktop is switched on.
The cooking zone is switched off.
Press the and buttons on the cooktop.
Press the button (within 5 seconds) to select the
desired power level (continuous cooking stage), which
should be used to continue the cooking session after
the end of the automatic heat up function.
The cooking zone indicator will display the symbol Ato
show that the automatic heat up function is activated
as well as the continuous cooking stage set, for
example 5.
Switching off the automatic heat up function
The activated automatic heat up function will end
prematurely if you
6 Operation
Observe all safety and warning information during
operation (see the Safety chapter).
INFO The cooktop may only be operated when the
stainless steel grease filter of the cooktop
extractor is installed (see operating instructions
for cooktop extractor).
INFO Clean the cooking zone before using the
cooktop for the first time (see the Cleaning
chapter).
6.1 Switching cooktop on/off
Switching on
Press to switch on the cooktop. The power level 0
is displayed in the cooking zone indicator.
If no power level is set after switching on the appliance,
the cooktop will turn off after a few seconds.
Switching off
INFO Use the operating panel to switch off the
cooking zone after use. Do not rely on the pan
size recognition.
Press to switch off the cooktop.
Pay attention to the residual heat display (see the
Device Description chapter).
6.1.1 Switching on the cooking zone
Press the button for the cooking zone.
The 0in the cooking zone indicator lights up more
brightly. The cooking zone indicator light illuminates.
6.1.2 Adjusting the power level
Press to set power level 5to set power level 9.
6.1.3 Changing the power level
Press or until the required power level is shown
in the cooking zone indicator.
6.1.4 Switching on the power setting
INFO The cooking zone is equipped with a
power-enhancing power setting.
Continue pressing until power setting Pis
displayed in the cooking zone indicator.
EN
20
Operation
www.bora.com
Setting the automatic cut-off
You can set an automatic cut-off for every cooking zone.
INFO The active cooking zone indicator shows
that the automatic cut-off is activated.
The remaining time is displayed.
After the end of the time set, the cooking zone turns off
automatically.
Prerequisite
The cooking zone has been selected.
A power level was set.
Press the timer button .
The indicator light will blink and 00 will appear in the
cooking zone indicator.
Press or to set the required time.
Press the timer button again to activate it.
Activation will take place within 10 seconds of the
button last being pressed.
Changing the timer settings
Press the time button for the cooking zone.
The indicator light blinks.
Press or to set the required time.
Switching the timer off early
Press the time button for the cooking zone.
The indicator light blinks.
Press until the timer display shows 00,
or
press and simultaneously. The time in the timer
display is immediately set to 00.
6.1.10 Activating/deactivating the
childproofing feature
INFO If a cooking zone indicator alternates between
displaying Land H, the cooking zone is still hot.
Activating the child safety lock
Prerequisites:
The cooktop is switched on.
The cooking zone is switched off.
Press sensor buttons and simultaneously on
the cooking zone.
press the button on the cooking zone.
set power level 9.
activate the power setting P.
switch off the cooktop by pressing the button.
6.1.9 Using the timer function
You can use 2 timer functions:
Short-time timer (egg timer), no automatic switching
off of a cooking zone.
Automatic cut-off for automatically switching off the
cooking zone.
You can set a time range of between 1 and 99 minutes for
both timer functions.
If you press first, 1 minute will be pre-set as the
starting time.
If you press first, 30 minutes will be pre-set as the
starting time.
Switching off the timer signal tone
Press any sensor button on the operating panel to end
the signal tone prematurely.
Setting the short-time timer (egg timer)
INFO The active cooking zone indicator shows
that the short-time timer is activated.
The remaining time is displayed.
After the end of the time set, 00 will be displayed for a few
seconds on the timer display. A signal tone will sound for
a few seconds.
Prerequisite
The cooktop must be switched on.
Press the timer button.
The indicator light will blink and 00 will appear in the
cooking zone indicator.
Press or to set the required time.
Activation will take place within 10 seconds of the
button last being pressed.
If the cooktop is switched off with the on/off button
, the cooking zone indicator will become active and
the remaining time will be displayed.
Changing the timer settings
Press to switch on the cooktop.
The timer indicator light blinks.
Press or to set the required time.
