U1/S2 - Install & Operation Manual
GB
Dispense options
Telephone
[phone]
Email
[e-mail]
borgandoverstrom.com
Synergy House
Fakenham Road
Morton On The Hill
NR9 5SP
Chilled
Ambient
Chilled & Ambient
Chilled, Ambient & Sparkling
Contents 2 Model Overview
3 Component/Feature Overview
5 Installation
15 Operation
18 Maintenance & Cleaning
21 Advanced Troubleshooting
23 Exploded Diagrams & Parts List
26 Technical Information
31 Declarations of Conformity

Install & Operation ManualBorg & Overström GB2
Model Overview
COOLING SYSTEM Stainless steel direct chill coil
encased in a solid-block system
for instant response cool down
action. Ultra efciency compression
system with capillary control.
Environmentally friendly R134a
refrigerant.
COLD TEMPERATURE 2°C - 10°C.
OUTPUT PER HOUR 40 litres cold at <10°C.
40 litres sparkling at <10°C.
DISPENSE Swan Neck Faucet with
ergonomically designed and situated
light touch sensitive controls.
MAX RUNNING POWER
CONSUMPTION - CHILLED,
AMBIENT & SPARKLING
570 watt (during recovery),
Rated input 323 watt.
MAX RUNNING POWER
CONSUMPTION - CHILLED
& AMBIENT
570 watt (during recovery),
Rated input 300 watt.
POWER SUPPLY 230V AC (50 Hz)
WATER CONNECTION Mains in - 1/4” Push Fit/ Faucet -
1/4” Push Fit
CO2 CONNECTION 1/4” Push Fit
DIMENSIONS (w x d x h) 330 x 370 x 362mm
WEIGHT 26Kg
CUPBOARD VENTILATION Required
The u1 epitomises cutting-edge design
and innovation with its contoured tap
and compact under-counter unit. This is
our most discreet range and will t into
any environment seamlessly.
The under-counter dispenser is a
Dry Chill™ cooler designed to
provide ambient still, chilled and/or
carbonated water. All the materials and
components are tested during the entire
production process in order to satisfy all
expectations.
Introduction

Install & Operation ManualBorg & Overström GB3
Component/Feature Overview
Contents:
1 no Electronic Swan Neck Tap
1 no 2/3-Button Membrane Control Panel
1 no 1.0m x 6mm Insulated Water Pipe
1 no Connector Box
1 no 4mm Self Adhesive Clip
1 no Fixings Set
Please Note:
Mains Installation Kit & Filters are supplied as extra items according to individual ordering requirement.
U1 Tap - Major Components
Swan Neck
Threaded Stem & Back Nut
Water Pipe
Electrical Connection
Main Body
Faucet
Membrane Control Panel

Borg & Overström GB4Install & Operation Manual
S2 Electronic - Major Components
Contents:
1 no Undercounter Unit
1 no 2.0m Power Cord Set
1 no 1.0m Faucet Connection Harness
1 no Co2 Regulator with Gauge & Connection tube*
1 no Stainless Steel Drip Tray (c/w with Drain Outlet Cap)
1 no Ventilation Ducting Kit
1 no Ventilation Grille
Faucet Connection Harness
*Sparkling versions only.
CO2 Inlet*
Water Inlet
Top Panel
Power Connection
Unit Carry Handle
Side Panel
Front Panel
Water Outlet
Eliwell Control Panel

Install & Operation ManualBorg & Overström GB5
Installation
Tap Installation
1
Identify a suitable location for the undercounter unit. It should
be positioned within 1.0m of the faucet, and within 2.0m of
suitable services connections. Allow enough space to t the
ventilation ducting system.
Service Requirements
Water: Mains potable water – internally regulated to 1.3bar. Min
mains pressure 1.3bar.
Electricity: 13A supply – Earth Leakage Protected.
2
33 - 35mm
3
187mm
4
When planning and providing
for the connection to the
services, always allow for
easily accessible service isolator
ttings and for the position of an
external water lter.
Identify a suitable position for the
swan neck faucet. A 33-35mm
(max) hole is required.
When positioning to drain over
an existing sink bowl, allow for
the reach of the swan neck or
otherwise the position of any
optional drip tray.

Borg & Overström GB6Install & Operation Manual
400mm
Also allow for the height of
the swan neck under any
overhanging cupboard/shelf.
Carefully form the needed hole,
using the correct type of cutter
for the work surface material.
Observe all local occupational
health and safety requirements.
Remove the back nut and washer
from the faucet and carefully
feed the connecting pipe tail
and ribbon cable through the
hole formed in the work surface.
Ensure the sealing O ring is pre-
tted in the base of the faucet.
You may want to apply a thin
bead of silicone sealant also.
With the faucet control panel in
the right position, carefully ret
the back washer and nut. Take
care not to over-tighten.
5
98
Allow for the space needed
for forming the required hole.
Relate the selected position to
the underneath of the counter
and check for any obstructions.
Allow sufcient space for tting
the back nut to the faucet stem.
67
10
78mm
70mm
Install the ventilation system
using the instructions/templates
provided.
11 12
Fit optional Drip Tray at this
stage (if selected).
Once the ventilation system is
installed, position the unit on the
ducting as instructed and follow
the connection steps on page 9.
13

Borg & Overström GB7Install & Operation Manual

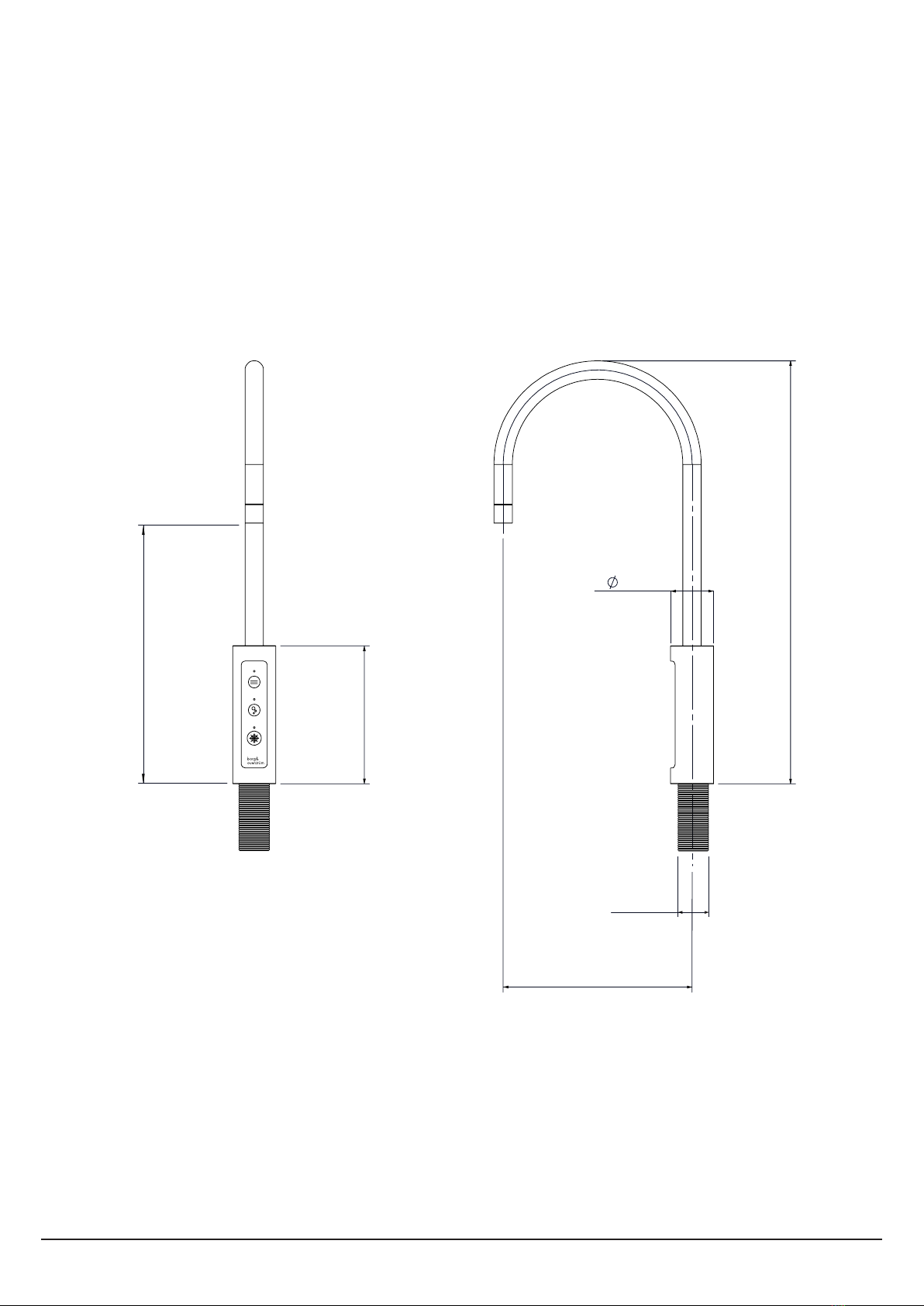

Tap Dimensions
135mm
414mm
188mm
42mm
260mm
33.3mm

Borg & Overström GB8Install & Operation Manual

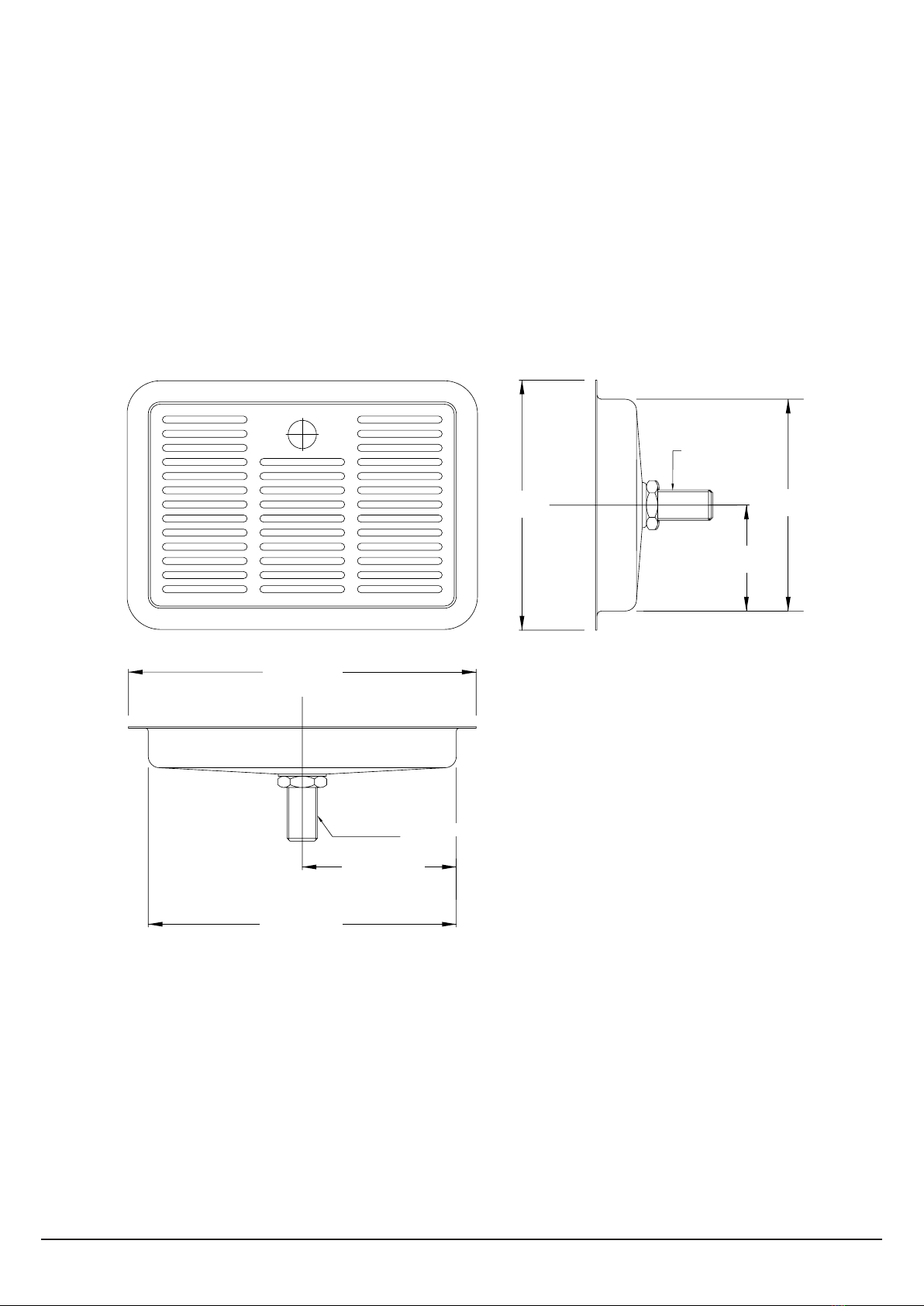

Driptray Dimensions
250mm/ 9¹³/16”
12.7mm/ ½” Waste Spigot
110mm/ 4 ¹¹/32”
220mm/ 8 ²¹/32”
12.7mm/ ½”
Waste Spigot
180mm/
7 ³/32”
150mm
/
5 ²9/32”
75mm/
2 ¹5/16”

Borg & Overström GB9Install & Operation Manual
Ventilation System Installation
When Borg & Overström u1 undercounter
units are installed inside a cabinet or
housing, adequate ventilation is
recommended to ensure that they operate
satisfactorily.
During a cooling cycle it is normal for the
unit to produce heat, and the purpose of
ventilation is to provide a supply of air
that can absorb the generated heat which
would otherwise accumulate inside the
cabinet or housing, and reduce the cooling
performance of the unit. The amount of heat
generated by the cooling cycle depends
directly upon the amount of usage – the
higher the usage, the more heat produced.
To provide adequate ventilation we
recommend that air grilles/vents are tted
as supplied (or vent apertures formed) in
the cabinet to allow an airow as shown
below. Normally this should be enough for
all situations.
In conjunction with an inlet vent grille set into
the front of the plinth, it is recommended that
a ducting box and duct is installed in the
base of the cabinet. Another slot located in
the base is responsible for allowing airow
past the condenser positioned at the rear of
the dispenser. Instructions for installing the
ventilation system are as follows:

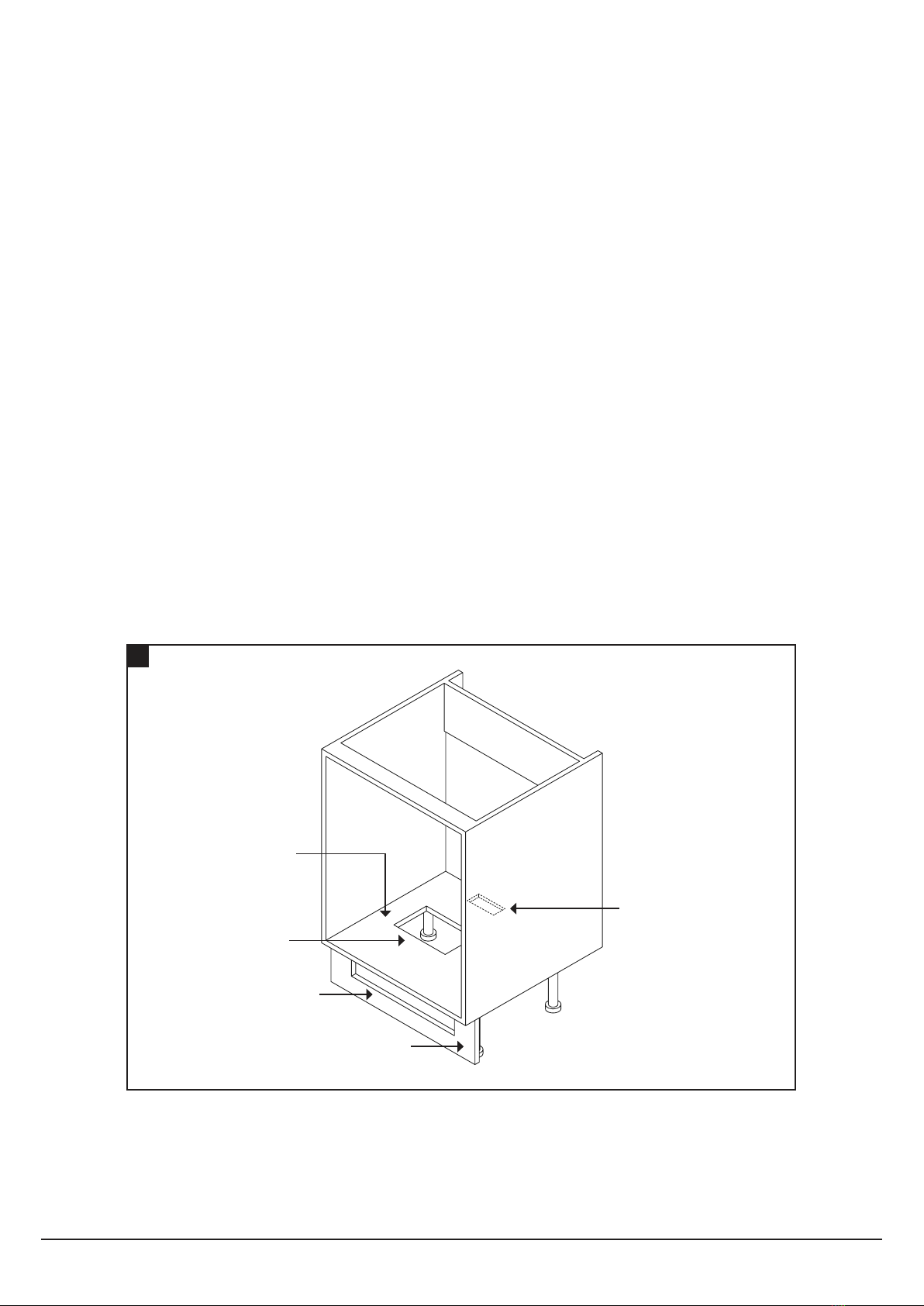

Using the supplied templates, cut the bottom and kickboard panel of the installation cabinet.
Kickboard Cutout
Bottom Cutout
(To align with vent
in bottom of unit)
Kickboard Panel
1
Bottom Panel
Rear Bottom Cutout (To
align with ducting at rear
of unit)

Borg & Overström GB10Install & Operation Manual

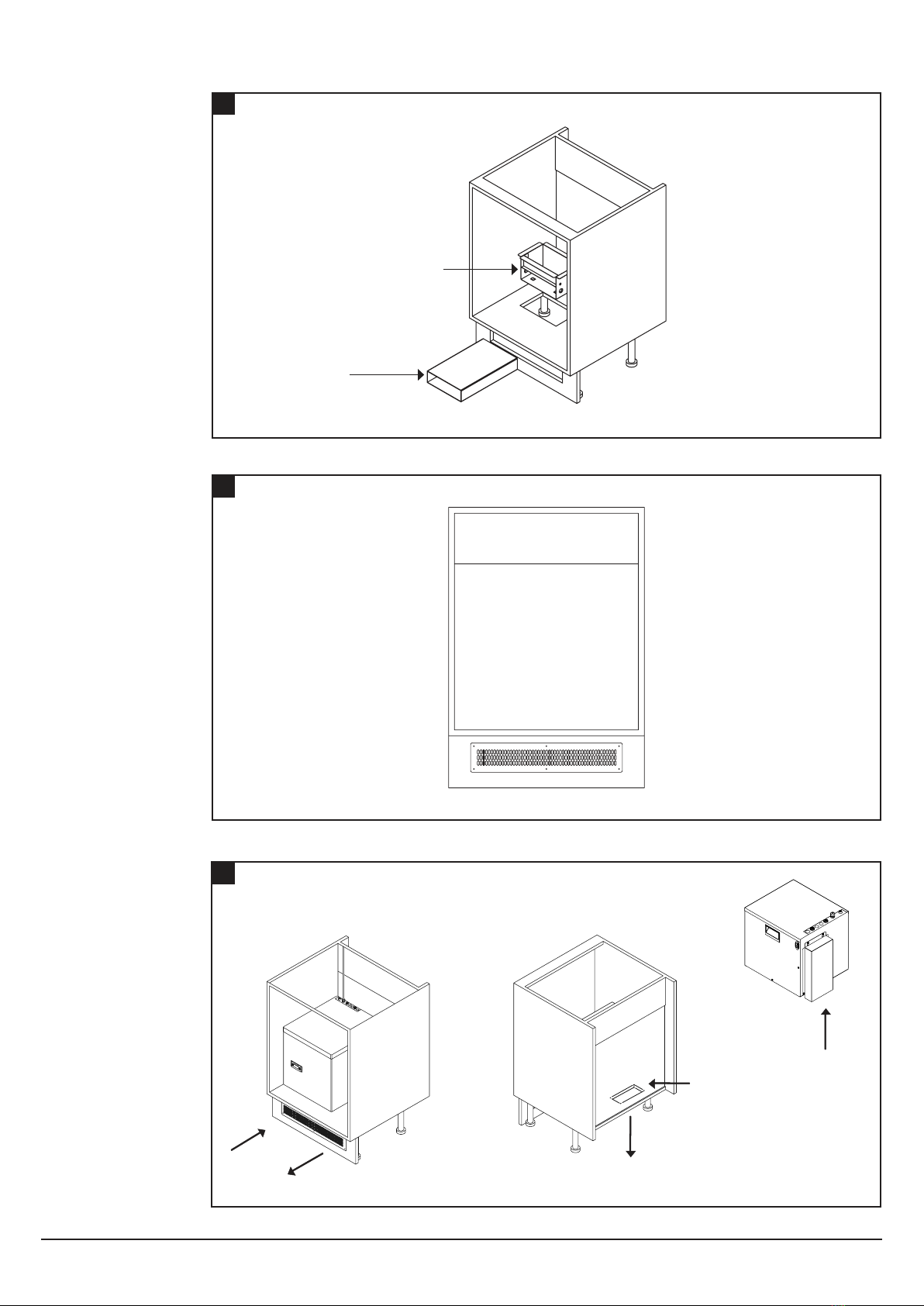

Insert ducting box into its cut slot in the Bottom panel. Then insert the air ducting into the ducting box until it reaches its limits.
Then cut the air ducting so that it is ush with the kickboard.
Centrally locate the ventilation grille over the kick board cut out, then using self tapping screws, secure the kick plate.
The unit must be positioned accurately over the air ducts to ensure optimum airow.
Ducting Box
Air Ducting
Air Flow
Air Flow
2
3
4
Align duct with
rear cut out
Rear Cut
Out

Borg & Overström GB11Install & Operation Manual

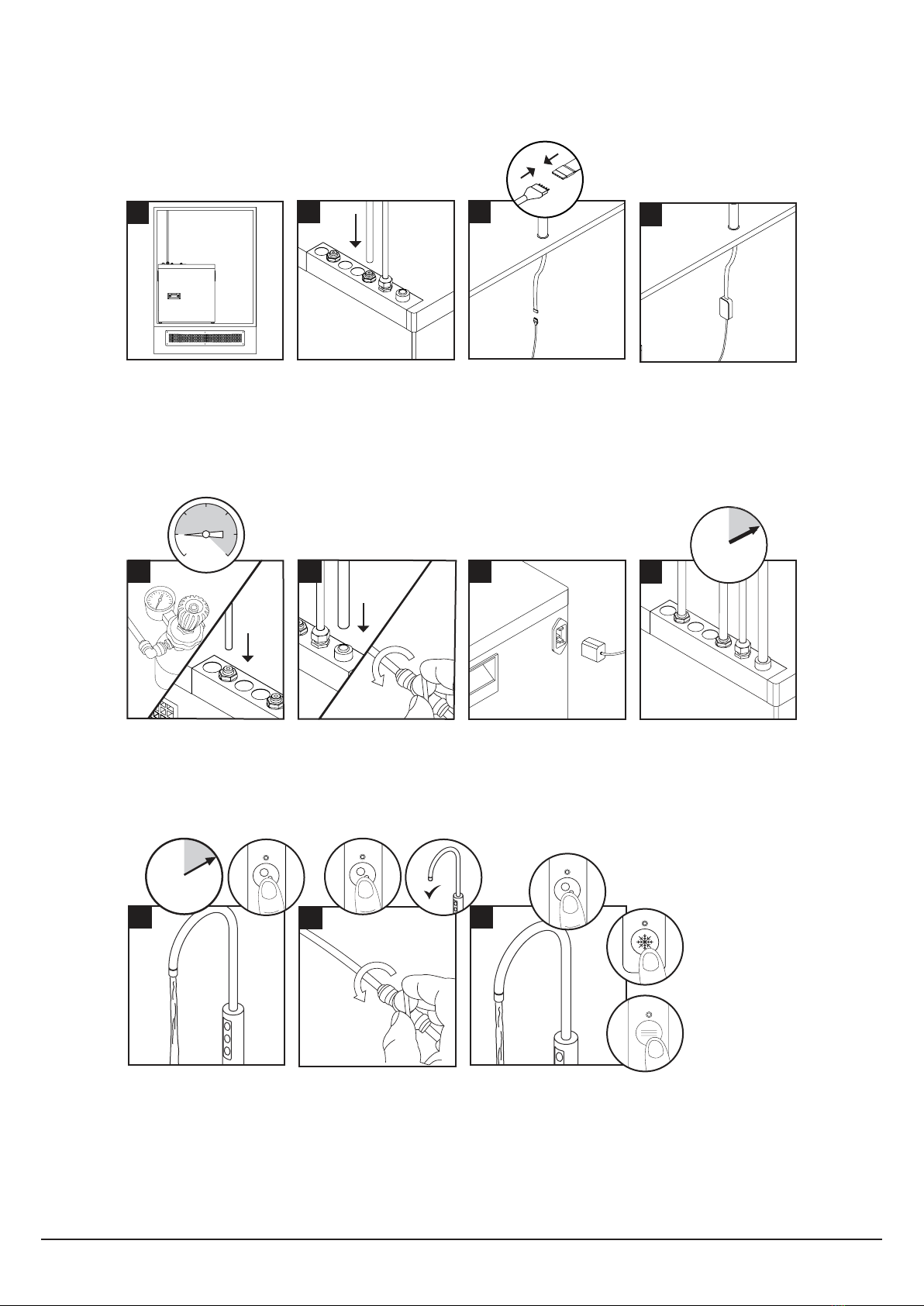

Undercounter Installation & Water Connection
*Sparkling versions only.
12
78
910 11
Locate the machine in a
suitable enclosure, ensuring
that the supplied ventilation kit
can be installed.
Connect the u1 tap to the
water outlet.
Connect the faucet connection
harness to the tap control
panel membrane.
*Connect the CO2 supply
from gas regulator, ensuring
the pressure is set to max 58
PSI (4 bar), and turn on the
supply.
Connect the chiller to the
water supply and open the
mains supply isolation valve.
Connect the unit to the
electrical supply and turn on.
After approximately 10
minutes, the compressor and
fan will stop as the chiller has
reached its normal operating
temperature.
*The carbonator should be
purged of air by activating the
sparkling water dispense for
approximately 20 seconds.
*Isolate the water supply
and activate the sparkling
water dispense. When the
water system has emptied,
allow gas to be expelled for
approximately 5 seconds.
Immediately after this 5
second period restore the
water supply and allow the
system to rell.
Dispense ambient, still and
sparkling water, in turn,
to purge any air from the
system. The time to do this
may vary depending on the
length of pipe between the
unit and the tap.
3
6
5
10
mins
58 PSI
20
secs
Install within connection box
as supplied.
4

Borg & Overström GB12Install & Operation Manual
The unit should be isolated from the electricity supply before removal of any covers.
Great care must be employed when working with high pressure carbon dioxide, and
in no cases should the maximum operating pressure of 58 PSI (4 bar) be exceeded.
Safety
*Sparkling versions only.
Faucet Connection
Harness
Water Pipe
Tap
Co2 Pipe*
Co2 Bottle*
Tap Control Panel
Membrane

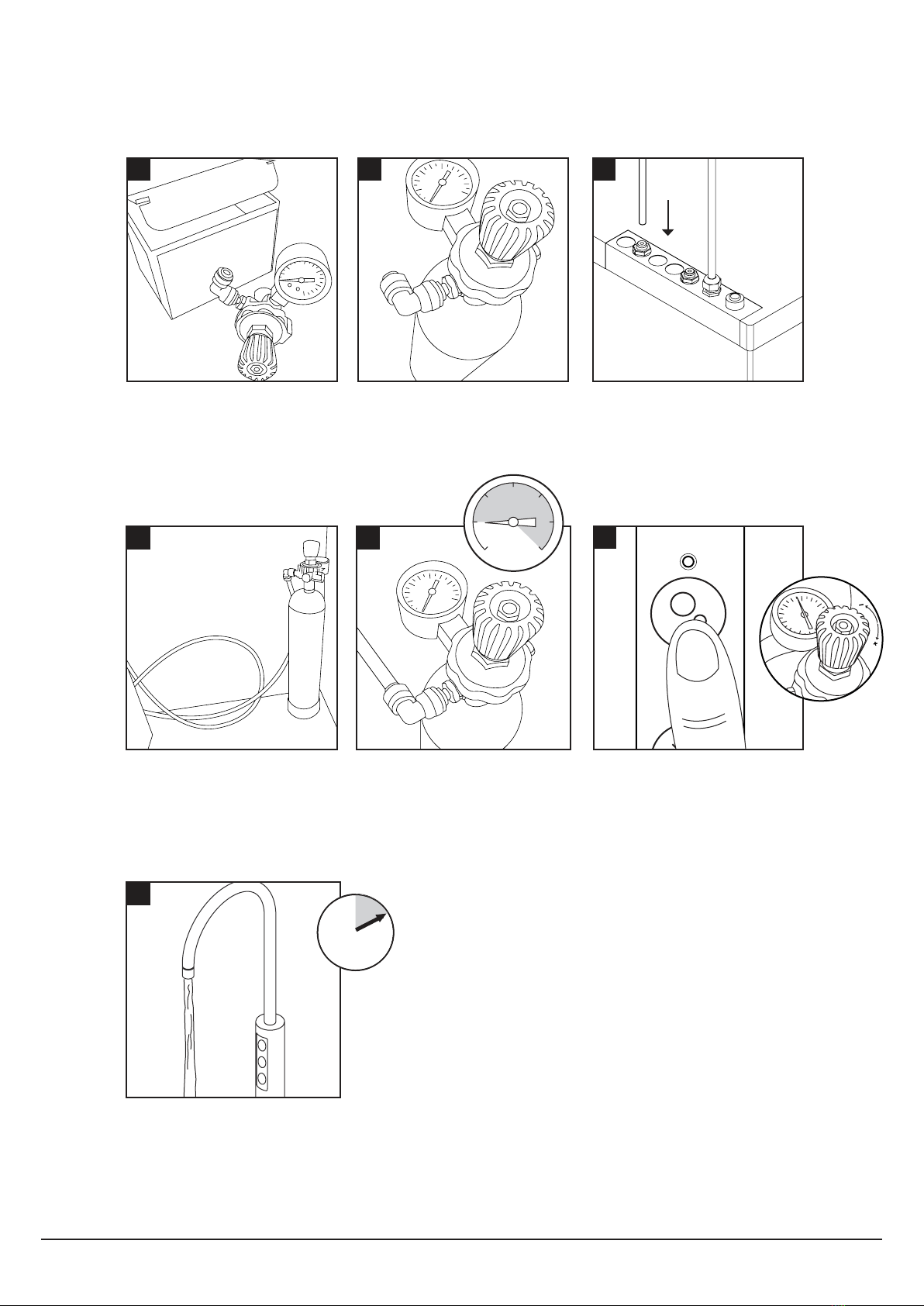

Borg & Overström GB13Install & Operation Manual

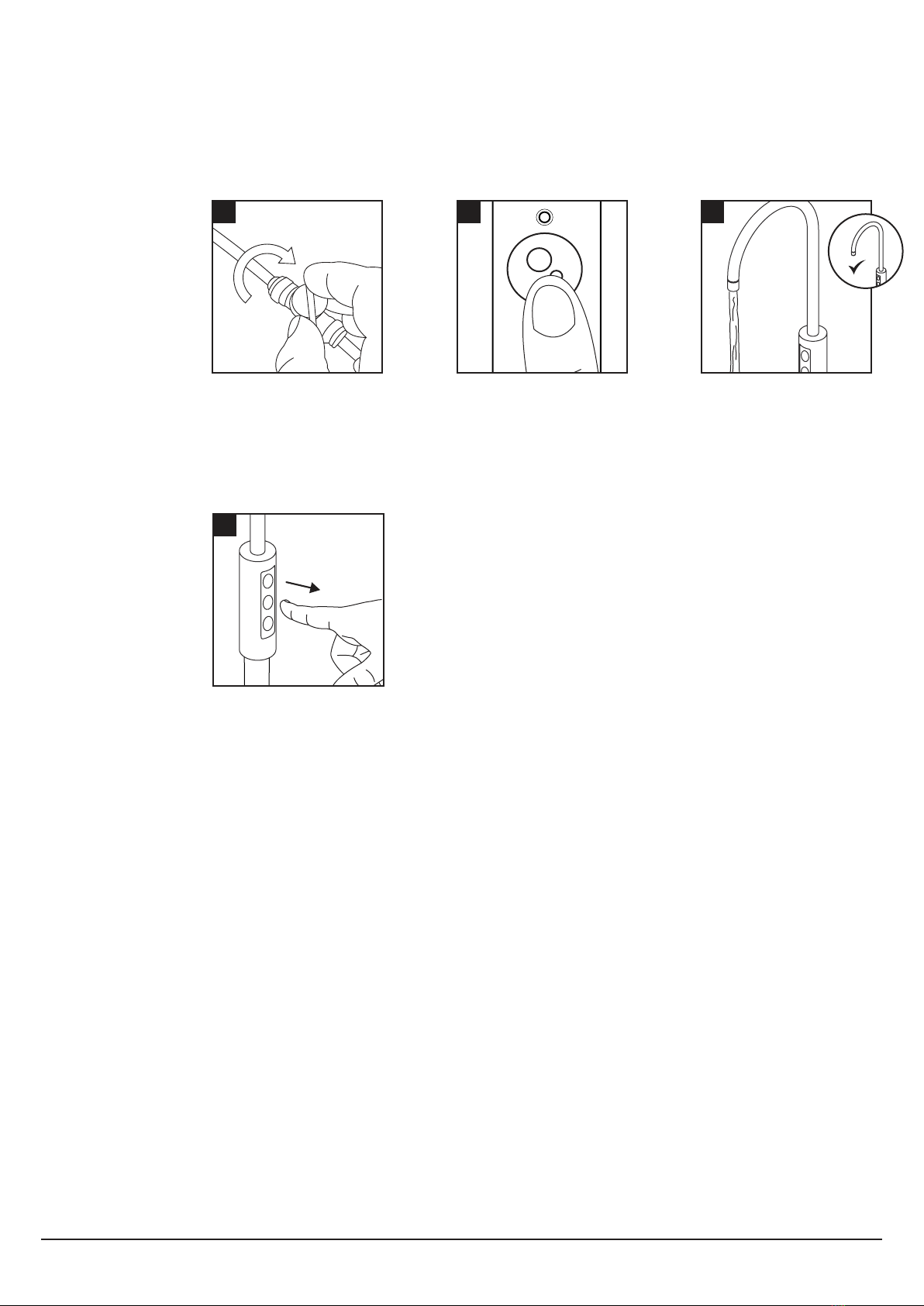

1
Remove the 3 screws holding
the unit lid down and lift the
lid away
Locate the ow control adjuster,
this can be found on top of the
carbonator can, connected to
the central port of the can.
Loosen the lock nut, but do
not remove. Flow can then be adjusted
by turning the adjuster screw,
anti-clockwise to increase ow
and clockwise to restrict ow.
After each adjustment the ow
rate should be timed.
Sparkling Water Flow Rate - Sparkling Versions Only
NOTE: The soda water ow rate is set to 35ml/sec at a CO2 pressure of 58 PSI (4 bar). To
adjust the soda water ow rate follow these steps:
Once the correct ow rate is achieved reverse steps 1, 2 and 3.
1 2 3 4

Borg & Overström GB14Install & Operation Manual

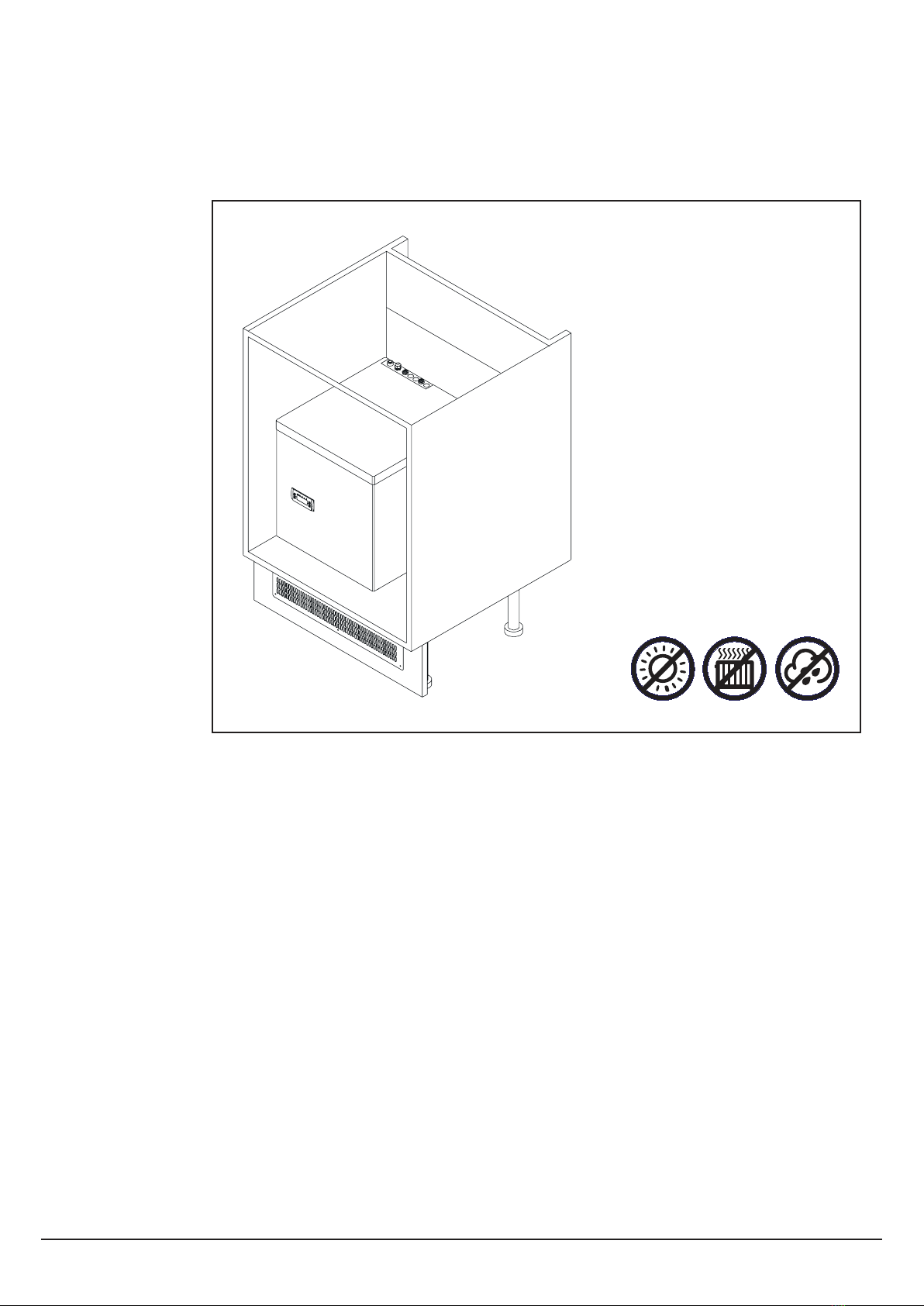

General Safety
• Always place the dispenser in its
vertical position, on a surface which
can capably support its weight.
• During use this machine must remain
in its upright position.
• Adequate ventilation must be
allowed for - we recommend using
the supplied ventilation ducting kit.
• Keep the machine away from
sunlight, heat and moisture.
• Power and water supply points must
be available near the dispenser,
and must meet the criteria specied
in the ‘Specication’ section of this
manual.
• The environment where this machine
is installed must be free of dust and
corrosive/explosive gases.

Install & Operation ManualBorg & Overström GB15
Operation
*Sparkling versions only.
Ambient Water Button
Cold Water Button
Ambient Water Indicator

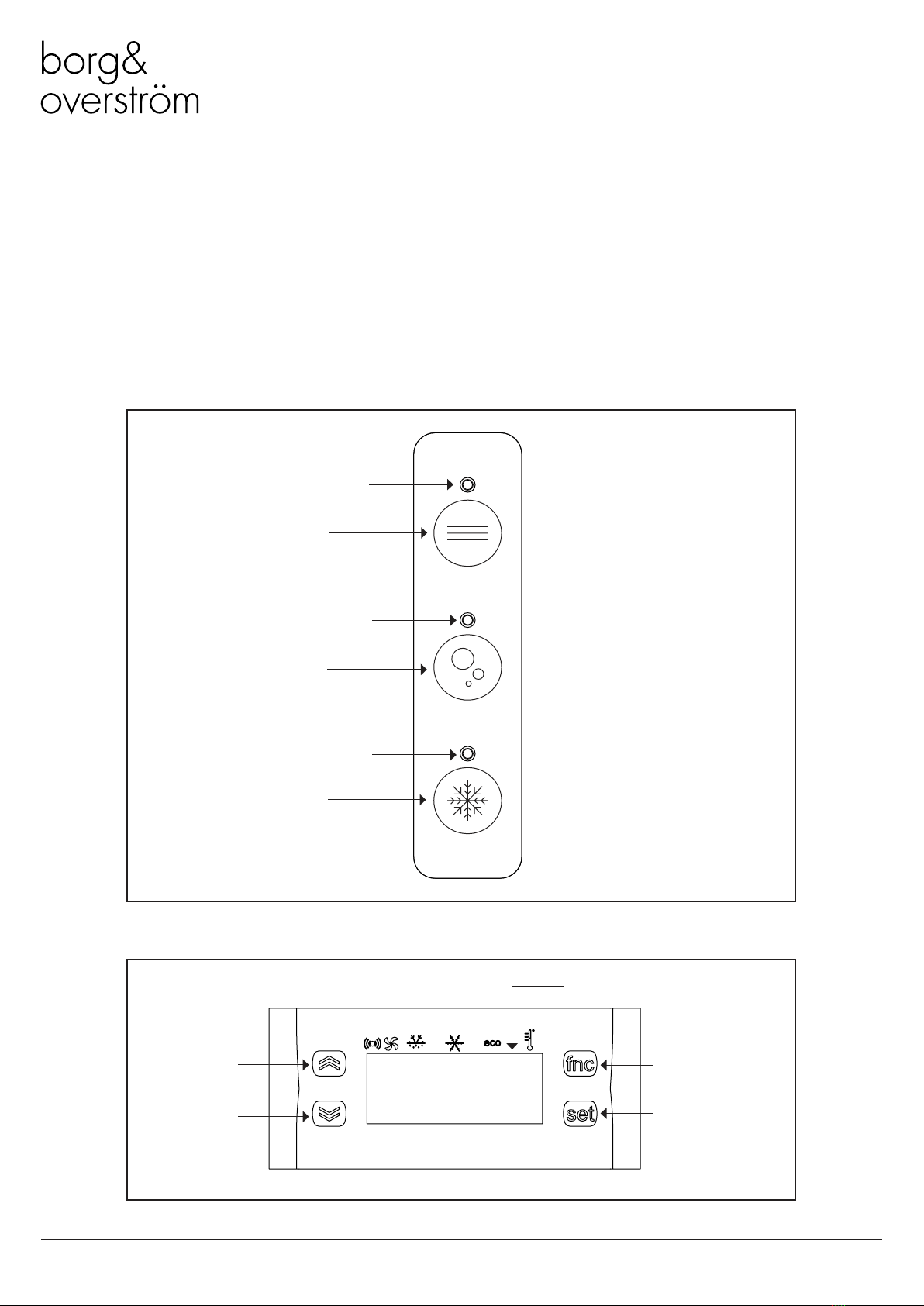

Functions & Controls
Sparkling Water Button*
Sparkling Water Indicator*
Cold Water Indicator
Tap Control Panel
8888
Control Button
Eliwell Control Panel
Control Button Function Button
Setting Button
Digital Display

Borg & Overström GB16Install & Operation Manual
1. Switch on Mains power – the display will
ash several times, then the fridge system
will switch on and the display will give a
steady reading, this is the temperature of
the water bath sensor.
2. Press and release the ‘Set’ button – The
display will show ‘SET’.
3. Press ‘Set’ again and the display will show
a numeric value (e.g. 9°C).
4. Raise or lower this gure to the desired
setting using the up or down arrows on the
left of the control display window.
5. When the correct setting is shown in the
display window press ‘Set’ button the
display will now show SET.
6. Press FNC button to return to the probe
temperature reading.
Basic Settings
8888
8888
Adjusting the Set Point:
1. Press and hold the ‘Set’ button until CP
shows on the display – Release the button.
2. Press ‘Set again, DIF will show on the
display.
3. Press ‘Set’ again and the display will show
a numeric value, (e.g. 1°C, the default
setting.)
4. Raise or lower this gure to the desired
setting using the up or down arrows on the
left of the control display window.
5. When the adjustment has been made press
‘Set’ again the display will show DIF.
6. If no further changes are required press
FNC again to exit.
Altering the Differential setting:
8888
8888
8888
NOTE: If no buttons are pressed for 15 seconds, the control will revert to temperature display
mode,and any changes to settings will be saved.
Controls

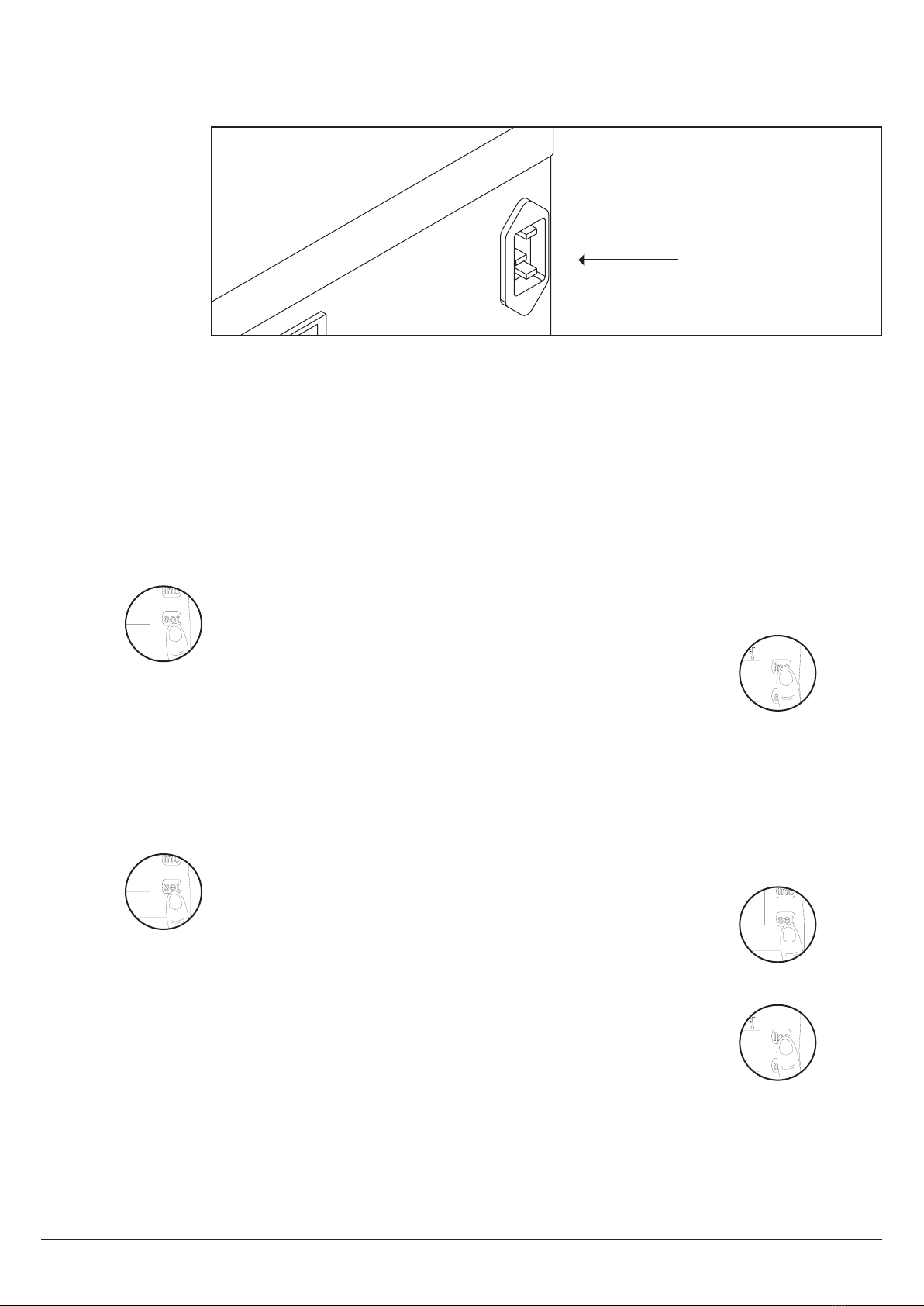

Power Connection Socket
Note: the undercounter unit
automatically powers up when the
power lead is connected.

Borg & Overström GB17Install & Operation Manual
CO2 Bottle Installation - Sparkling Versions Only
Allow the machine to stand for 8 - 12
minutes for the initial chilling process to
complete.
Unpack CO2 Regulator and t elbow tting
to spigot outlet.
Attach the regulator to the disposable CO2
bottle, ensuring the small pressure relief
vent in the stem is facing away from you or
anyone else. Ensure the regulator is closed.
Hand tighten securely.
Stand the cylinder in a suitable place. It is necessary to prime the sparkling system
with CO2 - push the sparkling button for a
few seconds until CO2 is coming through.
Check and adjust the CO2 pressure
accordingly.
Connect the assembled CO2 bottle and
regulator to the CO2 inlet using a ¼” pipe.
We recommend between 3.5 - 4 bar(58
PSI) (max). Do not exceed 4 bar pressure.
58 PSI
2
456
7
1 3
10
mins

Install & Operation ManualBorg & Overström GB18
Maintenance & Cleaning
Sanitisation Guide
NOTE: All maintenance operations must be carried out with the dispenser switched off. This
operation must only be carried out by trained staff. Every 6 months a sanitisation procedure is
recommended as follows:
Turn off incoming mains water.
Connect to lter head.Add 25 ml of Bioguard Internal
Sanitisation uid to a clean and
empty service lter cartridge.
Turn on incoming water, allow
service cartridge/doser to ll.
13
2
4 5
7
Dispense water using the cold
button until the water appears pink.
Briey press the ambient button
too. Repeat with sparkling button
if present.
Briey press cold/ambient dispense
button to release internal water
pressure from the machine.
Remove the existing lter.
Use Bioguard Hand Gel and put
on protective gloves.
8
Leave the solution inside machine
for sanitisation to take effect
(minimum 5 minutes) while
thoroughly cleaning the machine
externally
9
6
PINK
5
mins

Borg & Overström GB19Install & Operation Manual

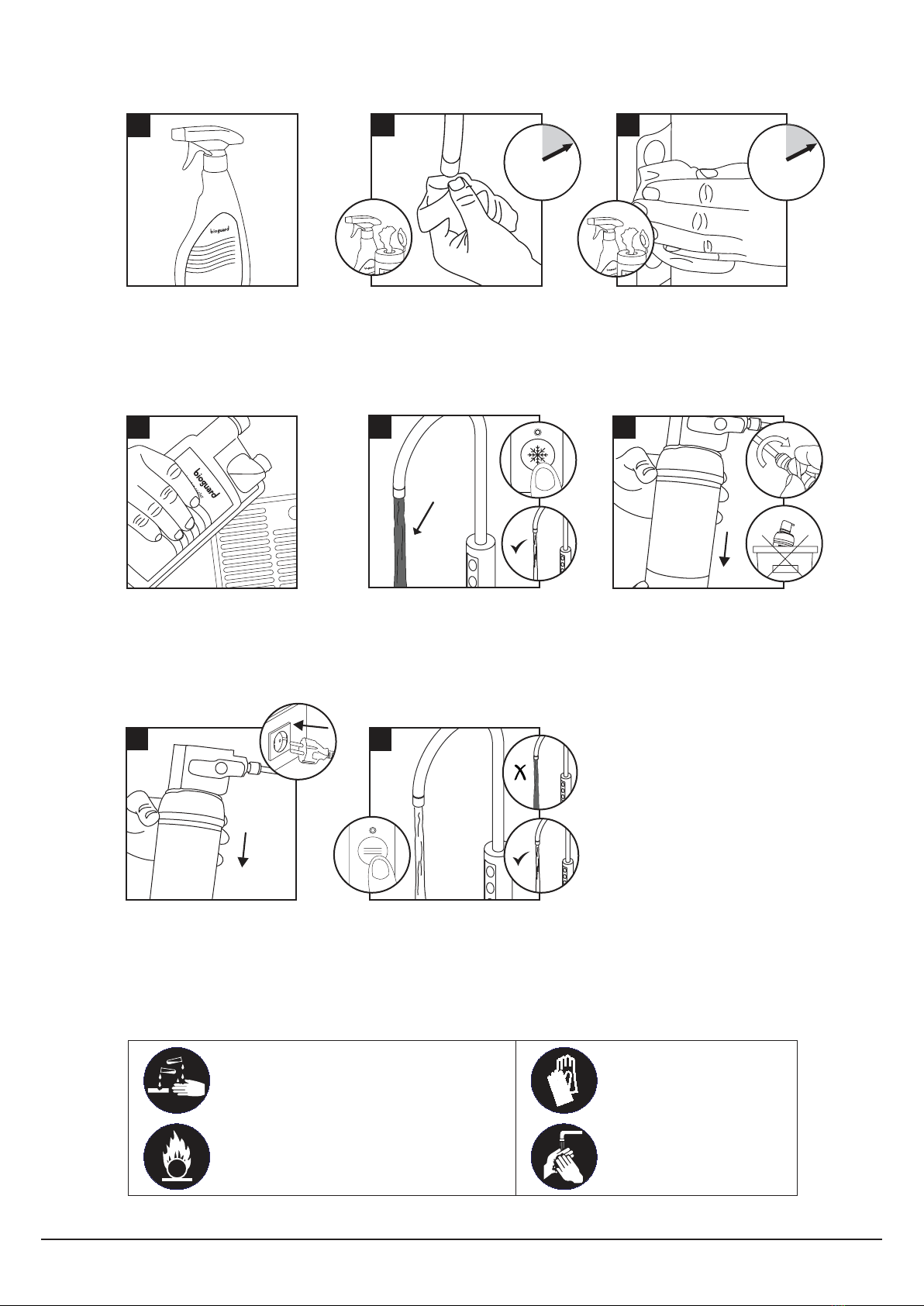

For this we recommend the use
of Bioguard Foam Descaler &
Sanitiser Spray.
Turn off water and remove the
service lter. Retain service lter
for reuse.
When the external cleaning
(minimum 5 minutes) is completed,
ush the machine using the cold
button with clean water until the
dispense water runs clear. Repeat
briey with the ambient and
sparkling buttons if present.
Fit new lter. Turn on incoming
water supply and reconnect the
power.
10 12
11
13
Pre-ush the new lter to waste
using the ambient button until
the water appears clear and is
free of air. Flush through a small
amount of water to check all
functions.
Pay particular attention to the
dispense faucet and the push
button controls. For this use
Bioguard External Sanitiser &
Clear Spray and Sanitising
Wipes.
Attend to any cosmetic marks
with Bioguard Rejuvenator &
Protector as needed.
Remember to include the drip
tray. If a Waste Overow
System is tted, empty this
and ush through with a small
amount of sanitisation uid if
needed.
15
14
16 17
Please note that this sanitisation uid contains an
active caustic/alkaline agent.
Always use responsibly and with care remembering
that due to its alkaline nature unnecessary
concentrated/prolonged contact with any materials,
including metals, can cause damage. Always rinse
all contact surfaces after use with clean water.
Avoid skin contact and wear
protective gloves when
handling sanitisation uids.
In the event of any skin
contact, ush immediately
with clean, cold water.
5
mins
PINK
5
mins

Borg & Overström GB20Install & Operation Manual
Emptying the CO2 Tank - Sparkling Versions Only
1
Turn off the water supply.
3
2
Press and hold the Sparkling
water dispense button until all
the water is expelled and only
CO2 gas is being released.
The tank is empty of sparking
water when only CO2 is being
released.
4
Ensure to release the Sparkling
water button and take care to
avoid releasing excess amounts
of CO2 gas as this may
damage the tank.
