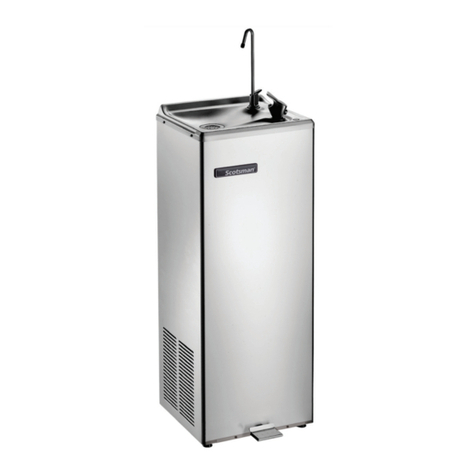

Scotsman SCW 8 LBP User manual

SCW 8 LBP
Water Coolers
Service Manual

2
TECHNICAL SPECIFICATION SCW 8 LBP
Water production L/h
Usg/g
22
5.8
Water inlet temperature °C
F
20
68
Water outlet temperature °C
F
8 ÷12
47 ÷54
Ambient temperature °C
F
25
77
Compressor CV HP 1/6
Watts Watt 160
Voltage Volt 230/50/1
Packing dimensions mm 400 x 420 x 1060
Packing volume m³0.178
Net weight kg
lbs
25
55
Gross weight kg
lbs
29
64
Refrigerant charge – R134a gr
oz
100
3.5
SCW 8 LBP

3
SECURITY SPECIFICATIONS
The SCW 8 LBP models are particaularly safe
as they are manufactured according to
international standards.
For installation and repair follow these
instructions:
Set a plug with ground according to National
and local rules.
Be sure that on the power line is installed a
multipolar switch with 3 mm minimum
clearance between the contacts.
The manufacturer declines all the
responsabilities for damages caused to person
and/or things if these rules are not followed.
Technical service must be carried out only by
specialized personnel.
Anyway, before each service, unplug the
machine assuring that hands are dry.
Don’t lean on the tap.

4
LOCATION AND INSTALLATION
For the correct installation:
A. Install an hand shut off valve on the water
supply line close to the Water Cooler
B. Install an ON-OFF switch on the power
supply line just before the Water Cooler
C. Install a water drain
Leave a space of 6-7 cm on each side of the
machine for correct ventilation.
The water flow can be adjusted by the adjusting
screw located on the back of the projector tap.
To install the glass filler first insert the plastic
lever then screw in gently the glass filler tube.

5
Place the water drain tube to the drain.
Level the machine in both directions by means
of the adjustable legs.
Connect the Water Cooler to the water supply
line (max 3 bar pressure) paying attention to
install a suitable water filter on the water supply
line so to avoid that impurities can came into
the machine.
Set the thermostat located on the rear side of the
machine to the number 3 (best wateroutlet
temperature).
Turn the screw clockwise for a colder water
outlet temperature counter clockwise for
warmer water.
WIRING
DIAGRAM
VFan Motor
MCompressor
TER Thermostat

ITEM PART NUMBER DESCRIPTION
1 CS 0001601110 CONDENSER
2 CS 0002781318 CONDENSER BRACKET
3 CS 0002641412 DRIER
4 CS 0001581178 COMPRESSOR
5 CS 0002781204 UNIT BASE
6 CS 0002781315 LEG
7 CS 0170110508 FRONT/SIDE PANEL
8 CS 0811001011 WATER TANK
9 CS 0002781324 LOWER BRACKET
ITEM PART NUMBER DESCRIPTION
11 CS 0003824910 THERMOSTAT
12 CS 0002521412 WATER FITTING (3/8F-1/2M)
13 CS 0002781325 UPPER BRACKET
16 CS 0000090096 DRAIN FUNNEL
17 CS 0002801318 TUBE PE (PER METER)
19 CS 0002781410 SINK
20 CS 0002521706 WATER TAP/PROJECTOR
21 CS 0002521705 GLASS FILLER
