Model Overview
© Copyright Borg & Overström.
This manual is printed by Borg & Overström and shall not be reproduced or copied in anyway.
All Models
All models are self-contained machines
with robust steel framed cabinets and
attractively injection moulded plastic
front, side and top panels. There is
sufcient space internally for most lters
to be tted behind the door panel.
An IEC Power Lead is supplied for
connection to the IEC socket found on
the rear of all models (An additional
Schuko type is supplied for the European
market).
The level control system also
incorporates a leak detection device
within the cabinet which isolates
the water to the unit in the event of
detecting a water leak.
Chilled
The cold temperature is thermostatically
controlled via the adjustment screw on
the back of the machine. This is factory
set and is not necessary to adjust in
most cases (see Controls).
Ambient
Water bypasses the cold tank for the
ambient dispense option.
Sparkling
Water is chilled as it passes through
the coil immediately before dispense
or being pumped under pressure into
the carbonator which it tted inside the
same coil. The carbonator is also level
controlled and allows the sparkling
effect to occur through saturation with
CO2.
Hot
The hot water is provided by hot water
tank with an integrated heater element.
The water is supplied directly into the
tank under the pressure as connected
into the back of the unit. The water lls
the tank and hot water is dispensed. The
water ow is controlled by a solenoid.
Introduction
A range of compact water dispensers, available in four different operational types:
• Chilled & Ambient
• Chilled, Ambient & Sparkling
• Chilled, Ambient & Hot
• Chilled, Hot & Sparkling

Install & Operation ManualBorg & Overström GB3
Controls
Factory set to:
Cold Thermostat
NB: Turn clockwise to decrease water temperature
-C
+C
Chilled
On/Off Switch: at upper rear of machine,
switches cooling operation on/off.
Cold Thermostat: at rear of machine.
Cold Button: press to dispense cold water.
Green LED (Top): Colours to show cooling
operation is switched on.
Green LED (Bottom): Colours to show when
compressor is operating/water is above set
point.
10A Fuse: On rear of machine, integral with
IEC socket.
Ambient
Ambient Button: Press to dispense ambient water.
Sparkling
Soda: Switches sparkling operation on/off.
Sparkling Button: Press to dispense sparkling water.
Yellow LED (bottom RH): Colours to show the
sparkling operation is switched on.
Hot
On/Off Switch: The hot water heating mode is
controlled by a switch on the back of the unit,
next to the cooling mode switch. This switch is
labelled “Hot”.
Hot Thermostat: regulated by a pre-set, non-
adjustable sensor on the tank.
Hot Button: press to dispense hot water.
Lock Button: toggles on and off the dispense of
hot water.
Red LED (on hot water icon): Colours to show
heating mode is enabled.
Red LED (marked heating): Colours to show
heating element is active according to
thermostatic demand.

Install & Operation ManualBorg & Overström GB4
Storage Cabinet
All models are tted with a lower storage area.
The door panel is hinged and fastened with magnetic catches. There is a removable
cover protecting the machine parts.
Every DC15 is supplied with a level sensor kit, comprising:
• Water container
• Level sensor module
Level sensor module
Water container

Install & Operation ManualBorg & Overström GB5
Installation

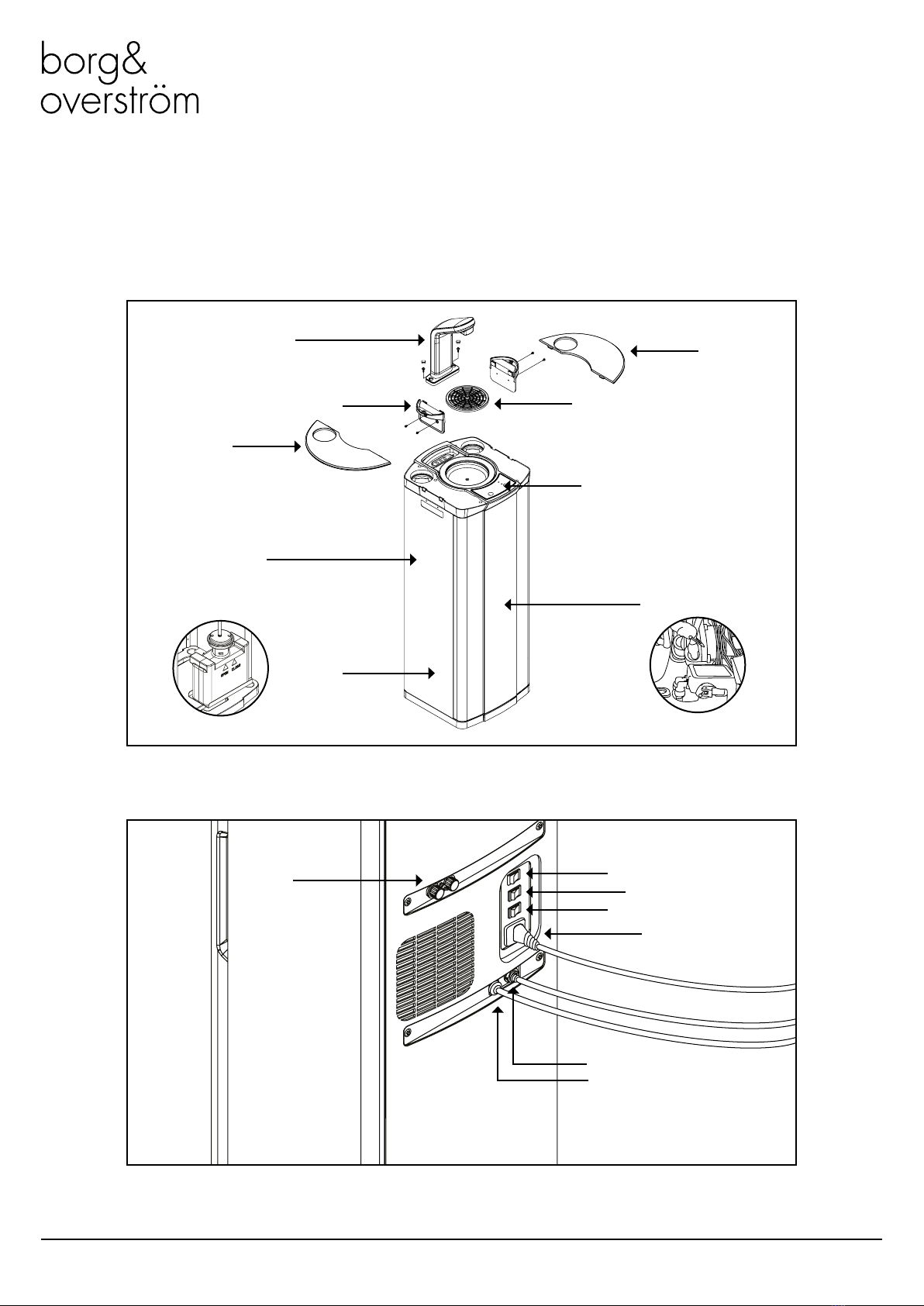

Major Components
Water & CO2 Connection
Carbonation Switch
Chilled PowerSwitch
IEC Power Socket
CO2 Connector (1/4”)
Inlet Water (1/4”)
Drain Port
Water Tap Set
Right Table Plate
Left Table Plate
Handle Drip Tray
Control Panel
Leak Detector Reset
Cold Tank
Level Sensor
7
Hot PowerSwitch

Install & Operation ManualBorg & Overström GB6
DLOC
CO2 Bottle Installation (Sparkling Versions Only)
IMPORTANT! ALWAYS ENSURE SECURITY CLIPS ARE
USED ON ALL WATER AND CO2 CONNECTIONS.
OFF
10 L 1
hour
Attach the regulator to the disposable
CO2 bottle, ensuring the regulator is
closed.
Connect the assembled CO2 bottle and
regulator to the machine using 1/4 inch
pipe.
After completing the water installation,
turn on the soda power switch and the
pump will run. Do not open the regulator
valve until the carbonated switch has
been turned on.
We recommend between 3.5 - 5 bar.
Do not exceed 5 bar pressure.
Flush through approximately 10 litres of
water. Check and adjust the CO2 pressure
accordingly.
It will be necessary to leave the machine for
up to 1 hour for sparkling water to develop,
by absorbing the CO2.
1 2
3 4
5 6
5 Max
bar

Install & Operation ManualBorg & Overström GB7
Level Sensor Assembly

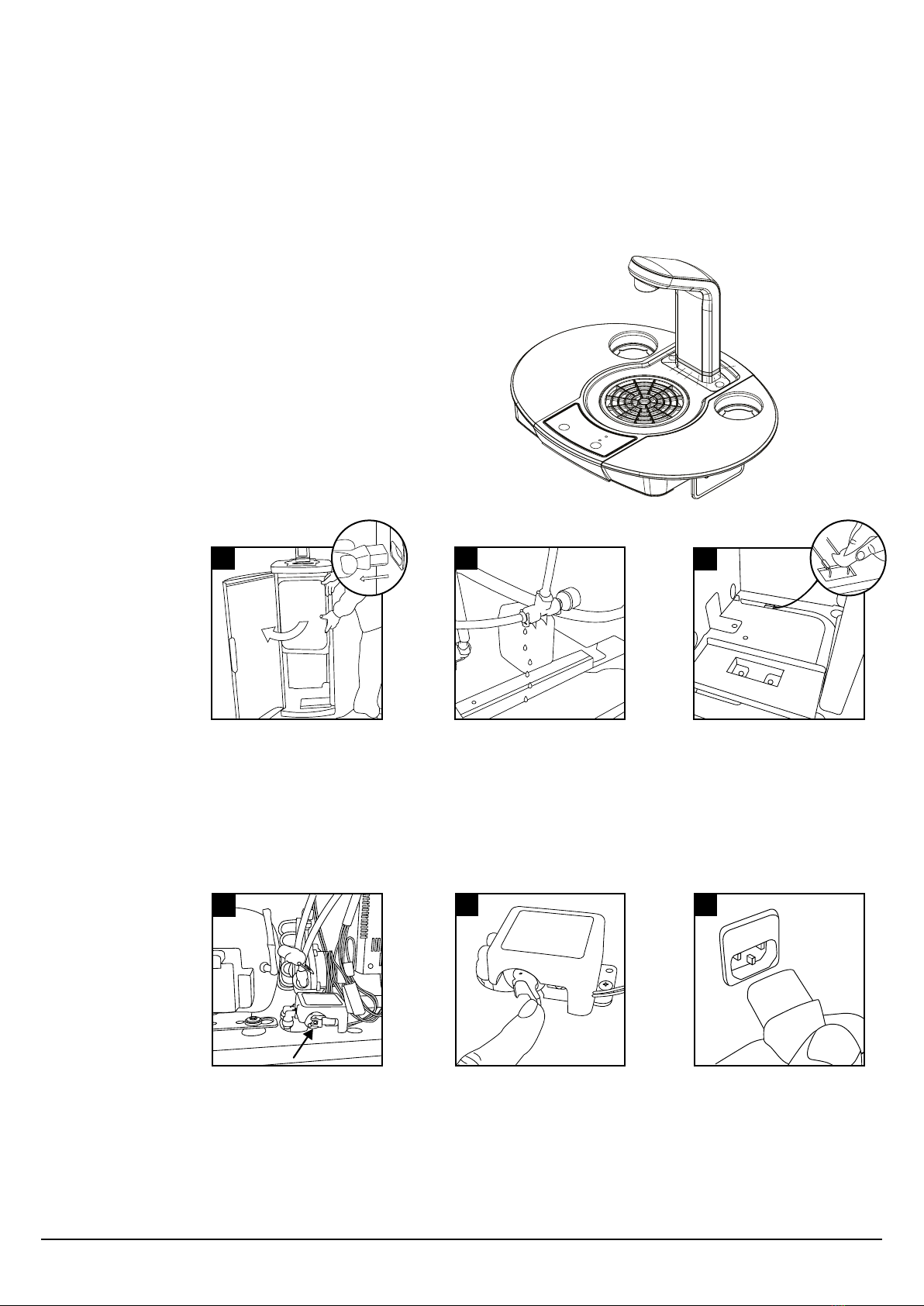

Check all parts are present. Locate and connect the drainage
tubing into the top of the level sensor
connector.
The LED lighting at the base of the
faucet will ash slowly for 1 minute.
This is also repeated every time a
dispense button is pressed.
Empty the waste container to cancel.
A WARNING TONE WILL SOUND WHEN THE WATER RISES. UPON EMPTYING THE
CONTAINER THE WARNING TONE WILL STOP.
12
3 4

Install & Operation ManualBorg & Overström GB8
Operation
DLOC
Water Connection & Operation

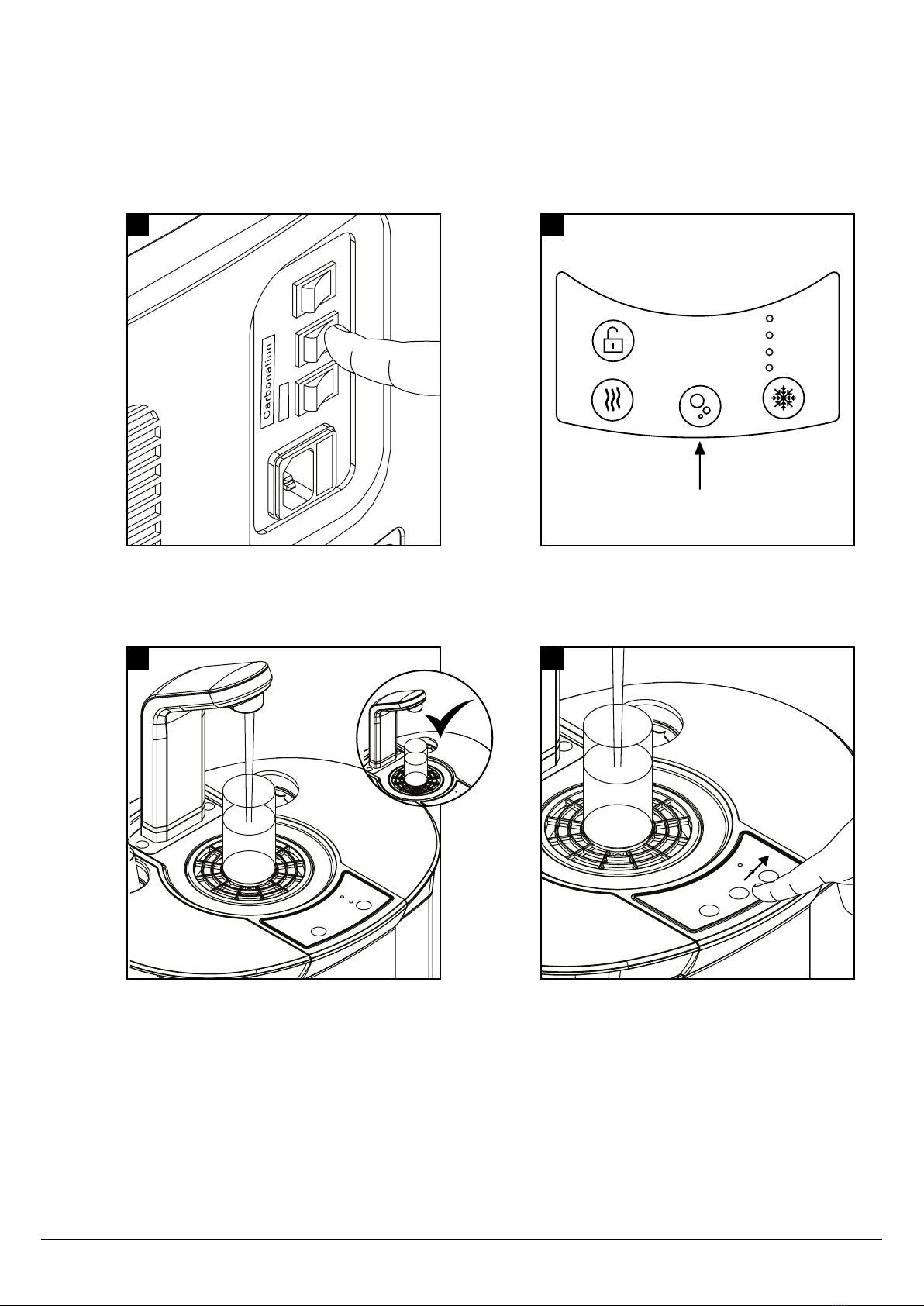

Connect and turn on the water
supply.
When the cold water switch is
turned on, the cold water and
chilling LED will be on.
Flush through 10 litres of water
before use.
The temperature of cold water
can be set from 4c to 10c.
When the chilling LED is off
the set temperature has been
reached. This can take up to
one hour.
13
2
DLOC
4 5
hot
cold
chilling
heating
6
hot
cold
chilling
heating
7
10 L
COLD
4c
10 c
When the heating LED is off the
pre-set temperature has been
reached. This can take up to
30mins.
Plug in the power supply,
cold, hot & sparkling tanks will
automatically ll.
Activate the carbonation & hot
power switch (if present).
Activate cold power switch.
8
hot
cold
chilling
heating

Install & Operation ManualBorg & Overström GB9
Functions & Controls
hot
cold
chilling
heating
General Safety
• Leave a space no less than 15cm
between the wall and dispenser.
• Keep the machine away from
sunlight, heat and moisture.
Ambient Water Button
Chilled Water Button
Hot Water Button
Hot Water
Lock Button
Sparkling Water Button
(selected models)
15cm

Install & Operation ManualBorg & Overström GB10
Maintenance
Isolation & Removal
12
3
Please make sure the machine is completely
disconnected from electricity before carrying
out any maintenance work.
Turn off the water supply.
To drain the Direct Chill tank, remove the cap on the back of the machine. We recommend it is retted
immediately upon draining being completed.
Cold water drain

Install & Operation ManualBorg & Overström GB11
Sanitisation Guide
NOTE: Before beginning the sanitation process please ensure that water is turned off at the mains and refer to the MSDS document
for further information. Use bioguard hand gel and ensure gloves are worn.
hot
cold
chilling
heating
1 2 34
5678
9 10 11 12
Briey press cold/ambient
dispense button to release
internal water pressure from
the machine.
Remove the existing lter. Add 25 ml of Bioguard
Internal Sanitisation uid to a
clean and empty service lter
cartridge.
Connect to machine.
Turn on incoming water, allow
service cartridge/doser to ll.
Dispense water using the cold
button until the water appears
pink. Briey press the ambient
button too. Repeat with
sparkling button if present.
Leave the solution inside
machine for sanitisation
to take effect (minimum 5
minutes) while thoroughly
cleaning the machine
externally, pay particular
attention to the dispense
faucet and button controls.
Remember to include the drip
tray. Empty the Waste Overow
System and ush through with a
small amount of sanitisation uid
if needed.
When the external cleaning
(minimum 5 minutes) is
completed, ush the machine
using the cold button with
clean water until the dispense
water runs clear. Repeat
briey with the ambient
button (and sparkling button if
present).
Turn off water and remove the
service lter. Retain service
lter for reuse.
Fit new lter. Turn on incoming
water supply.
Pre-ush the new lter to waste
using the ambient button (and
sparkling button if present)
until the water appears
clear and is free of air. Flush
through a small amount of
water to check all functions.
PINK

Install & Operation ManualBorg & Overström GB12
Leak Detection
NOTE: This machine is equipped with a leakage detection device. When leaking is
detected, the dispense operation will be cut off automatically. This is indicated by a
blue LED ashing at the base of the tap.
45
HOT
6
To reset:
Unplug the machine and remove
the protective cover.
Locate the source of leakage
and rectify.
Locate the detection probe which
can be found in the bottom at
the rear of the machine. Dry the
probes and internal area with a
dry cloth.
Locate the Leak Detector
valve.
Reset the red lever (push it in). Reconnect the power to machine
and test operation.
123

Install & Operation ManualBorg & Overström GB13
Emptying the Carbonation Tank
DLOC
1
Switch off the Carbonation System switch on the back of the
unit.
Press and hold the Sparkling water dispense button until all
water is expelled.
The tank is empty of sparking water when only CO2 is
being released.
Ensure to release the Sparkling water button and take care
to avoid releasing excess amounts of CO2 gas.
hot
cold
sparkling
heating
2
3 4

Install & Operation ManualBorg & Overström GB14
Advanced Troubleshooting
Fault Diagnosis: No Water Dispenses
Problem/Report Possible Cause Suggested Action
From Ambient Valve Water Supply turned off. Check all taps/valves/ lters on
incoming supply are tted and are
turned on.
No Electricity/Power Supply. Check power cord is connected and
live and machine is switched on.
“Waterblock” tripped off (and tank
empty).
Reset the “Waterblock” (refer to
manufacturer’s instructions and
check for any leaks).
Check valve action. Carefully
dismantle valve and clean out/
part replace/complete replace as
needed.
Solenoid Valve not working. Valve clicking but no water - Check
if hole in centre of washer is clear.
Valve not clicking - Check for
voltage output from control PCB
when operated (Caution-High
Voltage). If not present, check
wiring for continuity and/or replace
PCB. If present, check coil/PCB
and replace solenoid coil/whole
valve coil/whole valve assembly
complete/PCB as needed.
“Level Sensor” Waste Water
Container full (Blue LED will ash
slowly when the button is pressed.
This ashing cycle will repeat for
60 secs following the button being
pressed).
Empty the container. (The unit
will automatically reset to normal
operation.)
Leak detector has disabled
dispense operation.
Check for internal leakage, ensure
probes are dry and reset.
From Cold Valve Firstly all as for Ambient Tap. Carry out checks and actions as for
ambient tap.
Chiller tank frozen. Thermostat not
working correctly.
Thaw out and check thermostat.
Replace Cold Water thermostat as
needed.
Chiller tank Frozen tank. Pump not
working correctly.
Thaw out and check tank pump.
Replace pump and or check
electricity supply to pump present.

Install & Operation ManualBorg & Overström GB15
Problem/Report Possible Cause Suggested Action
From All Valves Button not being pressed enough. Press button rmly.
PCB control not working. Check & replace as necessary.
From Sparkling Valve Firstly as for ambient and cold
valve.
Carry out the checks and actions as
for cold and ambient.
Low or no CO2. Check and replace cylinder as
necessary.
Pump not operating. Check carbonator level control
system.
Check probes connected/Leads
attached. Check power supply to
pump.
Carbonator Tank over pressurised
with CO2.
1. Switch the Sparkling System off.
2. Shut off CO2 supply.
3. Press the Sparkling Water button
to release CO2 from carbonator.
4. Switch the Sparkling system on.
5. Check pump operation is
running normally.
6. Wait for the pump to stop
running.
7. Re-open CO2 supply.
Pump Feed Solenoid Valve. Check function/condition and
repair/replace accordingly.
Carbonation System switched off. Switch on (Switch on back of the
machine).
From Hot Valve Hot water lock button not being
pressed.
Press hot water lock button prior to
hot water button.
If during rst installation:
Ensure that the hot tank has lled.
This lls automatically upon rst
installation – allow 2-3 mins.
Check and follow installation
instructions.
If following normal usage:
Follow the same guidance as for
‘Ambient’ valve.
Hot Tank Level Probes
disconnected.
Hot Tank Level Probes have
limescale build-up/damage.
Hot Tank Level Control Failed.
Hot Tank has excessive limescale
build-up.
Hot Safety dispense function not
working.
Hot Tank Solenoid (ll solenoid)
failed.
Hot Water Dispense Pump failed.
Hot Water dispense pipe blocked.
Carry out checks.
Check and rectify, as necessary.
Check and clean/replace, as
necessary.
Replace Hot Tank Level Control
Board.
Check & Replace Hot Tank as
necessary.
Check & replace Main Control
Board as necessary
Check & Replace as necessary.

Install & Operation ManualBorg & Overström GB16
Fault Diagnosis: Water Dispenses but not Correct Temperature
Problem/Report Possible Cause Suggested Action
Ambient Water too Warm Low usage and/or fed from water
supply pipe in warm ducting.
Advise user replacing external
causes and solutions.
Cold Water not Cold Cooling switched off. Check switch positions.
Compressor runs and switching off
(cool/warm to touch) - Thermostat
set too high.
Decrease Cold Thermostat set
point.
Thermostat not working. Check and replace as necessary
Compressor runs but not switching off. Please contact technical support.
Refrigeration problem. Please contact technical support.
Compressor not running at all. Check and trace voltage path.
Check windings resistance.
No electricity power supply. Check the Power cord is connected,
live and the machine is switched on.
Compressor only hums slightly/briey. Check and replace relays.
Relays loose. Check and ret relays.
Compressor not working. Please contact technical support.
DC Tank empty. Check water level and replace level
sensor in ll valve as needed.
Fan not working. Check and replace, as necessary.
Hot Water not Hot Hot water mode switched off. Switch on hot water mode.
Heating cycle incomplete. Wait for heating LED to stop showing.
Hot water demand too high. Advise user/s.
hot thermostat not working. Replace thermostat.
Over heat function active (Heating
mode LED not showing while
heating mode switch on).
Reset switch on overheat
temperature sensor.
Hot Water Heater not working. Replace Hot Water Tank.
Fault Diagnosis: Water Leaks
Problem/Report Possible Cause Suggested Action
Water lying on top edge of lower
door panel and/or bottom of Cabinet.
Overowing Drip Tray waste
container.
Empty Waste Container and check
drainpipe is not blocked.
Water lying in bottom of machine. Level Sensors not working. Check operation and replace if
needed.
Leak in supply inlet pipe work and/
or lter.
Locate and repair accordingly.
Leak from machine water pipe work
ttings.
Locate and repair accordingly.
Check pressure and t pressure
reducing valve if needed.
DC tank overlling. Check level control sensor and ll
valve function.

Install & Operation ManualBorg & Overström GB17
Fault Diagnosis: Miscellaneous
Problem/Report Possible Cause Suggested Action
No LED Control Lights No electricity to Machine. Check power supply and reconnect
as necessary. (Also check out other
symptoms as described separately).
Check Fuse in IEC Socket. Replace if necessary.
Control PCB not working (Machine
working normally otherwise).
Check & replace PCB as
necessary.
Machine Shakes on Start-up Compressor Starting. No action needed. This is quite
normal.
Level Surface.
Uneven Surface. Level up machine using adjustable
feet.
Missing Fixings. Replace missing xings.
Tripping out Electricity Supply Machine in high humidity
environment.
Discuss possible repositioning with
customer.
Electrical circuitry faults. Test, identify and address
accordingly. See electrical
diagrams.
Please contact technical support.
No/Inadequate Water Dispenses Low incoming Water pressure. Consider re-plumbing to alternative
supply if possible or providing a
pressure boost system.
Low/no CO2 Pressure. Check regulator and/or replace
cylinder.
Intermittent Water Dispense From
Sparkling Water Valve
Trapped air in pipe work
(especially where water pressure is
low or after lter change).
Hold button on to purge air out.
(This could take several minutes
where pressure is low).
Use lter function if available.
Button not being pressed enough. Press button rmly N.B. This could
be caused by a surrounding cold
environment making the action
stiffer.
Control PCB not working. Check & replace as necessary.
Slow but Continuous Water
Dispense From Hot Water Valve.
Limescale build-up inside Hot Water
Tank/Hot Water Pump/Hot Water
Dispense Pipework.
Replace Hot Water Tank/Hot
Water Pump/Hot Water Dispense
Pipework, as necessary.
Hot Water Pump not working. Check & replace as necessary.
Intermittent Water Dispense &
Hammering Noise
Fluctuating mains water pressure
situation.
Contact Technical Support
regarding special replacement
washers available.
Continuous Water Dispense Button jammed on/ not working. Replace Control PCB and or/
button Panel as needed.
Debris blocking hole in diaphragm
washer.
Dismantle Valve and clean out.
Solenoid valve not working. Check valve and replace if
needed.

Install & Operation ManualBorg & Overström GB18
Chilled & Ambient Exploded Diagram
Expolded Diagrams & Parts List
S5
S30 S39
S30 S11
S6
S10
S40
S29
S15
S14
S13
S12
S4
S1
S2
S18
S24 S25
S19
S17
S8
S44
S22
S22
S48
S16
S16
S16
S26
S9
S20
S23
S27
S3
S28
S7
S34
S21

Install & Operation ManualBorg & Overström GB19
S47
S31
S52
S30
S9
S8
S1
S2
S3
S5
S6
S10
S4
S30 S11
S13
S12 S14 S15
S16
S16
S16
S16
S16
S17
S18
S19
S20
S22
S22
S27
S24 S25
S26
S28
S42
S29
S23
S9
S7
S34
S33
S21
S32
Chilled, Ambient & Sparkling Exploded Diagram

Install & Operation ManualBorg & Overström GB20
S50
S46
S43
S30
S9
S8
S1
S2
S3
S5
S6
S10
S4
S30 S11
S13
S12 S14 S15
S16
S16
S16
S16
S17
S18
S19
S20
S22
S22
S27
S24 S25
S28
S35
S36
S37
S38
S42
S29
S26
S23
S7
S34
S21
Chilled, Ambient & Hot Exploded Diagram
