CrateMuffler™ Installation Guide
*** Required Inlet/Outlet Muffler Orientation ***
Borla Performance Industries, Inc. created the CrateMuffler™ specifically for the high-end hot rod builder market. The Borla
CrateMuffler™ is an industry-first product tailored to specific engine displacement/power ratings. The Borla CrateMuffler™ is as
unique as the engines they’re matched to focusing on terrific sound, optimal performance, improved aesthetics, and minimal high-
way cruising cabin resonance. The materials and construction are Borla-proven T304 stainless steel with an upscale brush-finish
and the Borla Million-Mile Warranty.
Borla Performance engineers spent hundreds of hours fabricating, installing, and sound-testing many prototypes on various popu-
lar vehicle/engine configurations. This process included the available muffler space, typical hanger placement, and overall muffler
aesthetics. During the research and development we tested and evaluated each CrateMuffler™ on engines installed in numerous
vehicle platforms. In summary we optimized each CrateMuffler™ to function in a specific directional-flow of vehicle exhaust.
While your CrateMuffler™ will work if installed in a reverse direction, sound attenuation will be compromised if the ex-
haust flow is reversed. Please verify the exhaust flow is exiting the ENDPLATE side for the best sound and overall perfor-
mance.

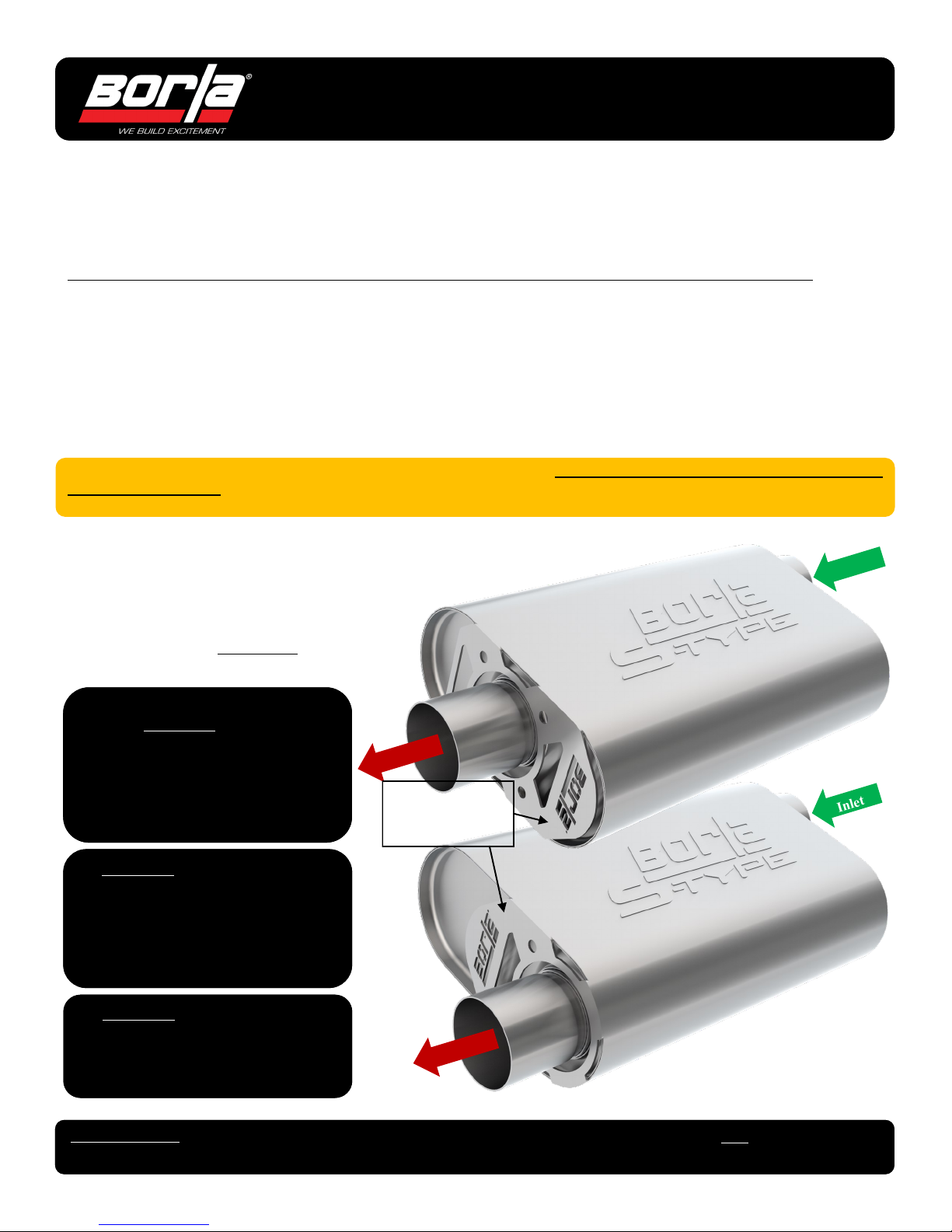

We incorporated visual design elements to help
ensure your CrateMuffler™ is properly installed.
Please refer to this installation guide for plan-
ning and during the installation process.
Here is a quick overview of the features and
advantages of the ENDPLATE on your
CrateMuffler™:
Offset-Offset CrateMuffler™
Outlet
Inlet
Offset-Center CrateMuffler™
Outlet
Inlet
WELDED
ENDPLATE
The OUTLET TUBE is located on the same
side of the ENDPLATE. The ENDPLATE is
welded-in with a Borla logo displayed when
viewed from the rear of the vehicle.
Whether you have Offset-Center or Offset-
Offset CrateMuffler™, you’ll get the best
sound and aesthetic advantages using this
orientation.
The ENDPLATE can be used as a direct-weld
mount for hangers or a removable hanger
mount using Borla ENDPLATE BRACKETS
(available separately*).
Either method ensures a terrific look and se-
cure mount. *Please see pages 2-6 of this in-
stallation guide for further information.
The ENDPLATE can be customized (by the
customer) to match the vehicle in paint or pol-
ishing. This option allows flexibility to the fab-
ricator for a unique finish to compliment the
vehicle.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
2 of 8
BORLA PERFORMANCE INDUSTRIES
CrateMuffler™ Touring Resonator Option
CrateMuffler™ Installation Guide
*** TOURING RESONATOR OPTION ***
At Borla Performance Industries, Inc. we understand what you hear in the exhaust note (engine sound and sound pressure levels) is
a subjective topic. While we can identify and minimize unwanted cabin resonances, the loudness or Sound Pressure Level (SPL) is
always a topic of discussion with a final decision determined by the vehicle owner.
Vehicle exterior SPL is measured in decibels (dB) using a calibrated instrument at a set distance, angle, and height from the ex-
haust system outlet. An interior SPL reading is a more complex measurement typically from the drivers seat using head-mounted
microphones. Frequencies vary throughout the rpm band and these variations at higher SPL may cause uncomfortable resonances
in the cabin. A solution to remedy this resonances is often fixed adding more muffler to attenuate the sound.
If you want to lower the SPL of your new CrateMuffler™, you can install the Borla Touring Resonator Option. The Tour-
ing Resonator Option is designed to attenuate overall sound. This is perfect for customers looking to reducing the sound level
2-3 dB(A). This straight-through design will not degrade the performance of your vehicle.
The Borla Touring Resonator Option is available in the same tubing diameters of your CrateMuffler™ and constructed in T304
stainless steel, and backed by the Borla Million-Mile Warranty. Borla recommends welding (not clamping) the Borla Touring Res-
onator Option for final installation.
The BORLA TOURING RESONA-
TOR OPTION is available in 2.25”,
2.50”, and 3.00” tubing diameters. The
outside diameter is 4.00” as it is designed
to fit in the tight spaces of the current
exhaust path. These are designed to be
welded (not clamped) for installation and
positioned in front of the CrateMuffler™
as shown.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
3 of 8
BORLA PERFORMANCE INDUSTRIES
CrateMuffler™ Installation Guide
*** OPTIONAL ACCESSORIES (Available Separately)***
Borla Performance Industries recommends that an exhaust shop or professional after market parts installer perform the installation of this system.
However, if you decide to perform the installation on your own it is recommended that two people work together. This installation should not be
performed by one person due to the risk of injury. Ensure the installers use all under car safety precautions including eye protection.
Please take time to read and understand the following…
By installing your Borla Performance Exhaust Accessory, you indicate that you have read this document and you agree with the terms stated
below.
It is the responsibility of the purchaser to follow all installation instruction guidelines and safety procedures supplied with your Borla Perfor-
mance Accessory.
Borla Performance Industries assumes no responsibility for damages occurring from misuse, abuse, improper installation, improper operation,
lack of responsible care, or all previously stated reasons resulting from incompatibility with other manufacturer’s products and/or systems.
Included with your Borla Performance Accessory is a warranty card. Please read it carefully before you begin any work on your vehicle. If you
should have any questions regarding our warranty policy, installation, or any other matter pertaining to your new Borla Performance Accessory,
please give us a call at the number provided on the warranty card.
60582 60581
60580 (3.00” Dia. Tubing)
60579 (2.50” Dia. Tubing )60578 (2.25” Dia. Tubing)
***** Please compare the parts in the box with the bill of materials provided *****
(view the following pages) to assure that you have all the parts necessary for this installation.
These instructions have been written to help you with the installation of your Borla Performance System. Please read this document completely be-
fore beginning the installation of your system.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
4 of 8
BORLA PERFORMANCE INDUSTRIES
60582 8-PC Hanger Kit
60581 Endplate Bracket Kit
BOLT-CIRCLE REFERENCE DIMENSIONS
Borla Performance - Bill of Materials PN-60582
Borla Performance - Bill of Materials PN-60581
NOTE: HANGERS IN THIS KIT ARE IN
STRAIGHT SECTIONS. BEND HANGERS AS
REQUIRED FOR INSTALLATION.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
5 of 8
BORLA PERFORMANCE INDUSTRIES

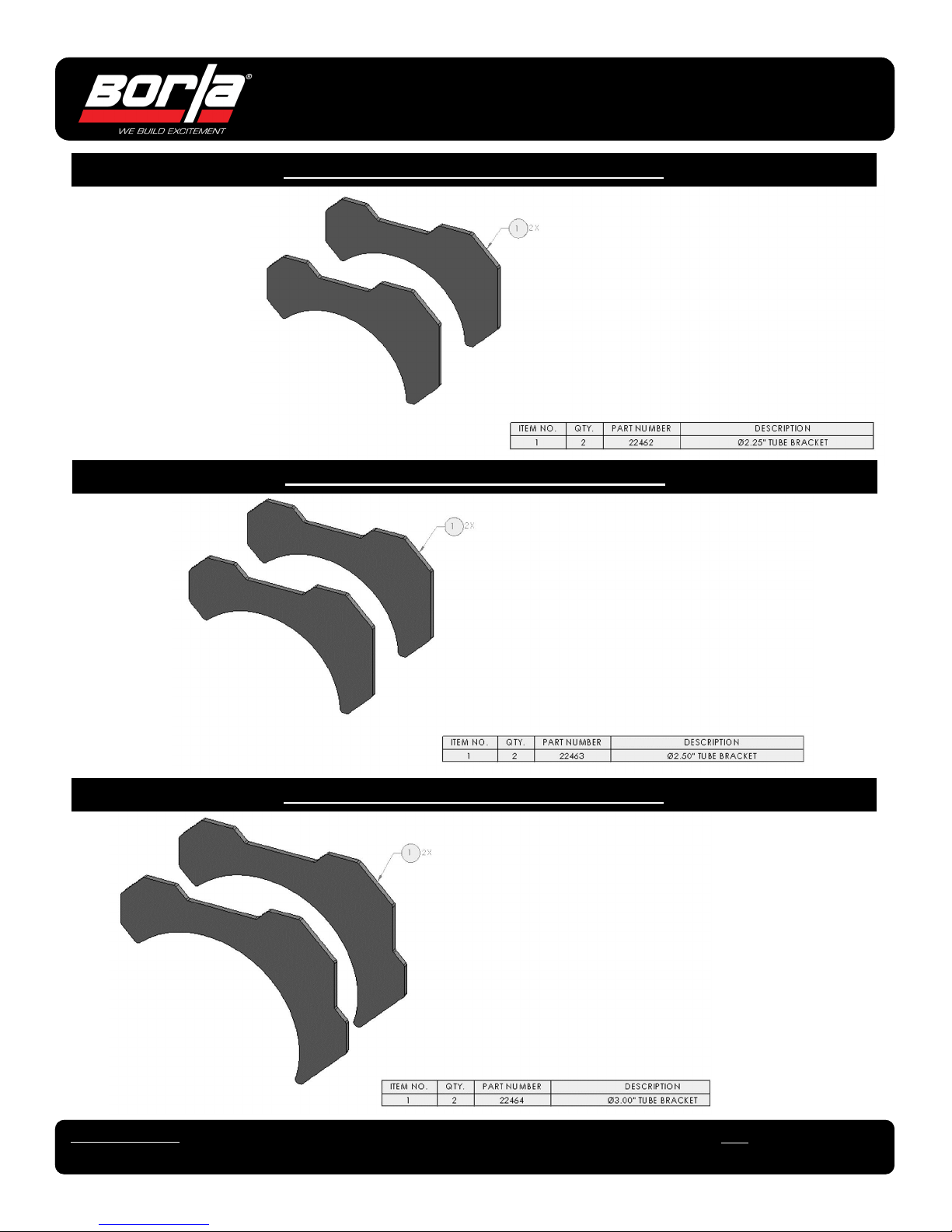

60578 2.25” Diameter Tube Brackets
60579 2.50” Diameter Tube Brackets
60580 3.00” Diameter Tube Brackets
Borla Performance - Bill of Materials PN-60578
Borla Performance - Bill of Materials PN-60579
Borla Performance - Bill of Materials PN-60580

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
6 of 8
BORLA PERFORMANCE INDUSTRIES
ENDPLATE BRACKET KIT INSTALLATION
The Borla CrateMuffler™ Endplate Bracket Kit allow the fabricator to create a service-removable hanger system. This approach also al-
lows unlimited customization (by the customer) in color-matching or polishing components for builders looking for creative detailing.
Borla Endplate Brackets bolt directly to the Borla CrateMuffler™ Endplates with slip-on U-Nuts and M6 bolts/washers. They can be rotat-
ed 90-degrees (4-positions) on Center-Exit Borla CrateMuffler™ allowing design flexibility. (Note: Endplate Brackets have (1) single-
position on Offset-Exit Borla CrateMuffler™).
Hangers are welded to Borla Endplate Brackets; hangers are inserted into rubber isolators (kit available separately, PN-60582). This system
allows the fabricator to complete a styled hanger tailored to the vehicle.
RECOMMENDED HANGER WELDS for a CENTER-EXIT ENDPLATE BRACKET
RECOMMENDED HANGER WELDS for a OFFSET-EXIT ENDPLATE BRACKET
M6 Bolt Torque:
6-10 ft. lbs.
M6 Bolt Torque:
6-10 ft. lbs.
(4)
NOTE: HANGERS IN
OPTIONAL KIT ARE IN
STRAIGHT SECTIONS. BEND
HANGERS AS REQUIRED
FOR INSTALLATION.
NOTE: HANGERS IN
OPTIONAL KIT ARE IN
STRAIGHT SECTIONS. BEND
HANGERS AS REQUIRED
FOR INSTALLATION.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
7 of 8
BORLA PERFORMANCE INDUSTRIES

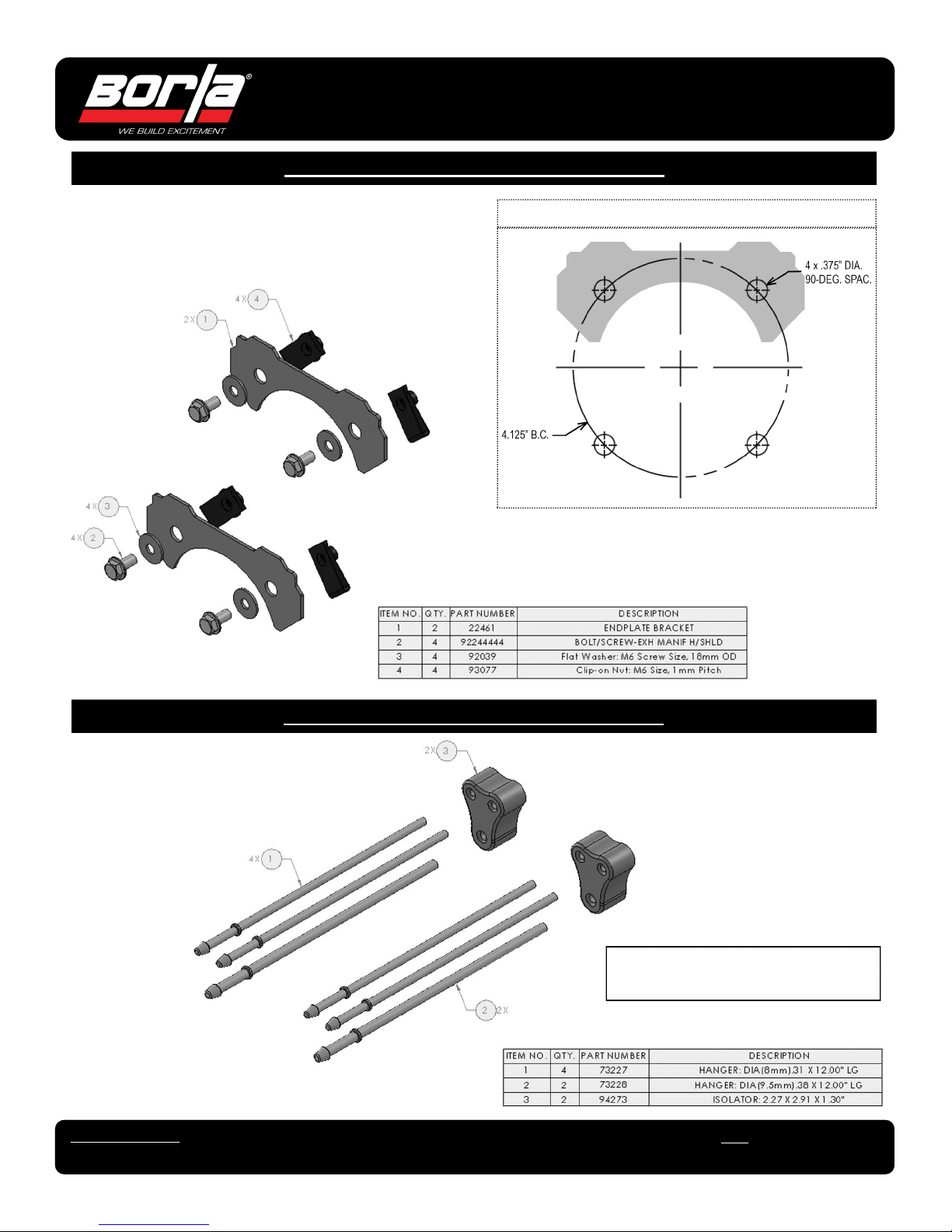

8-PIECE BRACKET KIT
The Borla 8-Piece Bracket Kit is designed to compliment Borla Endplate Brackets (PN-60581) and Borla Tubing Brackets
(PNs 60578, 60579, or 60580) which completes the Borla CrateMuffler™ system. This system enables the fabricator to de-
sign a styled hanger tailored to the vehicle.
M6 Bolt Torque:
6-10 ft. lbs.
ISOLATOR
9.5MM HANGER
8MM HANGERS
TYPICAL HANGER BEND LAYOUT - CENTER-EXIT CrateMuffler™ (LEFT-SIDE)
NOTE:
TYPICAL LEFT-SIDE INSTALLATION
IS SHOWN ON THIS PAGE.
PLEASE MIRROR THIS INSTALLATION
FOR RIGHT-SIDE INSTALLATION.
NOTE: HANGERS IN OPTIONAL KIT ARE IN STRAIGHT SECTIONS. BEND HANGERS AS REQUIRED FOR INSTALLATION.

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
8 of 8
BORLA PERFORMANCE INDUSTRIES

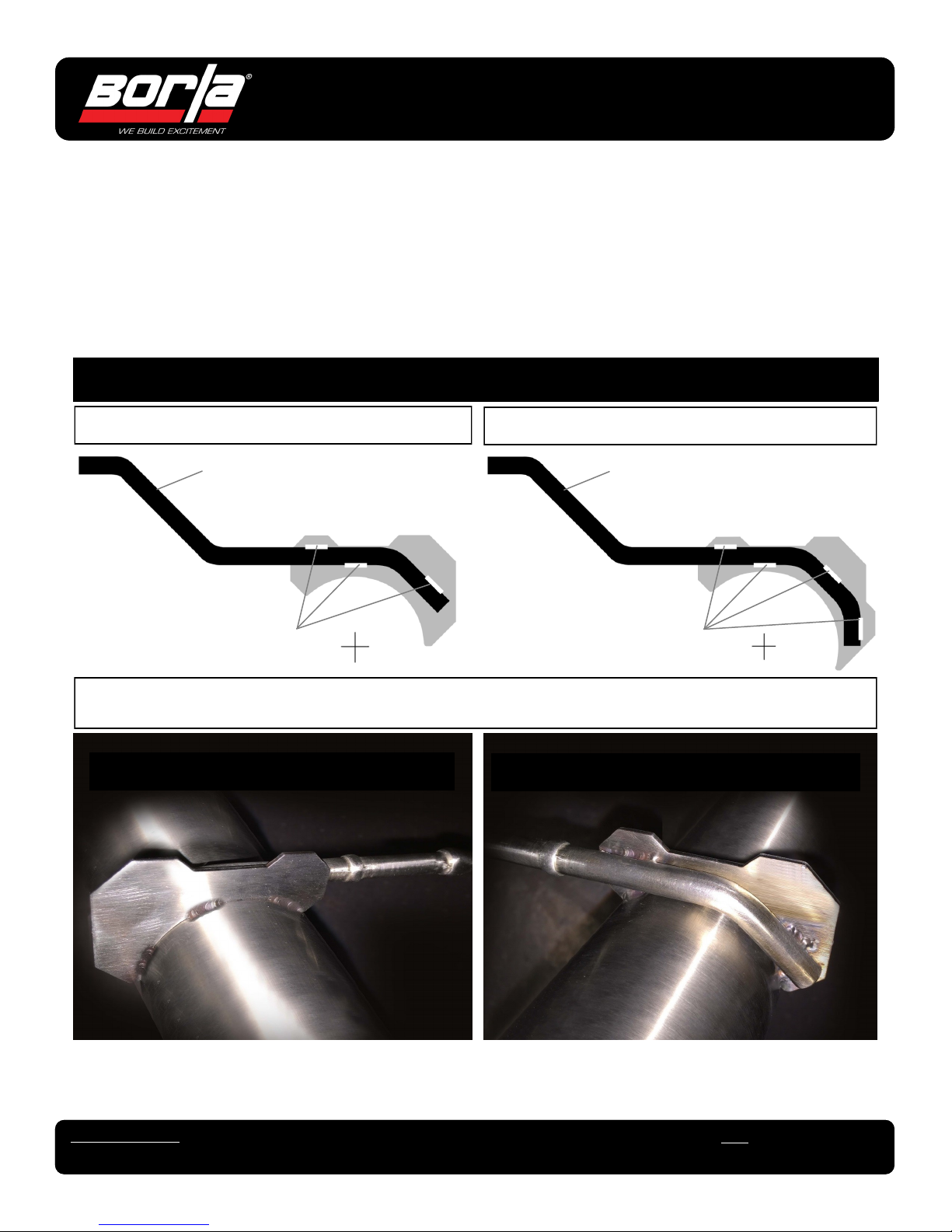

TUBE BRACKETS
Borla Tube Brackets compliment Borla CrateMuffler™ aesthetics. They require less time to install (compared to bending
hanger rod to match tubing diameter) and with some creativity, there is flexibility to create a custom look.
Exhaust tubing is secured with welded Borla Tube Brackets, welded hangers inserted into rubber isolators (kit available sepa-
rately, PN-60582). This system allows the fabricator to complete a styled hanger tailored to the vehicle.
FRONT-SIDE WELD EXAMPLE BACK-SIDE WELD EXAMPLE
(RECOMMENDED) MINIMUM HANGER WELD LOCATIONS (BACK-SIDE)
Custom Bend Hanger
(4) Welds
60580 (3.00”)
Custom Bend Hanger
(3) Welds
60578 (2.25”) & 60579 (2.50”)
NOTE: HANGERS IN OPTIONAL KIT ARE IN STRAIGHT SECTIONS. BEND HANGERS AS REQUIRED FOR INSTALLATION.
