Bosch Worcester GREENSTAR HEATSLAVE EXTERNAL 12/18 User manual

GREENSTAR HEATSLAVE EXTERNAL
12/18, 18/25, 25/32
EXTERNAL OIL FIRED CONDENSING COMBINATION BOILER
BALANCED FLUE
FOR OPEN VENT AND SEALED CENTRAL HEATING SYSTEMS WITH
DOMESTIC MAINS FED HOT WATER
THE BOILER IS FOR USE WITH
KEROSENE (28 SECOND OIL) ONLY
UK
USER INSTRUCTIONS & CUSTOMER CARE GUIDE
8 716 113 390e 30/3/10 14:05 Page 1

CONTACT INFORMATION
WORCESTER, BOSCH:
TECHNICAL: 0844 892 3366
SERVICE: 0844 892 3000
SERVICE (EIRE) 01494 0099
LITERATURE: 0844 892 9800
SALES: 01905 752640
WEBSITE: worcester-bosch.co.uk
USER INSTRUCTIONS &
CUSTOMER CARE GUIDE
PLEASE READ THESE
INSTRUCTIONS CAREFULLY BEFORE
OPERATING YOUR BOILER
THESE INSTRUCTIONS ARE
APPLICABLE TO THE WORCESTER,
BOSCH GROUP BOILER MODEL(S)
STATED ON THE FRONT COVER OF
THIS MANUAL ONLY AND MUST NOT
BE USED WITH ANY OTHER MAKE OR
MODEL OF BOILER.
THE INSTRUCTIONS APPLY IN
MAINLAND UK ONLY AND SHOULD BE
FOLLOWED EXCEPT FOR ANY
STATUTORY OBLIGATION.
IF YOU ARE IN ANY DOUBT CONTACT
THE WORCESTER, BOSCH GROUP
TECHNICAL SUPPORT.
THIS BOILER MUST BE INSTALLED BY
A OFTEC REGISTERED, COMPETENT
PERSON. FAILURE TO INSTALL
CORRECTLY COULD LEAD TO
PROSECUTION.
PLEASE LEAVE THIS GUIDE, THE
INSTALLATION INSTRUCTIONS AND
THE COMPLETED CHECKLIST WITH
THE USER.
NOTE: A CHECKLIST AND SERVICE
INTERVAL RECORD CAN BE FOUND
AT THE REAR OF THE INSTALLATION,
COMMISSIONING AND SERVICE
INSTRUCTIONS.
ABBREVIATIONS:
SEDBUK Seasonal Efficiency for Domestic
Boilers in the United Kingdom.
OFTEC Oil Firing Technical Association for the
Petroleum Industry.
USER INSTRUCTIONS &
CUSTOMER CARE GUIDE
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
8 716 113 390e 30/3/10 14:05 Page 2

CONTENTS
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
1
CONTENTS
INTRODUCTION
DEDICATED TO HEATING COMFORT 1
SAFETY PRECAUTIONS 2
USING YOUR BOILER
CONTROLS 3
OPERATING THE BOILER
Switching the boiler on/off 4
Central heating temperature control 4
Controlling central heating 4
Setting the hot water temperature 5
Frost protection 5
Pressure gauge 6
Filling loop 7

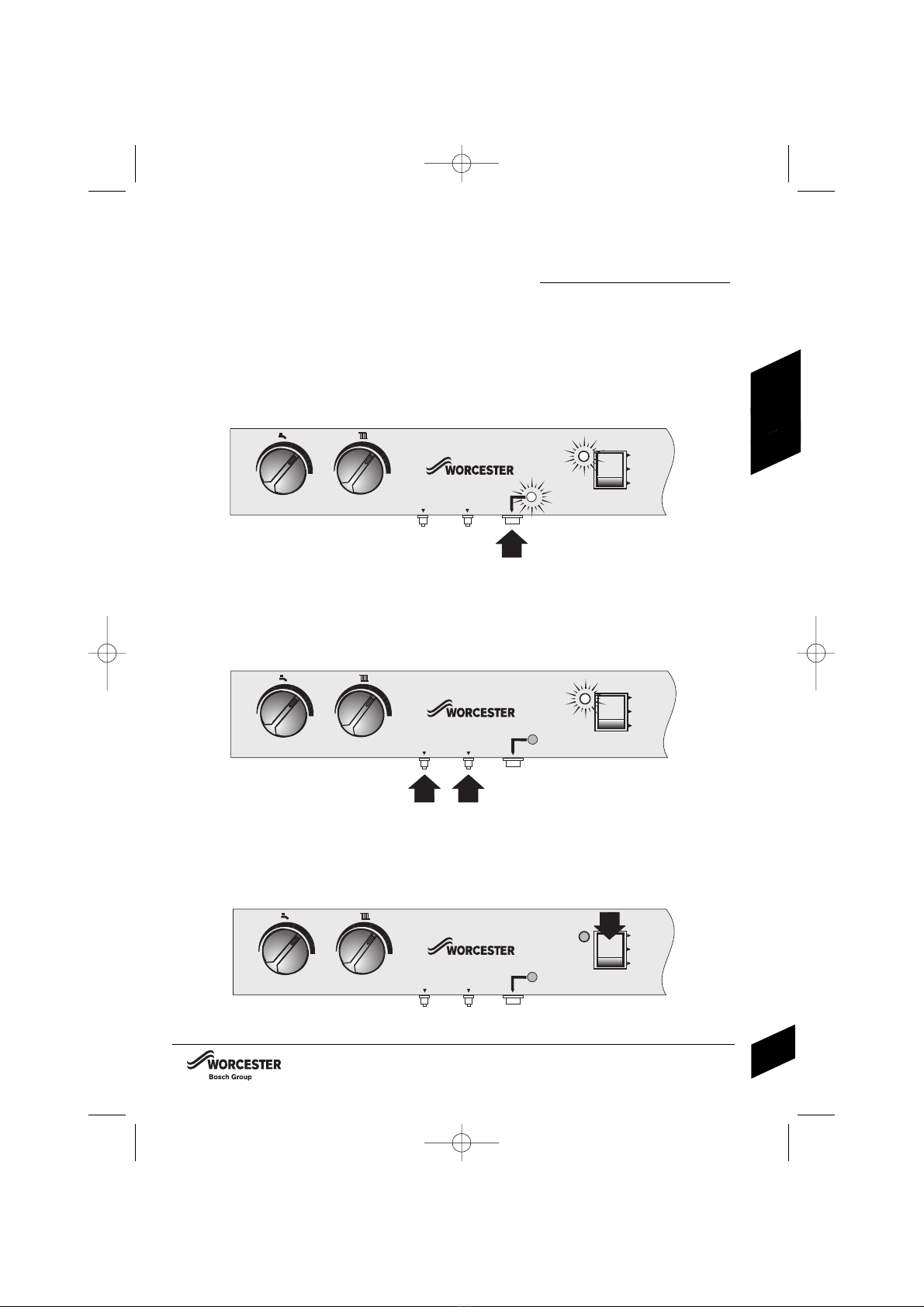

Fault conditions 8
Fault finding 10
MAINTENANCE

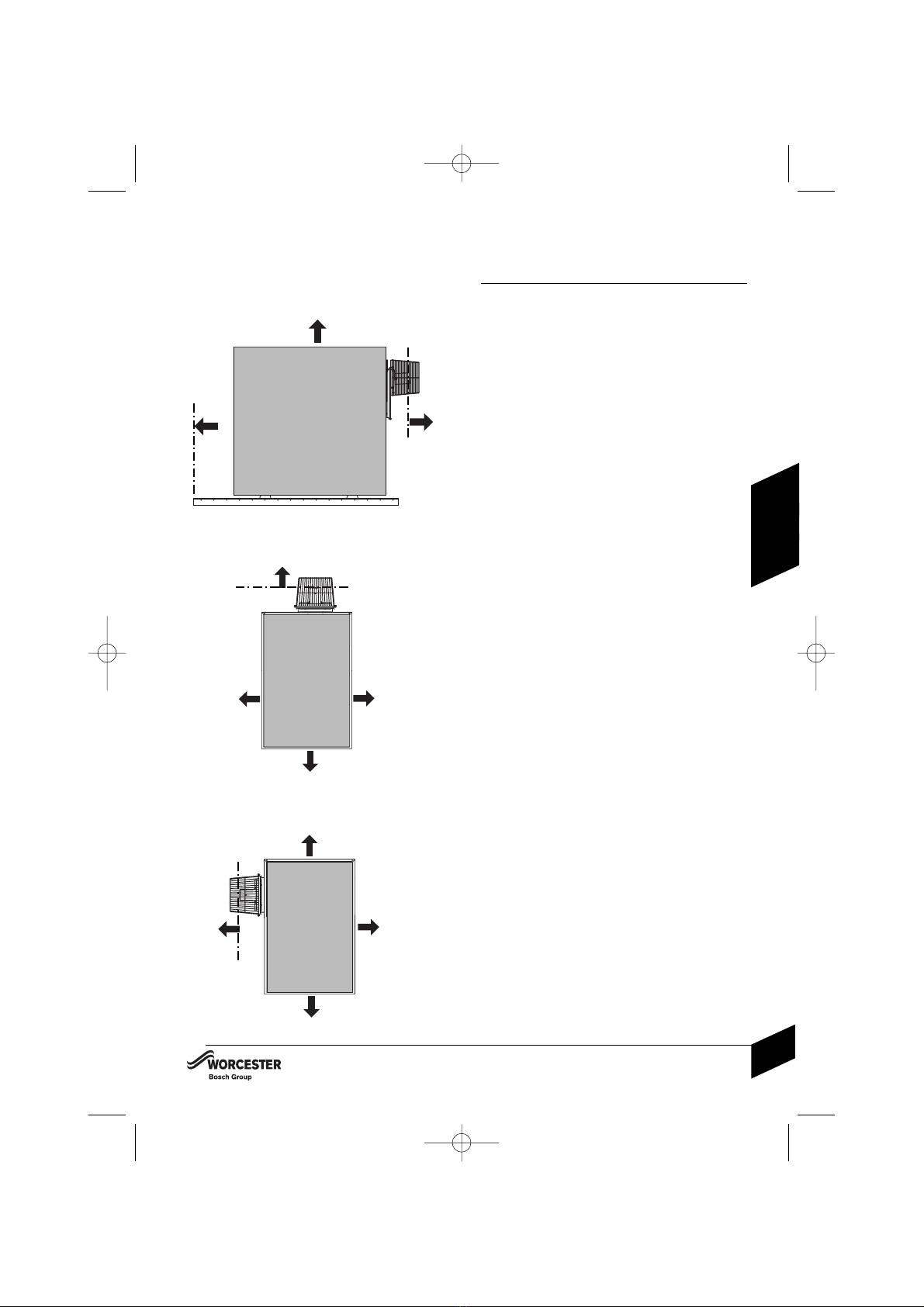

LOCATION & CLEARANCES 11
MAINTAINING YOUR BOILER 12
SERVICING 13
GENERAL INFORMATION
GENERAL NOTES 14
ENERGY SAVING
TIPS ON ENERGY SAVING 15
GUARANTEE
FAULT OR BREAKDOWN 16
YOUR GUARANTEE AND REGISTRATION 17
INTRODUCTION
USING YOUR
BOILER
GENERAL
INFORMATION
ENERGY
SAVING
Dedicated to heating comfort
Thank you for purchasing a Greenstar oil fired condensing boiler from Worcester,
Bosch Group. The company prides itself on manufacturing boilers to the strictest
quality control standards throughout every stage of production.
Worcester, Bosch Group has led the field in innovative boiler design and
performance for more than 40 years. This heritage means all products are of
exceptional quality and proven reliability.
The condensing range in particular, is extremely energy efficient, converting more
of the fuel consumed into heat offering you economical running costs and value
for money. It sits in SEBUK band A, at the top of the energy rated boilers
available.
There is also the assurance of our no-nonsense parts and labour guarantee -
backed up by an optional servicing and maintenance contract to keep your boiler
operating at peak condition and efficiency.
To find out more about Worcester, Bosch Group, log onto
worcester-bosch.co.uk.
MAINTENANCE
GUARANTEE
8 716 113 390e 30/3/10 14:05 Page 3

SAFETY PRECAUTIONS GREENSTAR HEATSLAVE EXTERNAL12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
2
INTRODUCTION
SAFETY PRECAUTIONS
OIL FUMES OR LEAKS FROM THE BOILER:
Extinguish any naked flames.
Switch off the boiler electricity supply.
Isolate the fuel supply to the boiler.
Contact installer/service engineer.
IMPORTANT:
This boiler must only be operated by a responsible adult who has been instructed in,
understands and is aware of the boiler’s operating conditions and effects.
HEALTH & SAFETY:
The appliance contains no asbestos and no substances have been used in the construction
process that contravene the COSHH Regulations (Control of Substances Hazardous to Health
Regulations 1988). Where applicable, the CE mark indicates compliance with relative
EU Directives.
COMBUSTIBLE AND CORROSIVE MATERIALS:
Do not store or use any combustible materials (paper, thinners, paints etc.) inside or within the
vicinity of the boiler.
The combustion air must be kept clear of chemically aggressive substances which can corrode
the boiler and invalidate any warranty.
FITTING & MODIFICATIONS:
Fitting the boiler and any controls to the boiler may only be carried out by a competent
engineer in accordance with the relevant Installation Regulations.
Flue systems must not be modified in any way other than as described in the fitting instructions.
Any misuse or unauthorised modifications to the boiler, flue or associated components and
systems could invalidate the warranty. The manufacturer accepts no liability arising from any such
actions, excluding statutory rights.
This boiler is suitable for use with kerosene only, no other fuel may be used.
DO NOT OPERATE THE APPLIANCE WHEN:
The appliance, flue or system is incorrectly fitted, faulty or damaged.
The flue terminal outlet is obstructed or damaged.
There are fumes, fuel leaks or fuel smells from the fuel supply, appliance or internal flue system.
The system is empty, frozen or unpressurised (sealed systems).
The condensate pipe is blocked or restricted.
The appliance clearances are inadequate.
The air supply is restricted or vents damaged.
8 716 113 390e 30/3/10 14:05 Page 4

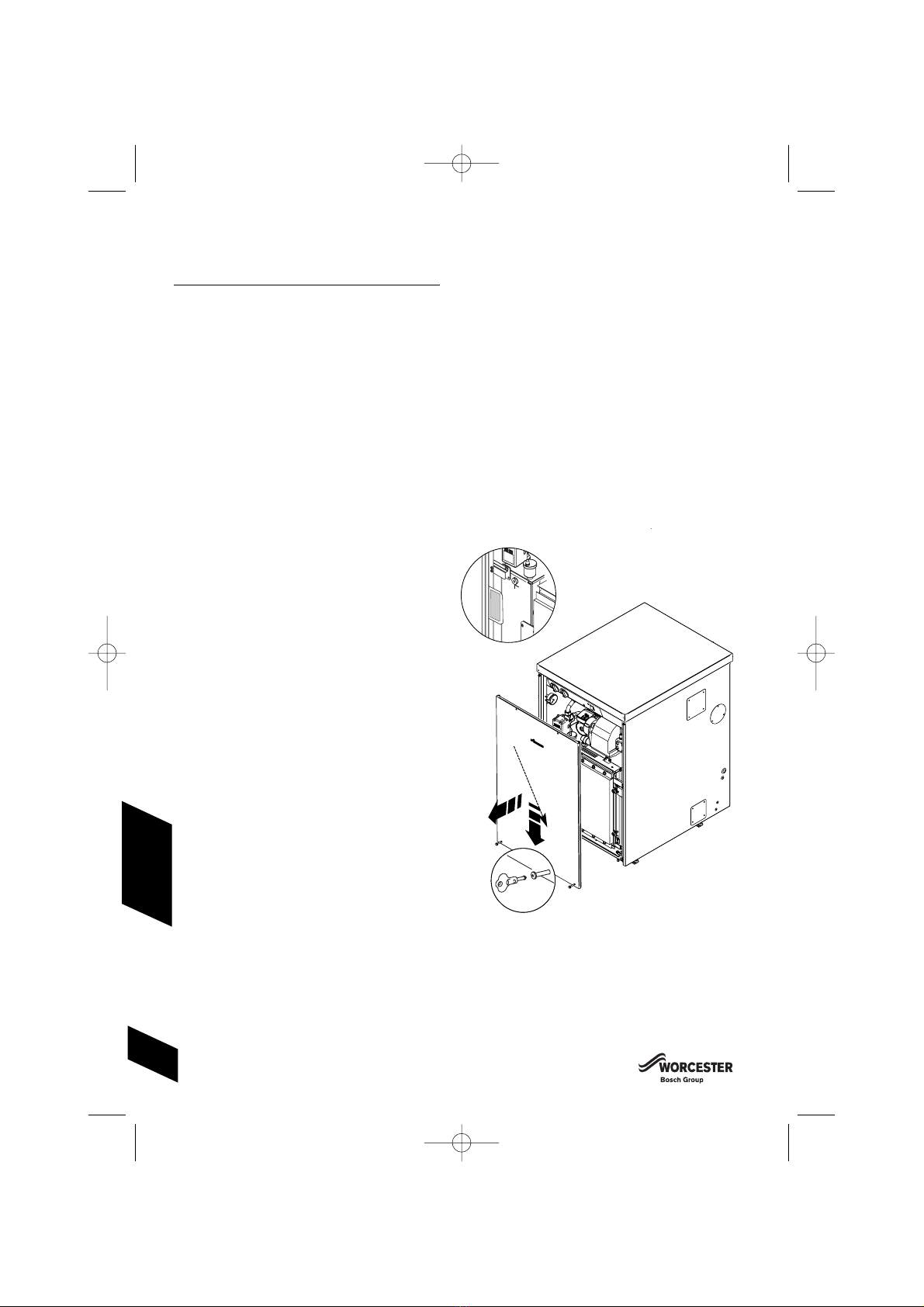

To remove the front panel, undo the screws on each side of the base of the front panel using the tool
provided (see diagram below). The panel can then be removed by pulling out at the base and then sliding
down to disengage from the lid.

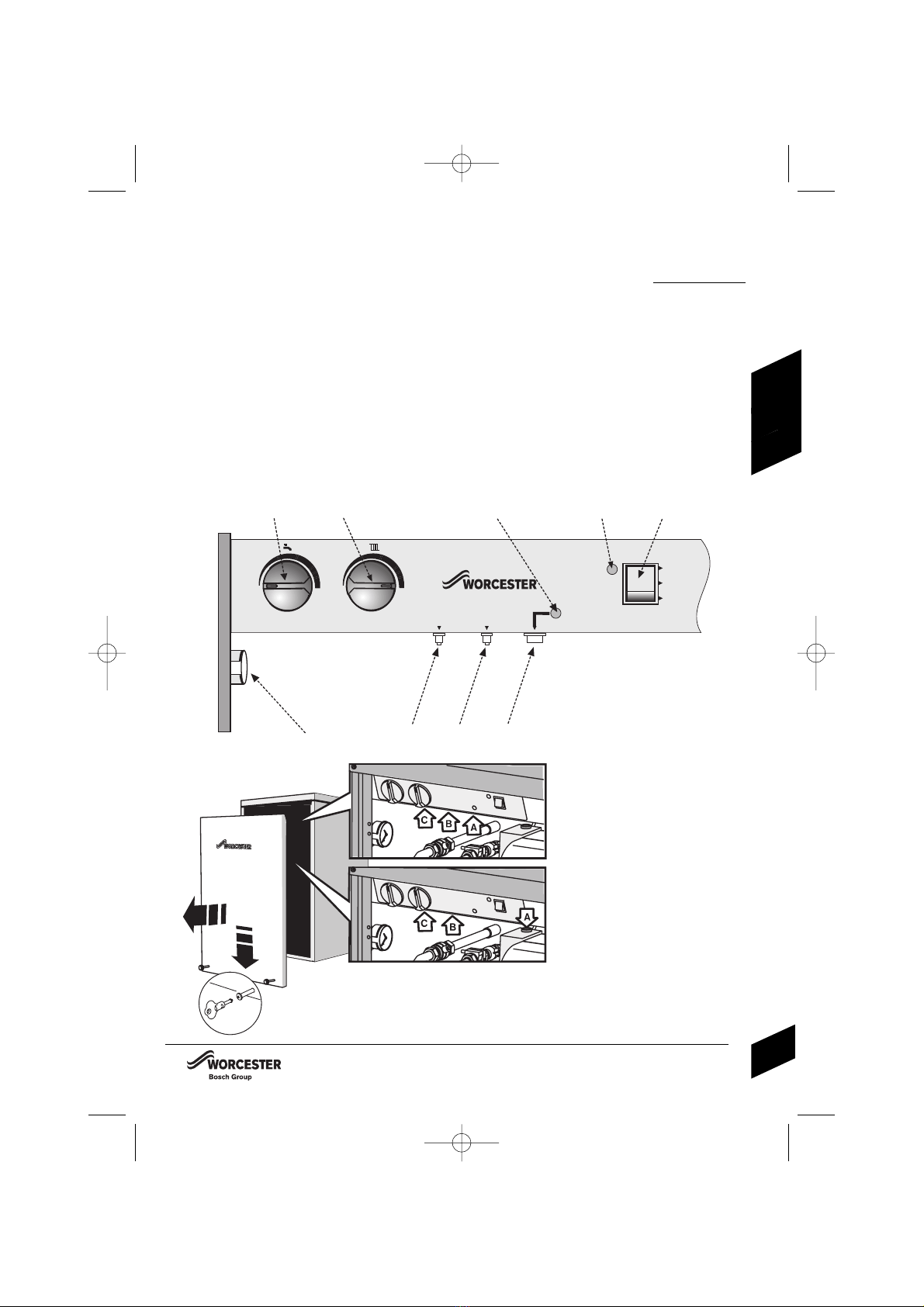

A Reset button - lock out*. *The alternative reset is accessed by reaching under the fascia and pressing
the reset button on the control box of the burner (see diagram below).
B Reset button - boiler.
C Reset button - flue thermostat.
D Hot water temperature control.
E Central heating temperature control.
F Lock-out indicator.
G Boiler mode indicator.
H Mode switch, Boiler ON or Service.
I Pressure gauge.

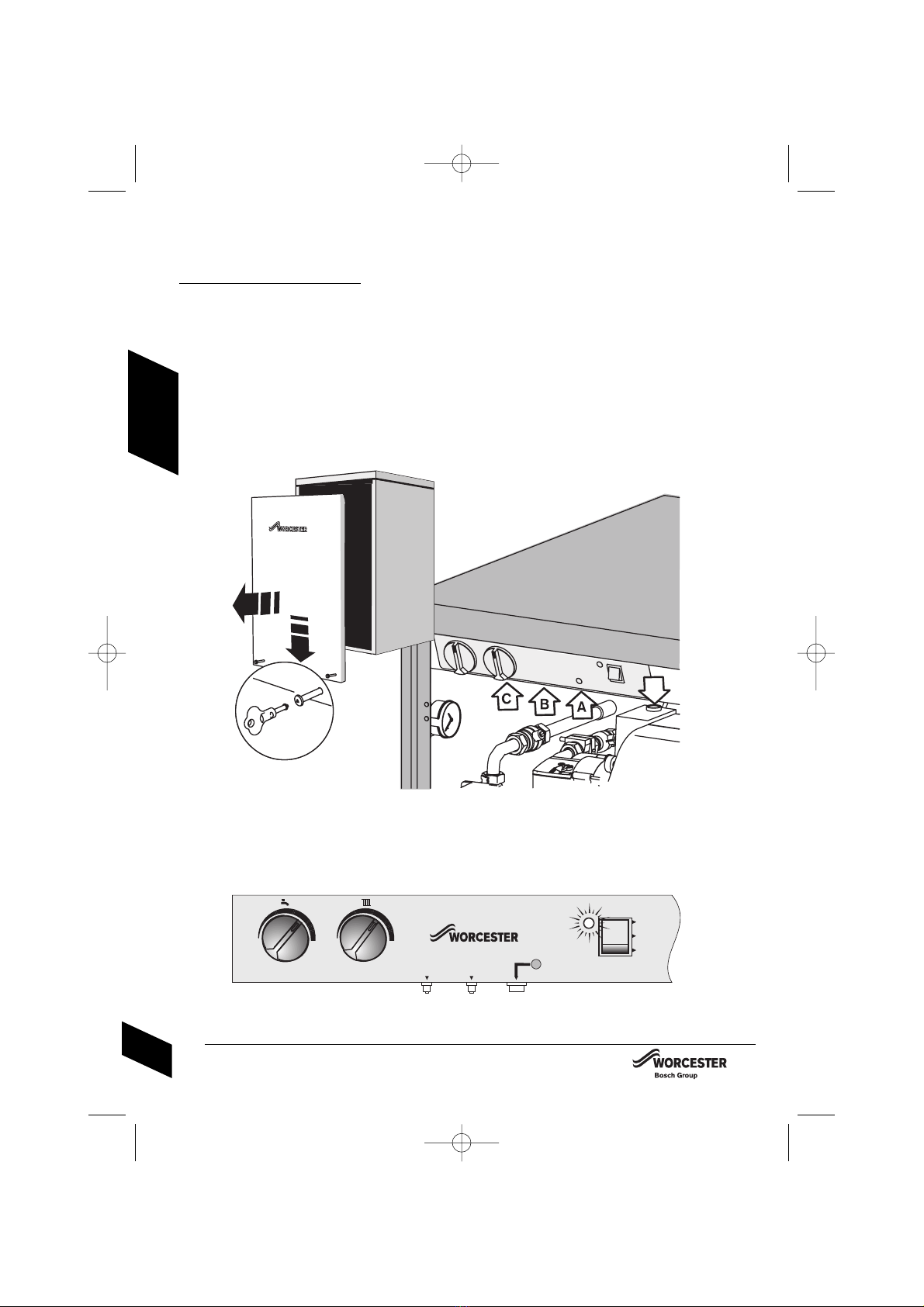

Lockout reset button locations
All Models
Remove front panel to access
Burner Reset Button (A)
Thermostat Reset Buttons
(B and C) are common to all
models.
*Alternative reset location
If the reset button under the control
panel does not reset the burner,
press the alternative Burner Reset
Button (A).
CONTROLS
GF H
C
DE
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
BA
I
CONTROLS
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010) 1
3
USING YOUR
BOILER
NOTE: Only attempt two burner
resets, then call your
service engineer for advice
8 716 113 390e 30/3/10 14:05 Page 5

OPERATING THE BOILER
SWITCHING THE BOILER ON/OFF:
To switch on the boiler; turn on the water, oil and electricity supply to the boiler.
Check the mode switch is in boiler ON position with the indicator illuminated.
Check the programmer/timer is correct and it is set to ON.
Set the room thermostat to the desired setting.
Open and set thermostatic radiator valves as required.
Turn the boiler water temperature control to the required setting.
To switch off the boiler; turn the programmer/timer to OFF for heating and hot water.
If the boiler is left unused and exposed to freezing conditions; shut off all the mains supplies,
isolate the boiler and drain the system and boiler.
CENTRAL HEATING TEMPERATURE CONTROL
Turn the control clockwise to increase the water temperature to the radiators.
Turn the control anti-clockwise to reduce the water temperature to the radiators.
The minimum and maximum ranges of the heating control positions are approximately 55°C to 80°C.
CONTROLLING CENTRAL HEATING:
Set the programmer/timer to the correct time with the required ON/OFF periods.
Turn the room thermostat to the temperature required.
Set thermostatic radiator valves to the required temperature for each room.
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
OPERATING THE BOILER GREENSTAR HEATSLAVE EXTERNAL12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
4
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 6

OPERATING THE BOILER
SETTING THE HOT WATER TEMPERATURE:
Turn the control clockwise to increase the water temperature.
Turn the control anti-clockwise to reduce the water temperature.
A high setting will give a higher hot water temperature and greater quantities of hot water.
WARNING: care should be taken when
washing your hands as the combination
of low water flow rate and high setting of
the hot water control thermostat can
result in very hot water at the tap.
FROST PROTECTION:
Frost thermostats are fitted to the boiler to protect the boiler and system from the risk of freezing.
The boiler mode indicator light MUST be illuminated for the frost protection to operate.
In the unlikely event that there is no hot water or heating, check pages 9 and 10 for fault
condition guidance.
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
OPERATING THE BOILER
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
5
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 7

OPERATING THE BOILER
bar
0
1
2
3
4

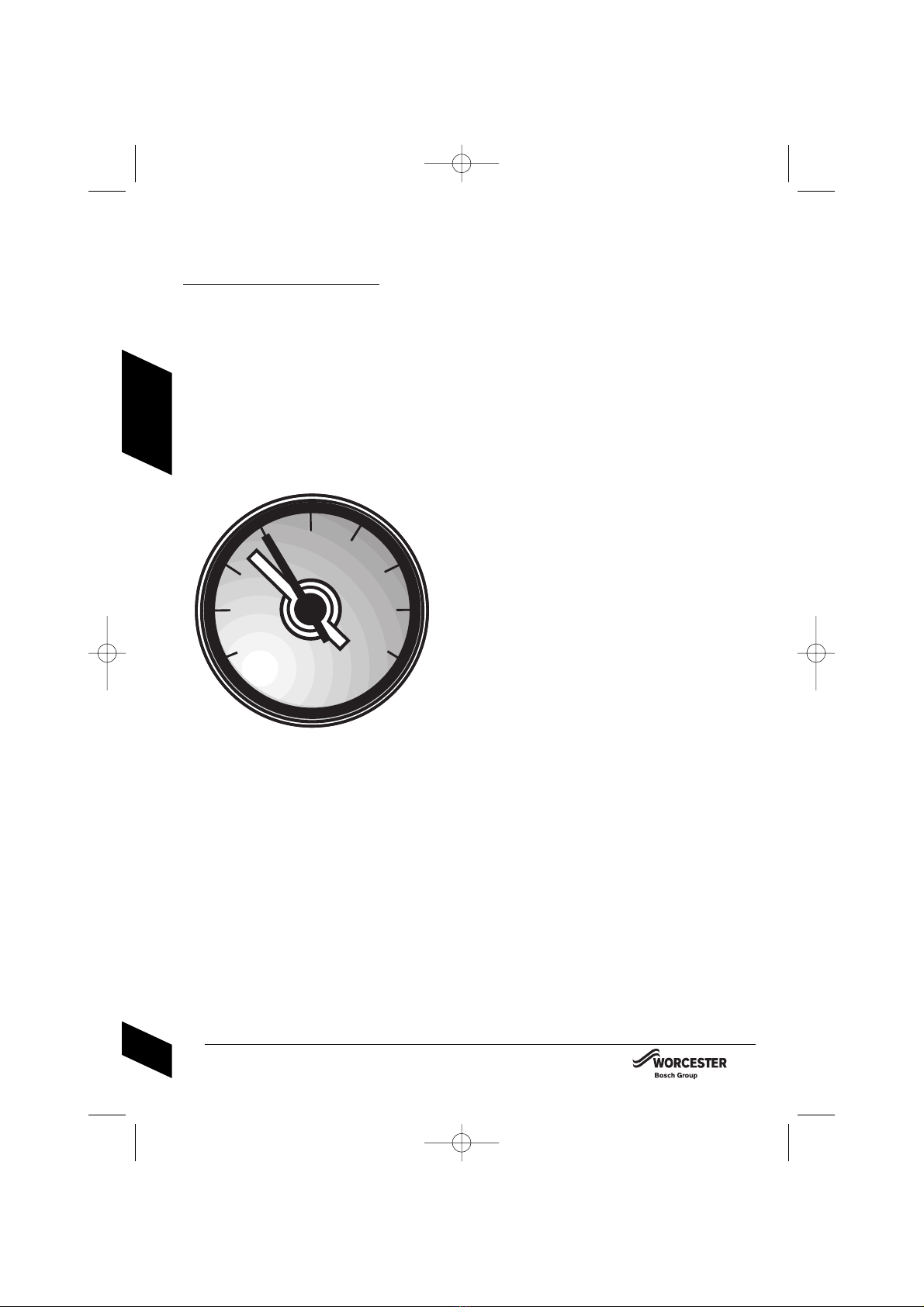

Sealed System pressure when
boiler is operating
OPERATING THE BOILER
PRESSURE GAUGE:
The pressure gauge indicates the boiler/heating system water pressure and has two pointers:
Red (external) pointer is set manually to indicate the normal system pressure (1 to 1.5 bar for sealed
systems, 0 to 0.5 bar for open vent systems).
Grey (internal) pointer shows the actual system pressure (on sealed systems the pressure will rise
when the boiler/system heats up from cold). Please check with your installer what type of system
you have.
On sealed systems the red pointer should be set to the normal operating pressure (1 to 1.5 bar) and
the grey pointer will fluctuate around this pressure depending on whether the system is hot or cold. If a
sealed system pressure drops below 1 bar the system should be repressurised to between 1 and 1.5
bar using the filling link (refer to page 7).
Regularly check that the pressure is maintained. If there is a persistent drop in pressure which has to
be adjusted regularly, or the pressure rises to more than 2.5 bar, the cause must be investigated.
Contact your installer or maintenance engineer for advice.
On open vent systems the pressure gauge is not used and the grey needle will remain at the bottom of
its scale. If the pressure rises to more than 1 bar please contact your installer for advice.
GREENSTAR HEATSLAVE EXTERNAL12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
6
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 8

OPERATING THE BOILER
FILLING LINK: Sealed systems only
A filling link consists of two manually operated valves and a flexible pipe that allows water to be
added to the system when the valves are opened. This device must only be connected when topping
up the system and disconnected when not in use.
If the sealed system pressure within your system drops to below 0.5 bar (shown on the pressure
gauge) you will need to increase the pressure to ensure your boiler continues to run without
problems.
Your installer should have informed you where to find the filling system and instructed you in its use.
To increase the pressure follow these instructions:
1. A pressure gauge should be visible from the filling link.
2. Connect the flexible hose across the two valves, one leading from the boiler and the other from the
mains water supply. The connecting nuts need only to be hand tight.
3. Slowly open both valves ensuring that water does not leak from either end of the flexible hose.
4. You will hear water passing through the hose and valves and the grey needle on the pressure
gauge will rise.
5. When the needle rises to between 1 and 1.5 bar close both valves, the needle should now remain
at that pressure.
6. The hose should then be disconnected from at least one valve, a small amount of water will flow
from the hose, this is normal. If water continues to flow from the hose then the valve has not been
fully closed or is faulty. If it is faulty you will need to contact your installer to resolve the problem.
OPERATING THE BOILER
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
7
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 9

OPERATING THE BOILER
FAULT CONDITIONS:
The Boiler mode and Lockout lights can indicate some basic fault conditions.
(1) Accessing Controls:
Undo the screws on the bottom of the front panel using the tool provided. The panel can be
removed by pulling out at the base and then sliding down to disengage from the lid.
If button A does not reset the boiler press the alternative burner reset button (D).
(2) “Boiler mode” light ON, “Lockout” light off:
Normal operation
Mains power supply to boiler and the boiler is switched to the “boiler ON mode”.
D
OPERATING THE BOILER
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
GREENSTAR HEATSLAVE EXTERNAL12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
8
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 10

OPERATING THE BOILER
(3) Both lights on:
Boiler not firing
Check the level in the oil tank.
Press the reset button (A), the boiler should fire. If button (A) does not reset the burner, press the
alternative burner reset (D).
If there is no response, wait two minutes and press the reset button (A) again.
If “lockout” light stays on, do not attempt further resets. Contact your service engineer for advice.
(4) Boiler mode light on, lockout light off:
Boiler not on - No heating/hot water
Check the programmer is set to ON and thermostat is calling for heat.
Press reset button (B) and reset button (C) both are below the fascia.
If the boiler remains off, contact your service engineer for advice.
(5) Both lights off:
Boiler not on - No heating/hot water
Ensure there is power supply to the boiler.
Ensure that the mode switch is in boiler ON mode.
If there is power supply to the boiler contact your service engineer for advice.
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
GREENSTAR HEATSLAVE EXTERNAL
max
flue
reset boiler reset
max
lockout
on
service
A
CB
OPERATING THE BOILER
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
9
USING YOUR
BOILER
8 716 113 390e 30/3/10 14:05 Page 11

FAULT FINDING
Problem Cause Remedy
Switch off boiler at master
switch, wait a few
seconds then switch on
again
Desired room temperature
is not reached
Thermostatic radiator
valve(s) set too low
Room thermostat set too Increase room thermostat
low setting
Temperature control for
CH flow on boiler set too
low
Air trapped in heating
system
Desired room temperature
exceeded by large amount
Temperature rises instead
of falling
No display or control unit
does not respond
Hot water temperature too
low
Radiators are too hot
Clock is incorrectly set
Momentary power failure
Hot water temperature set
too low
Hot water not in timed
period on the programmer
Heatslave tank not up to
temperature
Increase thermostatic
radiator valve setting(s)
Increase CH flow
temperature control
setting
Bleed radiators, if fitted to
a sealed system recharge
heating system
Turn down thermostatic
radiator valves / room stat
Check setting
FAULT FINDING GREENSTAR HEATSLAVE EXTERNAL12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
10
USING YOUR
BOILER
Check hot water
temperature control
setting
Check programmer
settings
Allow time for Heatslave
tank to reach temperature
8 716 113 390e 30/3/10 14:05 Page 12

GENERAL INFORMATION
INSTALLATION & SERVICING CLEARANCES
FRONT
FRONT
BASE
PLAN
VIEW
PLAN
VIEW
2500mm*
2500mm*
2500mm*
600mm
600mm
min.
600mm
600mm
150mm
10mm
10mm 85mm
The same applies for right hand
flue installation where right and
left clearances are mirrored.
LOCATION & CLEARANCES
WARNING:
External equipment operating at 230 Volts
must not be serviced during adverse weather
conditions.
Do not use pressure washers or steam
cleaners on this boiler or cabinet.
FUEL:
This boiler is designed to use kerosene, no other
fuel may be used.
BOILER LOCATION:
WARNING:
Never allow the flue terminal or air inlet to
become obstructed by plants or any other
objects.
The cabinet is not load bearing, and only
provides weather protection for the boiler inside.
There must be sufficient hard standing and
access around the boiler for servicing.
*See Installation manual for further details.
FRONT
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
11
MAINTENANCE
8 716 113 390e 30/3/10 14:05 Page 13

MAINTAINING YOUR BOILER
Your new boiler represents a long term investment in a reliable, high quality product.
In order to realise its maximum working life and to ensure it continues to operate at peak
efficiency and performance, it is essential that servicing and maintenance checks are performed at
least once a year by an OFTEC engineer or other suitably qualified person.
If you would like to know more about servicing options from Worcester, Bosch Group, please visit
worcester-bosch.co.uk. Please tick the appropriate box on your warranty registration card for
further details of the Worcester, Bosch Group Service Contract .
When your boiler requires servicing please contact a Worcester, Bosch Group contact centre
(see inside front cover for details).
In addition to the service contract we are pleased to offer a one-off annual service or breakdown
call out for your boiler.
Maintenance tips:
Regularly check the oil level in the tank.
Regularly check the system pressure, ask your installer for guidance.
Do not obstruct the flue outlet or the air inlet.
Do not pressure wash or steam clean the boiler or its cabinet.
To clean the cabinet wipe down with soapy water.
USE IN HARD WATER AREAS:
In exceptionally hard water areas a device to prevent scale formation may be fitted. Installation of
a scale inhibitor assembly should be in accordance with the requirements of the local water
company. An isolating valve should be fitted to allow for servicing.
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
12 MAINTAINING YOUR BOILER
MAINTENANCE
8 716 113 390e 30/3/10 14:05 Page 14

GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
13
SERVICING
SERVICING:
You must have the boiler regularly serviced by a competent, qualified OFTEC registered
engineer using approved spares, to help maintain the economy, safety and reliability of the
boiler.
The boiler should be serviced once each year after installation unless the installation
conditions and usage demand more frequent services.
Although the boiler is serviced externally, the engineer will require access to the property to
operate the system controls.
IMPORTANT:- Ensure that the service engineer completes the Service Record in
the checklist after each service.
The completed checklist will be required in the event of any warranty work
and may be required by the local Building Control Inspector.
NOTE: The checklist and service interval record can be found at the rear of the
Installation, Commissioning and Servicing Instructions.
MAINTENANCE
SERVICING
8 716 113 390e 30/3/10 14:05 Page 15

GENERAL NOTES
GENERAL NOTES
To get the best from your boiler. please read these instructions carefully.
SEALED HEATING SYSTEMS
Where the boiler is fitted to a sealed heating system your installer will inform you of the minimum and
maximum pressure which must be indicated on the pressure gauge.
Check regularly that the pressure is maintained and contact your installer or maintenance engineer if
there is a noticeable, permanent drop in pressure. If the system loses pressure it should be
repressurised and the cause of the loss investigated.
CENTRAL HEATING SYSTEMS
During the first few hours of operation of the central heating system, check that all radiators are
being heated at an even rate. If the top of a radiator is at a lower temperature than the bottom then it
should be vented by releasing air through the venting screw at the top of the radiator. Ask your
installer to show you how this is done. Repeated venting will reduce the quantity of water in the
system and this must be replenished for safe and satisfactory operation of the boiler.
When excessive venting or water leaks are found in the system you must contact a service engineer
to inspect the installation and rectify any fault.
Only use additives compatible with the boiler and system. Use of incompatible additives can cause
damage and will invalidate the boiler guarantee.
CONDENSATE DRAIN
This is a condensing boiler and the terminal will, at times give out a plume of water
vapour. This is quite normal.
The boiler also produces quantities of condensate which is discharged regularly via a pipe
to drain. This pipe must not be blocked or altered in any way.
CLEARANCES - SERVICE
Your installer will have provided adequate space around the boiler for safety and servicing access.
Do not restrict the space around the boiler.
ROOM THERMOSTAT
A room temperature controller must be fitted to control the central heating. Refer to instructions
supplied with the thermostat for information on siting and setting.
THERMOSTATIC RADIATOR VALVES
It is recommended that this type of valve is fitted to all but one of the radiators (or at least those in
the sleeping accommodation). The remaining radiator, which must be where the room thermostat is
located, should be un-controlled and must be left open.
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
14
GENERAL
INFORMATION
8 716 113 390e 30/3/10 14:05 Page 16

TIPS ON ENERGY SAVING
Room thermostats:
Reducing the setting of the room thermostat by 1°C can reduce fuel consumption by up to 10%.
New control systems:
Upgrade your heating control system with the latest equipment available. The minimum level of control
for a heating system is a programmer, interlocking room thermostat and thermostatic radiator valves.
Radiators:
More often than not radiators will be sited underneath a window, so the warm air from the radiator
heats the colder incoming air from the window.
The performance of the radiator will be affected if the curtains are allowed to drape over the radiator or
shelves are fitted above it.
The positioning of furniture and tables in front of the radiator should also be avoided.
It is advisable to manually adjust all radiator valves every 2-3 months to prevent them from sticking. It is
also important that the plastic tops of all valves are always in position and not cracked or damaged to
help prevent accidents. Care should be taken when vacuum cleaning carpets to avoid damage to
valves and pipework.
The heating system and the outputs of the radiators have been carefully selected by your installer. The
temperature obtainable in any given room is dependent on all radiators being operated at the same
time. If you decide to turn off radiators in unused rooms, spare bedrooms etc., you may experience
slightly lower room temperatures in rooms adjacent to unheated rooms.
Heating economically:
The boiler is designed to provide a high level of comfort while keeping oil consumption and the
resulting environmental effect as low as possible.
The central heating control on the boiler should be set as low as possible while still maintaining a
comfortable room temperature.
The temperature of each room can be set individually using the thermostatic radiator valves (except the
primary room with the room thermostat).
Roof insulation:
Around 30% of the heat loss from a property is through the roof. Replace any old insulation with new
insulation, preferably to a minimum thickness of 200mm.
Window frames:
Single glazed windows, particularly those with steel frames, can lose a great deal of heat.
Consideration should be given to replacement with PVCu or wooden framed double glazed units.
Curtains:
Lined curtains, or heavier full length curtains can provide excellent insulation. However, always ensure
that the curtains do not drape over radiators.
Draughts:
Try to ensure that draughts around doors, windows, letterboxes and keyholes etc., are reduced by
using a suitable draught excluder.
Warning: do not block or seal any air vents that are installed to ensure the central heating boiler
(or other appliance) operate safely.
TIPS ON ENERGY SAVING
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
15
ENERGY
SAVING
8 716 113 390e 30/3/10 14:05 Page 17

BOILER DATA LABEL
The data label can be found on the inside of the
left hand panel. To access:
Unscrew the two screws on the bottom of
the front panel using the tool provided.
The panel will drop down and can be
carefully removed.
To replace:
Push the front panel up behind the top
panel, push in and secure in place with the
screws.
Data label
location
behind front
panel
FAULT OR BREAKDOWN
This boiler is supported in mainland UK by
Worcester, Bosch Group, part of Bosch
Thermotechnology Ltd.
Specialist trained, Worcester, Bosch Group
Service Engineers are available to attend in the
unlikely event that a breakdown occurs on this
boiler.
No charge will be made for parts and/or
labour providing:
A boiler fault is found and the boiler has
been installed within the past 24 months.
Reasonable evidence of this must be
supplied on request
A call-out charge will be made where:
The boiler has been installed for over 24
months. OR
Our Field Service Engineer finds no fault
with the boiler (see Note). OR
Evidence cannot be provided that the first
year service inspection has been carried out.
(i.e. an entry in the service interval record
found at the rear of the boiler installation
and servicing manual). OR
The cause of breakdown is misuse or with
other parts of your plumbing/heating system,
or with equipment not supplied by Bosch
Thermotechnology Ltd.
NOTE: NO BOILER FAULT IS FOUND ON
OVER 30% OF ALL SERVICE CALL OUTS.
Please read this guide carefully to gain a good
understanding of the operation of your boiler. In
the case of a suspected fault, refer to the fault
finding section of this guide.
If in doubt contact our Technical Support
In the event of an boiler fault or breakdown
please contact our Service Department. Your
service administrator will arrange for an Engineer
to call with the minimum of delay. Under normal
circumstances this will be from 1 to 3 working
days (excluding weekends) for priority
breakdown situations (no hot water and/or
heating).
Invoices for attendance and repair work carried
out on this boiler by any third party will not be
accepted.
FAULT OR BREAKDOWN GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
16
GUARANTEE
8 716 113 390e 30/3/10 14:05 Page 18

Model
Serial No.
(See identity label inside boiler casing)
Type / size
Date of installation
Installer details
GUARANTEE REGISTRATION
You should complete and return the postpaid
Guarantee Registration Card within 30 days of
installation.
Returning your card will register you as the
owner of your new boiler and will assist us in
maintaining an effective and efficient customer
service by establishing a reference and
permanent record for your boiler.
This does not affect your statutory rights.
For your own record:
YOUR GUARANTEE
This boiler is guaranteed against faulty materials
or workmanship for a period of 24 calendar
months (60 months for the primary heat
exchanger) from the date of installation subject
to the following conditions:
That during the period of this guarantee any
components of the unit which are proved to
be faulty or defective in manufacture will be
exchanged or repaired free of material
charges and free of labour charges if
repaired directly by
Bosch Thermotechnology
Ltd. Please be aware that invoices
for attendance and repair of this
boiler by third parties will not be
accepted for payment by Bosch
Thermotechnology Ltd.
That the householder may be asked to
prove, when requested, the date of
installation, that the boiler was correctly
commissioned and, where appropriate, that
the 12 month service inspection has been
carried out to the satisfaction of Bosch
Thermotechnology Ltd, when requested.
The guarantee card must then be returned
within 30 days of installation.
That any product or part thereof returned for
servicing under the guarantee must be
accompanied by a claim stating the Model,
Serial Number and Date of Installation.
That Bosch Thermotechnology Ltd will not
accept responsibility for damage caused by
faulty installation, neglect, misuse or
accidental damage and non-observance of
the instructions contained in the Installation
and Users Instructions leaflets.
That the boiler has been used only for
normal domestic purposes, for which it was
designed.
This guarantee applies only to equipment
purchased and installed in mainland UK.
This guarantee is given in addition to all your
normal statutory rights.
Worcester, Bosch Group is a brand name of
Bosch Thermotechnology Ltd.
YOUR GUARANTEE
GREENSTAR HEATSLAVE EXTERNAL 12/18 - 18/25 - 25/32
8 716 113 390e (03.2010)
17
GUARANTEE
8 716 113 390e 30/3/10 14:05 Page 19

Dedicated to heating comfort
Worcester, Bosch Group
Cotswold Way, Warndon, Worcester WR4 9SW.
Tel. [phone] Fax. [phone]
www.worcester-bosch.co.uk
Worcester, Bosch Group is a brand name of Bosch Thermotechnology Ltd.
8 716 113 390e (03.2010)
If the boiler fails to give
complete satisfaction,
please check the following
before calling for a service
engineer:-
General checks
1. Oil level in the tank
2. Power to the boiler
3. All control settings
4. The system pressure is appropriate for your system
(see page 6)
8 716 113 390e 30/3/10 14:05 Page 20
