Table of Contents
Safety ........................................ 4
Important Safety Instructions ...................................... 4
Causes of damage ................................................. 7
Getting started ................................ 8
Getting familiar with the unit ....................................... 8
Control Panel ...................................................... 8
The elements ...................................................... 9
Residual heat indicator .............................................. 9
Operation ..................................... 10
Main power switch ................................................ 10
Setting the cooktop ............................................... 10
Setting the heating element .......................................... 10

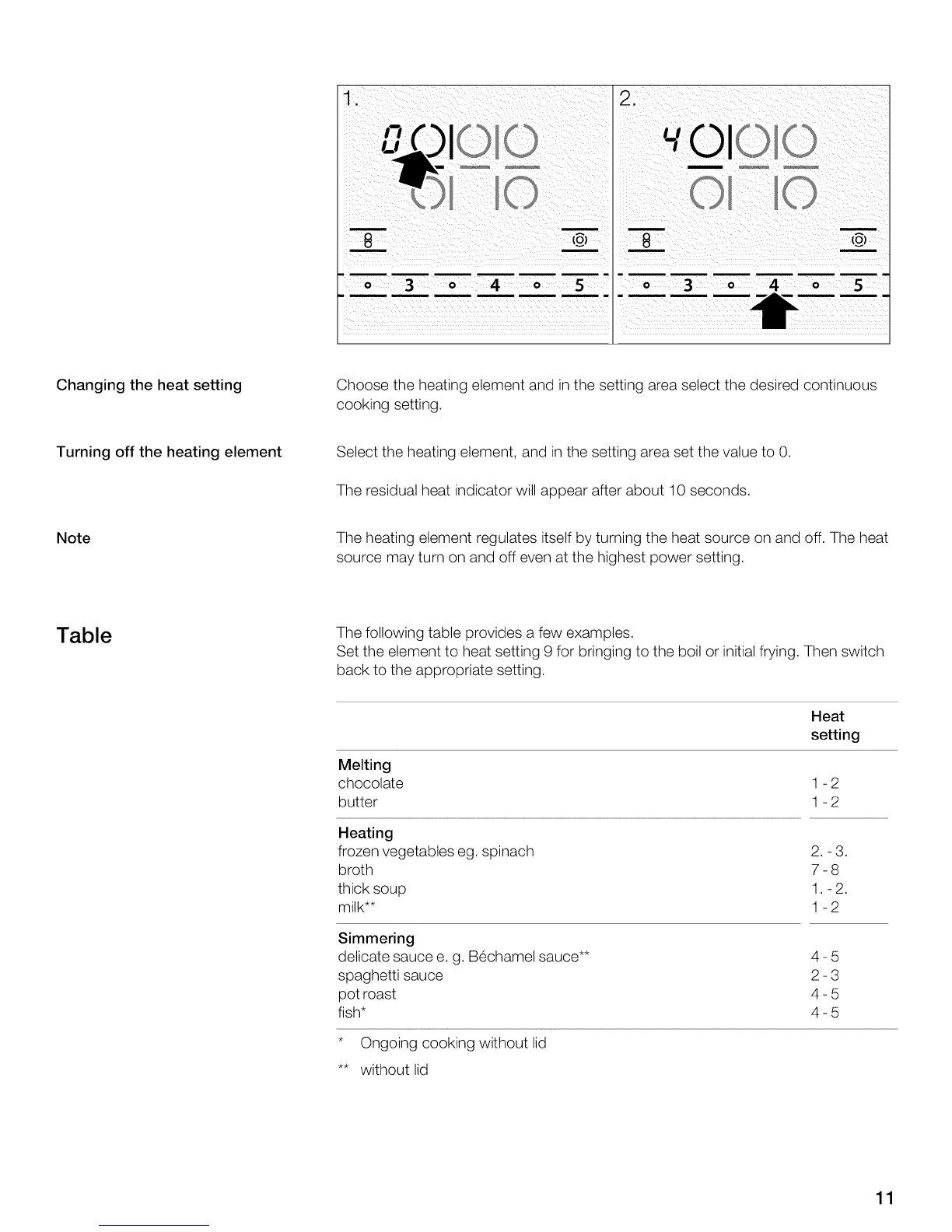

Table ............................................................. 11

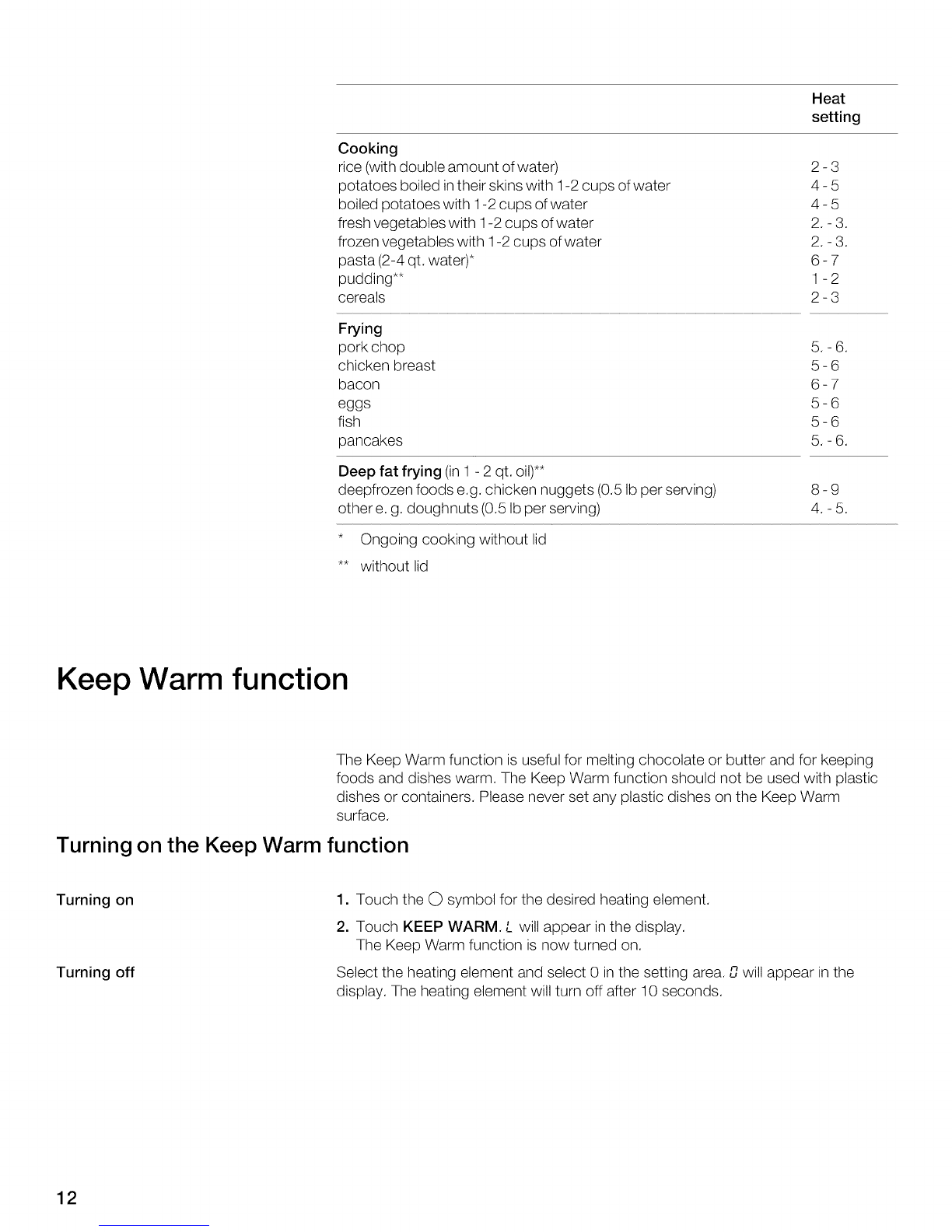

Keep Warm function .............................................. 12
Turning on the Keep Warm function ................................... 12
Child Lock ....................................................... 13
Turning child lock on and off ......................................... 13
Automatic child lock ................................................ 13
Clean Lock ....................................................... 13

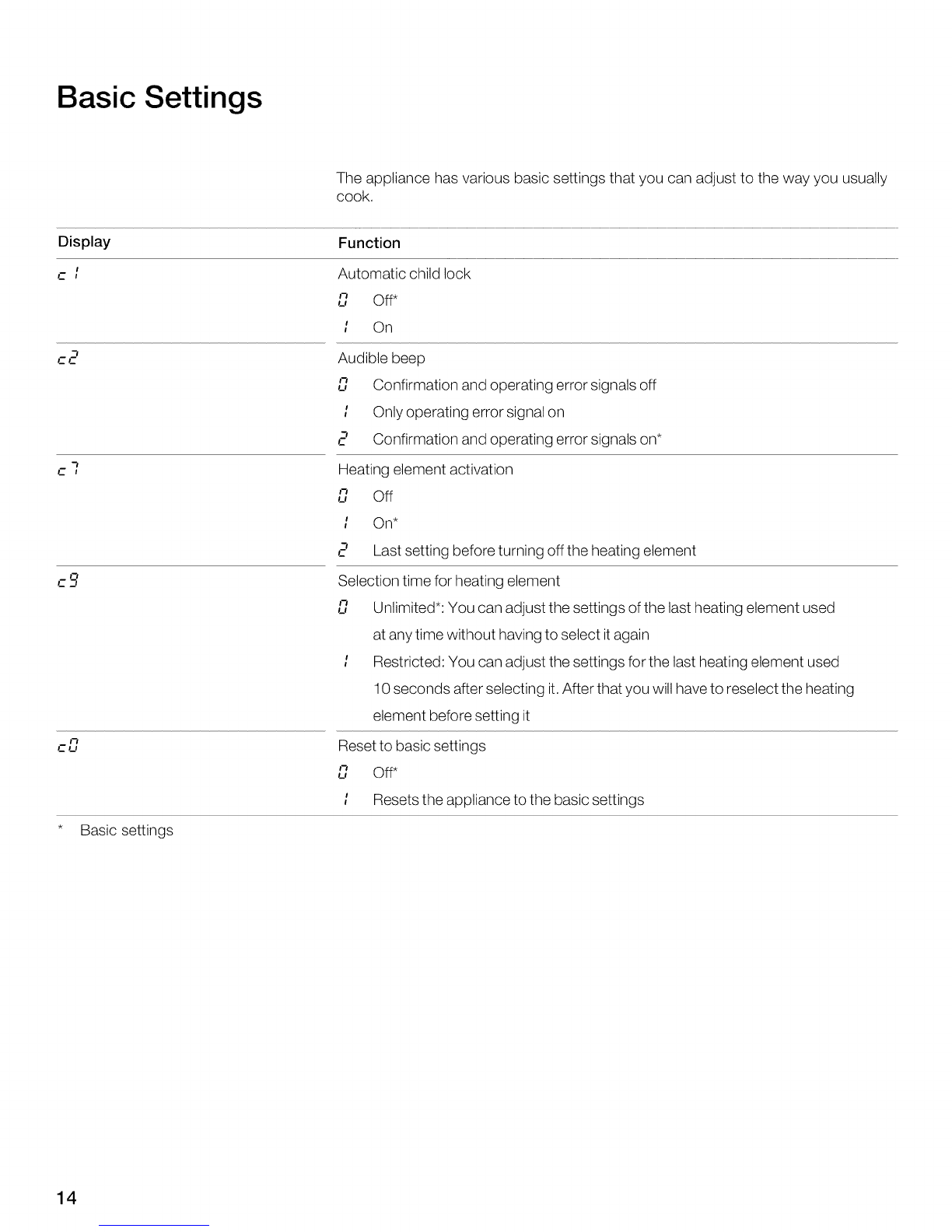

Basic Settings .................................................... 14
Changing the basic settings .......................................... 15
Cleaning and Maintenance ...................... 16

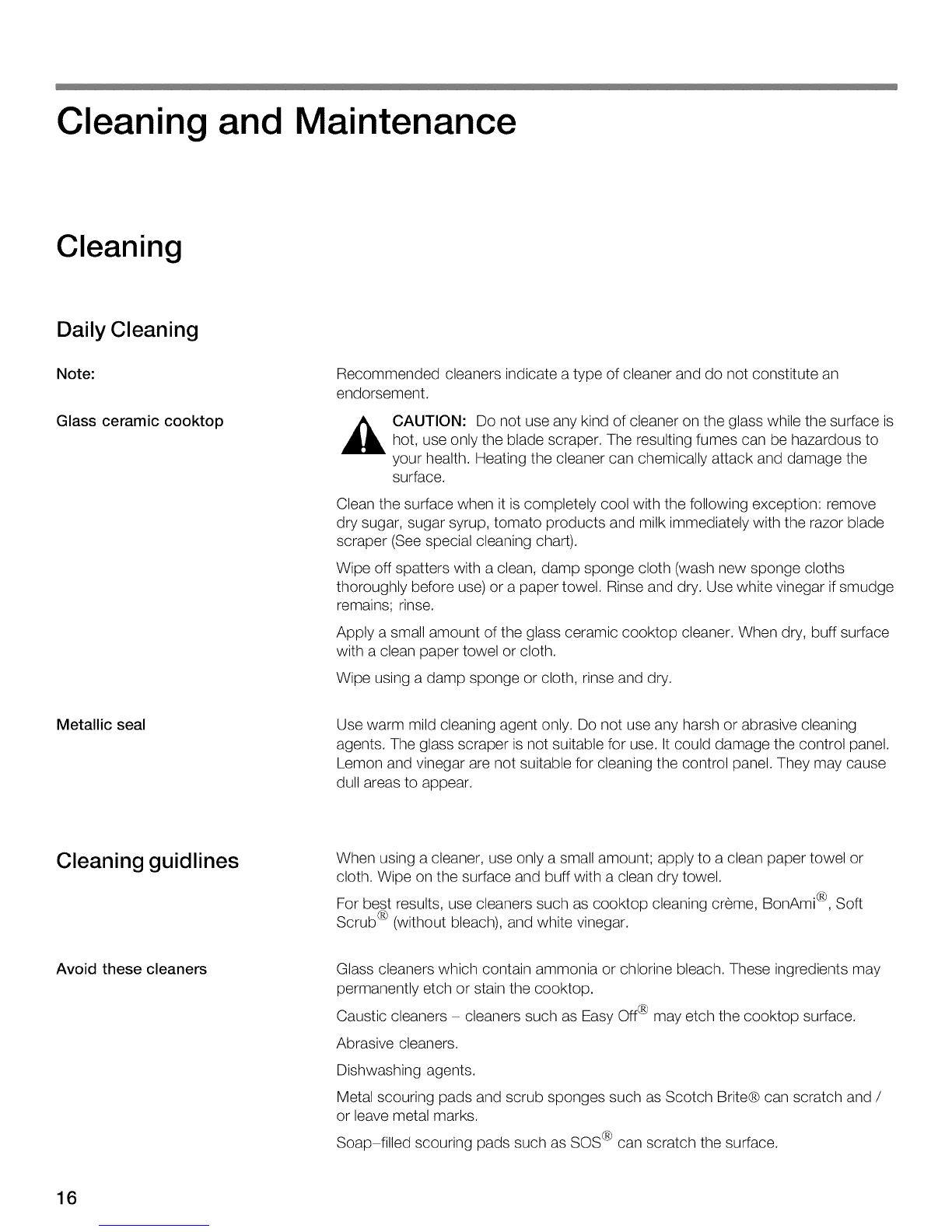

Cleaning ......................................................... 16
Daily Cleaning ..................................................... 16
Cleaning guidlines .................................................. 16
Maintenance ..................................................... 17
Service ....................................... 18
Troubleshooting .................................................. 18

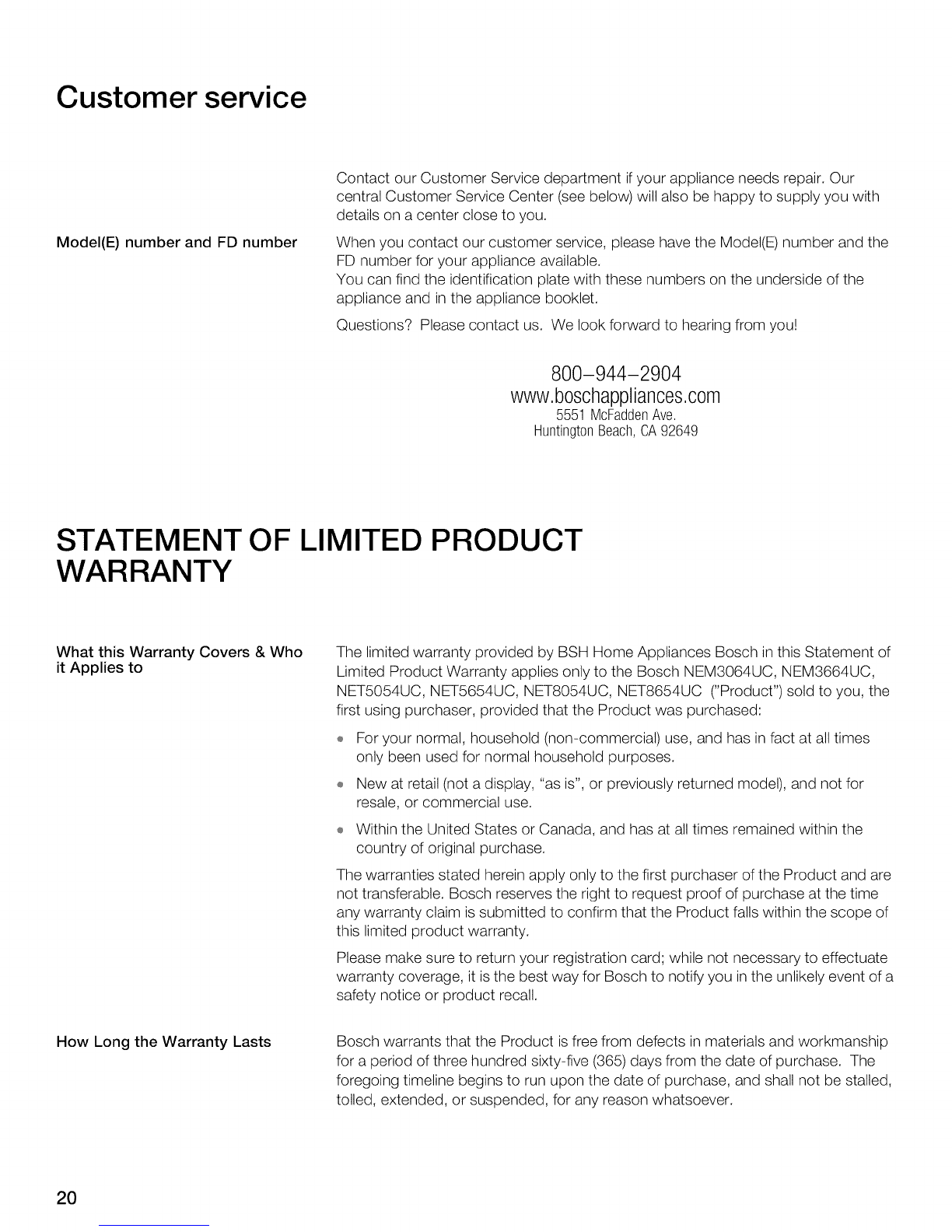

Customer service ................................................. 20
STATEMENT OF LIMITED PRODUCT WARRANTY ................... 20
3

Safety

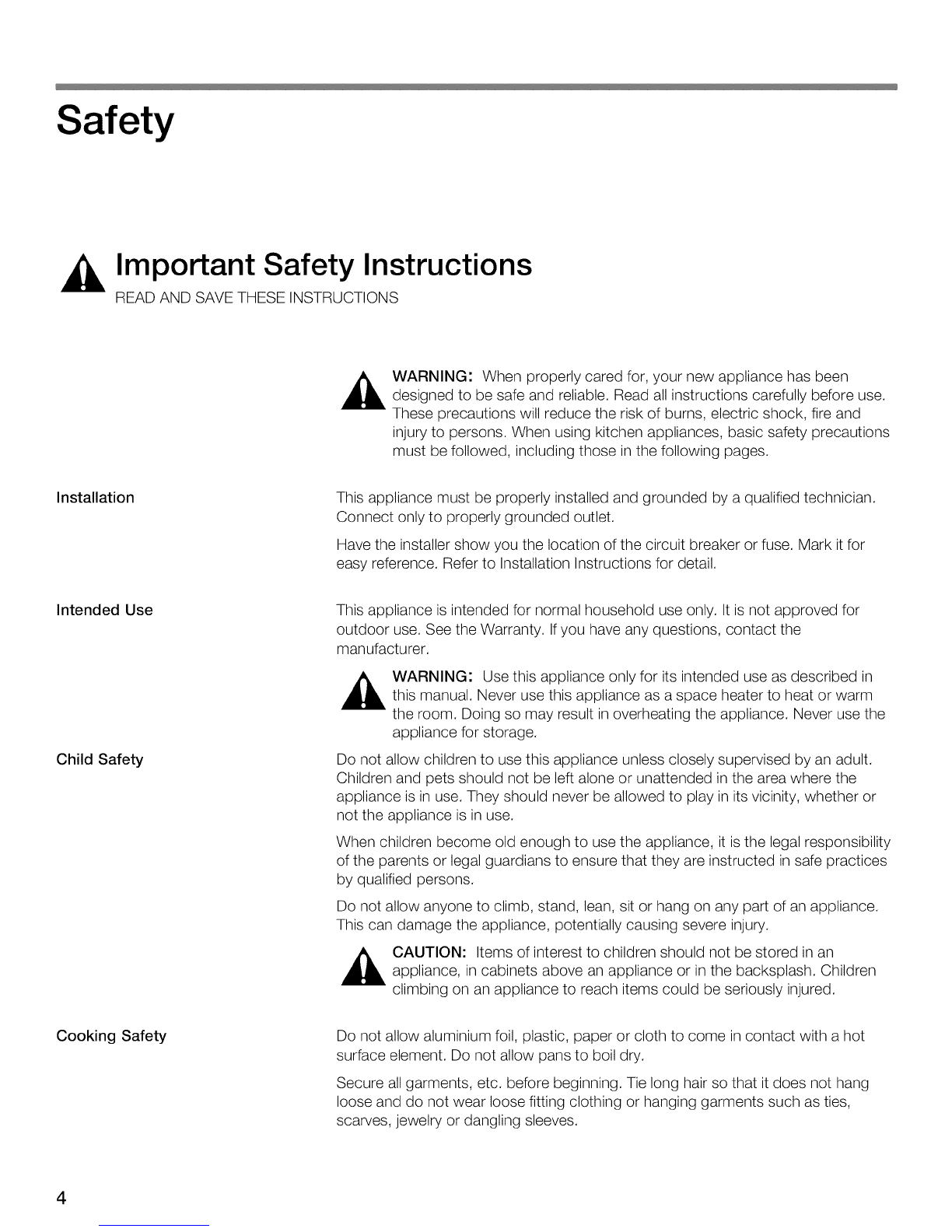

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
_ ARNING: When properly cared for, your new appliance has beendesigned to be safe and reliable. Read all instructions carefully before use.
These precautions will reduce the risk of burns, electric shock, fire and
injury to persons. When using kitchen appliances, basic safety precautions
must be followed, including those in the following pages.
Installation This appliance must be properly installed and grounded by a qualified technician.
Connect only to properly grounded outlet.
Have the installer show you the location of the circuit breaker or fuse. Mark it for
easy reference. Refer to Installation Instructions for detail.
Intended Use
Child Safety
This appliance is intended for normal household use only. It is not approved for
outdoor use. See the Warranty. If you have any questions, contact the
manufacturer.
_ WARNING: Use this appliance only for its intended use as described inthis manual. Never use this appliance as a space heater to heat or warm
the room. Doing so may result in overheating the appliance. Never use the
appliance for storage.
Do not allow children to use this appliance unless closely supervised by an adult.
Children and pets should not be left alone or unattended in the area where the
appliance is in use. They should never be allowed to play in its vicinity, whether or
not the appliance is in use.
When children become old enough to use the appliance, it is the legal responsibility
of the parents or legal guardians to ensure that they are instructed in safe practices
by qualified persons.
Do not allow anyone to climb, stand, lean, sit or hang on any part of an appliance.
This can damage the appliance, potentially causing severe injury.
_ CAUTION: Items of interest to children should not be stored in anappliance, in cabinets above an appliance or in the backsplash. Children
climbing on an appliance to reach items could be seriously injured.
Cooking Safety Do not allow aluminium foil, plastic, paper or cloth to come in contact with a hot
surface element. Do not allow pans to boil dry.
Secure all garments, etc. before beginning. Tie long hair so that it does not hang
loose and do not wear loose fitting clothing or hanging garments such as ties,
scarves, jewelry or dangling sleeves.
4

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be
hot even though they are dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not touch, or let clothing,
potholders or other flammable materials contact surface units or areas near units
until they have had sufficent time to cool. Among these areas are the cooktop and
areas facing the cooktop.
Always use dry potholders. Moist or damp potholders on hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a
towel or other bulky cloth.
Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool.
_ ARNING: Never leave the cooktop unattended, especially at high
temperature settings.Keep an eye on the cooktop and do not allow
anything to boil over or burn. Boilovers can cause smoke and some foods
and oils may catch on fire if left on high temperature settings.
Do not heat or warm unopened food containers. Build-up of pressure may cause
the container to burst and cause injury.
Always keep the cooktop and bases of pots dry. Liquid between the pot base and
the cooktop may build up steam pressure, causing the pot to jump suddenly and
causing injury.
Never operate the cooktop with spillover or liquid around the control area. Always
switch off the cooktop and dry the control area.
Use high heat settings on the cooktop only when necessary. To avoid bubbling and
splattering, heat oil slowly on no more than a low medium setting. Hot oil is capable
of causing extreme burns and injury.
Cookware Safety Use proper pan size. The use of undersized cookware will expose a portion of the
heating element to direct contact and may result in ignition of clothing. Select
cookware having flat bottoms large enough to cover the surface heating unit. This
appliance is equipped with one or more surface units of different size. Proper
relationship of cookware to heating element will also improve efficiency.
Cookware not approved for use with ceramic cooktops may break with sudden
temperature changes. Use only pans that are appropriate for ceramic cooktops
(only certain types of glass, heatproof glass, ceramic, earthenware or other glazed
utensils are suitable).
Hold the handle of the pan when stirring or turning food. This helps prevent spills
and movement of the pan.
Always position handles of utensils inward so they do not extend over adjacent work
areas or the edge of the cooktop. This reduces the risk of fires, spills and burns.
Cleaning Safety Do not clean the appliance while it is still hot. Some cleaners produce noxious
fumes when applied to a hot surface. Wet clothes and sponges can cause burns
from steam.
Do not use steam cleaners to clean the cooktop.
5

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Condition of Unit _ ARNING: Do not cook on a broken cooktop. Cleaning solutions andspillovers may create a risk of electric shock. Switch off the circuit breaker
in the fuse box if the ceramic has fractures, flaws or cracks. Call an
authorized servicer.
Do not operate this appliance if it is not working properly, or if it has been damaged.
Contact an authorized servicer.
Work Space /Environment Always have a working smoke detector near the kitchen.
Have an appropriate fire extinguisher available, nearby, highly visible and easily
accessible near the appliance.
Do not store or use corrosive chemicals, vapors, flammables or nonfood products
on or in the near of the appliance. It is specifically designed for use when heating or
cooking food. The use of corrosive chemicals in heating or cleaning will damage the
appliance and could result in injury.
Service and Repair Safety Do not repair or replace any part of the appliance unless specifically recommended
in this manual. Refer all servicing to a factory authorized service center.
To avoid electrical shock hazard, before servicing the appliance, switch off the
circuit breaker in the fuse box.
Flammable Materials Do not store or use gasoline or other flammable vapors, liquids or materials in the
vicinity of this or any other appliance.
If the cooktop is near a window, forced air vent or fan, be certain that flammable
materials such as window coverings do not blow over or near the elements. They
could catch on fire.
In Case of Fire In the event that personal clothing catches fire, drop and roll immediately to
extinguish flames.
Smother flames from food fires other than grease fires with baking soda. Never use
water on cooking fires.
_ WARNING: TO REDUCETHE RISK OFA GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings
b) Always turn hood ON when cooking at high heat or when flambeing food
(i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef flambe)
c) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Causes of damage
d) Use proper pan size. Always use cookware appropriate for the size of
the surface element
_ ARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THEEVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray,
then turn OFF the appliance. BE CAREFUL TO PREVENT BURNS. If the
flames do not go out immediately EVACUATE AND CALL THE FIRE
DEPARTMENT
b) NEVER PICK UP A FLAMING PAN. You may be burned
c) DO NOT USE WATER, including wet dishcloths or towels. A violent
steam explosion will result
d) Use an extinguisher only if:
÷ You know you have Class ABC extinguisher, and you already know
how to operate it
÷ The fire is small and contained in the area where it started
÷ The fire department is being called
÷ You can fight the fire with your back to an exit

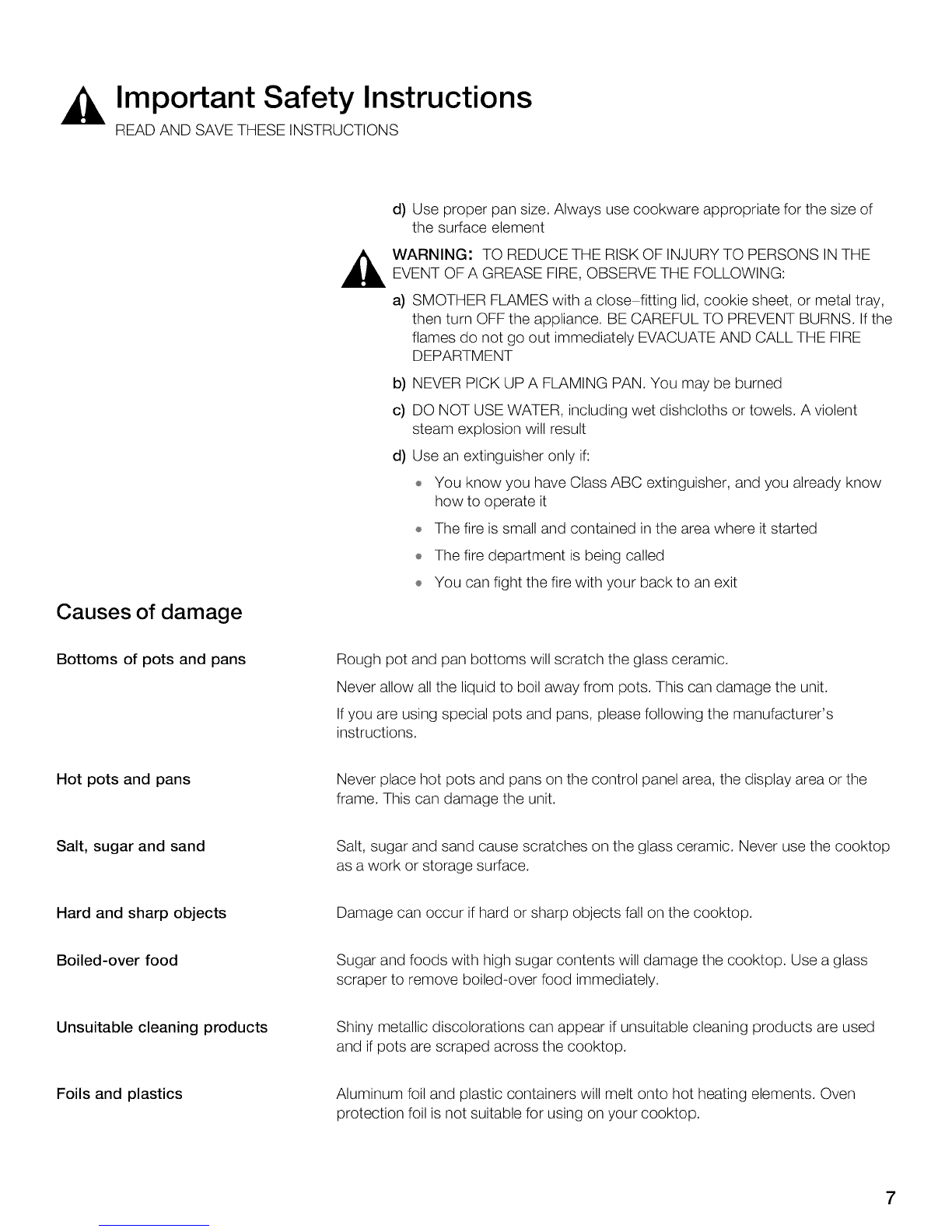

Bottoms of pots and pans Rough pot and pan bottoms will scratch the glass ceramic.
Never allow all the liquid to boil away from pots. This can damage the unit.
If you are using special pots and pans, please following the manufacturer's
instructions.
Hot pots and pans Never place hot pots and pans on the control panel area, the display area or the
frame. This can damage the unit.
Salt, sugar and sand Salt, sugar and sand cause scratches on the glass ceramic. Never use the cooktop
as a work or storage surface.
Hard and sharp objects Damage can occur if hard or sharp objects fall on the cooktop.
Boiled-over food Sugar and foods with high sugar contents will damage the cooktop. Use a glass
scraper to remove boiled-over food immediately.
Unsuitable cleaning products Shiny metallic discolorations can appear if unsuitable cleaning products are used
and if pots are scraped across the cooktop.
Foils and plastics Aluminum foil and plastic containers will melt onto hot heating elements. Oven
protection foil is not suitable for using on your cooktop.
7

Getting started
Getting familiar with the unit
In this section we describe the control panel, heating elements and displays.
These instructions apply to various cooktops.
Page 2 contains a list of models and dimensions.

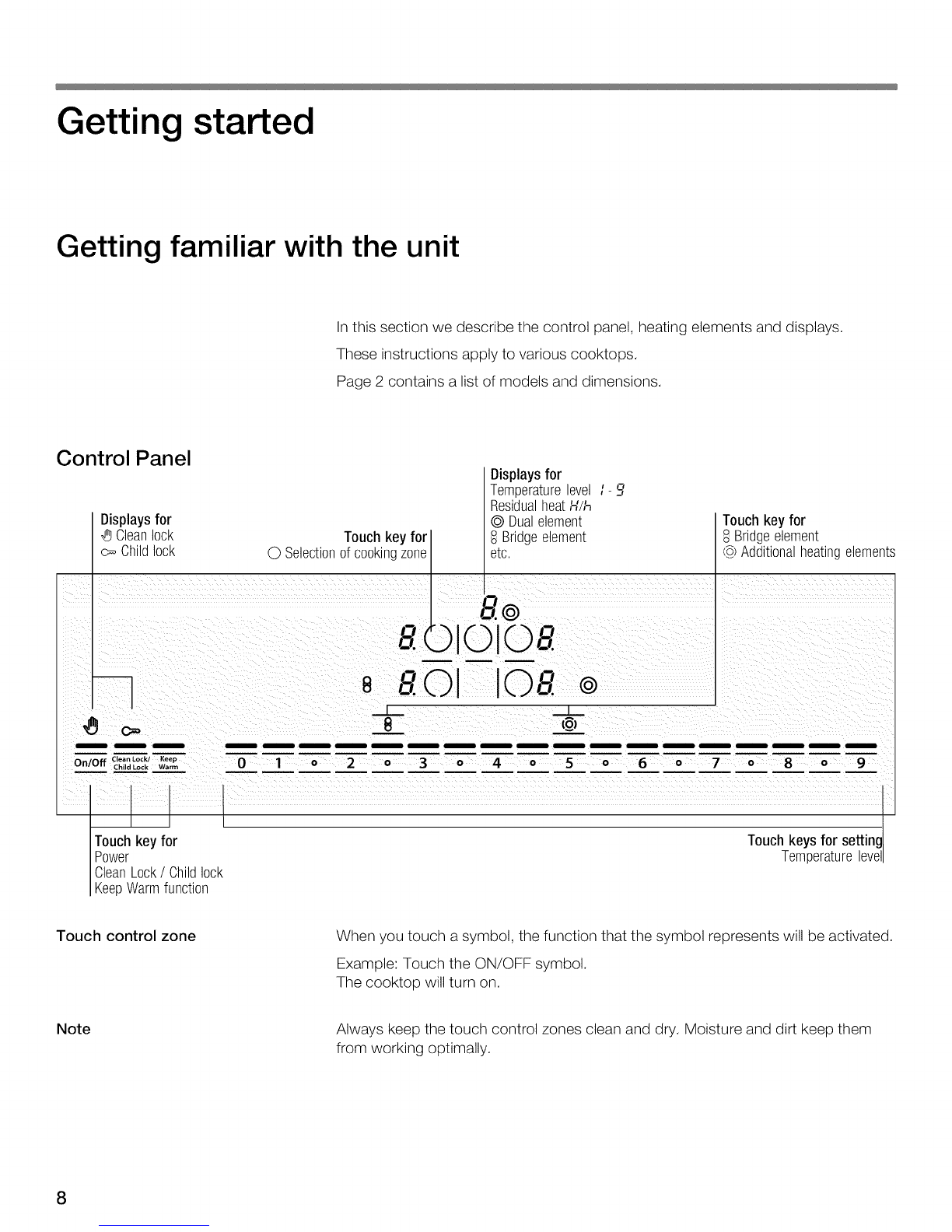

Control Panel
Displaysfor
Cleanlock
c= Childlock
C_
m mm
Clean Lock/ Keep
On/Off Child Lock Warm
Displaysfor
Temperaturelevel /- '_-q
Residualheat,_/,_"'
@ Dualelement
Touchkey for o Bridgeelement
0 Selectionofcookingzone etc.
I
8¢
8(i)10108
8ol Io8o
8 . cod
01o2o3o4o 5 o 6 o 7o 8 o 9
Touchkey for
o°Bridgeelement
(_>Additionalheatingelements
T°UwC_key f!CleanLock/_hild lock T°uch _eyPe[°tru_e_t_vnegl
IKeepWarmfunction
Touch control zone When you touch a symbol, the function that the symbol represents will be activated.
Example: Touch the ON/OFF symbol.
The cooktop will turn on.
Note Always keep the touch control zones clean and dry. Moisture and dirt keep them
from working optimally.

The elements
Single element Single elements have only one size cooking surface.
Choose a pan that matches the size of the element.
Dual element The size of these elements can be matched to your pan size. The heating element
must be turned on.
Turning off the outer heating ribbon:
Touch (_).The @ display will turn off.
Adding:
Touch (_)again. The @ display will turn on.
Bridge element The Bridge element combines two individual heating elements into one long griddle
zone. This configuration is ideal for griddles and large pans.
Note: Do not use cookware larger than 17" x 10" (432 x 254 mm).
Turning on the Bridge element:
Touch one of the two O symbols for selecting the heating element, then touch o°.
The o°symbol will appear; both heating elements are now selected. 0appears in
both displays. Within the next 10 seconds select the desired heat setting (1-9). The
Bridge element and both individual heating elements are now on.
Changing the heat setting:
Touch one of the two O symbols for selecting the bridge element, and set the new
heat levelwithin the next 10 seconds.
Turning off the Bridge element feature:
Touch one of the two O symbols for selecting the bridge element, and in the setting
area set the value to 0. ,_,'_appears in both displays. The heating elements will turn off
after about 10 seconds, and the residual heat indicator will appear.
Residual heat indicator
l_l
The cooktop has a hot surface indicator for each element. It shows you which
elements are still hot. The hot surface indicator has two levels.
If an His shown on the display, the element is still hot. You could use it, for example,
to keep a small quantity of food warm or to melt a chocolate coating.
As the element continues to cool, the display changes to ;7.The display goes out
once the element has cooled sufficiently.
The hot surface indicator will automatically come on after a power failure. The
display lights up for approximately 30 minutes.
9

Operation
Main power switch
Turning on
Turning off
Note
Use the main switch to turn on the electronic circuitry for the control panel. The
cooktop is now ready to use.
Touch ON/OFF until the indicator above the main switch and the symbols O for the
heating elements turn on.
Touch ON/OFF until the indicator above the main switch turns off. The residual heat
indicators will continue to appear until the elements have cooled off sufficiently.
The cooktop will turn off automatically if all of the elements have been turned off for
longer than 20 seconds.
If residual heat is still present when the cooktop is turned on, H/i-,will appear in the
heating element display.
Setting the cooktop
This section explains how to set the elements. Inthe table, you can find temperature
settings for various foods.
Setting the heating
element Select the desired heat setting in the setting area.
Heat setting 1 -- lowest power
Heat setting 9 = highest power
Each heat setting has an intermediate position.
It is indicated by. and is set using o.
Setting the heat setting The cooktop must be turned on.
1. Touch the symbol O for the desired heating element.
u will appear in the display and the symbol O for the selected heating element
will light up brightly.
2. With the next 10 seconds touch the desired heat setting (1-9) in the setting area.
10
