Bosch PRR726F70E User manual

Carl-Wery-Straße 34
81739 München
Robert Bosch Hausgeräte GmbH
www.bosch-home.com
Operating instructions
Mode d’emploi
Instrucciones de funcionamiento
Manual de utilizaçao
Gebrauchsanweisung
Gebruiksaanwijzing
de
en
fr
es
pt
nl
tr Kullanma KIlavuzu
Cod. 9000346870 J

Table of contents
Your new appliance ........................................... 5
Suitable pans .................................................... 10
Wok pan .......................................................... 10
Accessories ...................................................... 11
Burners ............................................................... 6
To turn on a burner ............................................. 7
Safety precautions ............................................. 3
Safety system .................................................... 7
To turn the burners off ......................................... 7
Power levels ...................................................... 8
“Power on/off” and residual heat indicator … … … … ..… 8
Overheating protection … … … … … … … … ...… … ...… … 9
Childproof locks … … … … … … … … … … … … … … … ..… 9
Warnings .......................................................... 9
Additional coffee maker support ........................... 11
Additional pan support ........................................ 11
Cooking recommendations .................................. 11
Precautions for use ......................................... 12
Cleaning and maintenance ............................. 13
Cleaning ..................................................................... 13
Unsuitable products ................................................... 13
Maintenance .............................................................. 14
Faults .............................................................. 15
Operating indicators and error messages… … .. 16
Technical Assistance Service ......................... 17
Warranty conditions ................................................... 17
Used appliances and packaging ..................... 17
Environmentally-friendly waste management ............ 17
1

Dear customer,
Congratulations on your choice. Thank you for purchasing one of our
appliances. This practical, modern and functional appliance is manufactured
using materials of the highest quality which are subject to strict Quality
Control checks throughout the entire manufacturing process. The appliance
is meticulously tested to ensure that it meets your demands and produces
perfect cooking results.
Do not remove the appliance from its protective packaging until it is installed
in the unit.
Please read these instructions carefully before proceeding to install and use
the appliance. The information contained in these instructions is essential for
the correct operation of the appliance and, more importantly, for your safety.
The packaging of your appliance has been manufactured using only the
materials which are strictly necessary to guarantee efficient protection
during transport. These materials are 100% recyclable, thus reducing the
environmental impact. You can also contribute to caring for the environment,
by following the advice below:
- dispose of the packaging in the appropriate recycling bin,
- before you get rid of an old appliance, make sure you disable it. Contact
your local authority to find out the address of your nearest recycling centre
to dispose of your appliance,
- do not pour used oil down the sink. Collect it in a sealed container and
take it to an appropriate collection point or, failing that, place it in the rubbish
bin (it will end up in a controlled dump; this is probably not the best option,
but it will avoid contaminating ground water).
IMPORTANT:
In the unlikely event that the appliance should arrive damaged or not meet
your expectations in terms of quality, please inform us as soon as possible.
For the warranty to be valid, the appliance must not have been tampered
with, or used inappropriately.
2

3
Safety precautions
Read these instructions carefully. Reading these
instructions will enable you to use your appliance safely
and effectively. Keep the operation and installation
instructions and provide them along with the appliance if
it is passed on to another user.
The manufacturer is exempt from all responsibility if
the requirements of this manual are not complied with.
The images shown in these instructions are for guidance
only.
Do not remove the appliance from its protective
packaging until it is installed in the unit.
Do not switch on the appliance if it is damaged in any
way. Contact our Technical Assistance Service.
This appliance is class 3 type, according to the EN 30-1-
1 regulation for gas appliances: built-in appliance.
This appliance must only be used in well ventilated places.
All operations relating to installation, connection,
regulation and conversion to other gas types must be
carried out by an authorised installation engineer,
respecting all applicable regulations, standards and
the specifications of the local gas and electricity
suppliers. Special attention shall be paid to ventilation
regulations.
It is recommended you contact the Technical
Assistance Service to change to another gas type.
Before installing your new hob, ensure that it is being
installed according to the assembly instructions.
This appliance leaves the factory set to the type of gas
that is indicated on the specifications plate. If this needs
to be changed, please consult the assembly instructions.
This appliance has been designed for home use only,
not for commercial or professional use. This appliance
cannot be installed on yachts or in caravans. The
warranty will only be valid if the appliance is used for the
purpose for which it was designed.
This appliance is only intended for cooking purposes,
not as a heating system.
This appliance is not intended for operation with an
external clock timer or a remote control.
Never leave the appliance unattended during operation.
This appliance may be used by children 8 years old and
older and by persons with reduced physical, sensory or
mental capacity or a lack of experience or knowledge if
they are supervised or they have been instructed about

4
=
the safe use of the appliance and have understood the
associated dangers.
Never let children play with the appliance. Cleaning and
user maintenance must not be carried out by
unsupervised children.
Accumulation of unburned gas in an enclosed area carries
a risk of deflagration. Carefully read the instructions and
warnings on the operation of gas burners.
The hotplates and surrounding area become very hot.
Never touch the hot surfaces. Children under 8 years old
must be kept at a safe distance from the appliance.
The hotplates become very hot. Never place combustible
items on the hob. Never place objects on the hob.
Do not store or use corrosive chemicals, steamers,
inflammable materials or non-food products below or
near this domestic appliance.
Fat or oil which is overheated can catch fire easily. Do
not leave oil or fats to heat up unattended. If oil or fats
do catch fire, never use water to put the fire out. Risk of
burns! Put the fire out by covering the pan with a lid and
switch off the hotplate.
Pans which are damaged, are not the right size, hang
over the edge of the hob or are not positioned correctly
can cause serious injuries. Follow the advice and
warnings provided relating to the cooking pans.
The kitchen will become hot and humid and combustion
products produced when this gas appliance is used.
Make sure the kitchen is well ventilated, particularly
when the hob is in use: either keep the natural ventilation
apertures open, or install a ventilation system (extractor
hood). Intense prolonged use of the appliance may
require additional or more effective ventilation: open a
window or increase the power of the ventilation system.
Do not subject the appliance to draughts. These might
blow out the burners.
Do not clean the hob using a steam cleaner. Risk of
electrocution!
In the event of a malfunction, turn off the appliance’s gas
and electricity supply. For repairs, call our Technical
Assistance Service.
Do not tamper with the appliance's interior. If necessary,
call our Technical Assistance Service.
If one of the control knobs will not turn, do not force it.
Call the Technical Assistance Service immediately, so
that they can repair or replace it.
Cracks or fractures in the glass may cause electric
shocks. Switch off the circuit breaker in the fuse box.
Contact the after-sales service.

Your new appliance
Control
knob
Burner (up to
Burner (up to
Pan support
Burner (up to
Burner (up to
Hotplate operating
indicators
Child lock
switch
Main switch
5
Control
knob
Hotplate operating
indicators
Child lock
switch
Main switch
Pan support
Burner (up to
Burner (up to
Burner (up to Burner (up to
burner (up to
4.25 kW)
1.9 kW)
1.9 kW)
2.8 kW)
1.1 kW)
1.9 kW)
2.8 kW)
1.9 kW)
1.1 kW)
Dual double flame

The gas burners
Operation
Fig. 1
control knob operates. Fig. 1.
It is essential to ensure that all the burner parts
and the pan supports are correctly installed for the
appliance to work correctly. Fig. 2-3-4.
The appliance has been factory adjusted so that
There are indications to show which burner each
the first time it is connected the childproof lock is
automatically activated. To deactivate the
" "childproof lock, keep the "child blocker" switch
pressed down several seconds until the main
switch''s light comes on. The hob is now ready
for use.
In case of a power failure or voltage drop, the
childproof lock will be automatically activated
when switching on the appliance again.
Fig. 2
Fig. 4
6
Fig. 3

To turn on a burner
After finishing cooking, turn the controls to position
0 and disconnect the appliance using the main
switch.
The main switch indicator will be turned off.
The appliance switches off automatically after 6
hours of operation. Turn all the control knobs to the
0 position and then you can turn the appliance on
again.
To turn the burners off
Connect the appliance by means of the main
switch, its indicator which will come on. Then
turn the chosen burner control to the left
(anticlockwise) to the required position. The flame
will automatically and the hotplate indicator light
will come on.
If the main switch has been pushed but no burner
ignited, the appliance will switch itself off
automatically after 3 minutes.
If the burner goes out (e.g. a draught) when in use,
the appliance will switch the hotplate on again
automatically.
If this ignition is unsuccessful (e.g. as a result of
boiled-over liquid on the burner), the flow of gas to
this burner is interrupted and the hotplate indicator
flashes. Turn the control knob to 0 and check
whether the cause can be rectified using the table
Every hotplate features a safety pilot!
extinguished by boiled-over liquid), the flow of gas
that this device is active, switch on the burner as
Safety system
Ignition sparker
on page 16.
The hob is equipped with an electronic safety system
This means that if the flame ever goes out (e.g. is
(thermocouple) that cuts off the gas when the burners
is interrupted.
are accidentally switched off. To ensure
usual.
Please note
7
Thermocouple

“Power on/off” and
residual heat
indicator
Power levels The progressive controls can be used to control
the power needed, from minimum to maximum
power.
Setting
Large flame
Economy
flame
Control off
Maximum capacity or
aperture and electricity
on
Minimum capacity or
aperture

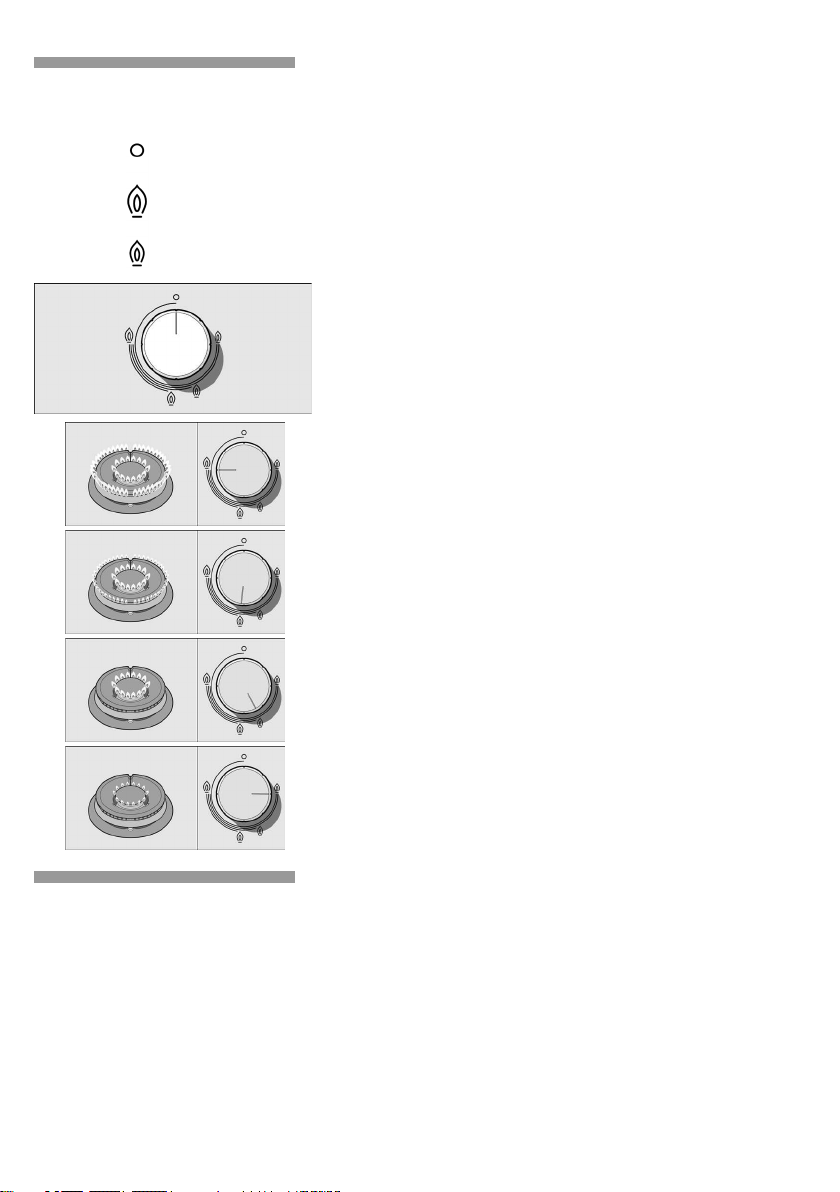

For dual double flame burners, the inner and outer
flames can be controlled separately.
The available power levels are as follows:
Inner and outer flame on full power.
Outer flame on minimum, inner flame on full power.
Inner flame on full power.
Inner flame on minimum.
8
=
bîÉêó=ÅççâáåÖ=òçåÉ=áë=ÑáííÉÇ=ïáíÜ=~=“éçïÉê=çåLçÑÑÒ=
~åÇ=êÉëáÇì~ä=ÜÉ~í=áåÇáÅ~íçê=ïÜáÅÜ=ÅçãÉë=çå=ïÜÉå=
íÜÉ=Ñä~ãÉ=çå=íÜÉ=ÅçêêÉëéçåÇáåÖ=ÄìêåÉê=áë=áÖåáíÉÇK=
qÜÉ=êÉëáÇì~ä=ÜÉ~í=áåÇáÅ~íçê=êÉã~áåë=çå=~ÑíÉê=íÜÉ=
ÅççâáåÖ=òçåÉ=Ü~ë=ÄÉÉå=ëïáíÅÜÉÇ=çÑÑ=éêçîáÇÉÇ=íÜÉ=
Üçíéä~íÉ=áë=ëíáää=Üçí=ÉåçìÖÜ=íç=ÄÉ=Ç~åÖÉêçìë=ïÜÉå=
íçìÅÜÉÇK=
qÜÉ=êÉëáÇì~ä=ÜÉ~í=áåÇáÅ~íçê=ÖçÉë=çìí=ïÜÉå=íÜÉ=
Üçíéä~íÉ=Ü~ë=ÅççäÉÇ=ëìÑÑáÅáÉåíäóK=

Warnings
Overheating
protection
The hob is equipped with overheating protection to
protect the electronics. This switches all the burners
off in the event of overheating and the “power on/off”
indicators in all the burners and the main switch
flash.
Turn all control knobs to the 0 position. Wait until the
appliance has cooled down sufficiently and the power
on/off indicator for the main switch has gone out.
Now you can switch on the appliance as usual.
The burner power on/off indicators stop flashing
Childproof locks
9
rapidly or switch over to the residual heat indicator.
To deactivate the childproof lock, press on the child
lock for a few seconds until the main switch indicator
comes on. The hob can then be switched on as
usual.
by means of the main switch, then press on the child
lock for a few seconds until the child lock indicator
comes on. The hob cannot then be switched on.
To activate the childproof lock, disconnect the hob
is interrupted.
to the mains electricity or if the electricity supply
This apparatus will not function if it is not connected
It is normal to hear a slight whistling noise while the
burner is operating.
When it is first used, it is normal for the burner to give off
odours; this does not pose any risk and does not indicate
a malfunction; they will disappear in time.
A few seconds after the burner is switched off, a sound
(thud) will be produced. This is not a fault - this means
that the safety device is no longer operating.

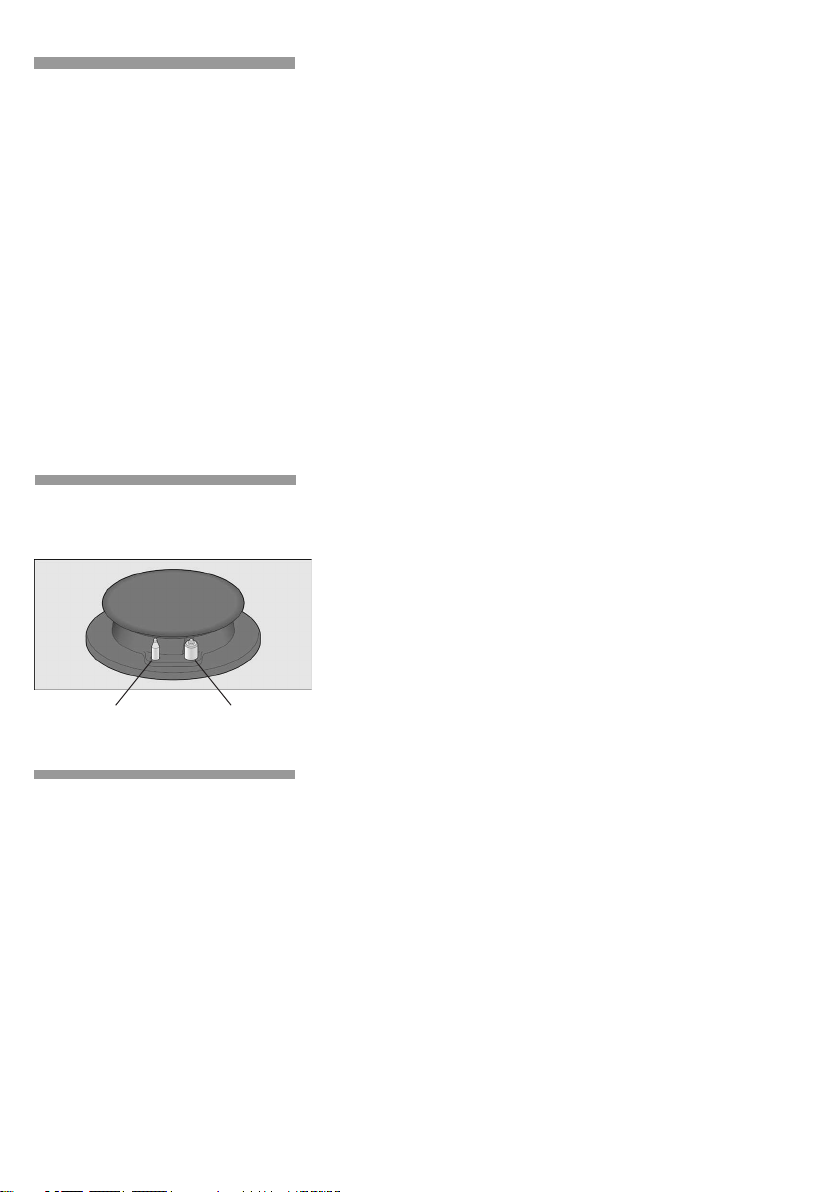

Keep the burner as clean as possible. If the ignition
sparkers are dirty they will not light properly. Clean them
periodically using a small non-wire brush. Bear in mind
that the ignition sparkers must not suffer any serious
impacts.
An orange-coloured flame is normal. This is caused by
the presence of dust in the atmosphere, spilt liquids, etc.
If the burner flames are accidentally blown out, switch off
the burner operating control knob and do not try to relight
it for at least one minute.

Burner
Minimum
pan diameter
Maximum
pan diameter
Double flame 22 cm
Rapid burner 22 cm 26 cm
Semi-rapid
burner 14 cm 20 cm
Auxiliary burner 12 cm 16 cm
Suitable pans
Wok pan
10
burner
Food can be prepared in various ways in a wok: it can
be stewed, stir fried, cooked on a low heat, pan-fried,
or steamed. It could be said that woks serve as both
as a saucepan and a frying pan and, owing to their
shape and size, they can be used to cook quite large
ingredients.
When cooking with a wok, heat is diffused more
uniformly and gently; the intense heat which
accumulates means that food takes less time to
cook and also requires less oil, making it one of the
quickest and healthiest ways of cooking. Always
follow the manufacturer’s instructions when cooking
with a wok.
A wok is a cooking vessel originating in China; it is
a kind of deep, round, lightweight pan with handles
and a flat or concave base.

Additional coffee
maker support
Only for use on the auxiliary burner with pans which
are no more than 12 cm in diameter.
The manufacturer accepts no liability if these
additional pan supports are not used or are used
incorrectly.
Burner Very high High Medium Low
Double flame
burner
Boiling, steaming,
griddling, toasting,
paellas, Asian food
(wok).
Reheating and keeping things hot:
cooked and pre-cooked dishes.
Rapid burner
Scallops, steaks,
omelettes,
frying.
Rice, white sauce and
ragout.
Steaming:
fish,
vegetables.
Semi-rapid
burner
Steaming potatoes,
fresh vegetables,
stews and pasta.
Reheating, keeping things hot
and making tasty casseroles.
Auxiliary burner
Cooking: casseroles,
rice pudding and
caramels.
Defrosting and slow
cooking: vegetables,
fruits and frozen
products.
Melting: butter,
chocolate,
gelatine.
Cooking
recommendations
support
Accessories Depending on the model, the hob may include the
following accessories. These are also available from
Only for use on the double flame burner with pans
which are more than 26 cm in diameter (roasting
dishes, earthenware pots, etc.) and with pans with a
concave base.
11
Additional wok pan
the Technical Assistance Service.

Precautions for use
12
energy and prevent cookware damage:
Use pans which are the right size for each burner.
Do not use damaged cookware, which does not sit
evenly on the hob. Pans may be overturned.
Only use a pan with thick, flat base.
Always place the cookware right over the burner, not
to one side. Otherwise it could be overturned.
Do not place large pans on the burners near the
controls. These may be damaged by the very high
temperatures.
Place the pans on the pan supports, never directly on
the burner.
Pans should be placed on the hob carefully.
Do not strike the hob and do not place excessive
weight on it.
Make sure that the pan supports and burner covers
are correctly positioned before using the appliance.
The following advice is intended to help you save
aç=åçí=ìëÉ=ëã~ää=êÉÅÉéí~ÅäÉë=çå=ä~êÖÉ=ÄìêåÉêëK=qÜÉ=
Ñä~ãÉ=ëÜçìäÇ=åçí=íçìÅÜ=íÜÉ=ëáÇÉë=çÑ=êÉÅÉéí~ÅäÉëK=
=
aç=åçí=Åççâ=ïáíÜçìí=äáÇë=çê=ïáíÜ=äáÇë=çåäó=é~êíá~ääó=
ÅçîÉêáåÖ=êÉÅÉéí~ÅäÉëK=vçì=~êÉ=ï~ëíáåÖ=ÉåÉêÖóK=
=

13
Cleaning and maintenance

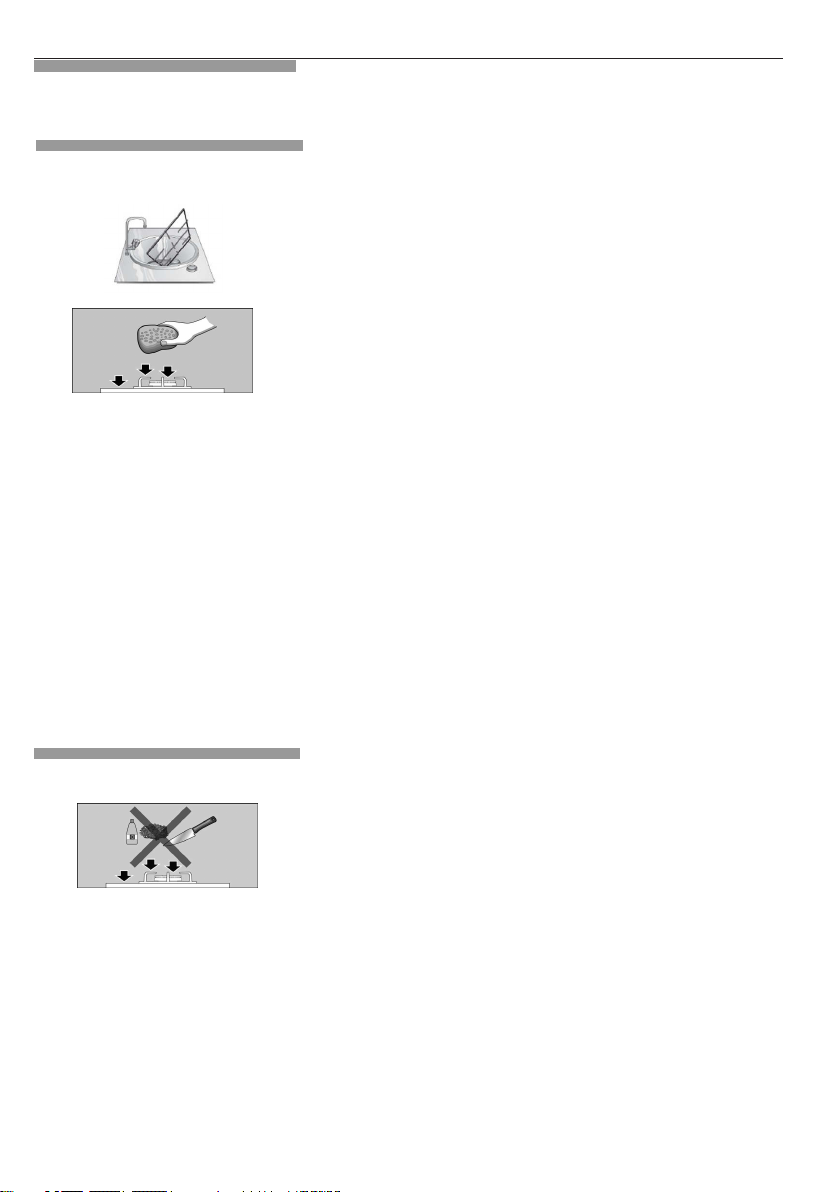

Cleaning Once the appliance is cool, use a sponge to clean it with
soap and water.
After each use, clean the surface of the respective burner
parts once they have cooled down. If any bits are left
(overcooked food, drops of grease etc.), however few,
they will become stuck to the surface and more difficult
to remove later. The holes and grooves must be clean for
the flame to ignite properly.
The movement of some pans may leave metal residue on
the pan supports.
Clean the burners and pan supports using soapy water
and scrub with a non-wire brush.
Alternatively, the pan supports can be put in the
dishwasher. Use the dishwasher manufacturer's
recommended detergent. If the pan supports are very
dirty, they should be cleaned previously.
Do not put the burner caps in the dishwasher.
If the pan supports are fitted with rubber rests, ensure that
these are also cleaned. The rests may come loose and
the pan support may scratch the hob.
Always dry the burners and pan supports completely.
Water droplets or damp patches on the hob at the start
of cooking may damage the enamel.
After cleaning and drying the burners, make sure the
burner covers are correctly placed on the burner flame
diffuser.

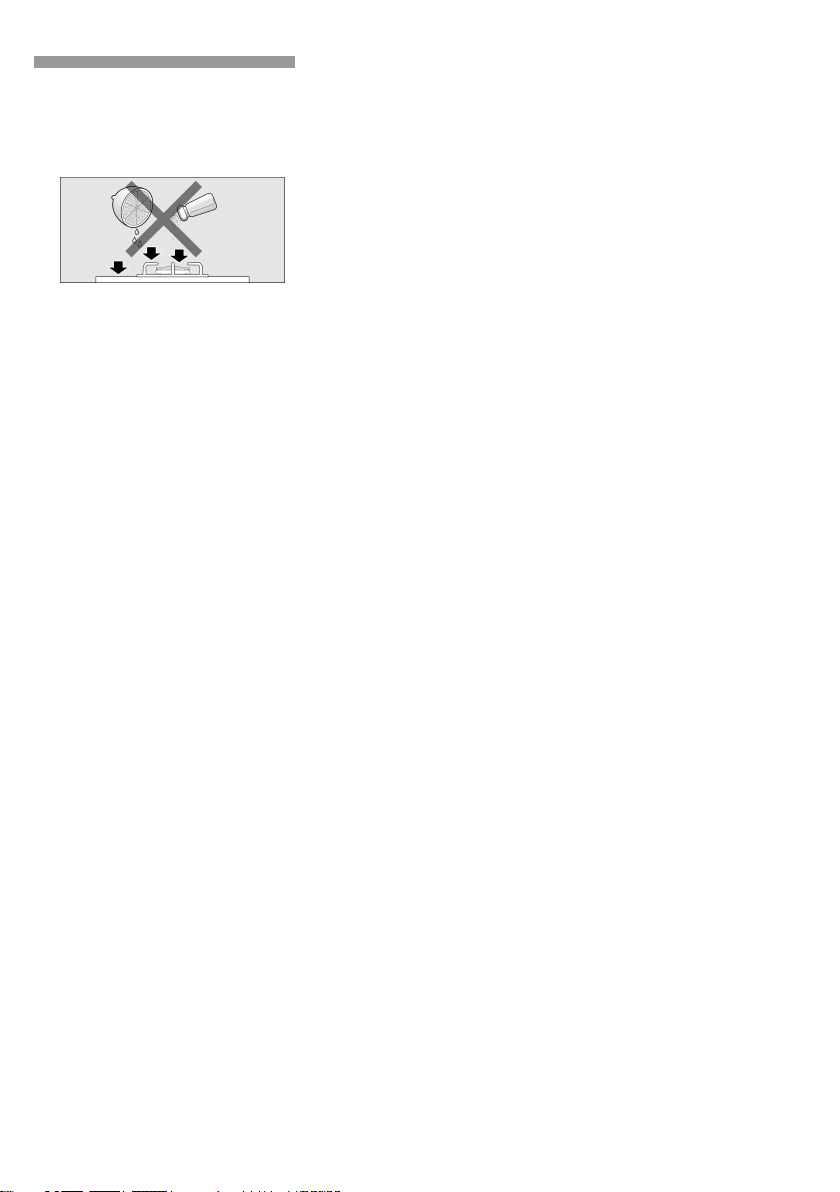

Unsuitable products Never slide pans across the glass surface, as you may
scratch it. In addition, try not to drop heavy or sharp
objects on the glass. Never strike any part of the hob.
Do not use steam cleaners. This could damage the hob.
Never use abrasive products, steel scourers, sharp
implements, knives, etc. to remove bits of hardened food
from the hob.
If your hob is fitted with a glass or aluminium panel, never
use a knife, scraper or similar to clean the point where it
joins the metal.
Do not use knives, scrapers or similar implements to
clean the point where the glass meets the burner trims,
the metal frames or the glass/aluminium panels, if fitted.

Always clean off any liquid as soon as it is spilt: you
will save yourself any unnecessary effort.
Grains of sand that may come from cleaning fruits
and vegetables will scratch the glass surface.
Melted sugar, or foods which contain a lot of sugar
which may have spilt, should be cleaned off the
hotplate immediately, using the glass scraper.
Maintenance
14

Sometimes certain faults detected can be easily
resolved. Before calling the Technical Assistance
Service, bear in mind the following advice:
Faults
15
Fault Possible cause Solution
The general electrical
system is malfunctioning.
Defective fuse. Check the fuse in the main fuse box and
change it if it is damaged.
The automatic safety switch or circuit
breaker has tripped.
Check the main control panel to see if the
automatic safety switch or circuit breaker
has tripped.
The automatic switching on
function does not work.
There may be food or cleaning
products stuck between the ignition
sparkers and the burners.
The space between the ignition sparker and
the burner must be clean.
The burners are wet. Dry the burner caps carefully.
The burner caps are not correctly
positioned.
Check that the covers are correctly
positioned.
The appliance is not earthed, is poorly
connected or the earthing is faulty.
Contact the installation technician.
The burner flame is not
uniform.
The burner components are not
correctly positioned.
Correctly place the parts on the appropriate
burner.
The grooves on the burner are dirty. Clean the grooves on the burner.
The gas flow is not normal
or there is no gas.
The gas supply is blocked via
intermediary valves.
Open all gas taps.
If the gas is supplied from a gas
cylinder, check that this is not empty.
Change the gas cylinder.
The kitchen smells of gas. A gas tap has been left on. Turn off the taps.
Incorrect coupling of gas cylinder. Check that the coupling is sound.
Possible gas leak. Shut off the gas supply, ventilate the
premises and immediately notify an
authorised installation technician so that they
can check and certify the installation. Do not
use the appliance until you are sure that
there is no gas leak in the installation or
appliance itself.
The burner immediately
the control knob.
The control knob was not held down for
long enough.
Once the burner is on, hold the control knob
down a few seconds longer.
The grooves on the burner are dirty. Clean the grooves on the burner.
switches off after releasing
The childproof lock pilot
light comes on.
The electricity has come back on
drop.
after a power failure or voltage
If the problem continues contact the
see
page
Desactivate the chilproof lock (
)
9
technical assistance service.
.

Operating indicators and error
messages
Child lock is activated.
The main switch indicator lights
up.
The main switch indicator and

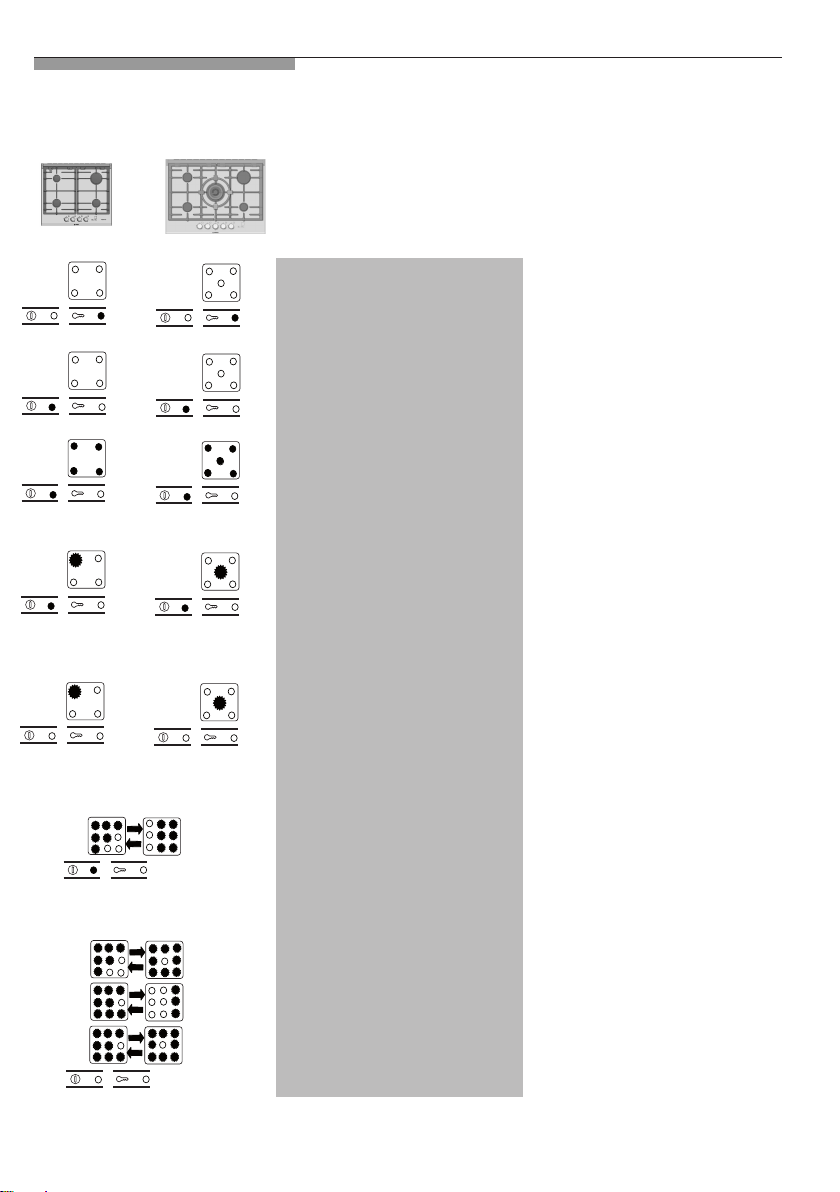

the other operating indicators
light up.
The main switch indicator lights
up, the operating indicator for
one burner flashes.
Main switch indicator off, the
operating indicator for one
burner flashes.
The main switch indicator lights
up and the other operating
indicators flash in succession.
Main switch indicator off, all
operating indicators flash in
succession.
Press the switch for 4 seconds
to activate the appliance.
The appliance is ready for use.
All the burners are switched on
or are already hot.
The burner could not be
switched back on
(because it is dirty, there are
bits of food stuck to it, the
burner components are not
correctly positioned, or there is
a strong draught).
Operating error, control knobs
on without first switching on
the main switch or the safety
shutdown. Appliance has been
on for more than six hours.
Protection against overheating:
turn all the control knobs to
setting 0, allow the appliance to
cool down until the operating
indicators go out or the residual
heat warning light comes on.
Electronic error: turn all the
control knobs to setting 0,
restart the appliance (by
pressing the main switch). If
the indicators on the appliance
continue to flash, call customer
services.
16

16
If the symbol is shown on the specifications
plate, bear in mind the following instructions.
When contacting our Technical Assistance Service,
please provide the product number (E-Nr.) and
production number (FD) of the appliance. This
information is given on the specifications plate located
on the lower section of the hob and on the label in the
user manual.
Unpack the appliance and dispose of the packaging
by environmentally-friendly means.
This appliance complies with European Directive
2002/96/CE on Waste Electrical and Electronic
Equipment (WEEE).
Environmentally-
friendly waste
management
Warranty conditions
Used appliances and packaging
Technical Assistance Service
The applicable warranty conditions are those set out
by the company’s representative office in the country
of purchase. Detailed information is available from
retail outlets. Proof of purchase must be presented to
obtain the benefits of the warranty.
We reserve the right to introduce changes.
17

INHALT
Sicherheitshinweise ........................................ 20
Ihr neues Gerät ............................................... 22
Brenner ............................................................ 23
Brenner anschalten ........................................... 24
Sicherheitssystem ............................................ 24
Brenner ausschalten ......................................... 24
Leistungsstufen ............................................... 25
25
Überhitzungsschutz ................................................. 26
26
Warnhinweise ................................................ 26
Geeignete Kochgefäße .................................... 27
Wok ............................................................. 27
Zubehör ........................................................ 28
Zusatzrost Wok .............................................. 28
Zusatzrost Kaffeekocher .................................. 28
Empfehlungen zum Kochen ............................. 28
Hinweise bei der Benutzung ........................ 29
Reinigung und Pflege .................................. 30
Reinigung ............................................................... 30
Ungeeignete Pflegemittel ...................................... 30
Pflege .................................................................... 31
Störungen ................................................... 32
Funktionsanzeigen und Fehlermeldungen… 33
Technischer Kundendienst ......................... 34
Garantiebedingungen ........................................... 34
Verpackung und Altgeräte .......................... 34
Umweltschonende Entsorgung ............................ 34
18
Betriebs-und Restwärmeanzeige .............................
Kindersicherung ........................................................

Geehrte Kundin, geehrter Kunde,
wir gratulieren zur Wahl des neuen Geräts und bedanken uns für das
entgegengebrachte Vertrauen. Dieses praktische, moderne und funktionelle
Gerät wird aus Materialien bester Qualität hergestellt, die während des
gesamten Produktionsprozesses strikten Qualitätskontrollen unterliegen und
genauestens geprüft werden, um Ihre Anforderungen an einen perfekten
Kochvorgang zu erfüllen.
Belassen Sie das Gerät bis zum Einbau in der Schutzhülle.
Wir bitten Sie, diese Anweisungen vor dem Einbau oder der Benutzung
des Geräts durchzulesen. Die darin enthaltenen Informationen sind für den
korrekten Betrieb und - wichtiger noch - für Ihre eigene Sicherheit sehr
wichtig.
Die Verpackung Ihres Geräts besteht aus Materialien, die notwendig
sind, um einen wirksamen Schutz beim Transport zu garantieren. Diese
Materialien sind vollständig wiederverwendbar und verringern damit
die Umweltbelastung. Wie wir können auch Sie einen Beitrag zum
Umweltschutz leisten, indem Sie folgende Ratschläge beachten:
- Entsorgen Sie die Verpackung in einer Tonne für recyclingfähige
Materialien.
- Machen Sie ein Altgerät vor der Entsorgung unbrauchbar. Informieren
Sie sich bei Ihrer örtlichen Verwaltung über die Adresse des nächsten
Wertstoffhofs und liefern Sie Ihr Gerät dort ab.
- Schütten Sie verwendetes Bratfett oder Öl nicht durch das Spülbecken.
Sammeln Sie das Öl in einem verschließbaren Gefäß und geben Sie es bei
einer Sammelstelle ab oder werfen Sie es, wenn dies nicht möglich ist, in die
Mülltonne (so gelangt es auf eine kontrollierte Mülldeponie; vermutlich nicht
die beste Lösung, doch wird so kein Wasser verschmutzt).
WICHTIG:
Falls das Gerät wider Erwarten Schäden aufweisen oder Ihre
Qualitätsanforderungen nicht erfüllen sollte, setzen Sie uns davon so schnell
wie möglich in Kenntnis. Zur gültigen Einlösung der Garantie darf das Gerät
nicht unbefugt manipuliert bzw. benutzt worden sein.
19
