Bosch WTE86300US/03 User manual

)US
en Operating, Care and
Installation Instructions

Table of Contents
Definitions .................................................................................
IMPORTANT SAFETY INSTRUCTIONS ........................................................
GROUNDING INSTRUCTIONS ..............................................................
INSTALLATION INSTRUCTIONS ..............................................................
Introduction ..............................................................................
Information concerning waste disposal .......................................................
Before installing the dryer ...................................................................
Electrical connection .......................................................................

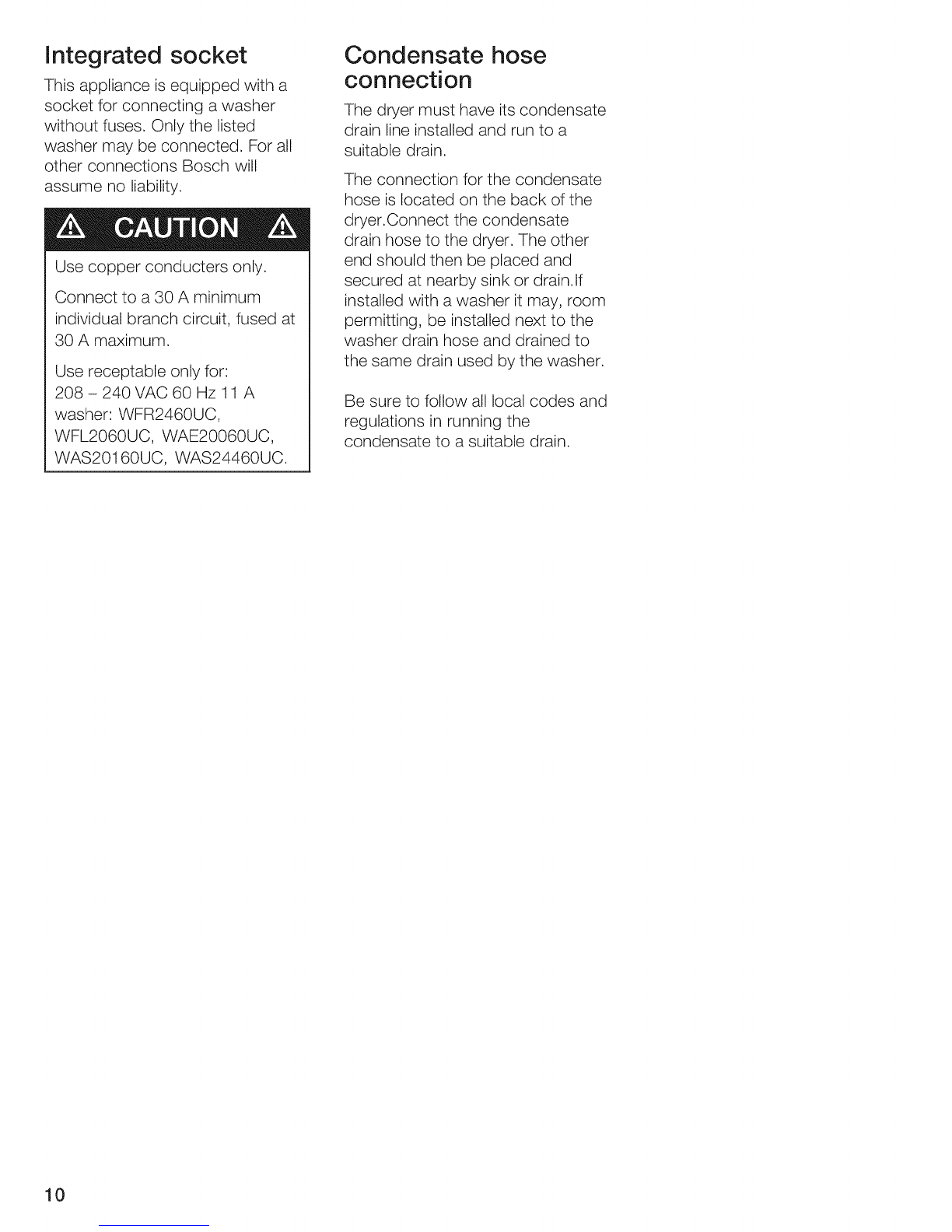

Integrated socket .........................................................................
Condensate hose connection ...............................................................
Installation - step by step ...................................................................
Built under Installation ......................................................................
Check list before using the dryer .............................................................
Preparing to transport the dryer - step by step .................................................
OPERATING INSTRUCTIONS ................................................................
Your new dryer ............................................................................
Panel ....................................................................................

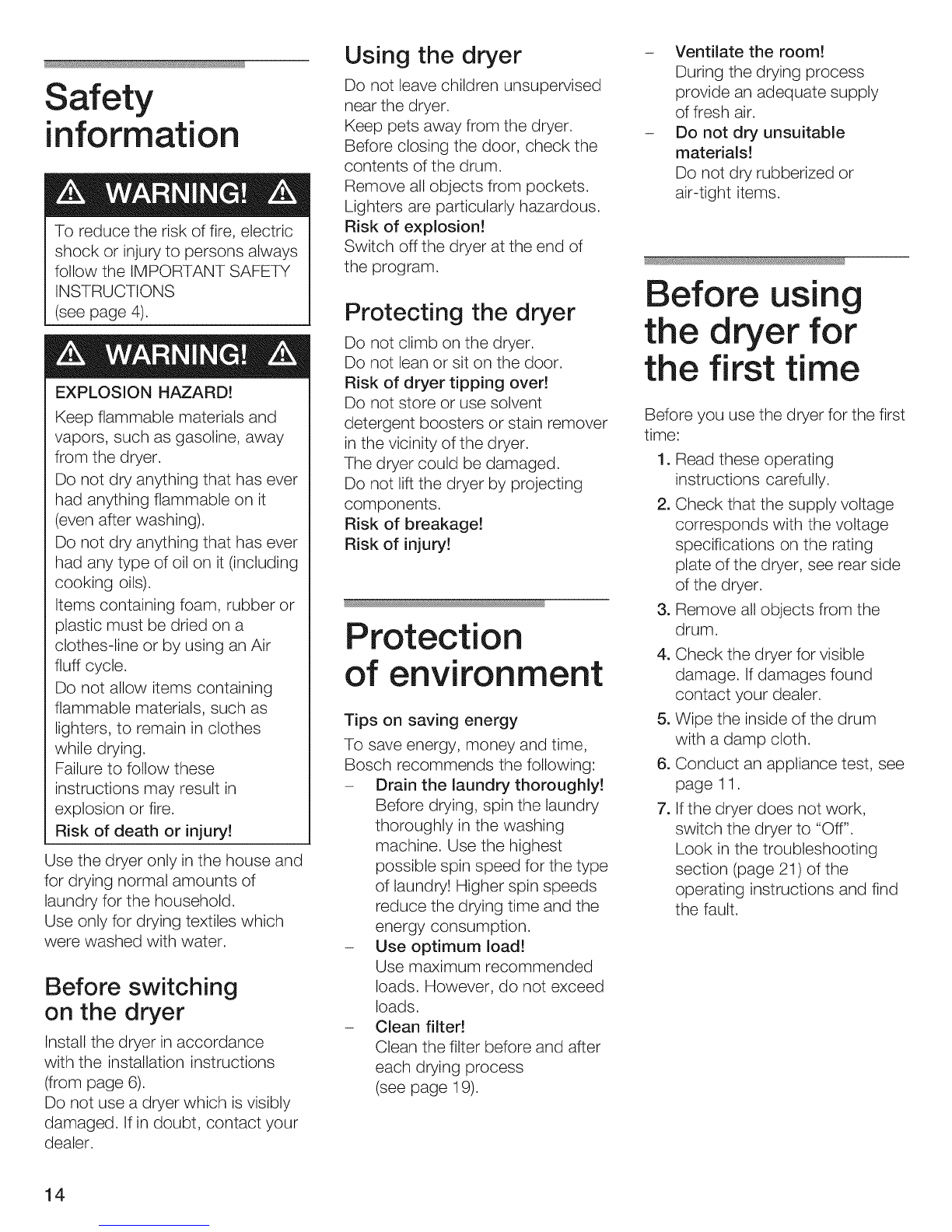

Safety information ..........................................................................
Before switching on the dryer ...............................................................
Using the dryer ...........................................................................
Protecting the dryer ........................................................................
Protection of the environment ................................................................
Before using the dryer for the first time .......................................................

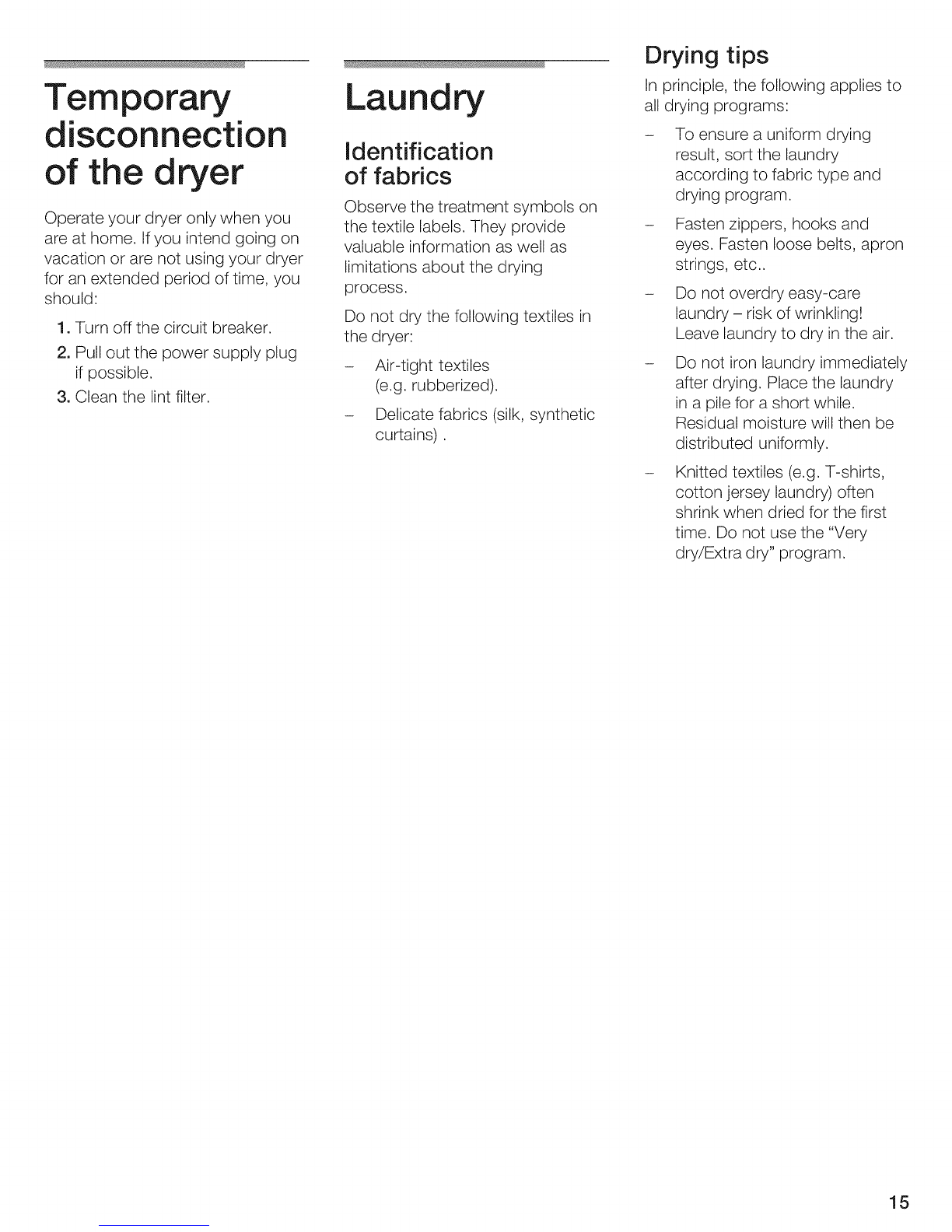

Temporary disconnection of the dryer ........................................................
Laundry ....................................................................................
Identification of fabrics .....................................................................
Drying tips ...............................................................................
Program selection ..........................................................................
Automatic programs .......................................................................
Special programs .........................................................................
Time programs ...........................................................................
Options ..................................................................................

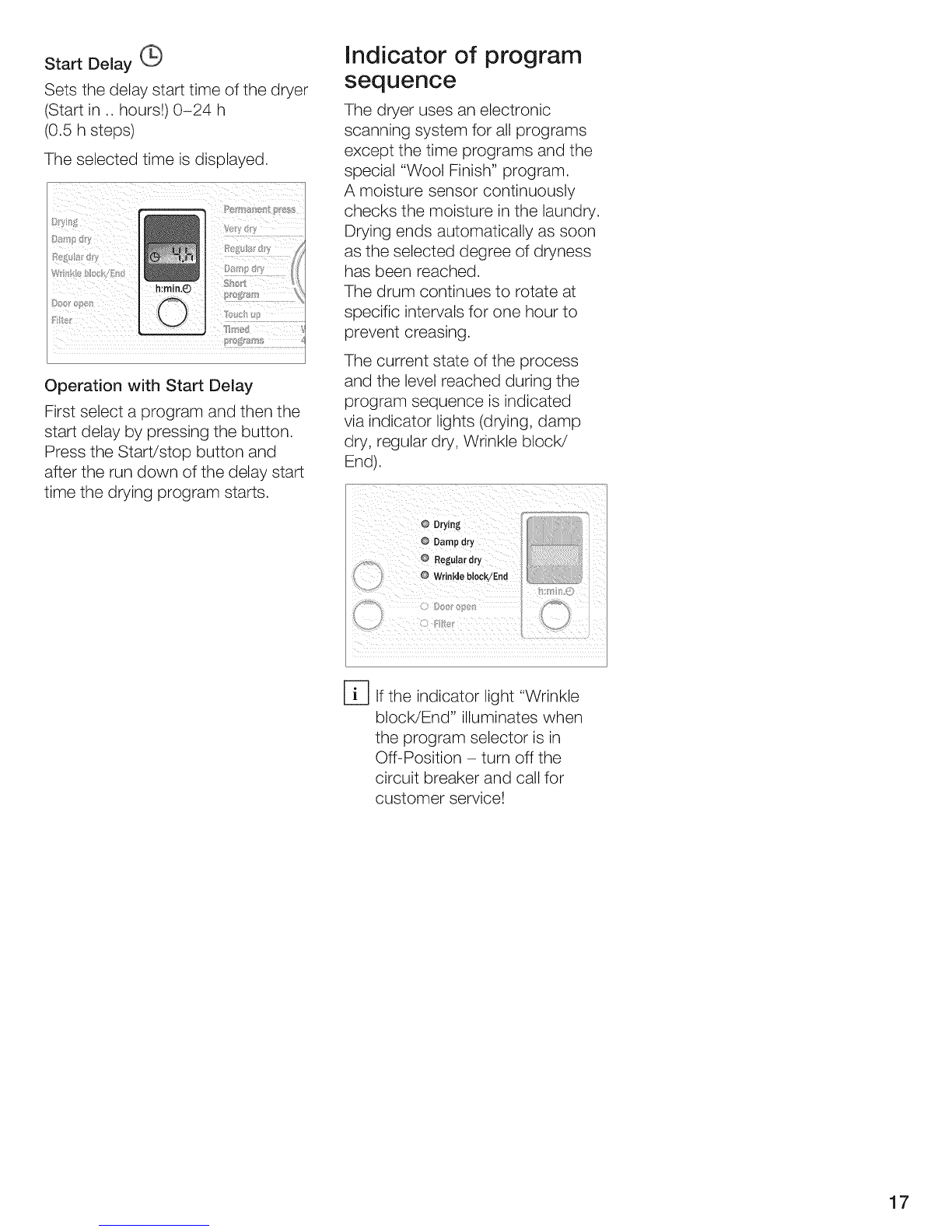

Indicator of program sequence ..............................................................

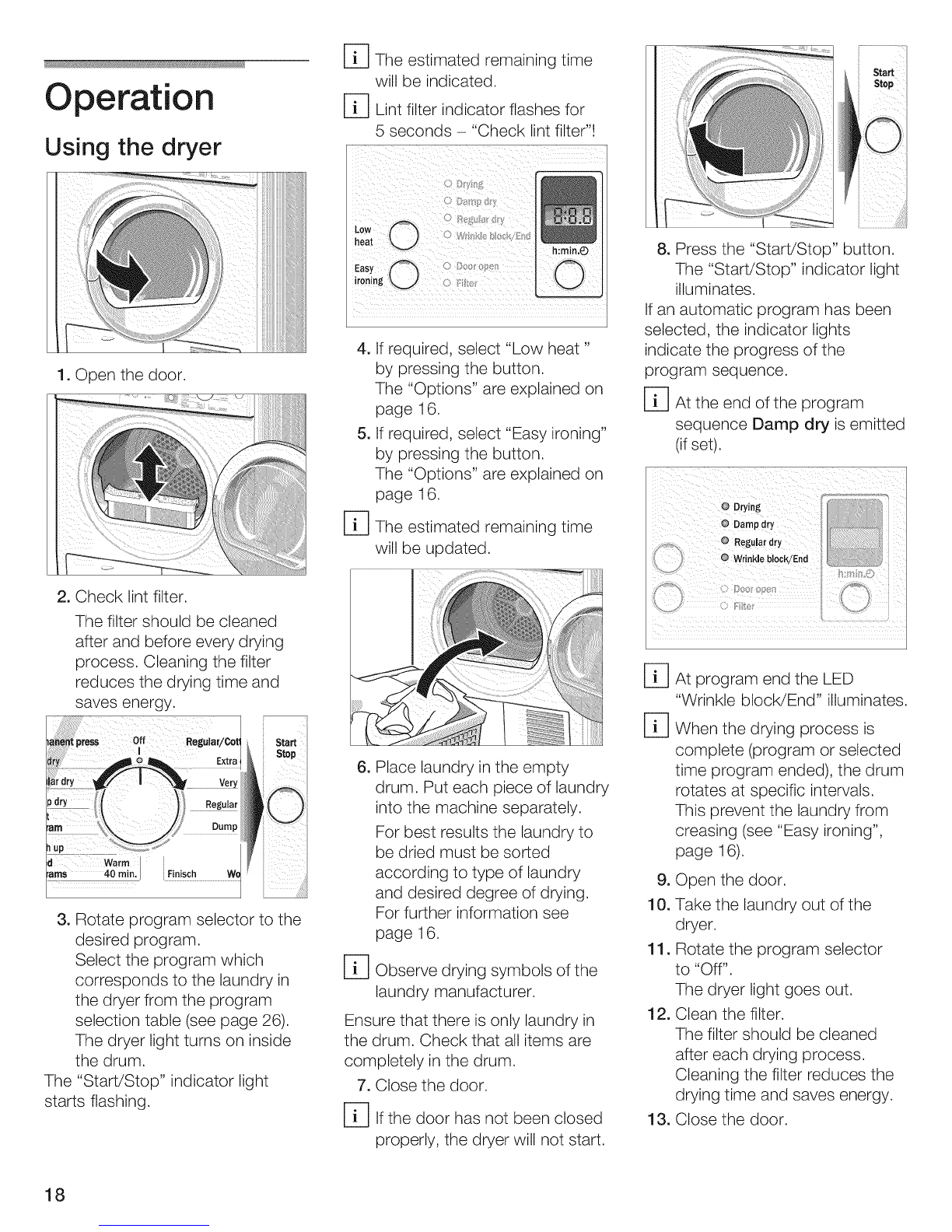

Operation ..................................................................................
Using the dryer ...........................................................................

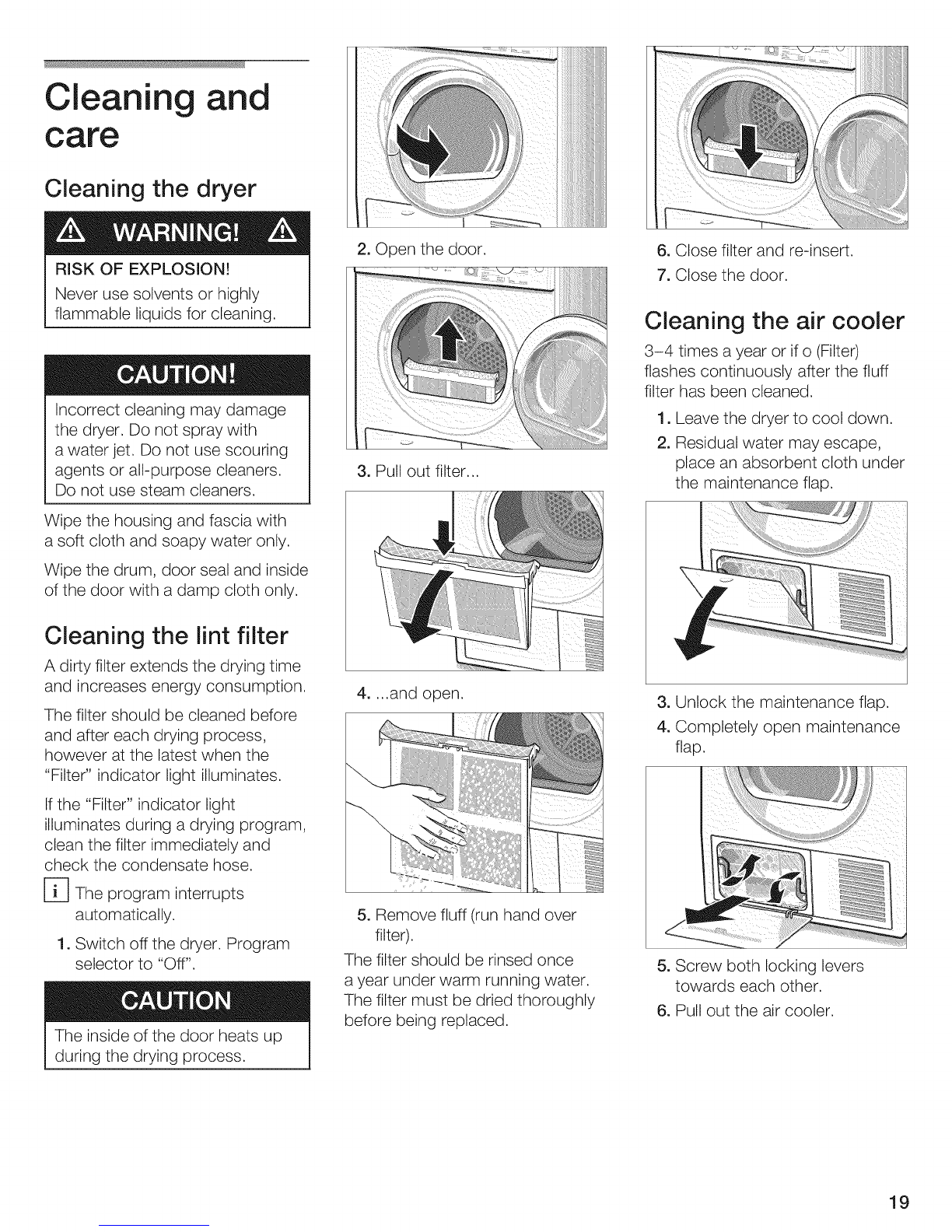

Cleaning and care ..........................................................................
Cleaning the dryer .........................................................................
Cleaning the lint filter .......................................................................
Cleaning the air cooler .....................................................................
Cleaning the moisture sensor ...............................................................
Cleaning the bearing shield .................................................................
Change the light bulb ......................................................................
Troubleshooting ............................................................................
SERVICE and REPAIR .....................................................................
STATEMENT OF LIMITED PRODUCT WARRANTY .............................................
Warranty Exclusions .......................................................................
Program selection table .....................................................................
Summary of instructions .....................................................................
4
5
6
6
6
6
8
10
10
11
11
11
11
12
12
13
14
14
14
14
14
14
15
15
15
15
16
16
16
16
16
17
18
18
19
19
19
19
20
20
20
21
22
23
25
26
27

Congratulationsonhavingselected
aBoschclothesdryer,thechoiceof
thosethatdemandexceptional
performancefromtheirclothesdryer.
Thisdryercomplieswith
UL2158AElectricClothesDryers.
Adistinctivefeatureofyourdryeris
lowenergyconsumption.
Aneasyoperationphilosophy,
avarietyofcustomizeddrying
programsandasolidtouchandfeel
makethisapplianceauser-friendly
assistantinyourhousehold.
TheBoschdryeroffersthefollowing
standardfeatures:
- Highefficiencyprecisiondrying
system
- Exceptionallyquietoperation
- Sensorcontrolledautocycles
- Timedcyclesfor
20 and40minutes
- Shortprogramfor1/2load
(25minutes)
Eachdryerwhichleavesourfactory
hasundergoneathorough
performancetestandisinfull
workingcondition.Ifyouhaveany
questionsespeciallyconcerning
installationofthedryer- our
customerserviceteamwillbe
happytoadviseyou.
Furtherinformationandaselection
ofourproductscanbefoundon
ourwebsite:
www.boschappliances.com
Information
Pleasereadandfollowthese
operatingandinstallation
instructionsandallother
informationenclosedwiththedryer.
Definitions
WARNING - This indicates that
death or serious injuries may
occur as a result of not
observing this warning.
CAUTION- This indicates that
injuries or significant damage
may occur as a result not
observing this warning.
CAUTION - This indicates that
minor injuries or damage may
occur as a result of not
observing this warning.
iT] This symbol is used to draw the
user's attention to something in
particular.
3

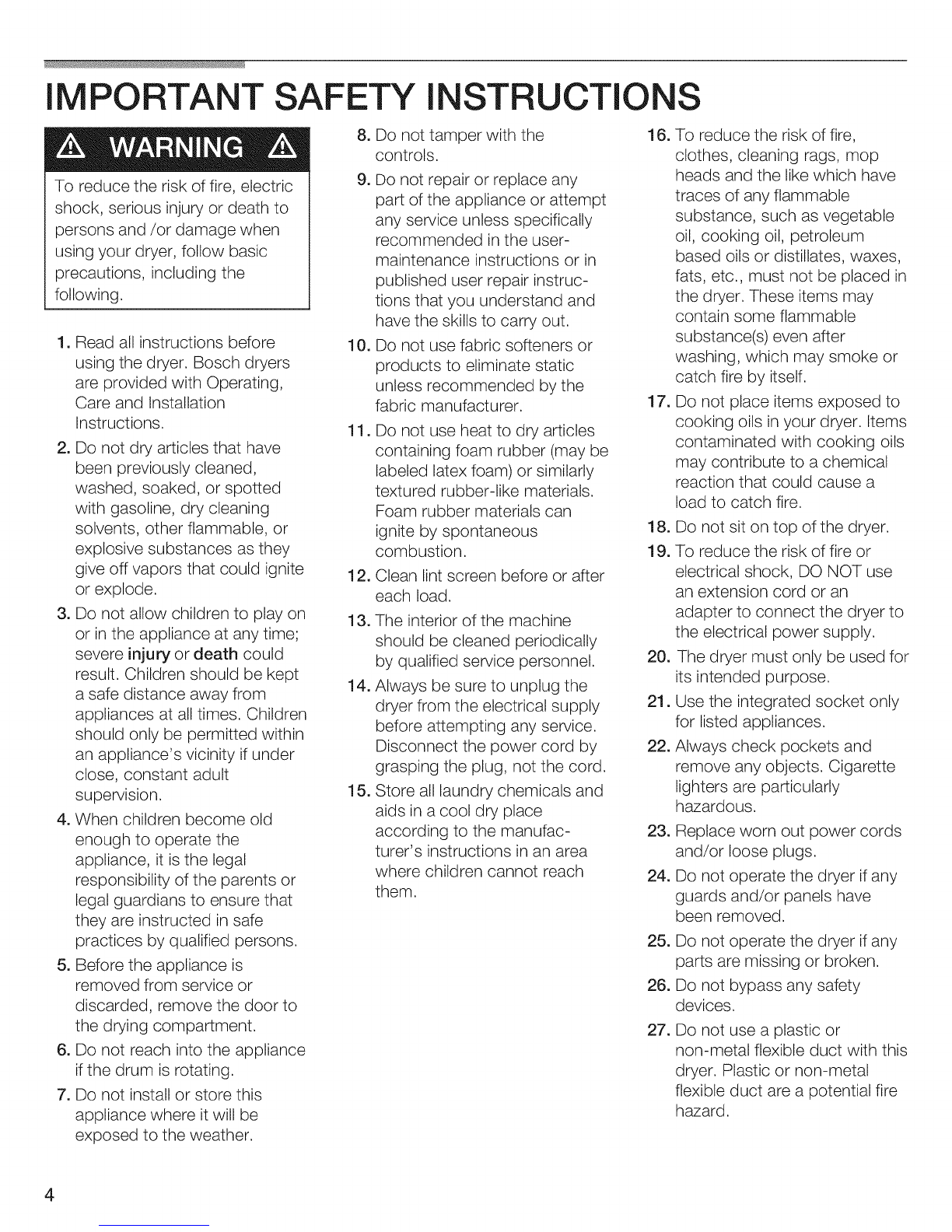

I PO TANT SAFETY I STRUCTIONS
To reduce the risk of fire, electric
shock, serious injury or death to
persons and/or damage when
using your dryer, follow basic
precautions, including the
following.
1. Read all instructions before
using the dryer. Bosch dryers
are provided with Operating,
Care and Installation
Instructions.
2. Do not dry articles that have
been previously cleaned,
washed, soaked, or spotted
with gasoline, dry cleaning
solvents, other flammable, or
explosive substances as they
give off vapors that could ignite
or explode.
3. Do not allow children to play on
or in the appliance at any time;
severe injury or death could
result. Children should be kept
a safe distance away from
appliances at all times. Children
should only be permitted within
an appliance's vicinity if under
close, constant adult
supervision.
4. When children become old
enough to operate the
appliance, it is the legal
responsibility of the parents or
legal guardians to ensure that
they are instructed in safe
practices by qualified persons.
5. Before the appliance is
removed from service or
discarded, remove the door to
the drying compartment.
6. Do not reach into the appliance
if the drum is rotating.
7. Do not install or store this
appliance where it will be
exposed to the weather.
,
9.
10.
11.
12.
Do not tamper with the
controls.
Do not repair or replace any
part of the appliance or attempt
any service unless specifically
recommended in the user-
maintenance instructions or in
published user repair instruc-
tions that you understand and
have the skills to carry out.
Do not use fabric softeners or
products to eliminate static
unless recommended by the
fabric manufacturer.
Do not use heat to dry articles
containing foam rubber (may be
labeled latex foam) or similarly
textured rubber-like materials.
Foam rubber materials can
ignite by spontaneous
combustion.
Clean lint screen before or after
each load.
13. The interior of the machine
should be cleaned periodically
by qualified service personnel.
14. Always be sure to unplug the
dryer from the electrical supply
before attempting any service.
Disconnect the power cord by
grasping the plug, not the cord.
15. Store all laundry chemicals and
aids in a cool dry place
according to the manufac-
turer's instructions in an area
where children cannot reach
them.
16. To reduce the risk of fire,
clothes, cleaning rags, mop
heads and the like which have
traces of any flammable
substance, such as vegetable
oil, cooking oil, petroleum
based oils or distillates, waxes,
fats, etc., must not be placed in
the dryer. These items may
contain some flammable
substance(s) even after
washing, which may smoke or
catch fire by itself.
17. Do not place items exposed to
cooking oils in your dryer. Items
contaminated with cooking oils
may contribute to a chemical
reaction that could cause a
load to catch fire.
18. Do not sit on top of the dryer.
19. To reduce the risk of fire or
electrical shock, DO NOT use
an extension cord or an
adapter to connect the dryer to
the electrical power supply.
20. The dryer must only be used for
its intended purpose.
21. Use the integrated socket only
for listed appliances.
22. Always check pockets and
remove any objects. Cigarette
lighters are particularly
hazardous.
23. Replace worn out power cords
and/or loose plugs.
24. Do not operate the dryer if any
guards and/or panels have
been removed.
25. Do not operate the dryer if any
parts are missing or broken.
26. Do not bypass any safety
devices.
27. Do not use a plastic or
non-metal flexible duct with this
dryer. Plastic or non-metal
flexible duct are a potential fire
hazard.
4

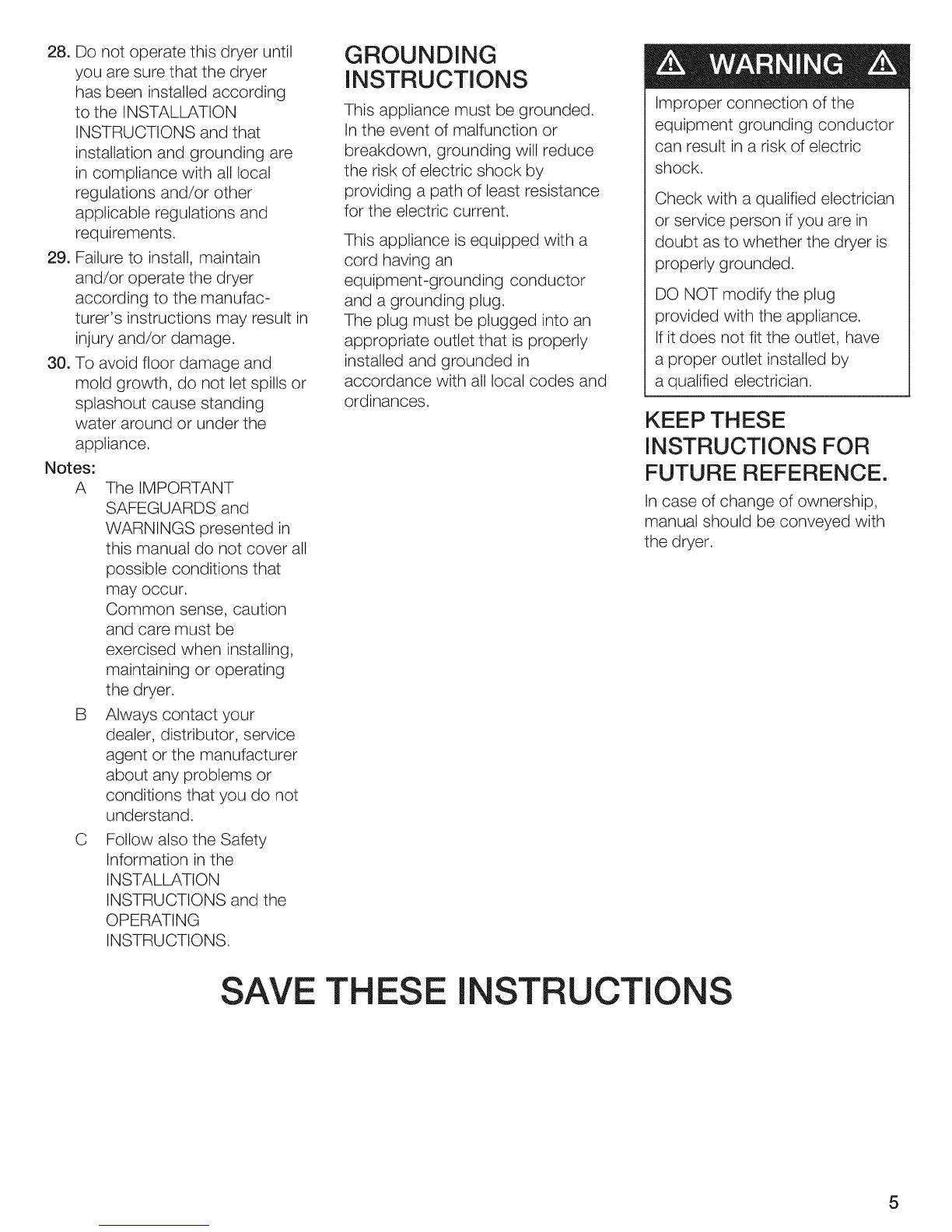

28. Do not operate this dryer until
you are sure that the dryer
has been installed according
to the INSTALLATION
INSTRUCTIONS and that
installation and grounding are
in compliance with all local
regulations and!or other
applicable regulations and
requirements.
29. Failure to install, maintain
and/or operate the dryer
according to the manufac-
turer's instructions may result in
injury and/or damage.
30. To avoid floor damage and
mold growth, do not let spills or
splashout cause standing
water around or under the
appliance.
Notes:
A
B
The IMPORTANT
SAFEGUARDS and
WARNINGS presented in
this manual do not cover all
possible conditions that
may occur.
Common sense, caution
and care must be
exercised when installing,
maintaining or operating
the dryer.
Always contact your
dealer, distributor, service
agent or the manufacturer
about any problems or
conditions that you do not
understand.
CFollow also the Safety
Information in the
INSTALLATION
INSTRUCTIONS and the
OPERATING
INSTRUCTIONS.
GROUNDING
INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for the electric current.
This appliance is equipped with a
cord having an
equipment-grounding conductor
and a grounding plug.
The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in
accordance with all local codes and
ordinances.
Improper connection of the
equipment grounding conductor
can result in a risk of electric
shock.
Check with a qualified electrician
or service person if you are in
doubt as to whether the dryer is
properly grounded.
DO NOT modify the plug
provided with the appliance.
If it does not fit the outlet, have
a proper outlet installed by
a qualified electrician.
KEEPTHESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
In case of change of ownership,
manual should be conveyed with
the dryer.
SAVE THESE INSTRUCTIONS
5

INSTALLATIO
Introduction
Read these installation instructions
completely and carefully. They will
save you time and effort and help to
ensure optimum dryer performance.
Be sure to observe all listed
warnings and cautions.
WARNING - Risk of Fire.
- Clothes dryer installation must
be performed by a qualified
installer.
Install the clothes dryer
according to the
manufacturer's instructions
and local codes.
Do not install a clothes dryer
with flexible plastic venting
materials. If flexible metal (foil
type) duct is installed, it must
be of a specific type identified
by the appliance manufacturer
as suitable for clothes dryers.
Flexible venting materials are
known to collapse, be easily
crushed and trap lint. These
conditions will obstruct clothes
dryer airflow and increase the
risk of fire.
- To reduce the risk of severe
injury or death, follow all
installation instructions.
- SAVETHESE INSTRUCTIONS
In addition to these instructions the
dryer must be installed in
accordance with all local codes or,
in the absence of a local code:
In the U.S.A., in accordance
with the National Electric Code,
ANSt/NFPA70- latest
edition/State and Municipal
codes and/or local codes.
In Canada, in accordance with
the Canadian Electric Code
C22.1 -latest edition/Provincial
and Municipal codes and/or
local codes.
INSTRUCTIONS
Information
concerning waste
disposal
Disposal of the packaging
Keep children away from
shipping carton and packaging
components. Danger of
suffocation from plastic foil and
folding cartons.
All packaging materials are
environmentally friendly and can be
reused. Please dispose of
packaging in an environmentally
friendly manner. Please ask your
dealer or inquire at your local
authority about the current means
of disposal.
Disposal of the old appliance
If appliance is no longer usable,
pull out main plug, cut off power
cord and discard with main plug.
To prevent children from locking
themselves in the appliance,
remove the door. Old appliances
are not worthless rubbish! Valuable
raw materials can be reclaimed
from environmentally friendly
recycling. Please ask your dealer or
inquire at your local authority about
the current means of disposal.
Before installing
the dryer
Unpacking the appliance
The dryer is very heavy. Do not
lift it by yourself. Do not lift the
appliance by projecting
components (e.g. door) - due to
risk of breakage.
Remove the appliance packag-
ing carefully to prevent damage
to the surfaces.
Check the dryer for transportation
damage. Do not connect a dryer
which is visibly damaged. If in
doubt, contact your dealer.
Supplied components
The dryer is delivered as a complete
unit. The operating instructions and
supplied accessories can be found
in the drum.
After removing the packaging,
immediately remove any objects
from the drum.

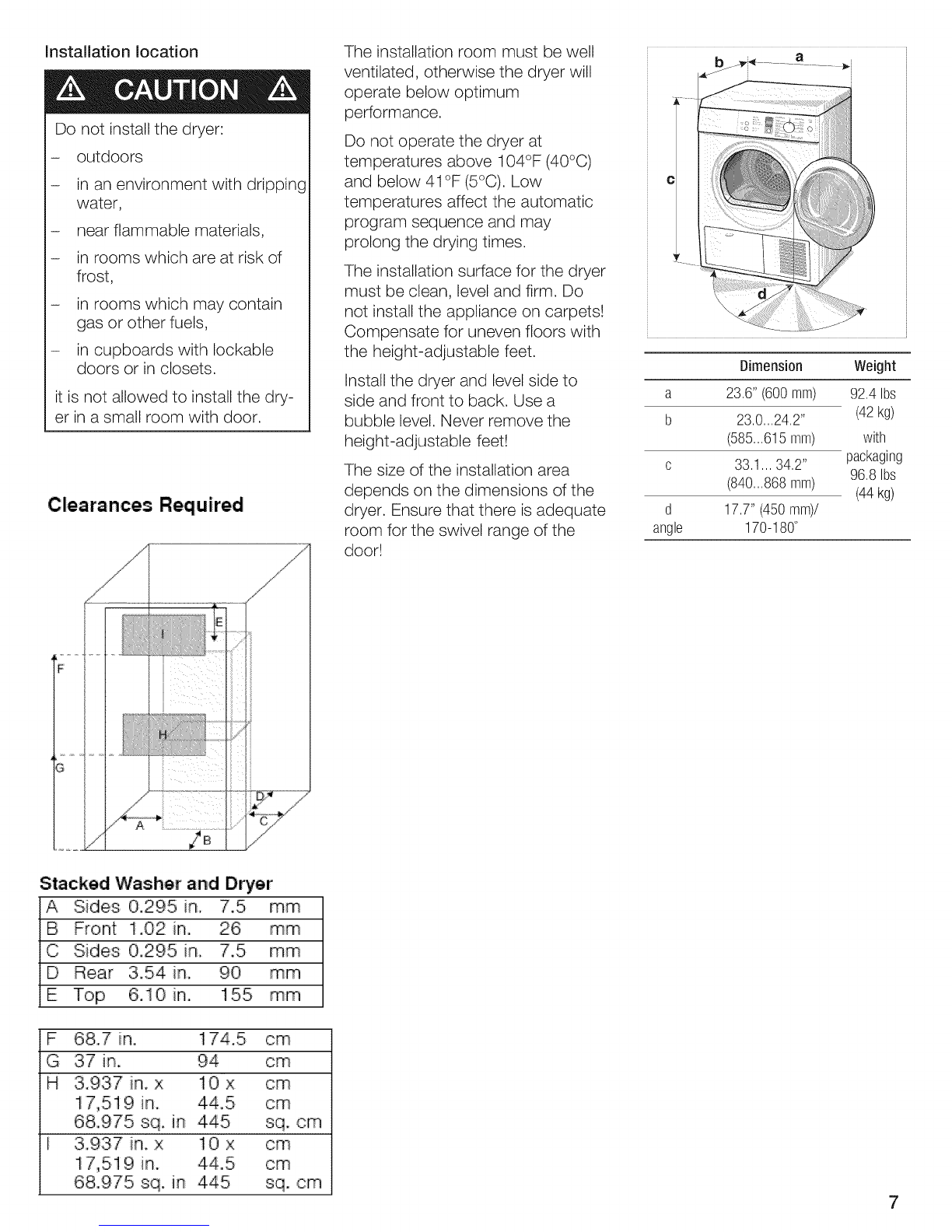

Installationlocation
Donotinstallthedryer:
- outdoors
- inanenvironmentwithdripping
water,
- nearflammablematerials,
- inroomswhichareatriskof
frost,
- inroomswhichmaycontain
gasorotherfuels,
- incupboardswithIockable
doorsorinclosets.
itisnotallowedto installthedry-
erinasmallroomwithdoor.
Clearances Required
3
The installation room must be well
ventilated, otherwise the dryer will
operate below optimum
performance.
Do not operate the dryer at
temperatures above 104°F (40°C)
and below 41°F (5°C). Low
temperatures affect the automatic
program sequence and may
prolong the drying times.
The installation surface for the dryer
must be clean, level and firm. Do
not install the appliance on carpets!
Compensate for uneven floors with
the height-adjustable feet.
Install the dryer and level side to
side and front to back. Use a
bubble level. Never remove the
height-adjustable feet!
The size of the installation area
depends on the dimensions of the
dryer. Ensure that there is adequate
room for the swivel range of the
door!
Dimension Weight
a
b
c
d
angle
23,6" (600 mm) 92,4Ibs
23,0,,,24,2" (42 kg)
(585,,,615mm) with
33,1,,,34,2" packaging
96,8Ibs
(840,,,868mm) (44 kg)
17,7" (450mm)/
170-180°
Stacked Washer and Dryer
A Sides 0.295 in. 7.5 mm
B Front 1.02 in. mm
C Sides 0.295 in. 7.5 mm
D Rear 3.54 in. 90 mm
E Top 6.10in. 155 mm
F 68.7 in. 174.5 cm
G 37 in. cm
H 3.937 n. x 10 x cm
17,519 in. 44.5 cm
68.975 sq. in 445 sq. cm
3..937 in. x 10 x cm
17,519 in. cm
68.975 sq. in 445 sq. cm 7

Electrical connection
Power cord must be connected
by a qualified person only.
Connect to individual Brunch
Circuit.
Do not use an adapter.
Do not use an extension cord.
Do not remove ground prong.
For CANADA
Your dryer comes with a power
supply cord, CSA listed in Canada.
The Bosch dryer requires a 4-wire
receptacle.
When installing the receptacle for
the dryer cord, ensure that the
power supply cord is accessible
when the dryer is in the installed
position.
The power cord should only be
replaced by a qualified person.
Use a 4-wire power supply cord
(see electrical connection U.S.A.
below).
For U.S.A.
Your dryer comes without a 3- or
4- wire power supply cord. The
power cord kit must meet the
following requirements:
- ULlisted in the USA
- 208- 240 volt rated (minimum)
- 30 amps
- Type SRDT or DRT (UL 2158 A)
- Five feet long (minimum)
- Marked suitable for dryer
Power cord must be connected
by a licensed electrician only.
Use only a U.L. approved
30 amp power cord with strain
relief clamp -
note manufacturer's instructions.
Do not plug end of power cord
into a live receptacle before con-
necting power cord to appliance
terminals and closing junction/
splitter box as described below.
Do not reuse old power cord.
Cord must have closed loop or
upturned end wire terminating
connectors.
Do not make a sharp bend or
crimp wiring/conductor at con-
nections.
Only a 4-conductor cord shall
be used when the appliance is
installed in a mobile home, in a
recreational vehicle, in a new
branch circuit installation or an
area where the local codes do
not permit grounding through
the neutral.
The splitting box is located at the
top rear of the appliance.
To connect the power cord you
have to remove the cover plate.
/
/
1. Remove the screws of the
cover plate on the rear side of
the appliance.
7_
8.
2. Push the cover plate from the
front to the rear side and lift up.
3. Open the splitting box in the
right corner (20 Torx).
4. Loosen the strain relief in the
appliance.
5. Thread the power cord through
the U.L strain relief clamp.
6. Tighten the screws (2.5 Nm) of
the U.L strain relief clamp so
that the power cord cannot be
moved.
Connect the power cord as
described below.
After connecting the power
cord close the splitting box and
replace the cover plate fasten in
place with reverse handling.
Dryersuppliedto customer
Connecting 4-wire power supply
cord
1. Remove the screws from the
cover of the terminal block.
2. Remove the screws from the
grounding cable.
3. Remove the grounding cable.
4. Loosen the 2 screws labeled L
in the terminal block.
5. Attach the power cord ground
conductor (green) to the
GROUND point. Tighten the
screw (2.5 Nm) so that the
ground conductor is held
securely in place.
6. Attach the 2 power cord outer
conductors (red and black) to
the 2 terminals labeled L and
the remaining power cord
conductor (white) to the
terminal labeled N.

7.Tightenall3screws(3Nm)so
thatthepowerconductorsare
heldsecurelyinplace.
8.ChecktheU.L strainrelief
clampto makesurethatitis
tightandcannotbeturned.
9.Replacethecoveronthe
terminalblockandfastenin
place.
[-_ Make sure that the U.L strain
relief clamp is outside the
cover!
The appliance is now ready to be
plugged into the 4-wire receptacle
of the power rating.
Connecting 3-wire power supply
cord
1. Remove the screws from the
cover of the terminal block
located at the top rear of the
appliance.
2. Make sure that there is
a grounding cable.
3. Loosen the 2 screws labeled L
and the screw labeled N in the
terminal block.
4. Attach the 2 power cord outer
conductors (red and black) to
the 2 terminals labeled L and
the remaining power cord
conductor (white) to the
terminal labeled N.
5. Tighten all 3 screws (3 Nm) so
that the power conductors are
held in place securely.
6. Check the U.L strain relief
clamp to make sure that it is
tight and cannot be turned.
7. Replace the cover on the
terminal block and fasten in
place.
[-_ Make sure that the U.L strain
relief clamp is outside the
cover!
Additional grounding procedure
Some local regulations may
require a separate ground.
In such cases, the required
accessory ground wire, clamp
and screw must be purchased
separately.
Never ground the dryer to
plastic plumbing lines, gas lines
or water pipes.
Grounding instruction
This appliance must be grounded.
In the event of a malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for the electric current.
For Canada the dryer comes with a
cord which has an equipment
grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet
which has been properly installed
and grounded in accordance with
all local regulations and ordinances.
Improper connection of the
equipment grounding conductor
may result in electric shock.
Have the appliance checked by
a qualified electrician or service
technician if you are in doubt as
to whether the dryer has been
properly grounded.
9

integrated socket
This appliance is equipped with a
socket for connecting a washer
without fuses. Only the listed
washer may be connected. For all
other connections Bosch will
assume no liability.
Use copper conducters only.
Connect to a 30 A minimum
individual branch circuit, fused at
30 A maximum.
Use receptable only for:
208 - 240 VAC 60 Hz 11 A
washer: WFR2460UC,
WFL2060UC, WAE20060UC,
WAS20160UC, WAS24460UC.
Condensate hose
connection
The dryer must have its condensate
drain line installed and run to a
suitable drain.
The connection for the condensate
hose is located on the back of the
dryer.Connect the condensate
drain hose to the dryer. The other
end should then be placed and
secured at nearby sink or drain.If
installed with a washer it may, room
permitting, be installed next to the
washer drain hose and drained to
the same drain used by the washer.
Be sure to follow all local codes and
regulations in running the
condensate to a suitable drain.
10

Installation -
step by step
1. Unpack the dryer.
2. Remove all objects from the
drum.
3. Check the dryer for visible
damage.
4. Position the dryer near the
installation location.
5. Have the power supply cord
fitted by an authorized
technician (see page 8).
6. Move the dryer to its final
location and align.
Do not slide dryer across the
floor if height-adjustable feet
have been extended. Feet and/or
dryer base may be damaged if
dryer is slid across floor with
height-adjustable feet extended.
7. Position and then level the
dryer.
The dryer should be level with
all four feet firmly on the
ground. The dryer must not
wobble.
If the dryer is not level or if it
does wobble, the feet must be
adjusted. Adjust the
height-adjustable feet until the
dryer does not rock and is level,
both front-to-back and
side-to-side.
8. Insert plug into the wall
receptacle.
Built under Installation
The appliance can be built
under; that is, you can instaii the
dryer under-counter in a kitchen
cabinet opening. The cabinet
opening should be square and
have dimensions as shown in the
figure.
a
b
C
600 mm minimum//23 5/8"
600 mm minimum//23 5/8"
850 mm minimum//33 1/2"
If installed under a countertop,
the countertop must be
continuous and securely
attached to neighboring
cabinets.
An opening of at least 31 square
inches (200 cm 2) must be avail-
able at the front and side of the
closet.
Check list before
using the dryer
1. Check that steps 1-8 have
been implemented properly.
2. Ensure that the dryer is
connected to the power supply.
3. Read the operating instructions
to understand how your dryer
operates.
4. Conduct an appliance test:
13 Check that the drum is
empty.
13 Close the dryer door.
13 Switch the dryer to "Extra
Dry" and then press the
Start button.
13 After 3-5 minutes press the
Stop button and open the
door.
5.
6.
If the interior of the dryer feels
warm, the dryer has been
connected properly.
Switch the dryer to "OFF".
If the dryer does not work,
switch the dryer to "OFF".
Look in the troubleshooting
section (page 21) of the
OPERATING INSTRUCTIONS
and find the fault.
Preparing to transport
the dryer- step
by step
1. Rotate the program selector
to "OFF".
2. Pull out power supply plug.
3. Place any accessories in the
drum.
.
.
Close the door and secure with
adhesive tape.
Screw the height-adjustable
feet of the dryer into the
housing to prevent them from
being damaged during
transportation.
11

OPERATI G
Your new dryer
ISTRUCTIONS
Open the door...
Lint filter .... and close the door.
Open the maintenance flap ...... and close the maintenance falp.
12
Air cooler

Panel
Status lights
Low
heat
Display
Indicates the estimated remaining time of
programs and if selected the delay start time.
® Drying
® Dampdry
® Regulardry
® WrinkleNock!End
Easy ® Dooropen
ironing ® Filter
................ : "h
h:min® i
Permanent press
Verydry
Regualrdry
Dampdry
Short
program
Touchup
Timed
programs
off
I
0
Indicator lights (LED)
Door open Close door.
-- Program selector
Selects a program. See page 16.
Can be rotated in both directions.
To switch off the dryer, rotate the
Button h:min Q
program selector to "Off".
Filter Clean fluff filter
Regular/Cotton Start
Stop
Extradry
Verydry
Regulardry
Dampdry
Finish Wools
Start/Stop button
Sets the delay start time of the dryer
(Start in .. hours!) 0 24 h Starts, interrupts and ends the drying process.
and/or air cooler.
Buttons for additional options
Low heat
Reduced temperature, the drying time is extended
correspondingly;
for sensitive textiles D, e.g. polyaerylic, polyamide,
elastane, acetate
Easy ironing
Reduces creasing and extends anti-crease phase
when programme ends to 2 hours (standard 1 hour).
13

Safety
information
To reduce the risk of fire, electric
shock or injury to persons always
follow the IMPORTANT SAFETY
INSTRUCTIONS
(see page 4).
EXPLOSION HAZARD!
Keep flammable materials and
vapors, such as gasoline, away
from the dryer.
Do not dry anything that has ever
had anything flammable on it
(even after washing).
Do not dry anything that has ever
had any type of oil on it (including
cooking oils).
Items containing foam, rubber or
plastic must be dried on a
clothesqine or by using an Air
fluff cycle.
Do not allow items containing
flammable materials, such as
lighters, to remain in clothes
while drying.
Failure to follow these
instructions may result in
explosion or fire.
Risk of death or injury!
Use the dryer only in the house and
for drying normal amounts of
laundry for the household.
Use only for drying textiles which
were washed with water.
Before switching
on the dryer
Install the dryer in accordance
with the installation instructions
(from page 6).
Do not use a dryer which is visibly
damaged. If in doubt, contact your
dealer.
Using the dryer
Do not leave children unsupervised
near the dryer.
Keep pets away from the dryer.
Before closing the door, check the
contents of the drum.
Remove all objects from pockets.
Lighters are particularly hazardous.
Risk of explosion!
Switch off the dryer at the end of
the program.
Protecting the dryer
Do not climb on the dryer.
Do not lean or sit on the door.
Risk of dryer tipping over!
Do not store or use solvent
detergent boosters or stain remover
in the vicinity of the dryer.
The dryer could be damaged.
Do not lift the dryer by projecting
components.
Risk of breakage!
Risk of injury!
Protection
of environment
Tips on saving energy
To save energy, money and time,
Bosch recommends the following:
- Drain the laundry thoroughly!
Before drying, spin the laundry
thoroughly in the washing
machine. Use the highest
possible spin speed for the type
of laundry! Higher spin speeds
reduce the drying time and the
energy consumption.
- Use optimum load!
Use maximum recommended
loads. However, do not exceed
loads.
- Clean filter!
Clean the filter before and after
each drying process
(see page 19).
- Ventilate the room!
During the drying process
provide an adequate supply
of fresh air.
- Do not dry unsuitable
materials!
Do not dry rubberized or
air-tight items.
Before using
the dryer for
the first time
Before you use the dryer for the first
time:
1. Read these operating
instructions carefully.
2. Check that the supply voltage
corresponds with the voltage
specifications on the rating
plate of the dryer, see rear side
of the dryer.
3. Remove all objects from the
drum.
4. Check the dryer for visible
damage. If damages found
contact your dealer.
5. Wipe the inside of the drum
with a damp cloth.
6. Conduct an appliance test, see
page 1 1.
7. If the dryer does not work,
switch the dryer to "Off".
Look in the troubleshooting
section (page 21) of the
operating instructions and find
the fault.
14

Temporary
disconnection
of the dryer
Operate your dryer only when you
are at home. If you intend going on
vacation or are not using your dryer
for an extended period of time, you
should:
1. Turn off the circuit breaker.
2. Pull out the power supply plug
if possible.
3. Clean the lint filter.
Laundry
Identification
of fabrics
Observe the treatment symbols on
the textile labels. They provide
valuable information as well as
limitations about the drying
process.
Do not dry the following textiles in
the dryer:
- Air-tight textiles
(e.g. rubberized).
- Delicate fabrics (silk, synthetic
curtains).
Drying tips
In principle, the following applies to
all drying programs:
To ensure a uniform drying
result, sort the laundry
according to fabric type and
drying program.
- Fasten zippers, hooks and
eyes. Fasten loose belts, apron
strings, etc..
- Do not overdry easy-care
laundry - risk of wrinkling!
Leave laundry to dry in the air.
Do not iron laundry immediately
after drying. Place the laundry
in a pile for a short while.
Residual moisture will then be
distributed uniformly.
Knitted textiles (e.g. T-shirts,
cotton jersey laundry) often
shrink when dried for the first
time. Do not use the "Very
dry/Extra dry" program.
15

Program
selection
For optimum drying results your
dryer offers several program groups
and additional options.
Select the required drying program
from the program table according
to the examples (see page 26).
Automatic programs
There are automatic programs for
different types of textiles
(regular/cotton, permanent press).
Regular/Cotton
!;wdV @ Extradry
_xxxxxxxxxxxxxx_ xxxxxxx xxx
Permanent Press
The program sequence of
automatic programs is controlled
via sensors. The duration of the
program depends on the measured
degree of moisture in the laundry
and on the selected degree of
dryness (e.g. damp dry or extra dry).
Special programs
_4 !J7 7+;Y+h;_,
....o_......... /I \{ ,<, ,, ;
r ! IJ .... 7_,{f f 7<)
Short \ _* /_
program X '"
fiu _d J_;l<f)" i f
y_oD{_'_hm 0_7_1' i I Finish Wools
The programs Wools Finish and
Short are made for special
application cases.
The Wools Finish program is for
machine-washable woollen textiles.
Textiles are fluffer but not dried.
Remove and hang up textiles when
the program ends.
The Short program is for washing
which is to be dried quickly, e.g.
made of synthetic fabrics, cotton or
blended fabrics.
Time programs
/
Timea Warm
programs 40 mln. I f_n; Y_A,_;_s
Time programs run at specific
temperatures. Suitable for predried,
multi-ply, delicate textiles or
individual small items. Also for
subsequent drying.
- Warm 40 min.
- Touch up (20 min) for extreme
temperature sensitive textiles.
Low heat
Press the "Low heat" button for
temperature sensitive textiles.
Observe the care information or
symbols on the textiles. The
temperature of the drying process is
reduced, the drying time is
extended.
[-_ For extreme temperature
sensitive textiles
(e.g. camisoles, paints) press
the "Low heat" button to
reduce the temperature of the
drying process.
Easy Ironing
To prevent the laundry from
creasing, the dryer drum rotates at
specific intervals following the
drying program. Standard setting
for this function is 1 hour.
If the "Easy ironing" button is
pressed, this function is extended
to 2 hours.
The laundry remains loose and fluffy
until it is removed. The laundry
should be removed at the latest
after this time has elapsed.
16

Start Delay G
Sets the delay start time of the dryer
(Start in .. hours!) 0-24 h
(0.5 h steps)
The selected time is displayed.
Operation with Start Delay
First select a program and then the
start delay by pressing the button.
Press the Start!stop button and
after the run down of the delay start
time the dryrng program starts.
Indicator of program
sequence
The dryer uses an electronic
scanning system for all programs
except the time programs and the
special "Wool Finish" program.
A moisture sensor continuously
checks the moisture in the laundry.
Drying ends automatically as soon
as the selected degree of dryness
has been reached.
The drum continues to rotate at
specific intervals for one hour to
prevent creasing.
The current state of the process
and the level reached during the
program sequence is indicated
via indicator lights (drying, damp
dry, regular dry, Wrinkle blocW
End).
ODrying
@Damp dry
@Regulardry
@ Wrinkle block/End
[-_lf the indicator light "Wrinkle
blocWEnd" illuminates when
the program selector is in
Off-Position - turn off the
circuit breaker and call for
customer service!
17

Operation
Using the dryer
1. Open the door.
2. Check lint filter.
The filter should be cleaned
after and before every drying
process. Cleaning the filter
reduces the drying time and
saves energy. F
3. Rotate program selector to the
desired program.
Select the program which
corresponds to the laundry in
the dryer from the program
selection table (see page 26).
The dryer light turns on inside
the drum.
The "Start!Stop" indicator light
starts flashing.
[-_ The estimated remaining time
will be indicated.
[-_ Lint filter indicator flashes for
5 seconds - "Check lint filter"!
4. If required, select "Low heat"
by pressing the button.
The "Options" are explained on
page 16.
5. If required, select "Easy ironing"
by pressing the button.
The "Options" are explained on
page 16.
%The estimated remaining time
will be updated.
6. Place laundry in the empty
drum. Put each piece of laundry
into the machine separately.
For best results the laundry to
be dried must be sorted
according to type of laundry
and desired degree of drying.
For further information see
page 16.
[-_ Observe drying symbols of the
laundry manufacturer.
Ensure that there is only laundry in
the drum. Check that all items are
completely in the drum.
7. Close the door.
[-_lf the door has not been closed
properly, the dryer will not start.
8. Press the "Start!Stop" button.
The "Start!Stop" indicator light
illuminates.
If an automatic program has been
selected, the indicator lights
indicate the progress of the
program sequence.
[-_At the end of the program
sequence Damp dry is emitted
(if set).
At program end the LED
"Wrinkle blocWEnd" illuminates.
When the drying process is
complete (program or selected
time program ended), the drum
rotates at specific intervals.
This prevent the laundry from
creasing (see "Easy ironing",
page 16).
9. Open the door.
10. Take the laundry out of the
dryer.
11. Rotate the program selector
to "Off".
The dryer light goes out.
12. Clean the filter.
The filter should be cleaned
after each drying process.
Cleaning the filter reduces the
drying time and saves energy.
13. Close the door.
18

Cleaning and
care
Cleaning the dryer
RISK OF EXPLOSION!
Never use solvents or highly
flammable liquids for cleaning.
Incorrect cleaning may damage
the dryer. Do not spray with
a water jet. Do not use scouring
agents or all-purpose cleaners.
Do not use steam cleaners.
Wipe the housing and fascia with
a soft cloth and soapy water only.
Wipe the drum, door seal and inside
of the door with a damp cloth only.
Cleaning the lint filter
A dirty filter extends the drying time
and increases energy consumption.
The filter should be cleaned before
and after each drying process,
however at the latest when the
"Filter" indicator light illuminates.
If the "Filter" indicator light
illuminates during a drying program,
clean the filter immediately and
check the condensate hose.
[-i--] The program interrupts
automatically.
1. Switch off the dryer. Program
selector to "Off".
The inside of the door heats up
during the drying process.
2. Open the door.
3. Pull out filter...
4.... and open.
5. Remove fluff (run hand over
filter).
The filter should be rinsed once
a year under warm running water.
The filter must be dried thoroughly
before being replaced.
6. Close filter and re-insert.
7. Close the door.
Cleaning the air cooler
3-4 times a year or if o (Filter)
flashes continuously after the fluff
filter has been cleaned.
1. Leave the dryer to cool down.
2. Residual water may escape,
place an absorbent cloth under
the maintenance flap.
3. Unlock the maintenance flap.
4. Completely open maintenance
flap.
5. Screw both locking levers
towards each other.
6. Pull out the air cooler.
19

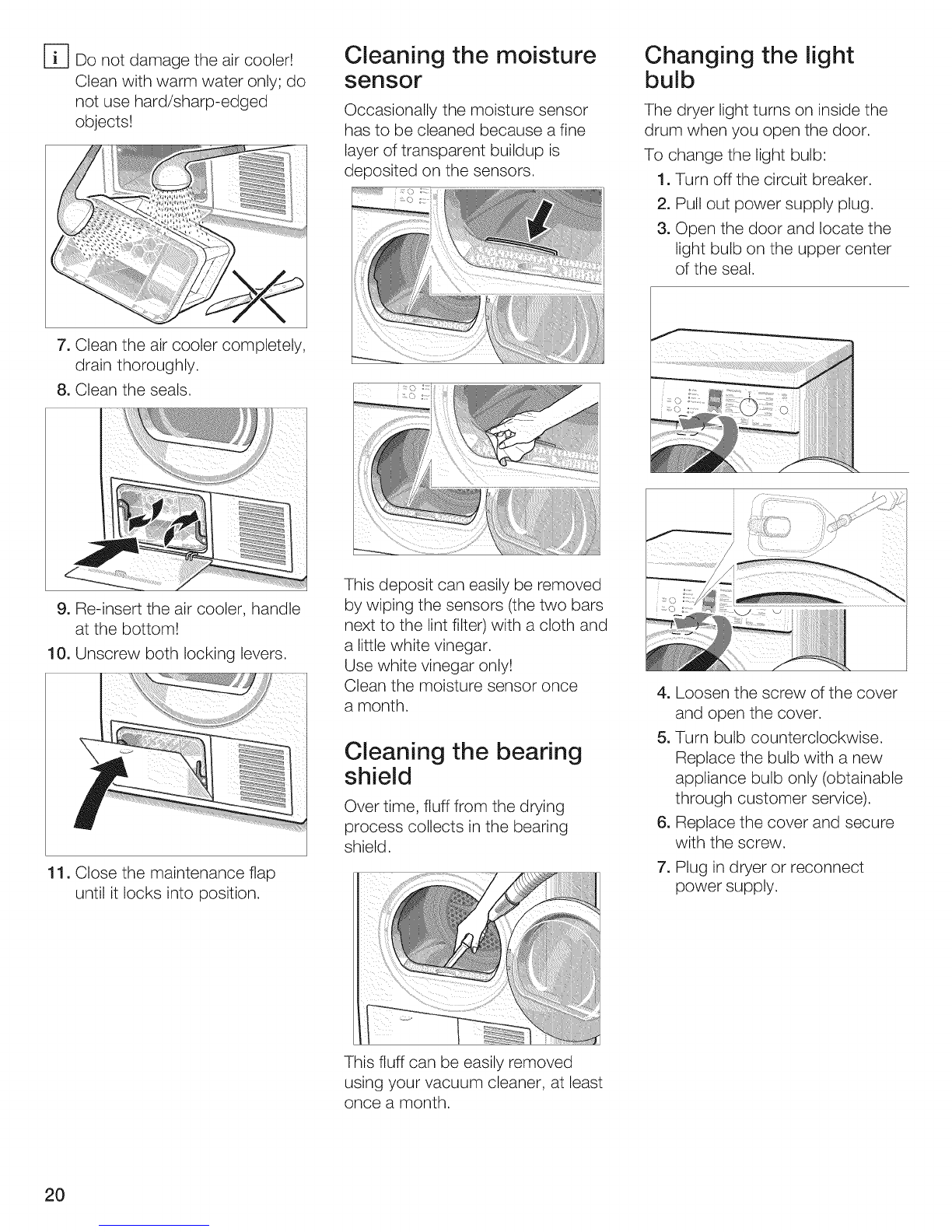

[-_Do not damage the air cooler!
Clean with warm water only; do
not use hard/sharp-edged
objects!
7. Clean the air cooler completely,
drain thoroughly.
8. Clean the seals.
Cleaning the moisture
sensor
Occasionally the moisture sensor
has to be cleaned because a fine
layer of transparent buildup is
deposited on the sensors.
C
Changing the light
bulb
The dryer light turns on inside the
drum when you open the door.
To change the light bulb:
1. Turn off the circuit breaker.
2. Pull out power supply plug.
3. Open the door and locate the
light bulb on the upper center
of the seal.
9. Re-insert the air cooler, handle
at the bottom!
10. Unscrew both locking levers.
1. Close the maintenance flap
until it locks into position.
This deposit can easily be removed
by wiping the sensors (the two bars
next to the lint filter) with a cloth and
a little white vinegar.
Use white vinegar only!
Clean the moisture sensor once
a month.
Cleaning the bearing
shield
Over time, fluff from the drying
process collects in the bearing
shield
4. Loosen the screw of the cover
and open the cover.
5. Turn bulb counterclockwise.
Replace the bulb with a new
appliance bulb only (obtainable
through customer service).
6. Replace the cover and secure
with the screw.
7_ Plug in dryer or reconnect
power supply.
This fluff can be easily removed
using your vacuum cleaner, at least
once a month.
2O
